MODEL
270THS
Toy Hauler · Sleeps 2–8

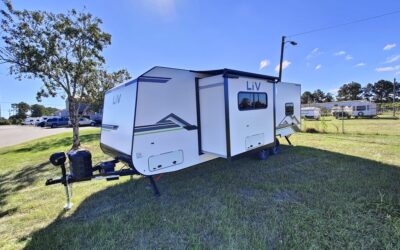

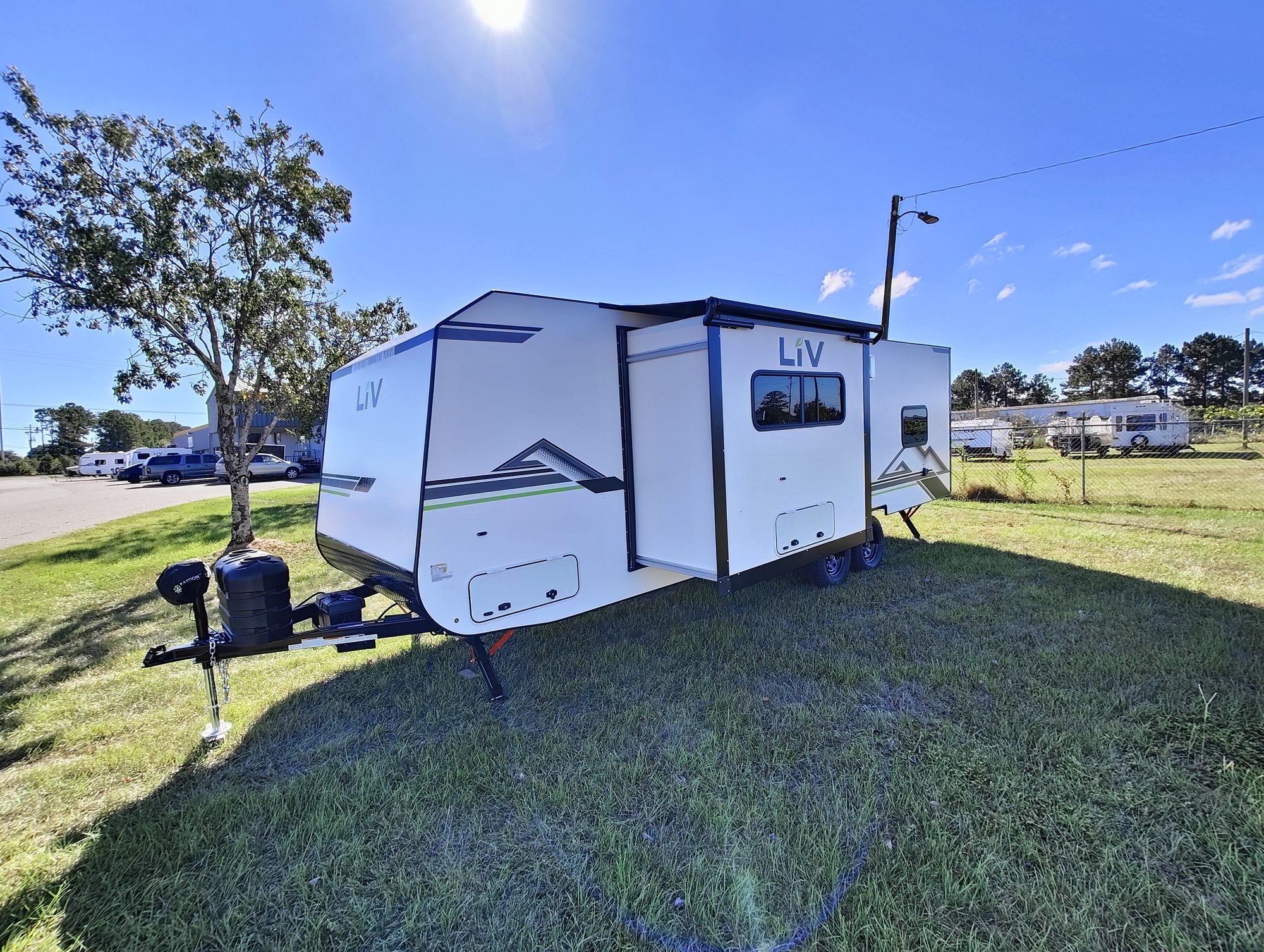

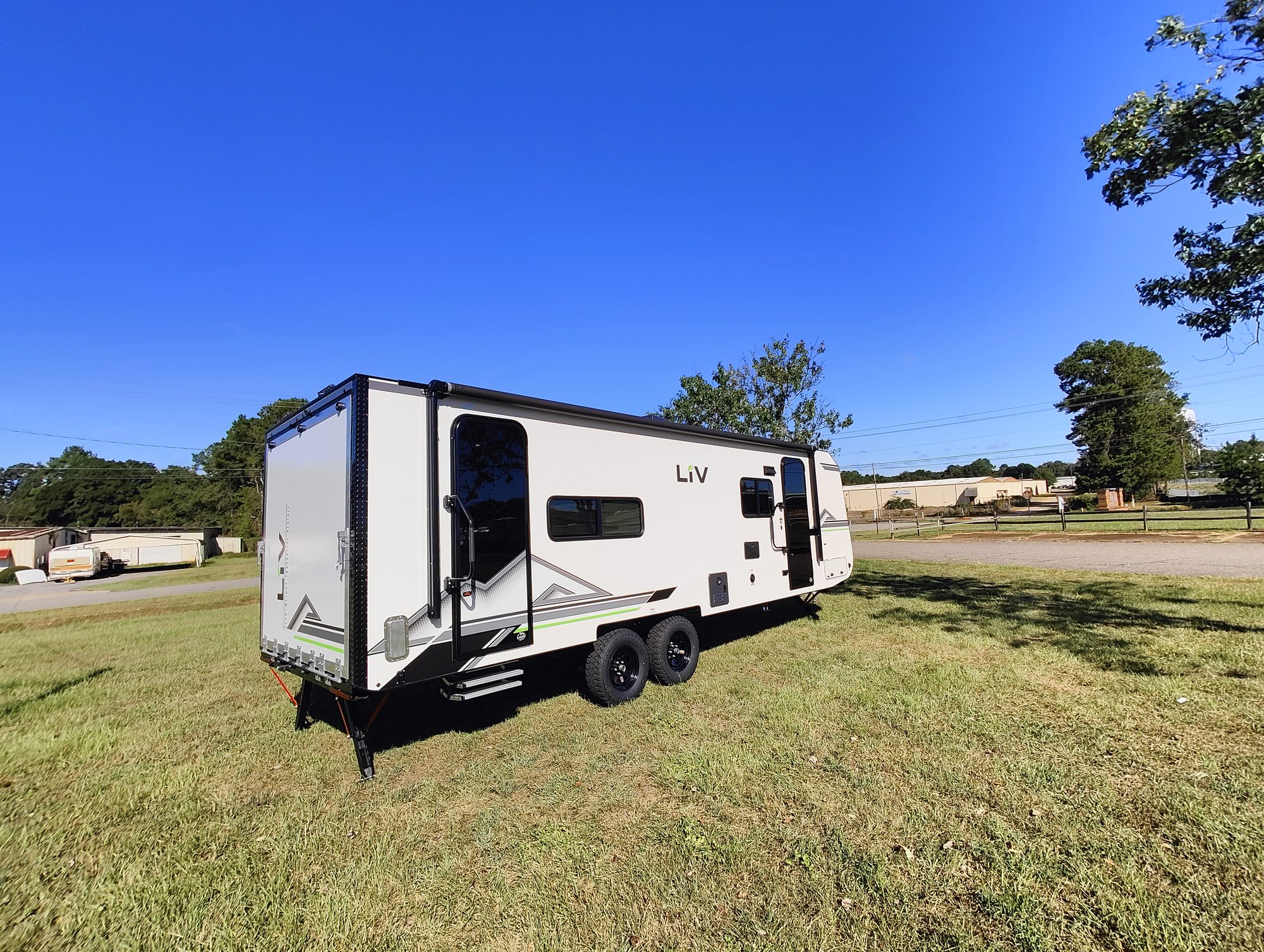

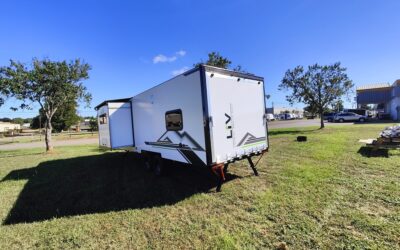

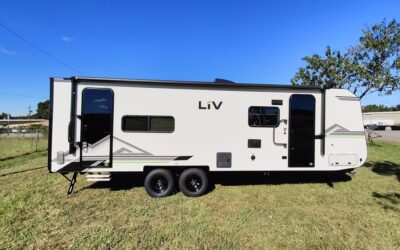

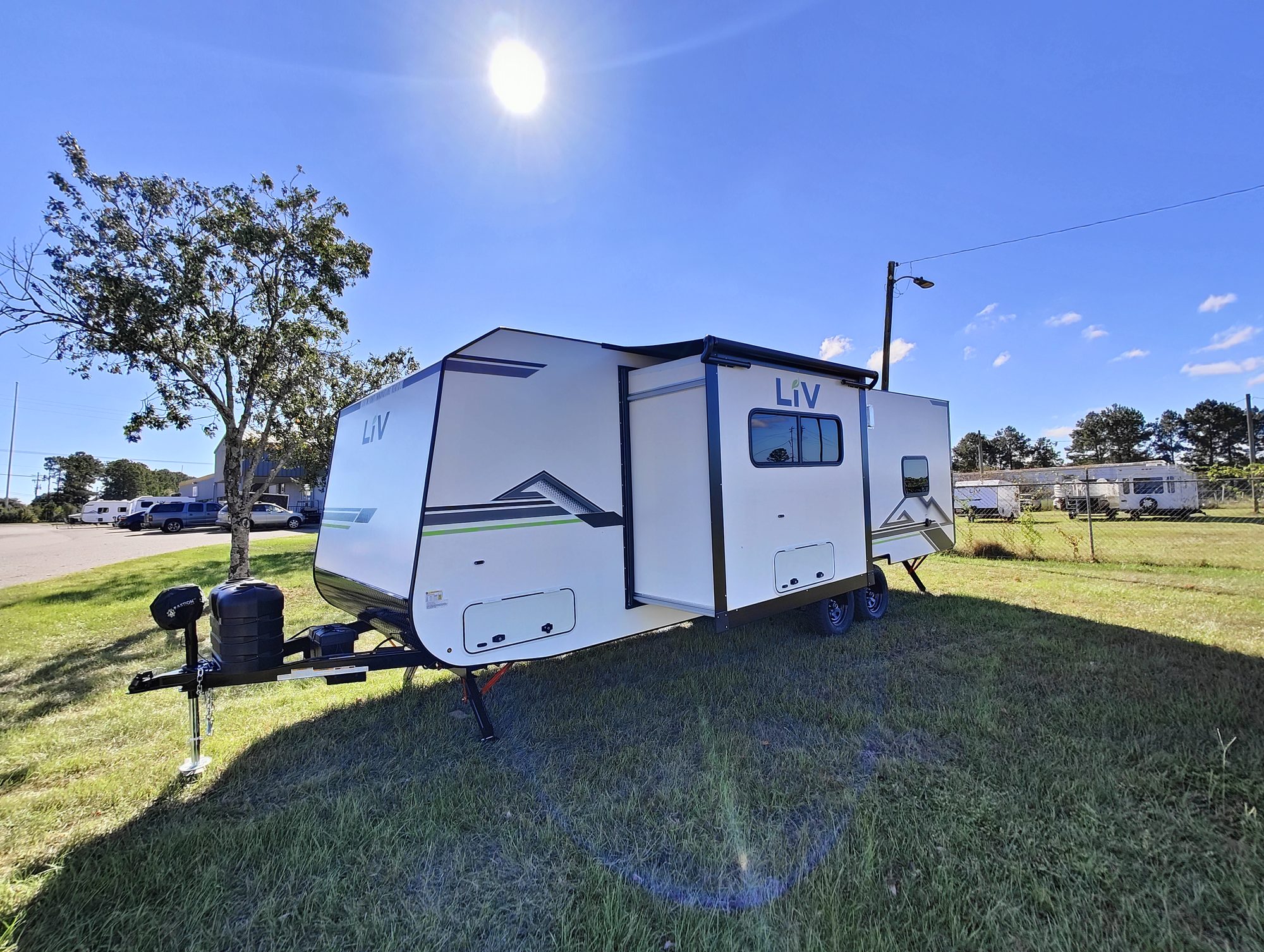

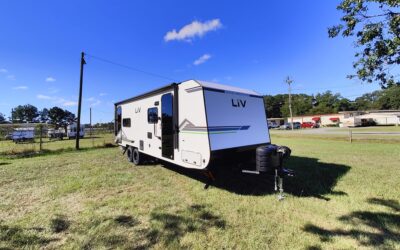

The 270THS is our most versatile toy hauler yet — a slide-out opens the main living area wide, while a rear garage hauls your rec vehicles and gear. Inside, the space does double duty: a dinette converts to a bed and the sofa folds down to another, while a separate rear bedroom/garage adds two fold-down beds and room to load your toys — so the whole rig sleeps eight. Drop the fold-down rear ramp and it becomes a covered patio for the campsite; step back inside to a full bathroom, a separate closet, and storage cabinets everywhere you look. It rides on LiV’s 100% thermoplastic composite shell — so there is no structural wood to rot — backed by the Lifetime Warranty on Wood Rot and Wood Mildew, with a roof rated to hold up to 3,000 lb. And at about 4,593 pounds dry, it tows with far less truck than a comparable wood- or metal-framed toy hauler its size. Final equipment is still being finalized; this is an early look.
View gallery
- 4,593
- LBS DRY
- 2–8
- SLEEPS
- 27'
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 29' 11"
- Width
- 8'
- Exterior Height
- 10' 6"
- Interior Height
- 6'4"
WEIGHT
- Dry Weight
- 4,593 lbs
- GVW
- 6,750 lbs
- Tongue Weight
- 695 lbs
- Carrying Cap.
- 2,000 lbs
TANKS
- Fresh Water
- 35 gal
- Grey Water
- 38 gal
- Black Water
- 38 gal
- LP Tank
- 40 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–8 people
- Axles w/ Brakes
- 2 axles
- Tires
- ST205/75R15
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

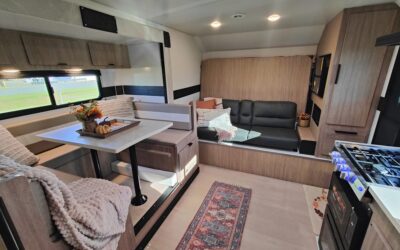

- Slide-out main living area

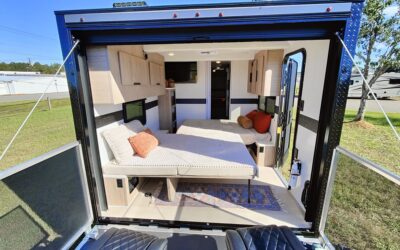

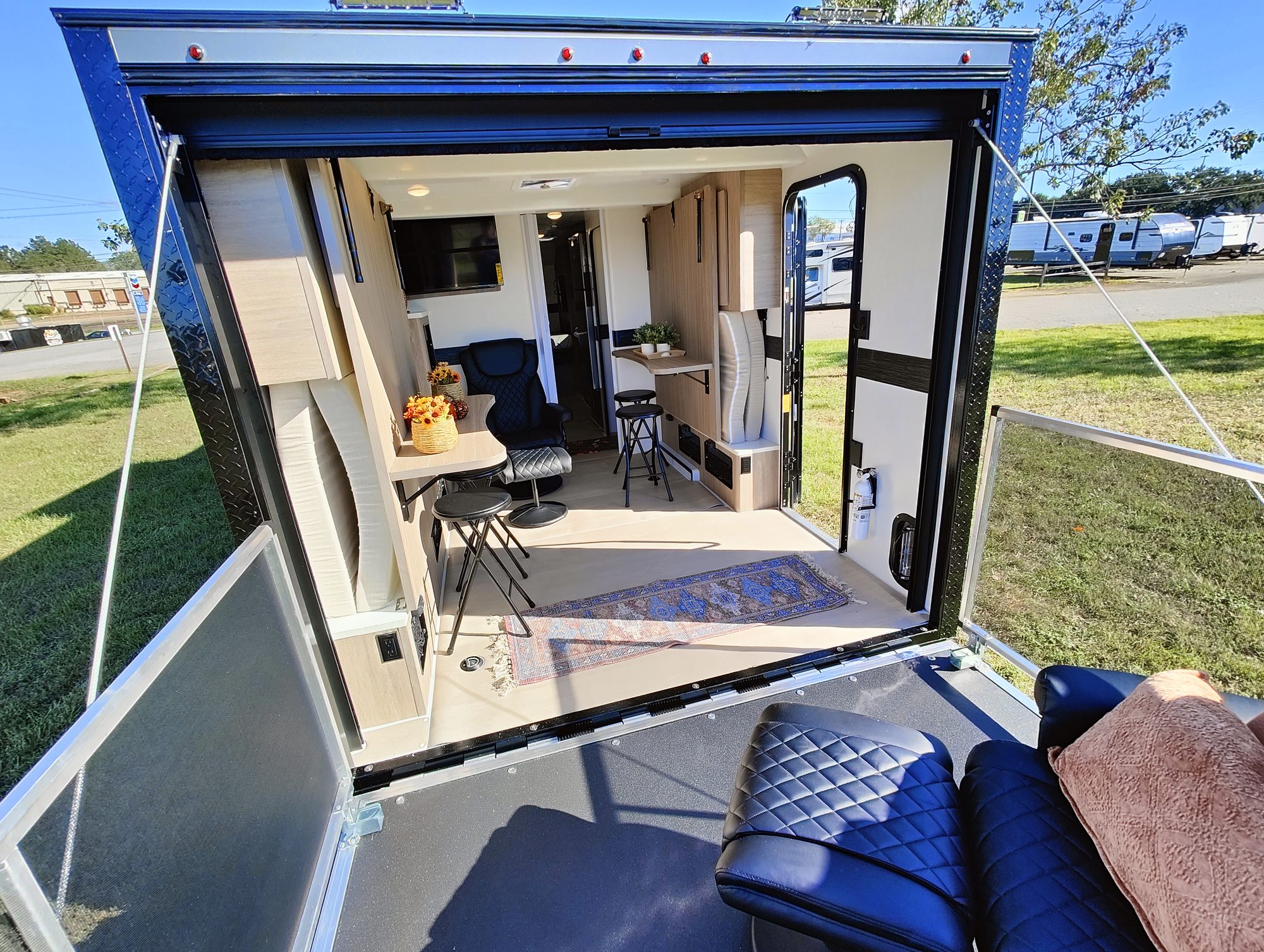

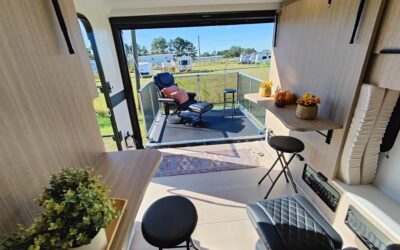

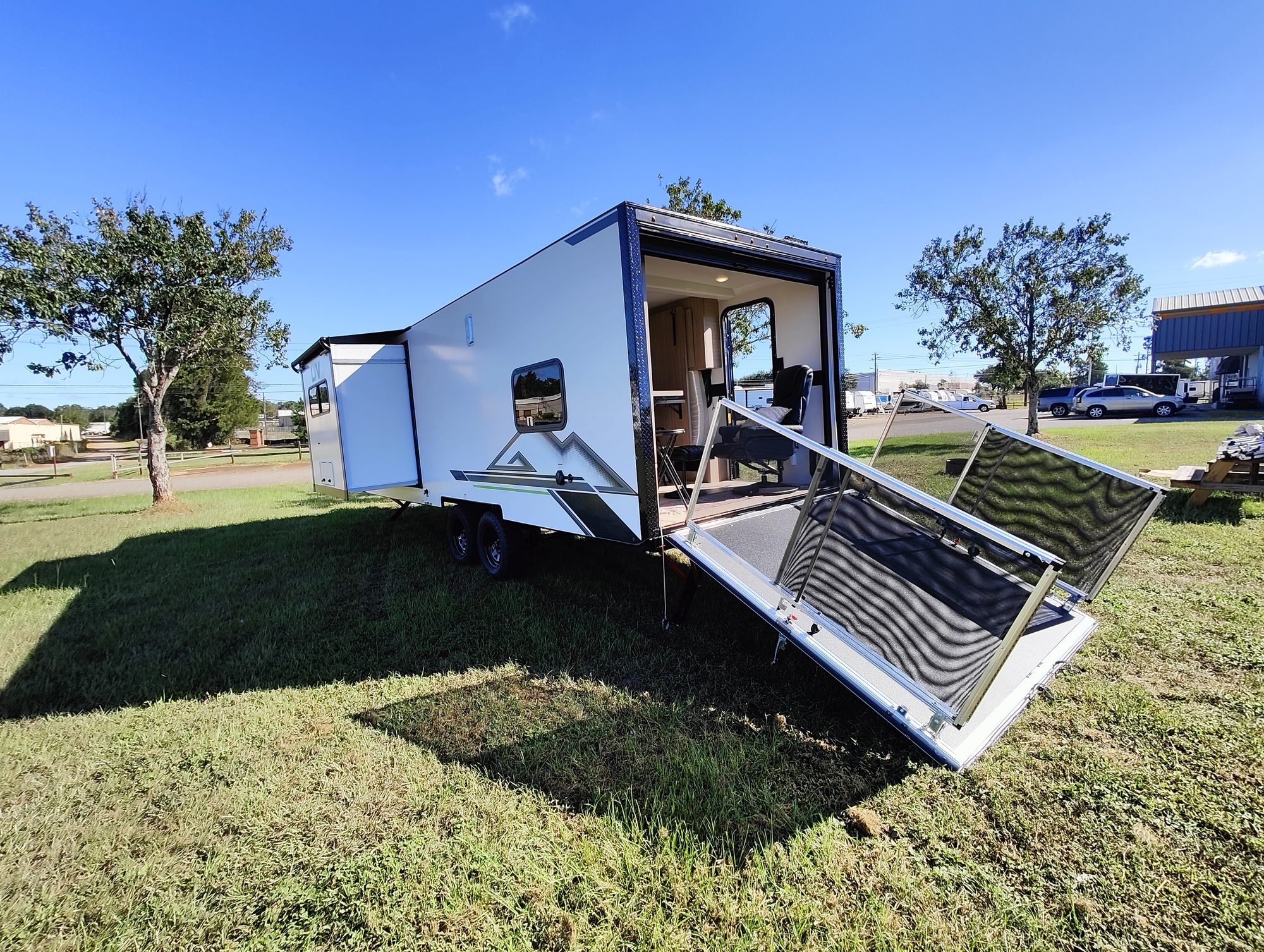

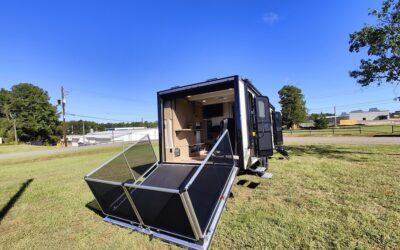

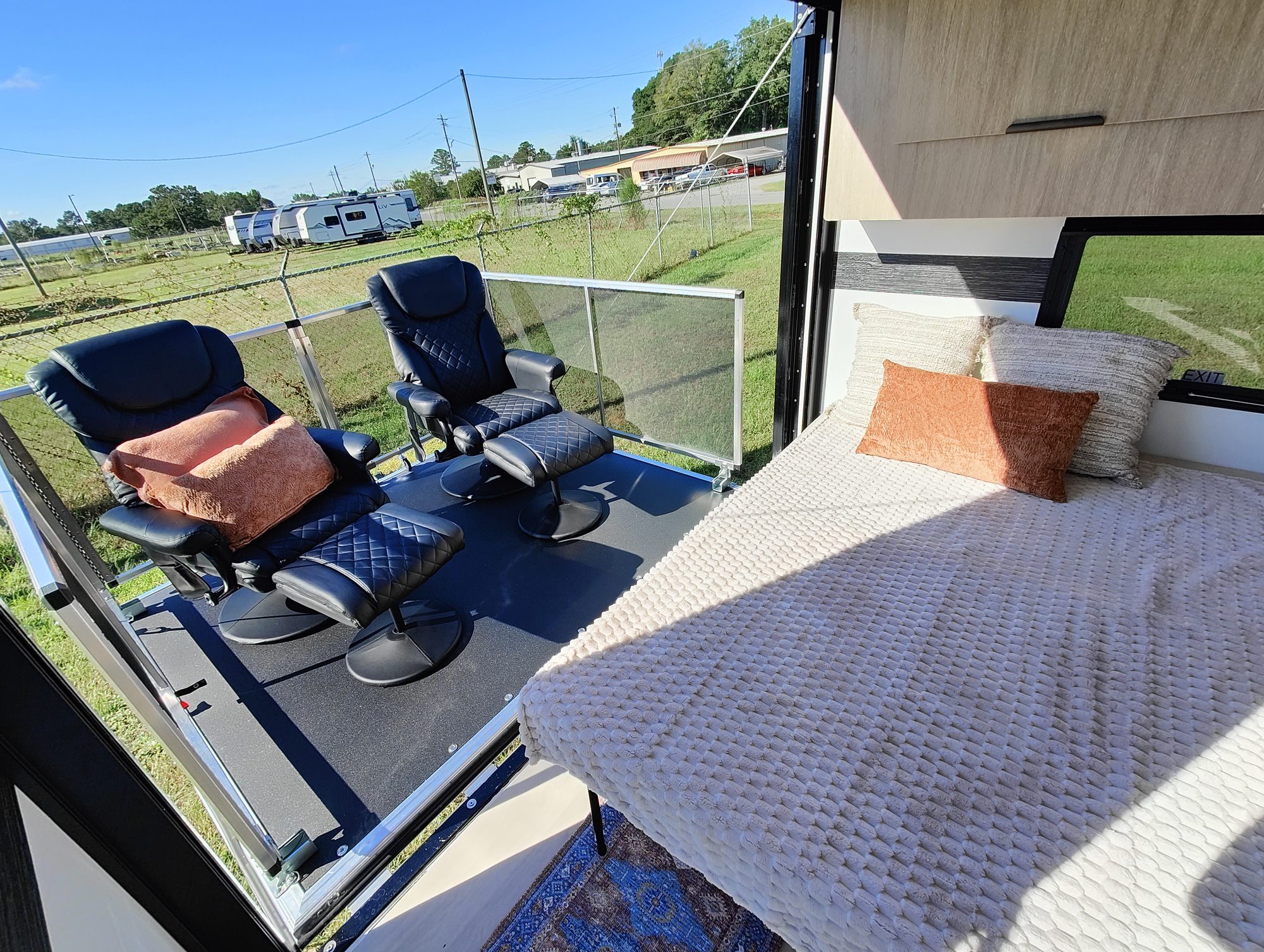

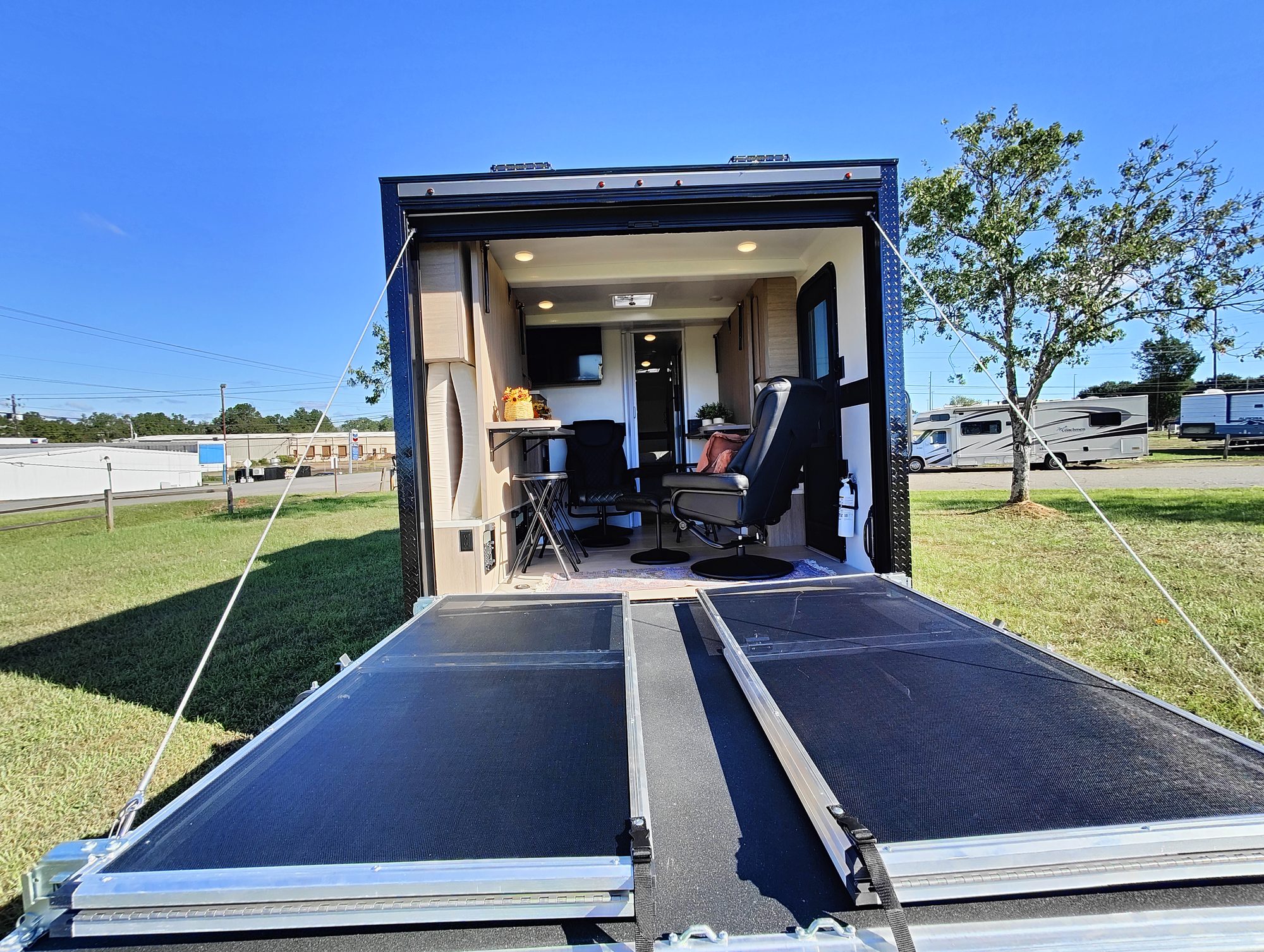

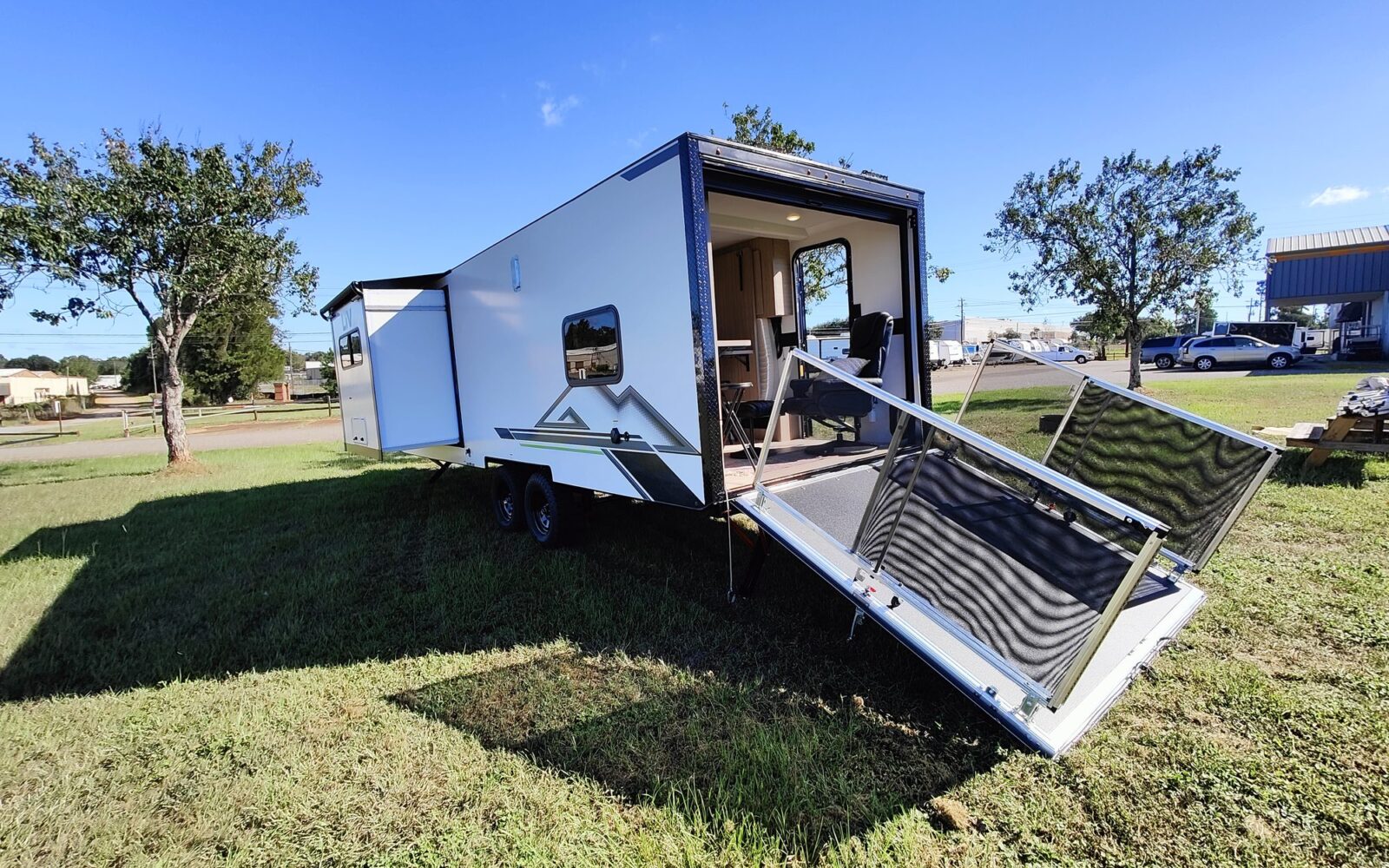

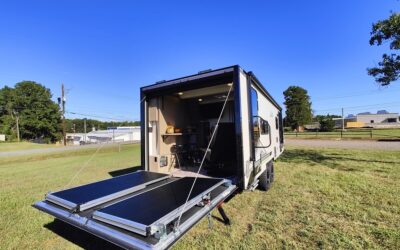

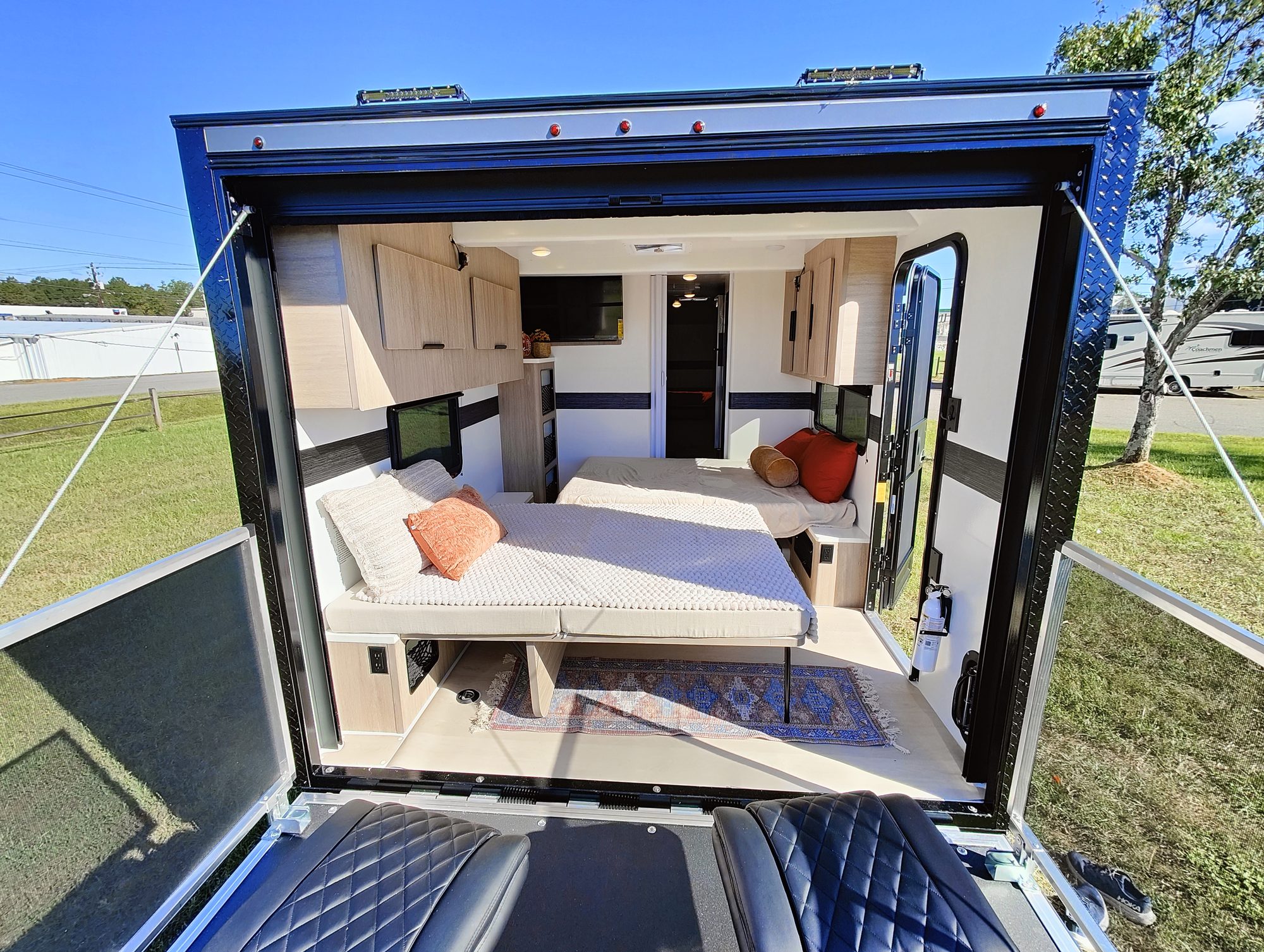

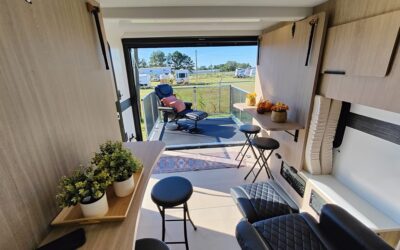

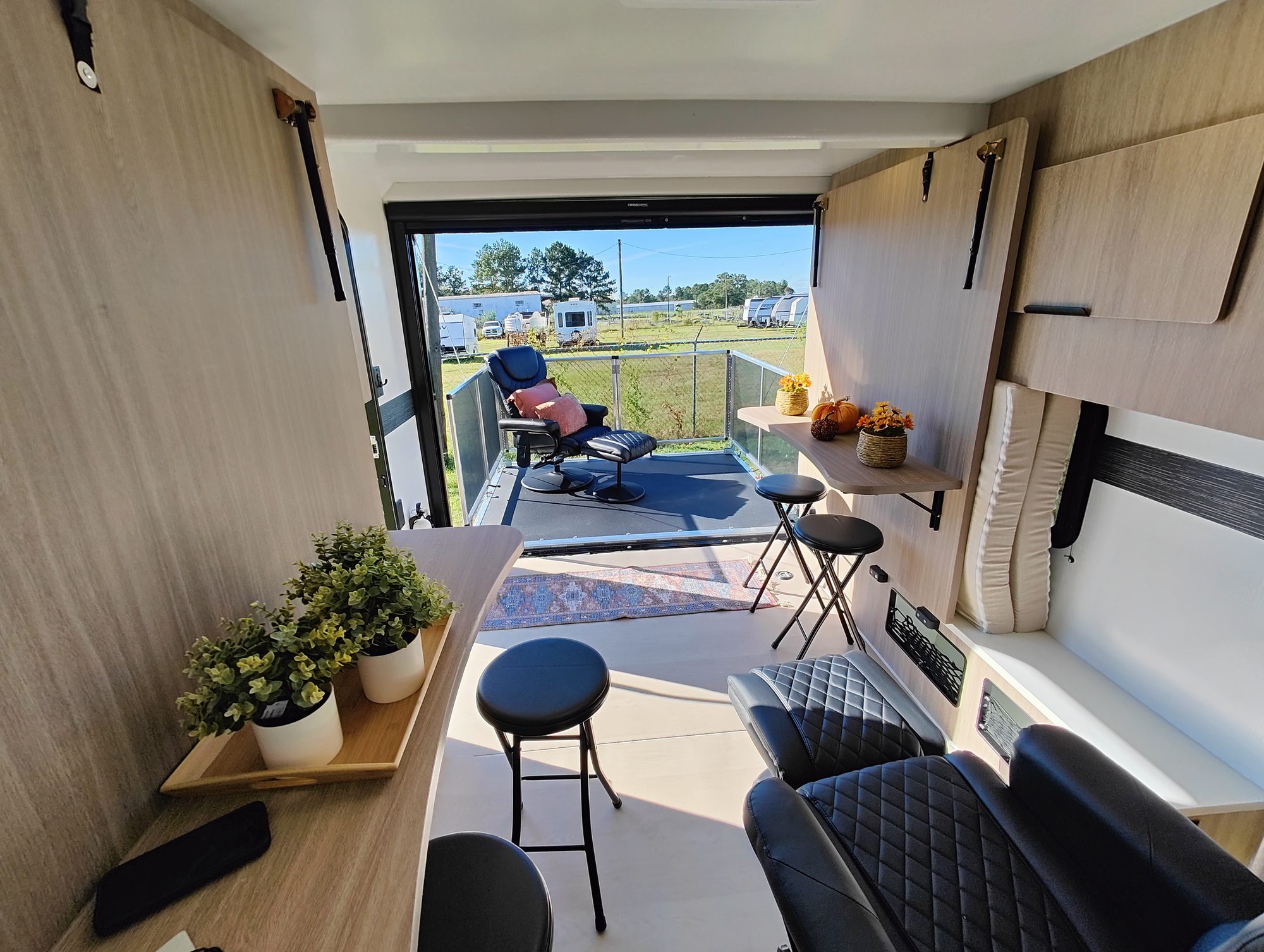

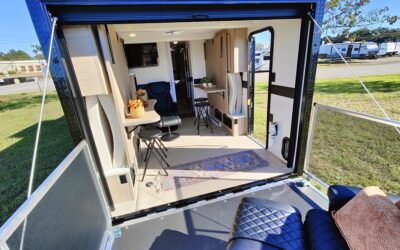

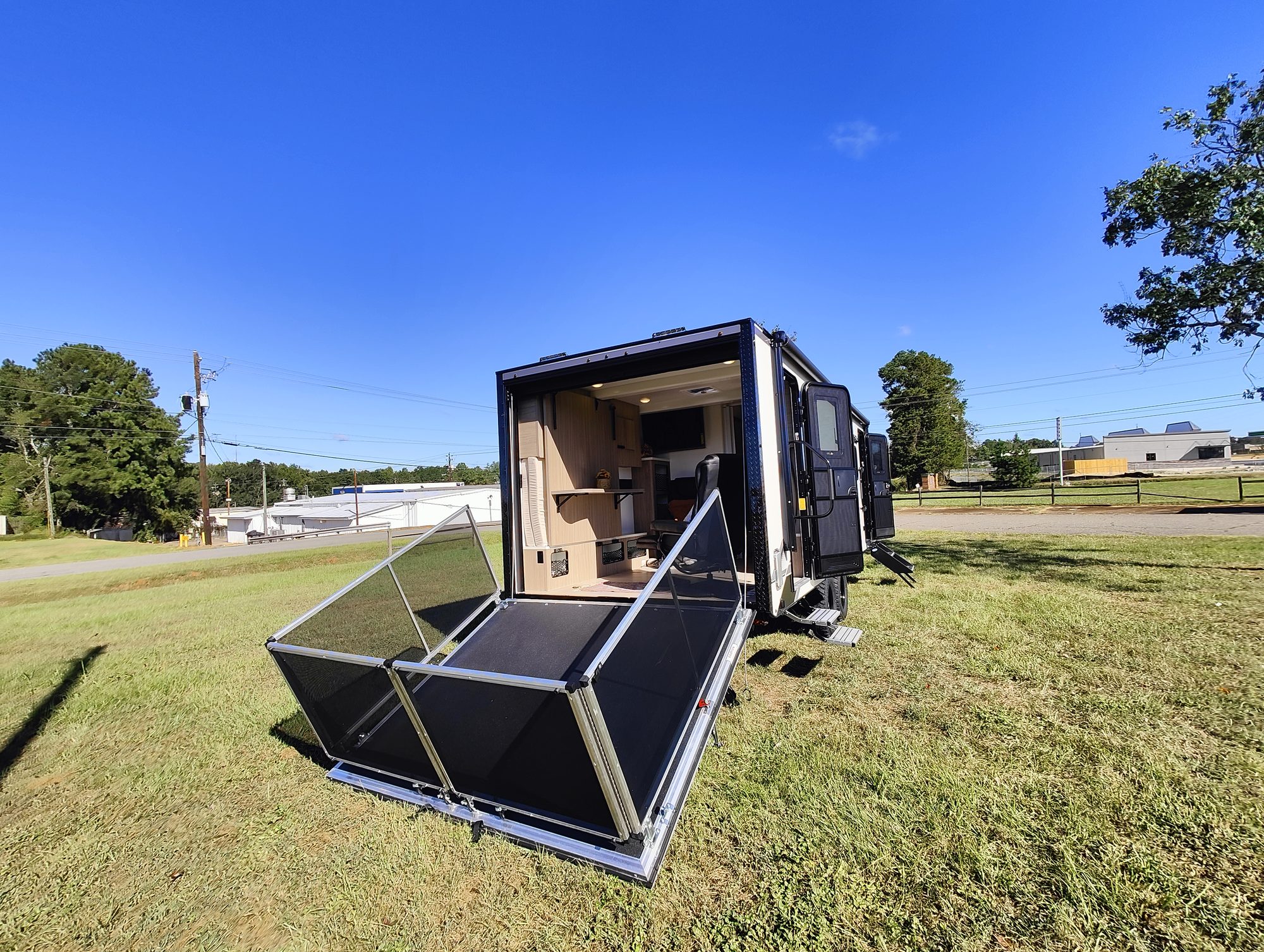

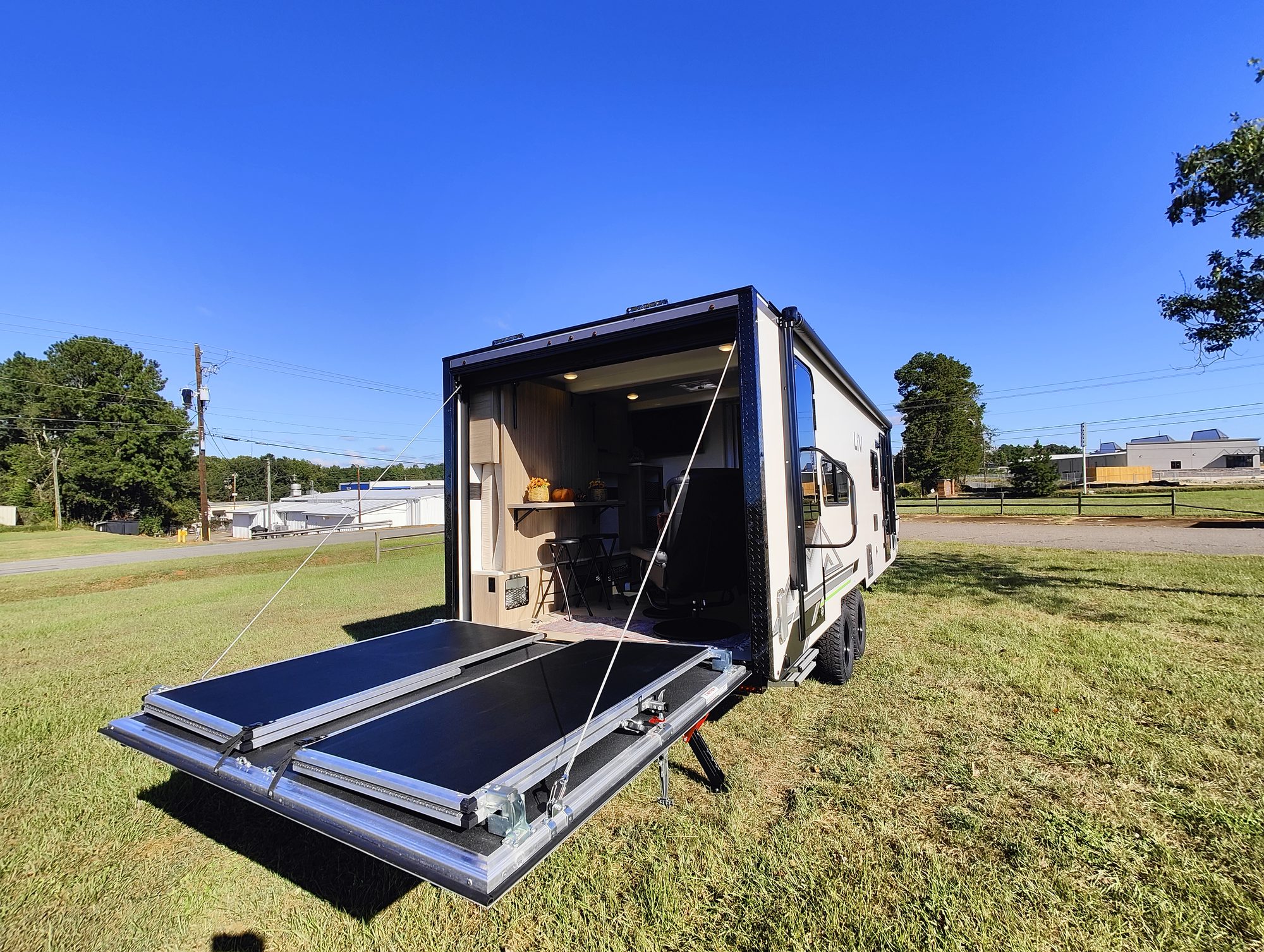

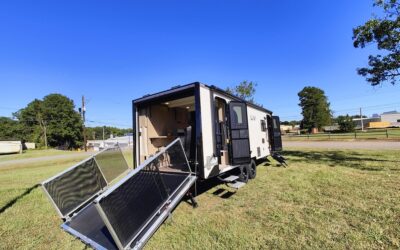

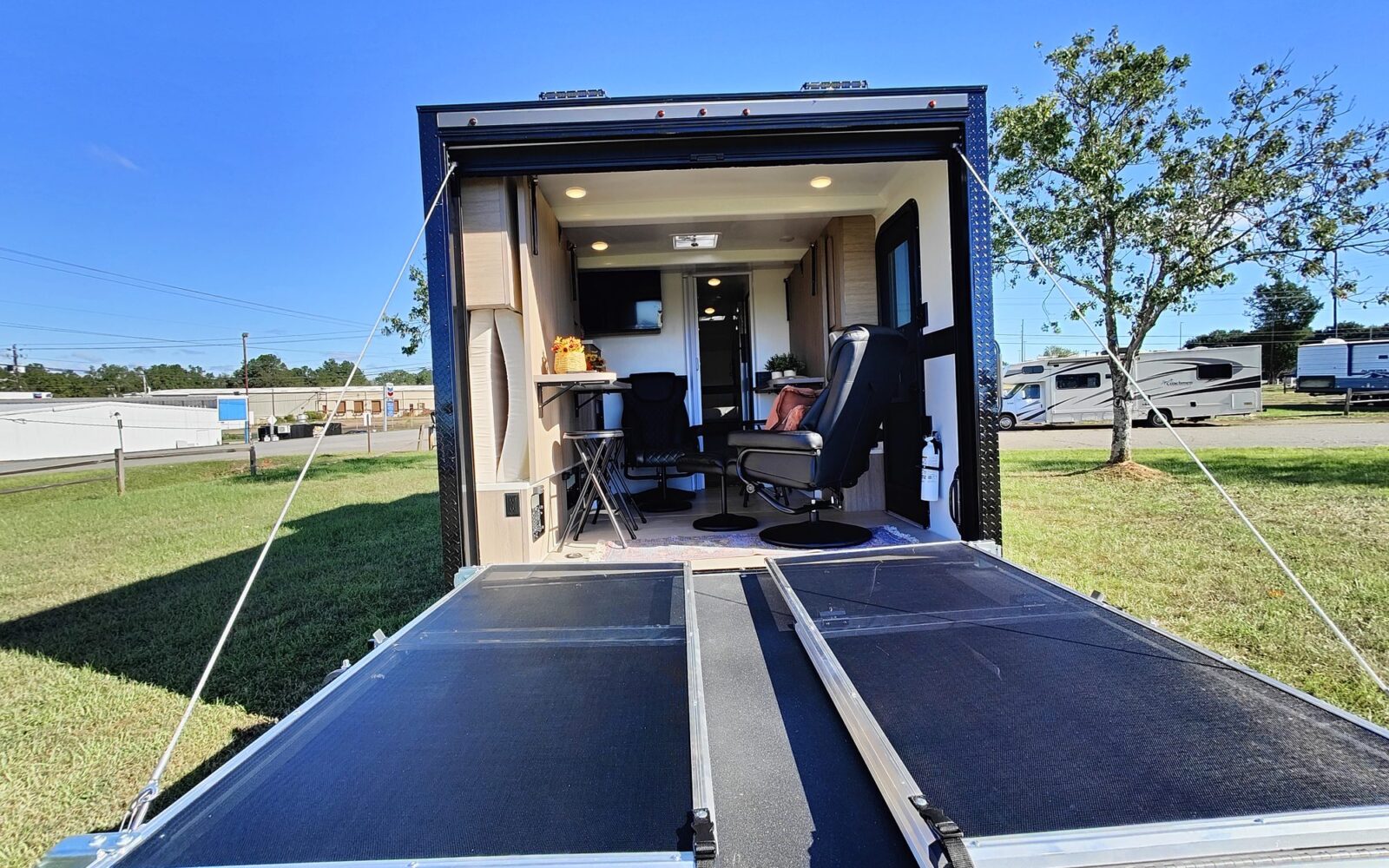

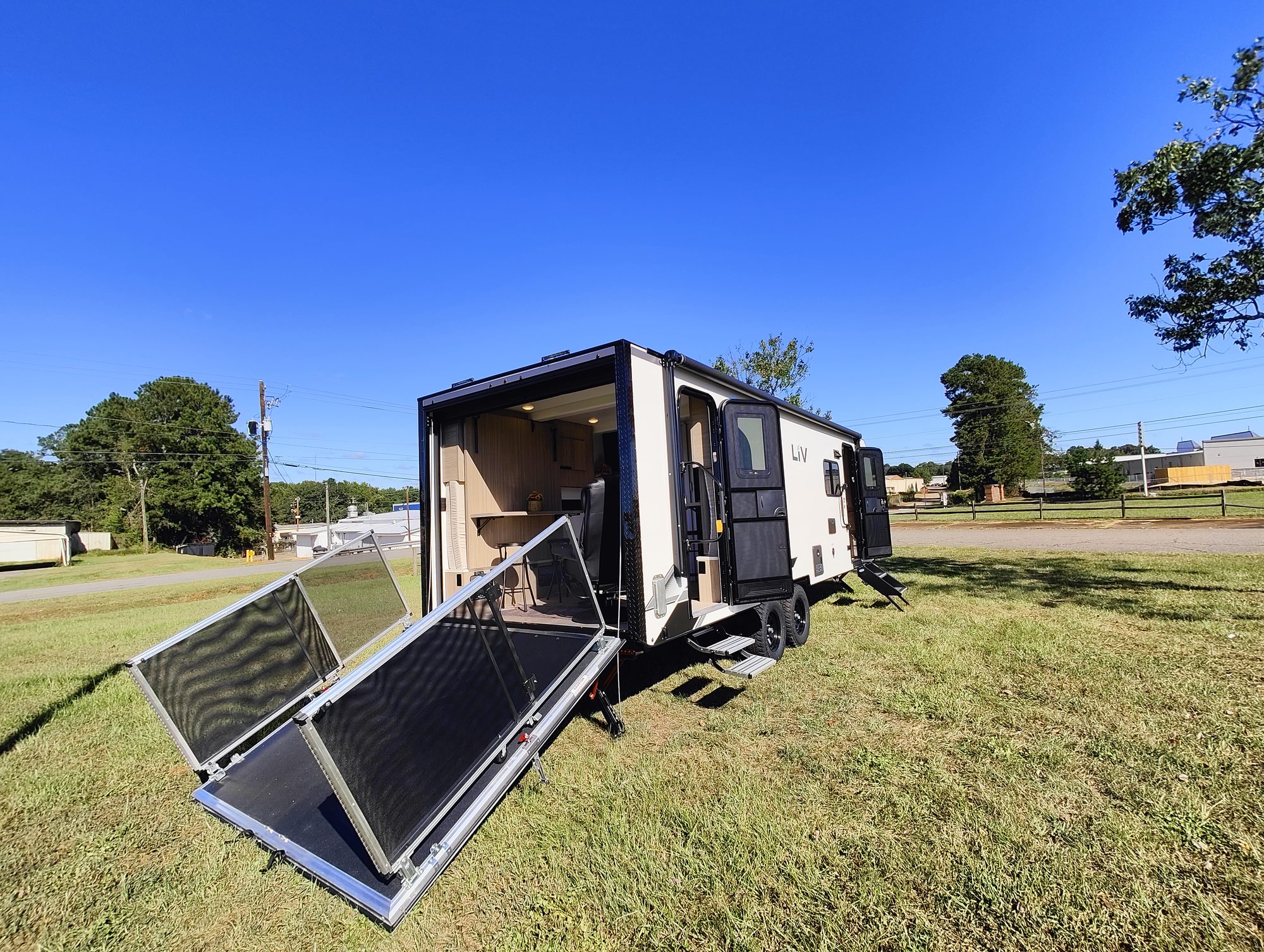

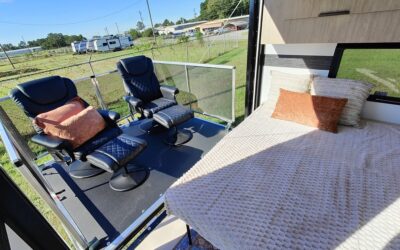

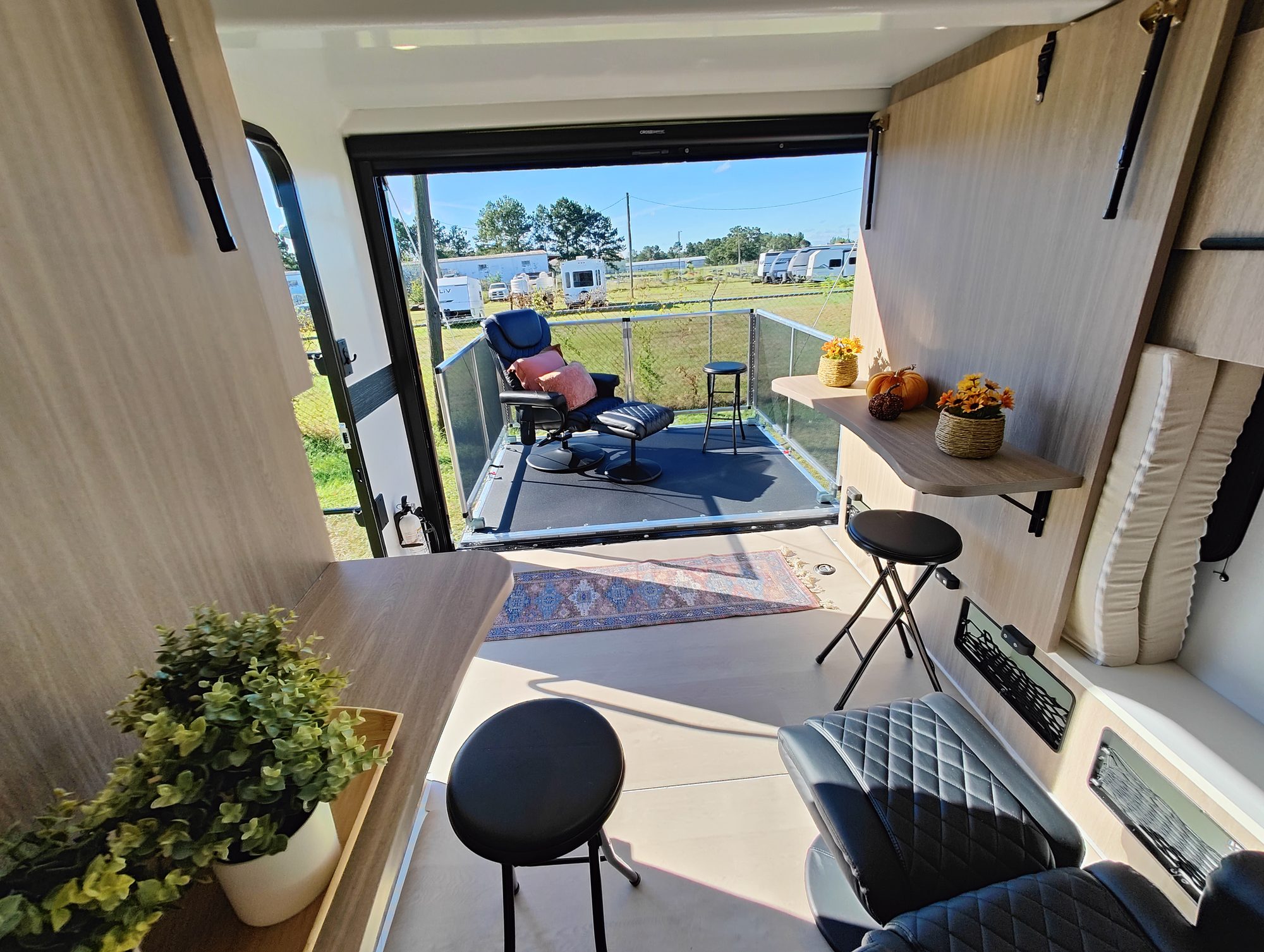

- Rear ramp door converts to a patio

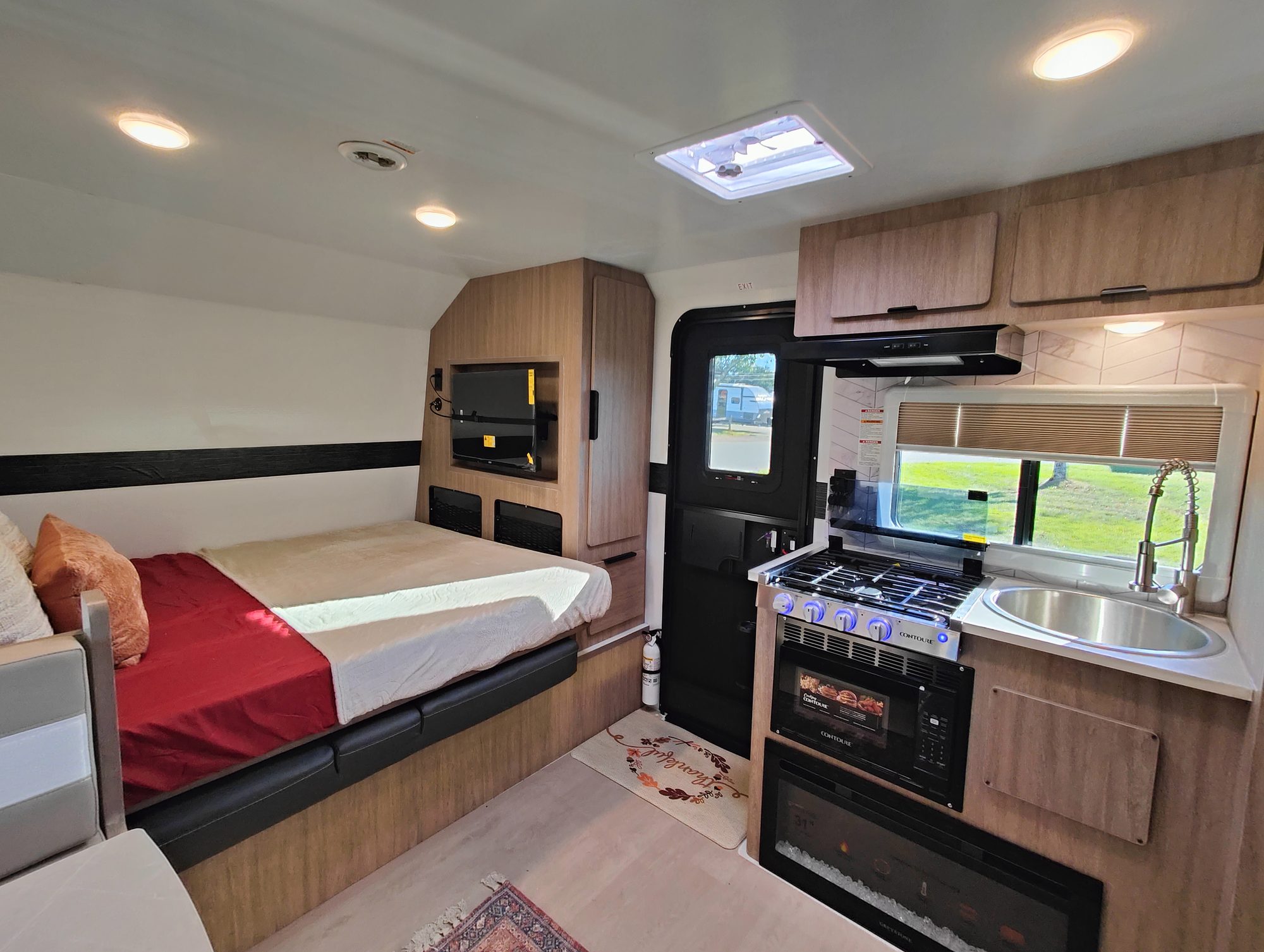

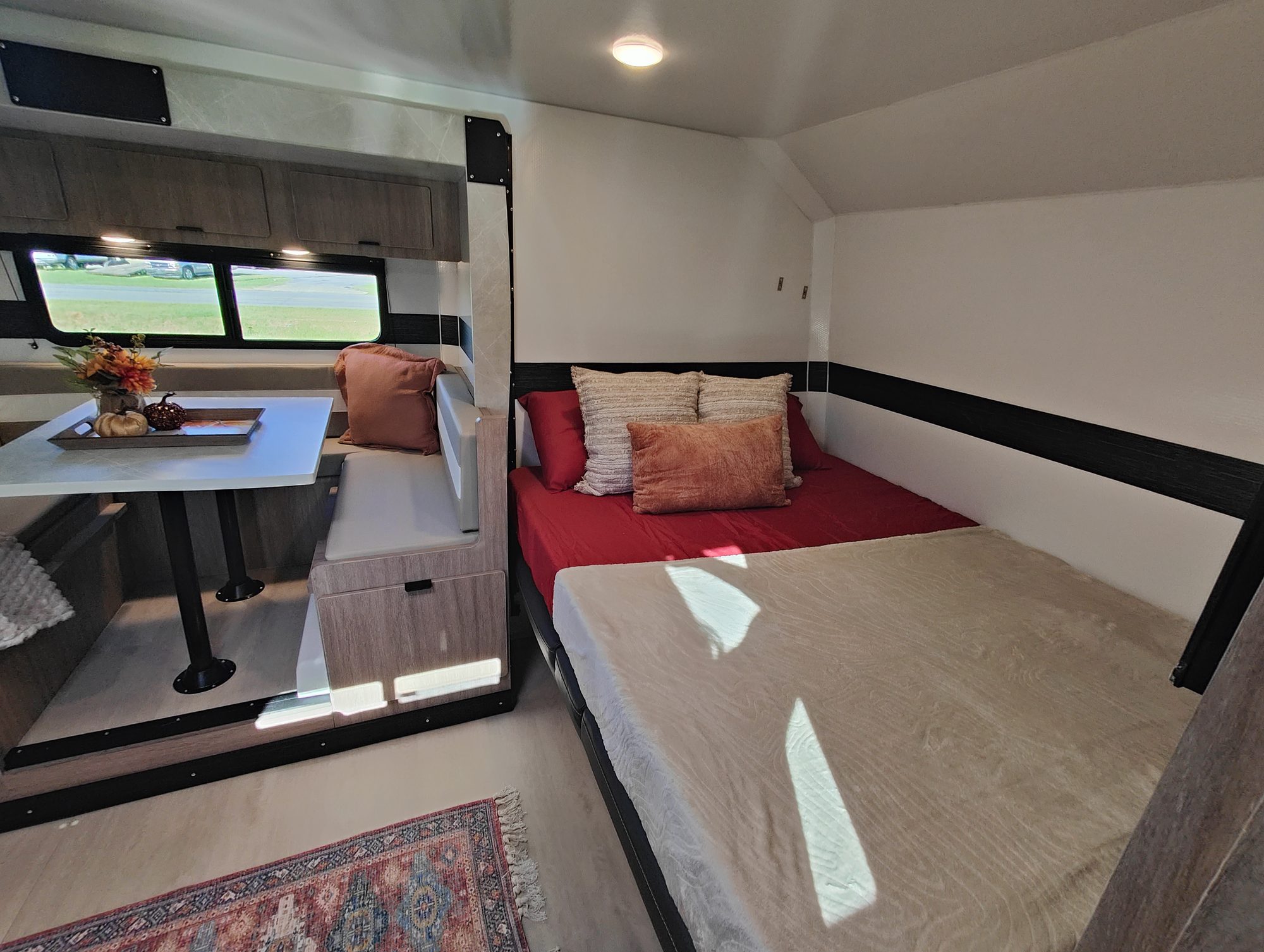

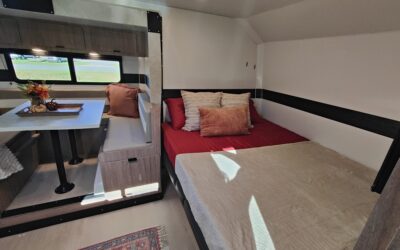

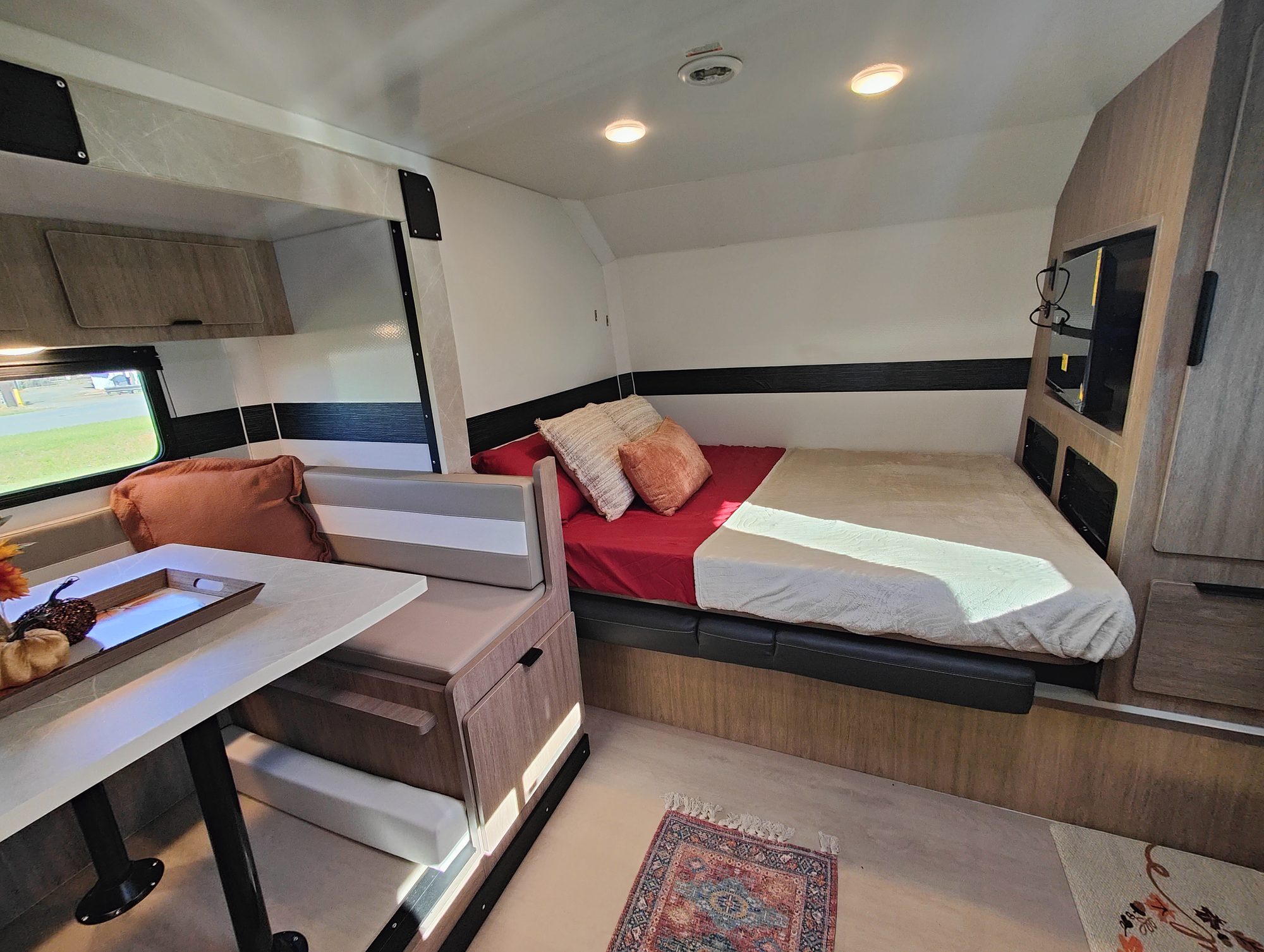

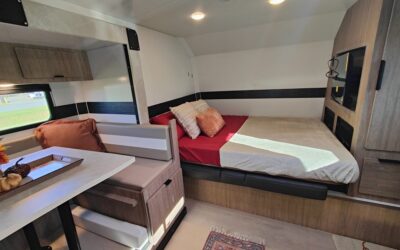

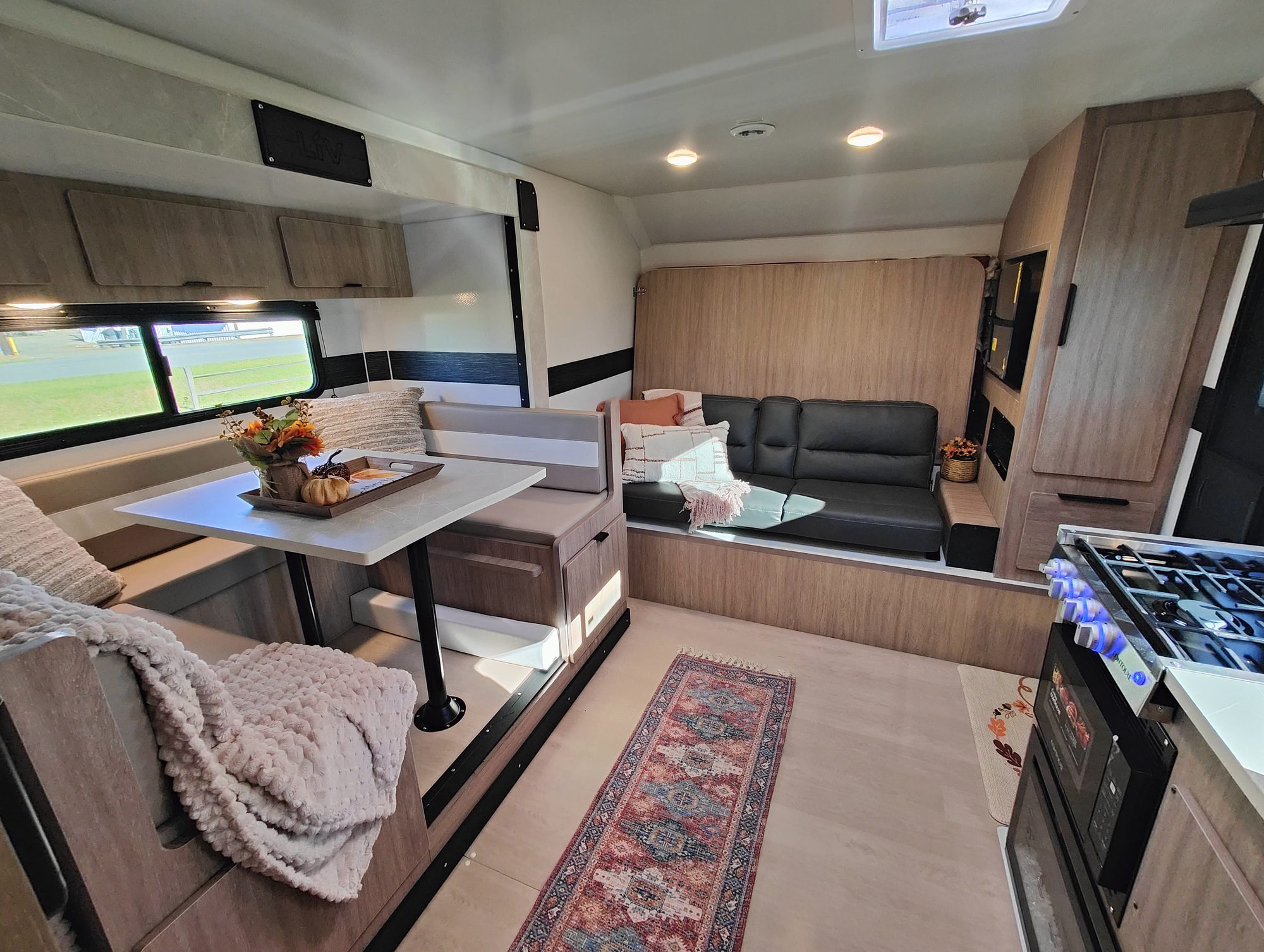

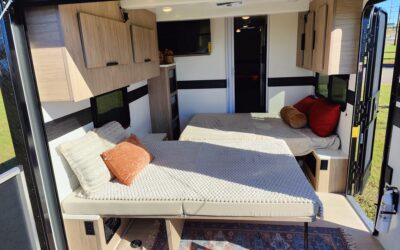

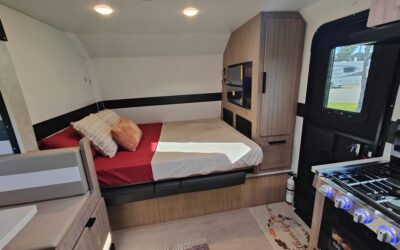

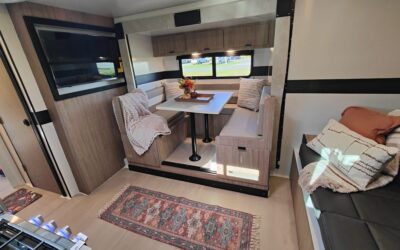

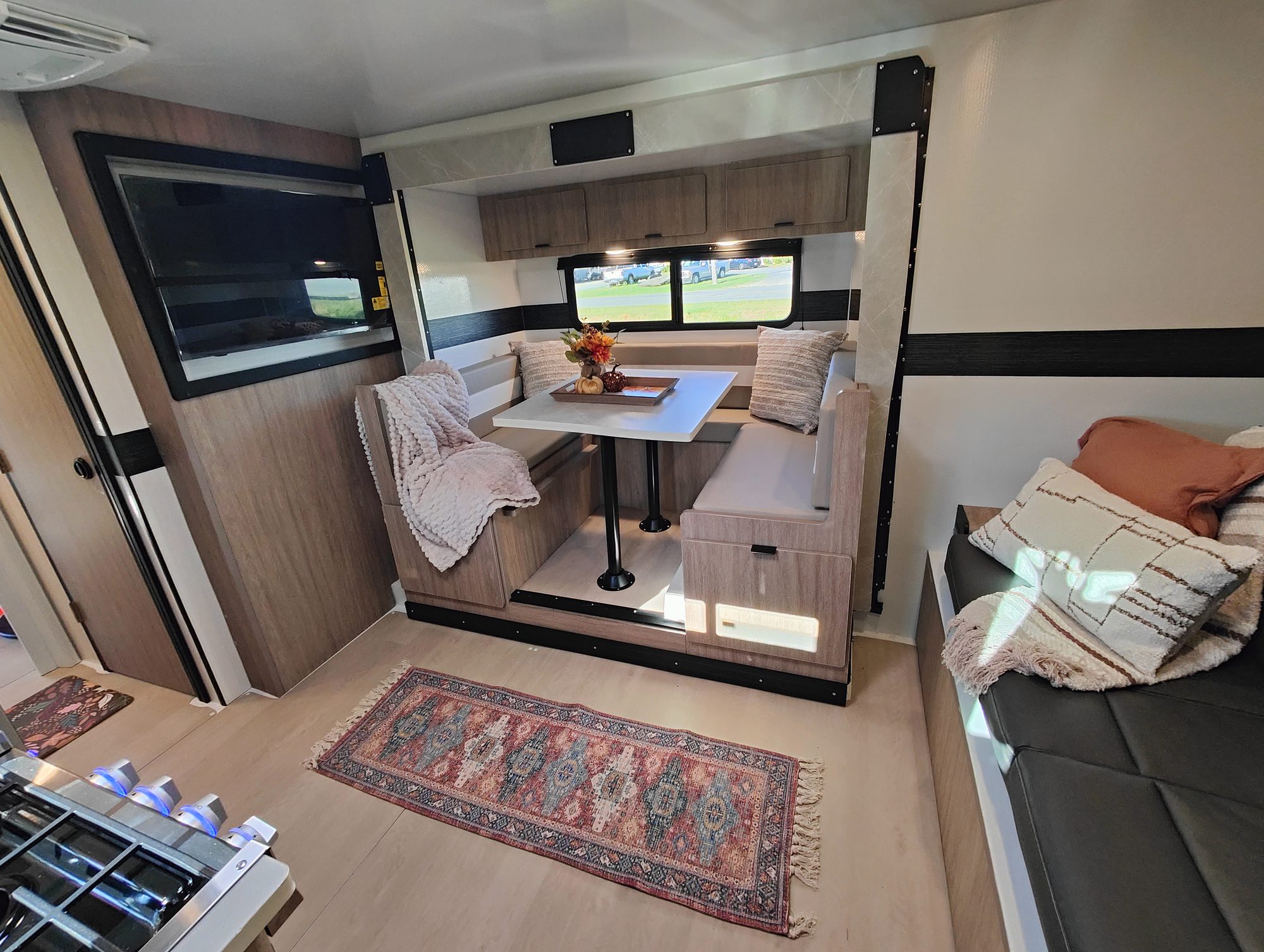

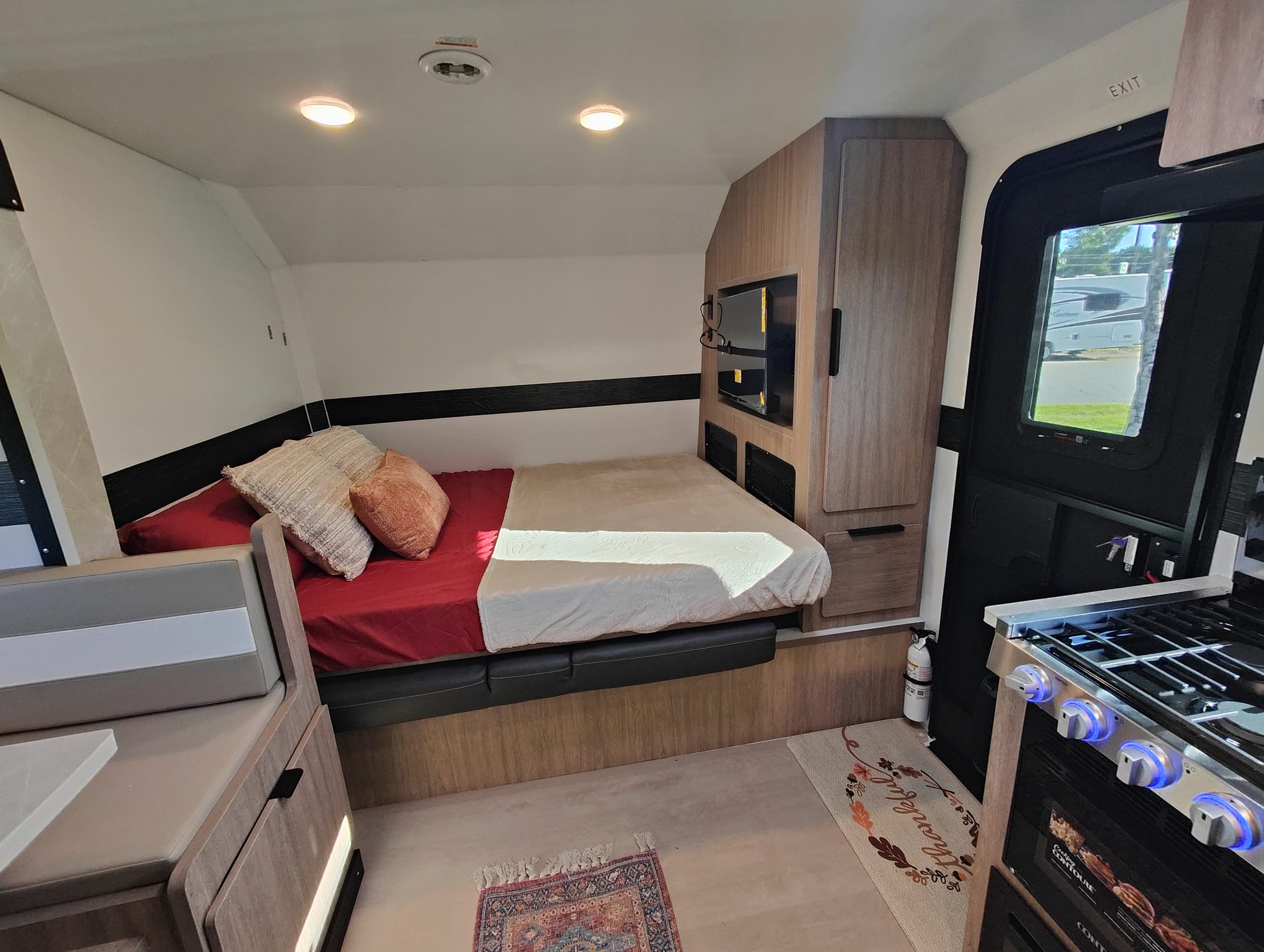

- Convertible dinette bed

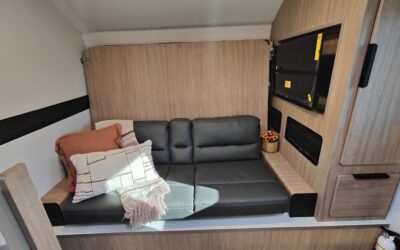

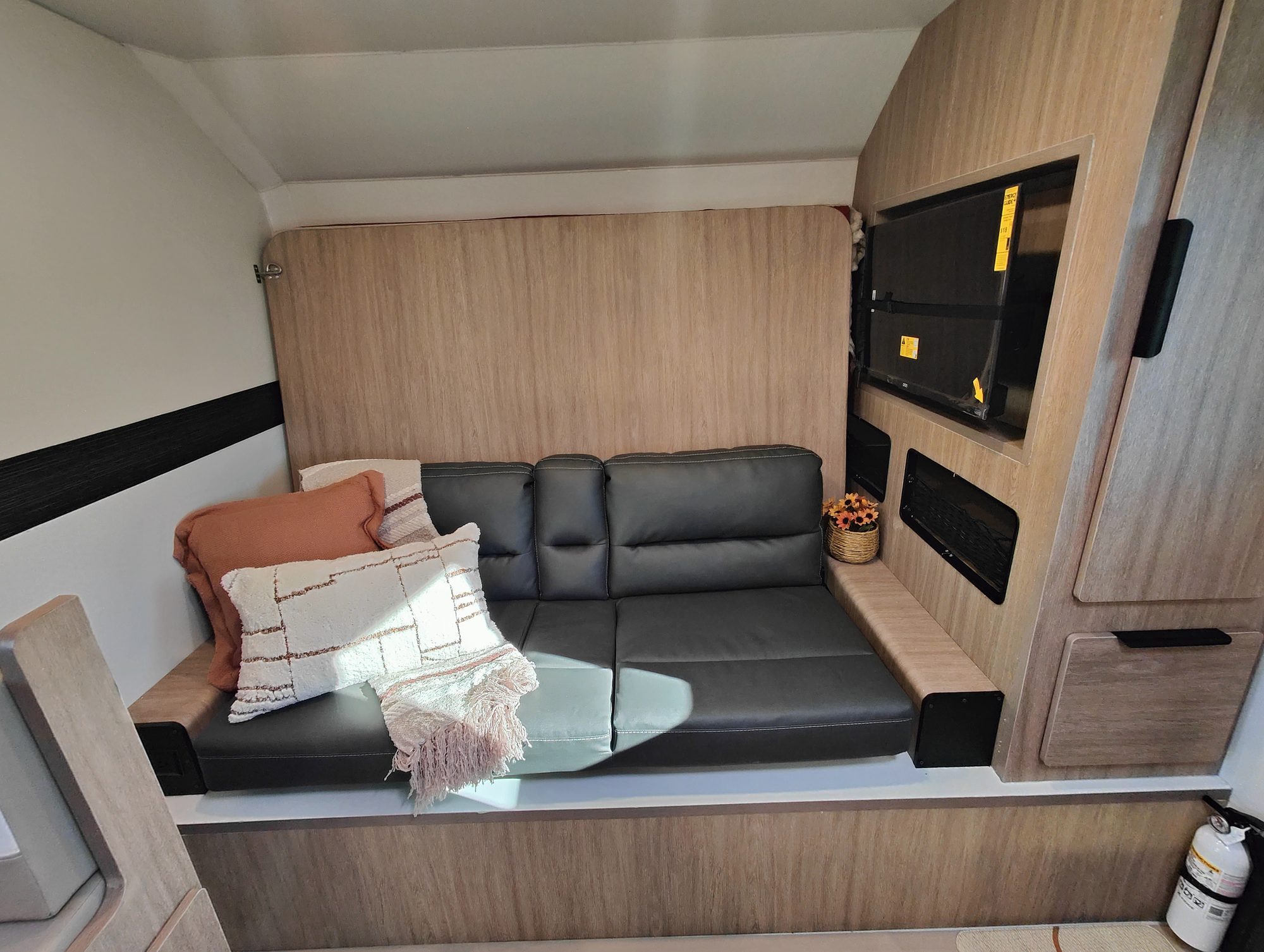

- Sofa converts to a bed

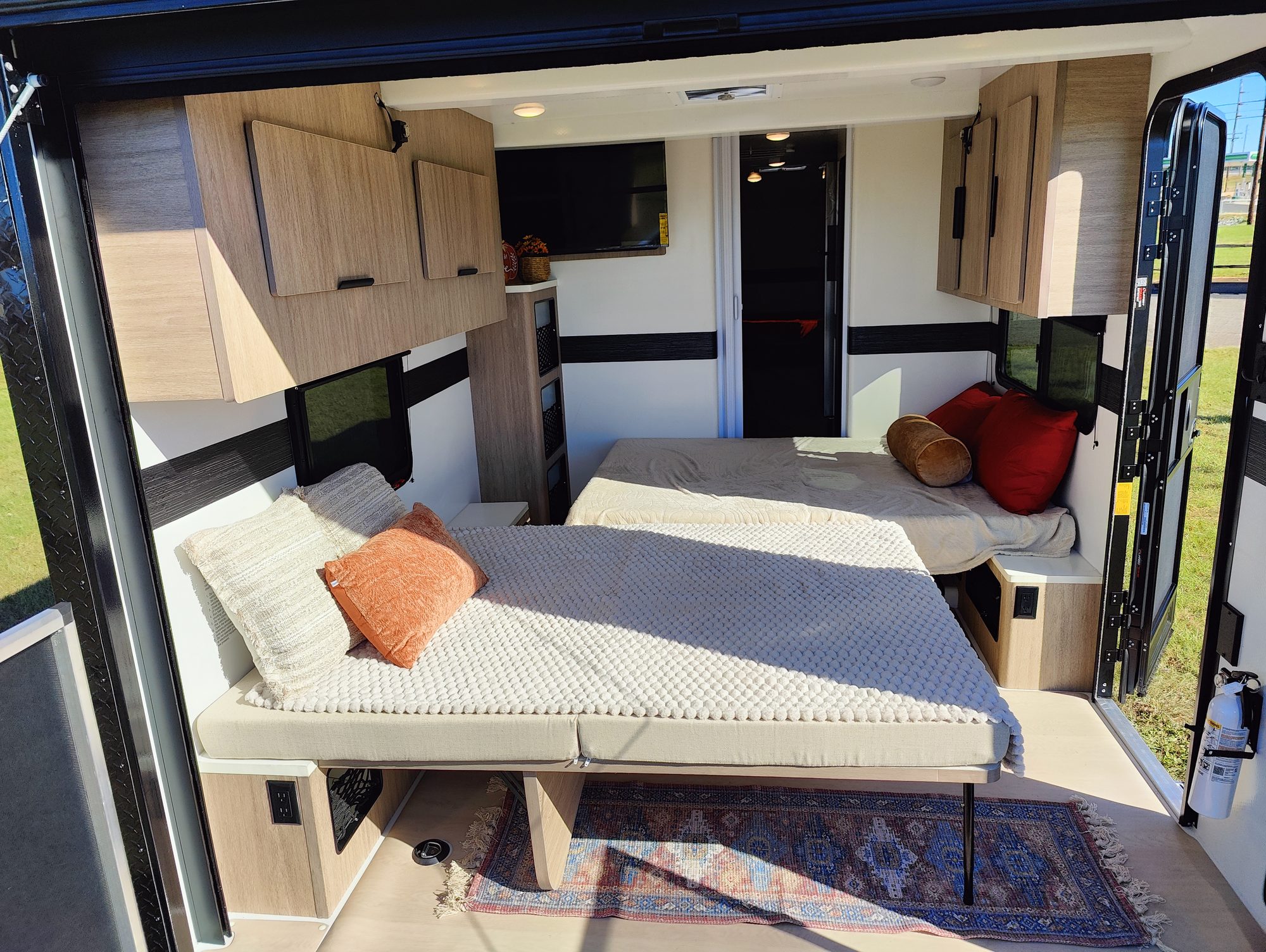

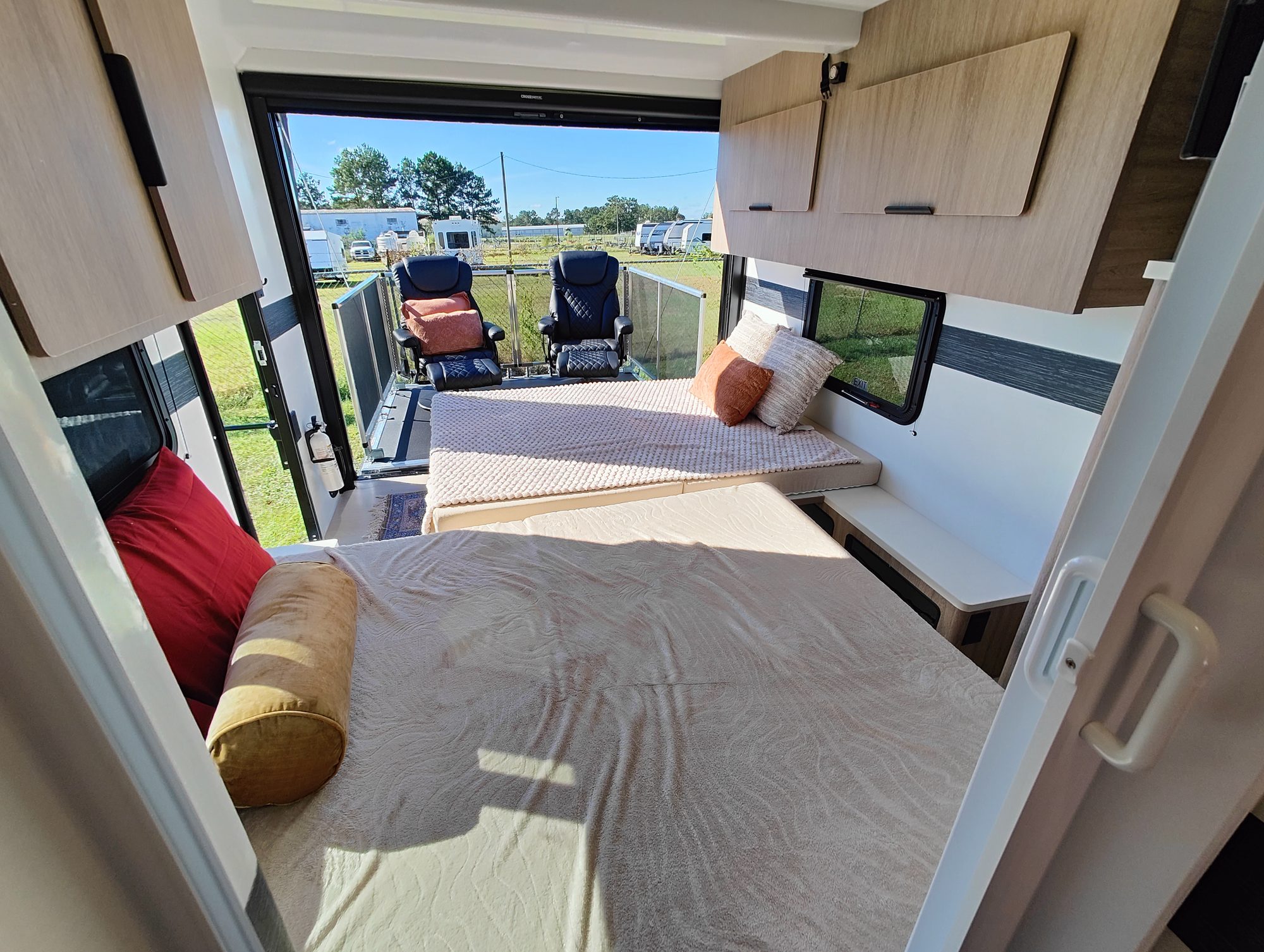

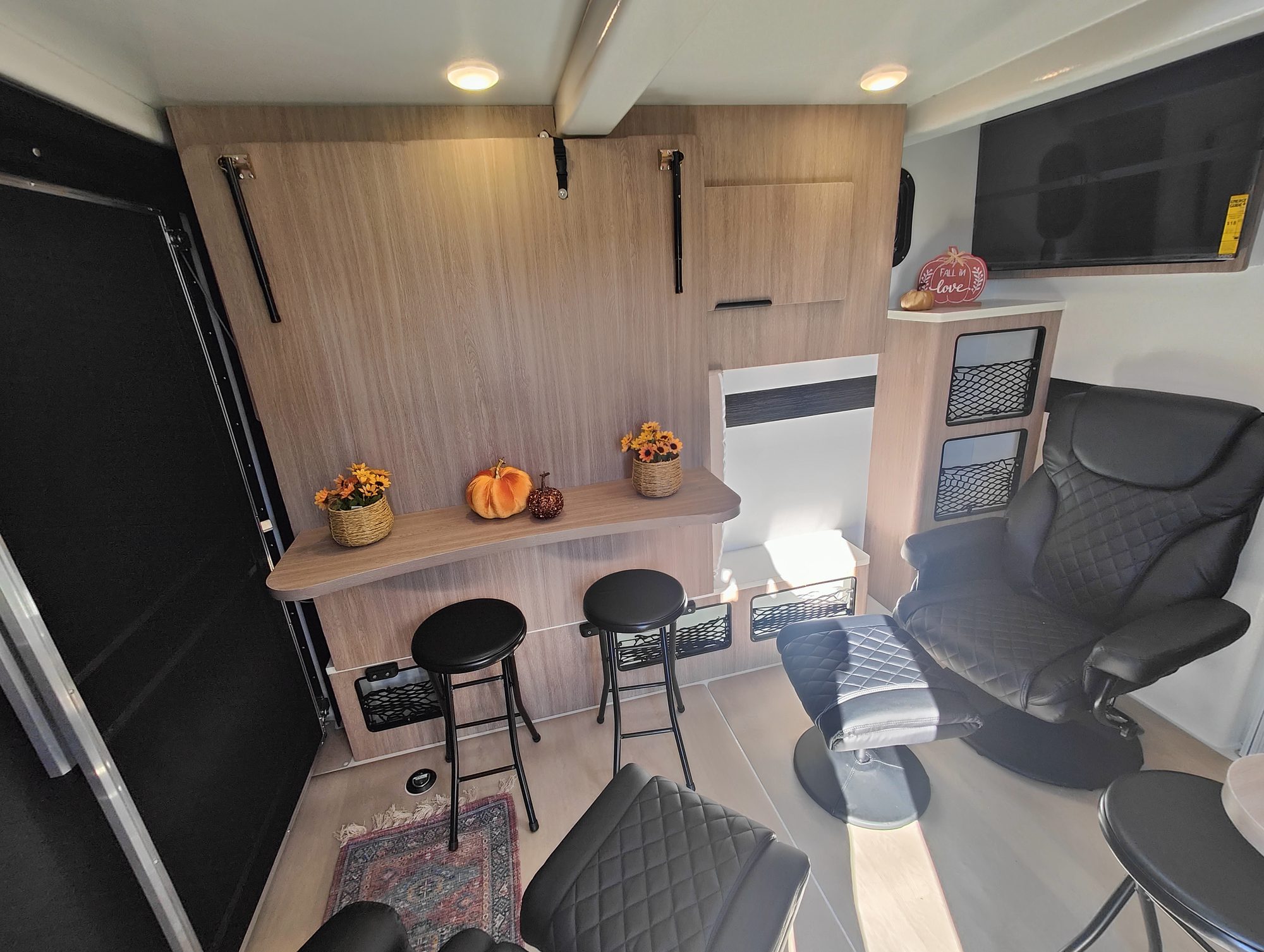

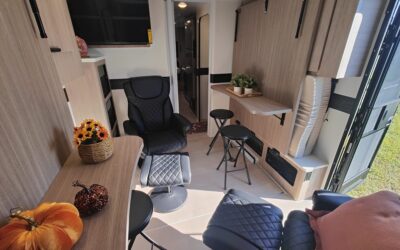

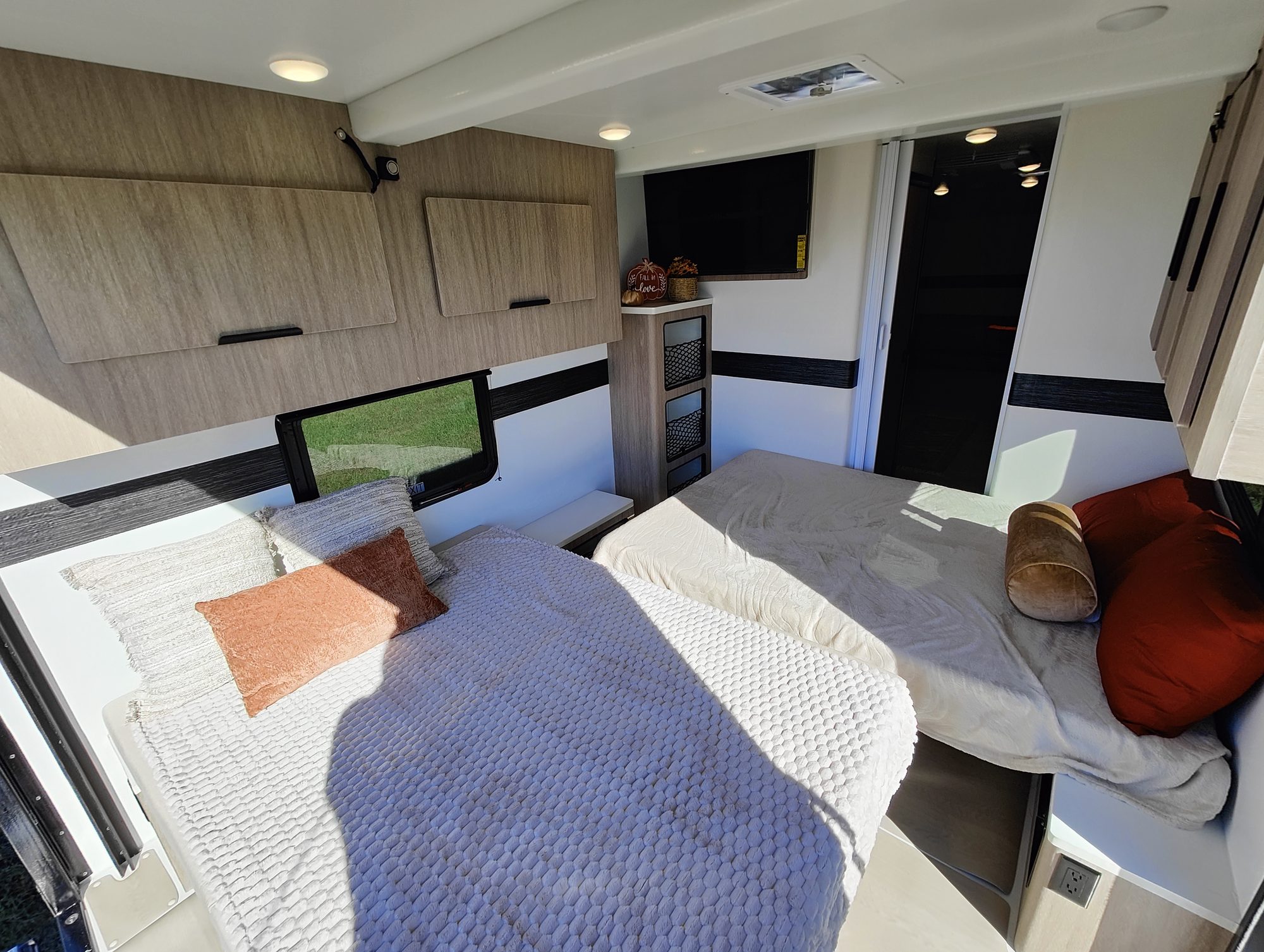

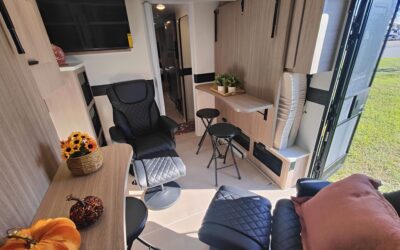

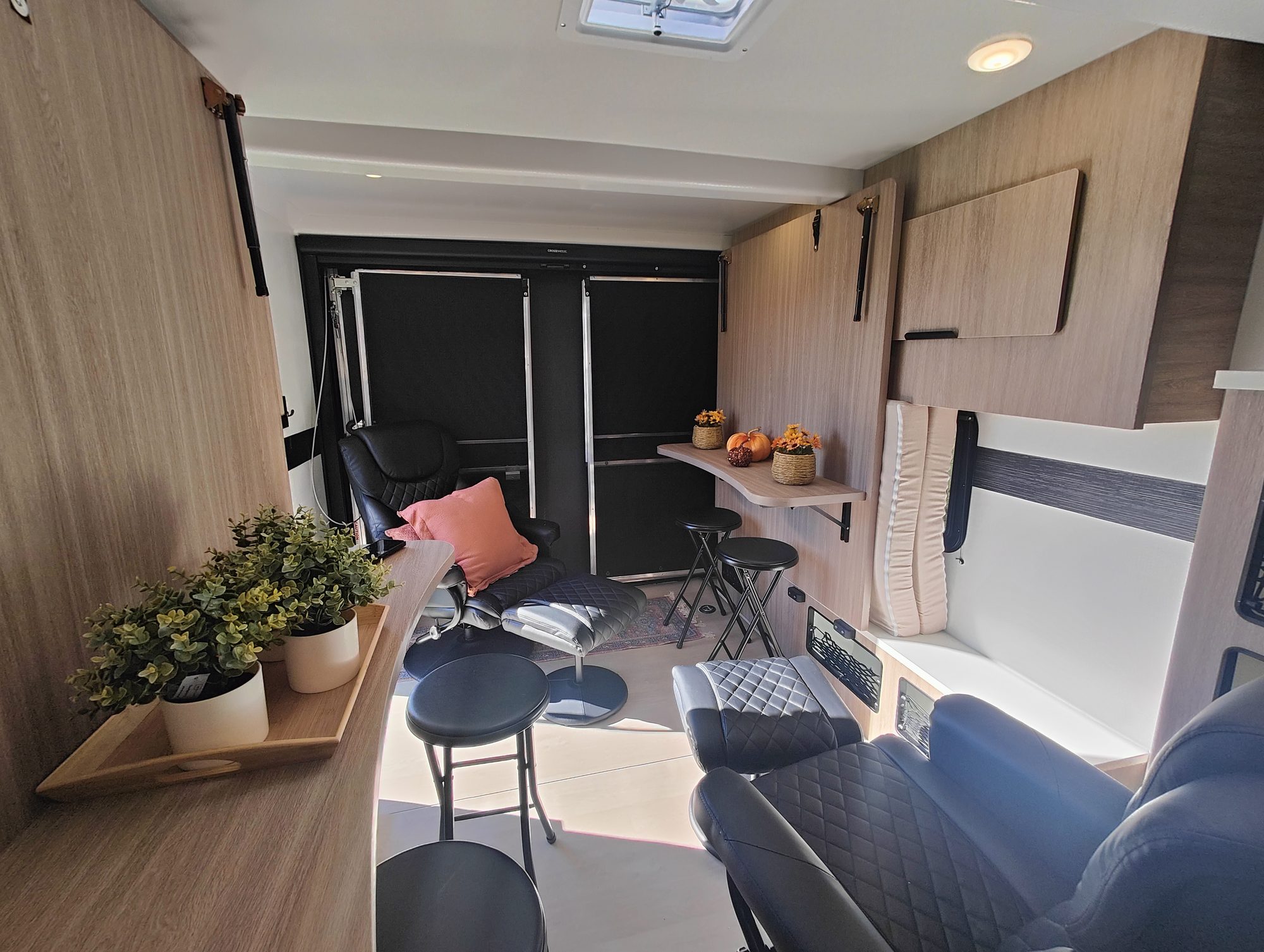

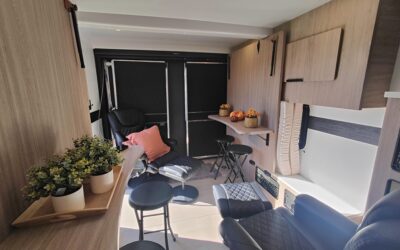

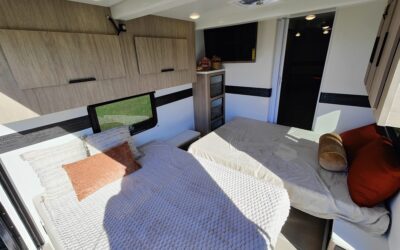

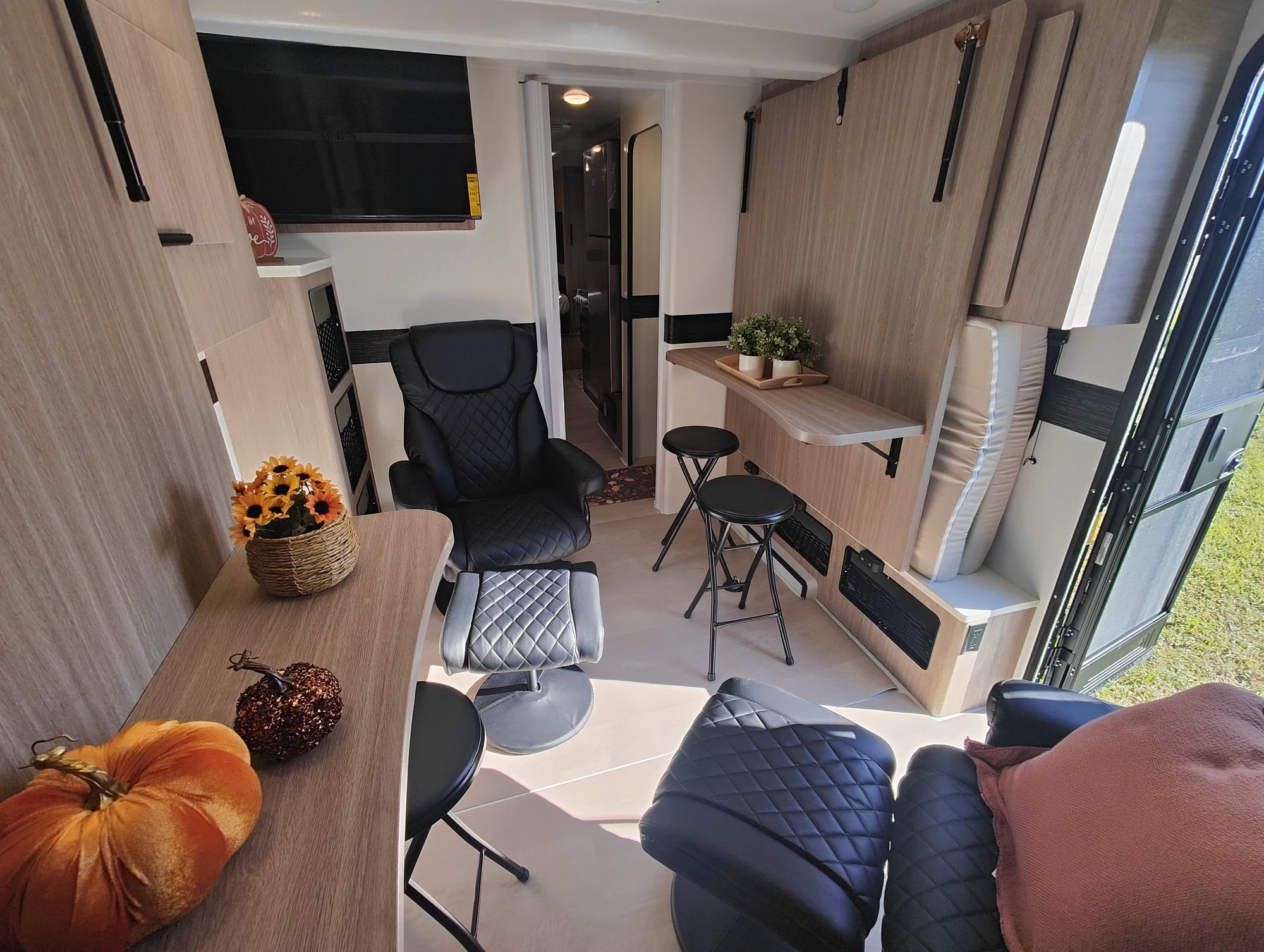

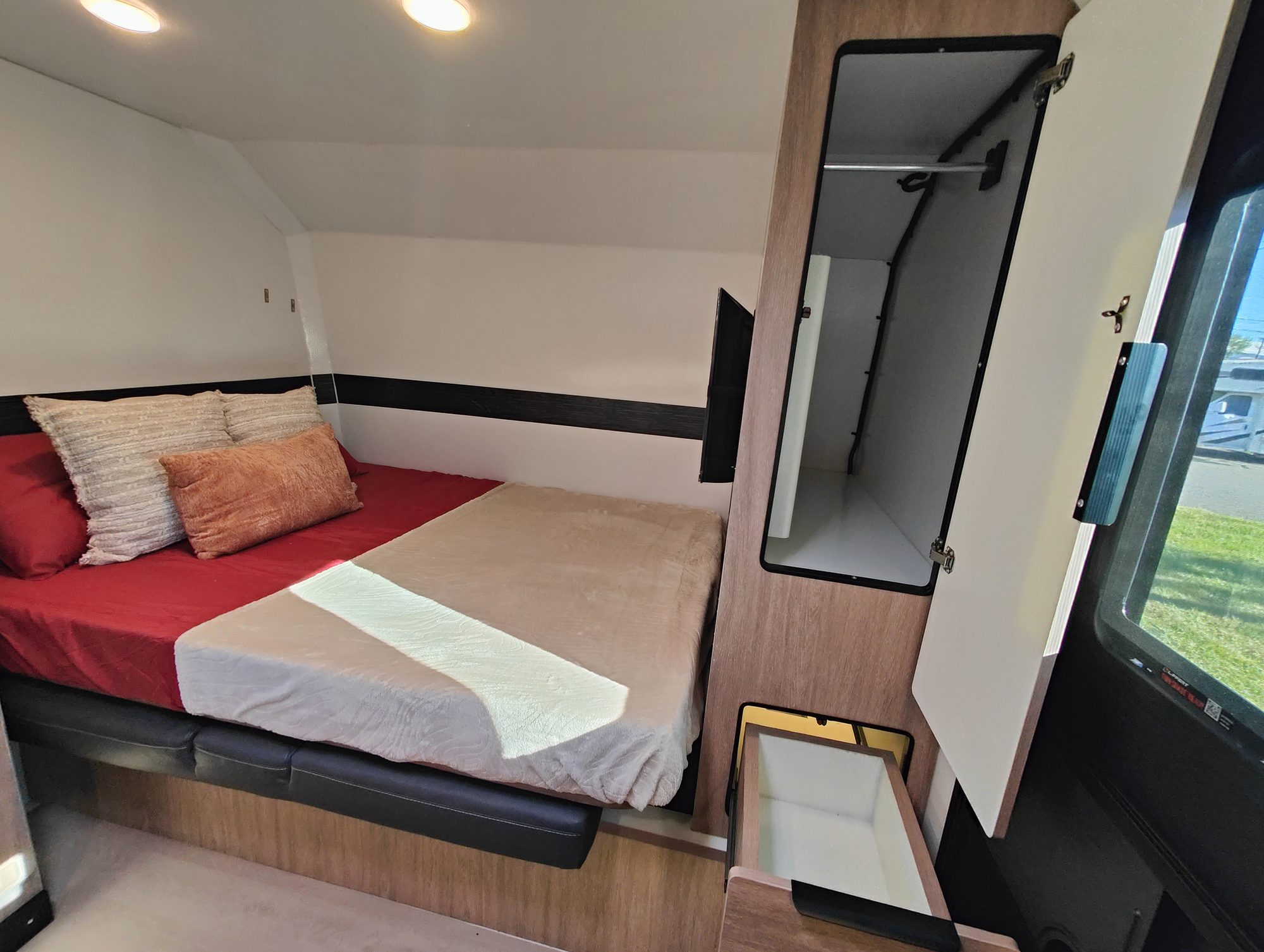

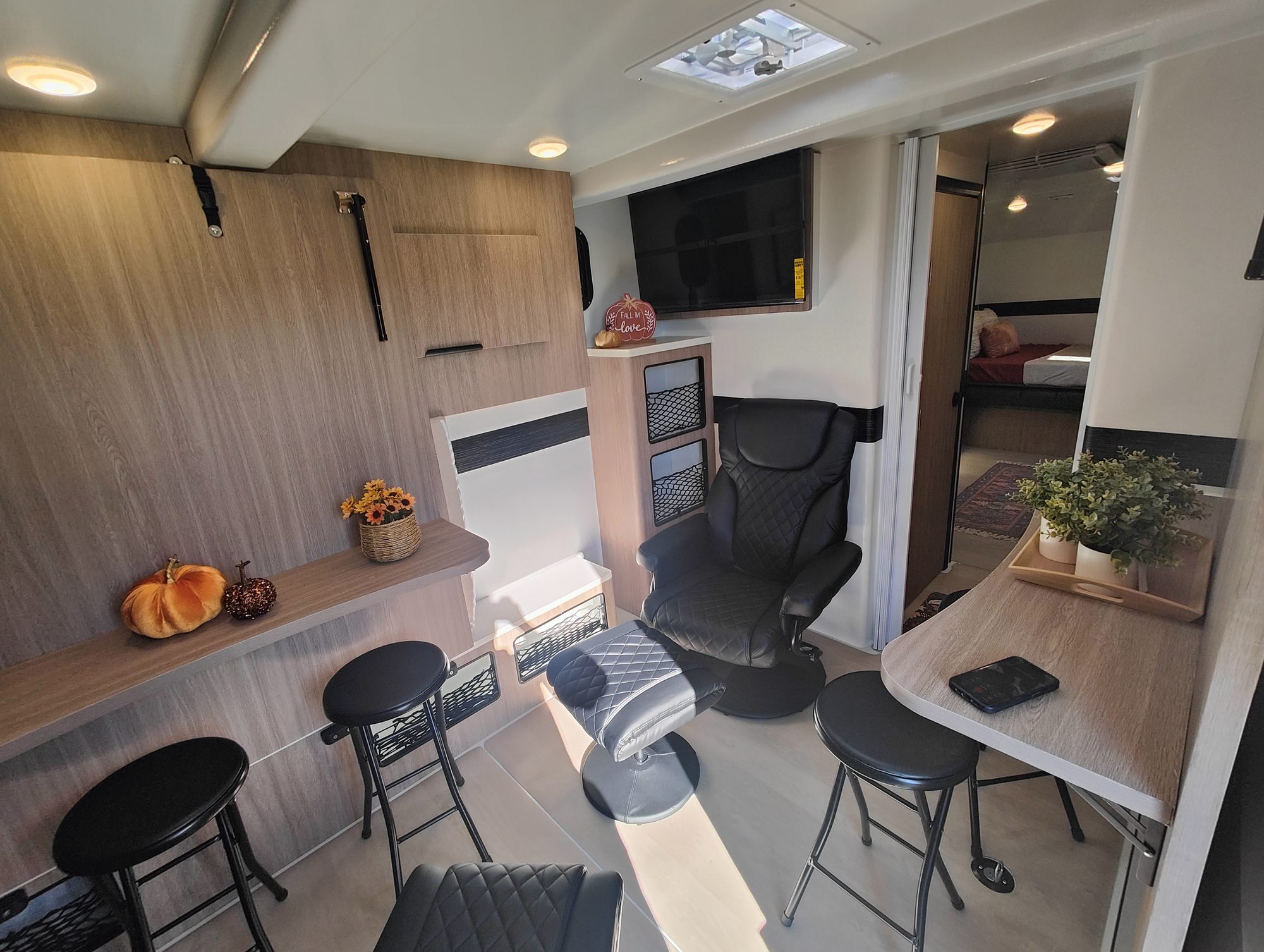

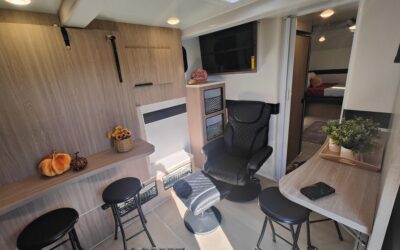

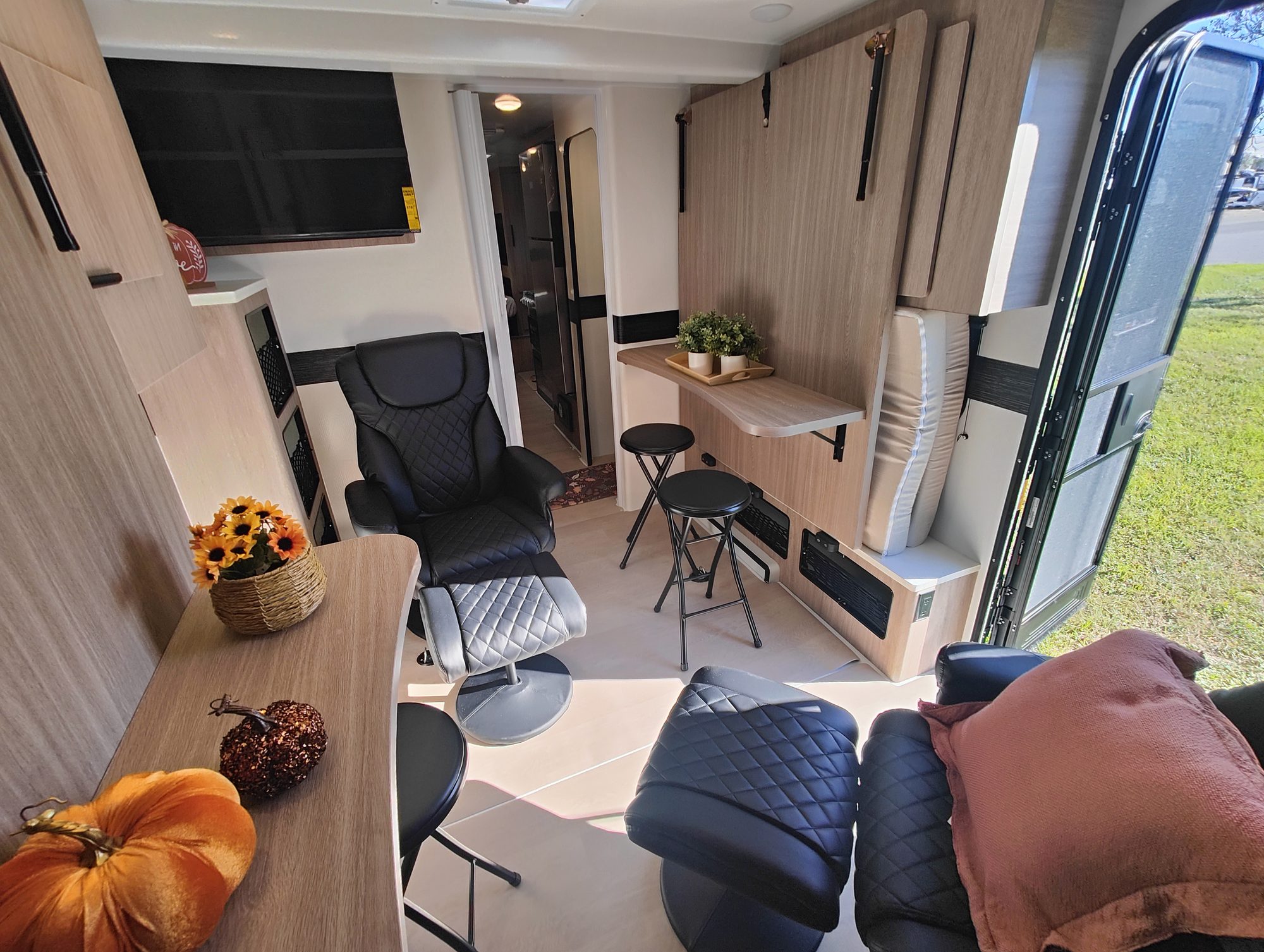

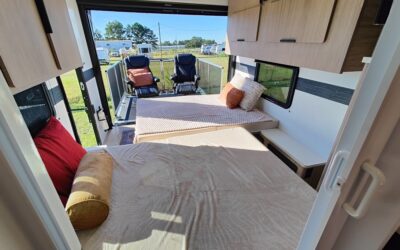

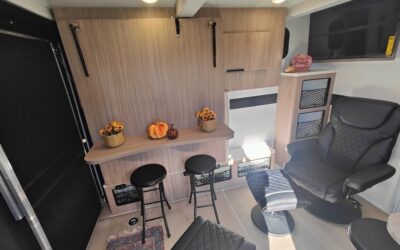

- Separate rear bedroom/garage with two fold-down beds
- Storage for your rec vehicles and gear

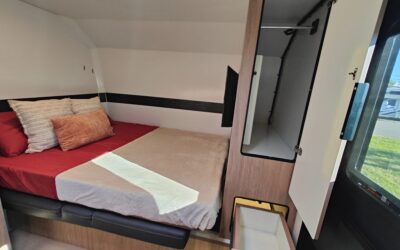

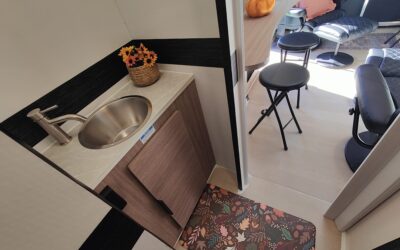

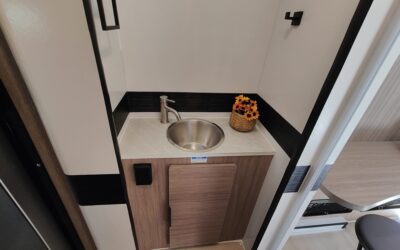

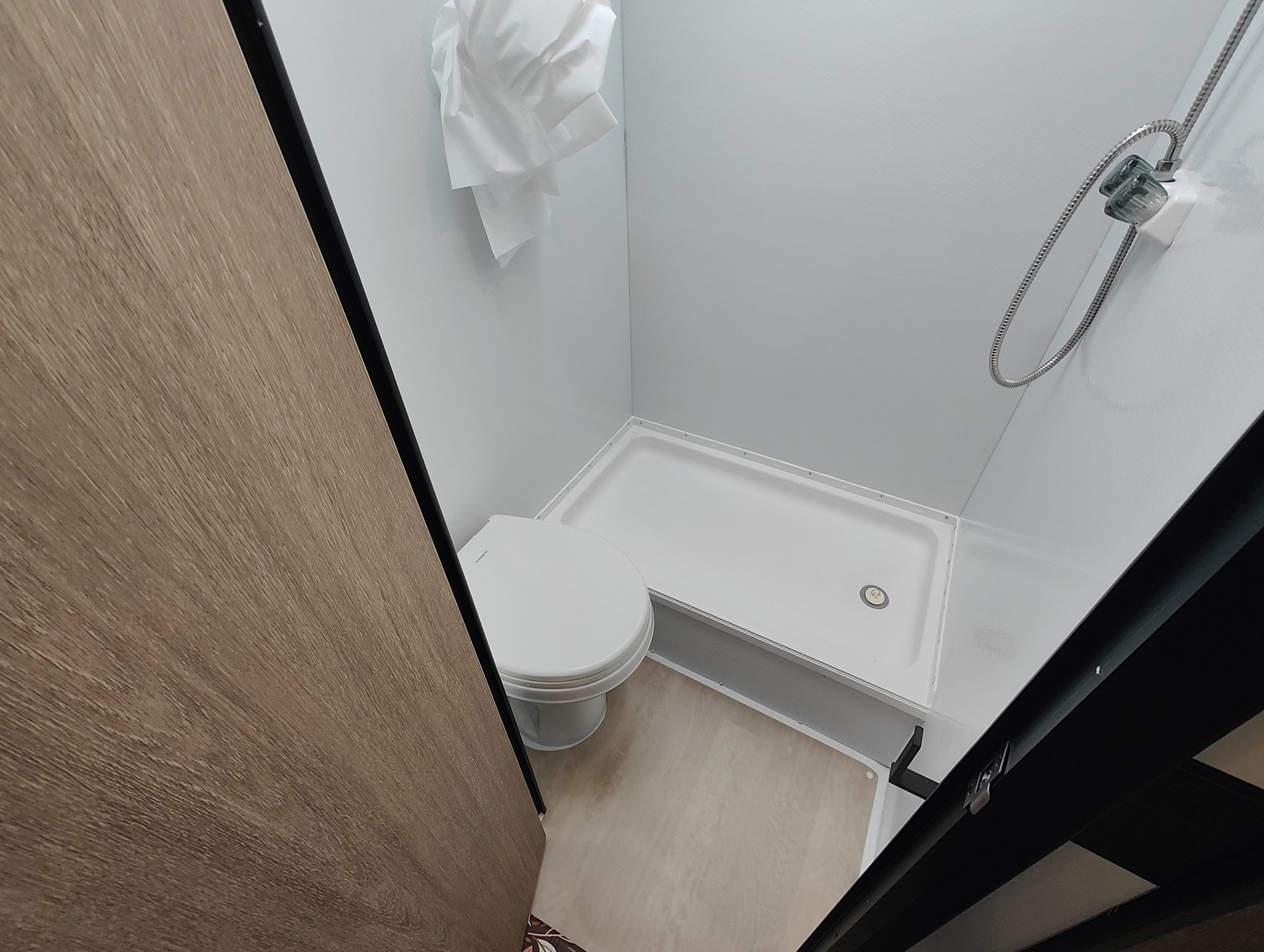

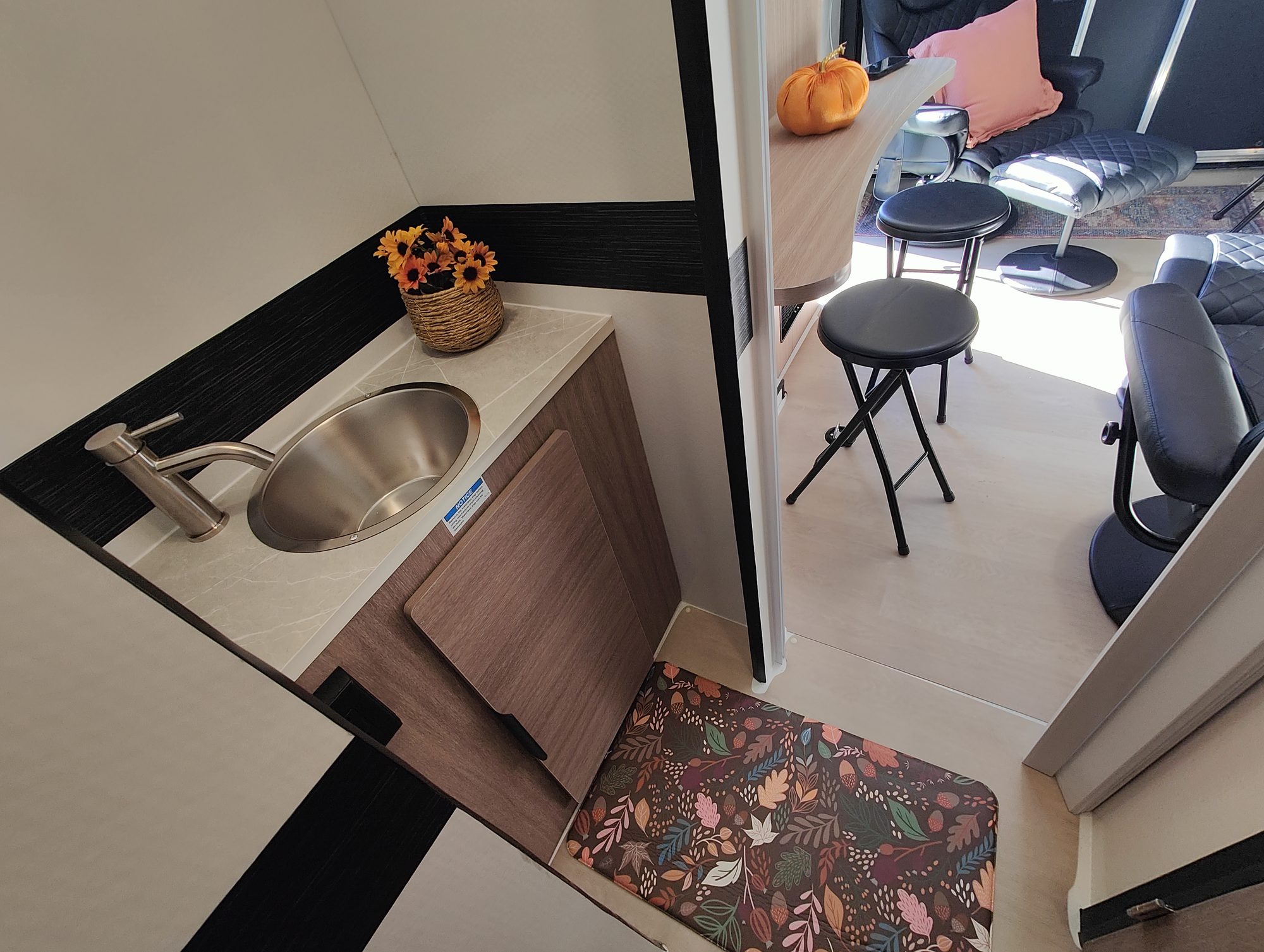

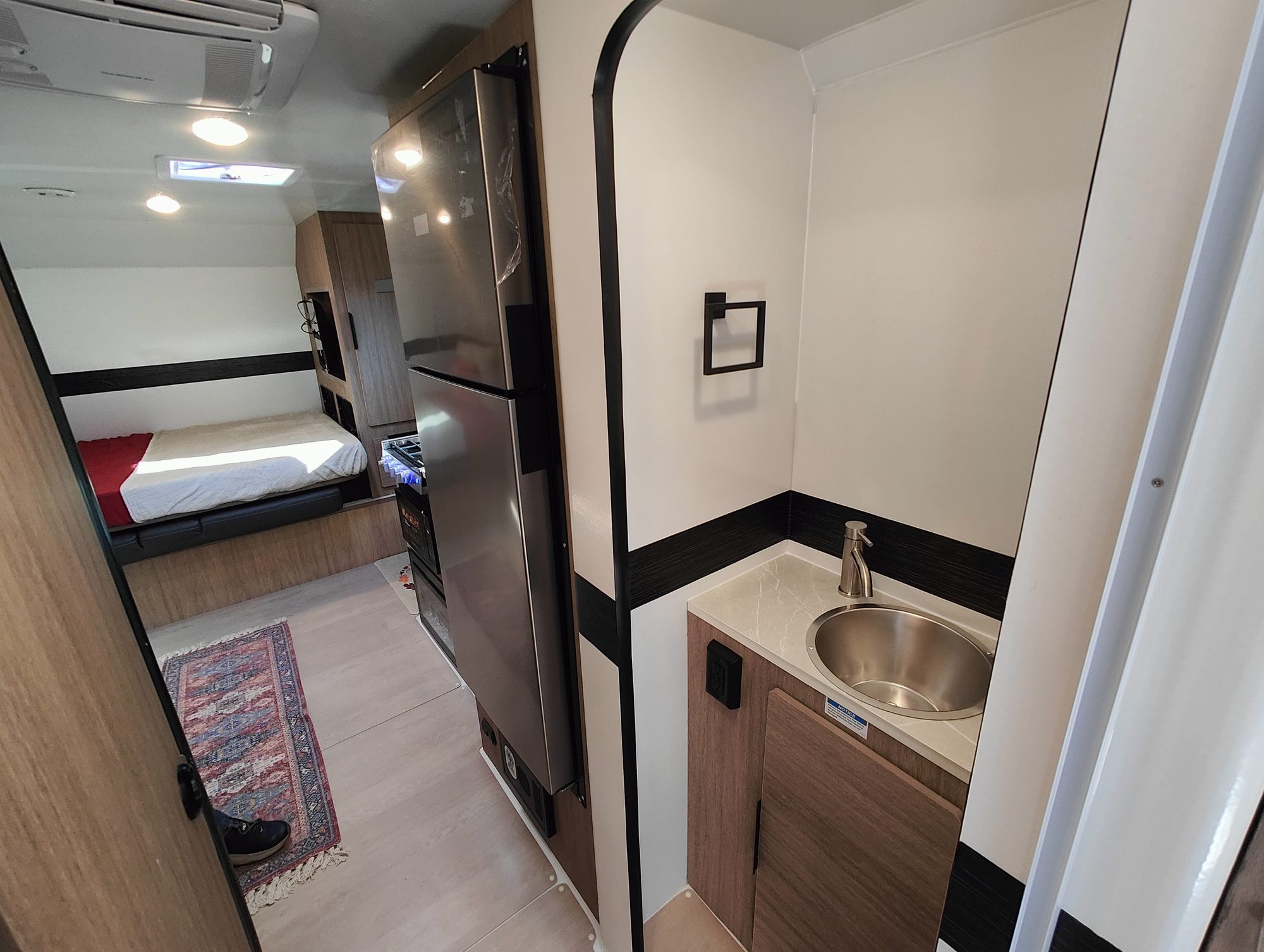

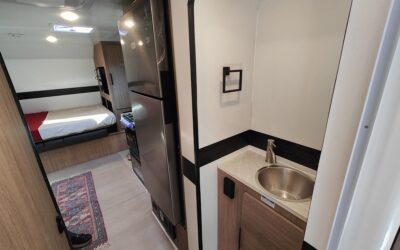

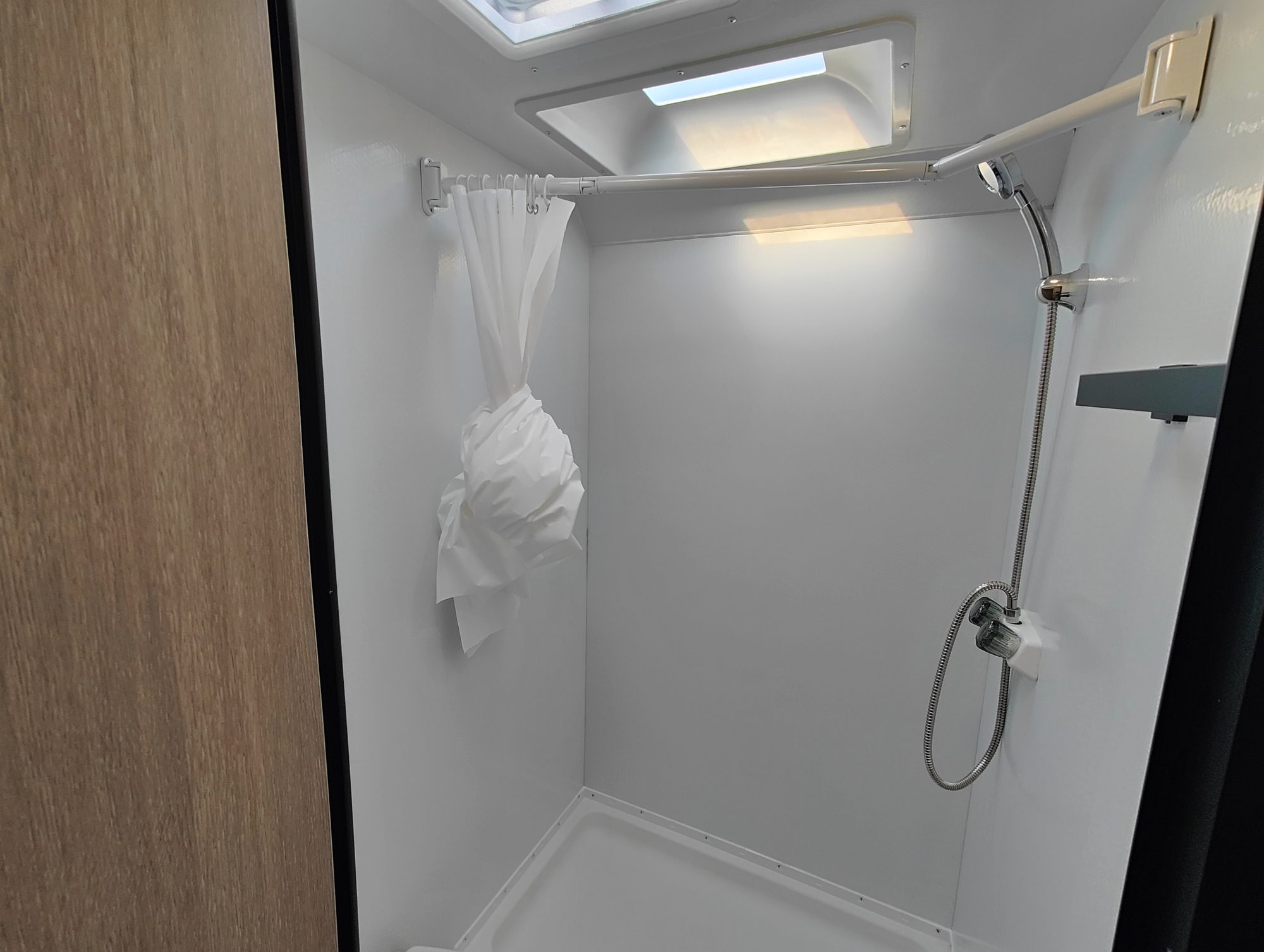

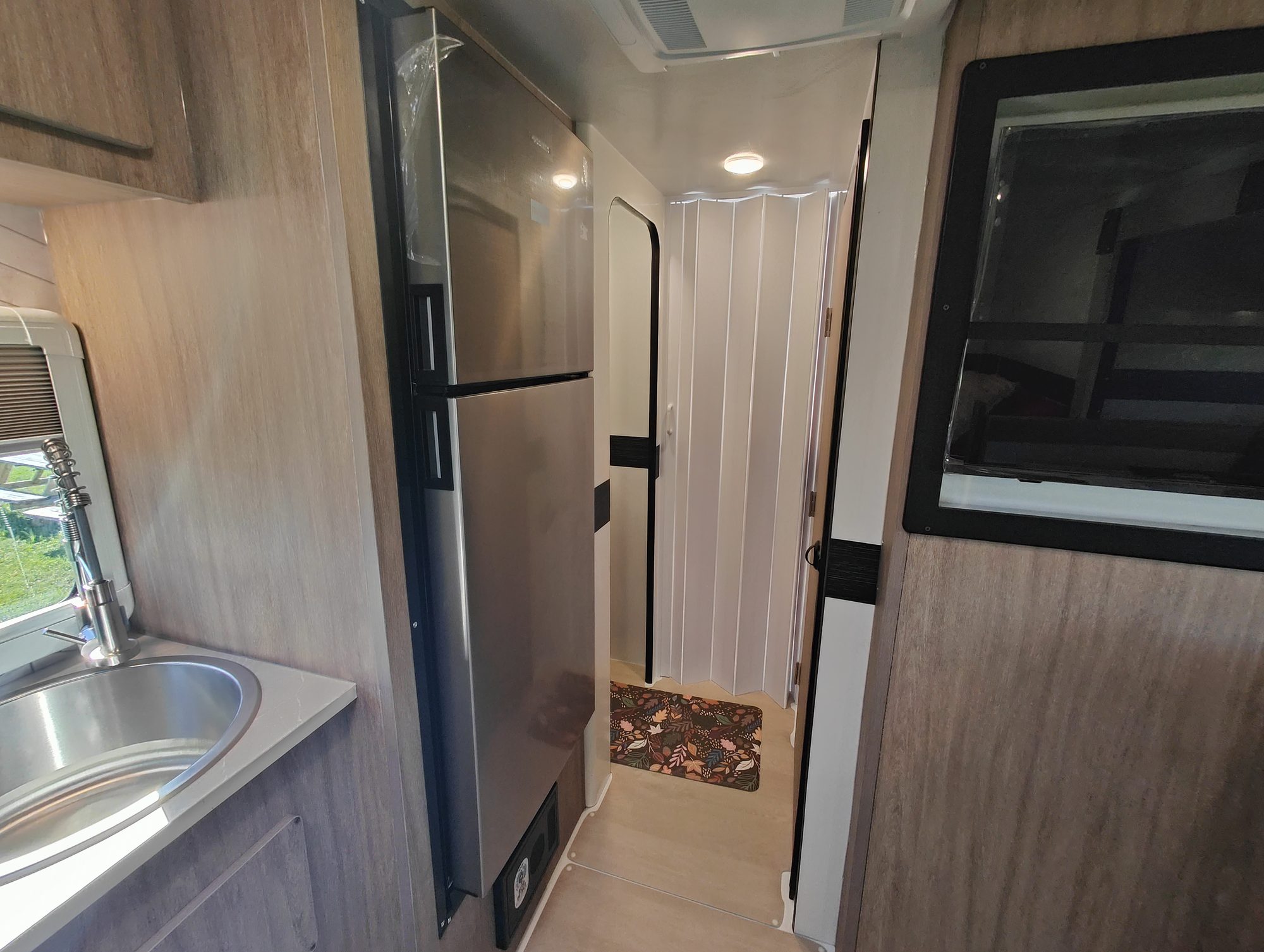

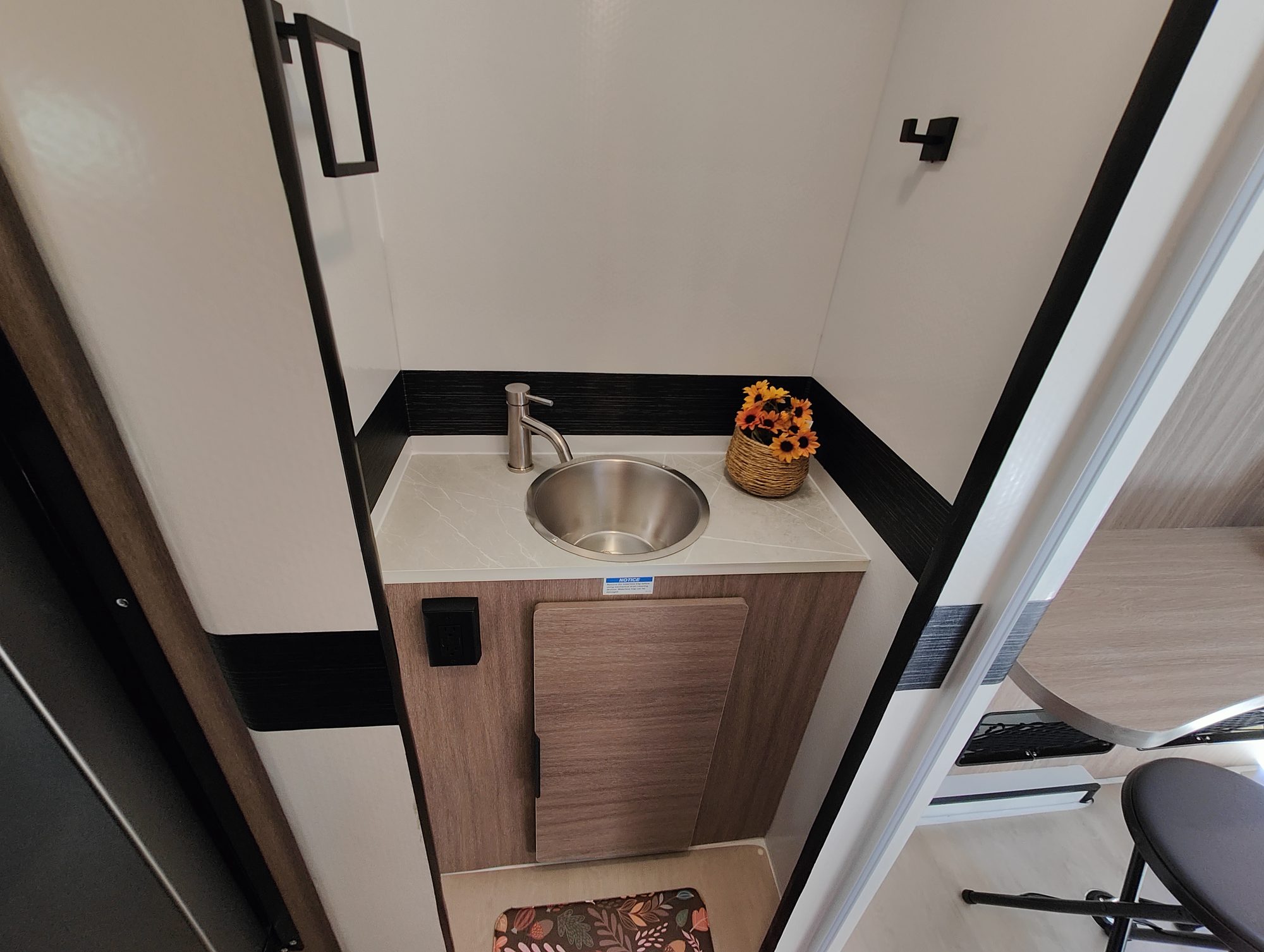

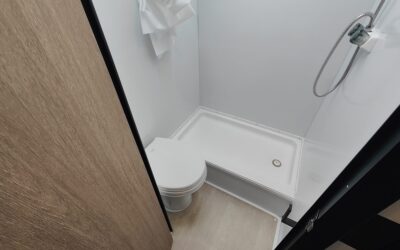

- Full bathroom plus a separate closet

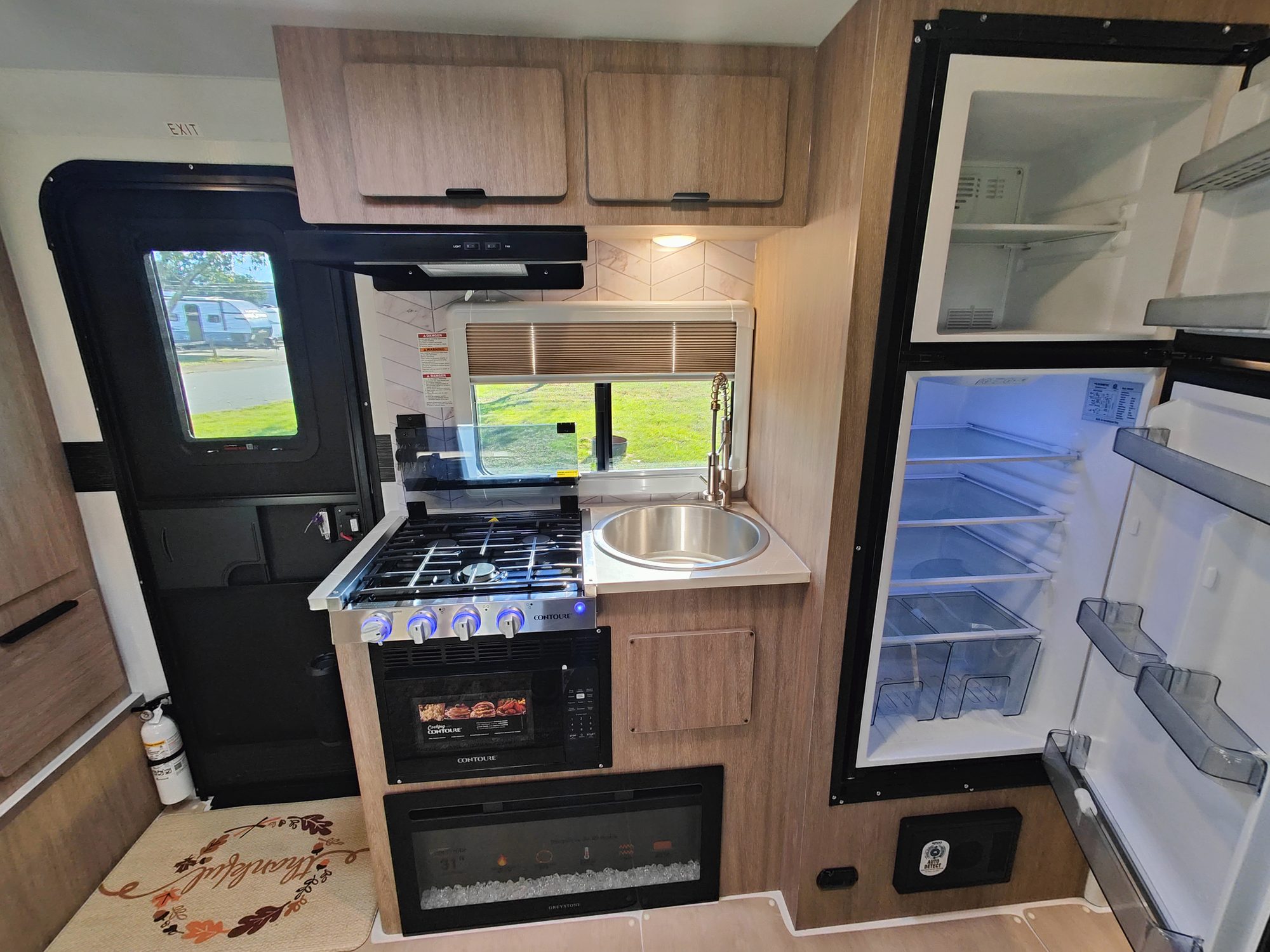

- Abundant storage cabinets throughout
- Sleeps 8
- Dual-axle with Electric Brakes (standard)
- 40 lb LP capacity
- LIV Convenient Package included
Gallery
Inside and out.
Compare
How it stacks up.
Shop this style
Questions
LiV 270THS FAQ
How much does the LiV 270THS weigh, and what can tow it?
The LiV 270THS has a dry weight of about 4,593 lbs, with a GVWR (max loaded weight) of about 6,750 lbs. Because it is built from 100% wood-free composite it is light for its size — match its loaded weight to your vehicle's rated tow capacity, leaving margin for passengers and gear.
How many people does the LiV 270THS sleep?
The LiV 270THS sleeps 2 to 8. See the floorplan and spec sheet above for the exact bed configuration.
How much can the LiV 270THS carry and hold?
The LiV 270THS has a cargo carrying capacity around 2,000 lbs and a 35-gallon fresh-water tank.
What warranty comes with the LiV 270THS?
Like every LiV, the LiV 270THS includes a Lifetime Warranty on wood rot and wood mildew, a 10-Year Limited Warranty on the frame structure, and a 1-Year Bumper-to-Bumper Warranty — we can warranty wood rot for life because there is no wood in the build to rot.
Is the LiV 270THS really wood-free?
Yes. The LiV 270THS is built on LiV's patented welded thermoplastic-composite shell (U.S. Patent No. 12,545,170) — no wood framing, floor, or skin — so it cannot rot, swell, or grow mildew.
Ready to explore?
Your next adventure starts here.
The LiV 270THS is an early look at our newest floorplan. Reach out and our team will walk you through the details and get you a quote.
