MODEL
23 RB
Travel Trailer · Sleeps 2–4
The 23 RB is the no-slide version of our rear-bath suite — dual-axle stability for highway miles, a dedicated rear bathroom for actual privacy, and zero slide-out maintenance on your weekend punch list. Sleeps four on a 3,580-pound composite chassis with electric brakes standard, a 10.7 cu ft refrigerator, and the full LIV Convenient Package (A/C, microwave, InstaHot endless hot water, power awning with LEDs) built in from day one. Couples who travel light love it: fewer moving parts, more square footage dedicated to the bathroom, and the same upgrade-rich option sheet as our slide-equipped 23-footers — Massage Spa Shower, Outside Kitchen, Convection Microwave, and a 32-inch cable TV mount. A galvanized-frame upgrade is on the table for coastal owners who want extra peace of mind on top of the Lifetime Warranty on Wood Rot and Wood Mildew.
View gallery
- 3,580
- LBS DRY
- 2–4
- SLEEPS
- 21' 6"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 26'
- Width
- 8'4"
- Exterior Height
- 10'6"
- Interior Height
- 6'7"
WEIGHT
- Dry Weight
- 3,580 lbs
- GVW
- 4,990 lbs
- Tongue Weight
- 395 lbs
- Carrying Cap.
- 1,660 lbs
TANKS
- Fresh Water
- 35 gal
- Grey Water
- 30 gal
- Black Water
- 38 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 2 axles
- Tires
- ST205/75R15
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required

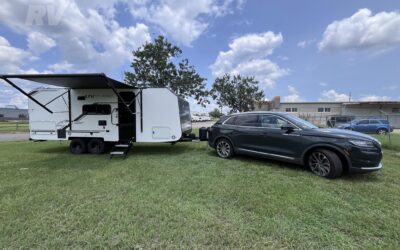

- Towable by almost any vehicle.

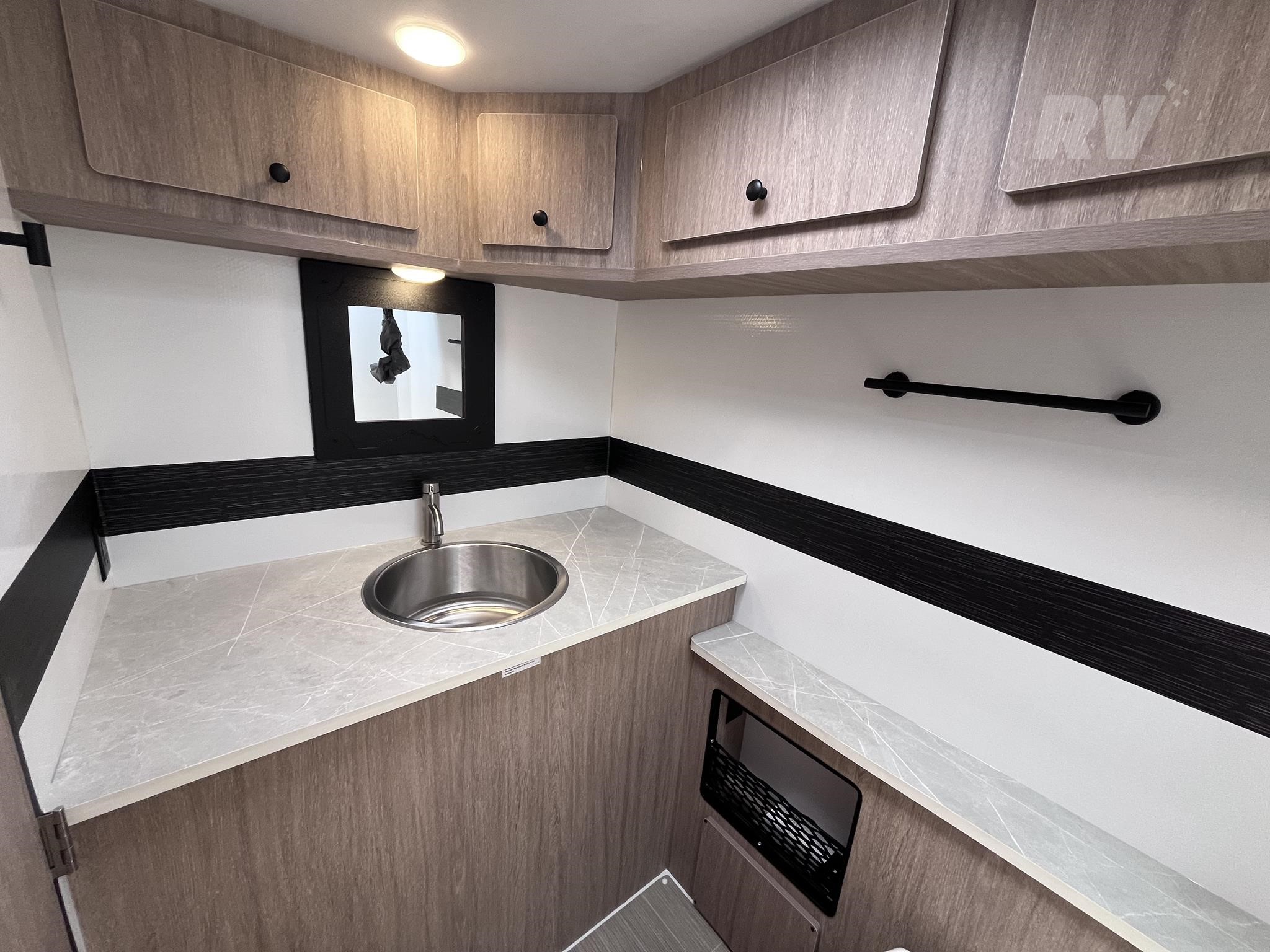

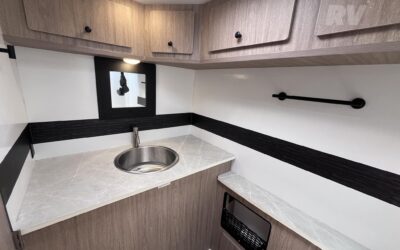

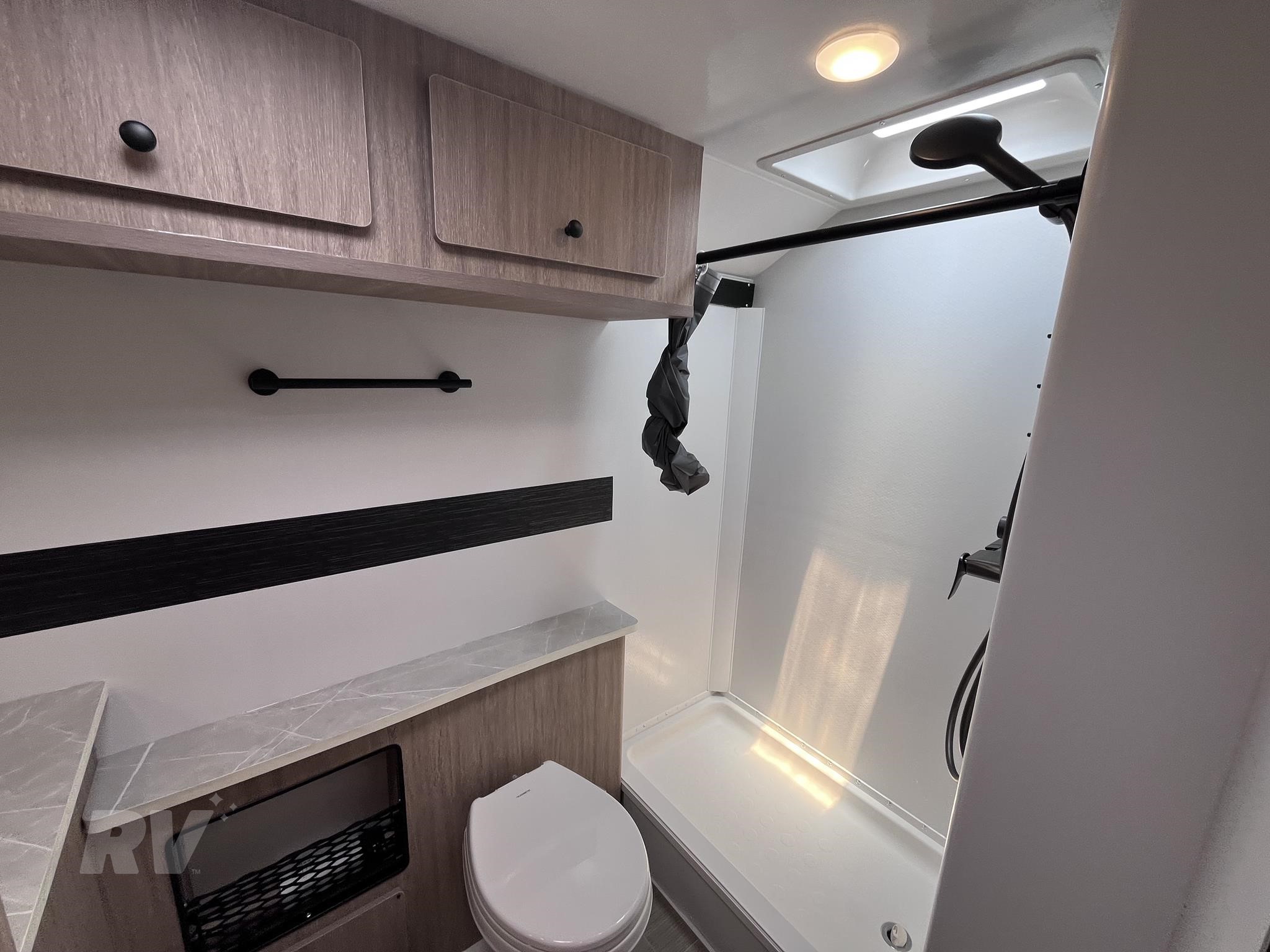

- Dedicated rear bath
- No slide-out (simpler service)

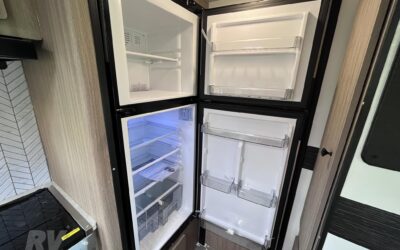

- 10.7 cu ft refrigerator (standard)
- Dual-axle with Electric Brakes (standard)
- Massage Spa Shower available
- Outside Kitchen available
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIVin Off-Road Solar Package
Two 200-watt solar panels (400 watts total), a 300Ah lithium battery, the Rich Solar NOVA Supercharger 3K inverter charger — 3,000W pure sine output with 6,000W surge — and a 60A MPPT solar charge controller with built-in Bluetooth monitoring. Recharges three ways: solar, generator, or shore power.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
LIV Extreme Off-Road Package
Raised axle with 15-inch mudder wheels and spare, special graphics, 34-inch extended stabilizer jacks, custom painted front and rear exterior walls, off-road ladder, off-road roof rack, two spreader lights (front and rear, door side), and a 200-watt solar panel with inverter, lithium battery, and controller. Available on the 201 BH, 201 QB, 211, 23-series, and 26 models.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Upgrade to Lithium Battery Optional
- Quiet Inverter Generator with Mount Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
- Cable TV and Mount — 32″ Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 15″ Radial Tires Standard
- Electric Brakes Standard
- Electric Stabilizer Jacks (Front & Rear) Optional
- Galvanized Frame Optional
Climate & Comfort
- InstaHot Endless Hot Water Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard

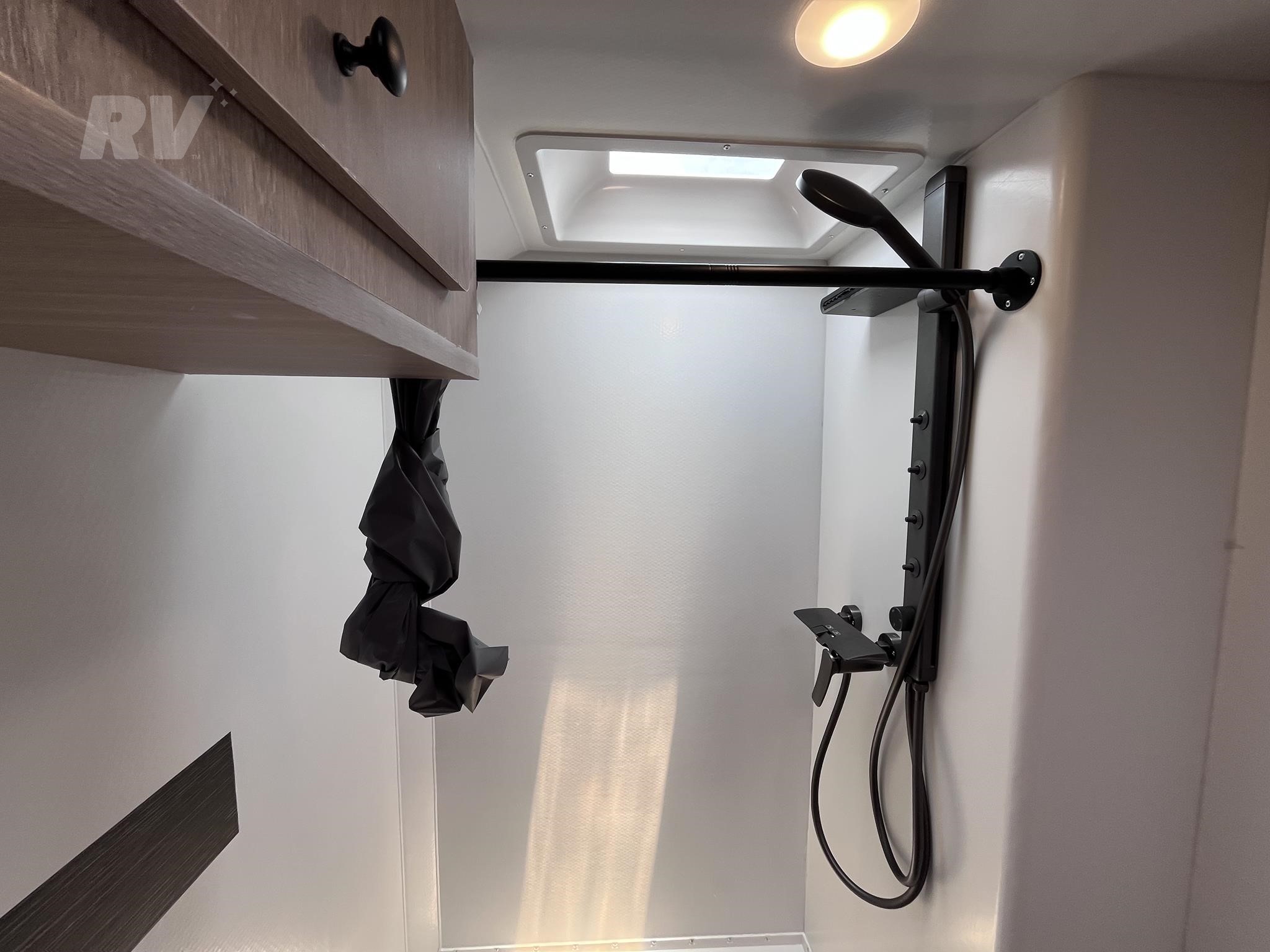

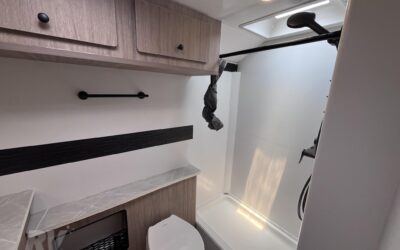

- Standard Shower Standard

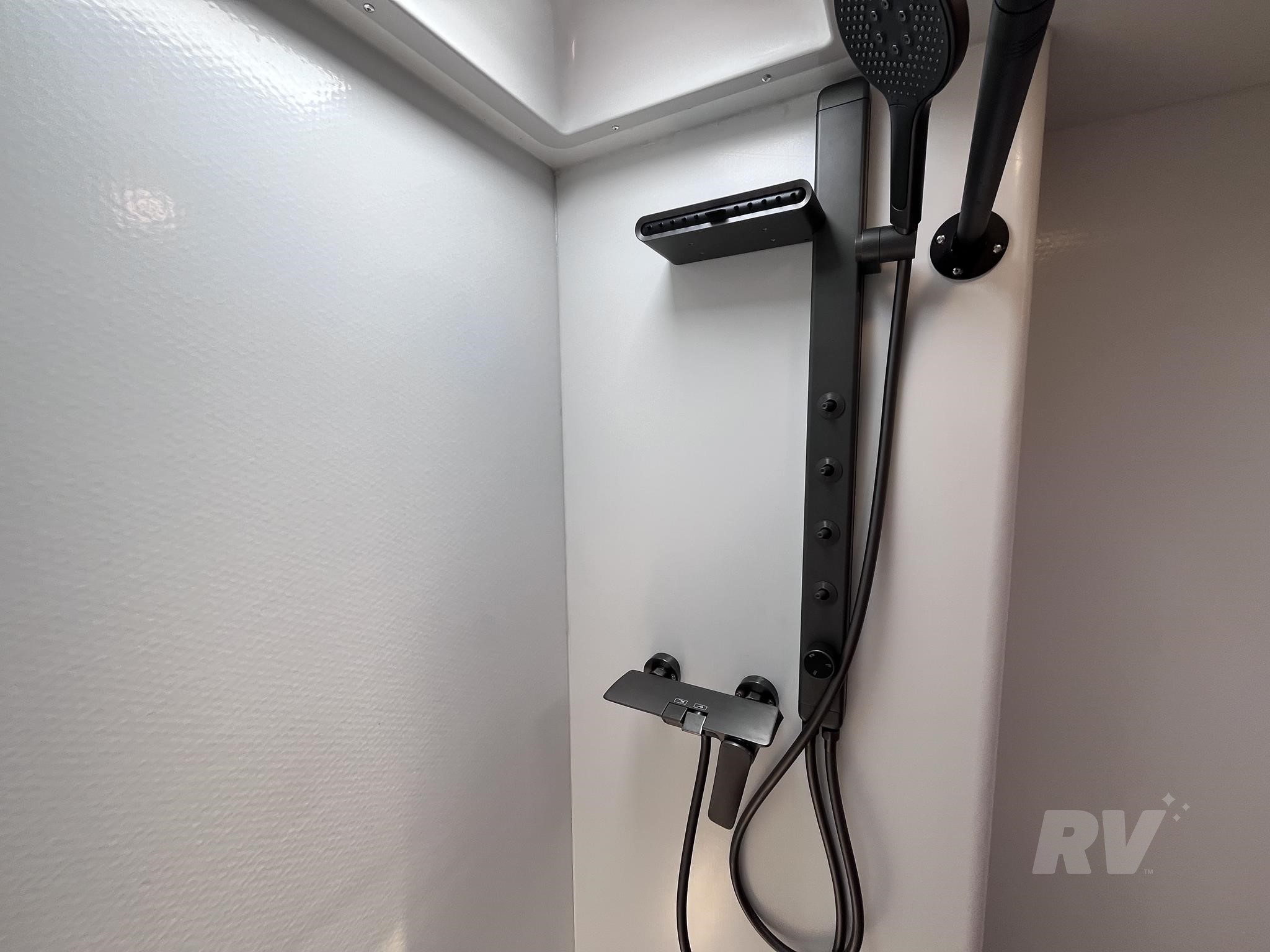

- Massage Spa Shower Optional
- Sofa Optional
Appliances
- Microwave Oven Standard

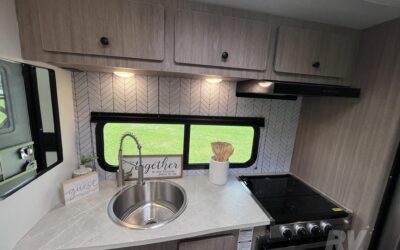

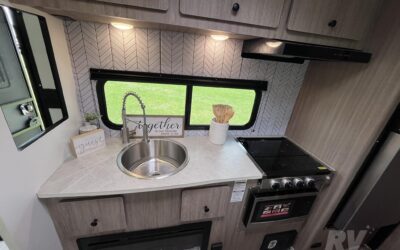

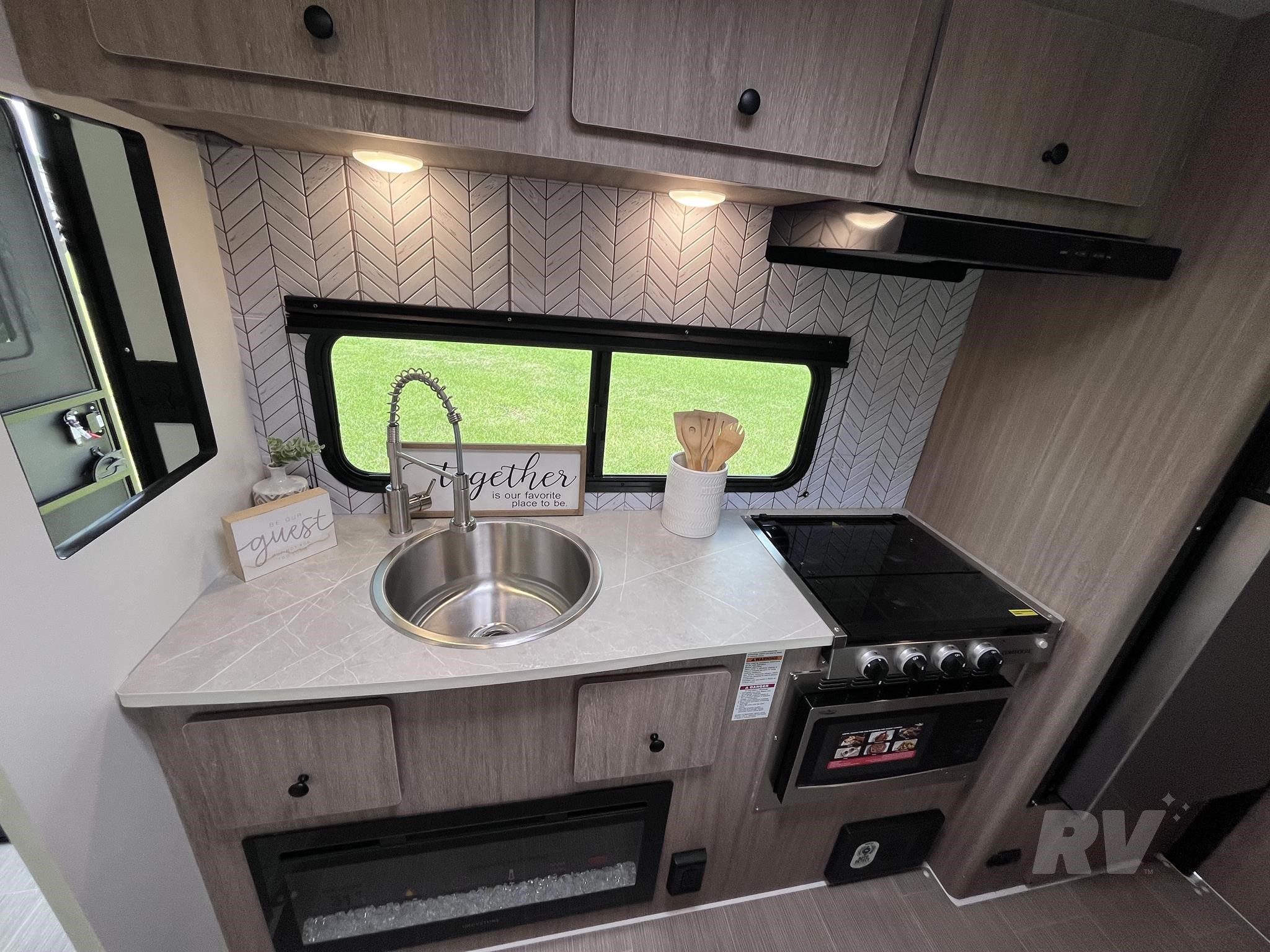

- 2-Burner Propane Cook Top Standard

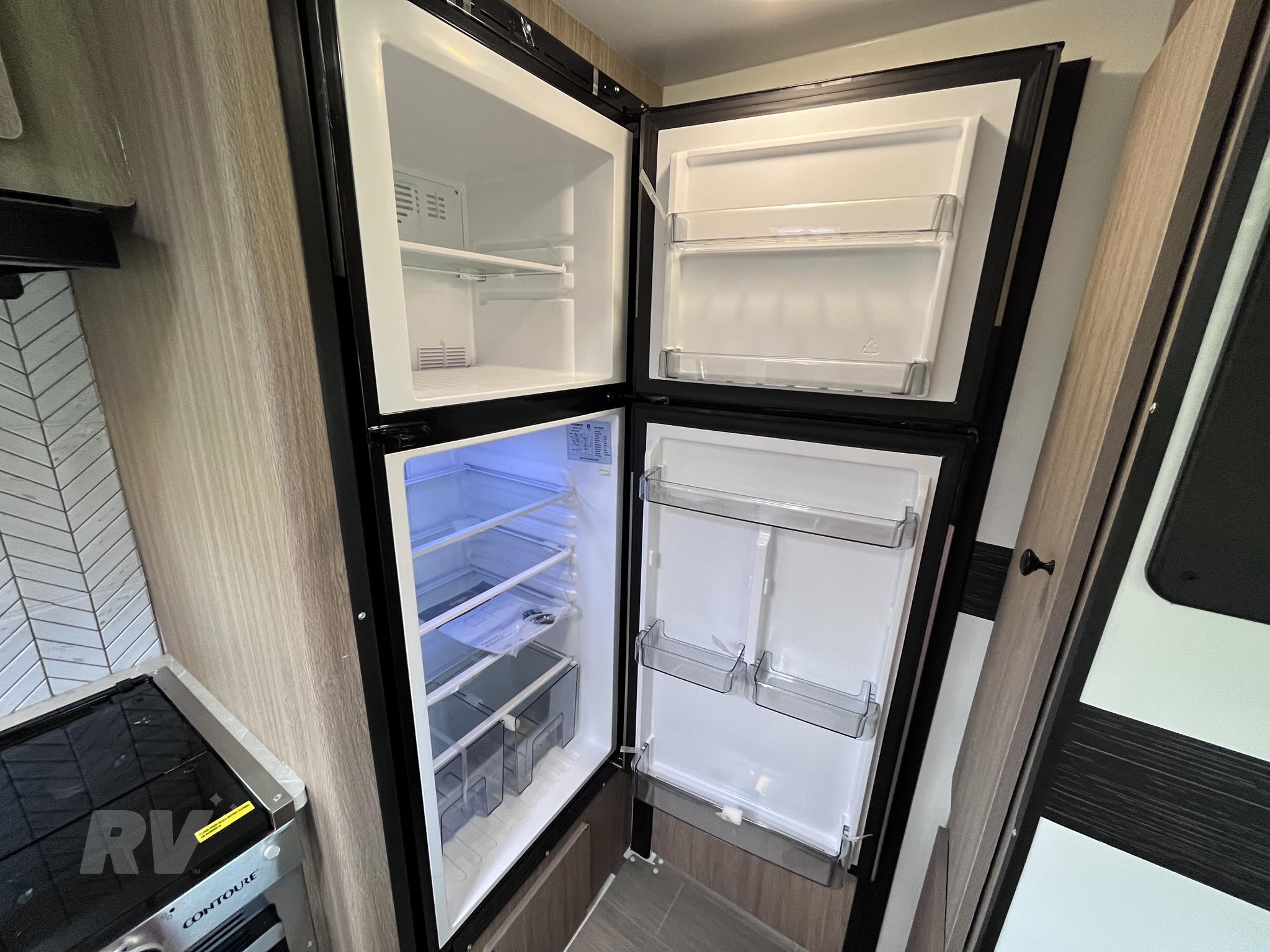

- 10.7 cu ft Refrigerator Standard
- Upgrade to Convection Microwave Optional
Exterior

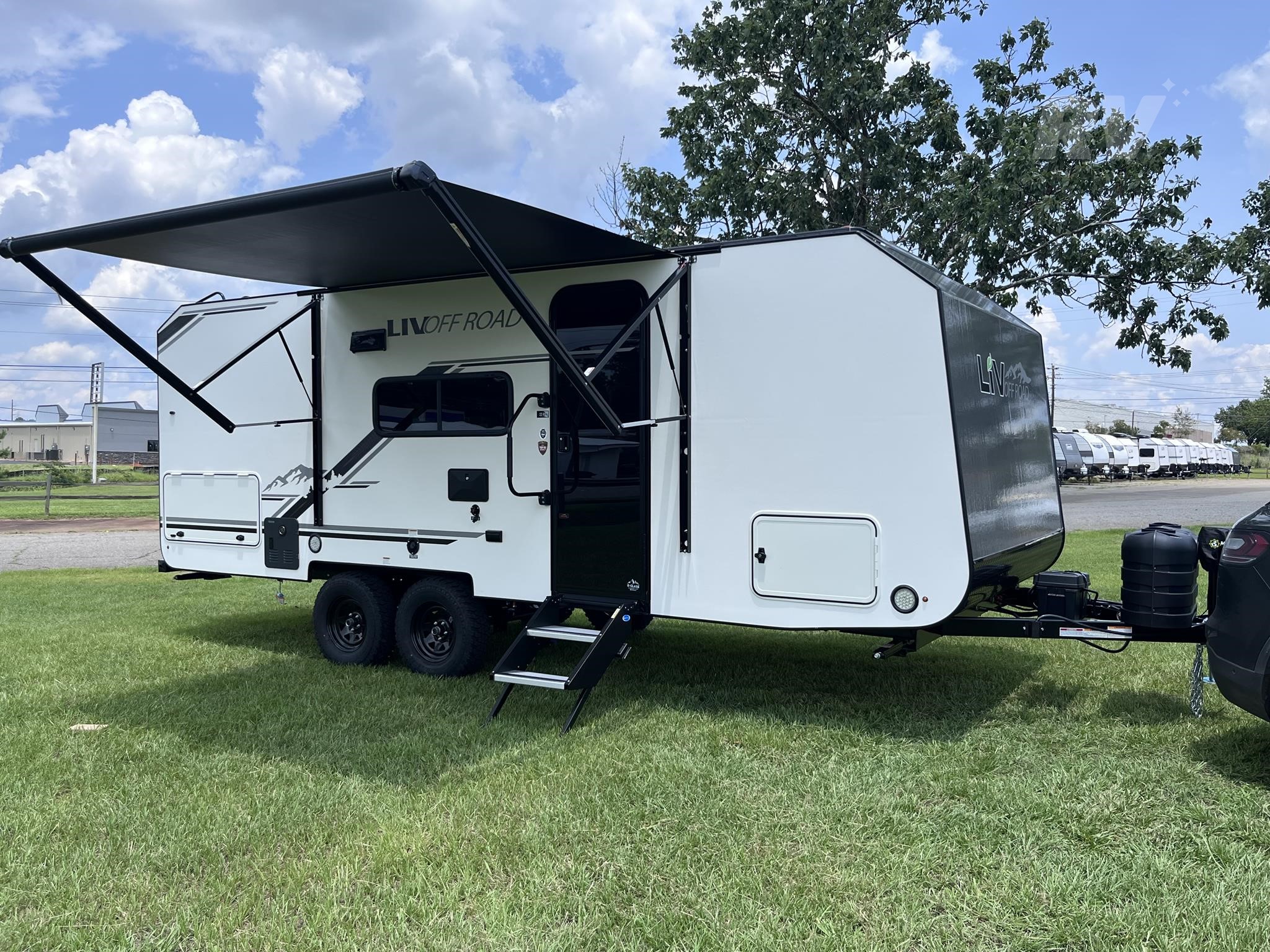

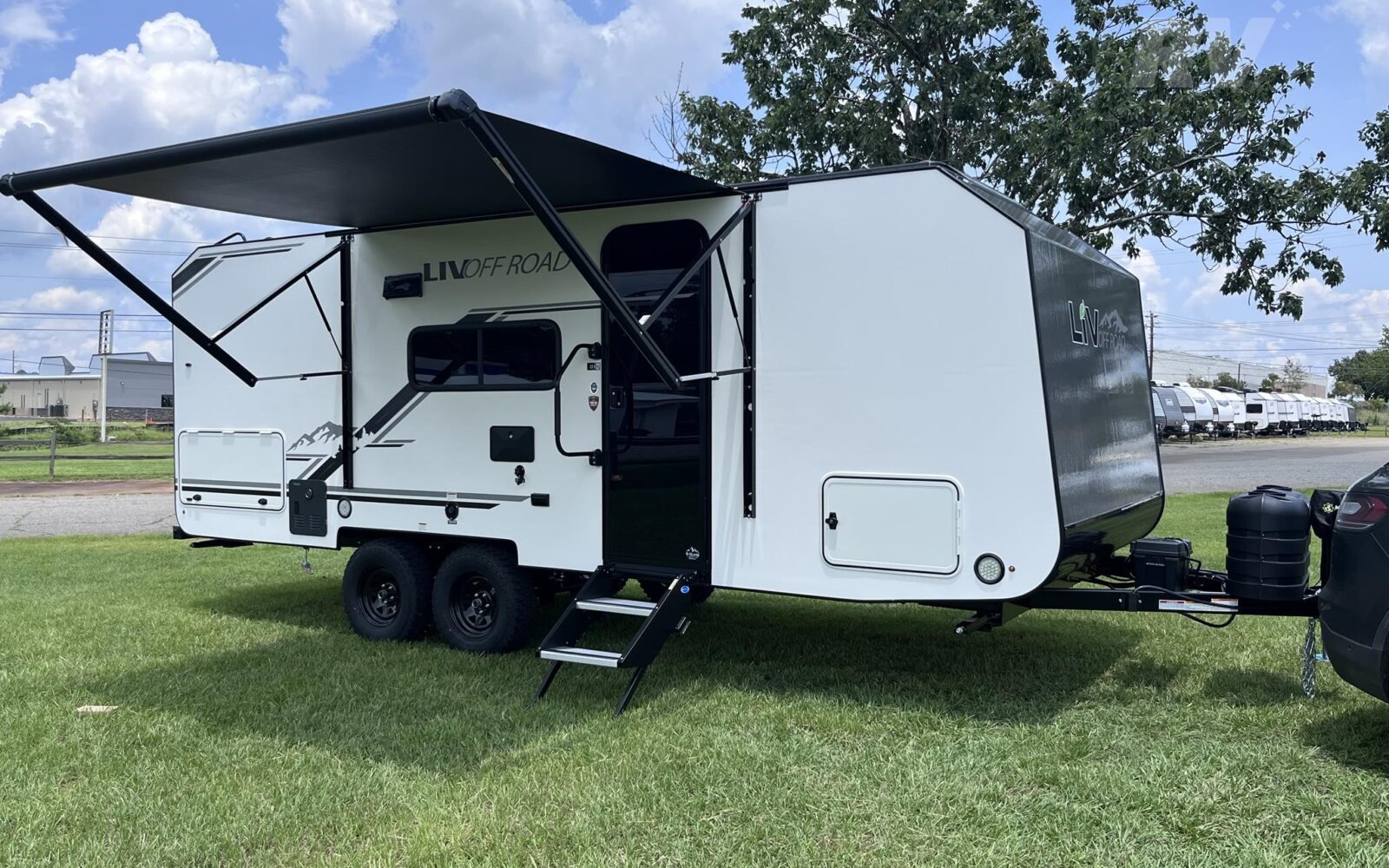

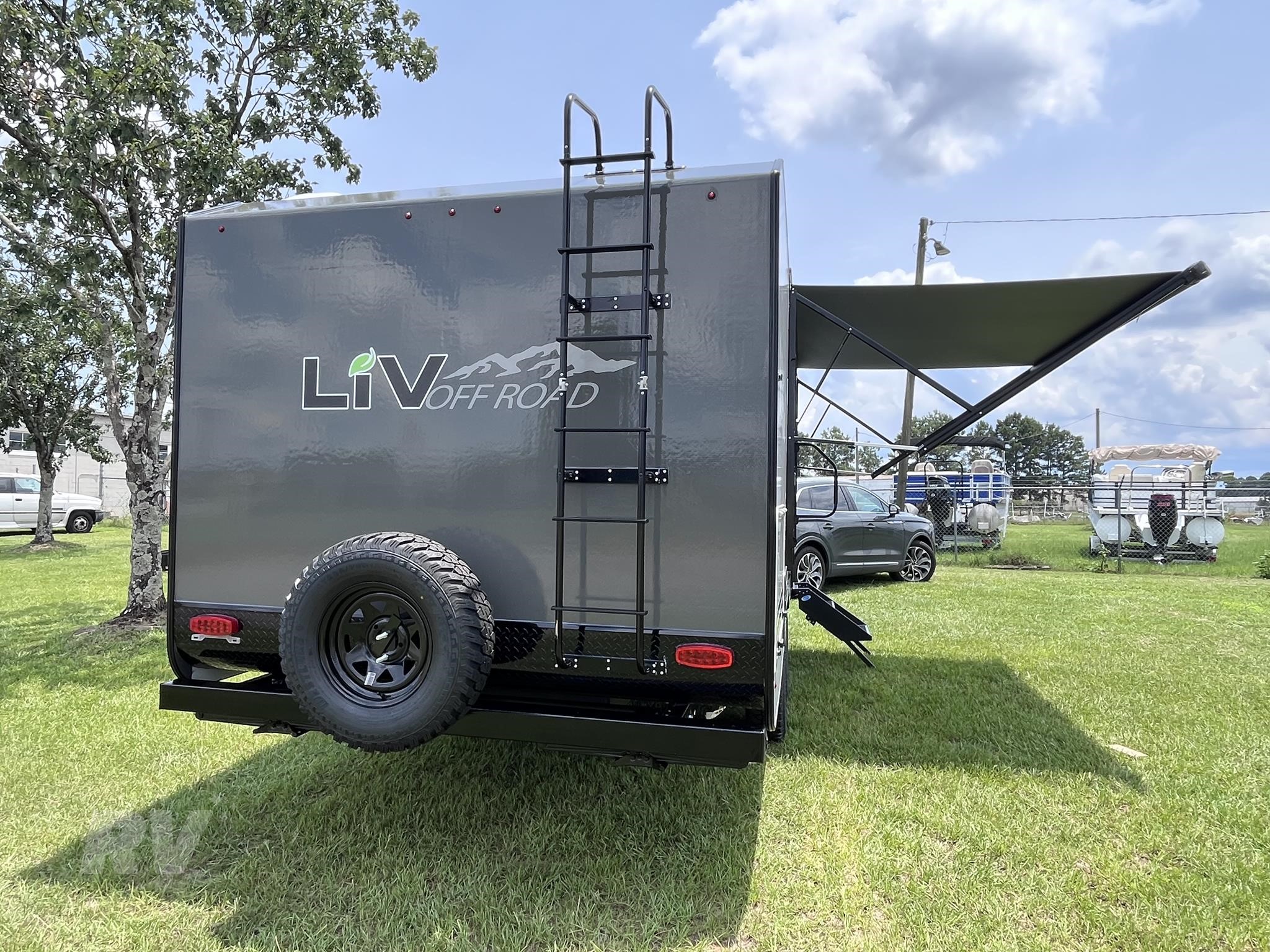

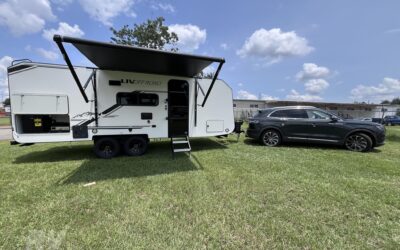

- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional

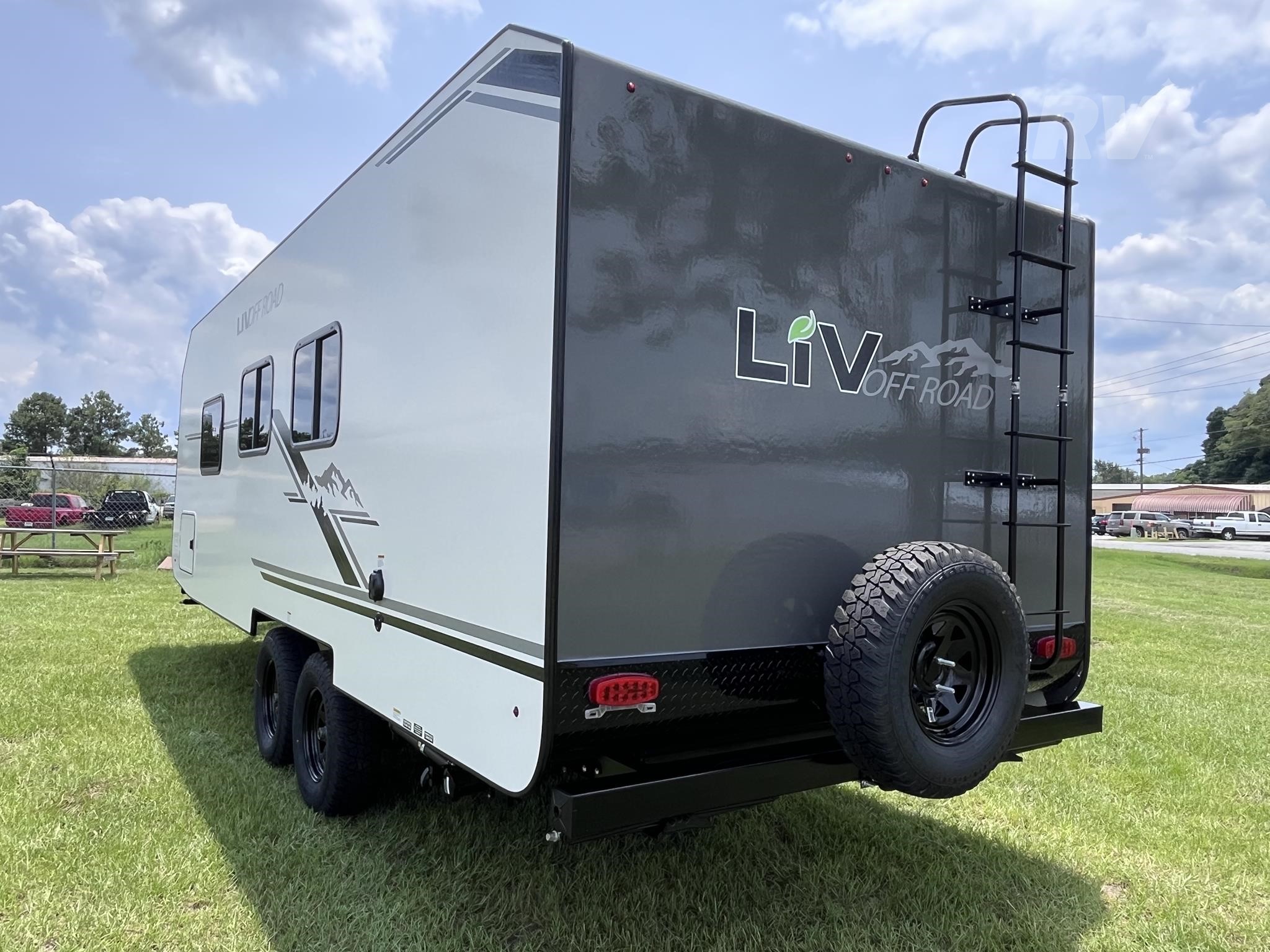

- Spare Tire & Carrier Optional
- Outside Shower Optional

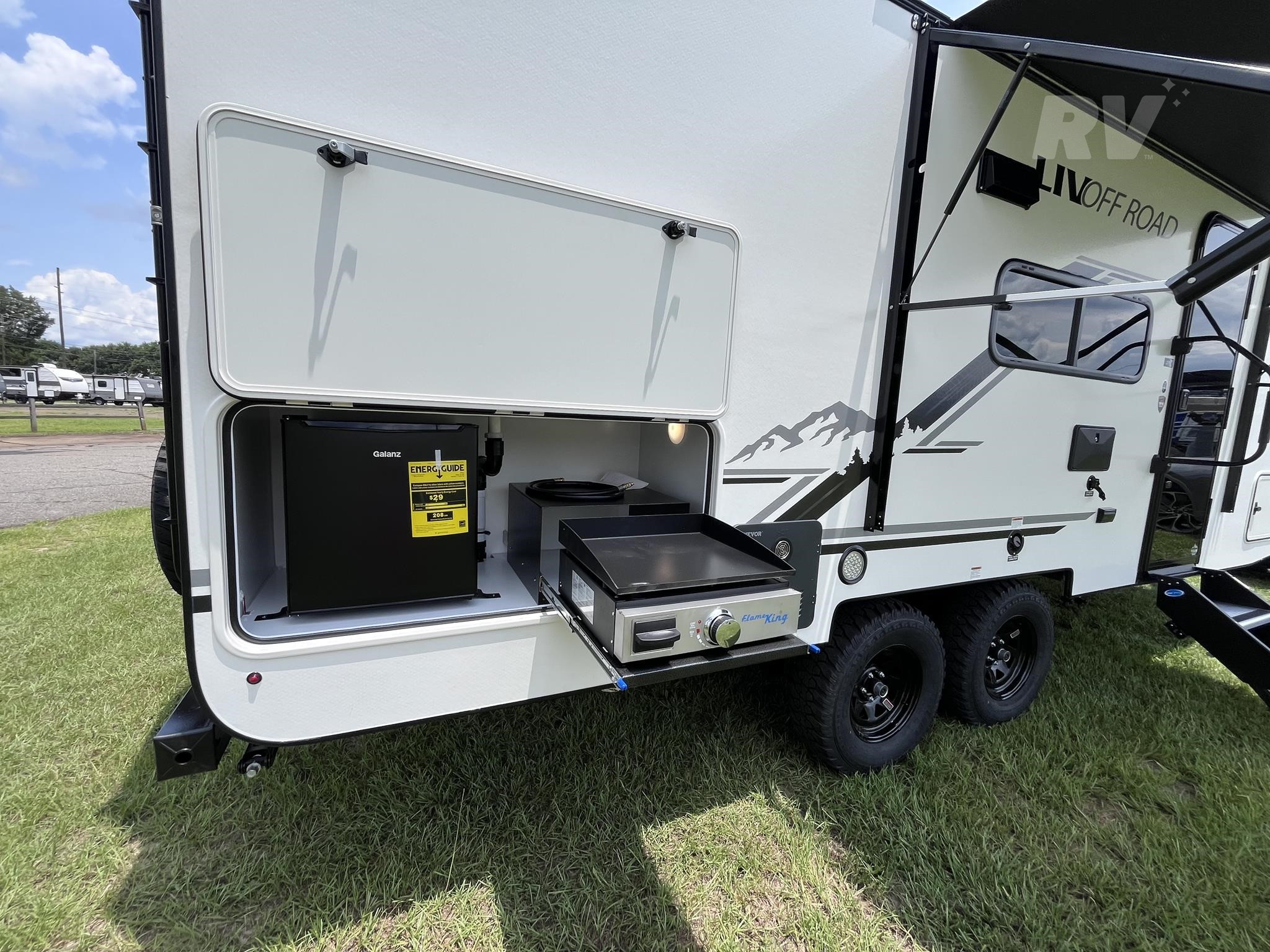

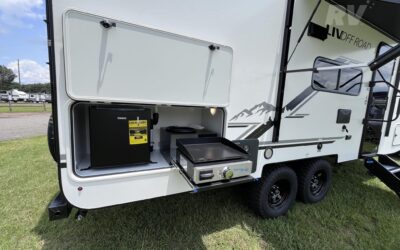

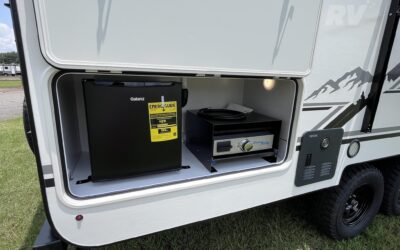

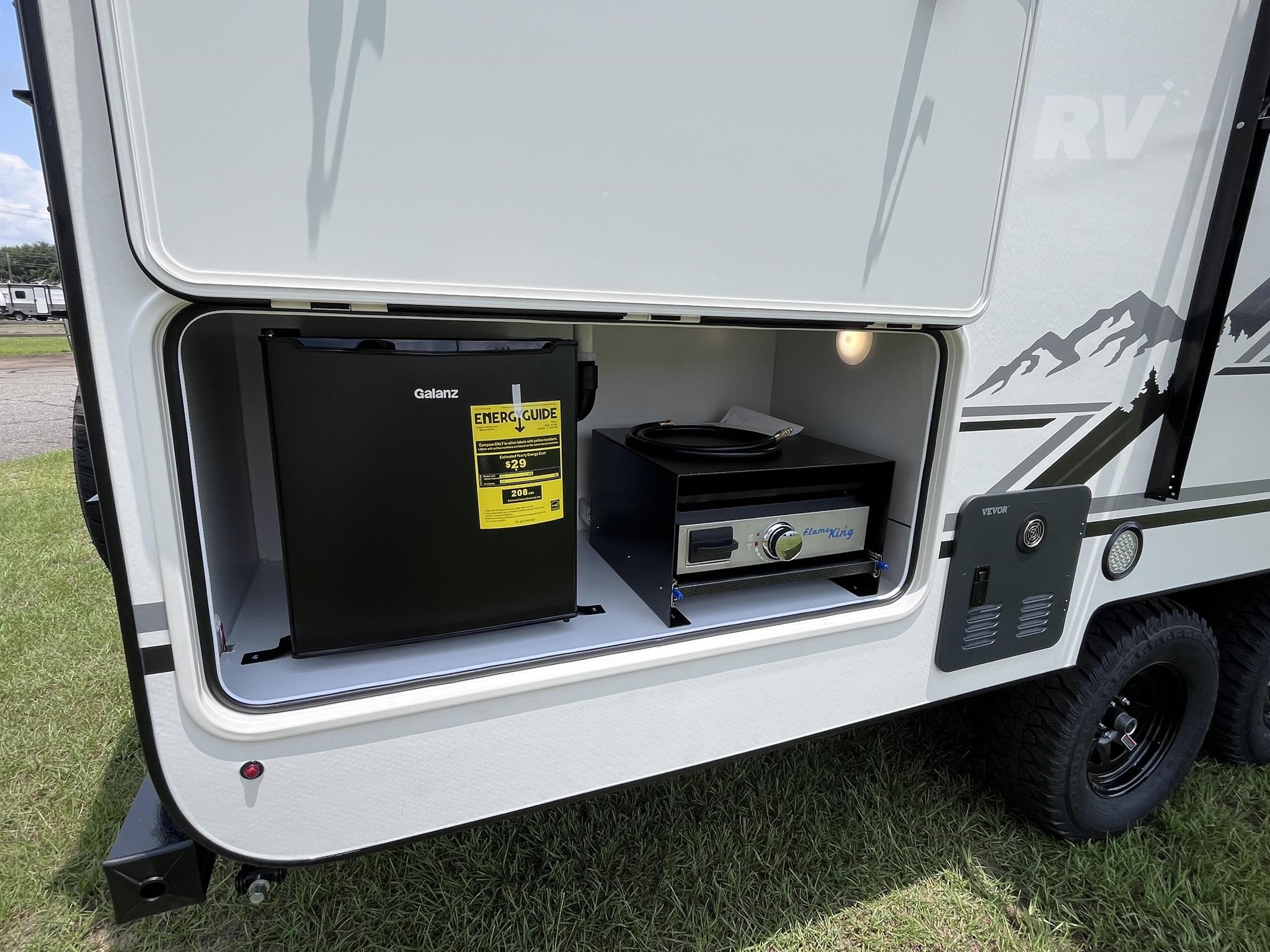

- Outside Kitchen Optional
- Outside Griddle & Bracket Optional
Gallery
Inside and out.
Compare
How it stacks up.
Shop this style
Questions
LiV 23 RB FAQ

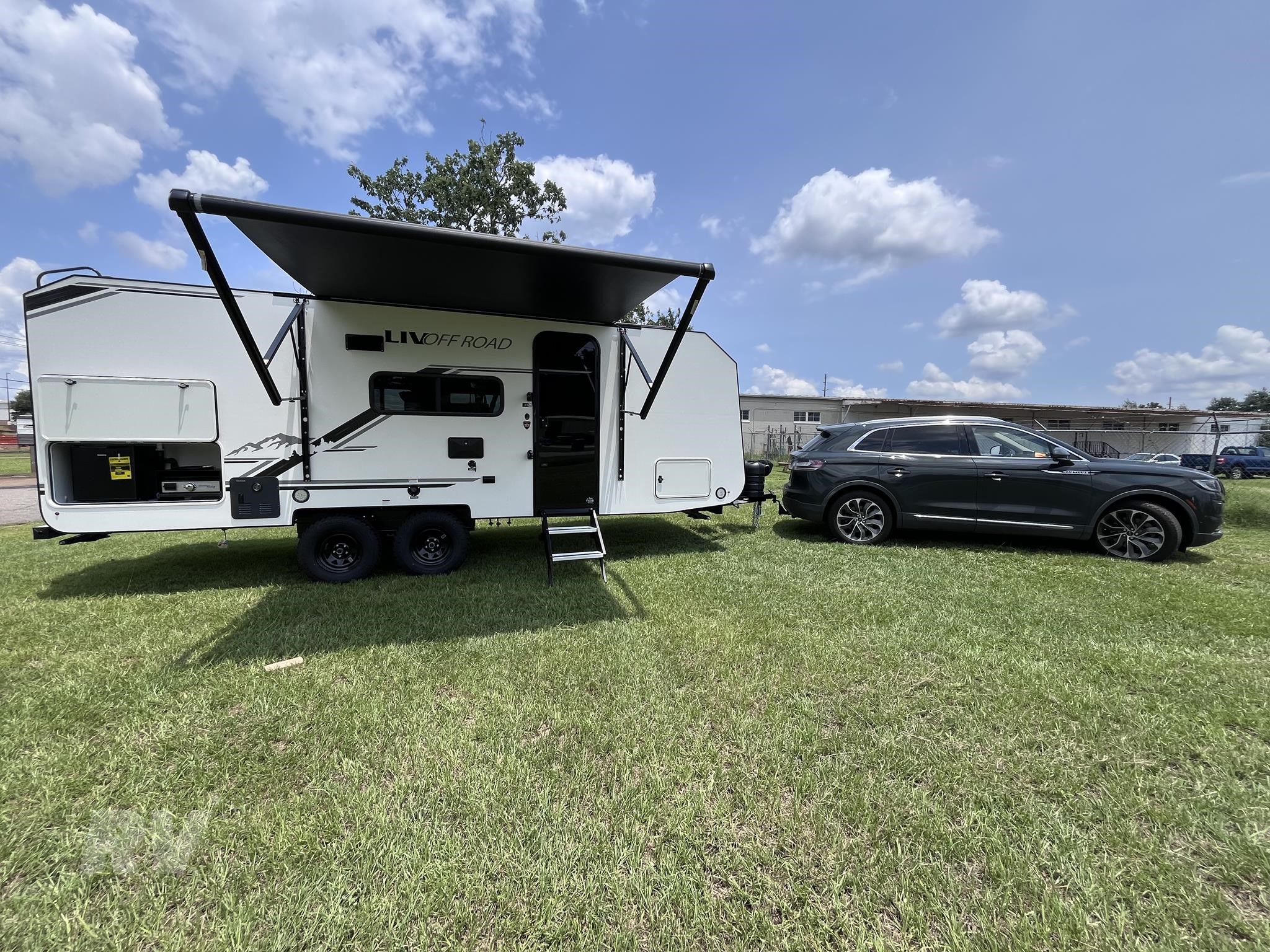

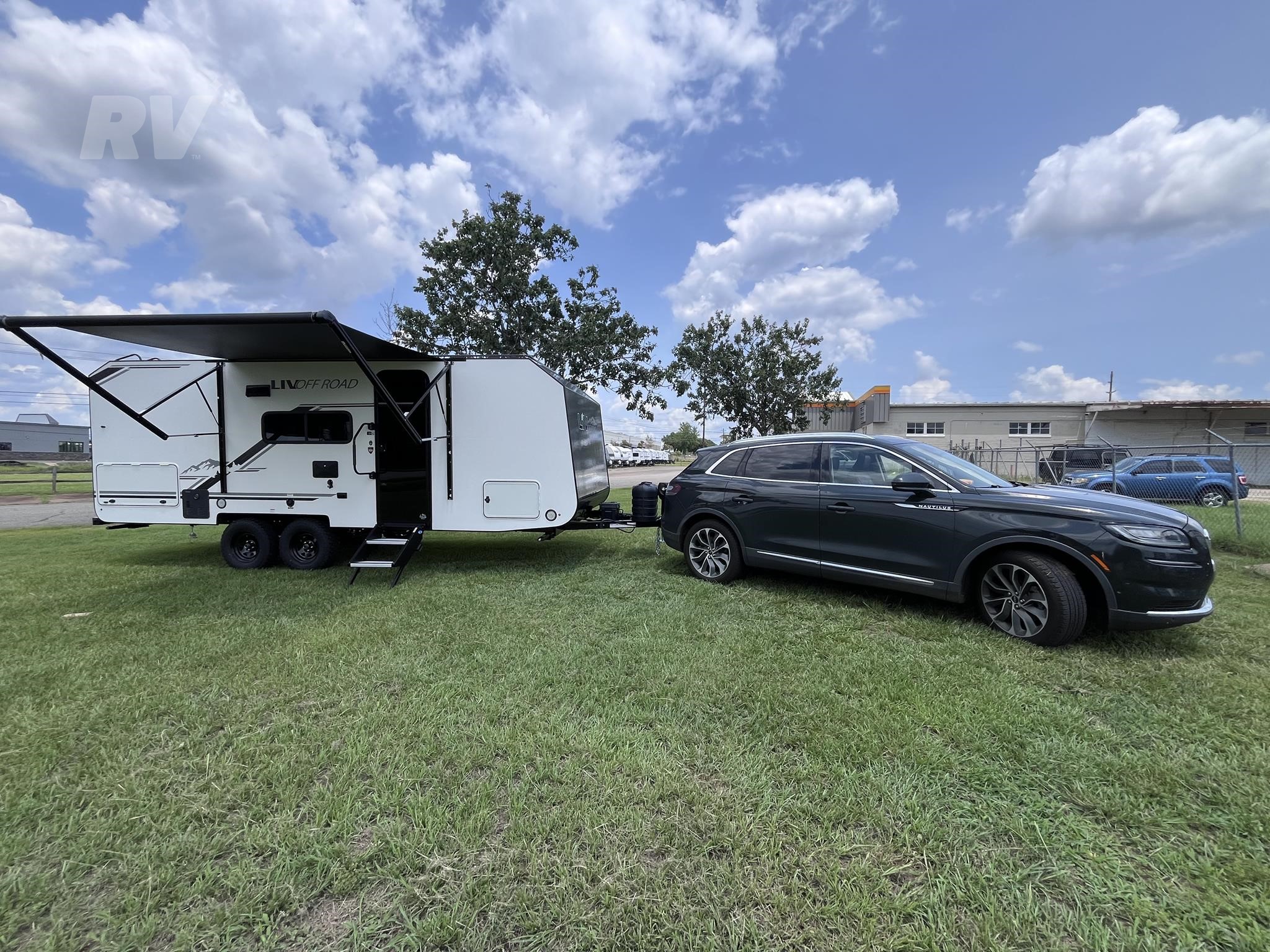

How much does the LiV 23 RB weigh, and what can tow it?
The LiV 23 RB has a dry weight of about 3,580 lbs, with a GVWR (max loaded weight) of about 4,990 lbs. Because it is built from 100% wood-free composite it is light for its size — match its loaded weight to your vehicle's rated tow capacity, leaving margin for passengers and gear.
How many people does the LiV 23 RB sleep?
The LiV 23 RB sleeps 2 to 4. See the floorplan and spec sheet above for the exact bed configuration.
How much can the LiV 23 RB carry and hold?
The LiV 23 RB has a cargo carrying capacity around 1,660 lbs and a 35-gallon fresh-water tank.
How much does the LiV 23 RB cost?
The LiV 23 RB starts around $30,000. That is a ballpark starting figure — configure your build for a closer number.
What warranty comes with the LiV 23 RB?
Like every LiV, the LiV 23 RB includes a Lifetime Warranty on wood rot and wood mildew, a 10-Year Limited Warranty on the frame structure, and a 1-Year Bumper-to-Bumper Warranty — we can warranty wood rot for life because there is no wood in the build to rot.
Is the LiV 23 RB really wood-free?
Yes. The LiV 23 RB is built on LiV's patented welded thermoplastic-composite shell (U.S. Patent No. 12,545,170) — no wood framing, floor, or skin — so it cannot rot, swell, or grow mildew.
Ready to roll?
Configure your LiV 23 RB, save your build, then take it to a dealer.
