MODEL
OFF ROAD 140TH
Toy Hauler · Sleeps 2–4

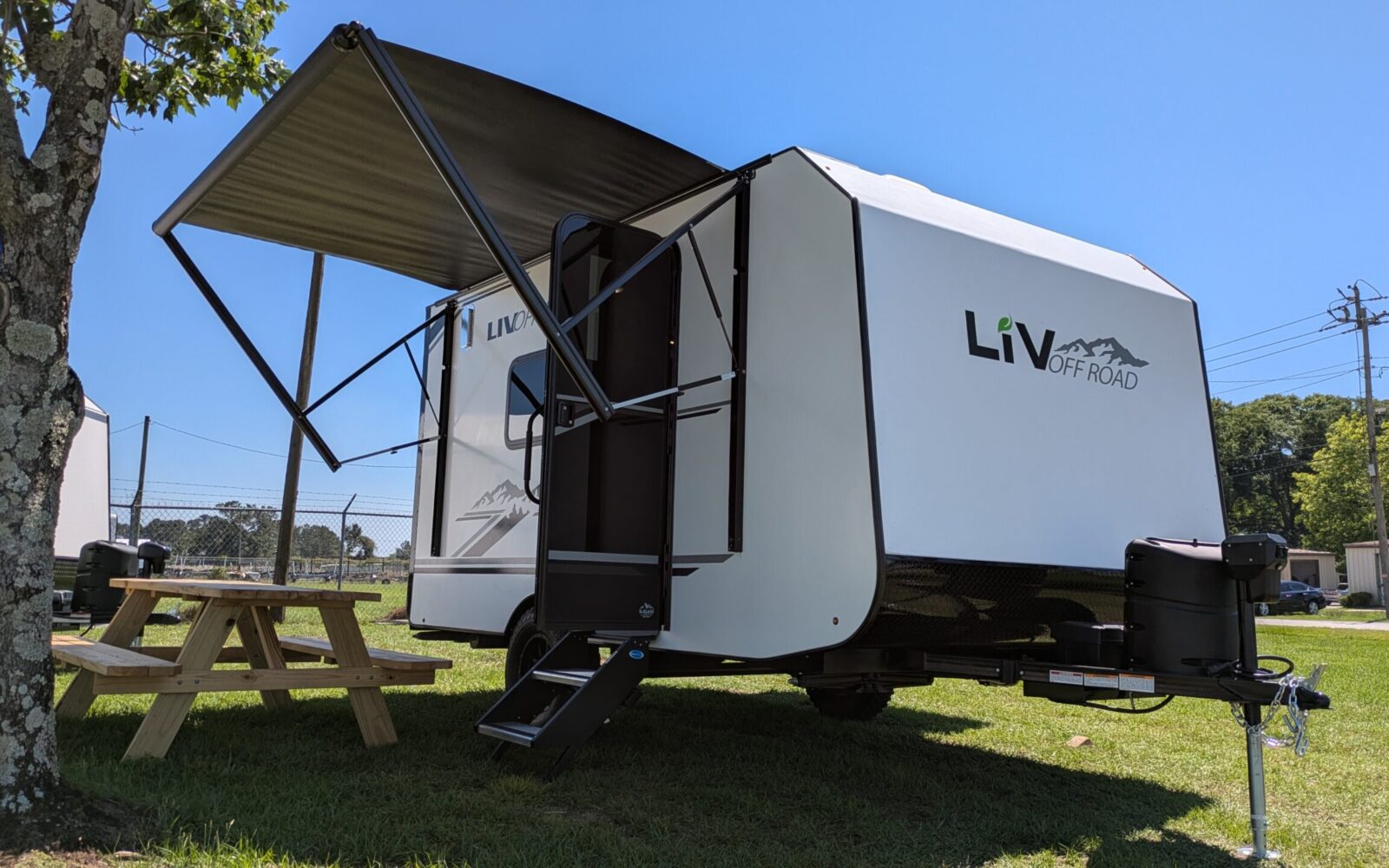

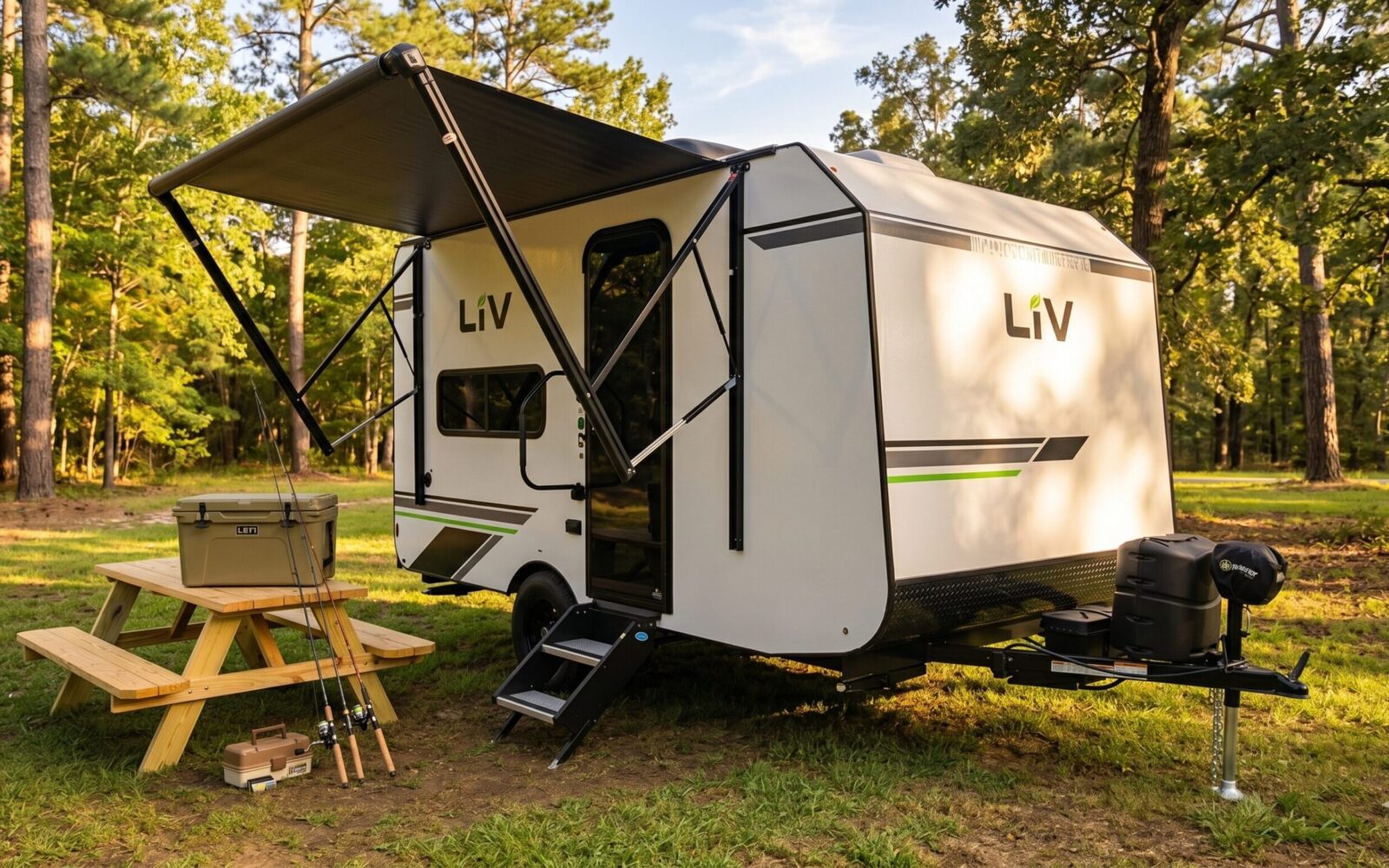

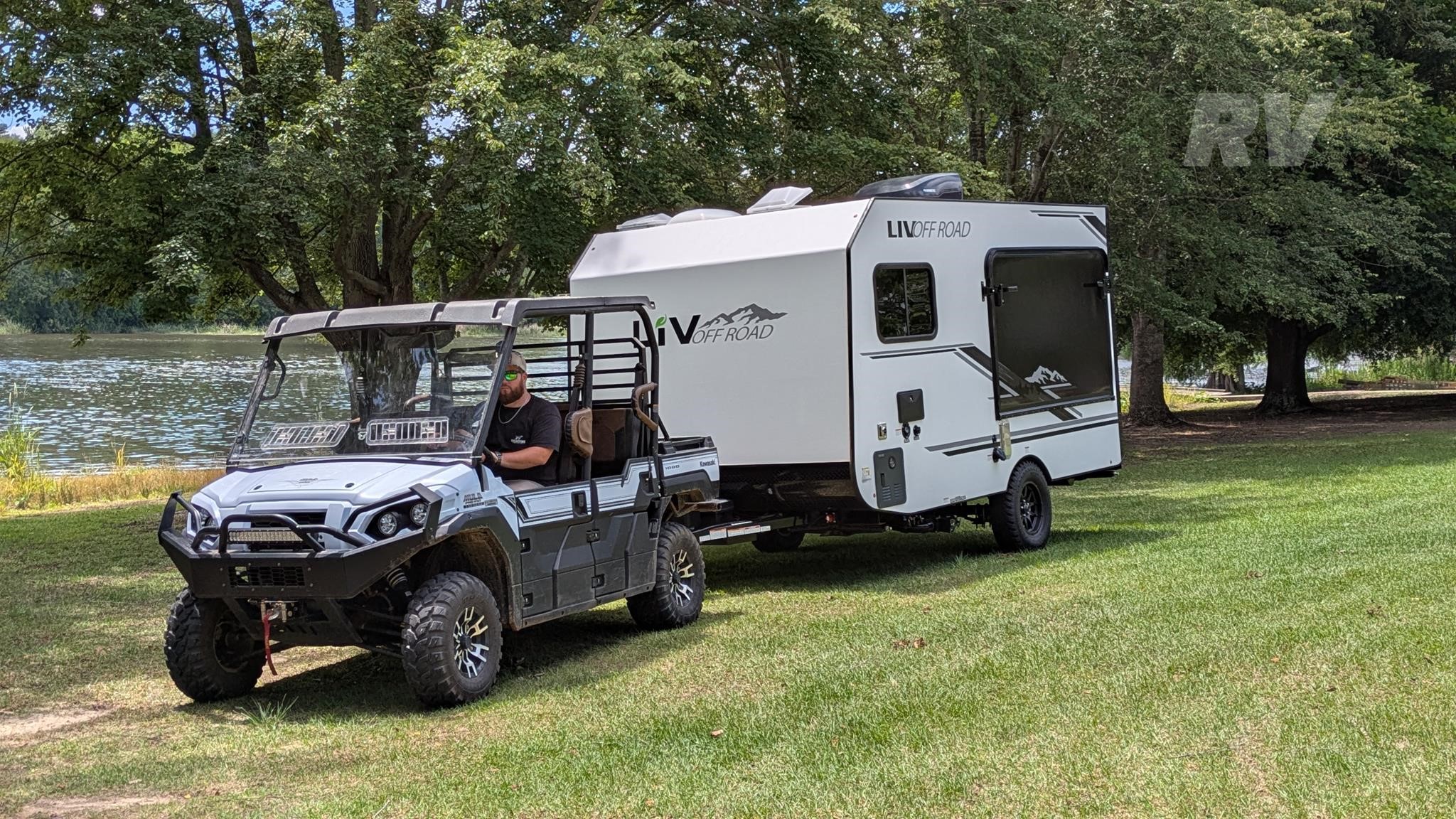

The OFF ROAD 140TH is the toy hauler that doesn’t ask you to buy a 3/4-ton — a rear ramp for the bikes and kayaks, a single-axle composite chassis, and a 2,280-pound dry weight most midsize SUVs can pull stock. Electric brakes are standard, the LIV Convenient Package is built in (A/C, microwave, power awning with LEDs, InstaHot endless hot water, 3.3 cu ft refrigerator), and the 140TH is one of the few LiV models explicitly eligible for our Off-Road Package — 15-inch off-road tires plus a lift with spare. Two 140TH-exclusive options take it further: a pop-out tent that adds a second sleeping zone, and a rear-ramp patio with aluminum fencing that converts your cargo area into a covered hangout once you’ve unloaded. Add the Solar Package and an LP Furnace and you’ve got a four-season adventure rig that hauls the gear, fits the kids, and tows with a vehicle you already own.
View gallery
- 2,280
- LBS DRY
- 2–4
- SLEEPS
- 13' 9"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 17' 3"
- Width
- 8'4"
- Exterior Height
- 9'
- Interior Height
- 6'7"
WEIGHT
- Dry Weight
- 2,280 lbs
- GVW
- 3,500 lbs
- Tongue Weight
- 275 lbs
- Carrying Cap.
- 1,220 lbs
TANKS
- Fresh Water
- 25 gal
- Grey Water
- 30 gal
- Black Water
- 30 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 1 axle
- Tires
- ST205/75R14
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

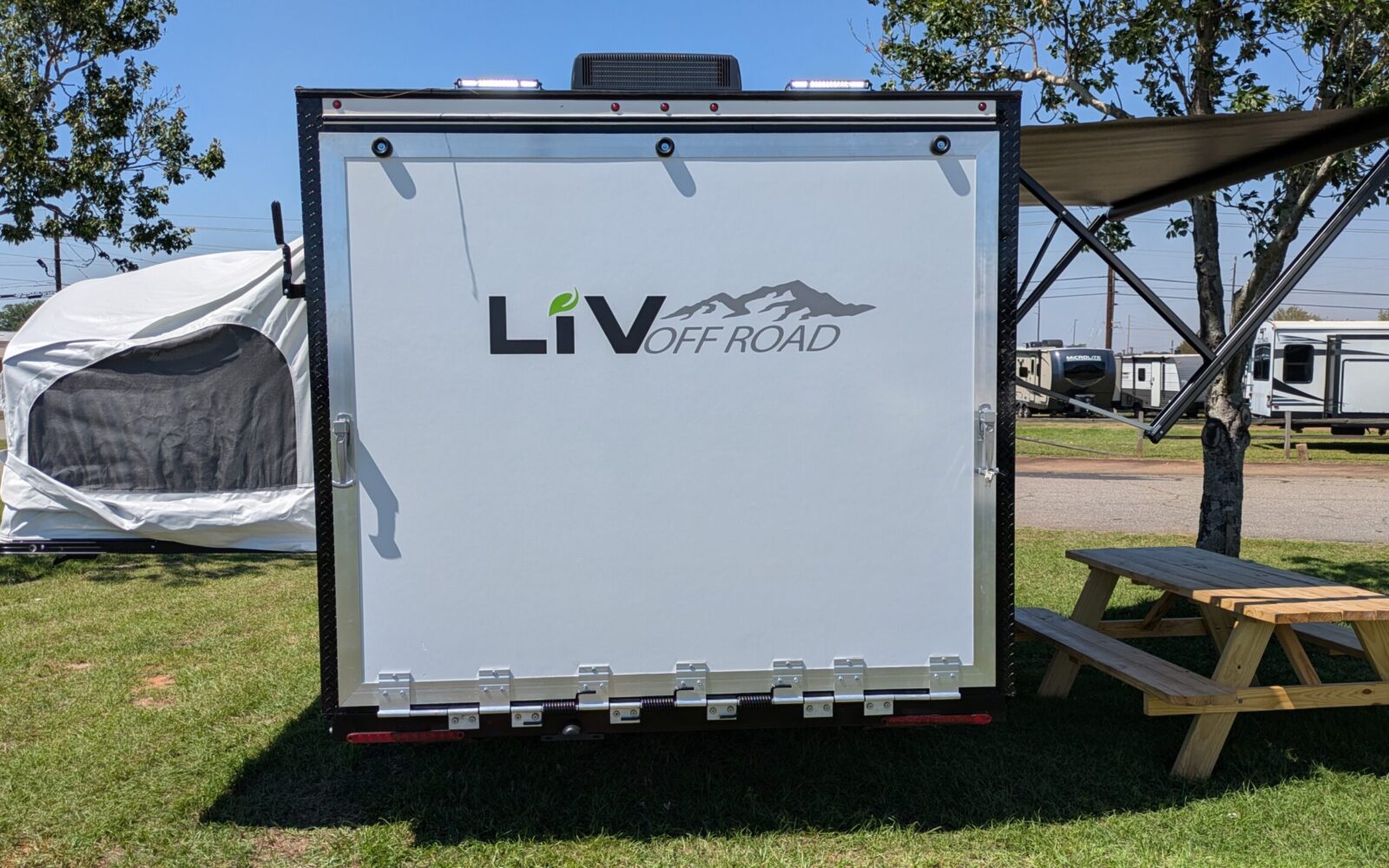

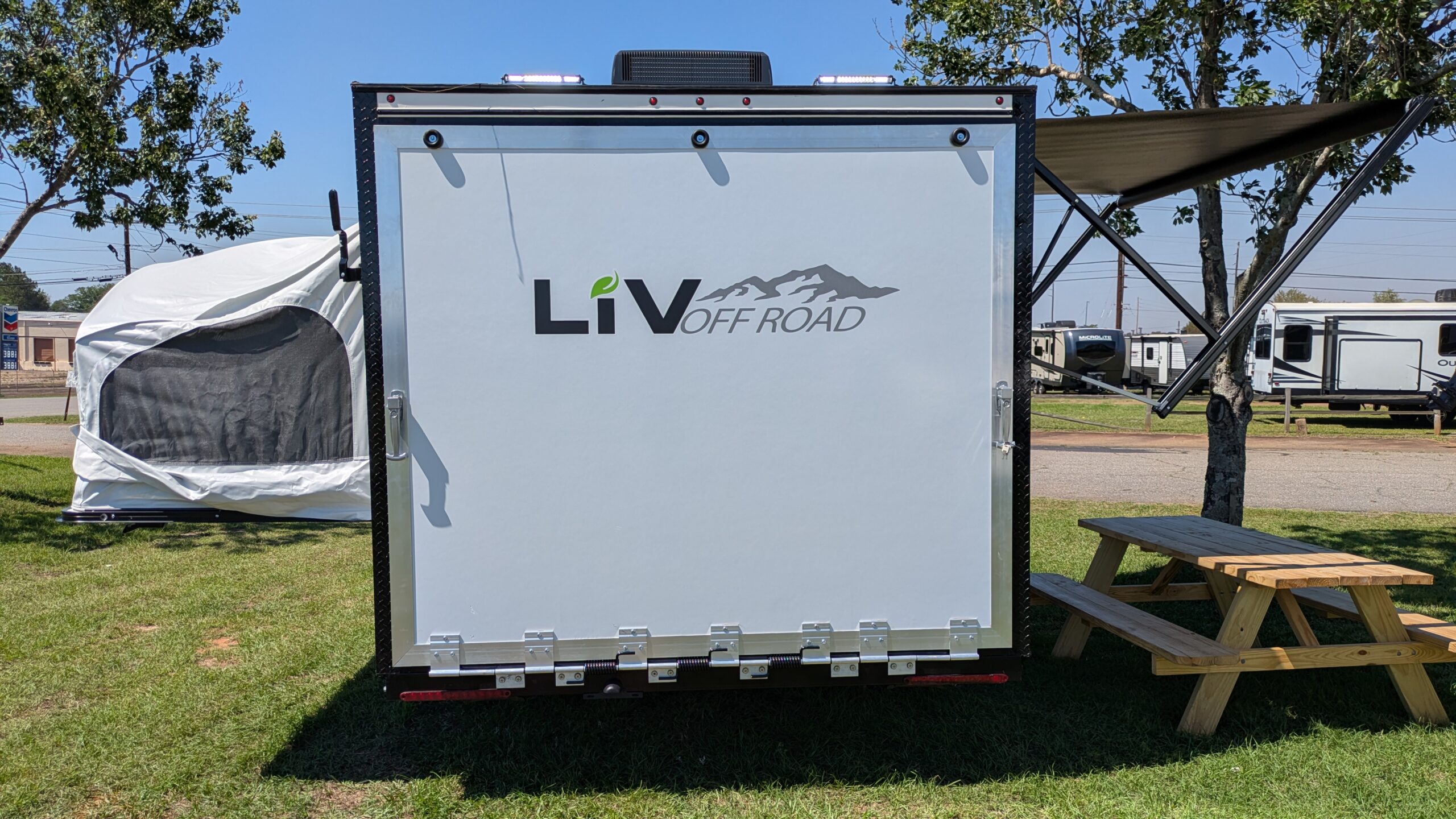

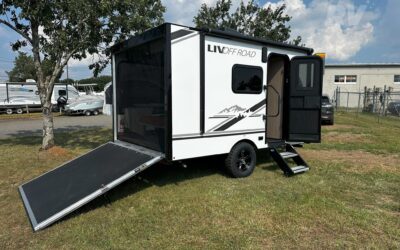

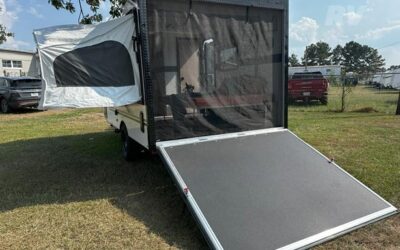

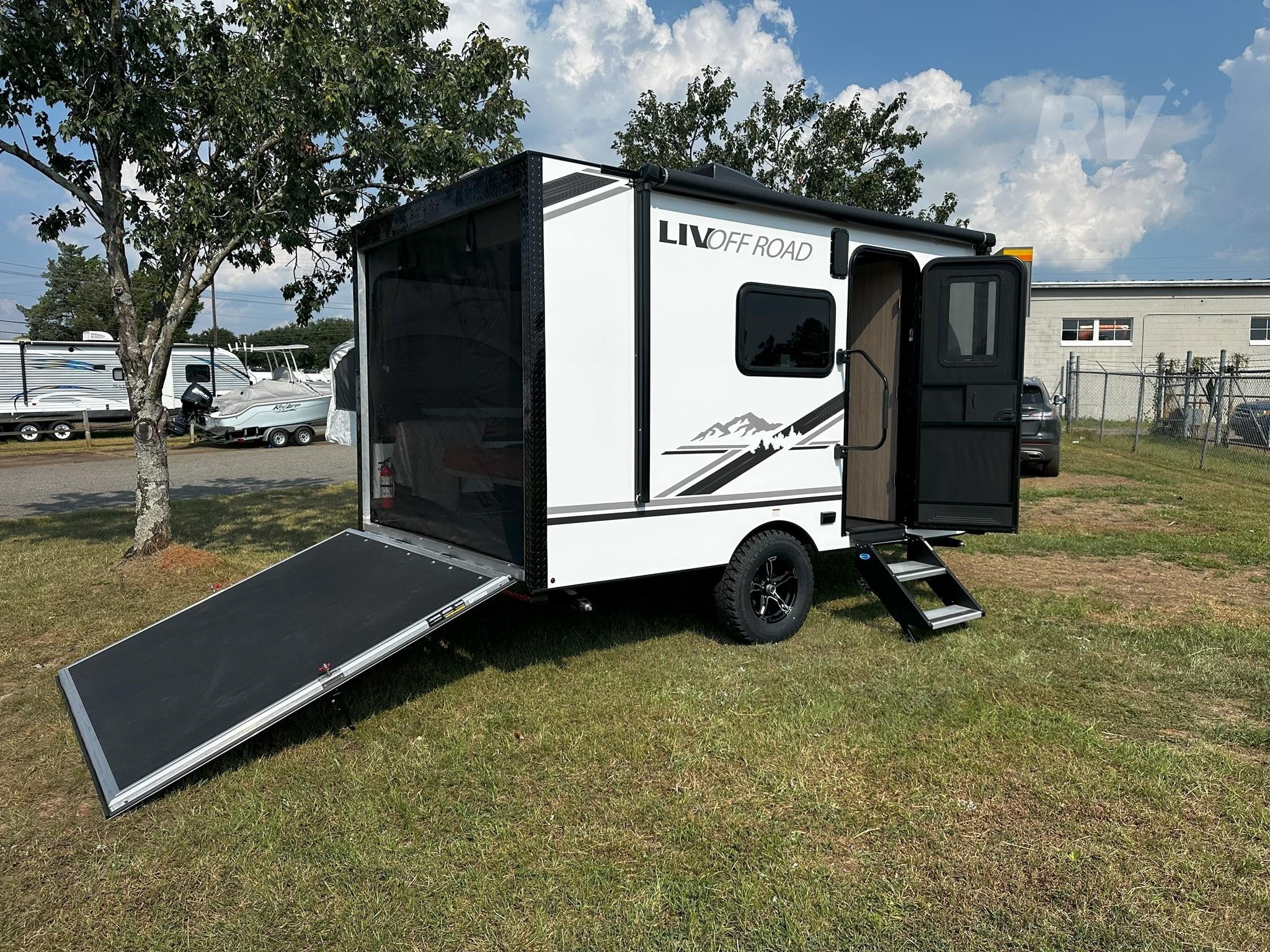

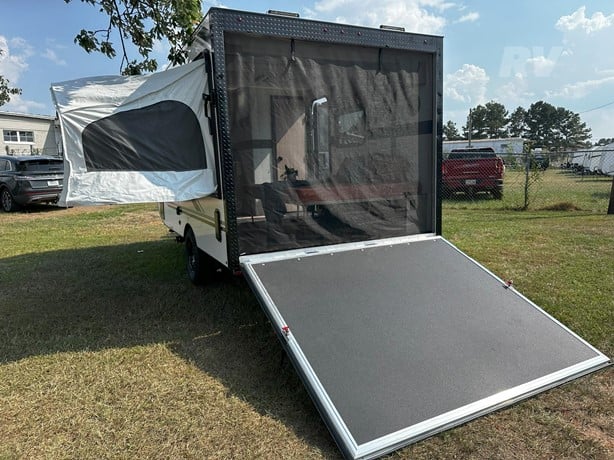

- Rear ramp (toy-hauler layout)
- 2,280 lb dry weight
- Single-axle composite chassis
- Off-Road Package eligible

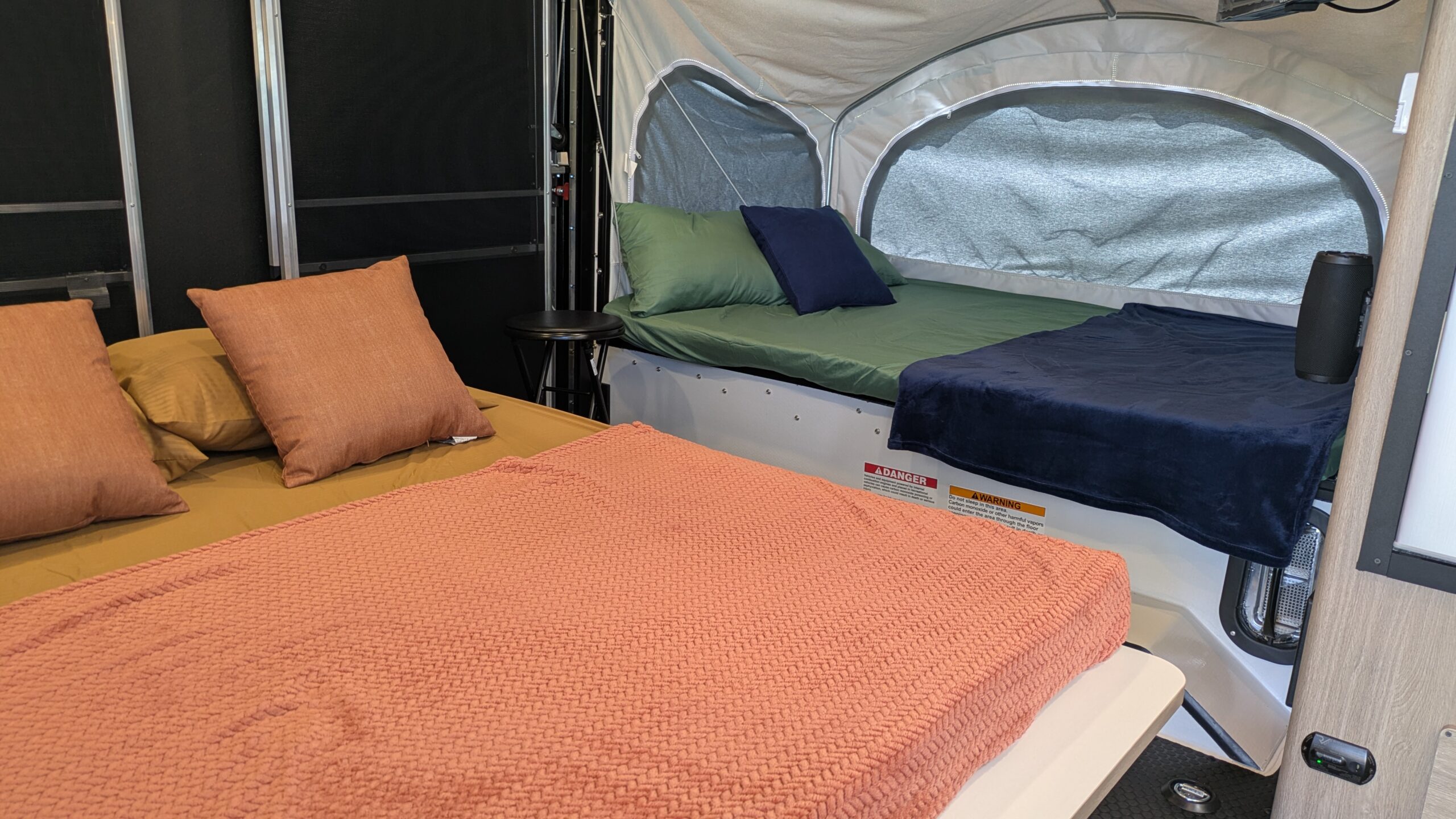

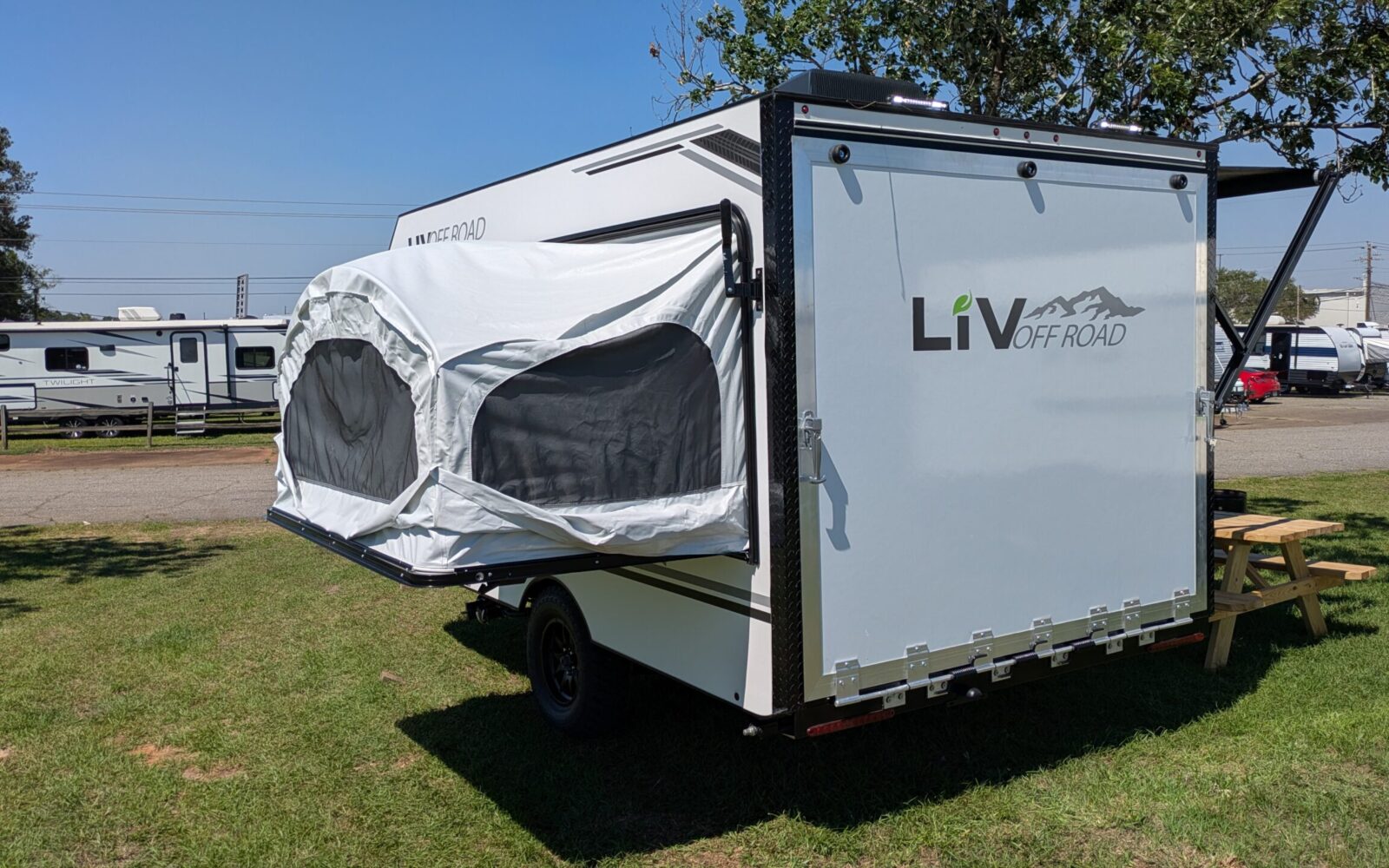

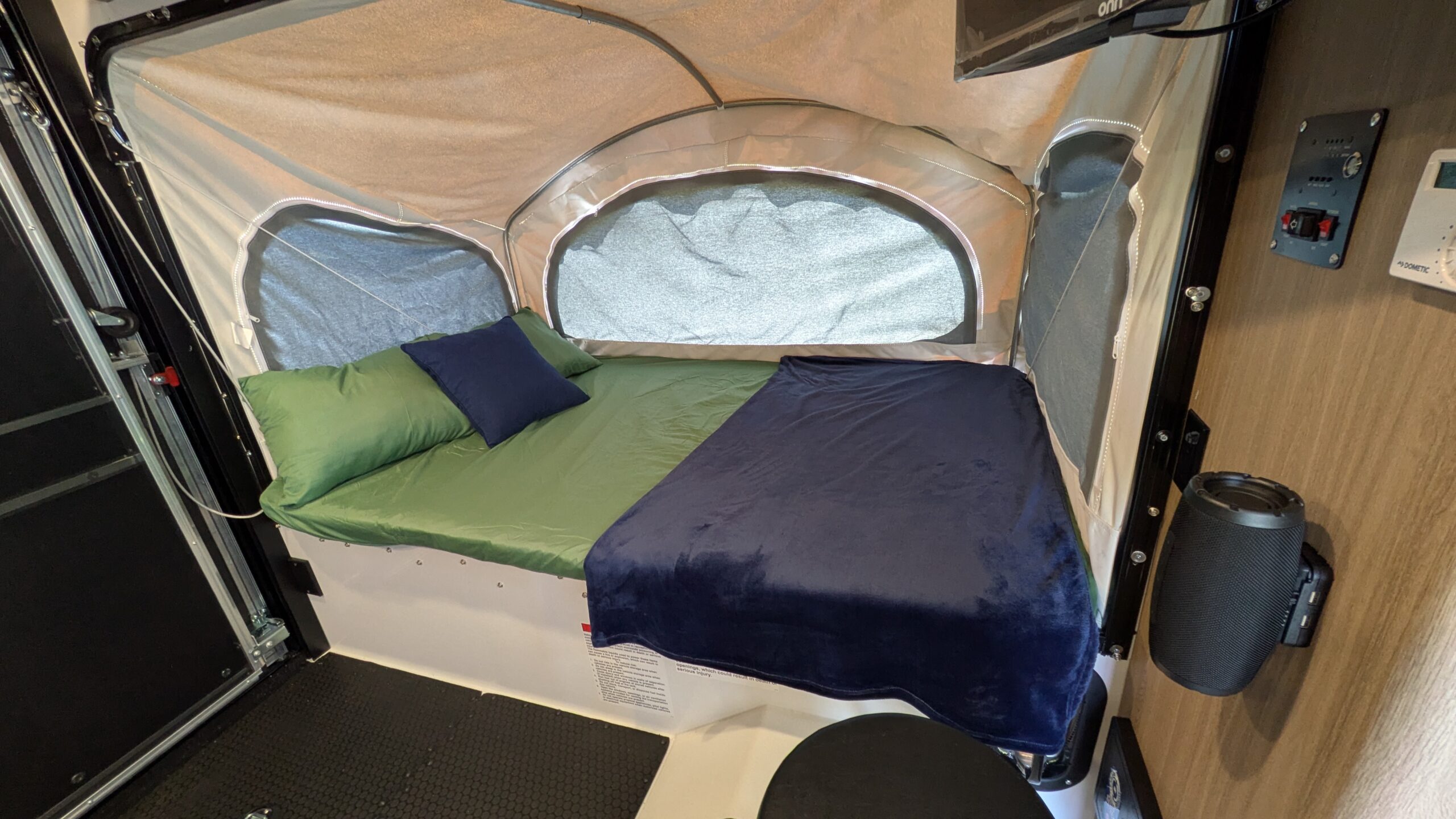

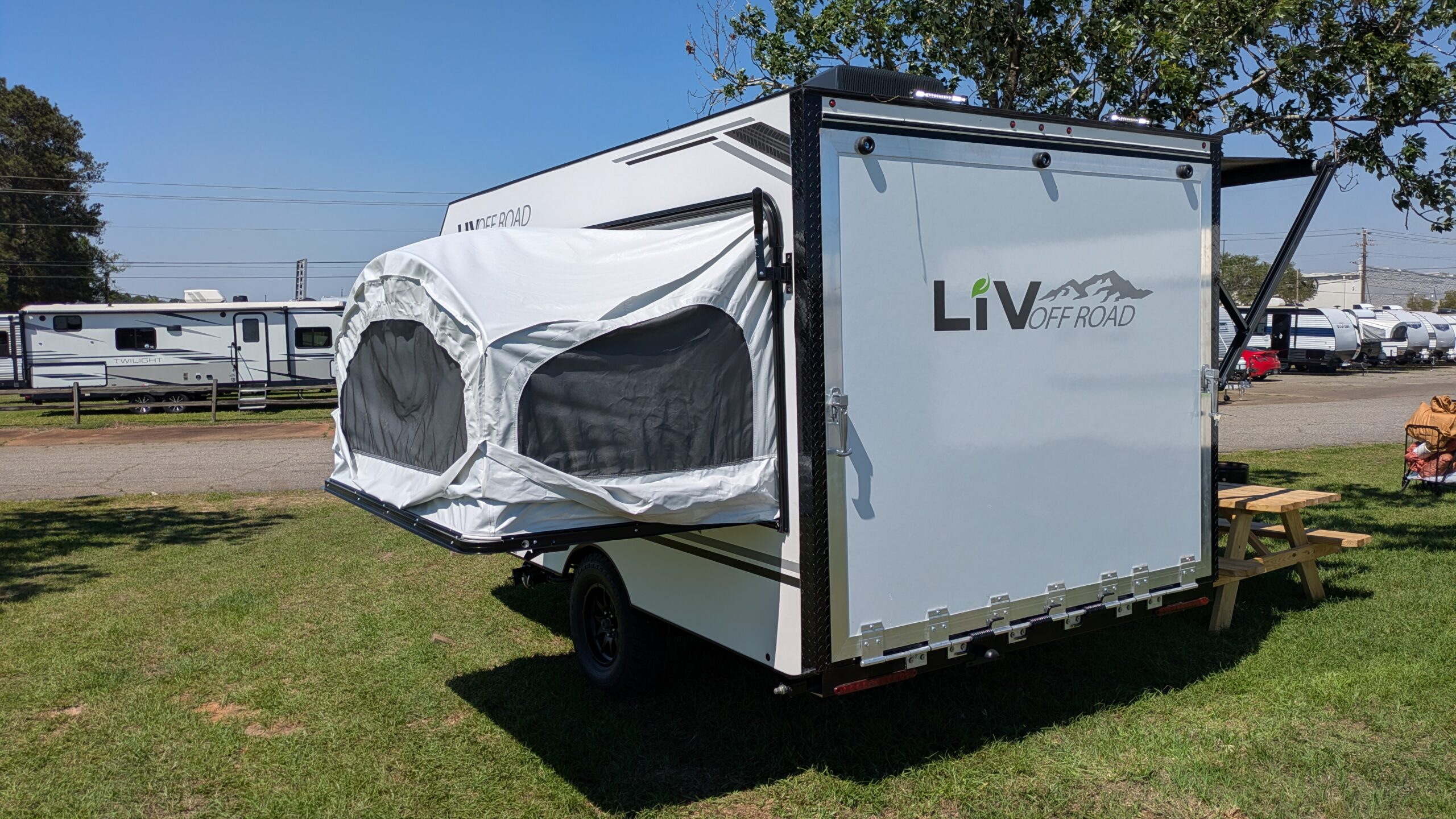

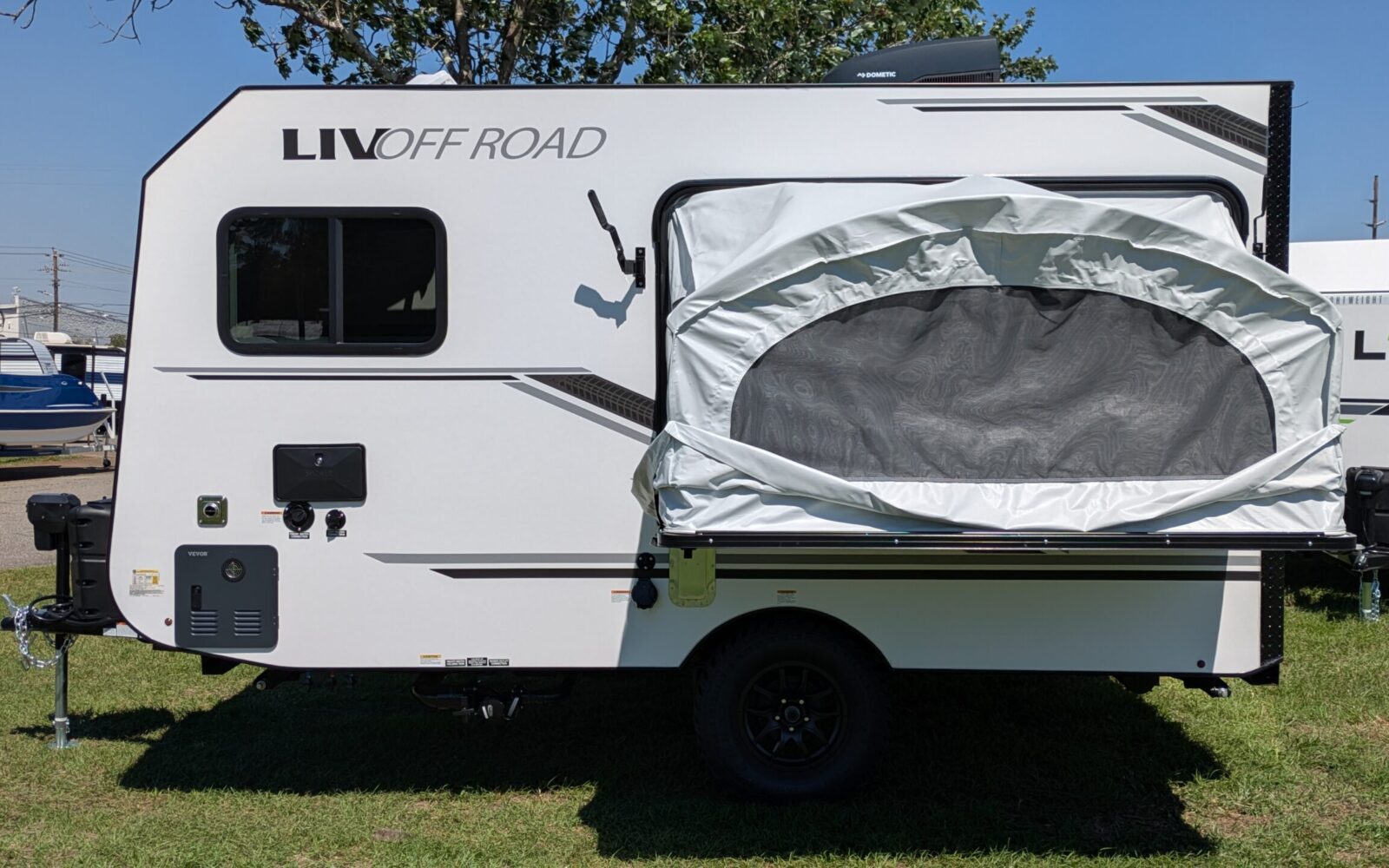

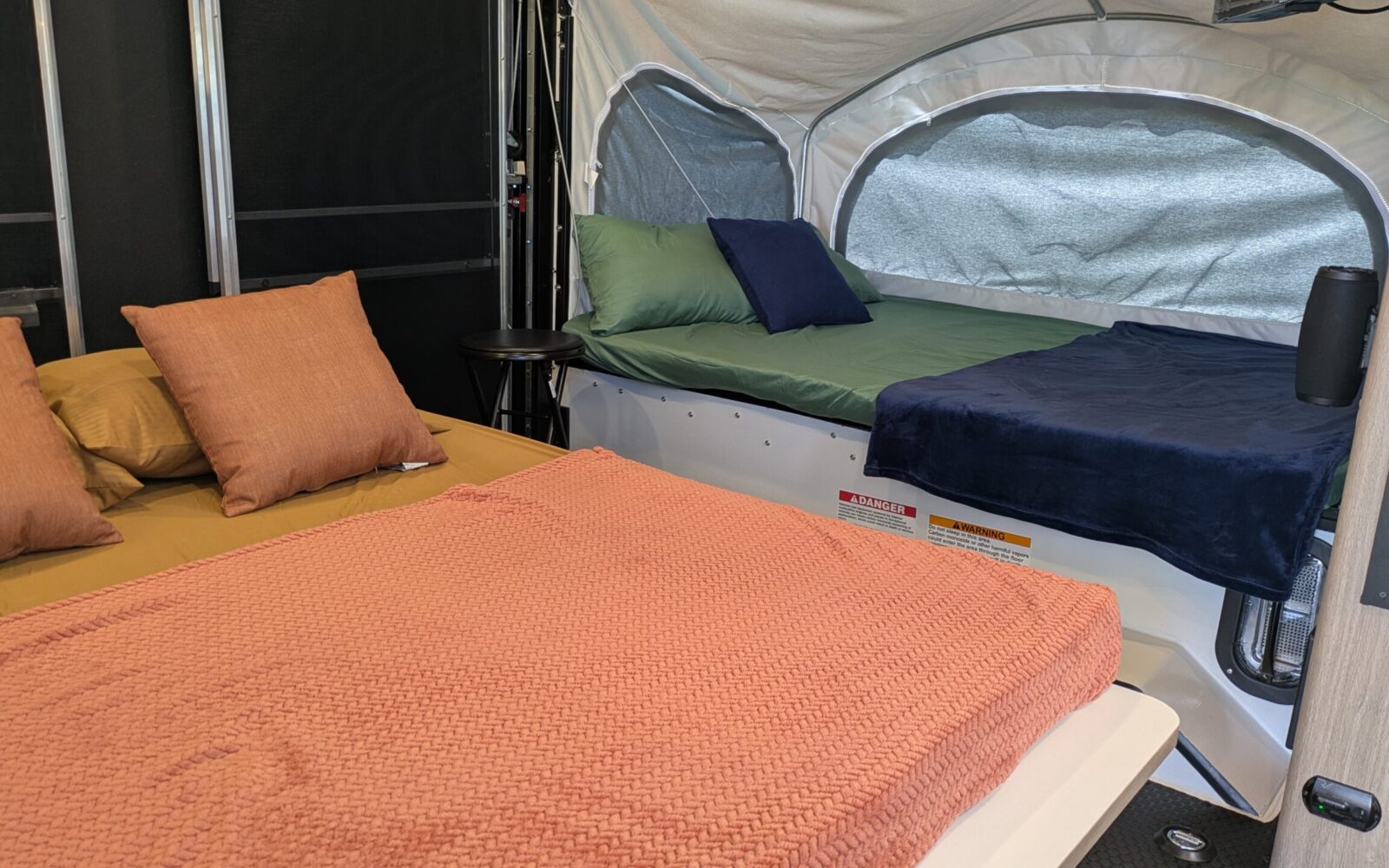

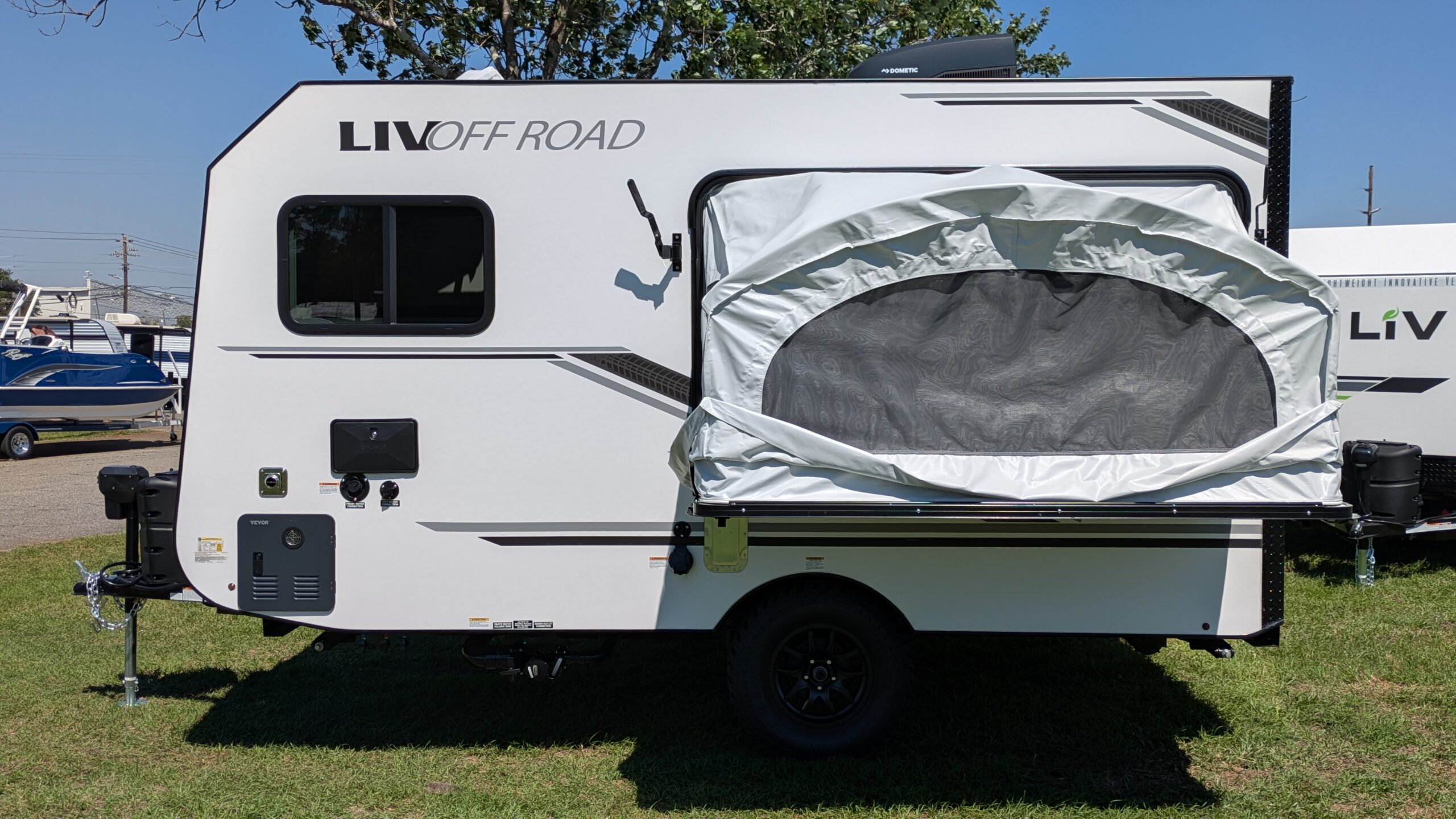

- Optional pop-out tent

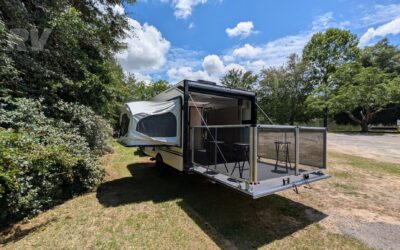

- Optional rear-ramp patio with aluminum fencing
- Electric Brakes standard
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Upgrade to Lithium Battery Optional
- Quiet Inverter Generator with Mount Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Electric Brakes Standard
- Galvanized Frame Optional
Climate & Comfort
- InstaHot Endless Hot Water Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard
- Sofa Optional
Appliances
- Microwave Oven Standard

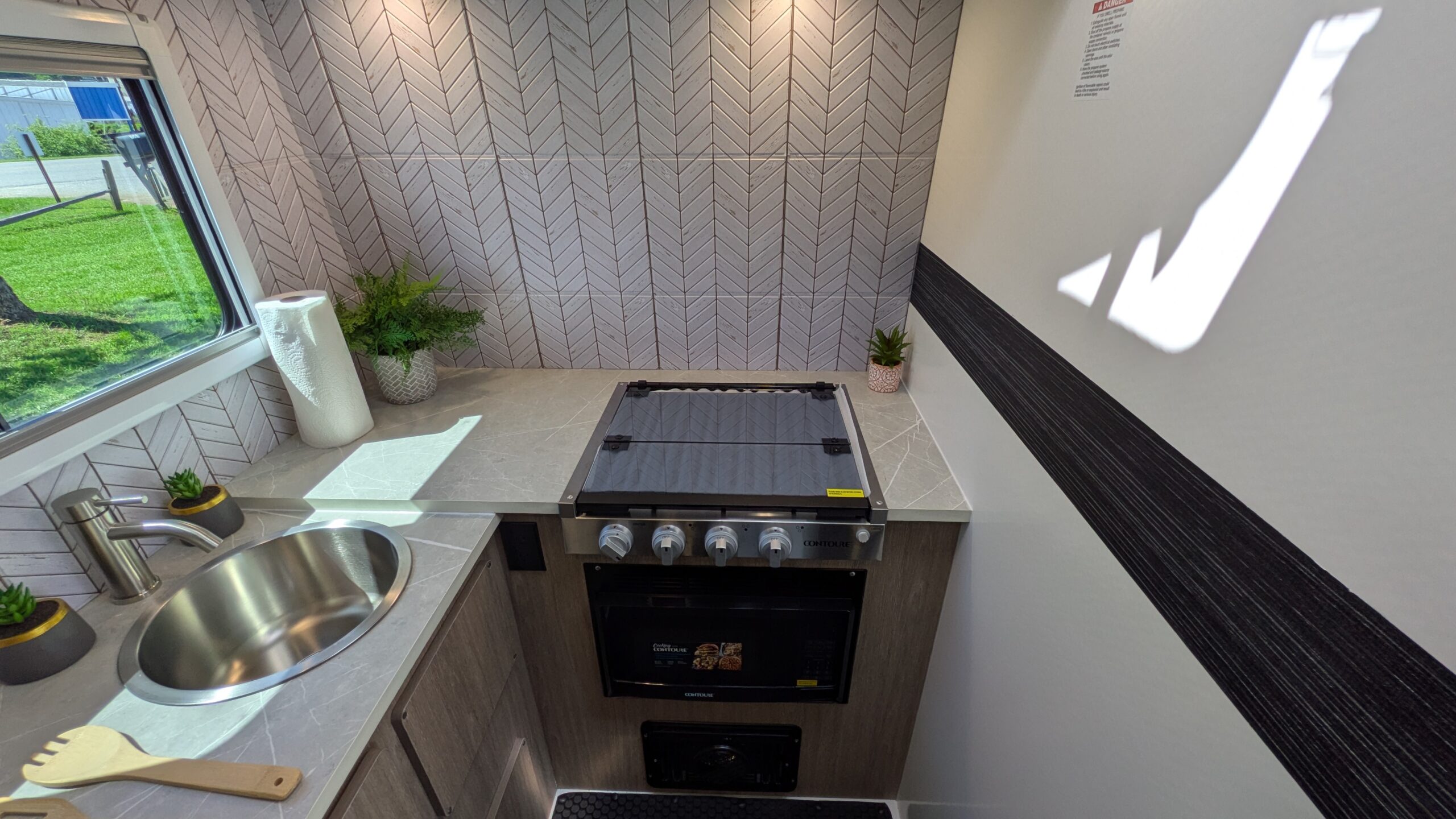

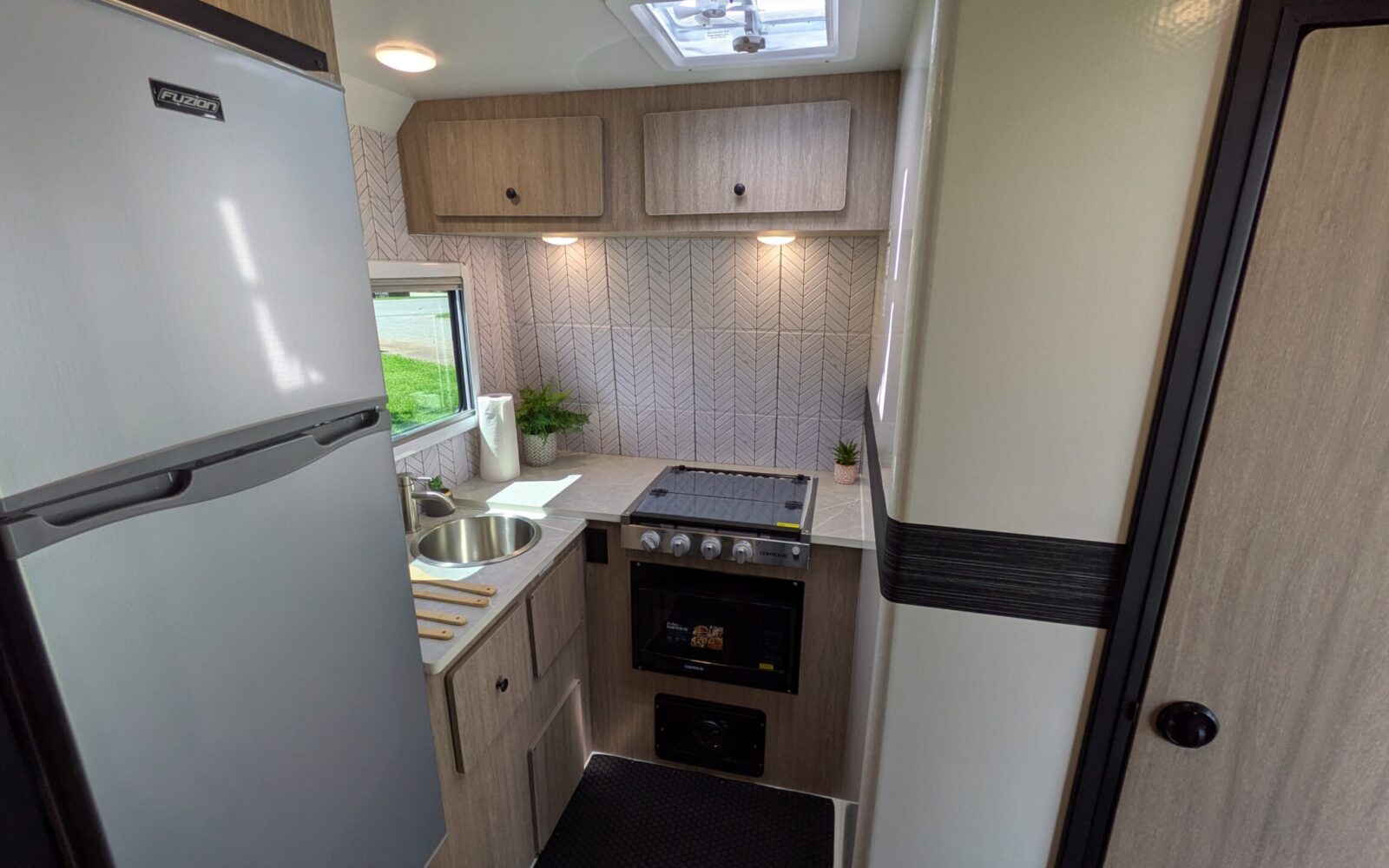

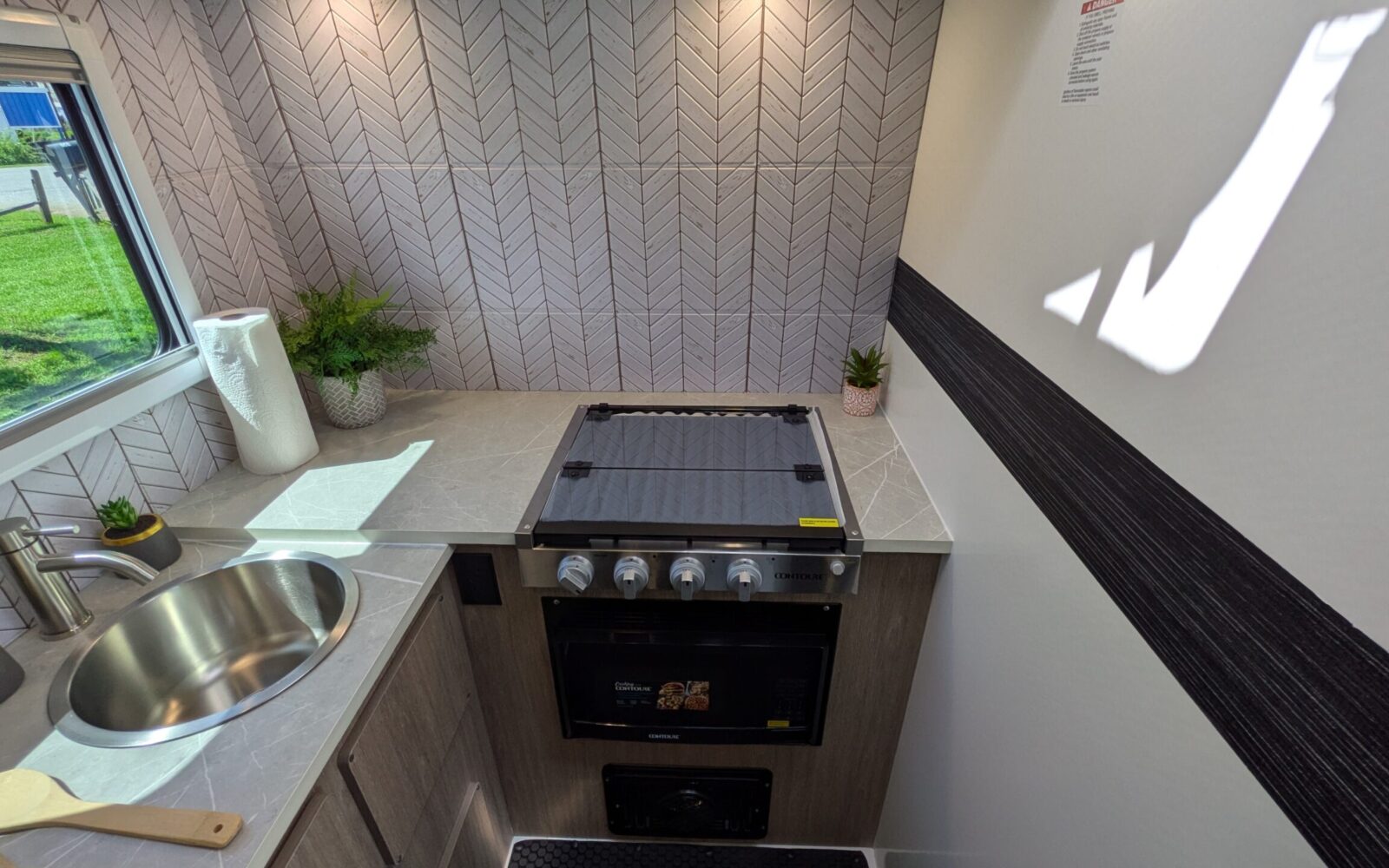

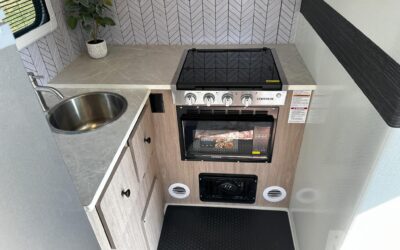

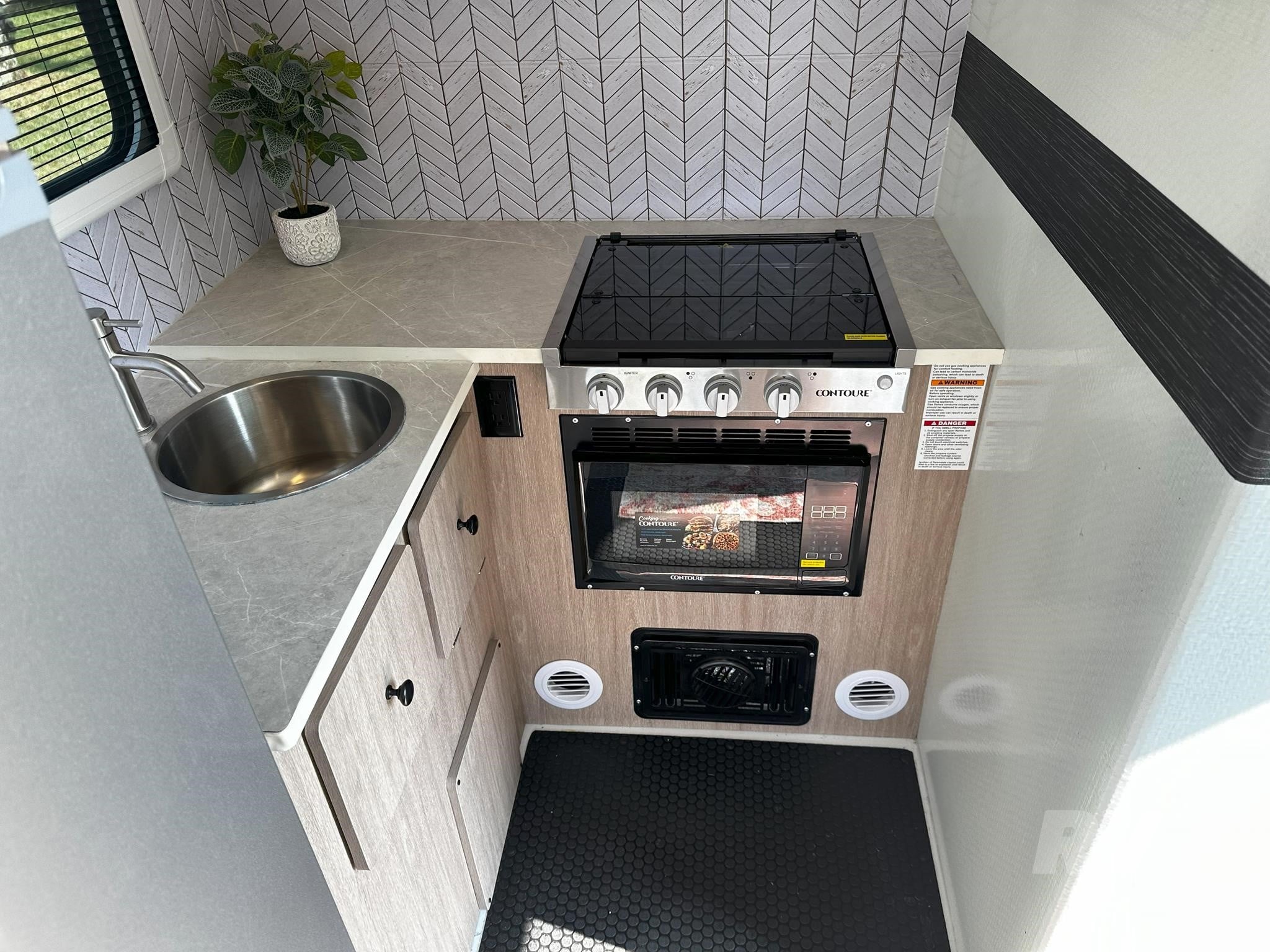

- 2-Burner Propane Cook Top Standard
- 3.3 cu ft Aqua Cool Refrigerator Standard
Exterior

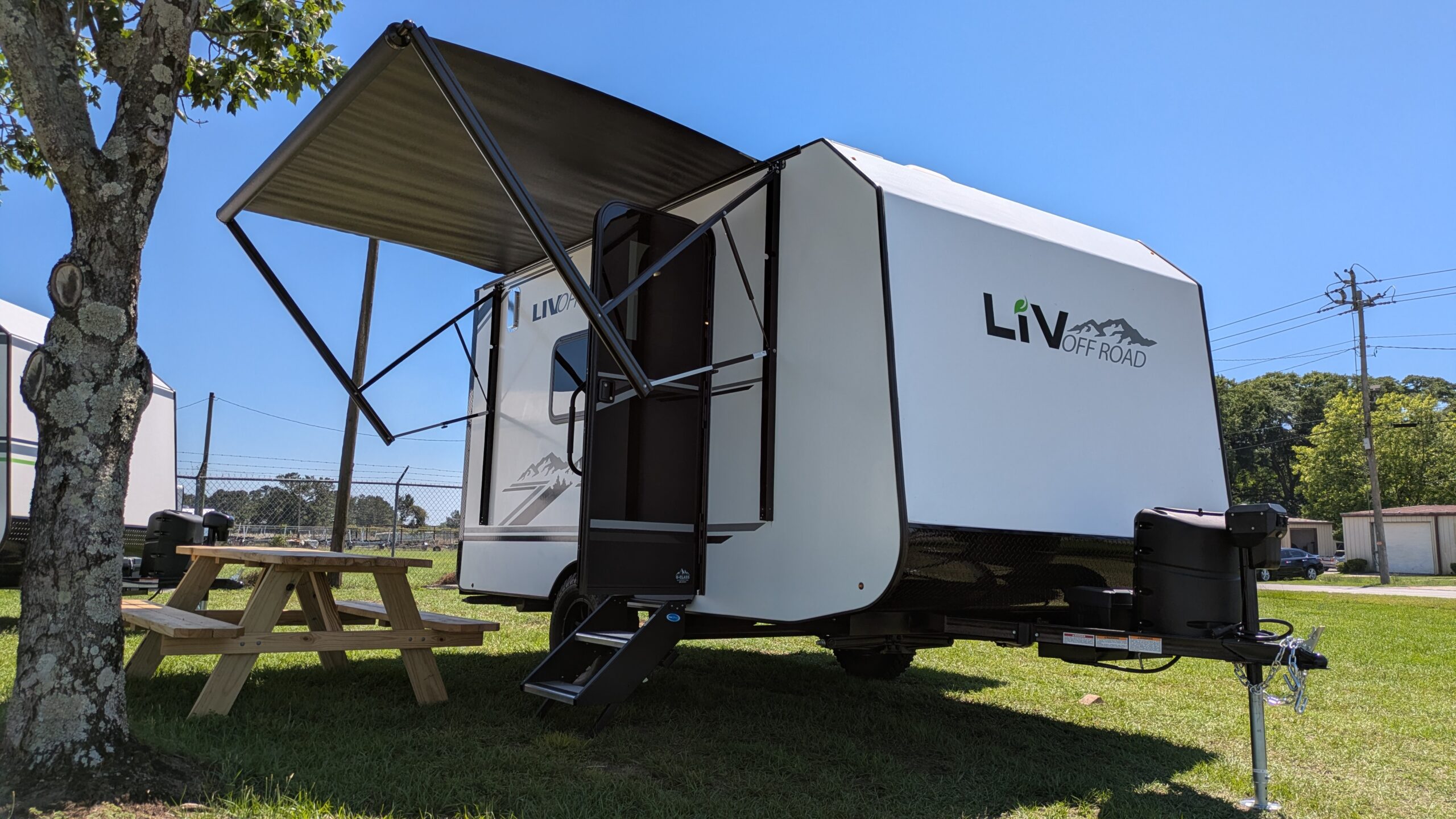

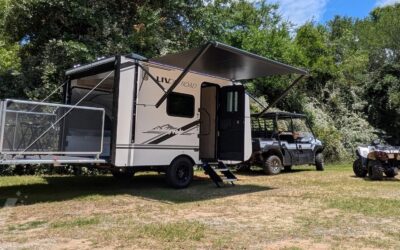

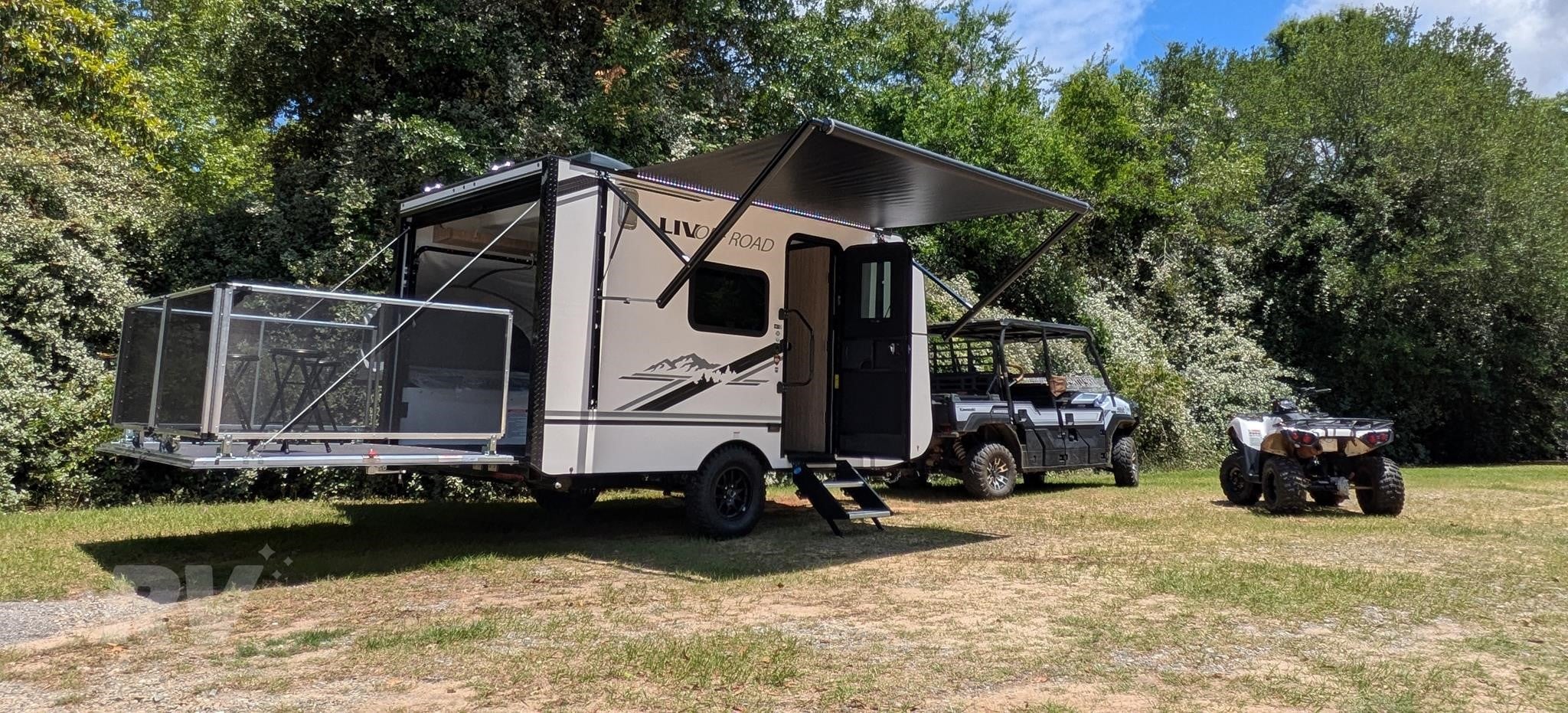

- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional
- Outside Griddle & Bracket Optional

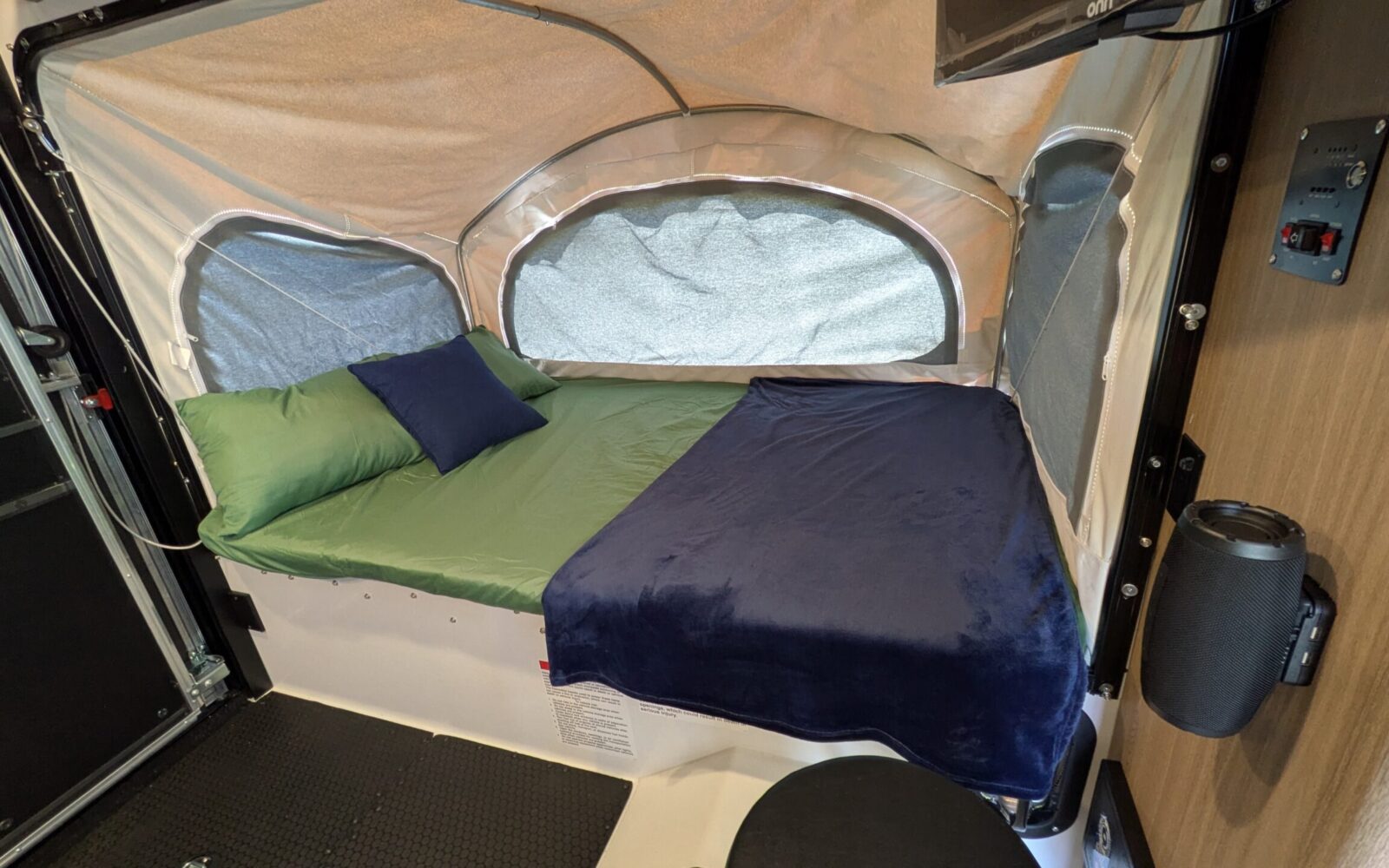

- Pop-Out Tent Optional

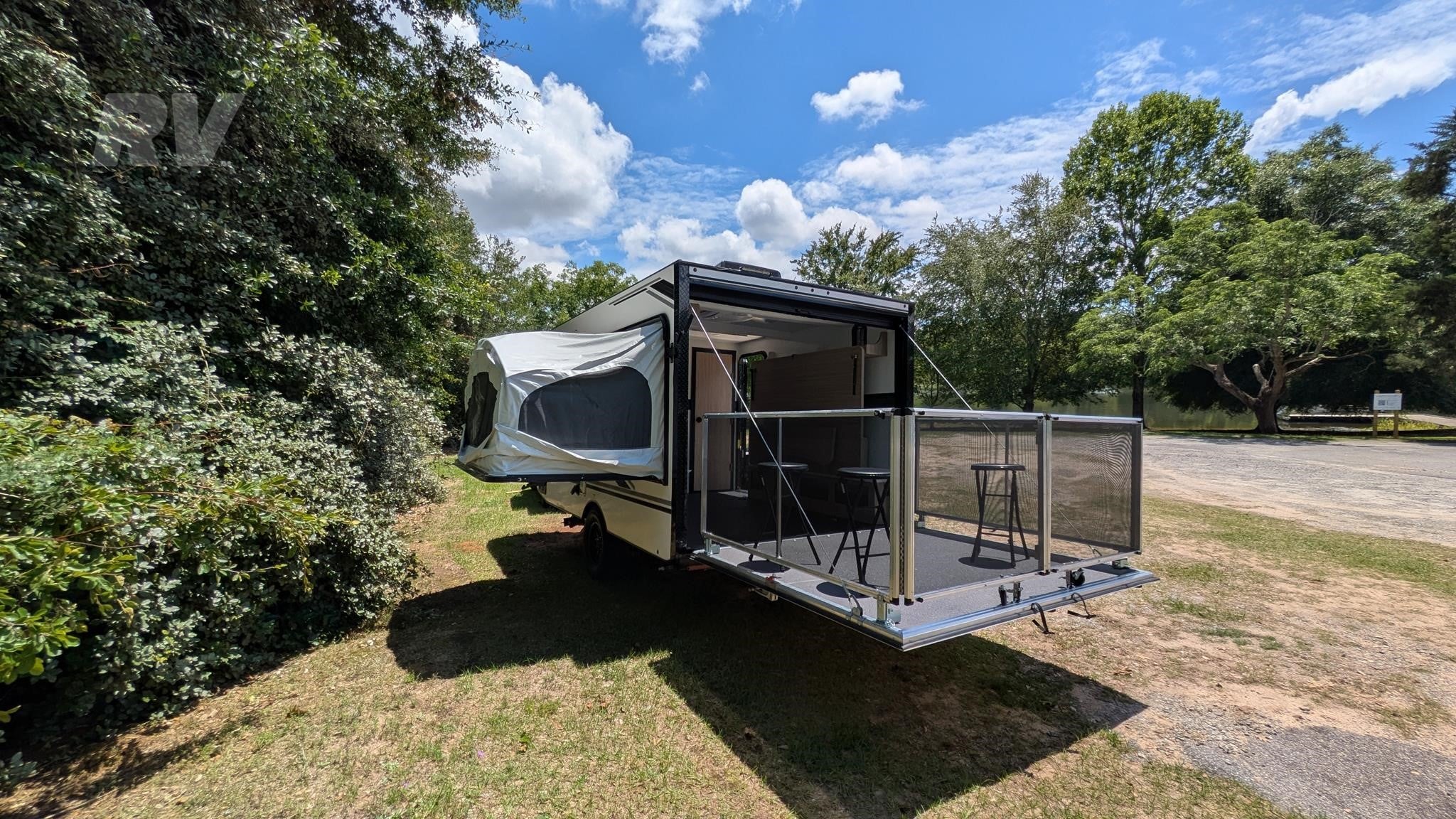

- Toy Hauler Rear Ramp Patio with Aluminum Fencing Optional
Gallery
Inside and out.
Questions
LiV OFF ROAD 140TH FAQ
How much does the LiV OFF ROAD 140TH weigh, and what can tow it?
The LiV OFF ROAD 140TH has a dry weight of about 2,280 lbs, with a GVWR (max loaded weight) of about 3,500 lbs. Because it is built from 100% wood-free composite it is light for its size — match its loaded weight to your vehicle's rated tow capacity, leaving margin for passengers and gear.
How many people does the LiV OFF ROAD 140TH sleep?
The LiV OFF ROAD 140TH sleeps 2 to 4. See the floorplan and spec sheet above for the exact bed configuration.
How much can the LiV OFF ROAD 140TH carry and hold?
The LiV OFF ROAD 140TH has a cargo carrying capacity around 1,220 lbs and a 25-gallon fresh-water tank.
How much does the LiV OFF ROAD 140TH cost?
The LiV OFF ROAD 140TH starts around $28,000. That is a ballpark starting figure — configure your build for a closer number.
What warranty comes with the LiV OFF ROAD 140TH?
Like every LiV, the LiV OFF ROAD 140TH includes a Lifetime Warranty on wood rot and wood mildew, a 10-Year Limited Warranty on the frame structure, and a 1-Year Bumper-to-Bumper Warranty — we can warranty wood rot for life because there is no wood in the build to rot.
Is the LiV OFF ROAD 140TH really wood-free?
Yes. The LiV OFF ROAD 140TH is built on LiV's patented welded thermoplastic-composite shell (U.S. Patent No. 12,545,170) — no wood framing, floor, or skin — so it cannot rot, swell, or grow mildew.
Ready to roll?
Configure your LiV OFF ROAD 140TH, save your build, then take it to a dealer.
