MODEL
13 LEAF
Travel Trailer · Sleeps 2–4

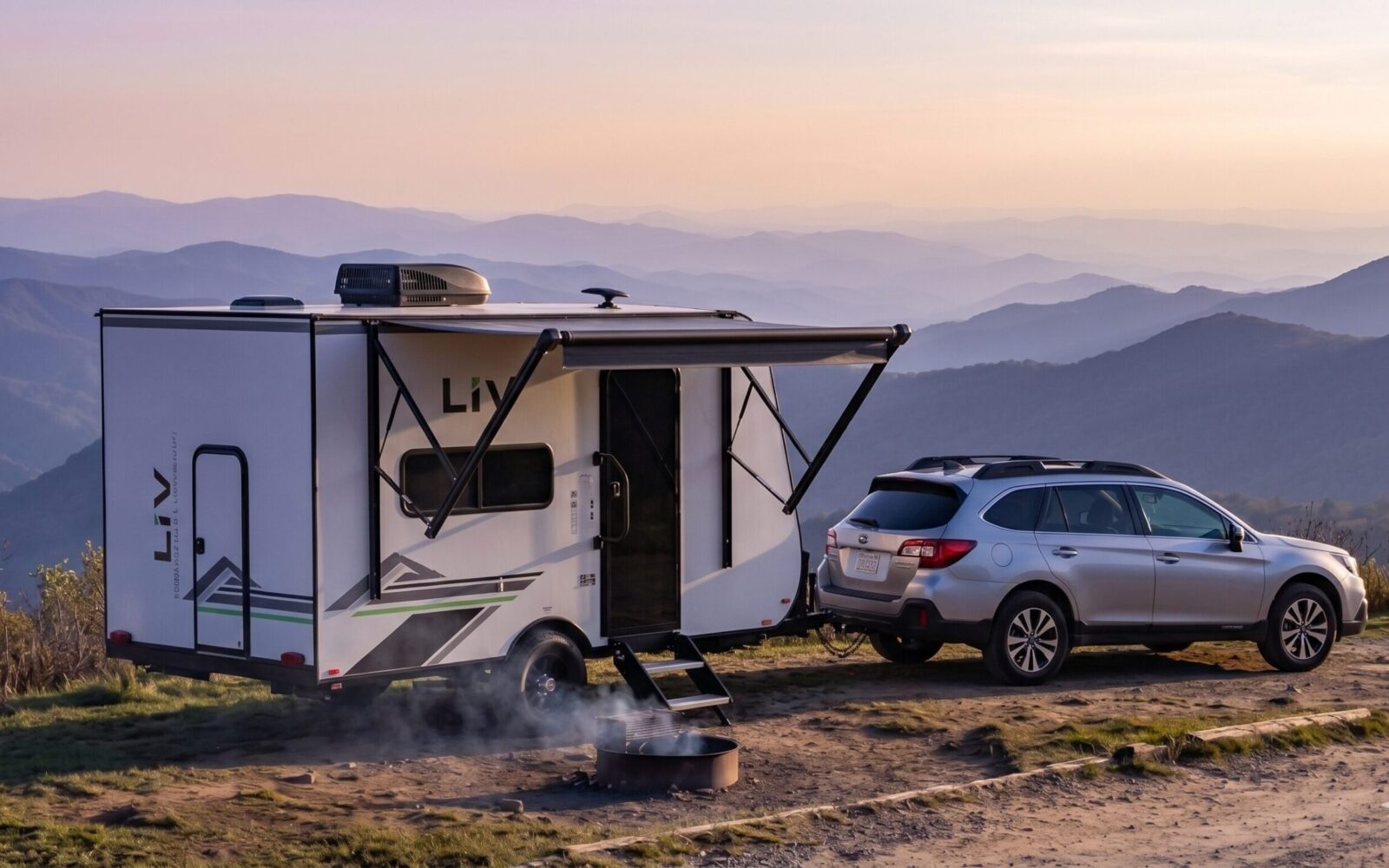

The 13 LEAF is where the LiV story starts — our lightest, most affordable composite trailer, designed around one question: how little trailer can you actually get away with? At 1,890 pounds dry on a single-axle frame, it tows behind compact crossovers that most travel trailers would never see hitched to. Inside, a goucho sofa — which sleeps two grandchildren — comes standard, with an optional fold-down upper bunk above it or a dinette in its place, and the full LIV Convenient Package — A/C, power awning with LEDs, Insta-Hot water heater, microwave, and 2-burner cooktop — comes standard from day one. Add the optional Solar Package or a galvanized-frame upgrade and you’re set up for off-grid weekends without giving back one pound of tow margin.
View gallery
- 1,890
- LBS DRY
- 2–4
- SLEEPS
- 13' 7"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 17' 2"
- Width
- 8'4"
- Exterior Height
- 9' 7"
- Interior Height
- 6'4"
WEIGHT
- Dry Weight
- 1,890 lbs
- GVW
- 2,990 lbs
- Tongue Weight
- 195 lbs
- Carrying Cap.
- 660 lbs
TANKS
- Fresh Water
- 22 gal
- Grey Water
- 18 gal
- Black Water
- 22 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 1 axle
- Tires
- ST205/75R14
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.
- Ultra-light 1,890 lb dry weight

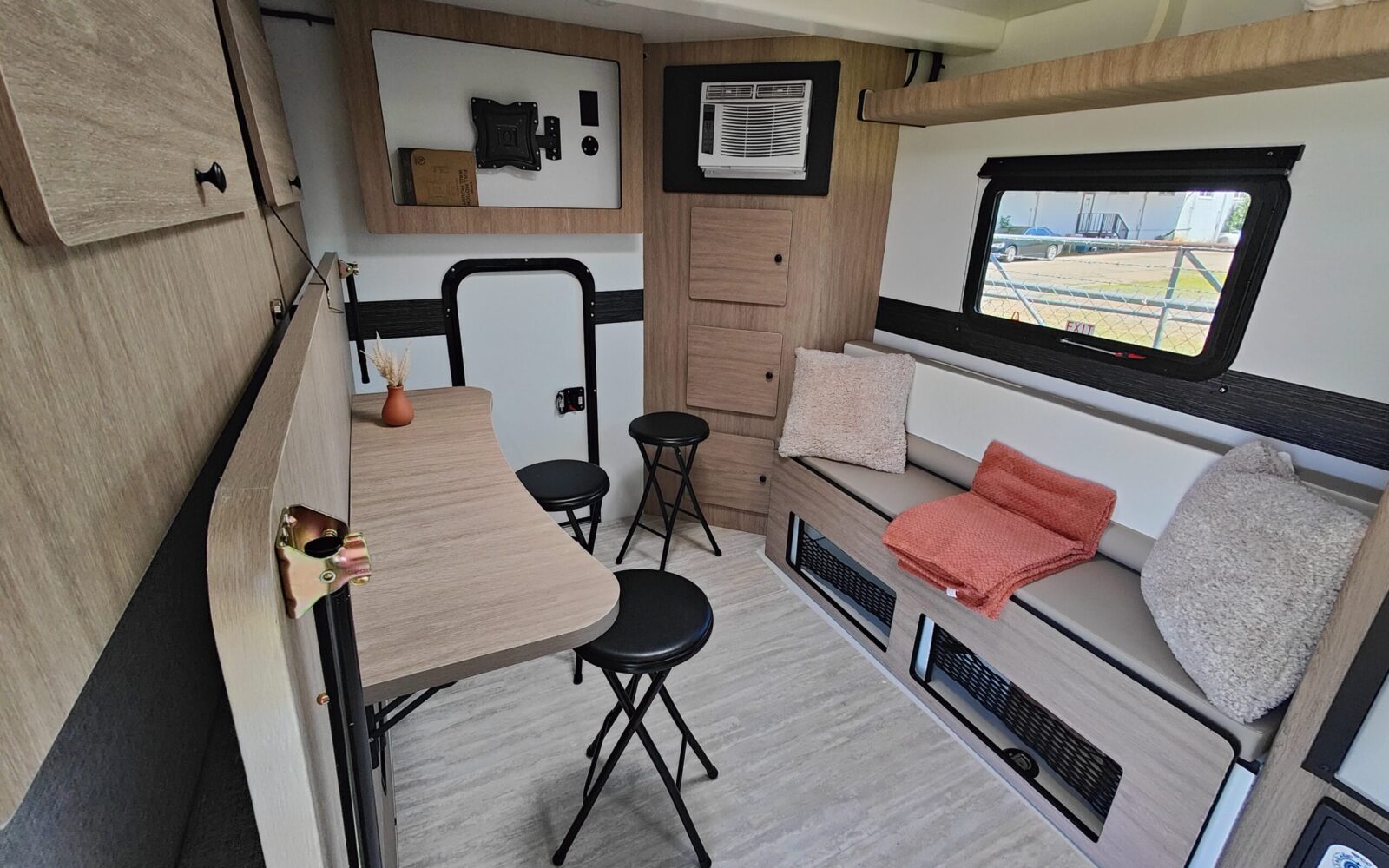

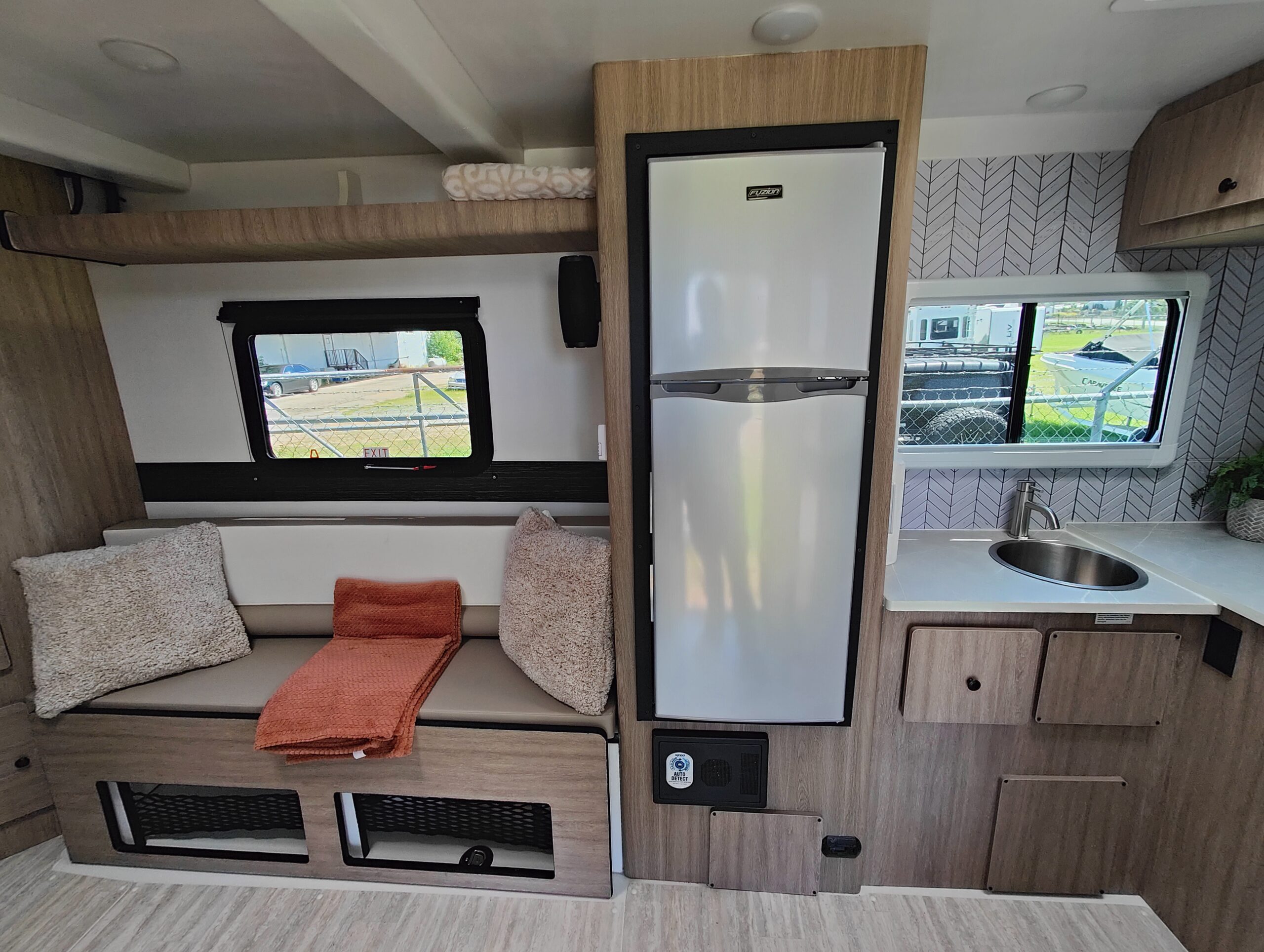

- Goucho sofa — sleeps 2 grandchildren
- Optional fold-down upper bunk or dinette swap (LEAF-exclusive)
- Single-axle composite chassis
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Quiet Inverter Generator with Mount Optional
Climate & Comfort
- 6-Gallon Water Heater (Gas/Electric, Insta-Hot) Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
- 24″ Smart TV Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard

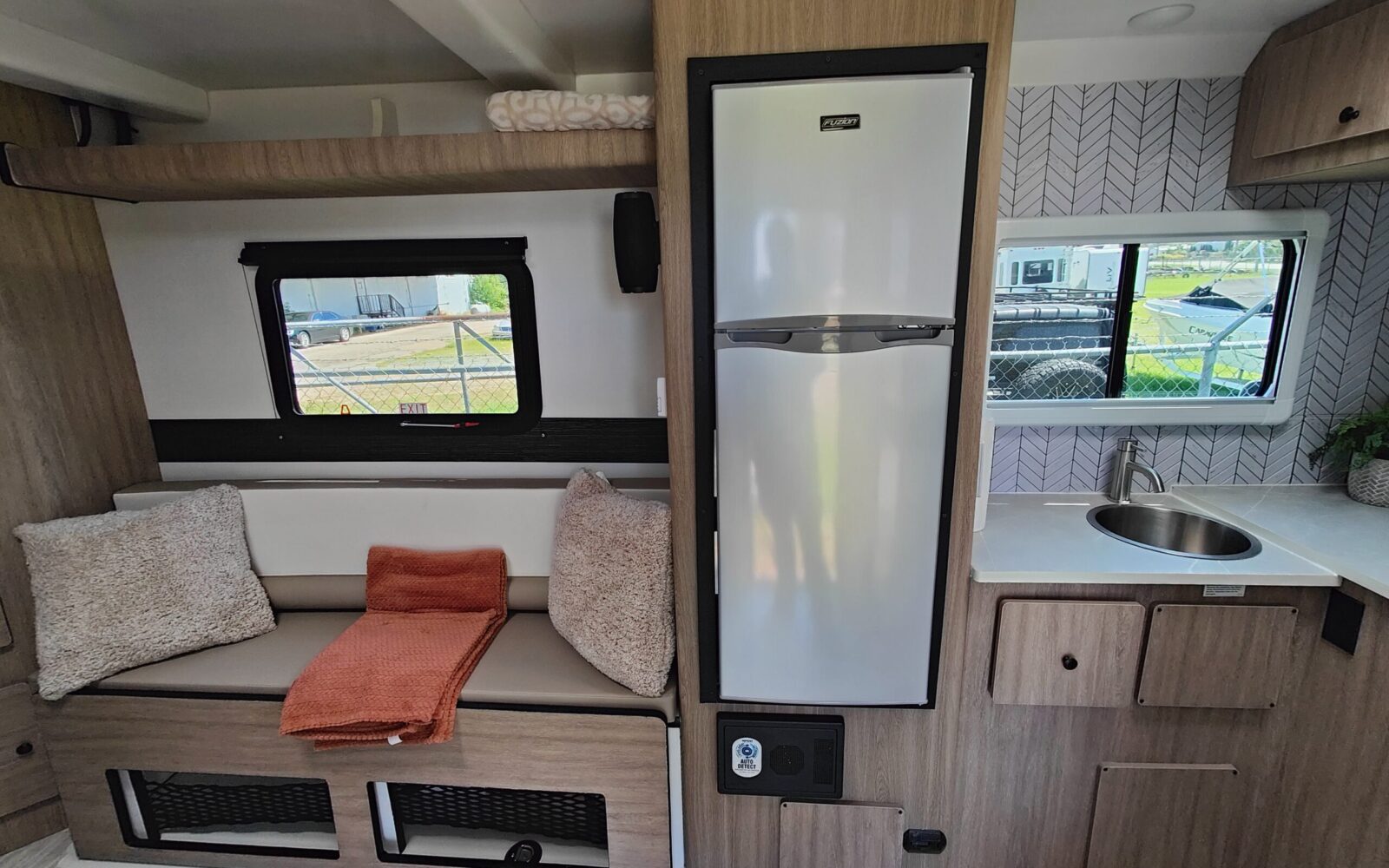

- Goucho Sofa Standard
- Fold-Down Upper Bunk Optional

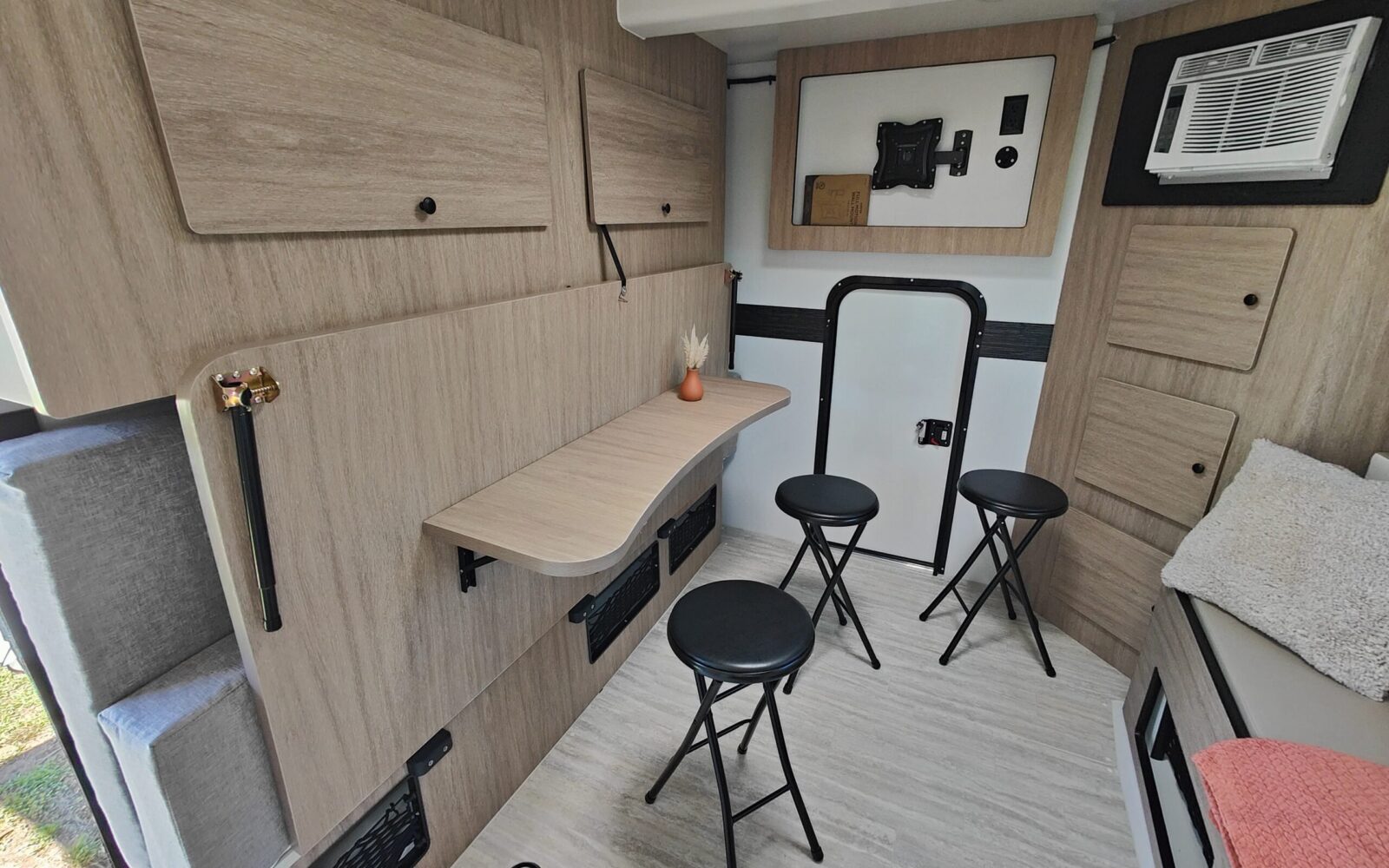

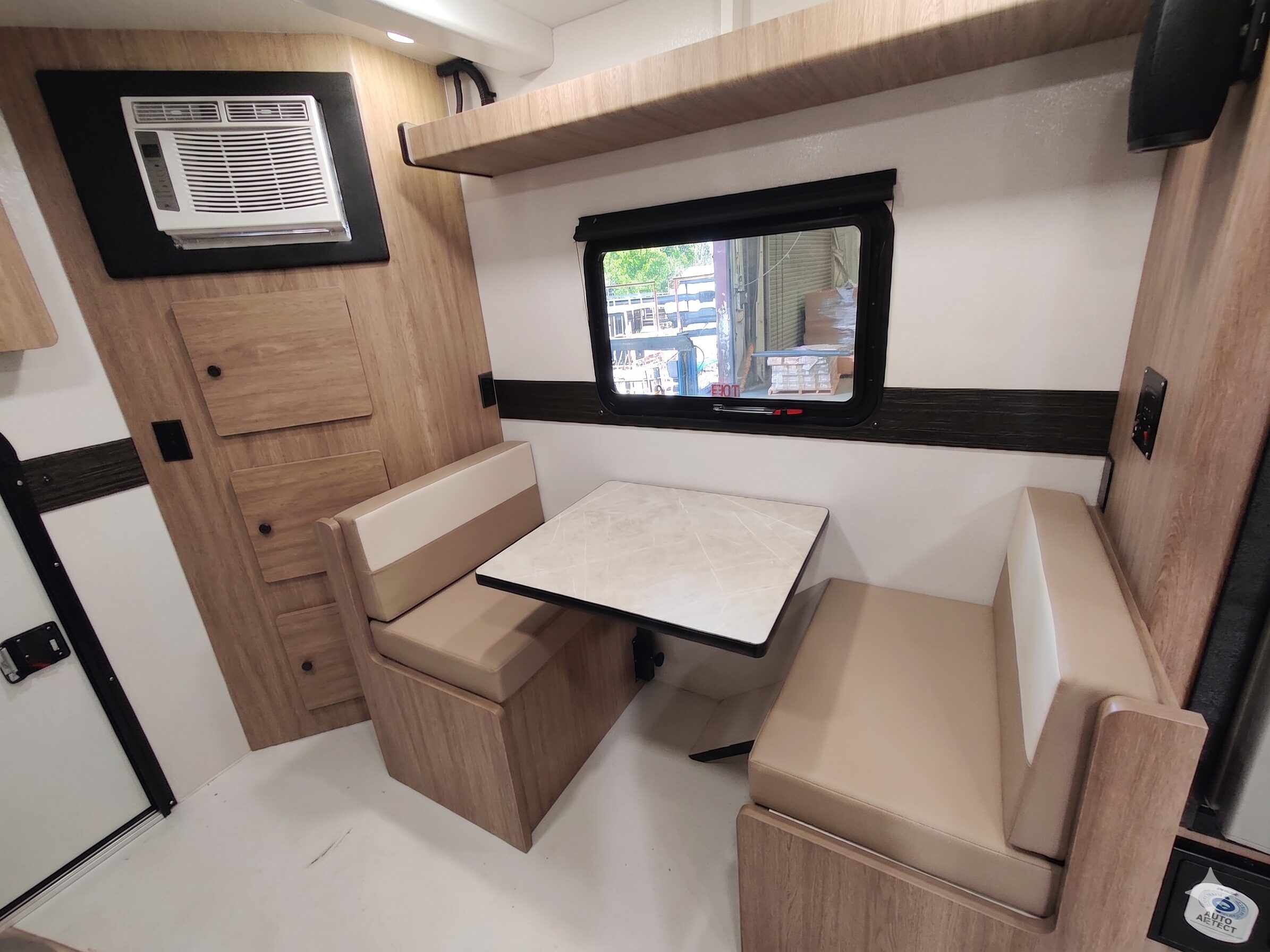

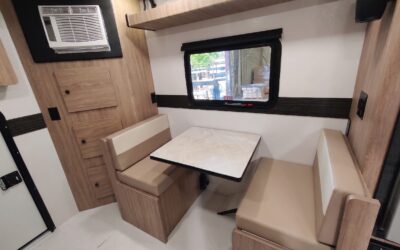

- Dinette (in place of Goucho Sofa) Optional

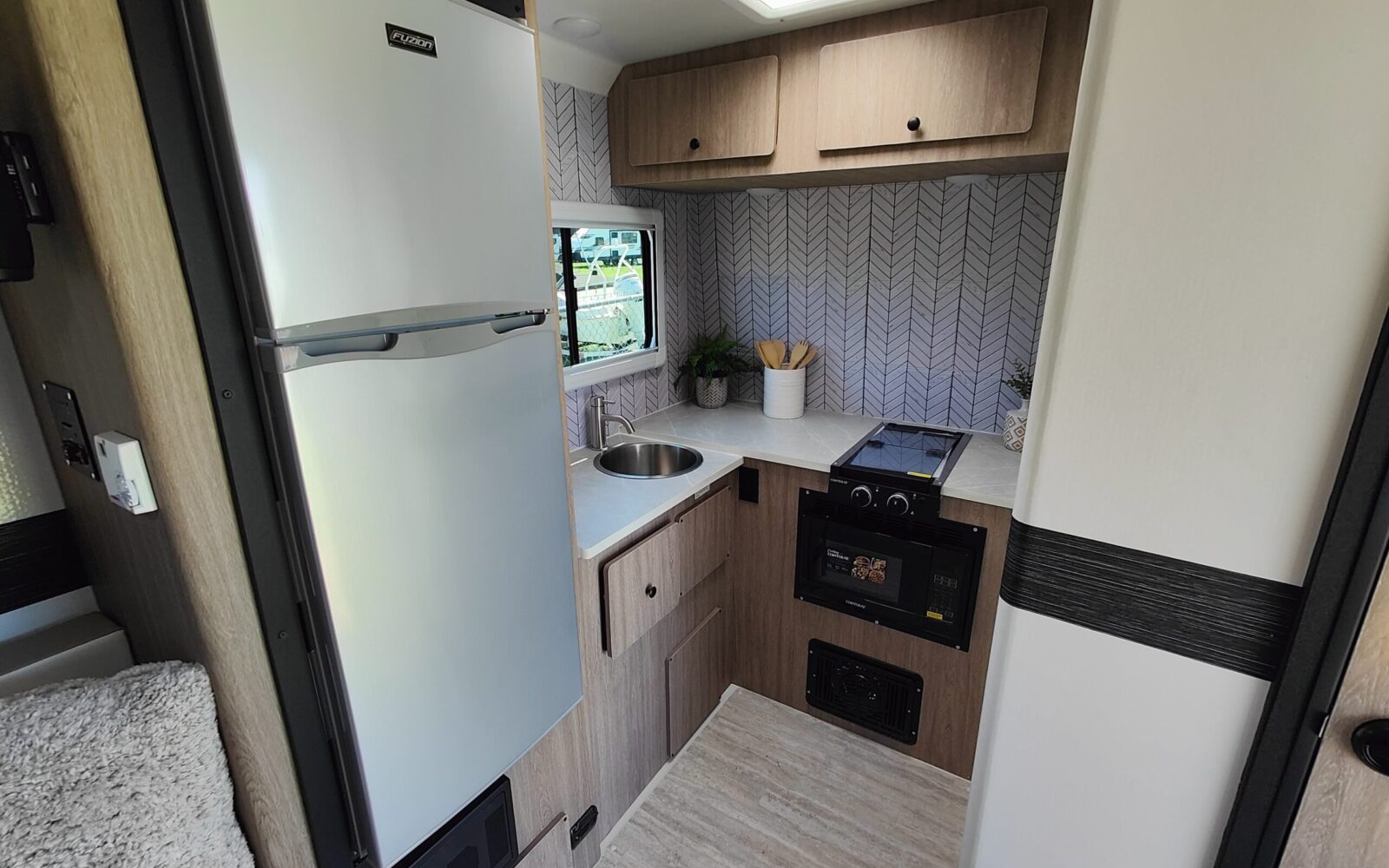

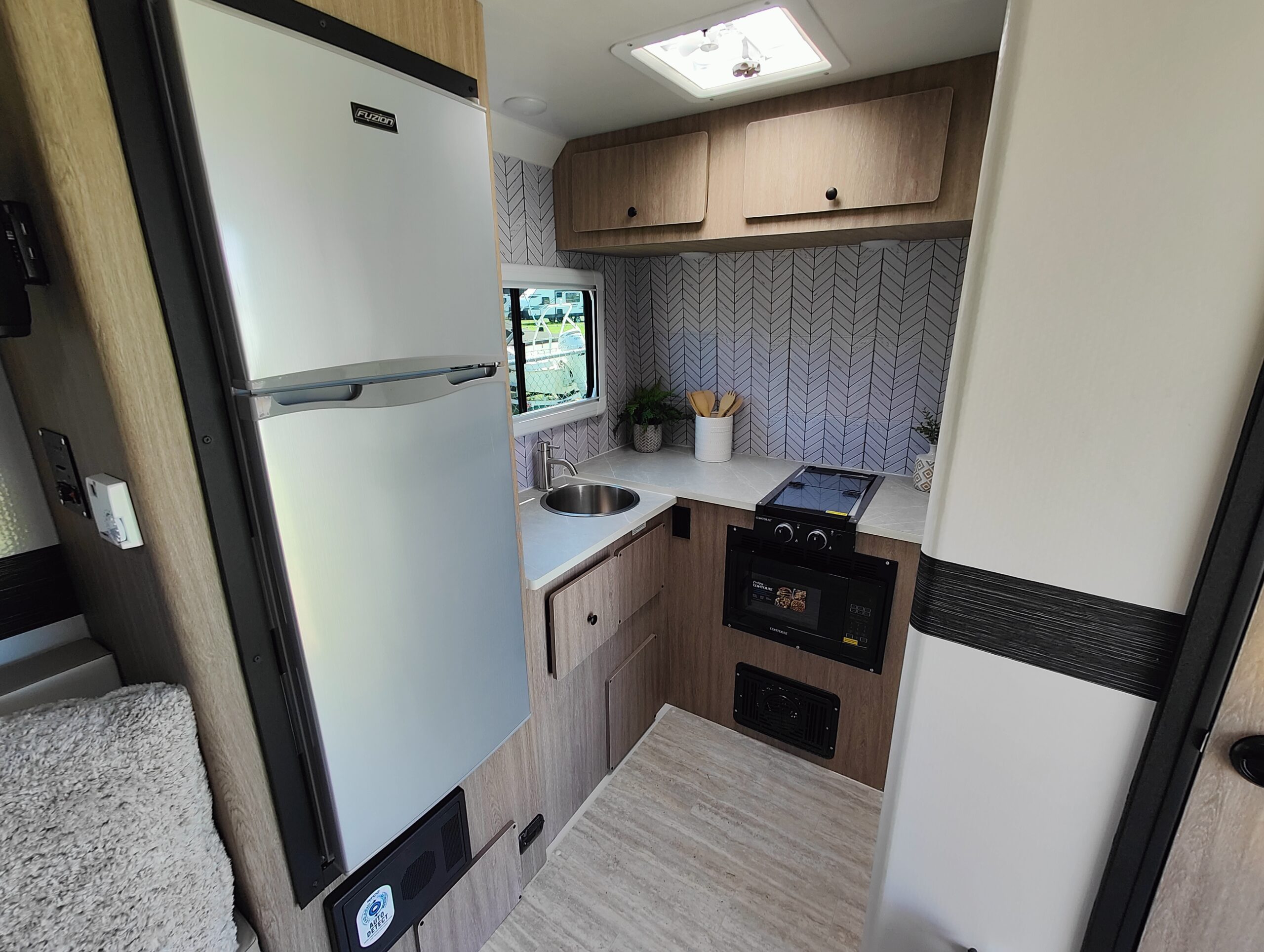

Appliances
- Microwave Oven Standard
- 2-Burner Propane Cook Top Standard

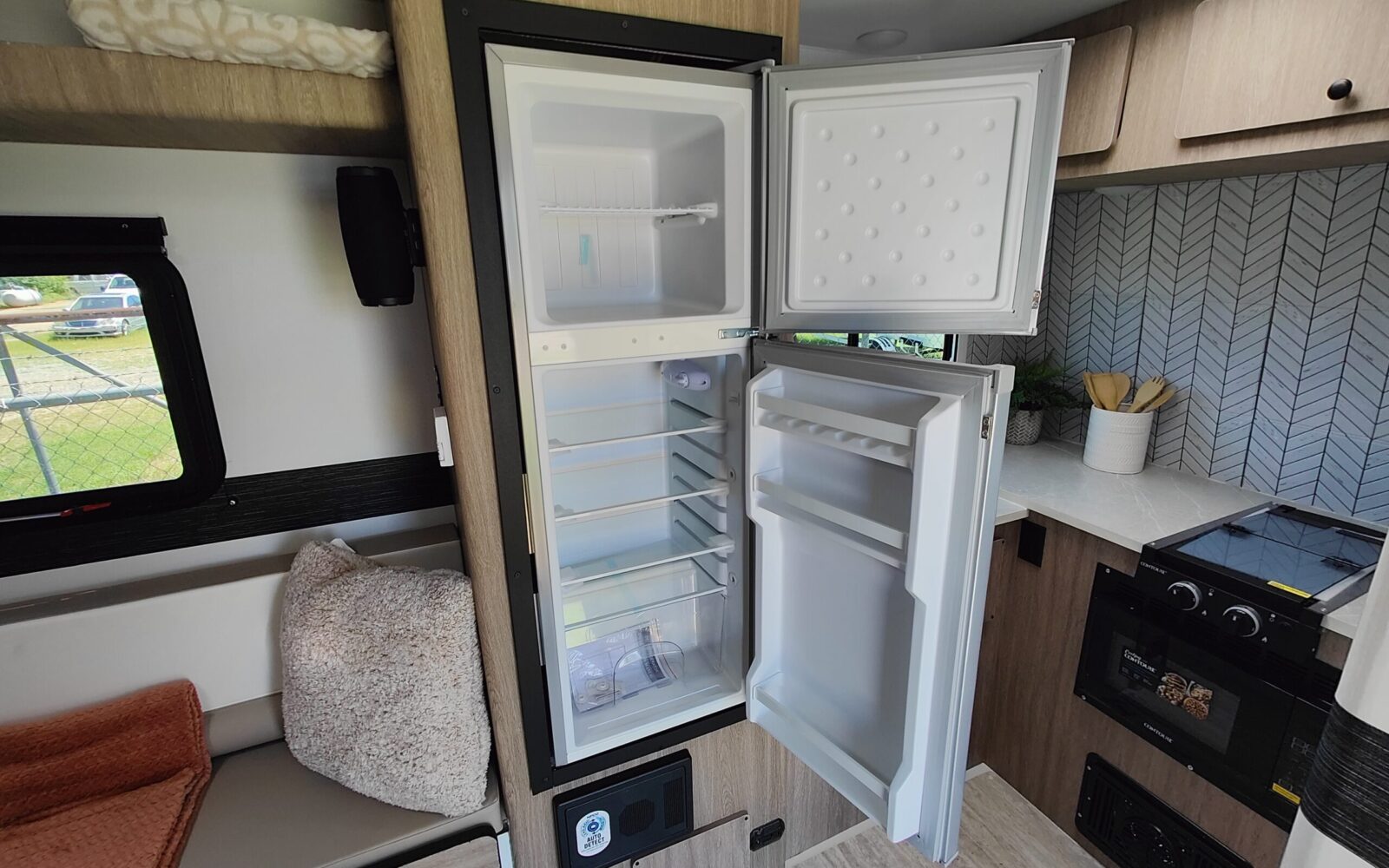

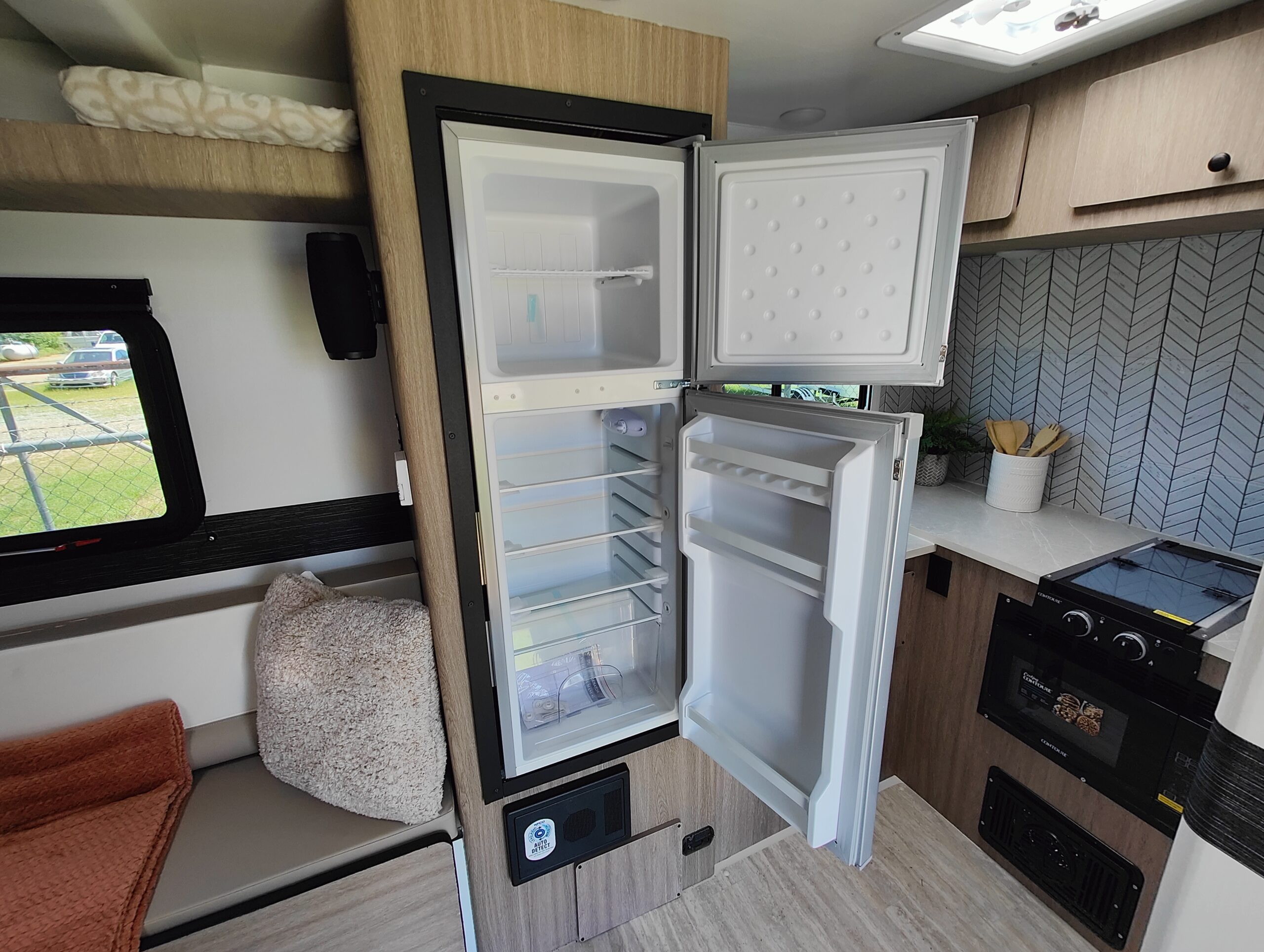

- 3.3 cu ft Aqua Cool Refrigerator Standard
- Upgrade to Convection Microwave Optional
- Upgrade to 5.0 cu ft Refrigerator (12V) Optional
Exterior

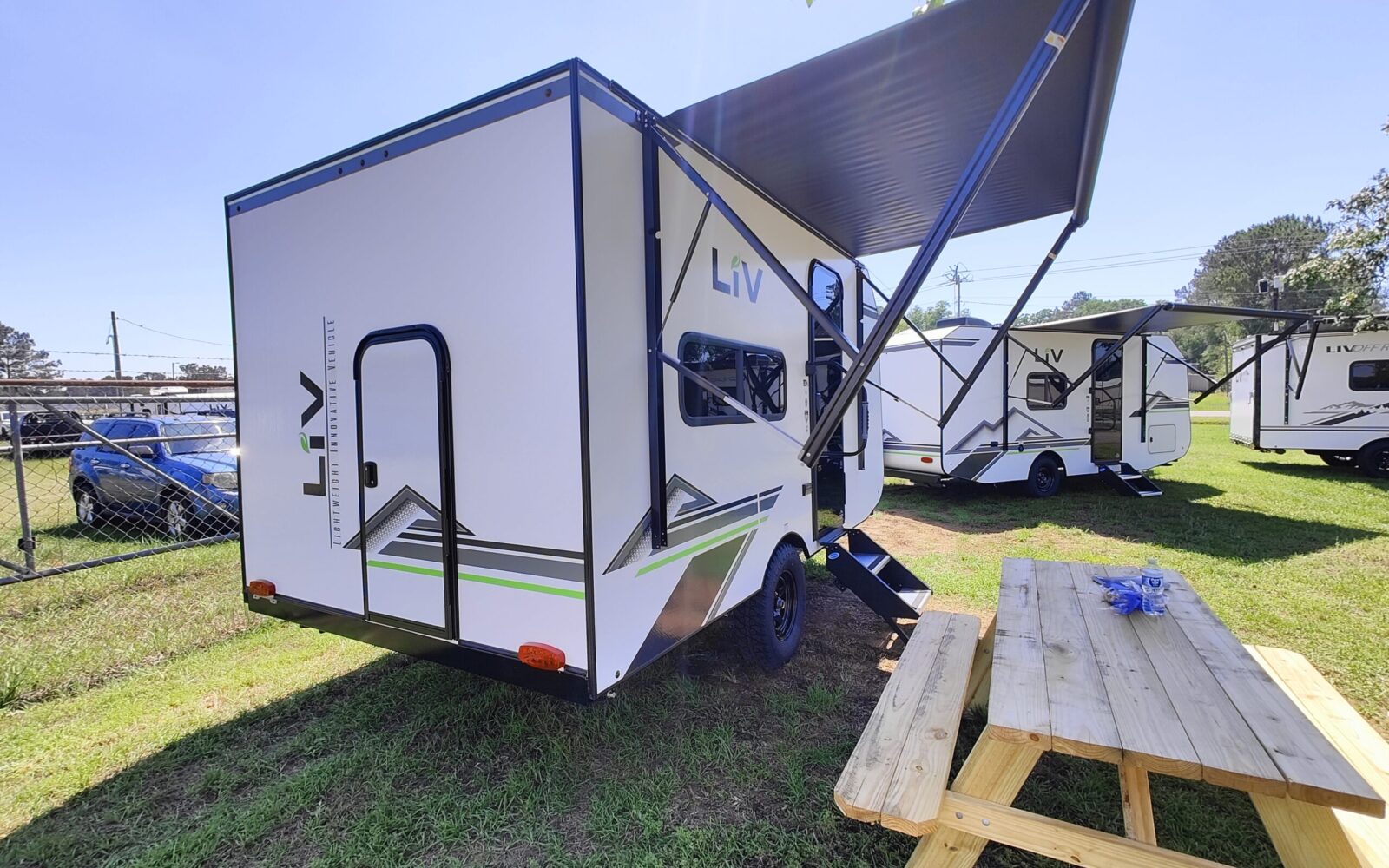

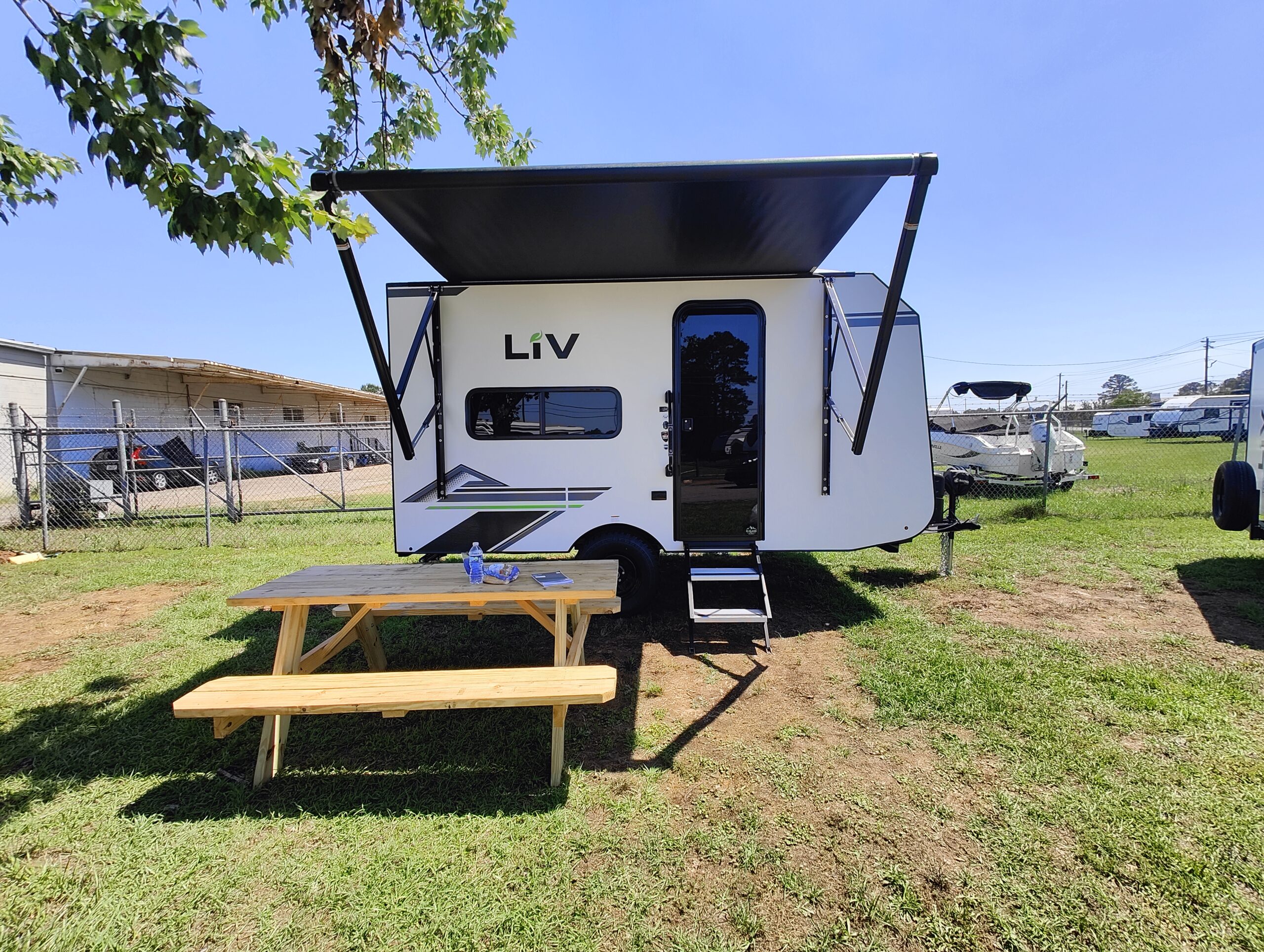

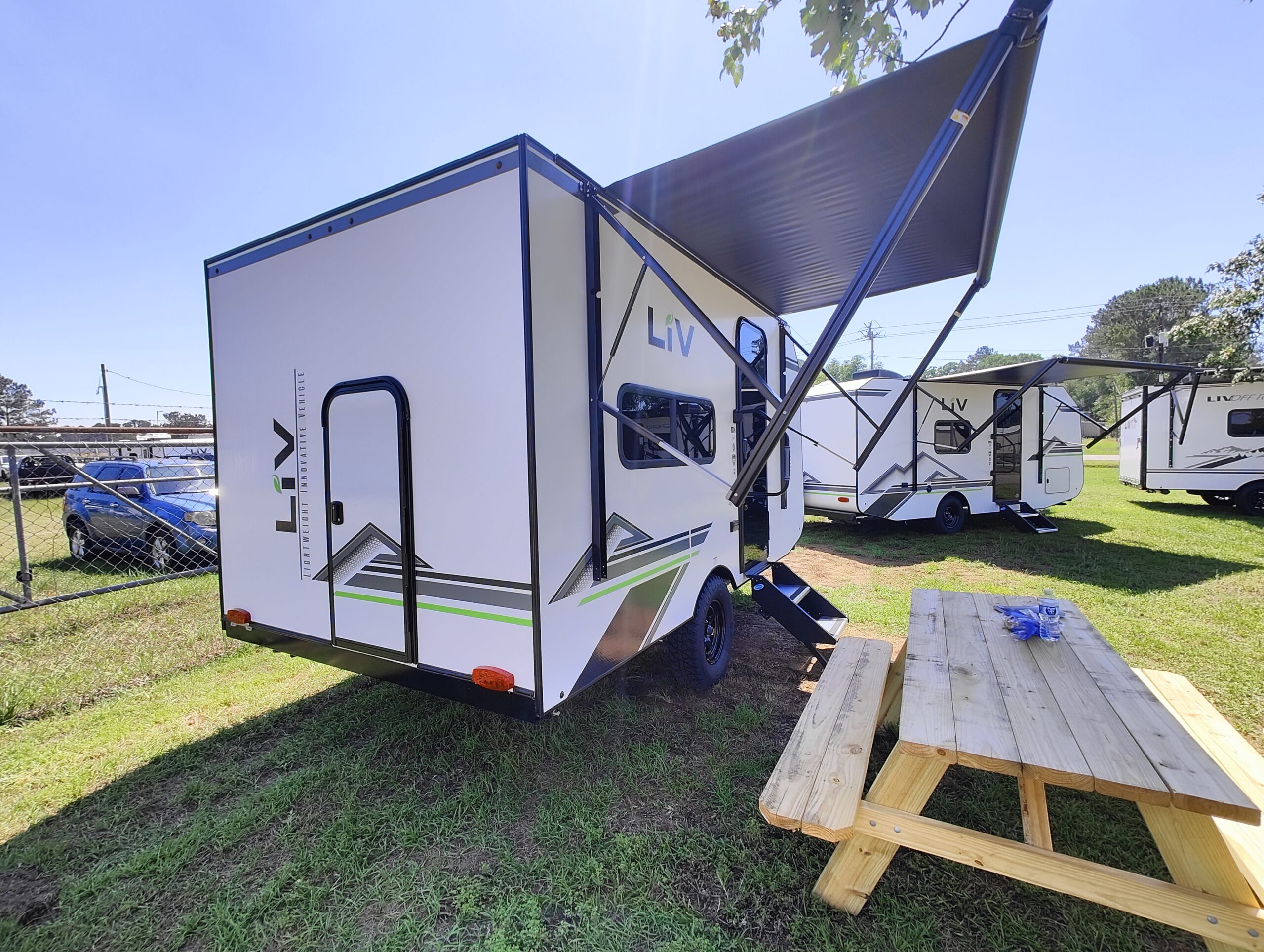

- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional
- Outside Griddle & Bracket Optional
Chassis & Frame
- Rear Scissor Jacks Standard

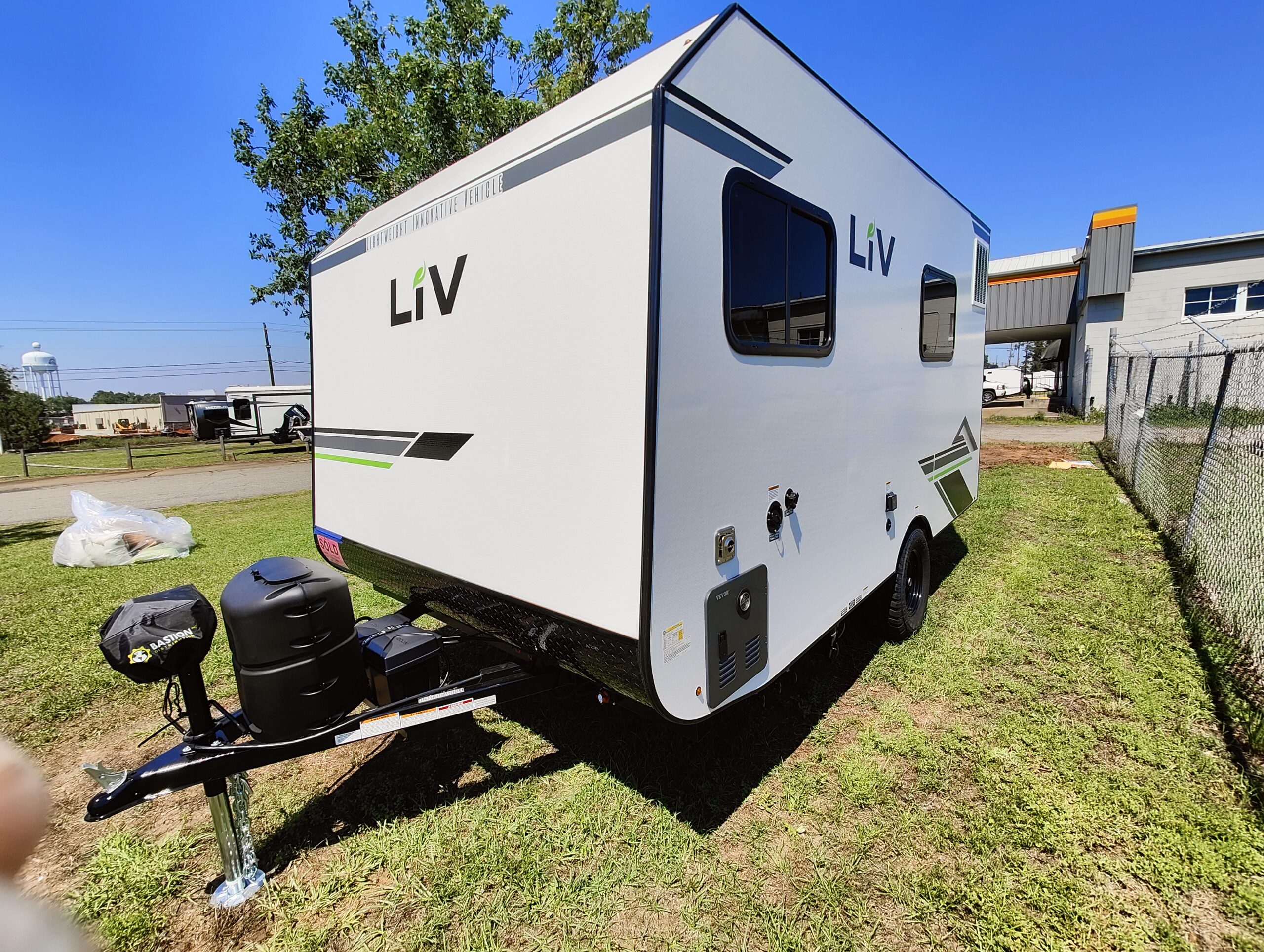

- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- No Brakes Standard
- Extra Stabilizer Jacks Optional
- Electric Brakes Optional
- Electric Stabilizer Jacks (Front & Rear) Optional
- Galvanized Frame Optional

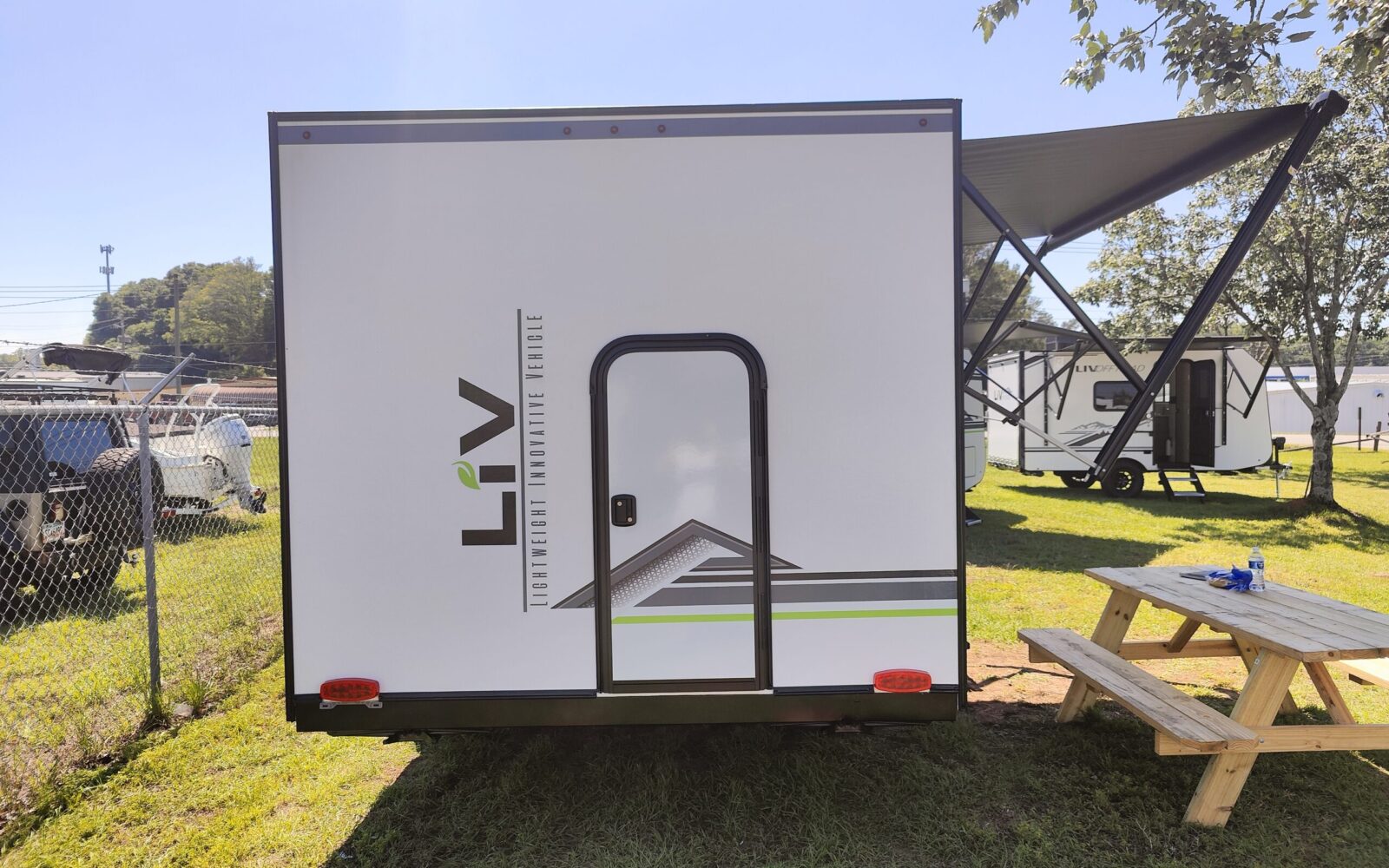

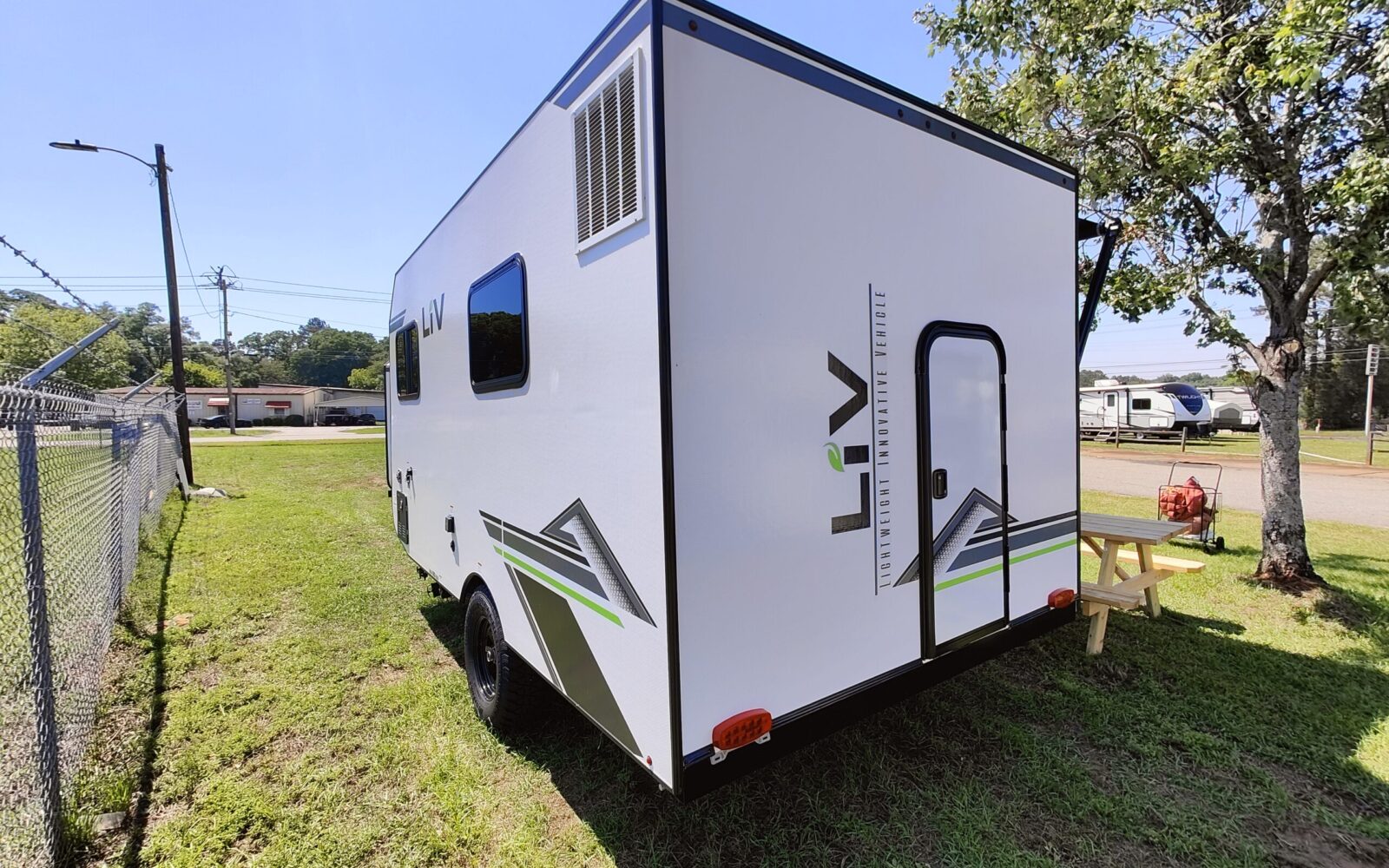

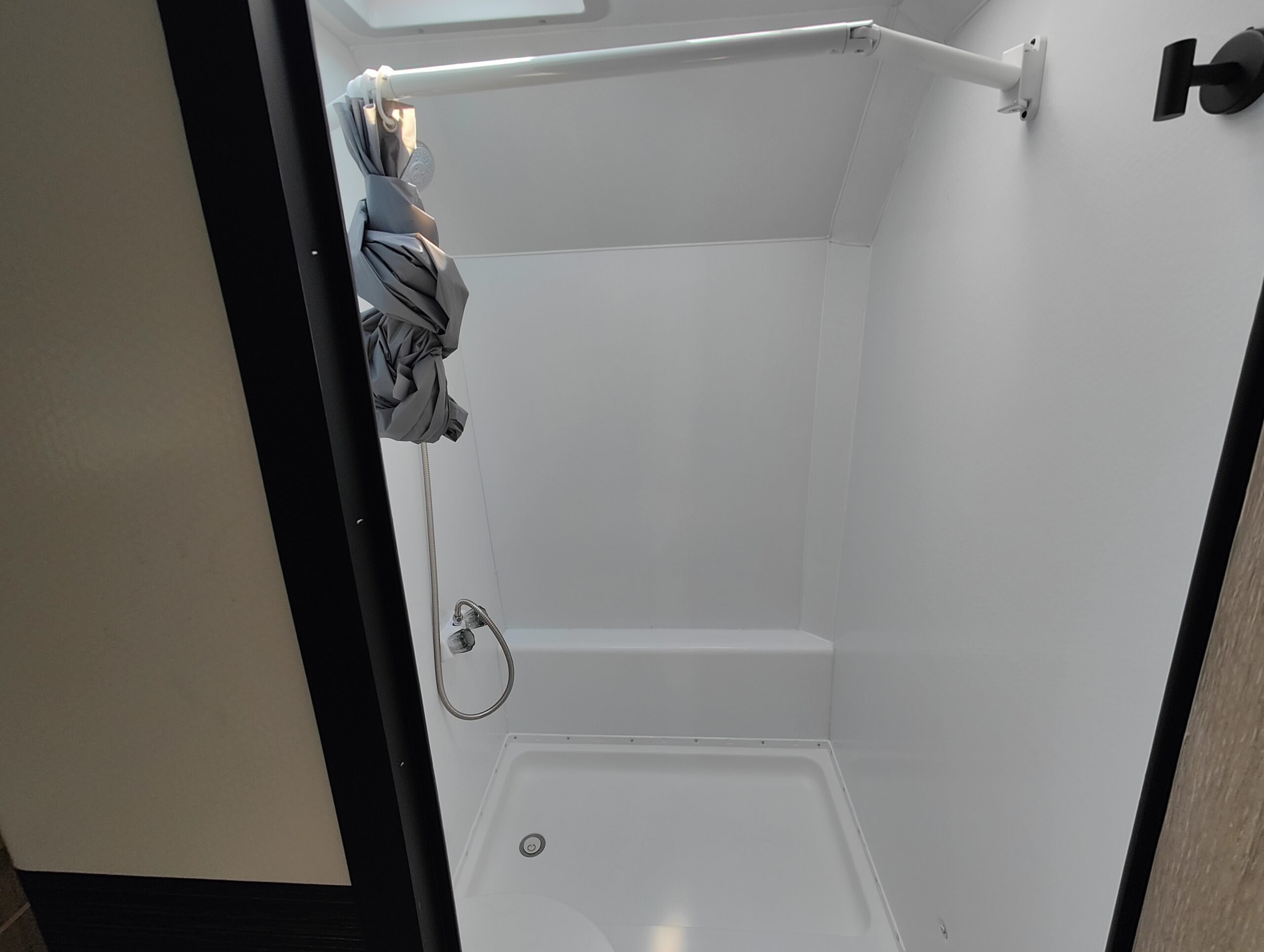

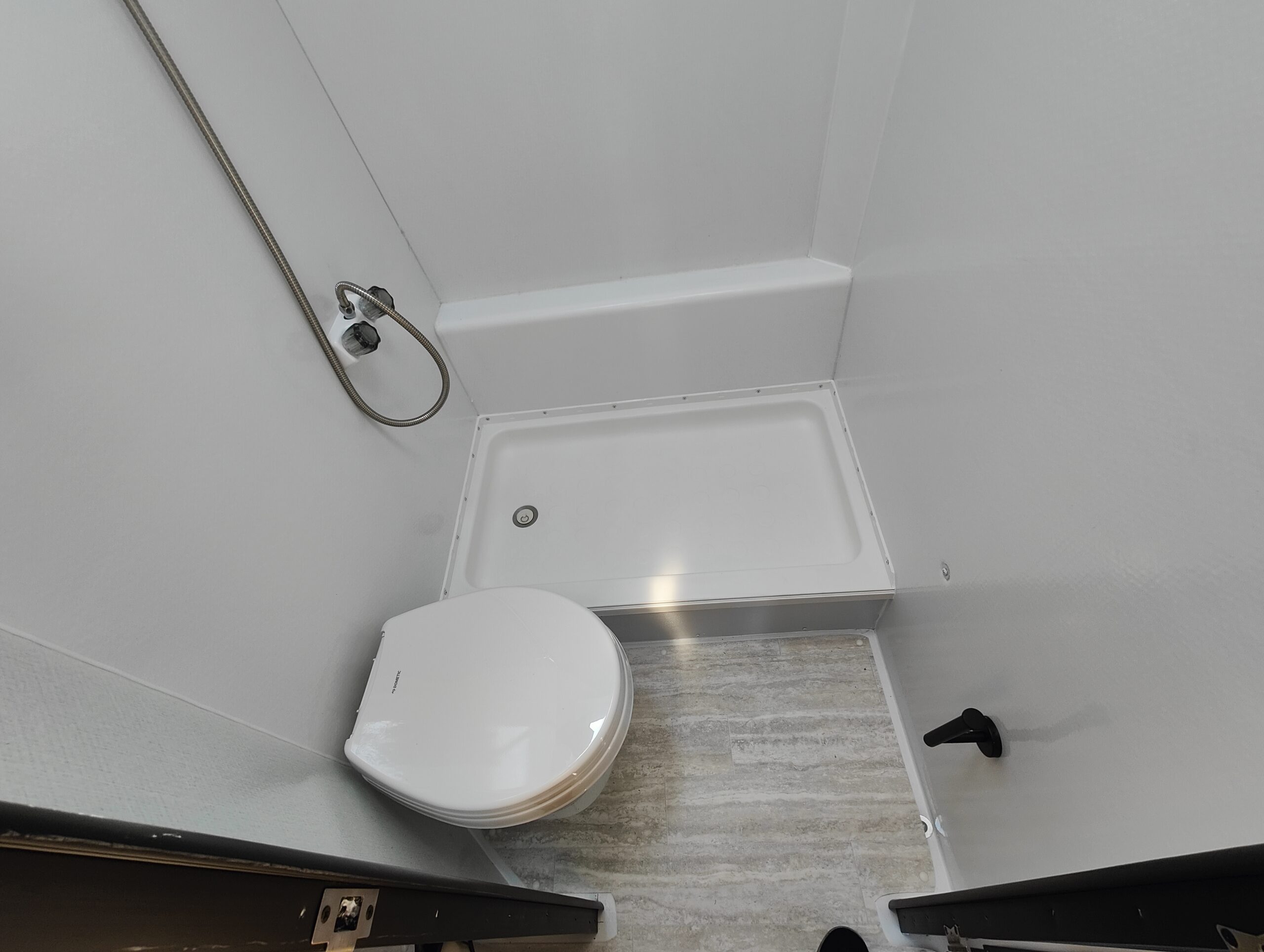

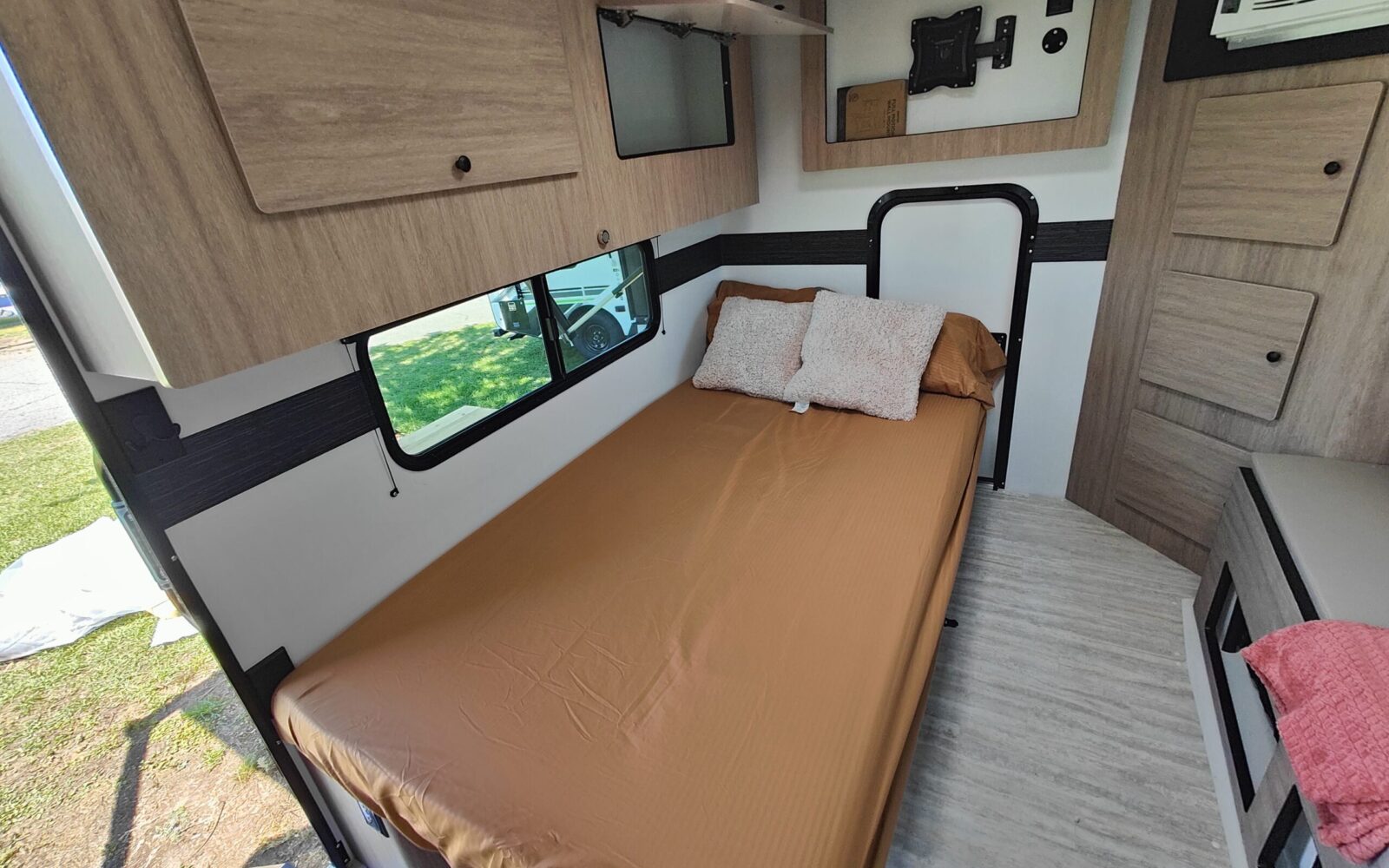

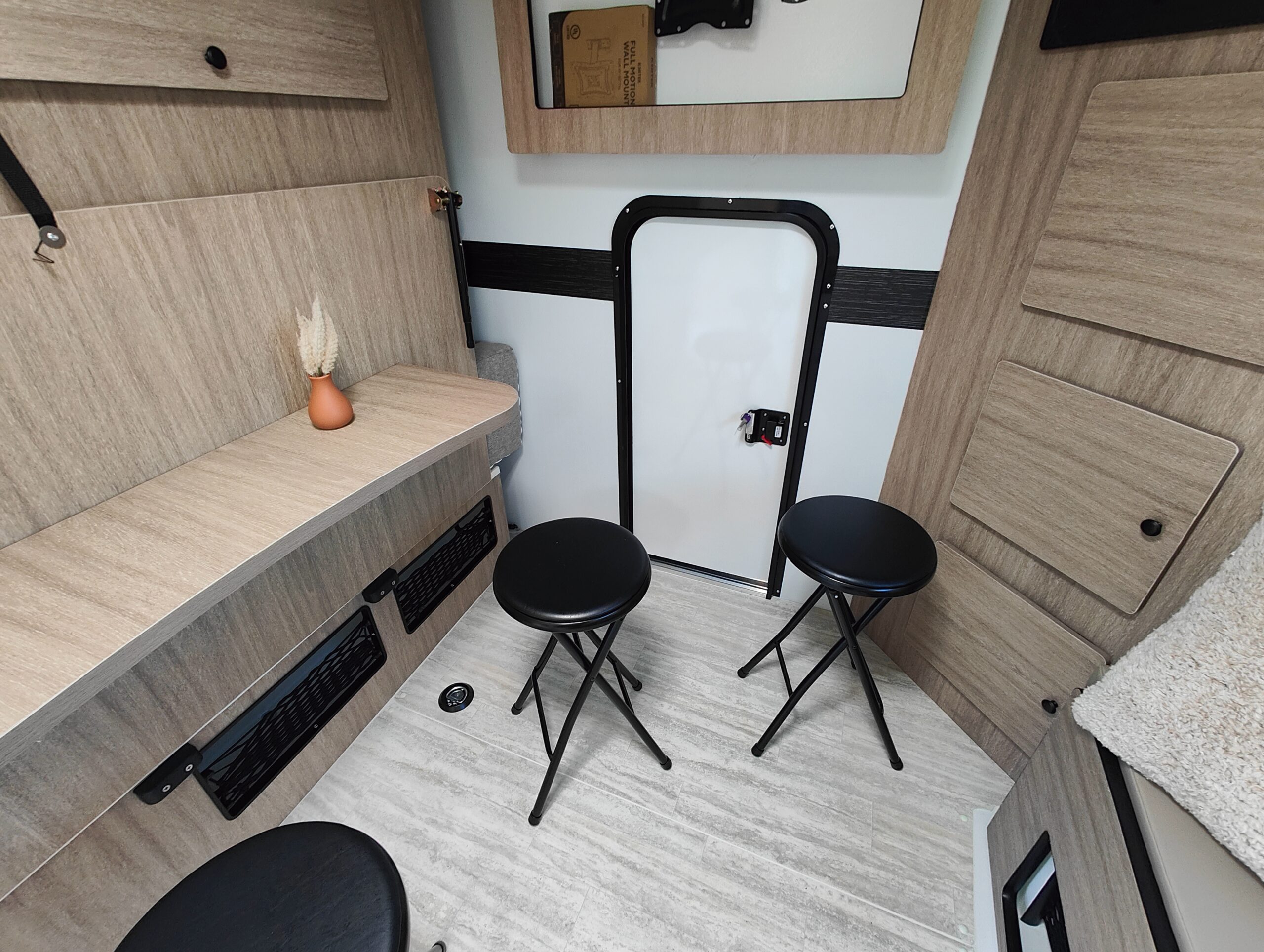

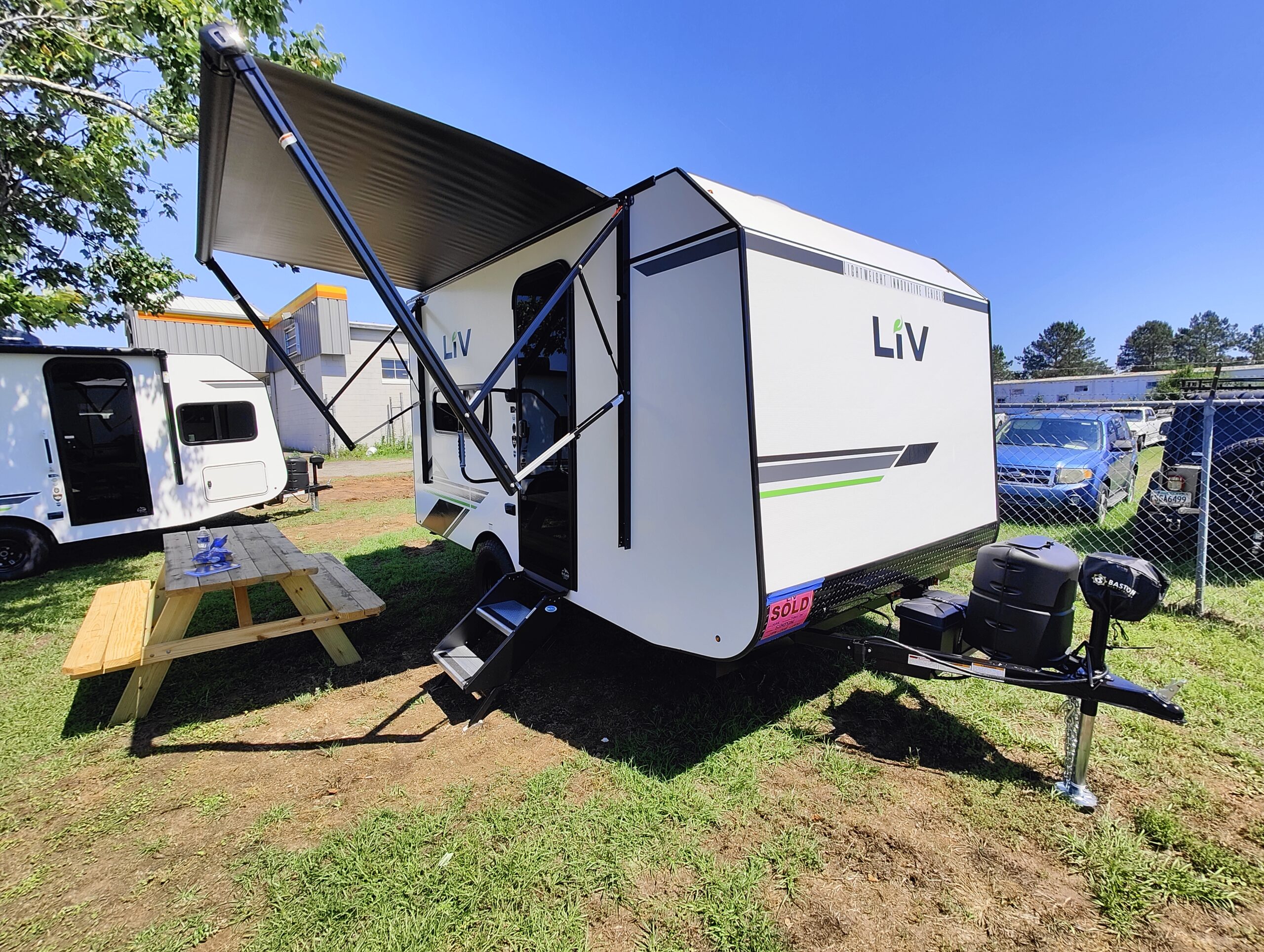

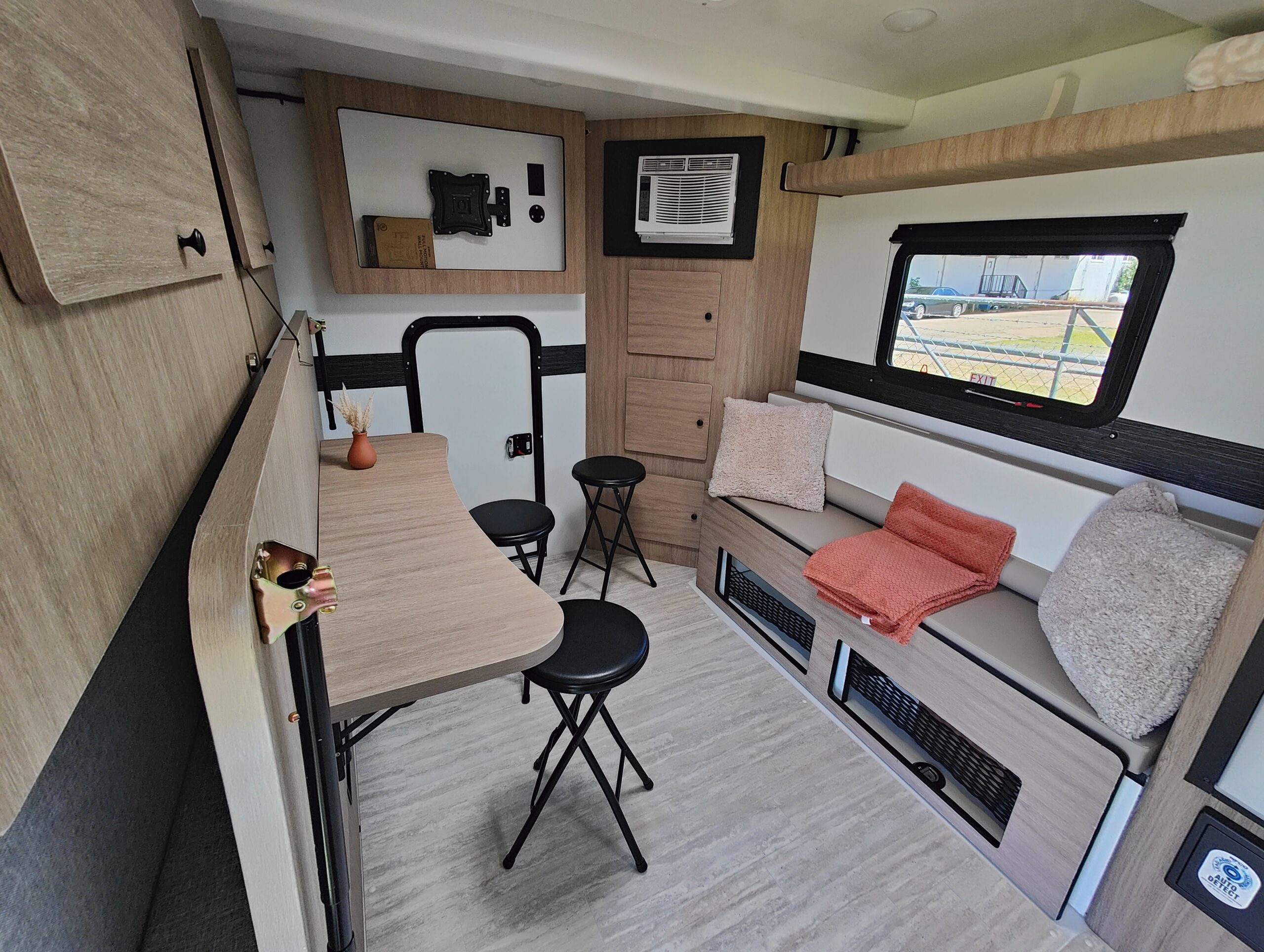

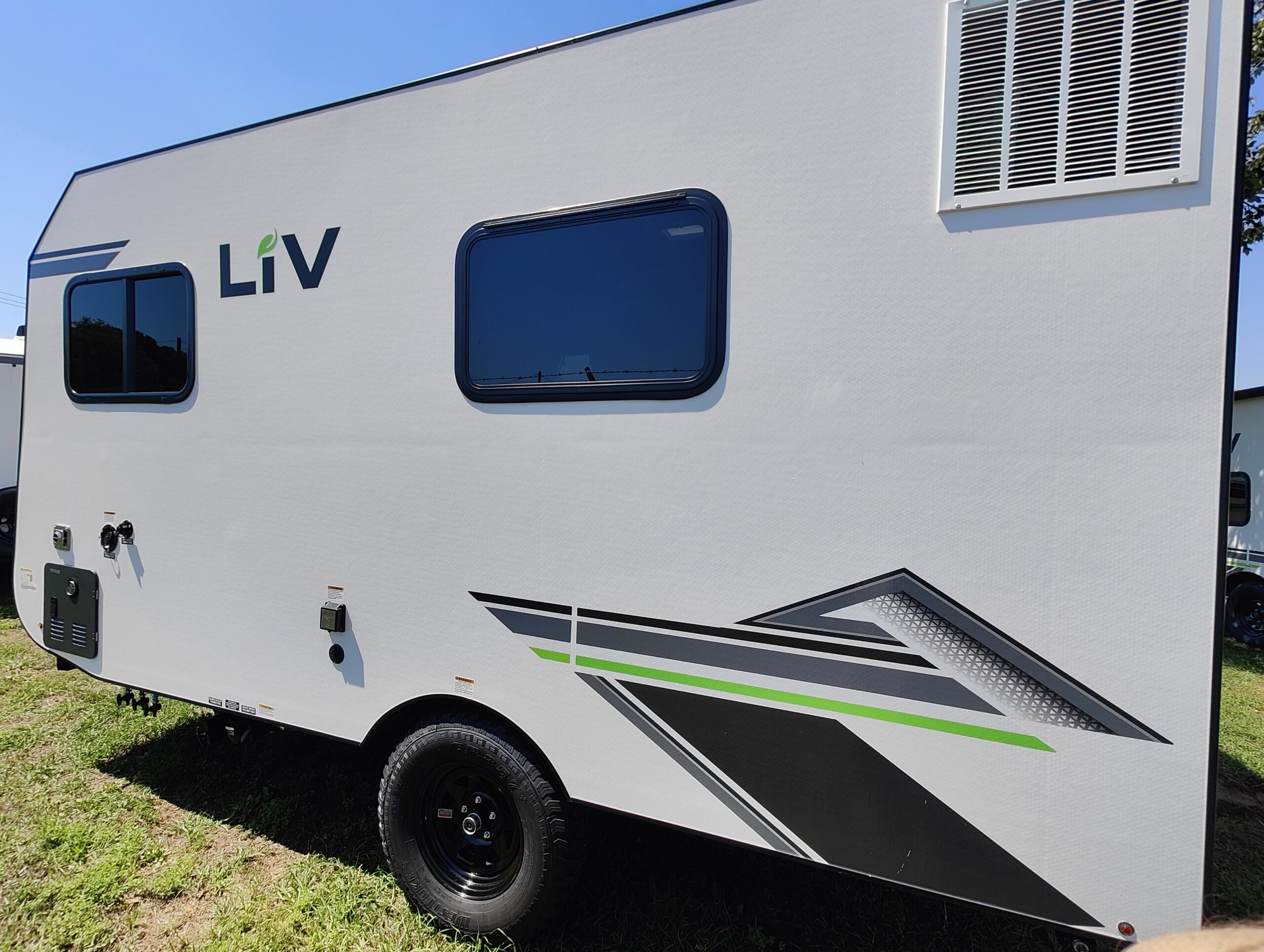

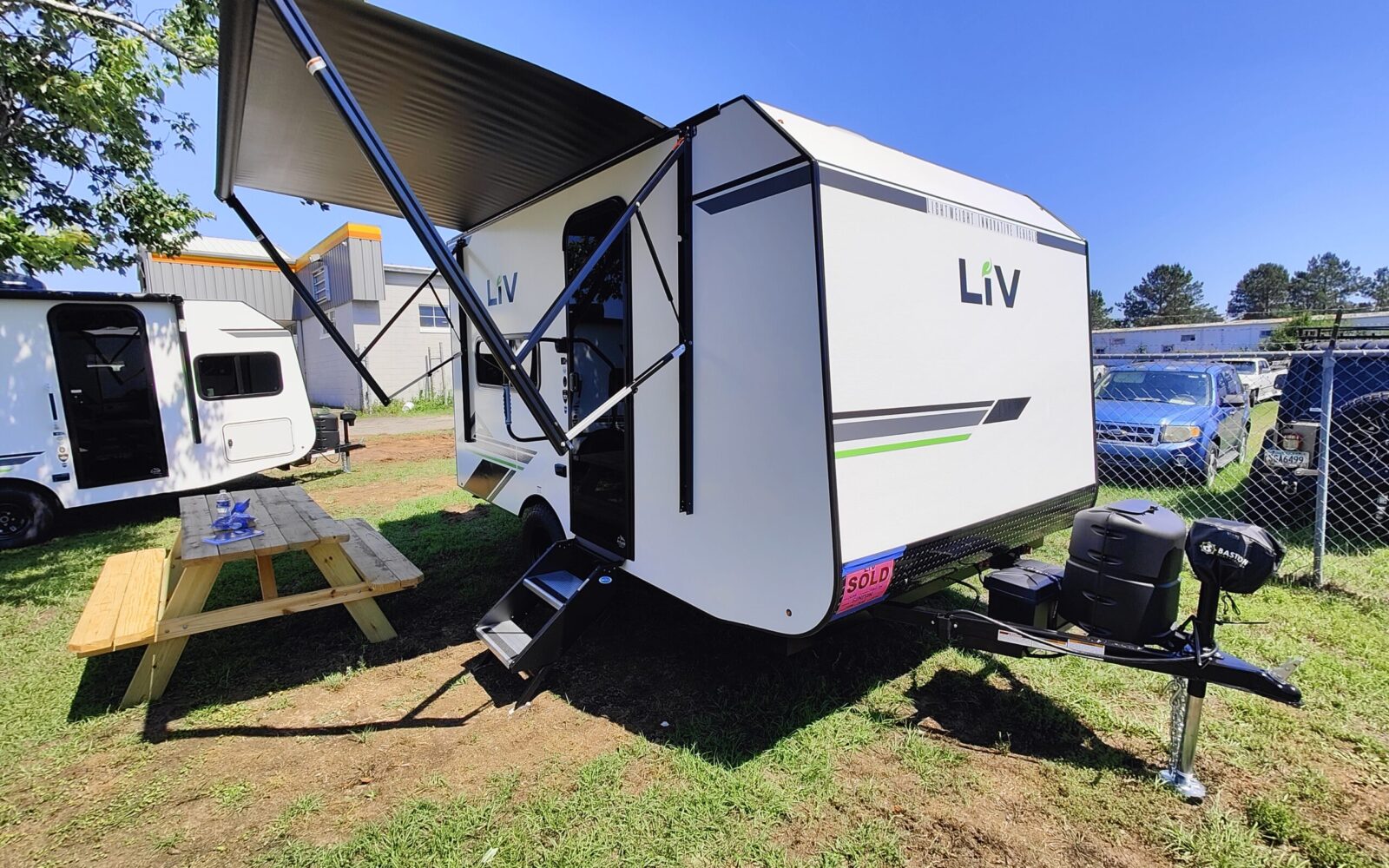

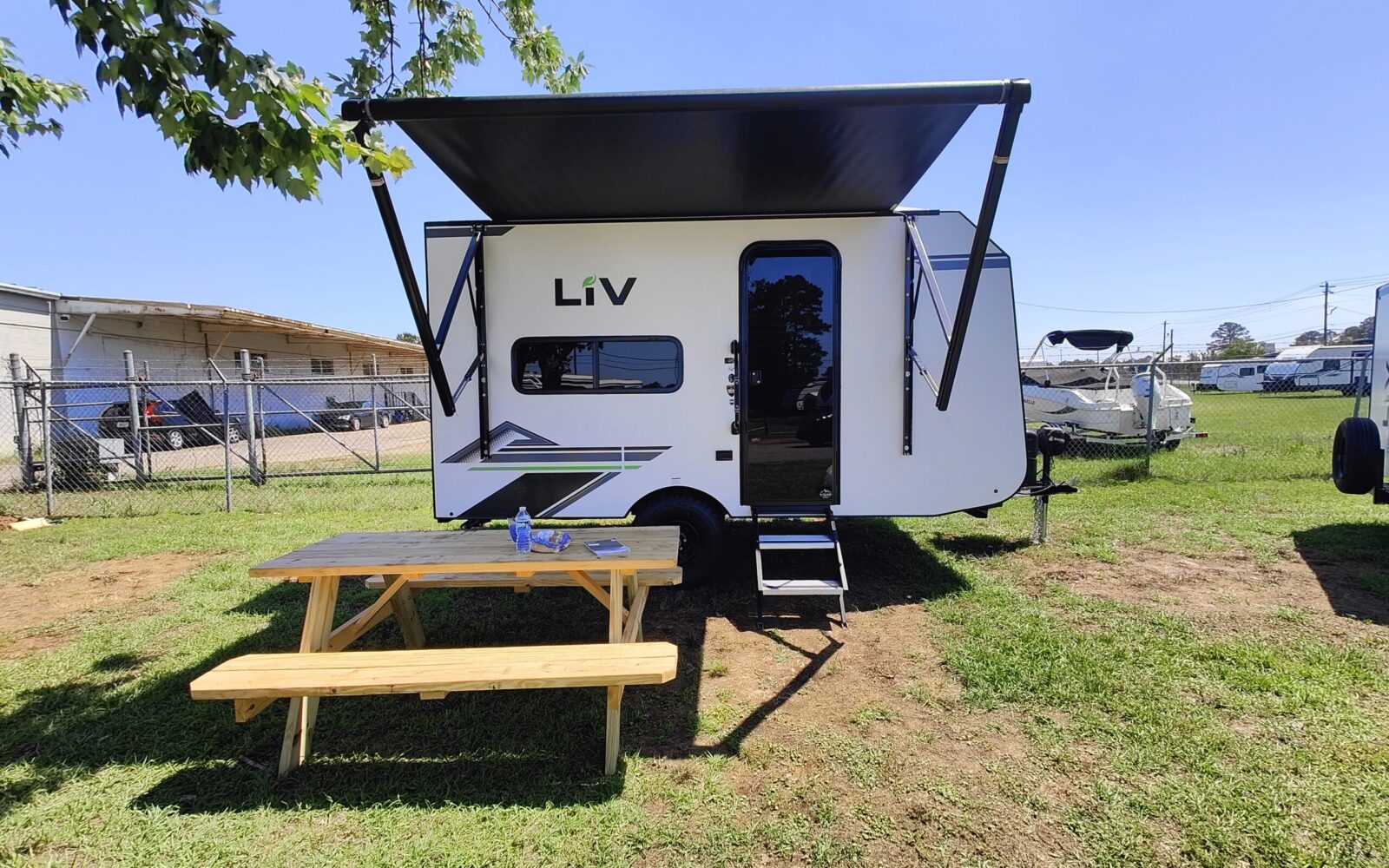

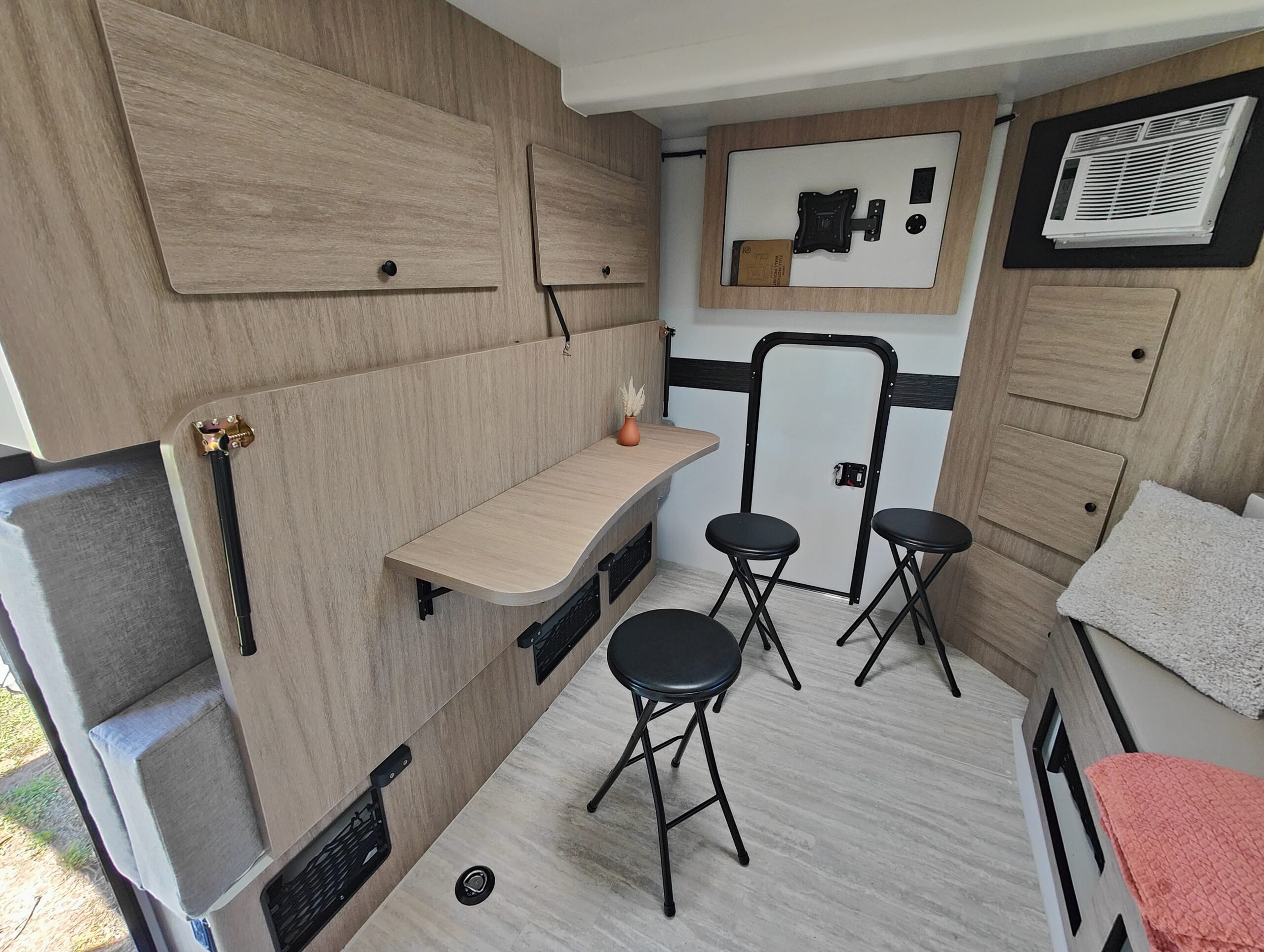

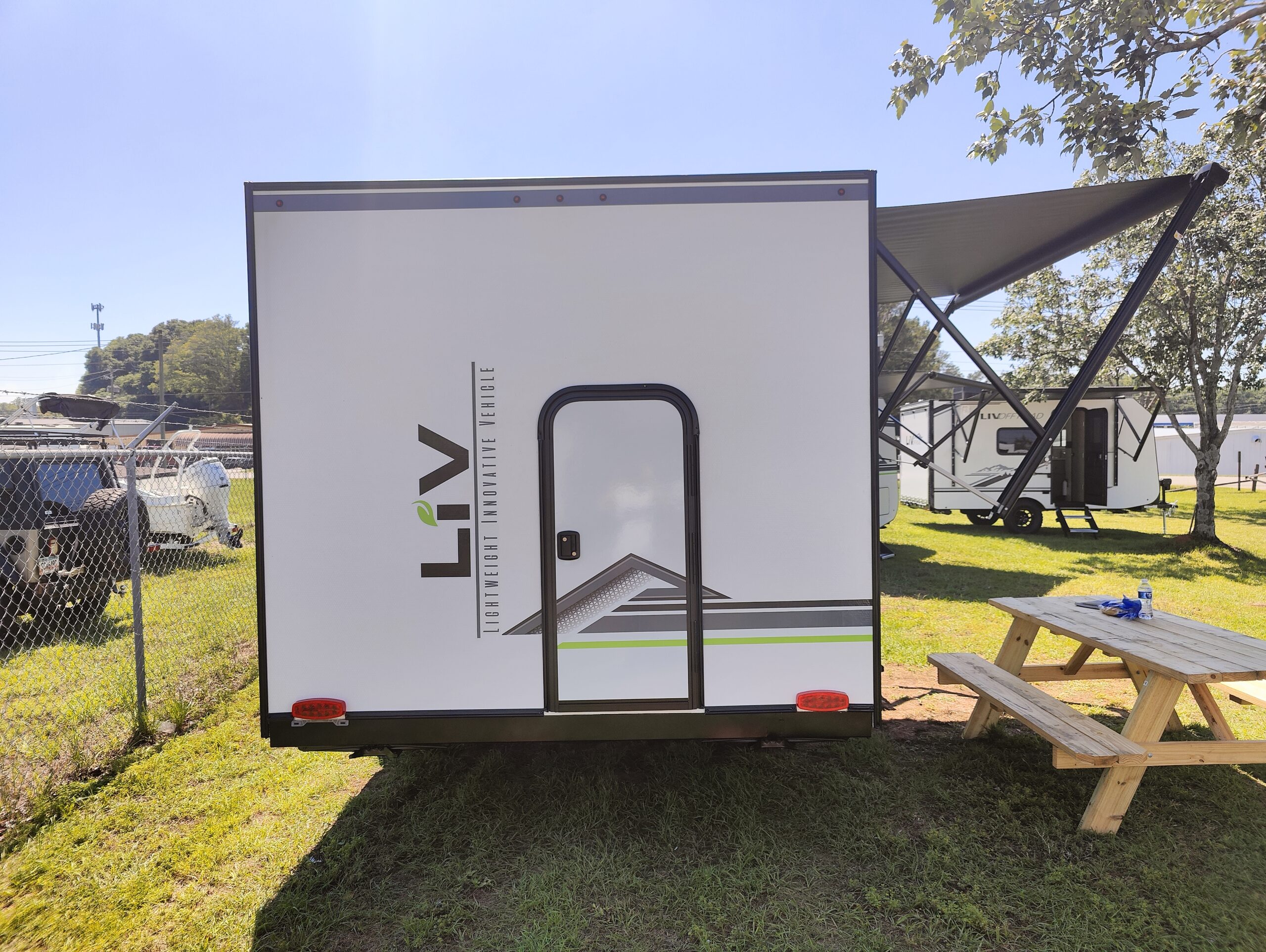

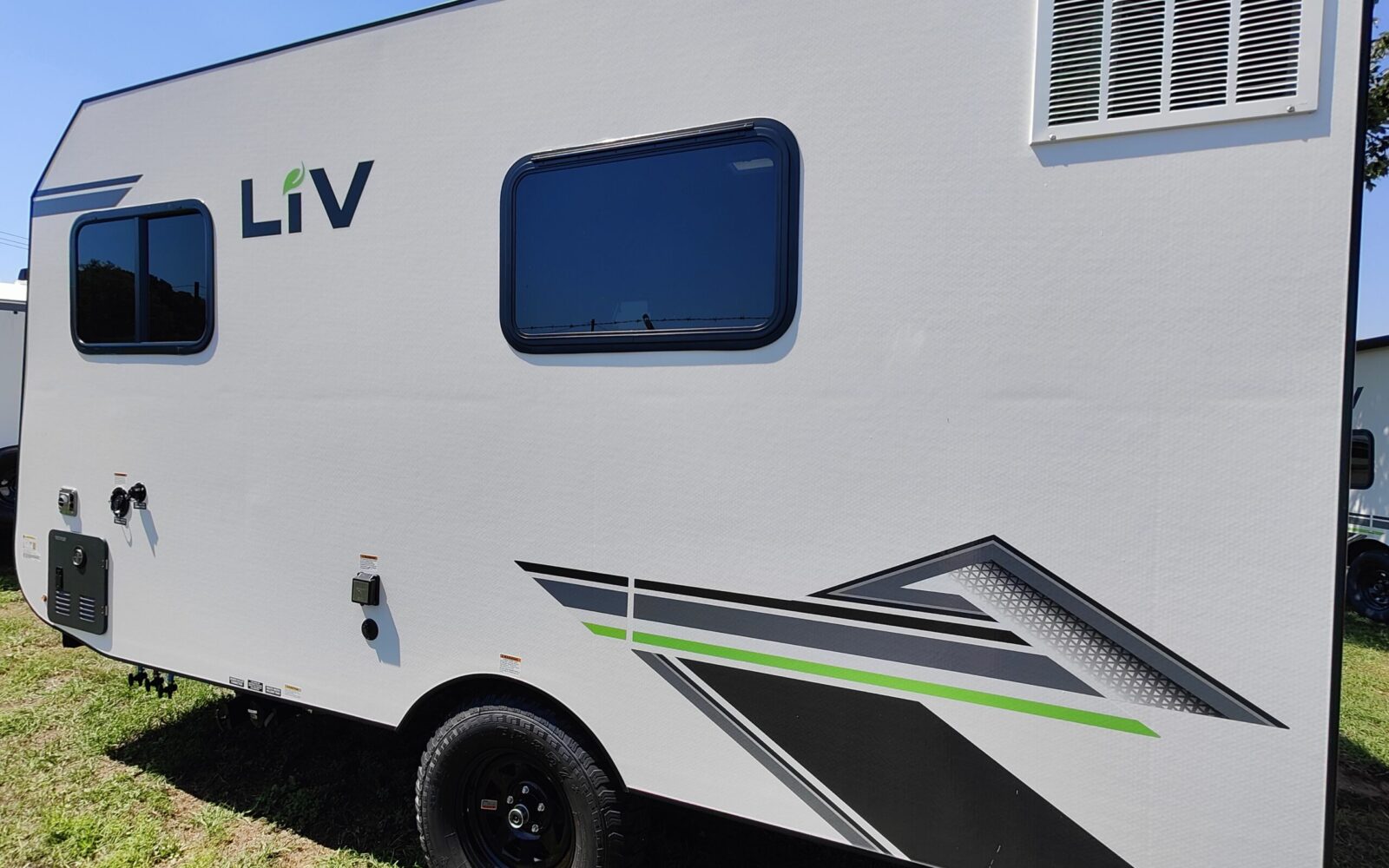

Gallery
Inside and out.
Ready to roll?
Configure your LiV 13 LEAF, save your build, then take it to a dealer.
