MODEL
16 FL
Travel Trailer · Sleeps 2–4

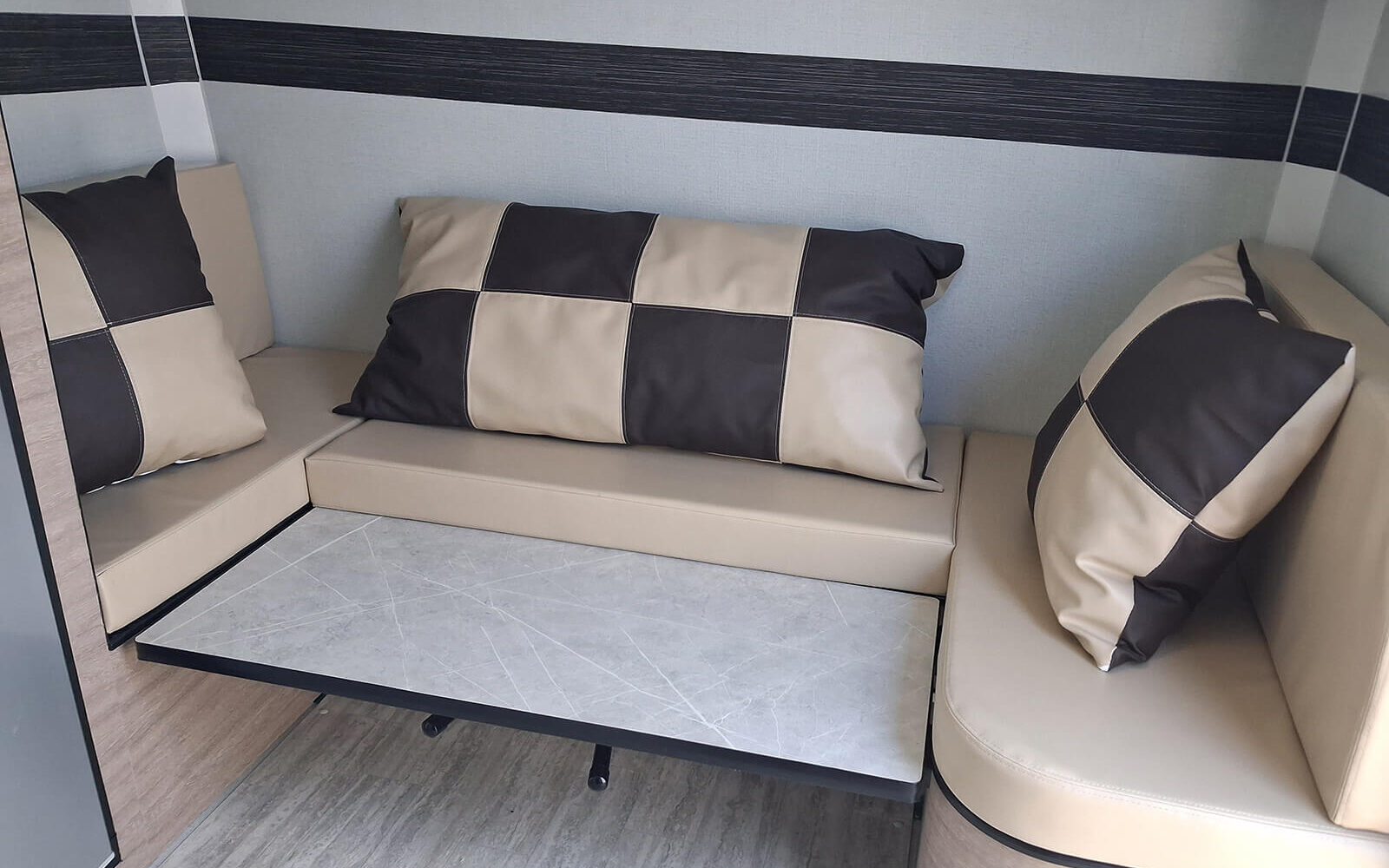

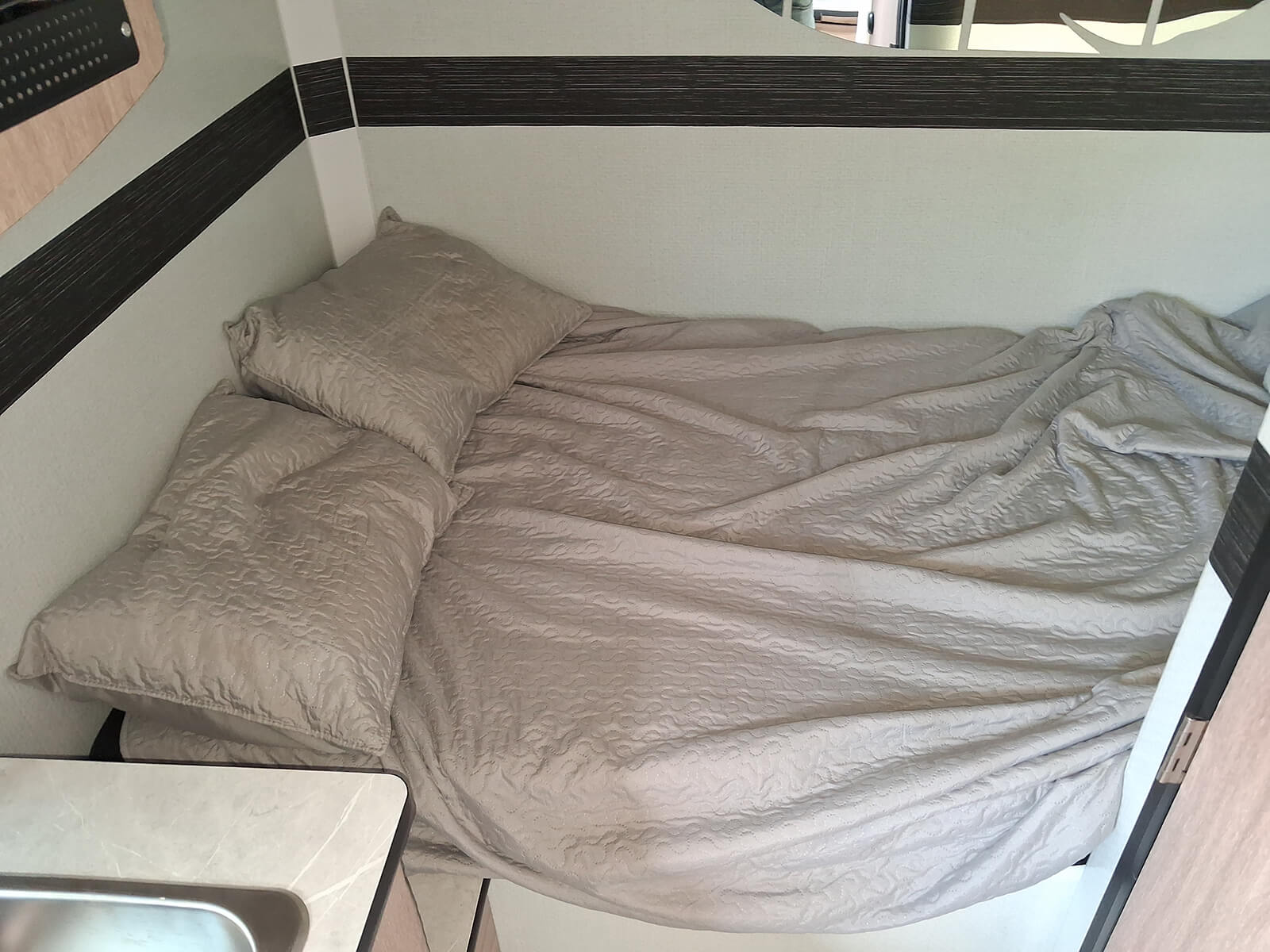

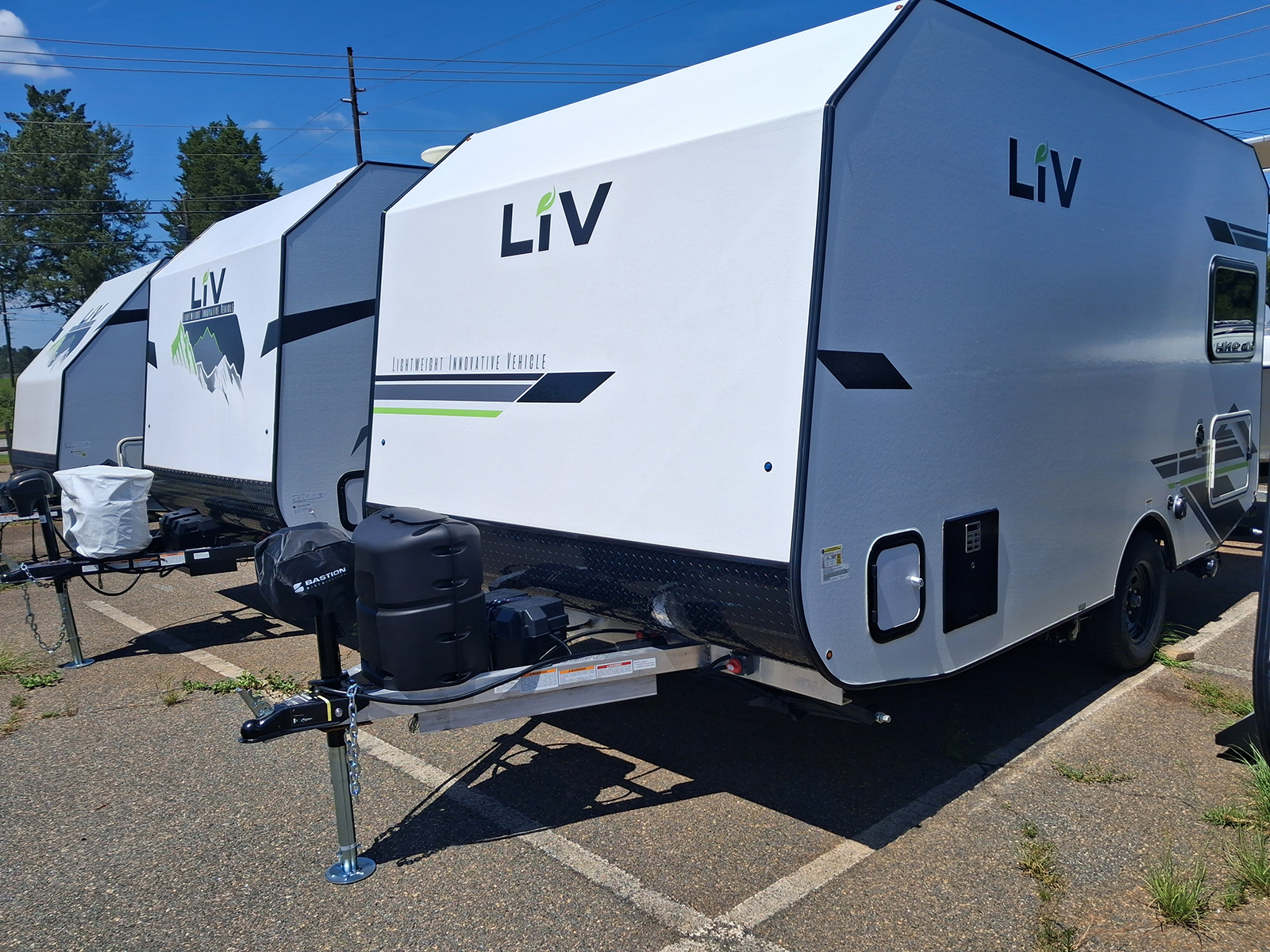

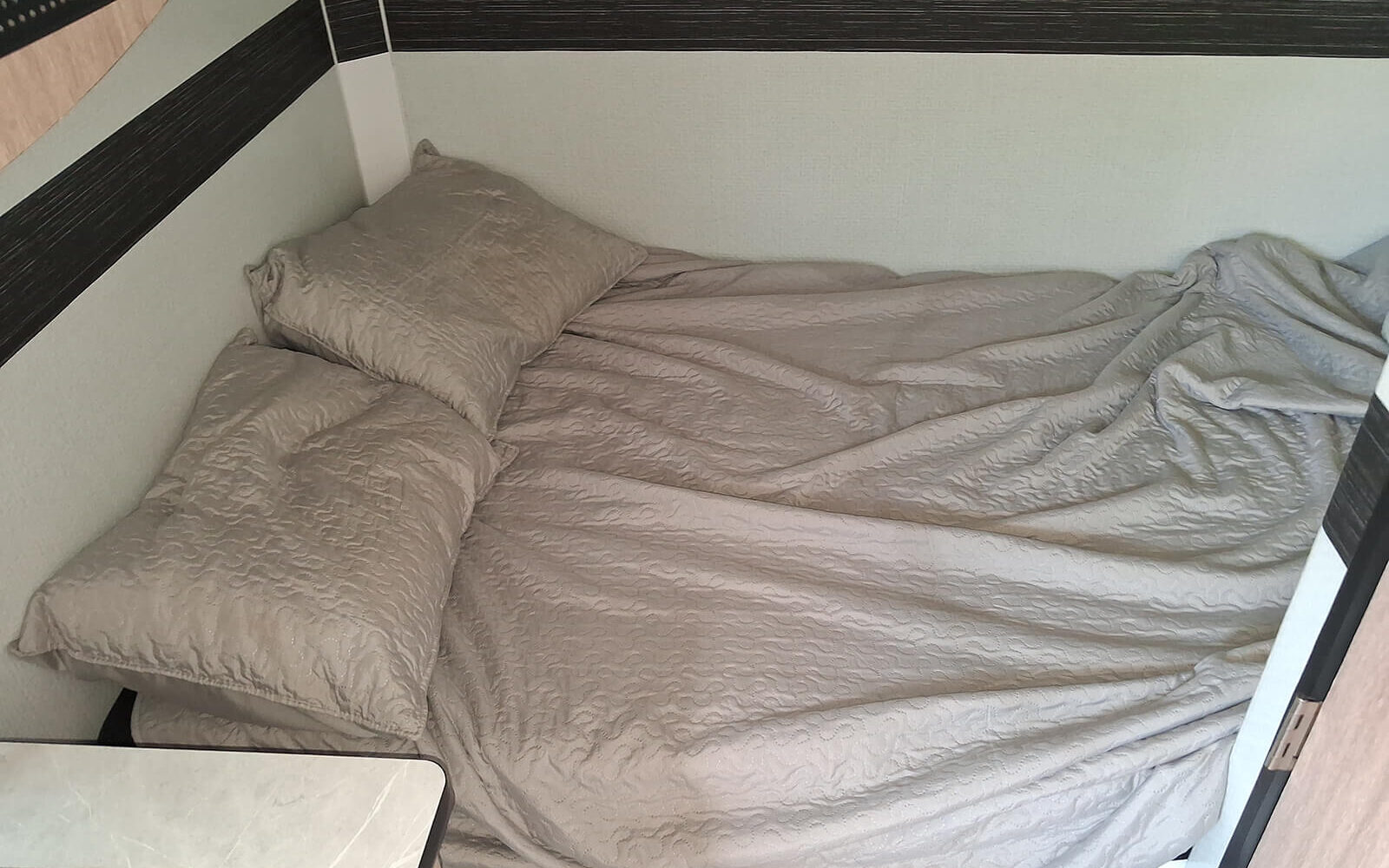

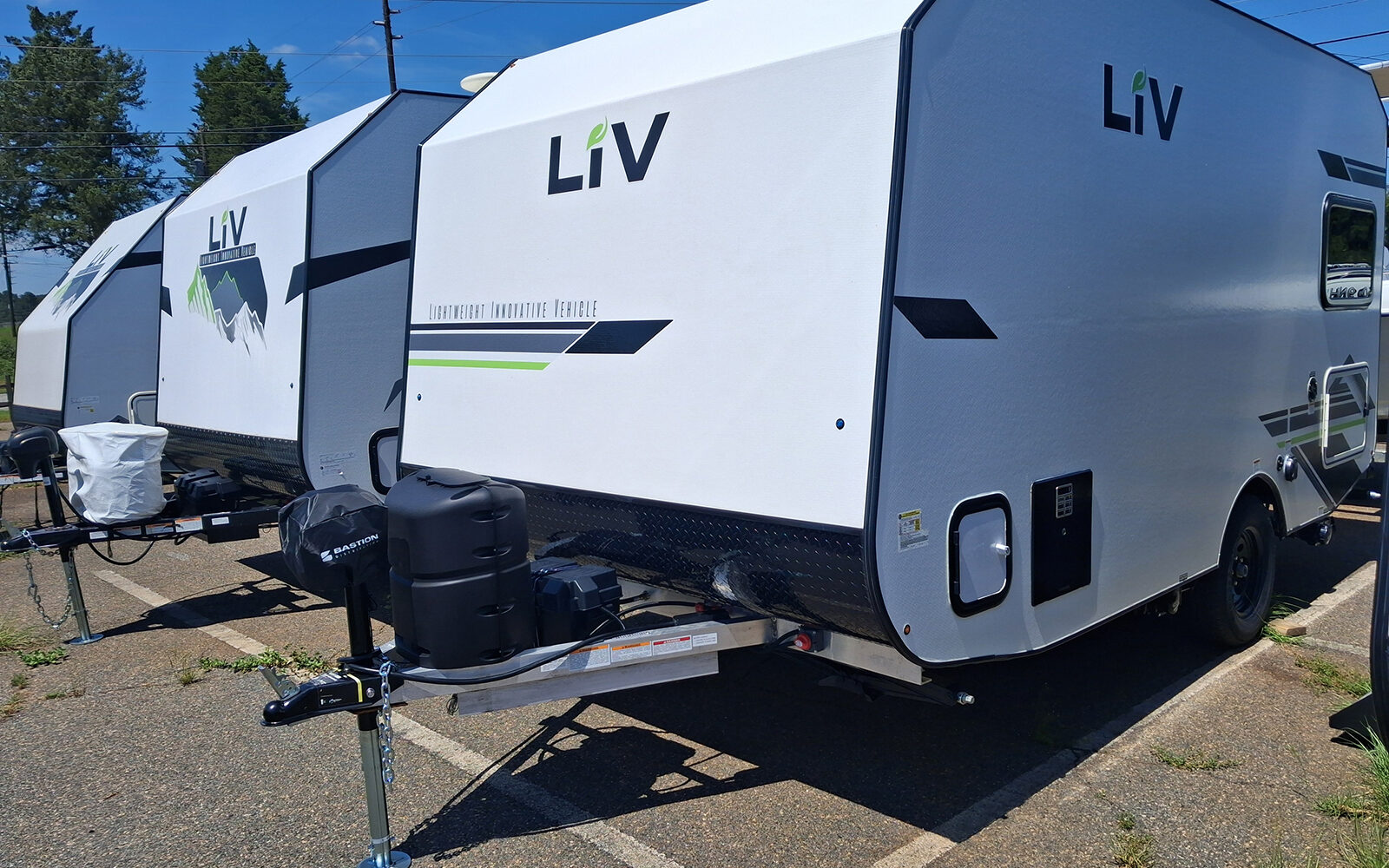

The 16 FL puts the lounge at the nose of the trailer, so you wake up to the view instead of a wall — and at the end of the day, it folds down to sleep four. At 1,920 pounds dry on a single-axle composite frame, it slips comfortably under most factory tow ratings, even for the smaller crossovers most families already own. The full LIV Convenient Package is standard (A/C, power awning with LEDs, microwave, Insta-Hot water heater, 2-burner cooktop), and Full Body Paint is on the option sheet if you want your rig to roll out of the dealership looking factory-custom. Add the Off-Road Package or Solar Package and the 16 FL is equally at home in a campground or twenty minutes past the last paved road.
View gallery
- 1,920
- LBS DRY
- 2–4
- SLEEPS
- 14' 5"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 18' 6"
- Width
- 8'
- Exterior Height
- 9' 10"
- Interior Height
- 6'4"
WEIGHT
- Dry Weight
- 1,920 lbs
- GVW
- 3,200 lbs
- Tongue Weight
- 280 lbs
- Carrying Cap.
- 1,050 lbs
TANKS
- Fresh Water
- 26 gal
- Grey Water
- 22 gal
- Black Water
- 26 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 1 axle
- Tires
- ST205/75R14
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

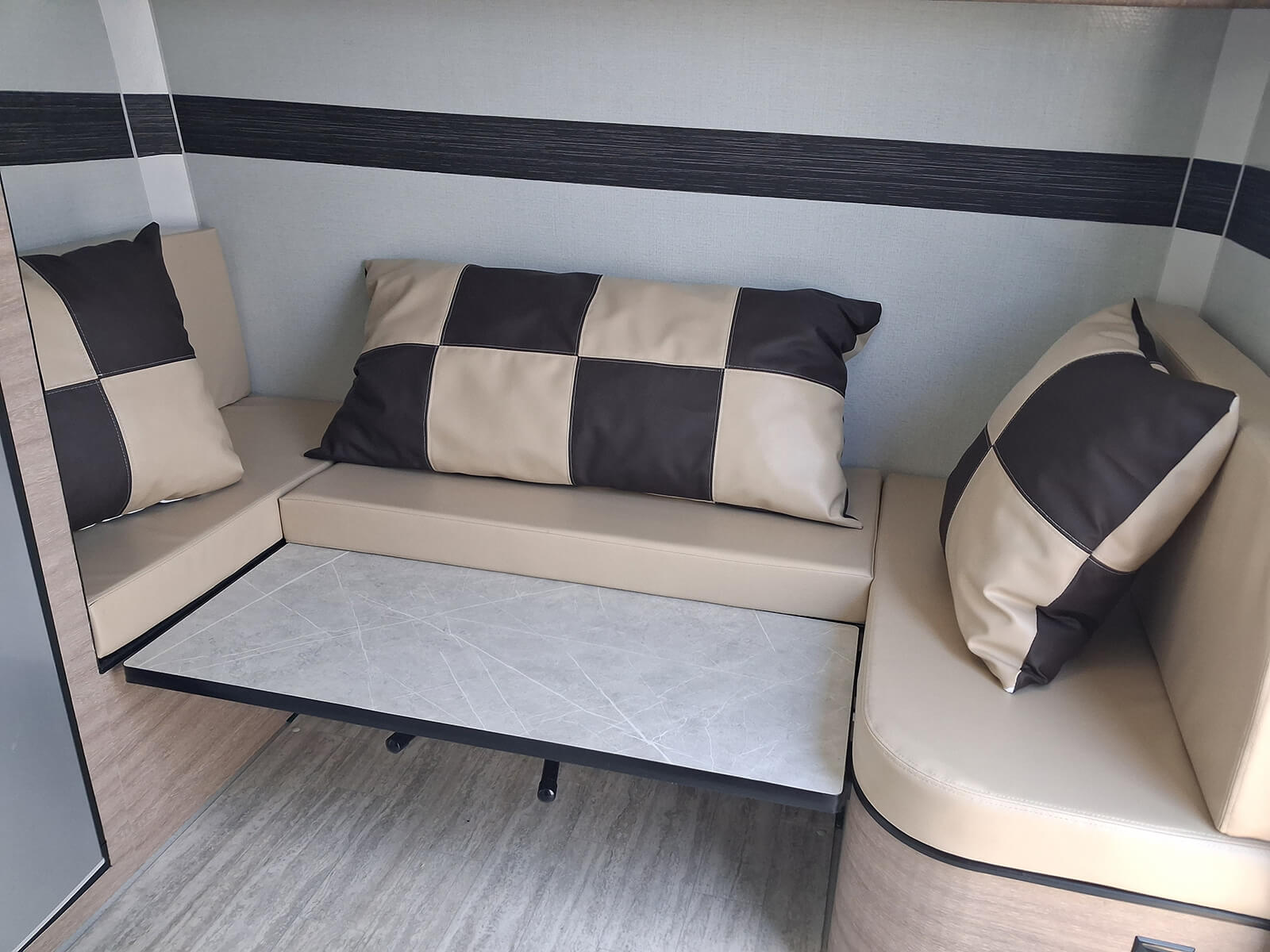

- Front-lounge open layout
- 1,920 lb dry weight
- Single-axle composite chassis
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Quiet Inverter Generator with Mount Optional
Climate & Comfort
- 6-Gallon Water Heater (Gas/Electric, Insta-Hot) Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional

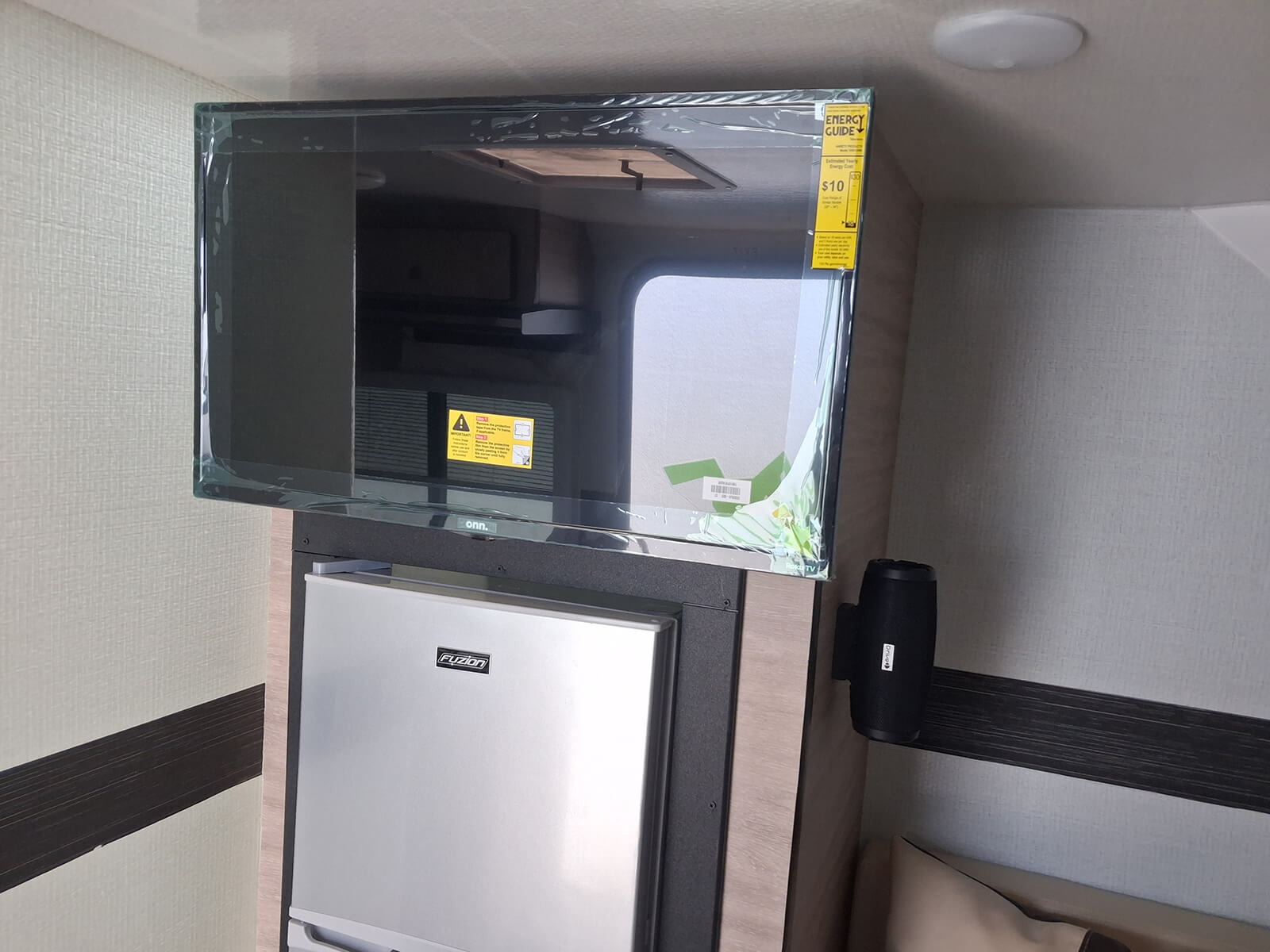

- 24″ Smart TV Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Standard Brakes (Non-Electric) Standard
- Extra Stabilizer Jacks Optional
- Electric Brakes Optional
- Electric Stabilizer Jacks (Front & Rear) Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard
Appliances

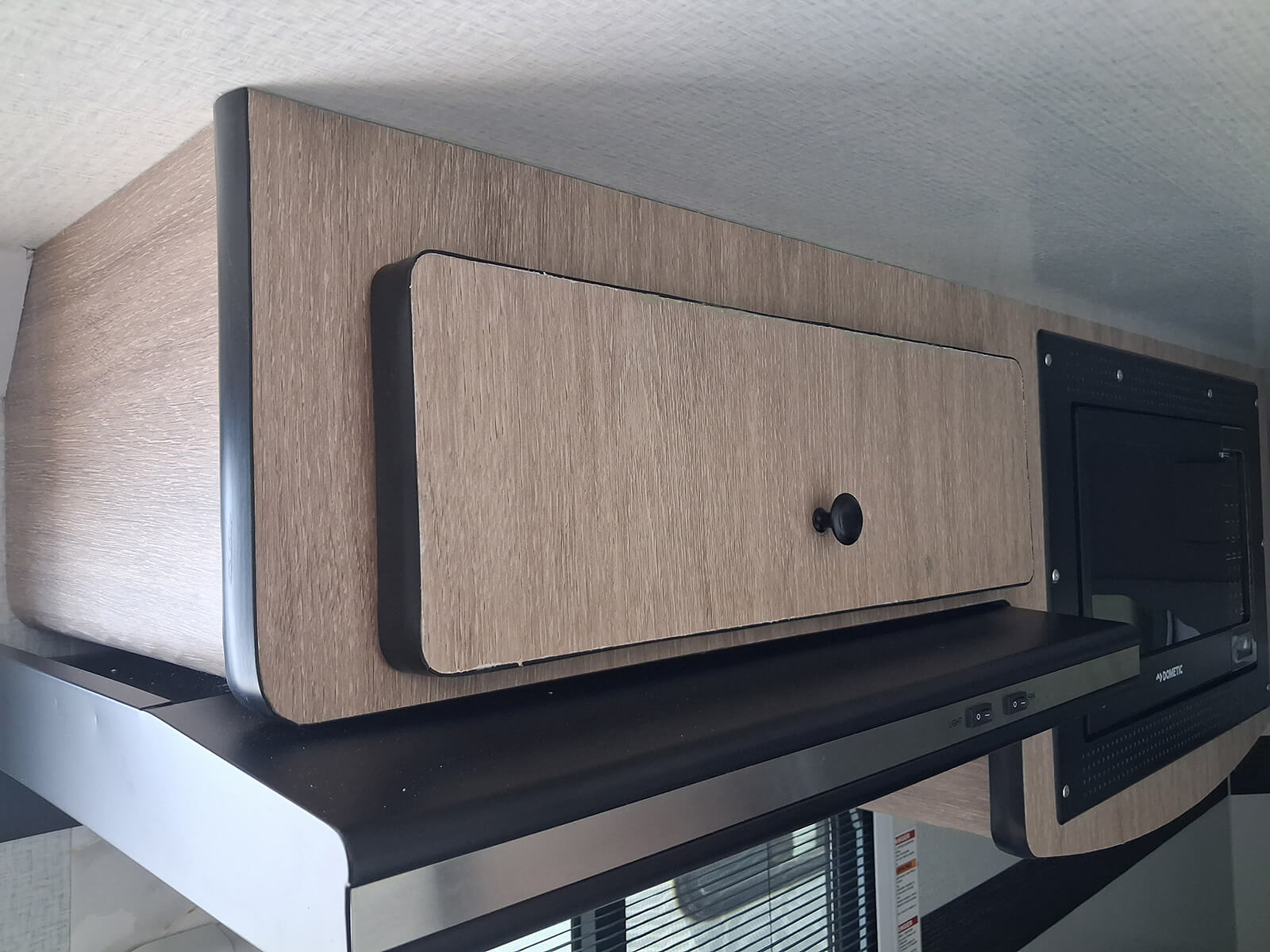

- Microwave Oven Standard

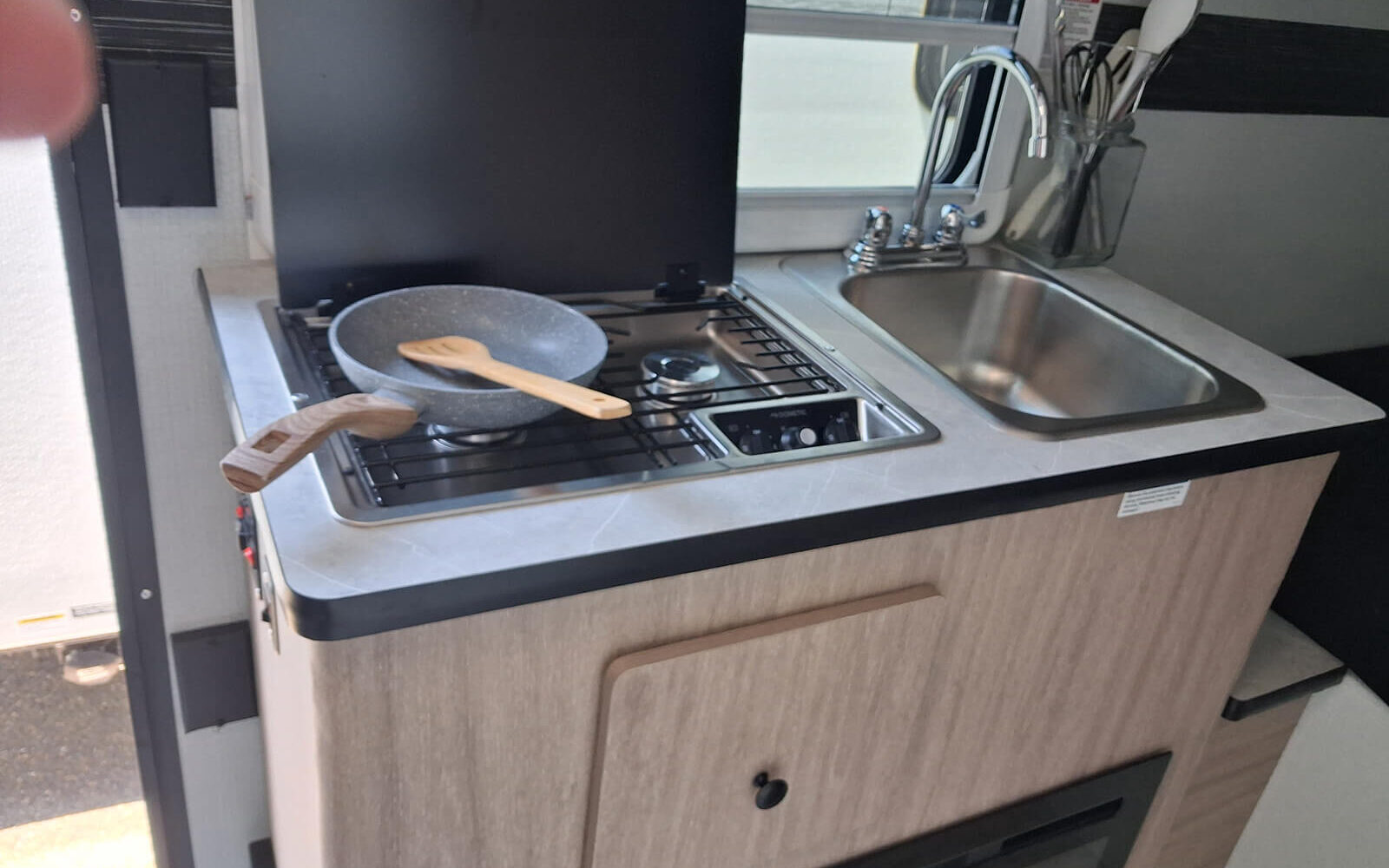

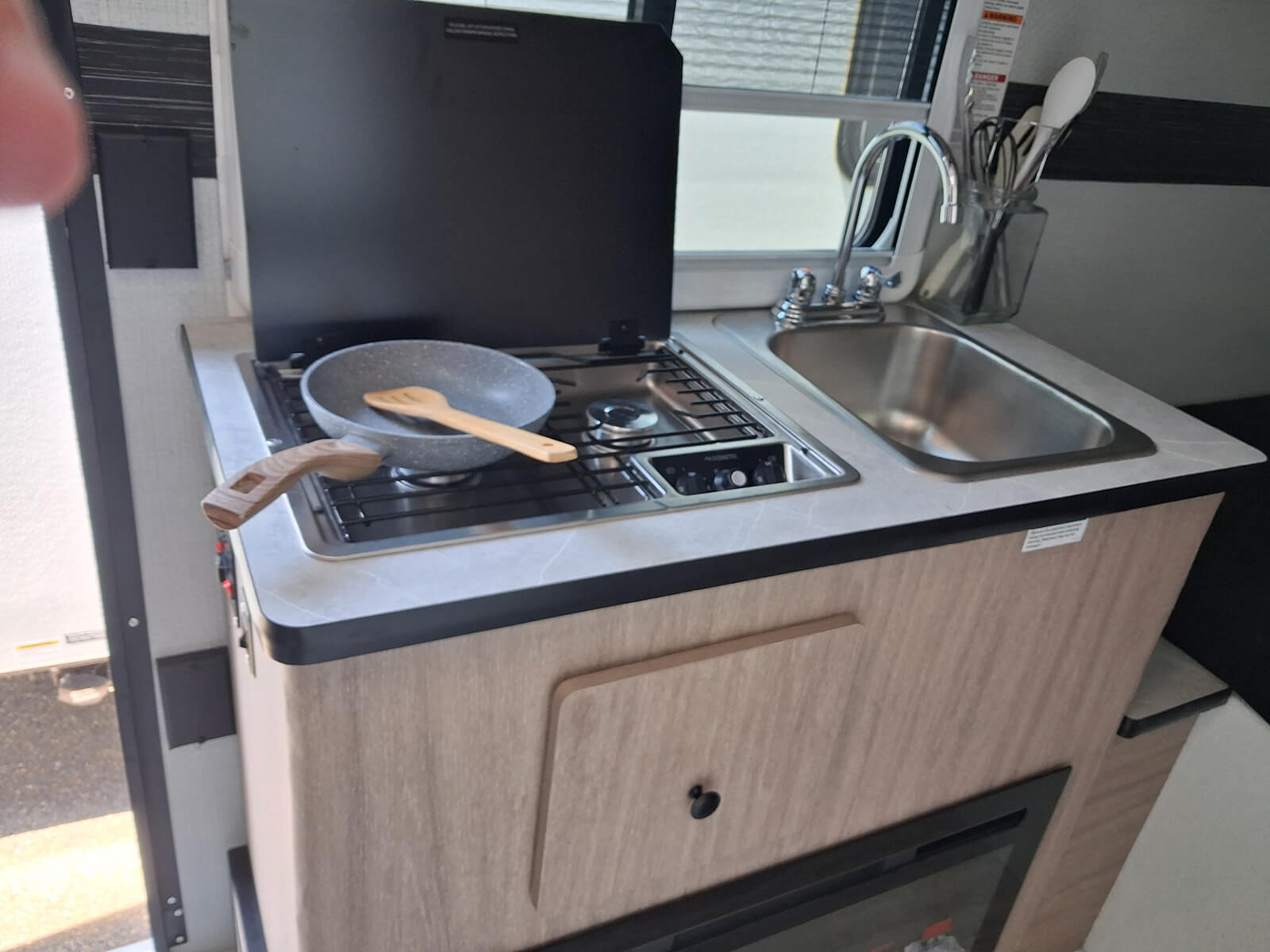

- 2-Burner Propane Cook Top Standard

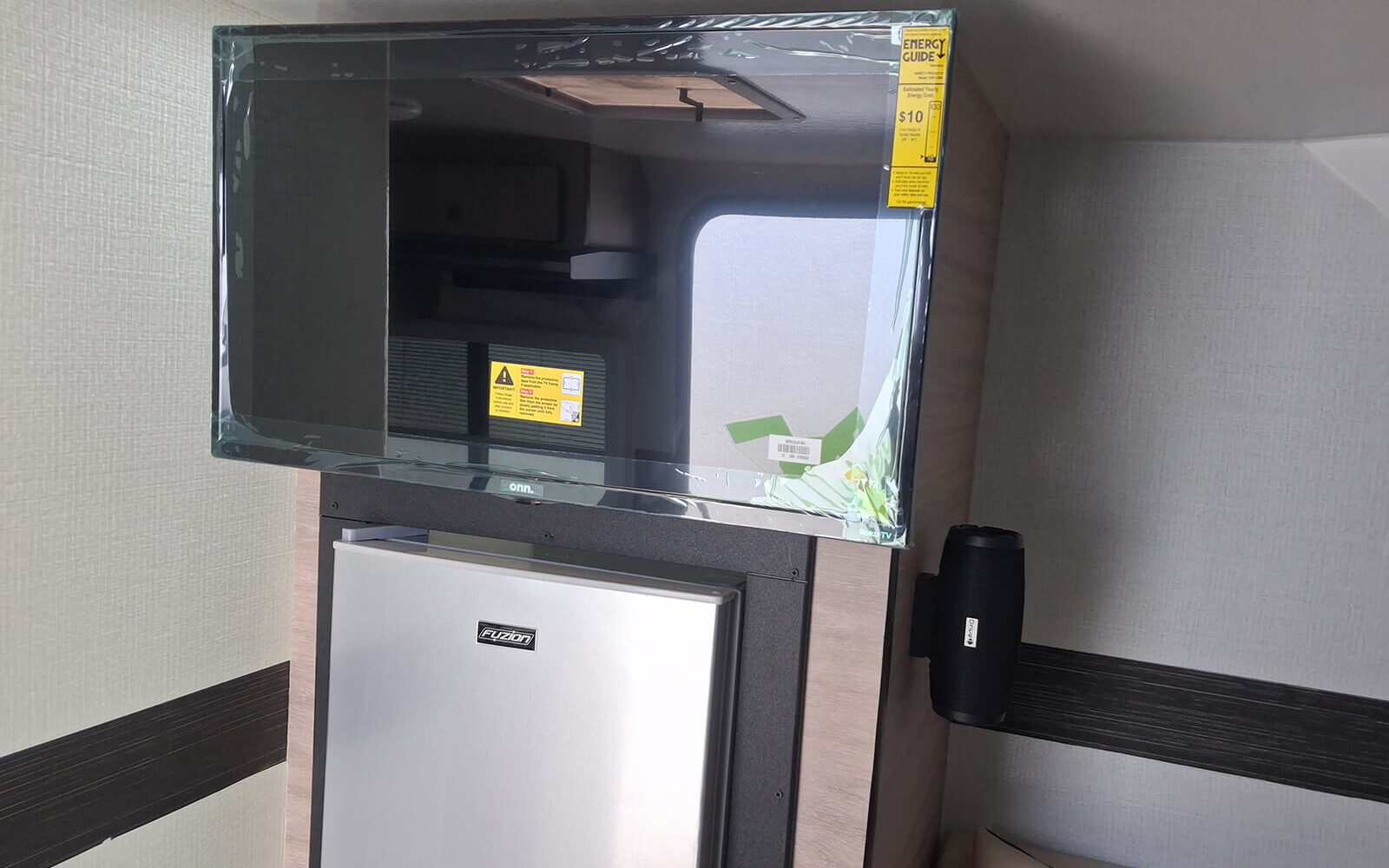

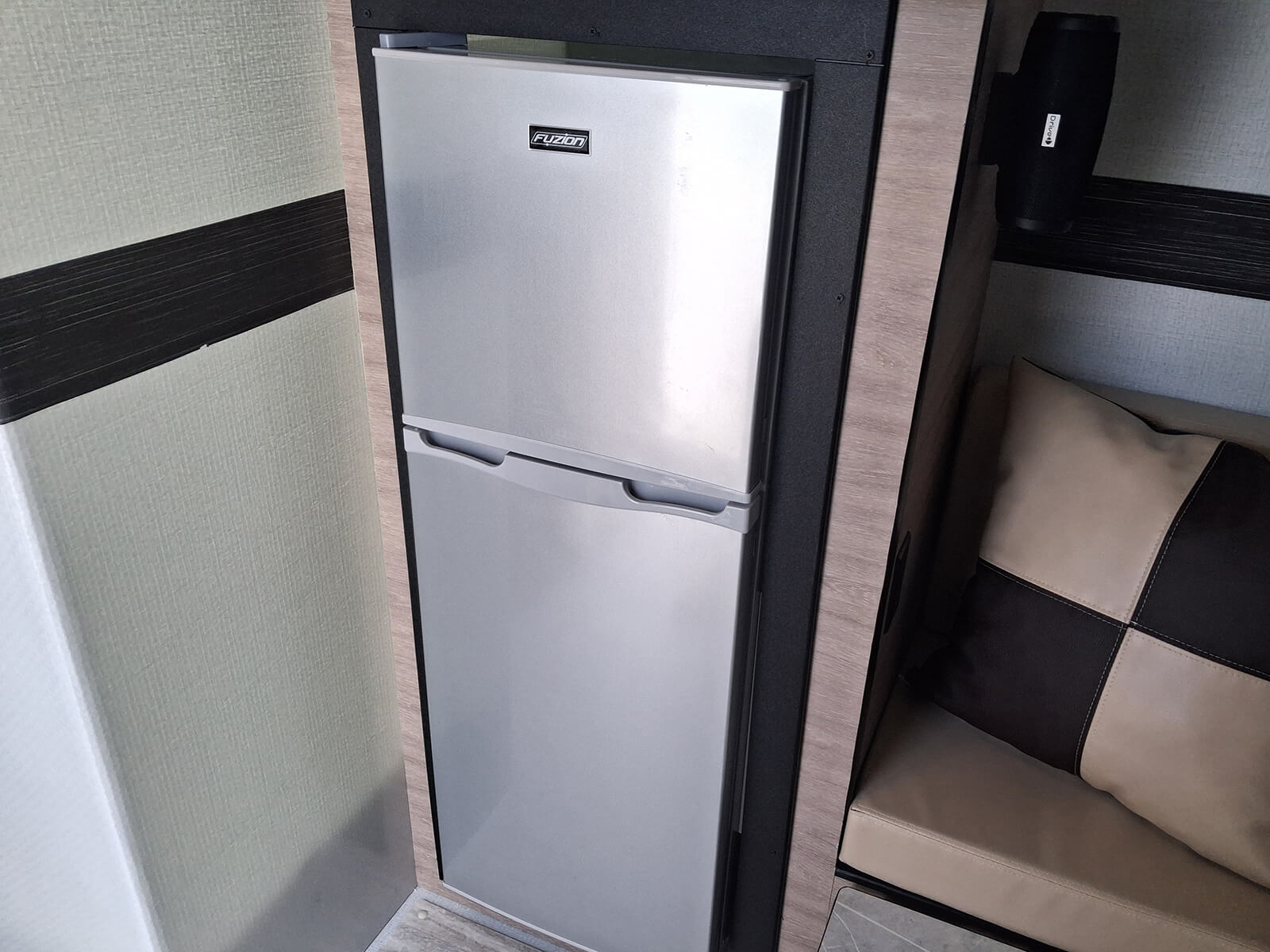

- 3.3 cu ft Aqua Cool Refrigerator Standard
- Upgrade to Convection Microwave Optional

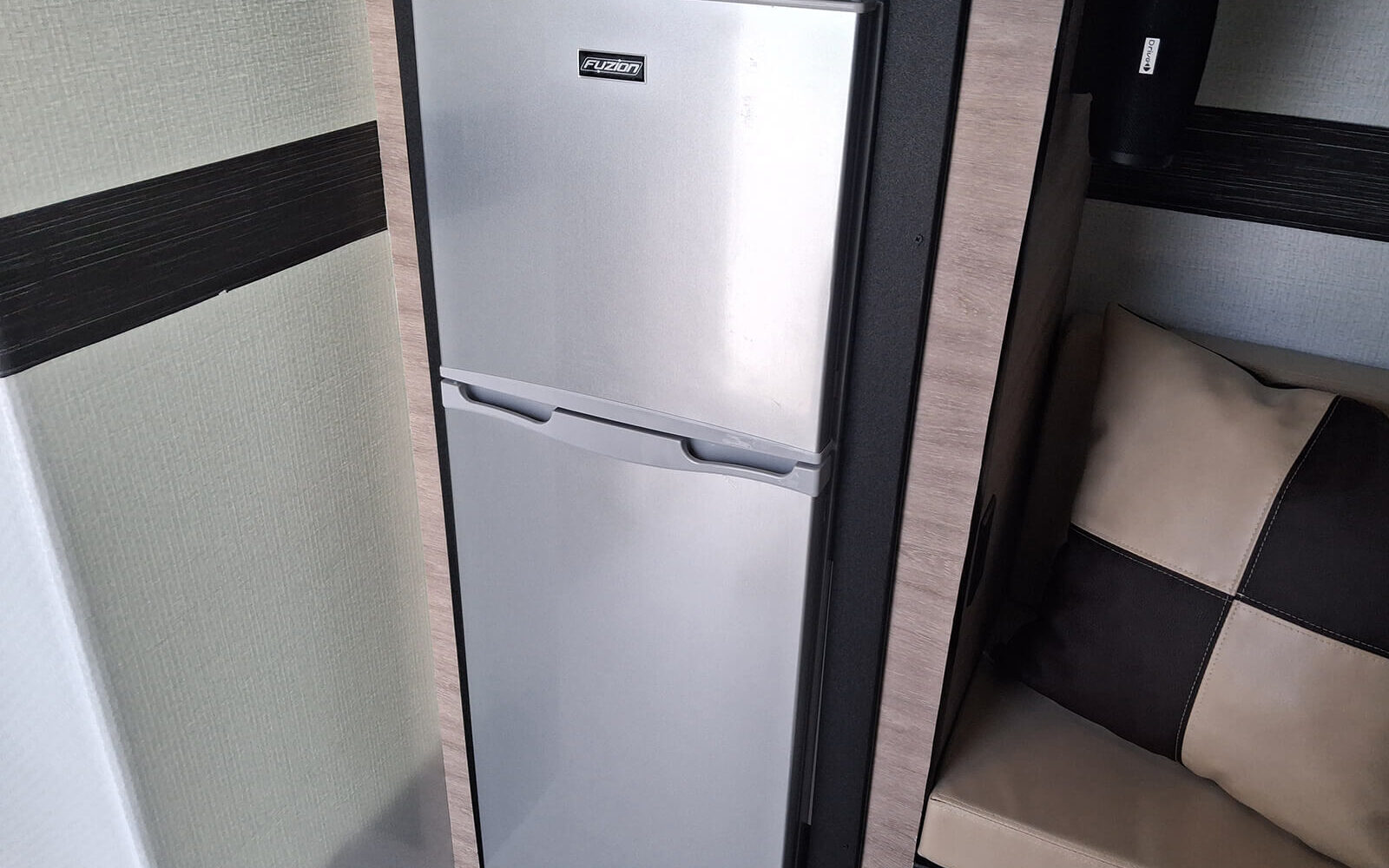

- Upgrade to 5.0 cu ft Refrigerator (12V) Optional
Exterior
- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional

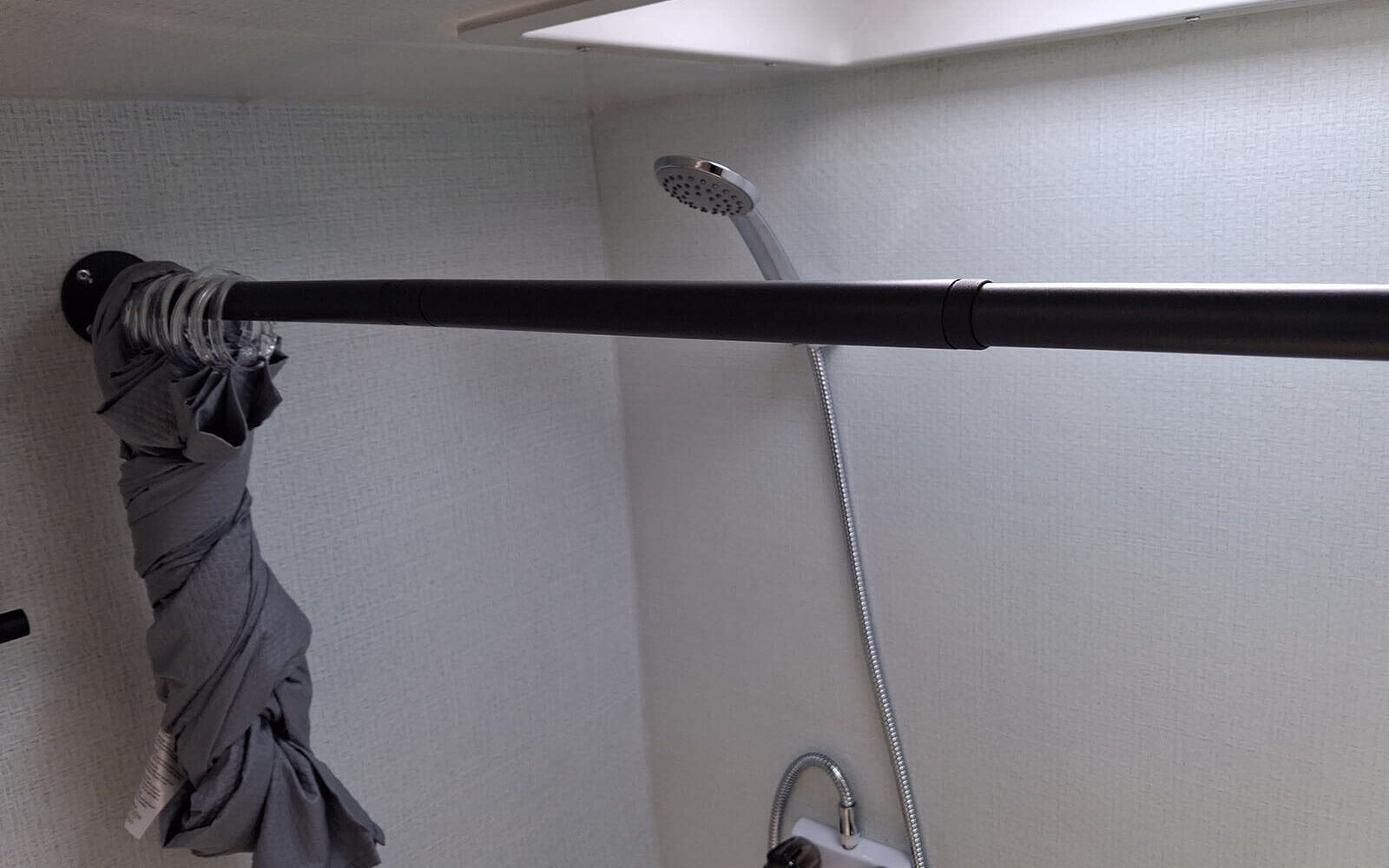

- Outside Shower Optional
- Outside Griddle & Bracket Optional

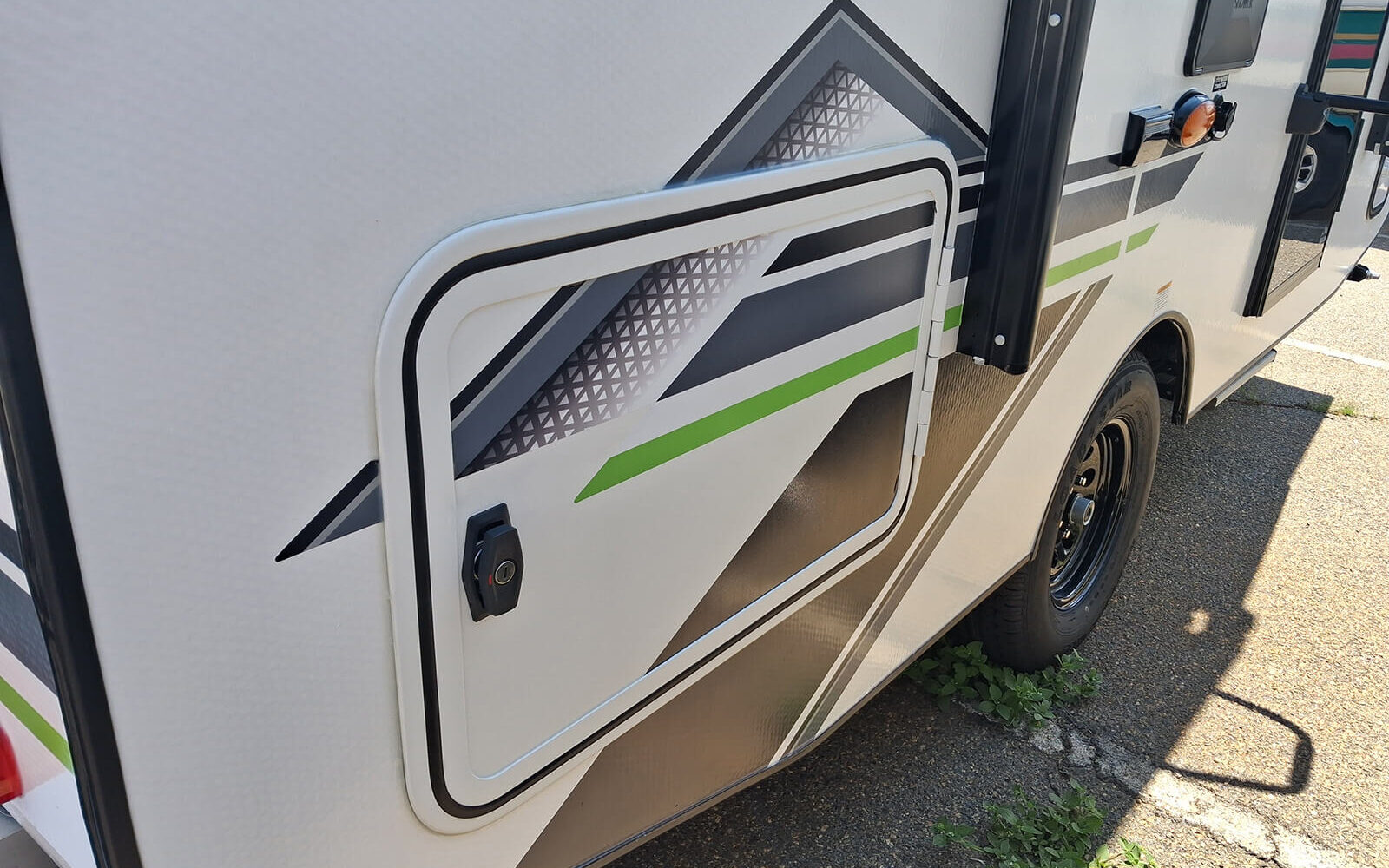

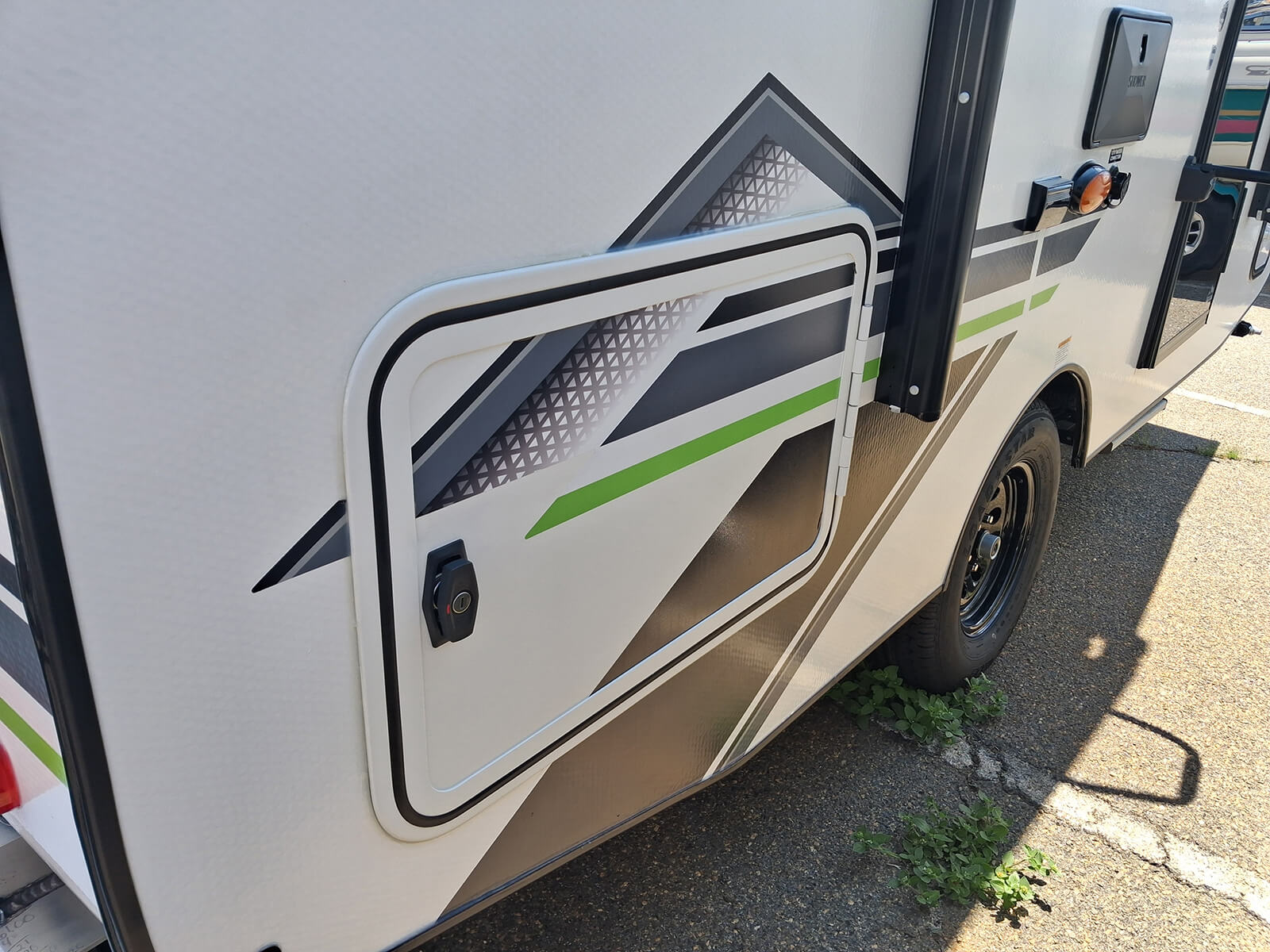

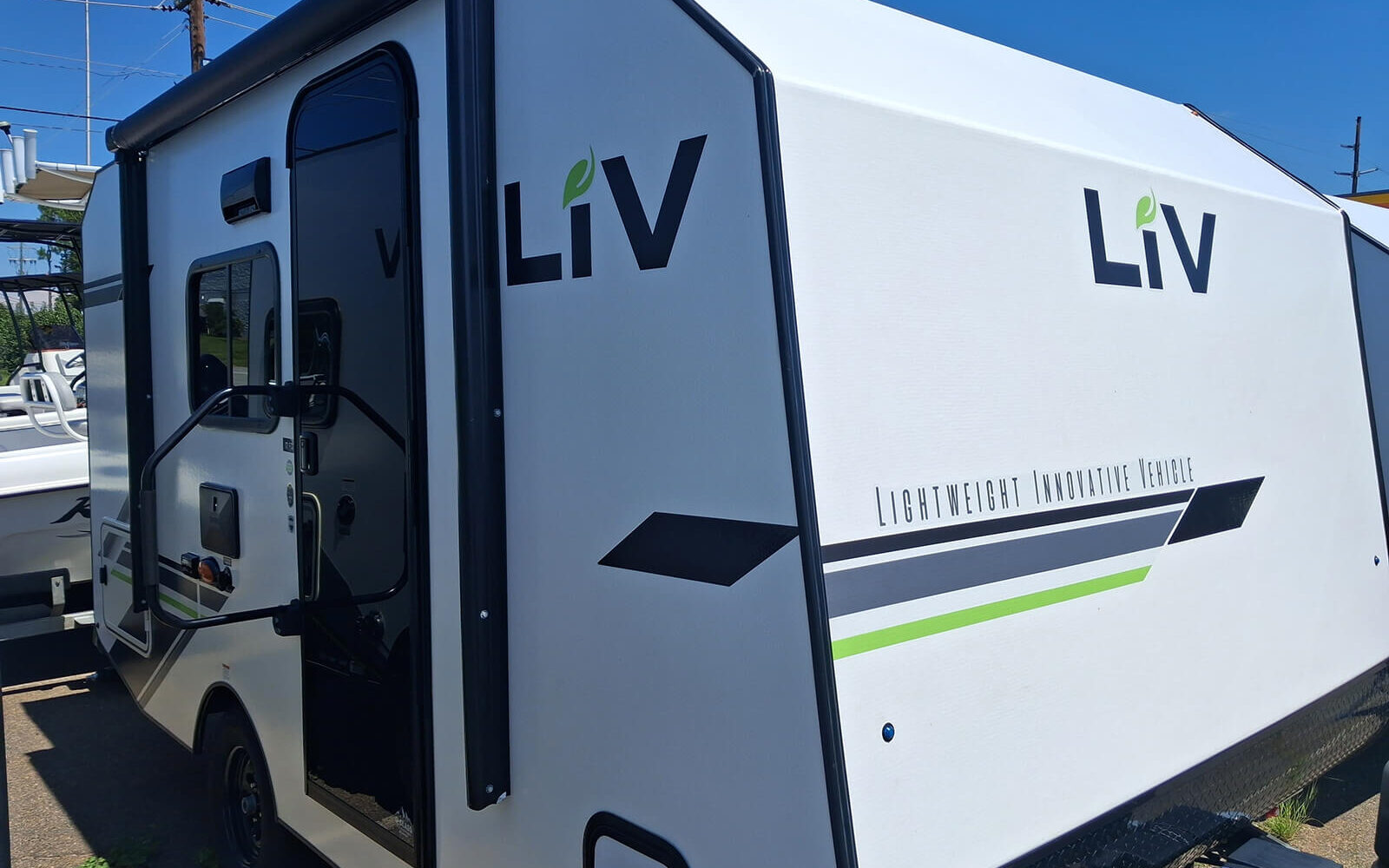

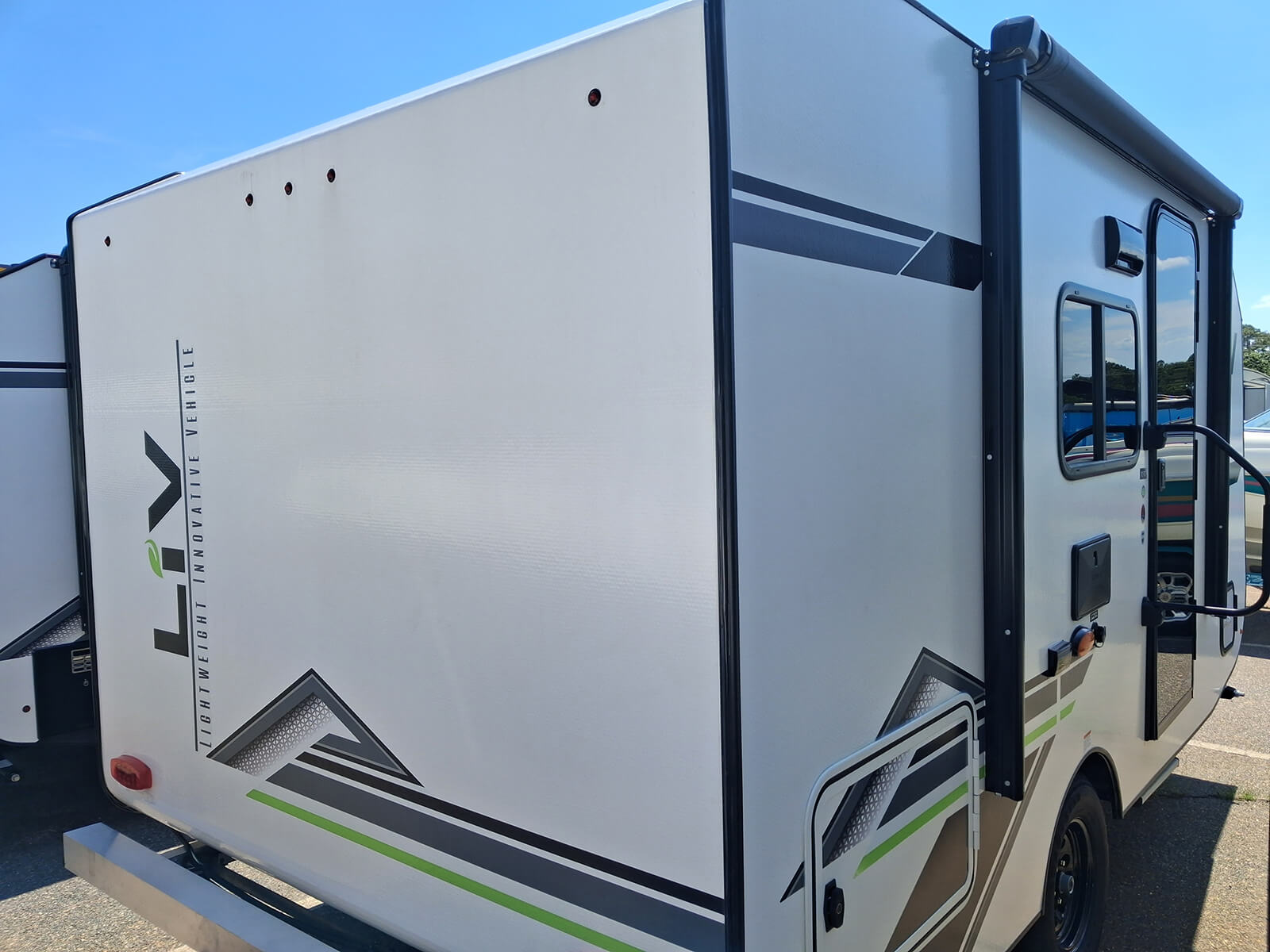

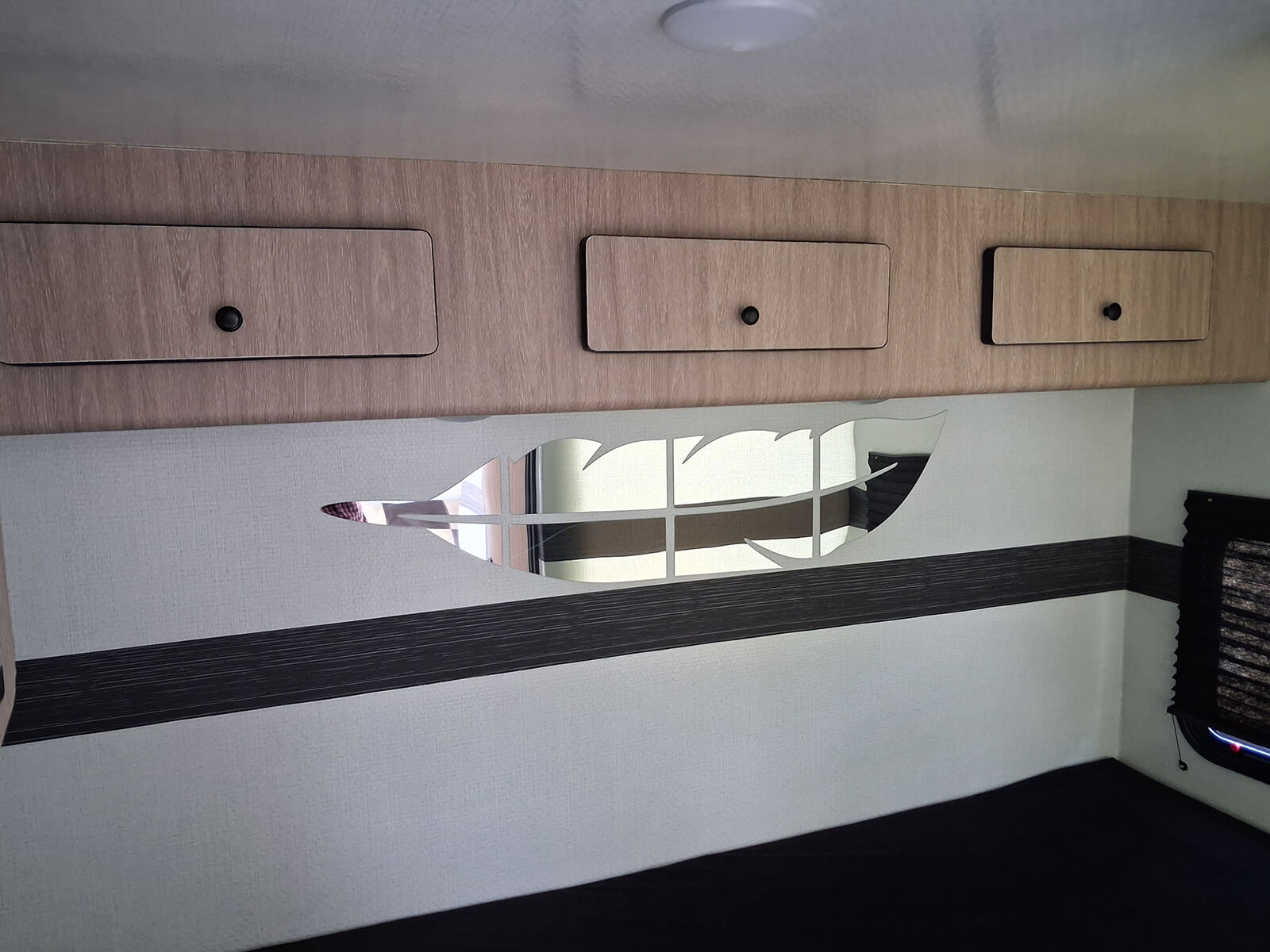

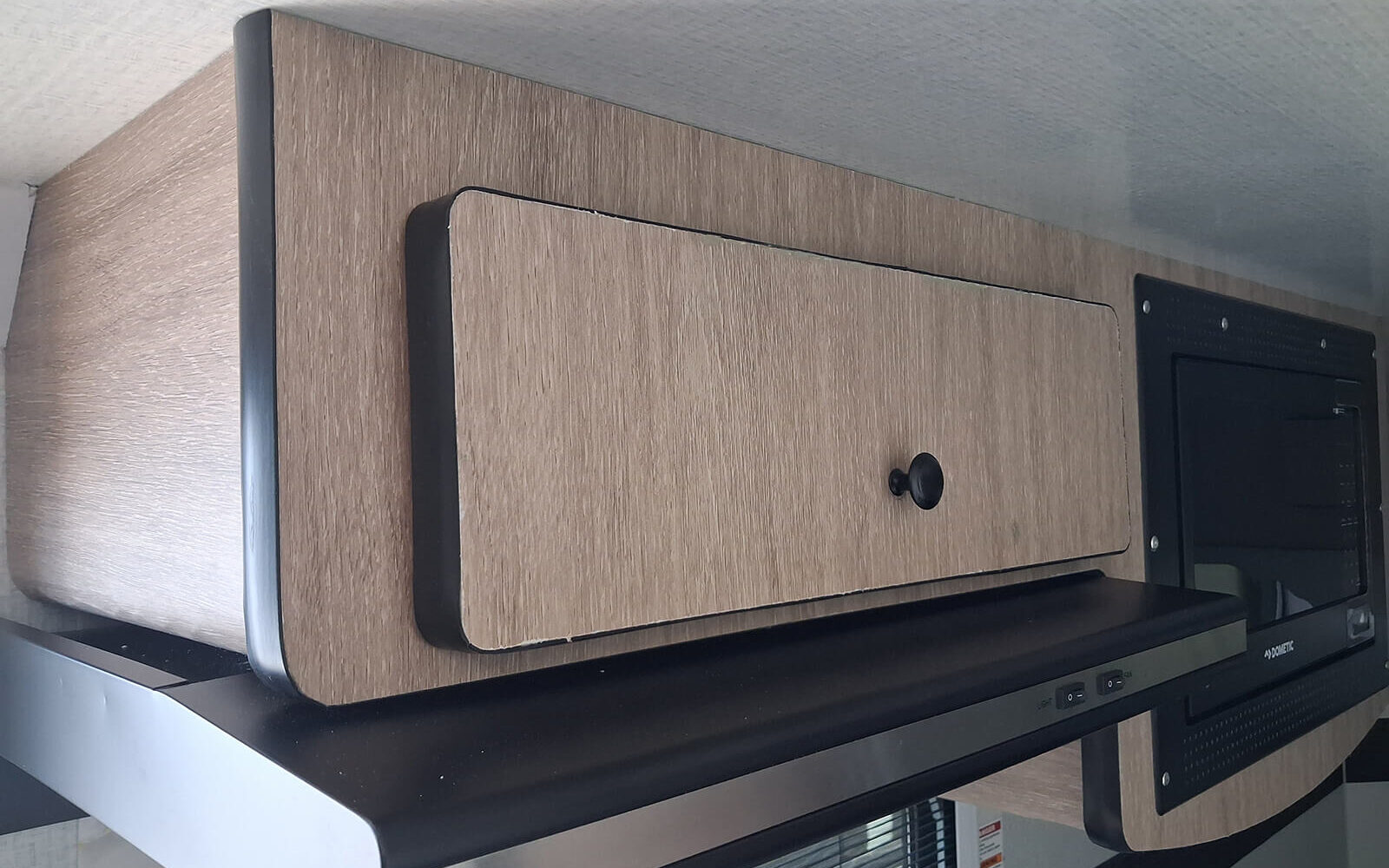

Gallery
Inside and out.
Ready to roll?
Configure your LiV 16 FL, save your build, then take it to a dealer.
