MODEL
23 BHS
Travel Trailer · Sleeps 2–6

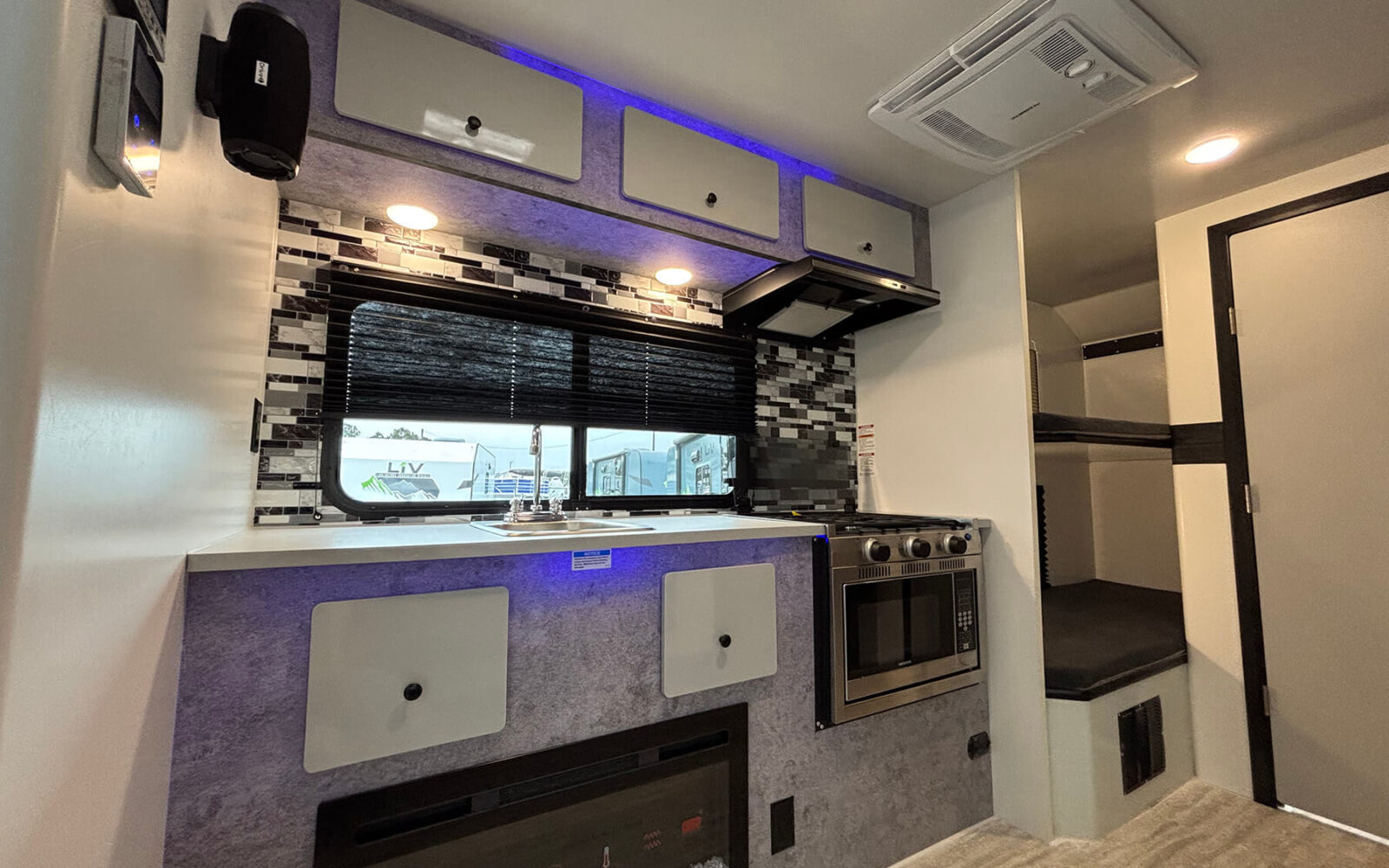

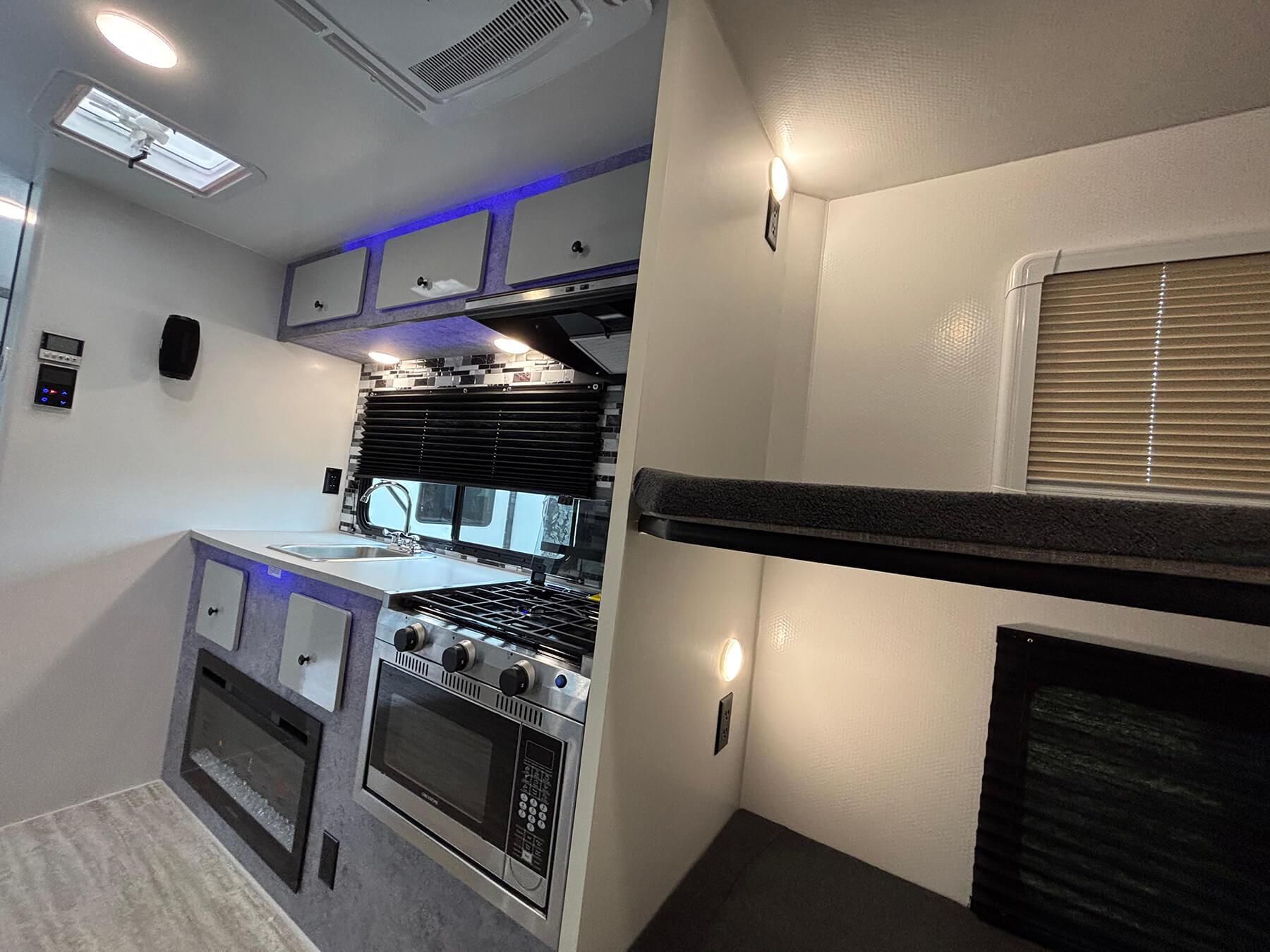

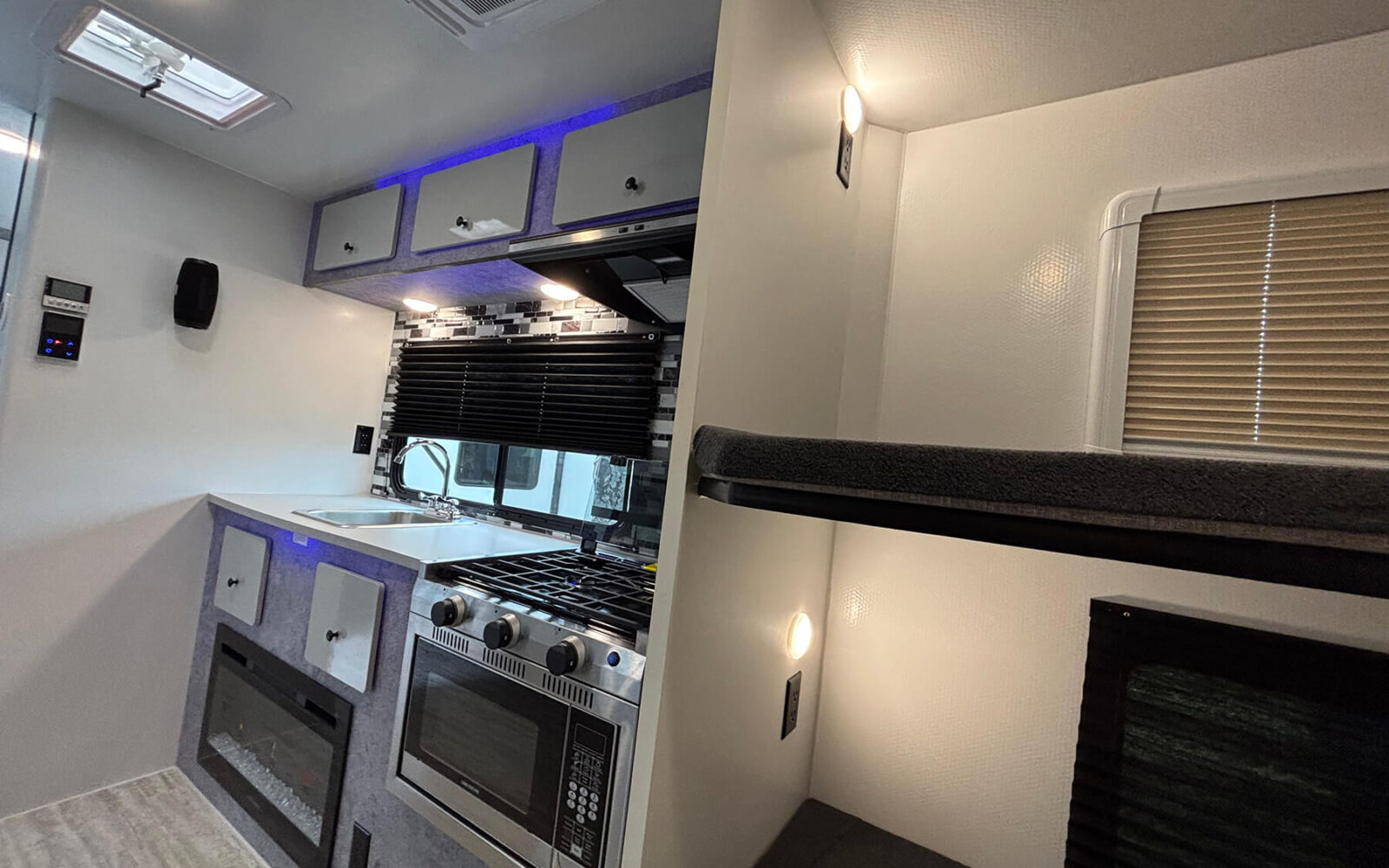

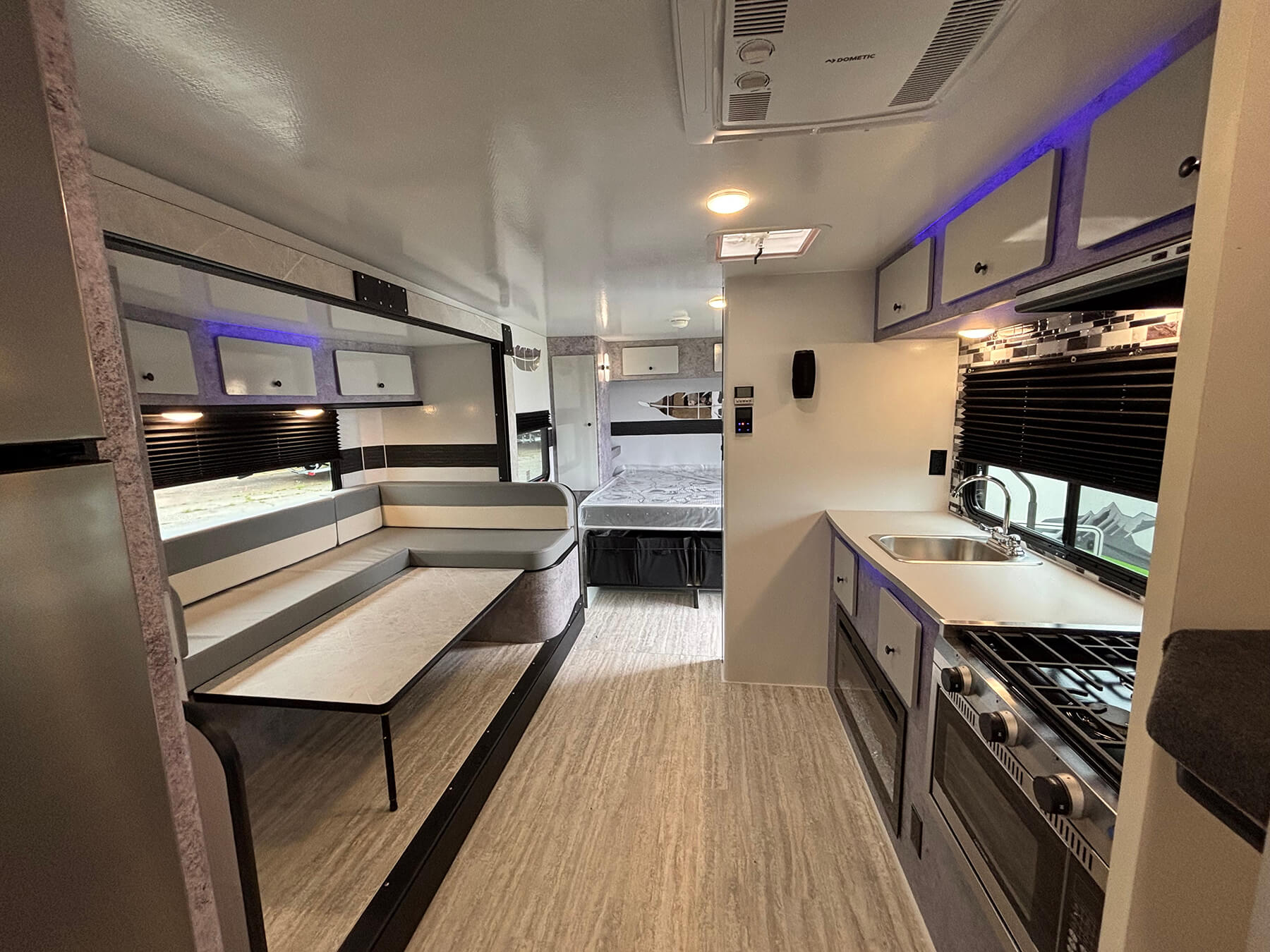

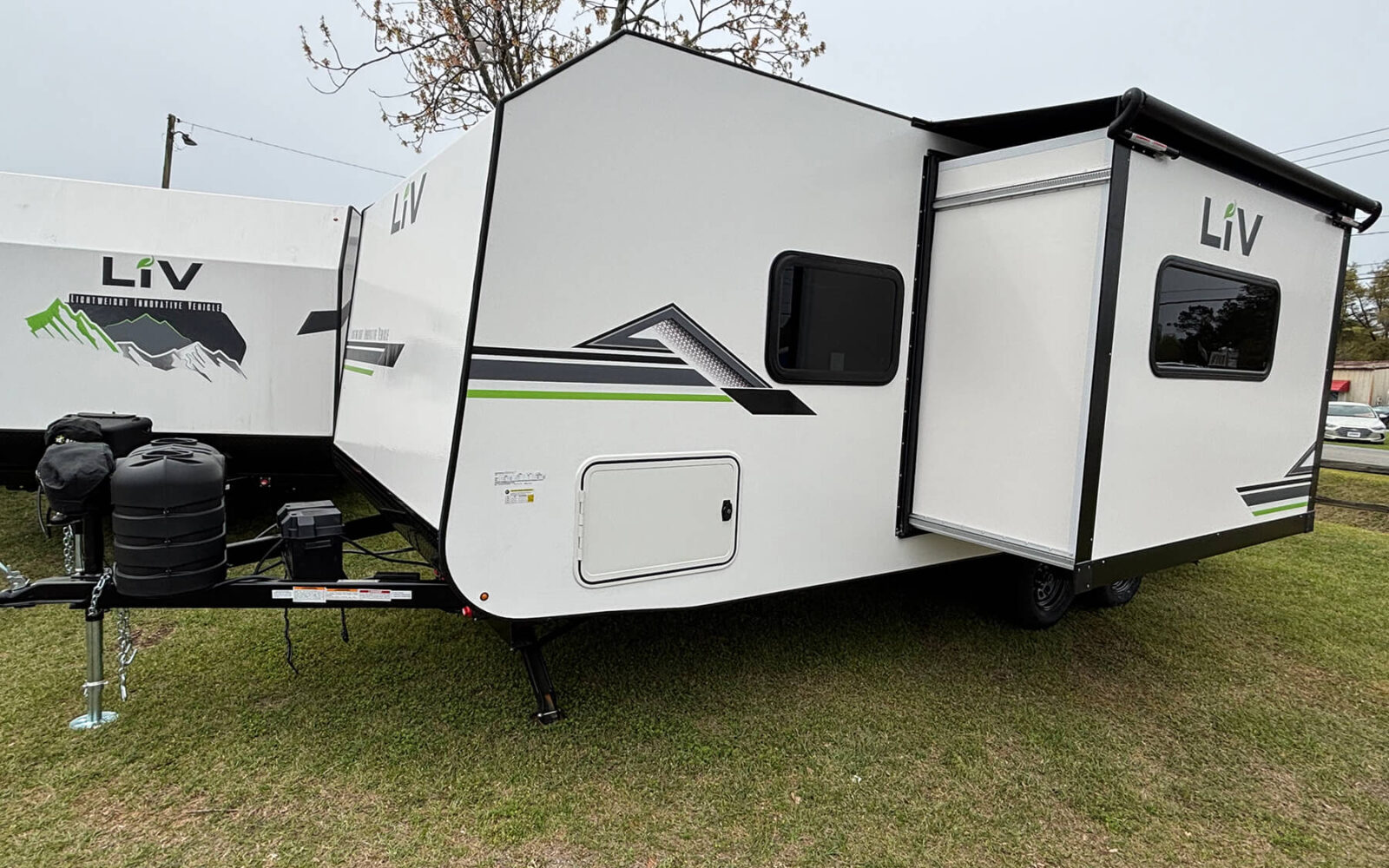

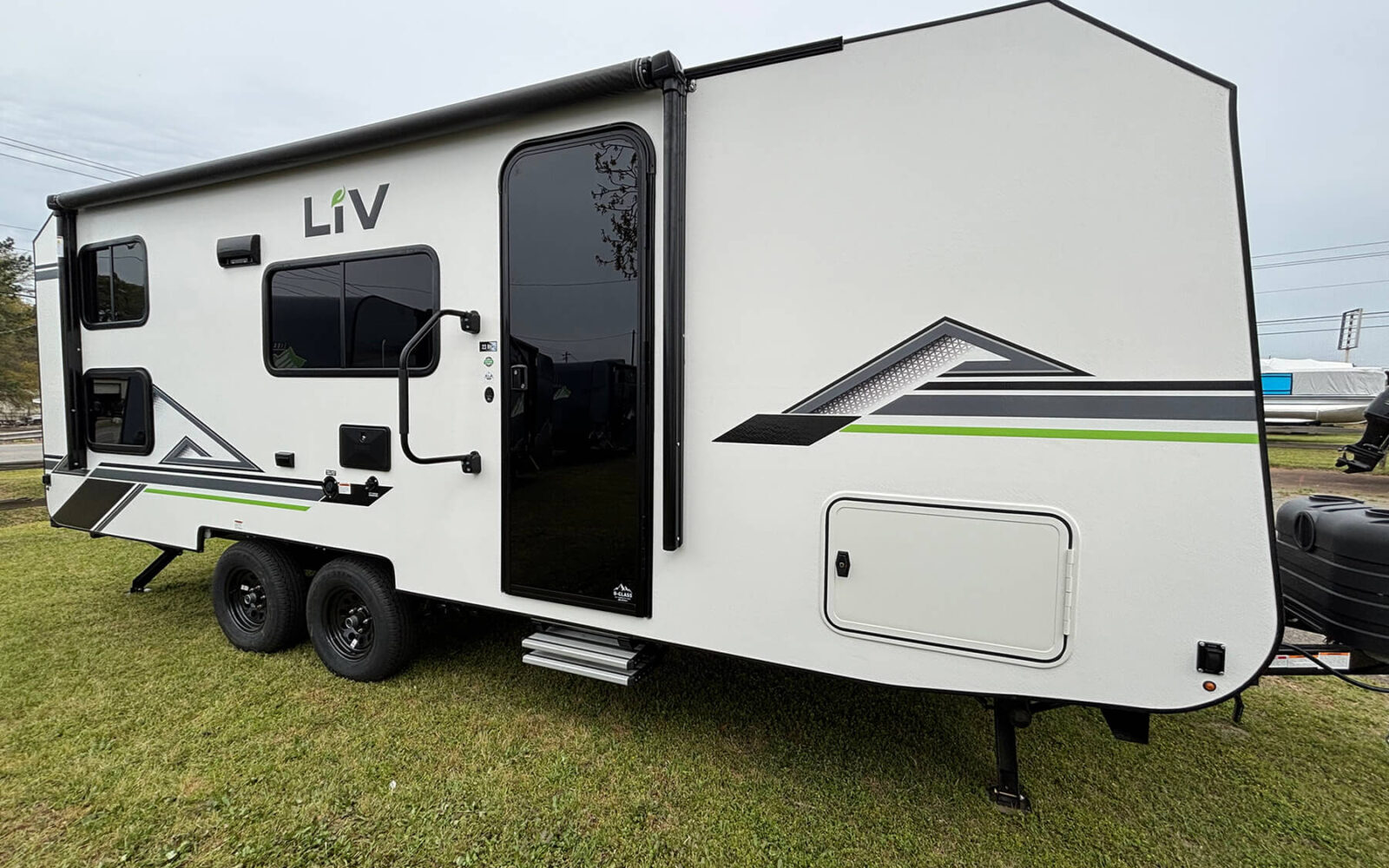

The 23 BHS goes dual-axle for highway poise, then adds a slide-out living area and a bunkhouse interior — sleeps six, parks like a champ. The walkaround queen sits up front, a 10.7 cu ft refrigerator handles week-long trips, and the chassis pairs electric brakes with two-axle stability for tow miles without the wobble. The option sheet is where the 23 BHS really opens up: Outside Kitchen, Convection Microwave, a 32-inch cable TV mount, and a Massage Spa Shower upgrade for the times you’d rather wash off the campsite than bring it home with you. Add electric stabilizer jacks and you’re set up and level before the kids have unbuckled their seatbelts.
View gallery
- 3,880
- LBS DRY
- 2–6
- SLEEPS
- 21' 6"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 26'
- Width
- 8'4"
- Exterior Height
- 10'6"
- Interior Height
- 6'7"
WEIGHT
- Dry Weight
- 3,880 lbs
- GVW
- 4,990 lbs
- Tongue Weight
- 395 lbs
- Carrying Cap.
- 1,160 lbs
TANKS
- Fresh Water
- 38 gal
- Grey Water
- 30 gal
- Black Water
- 38 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–6 people
- Axles w/ Brakes
- 2 axles
- Tires
- ST205/75R15
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

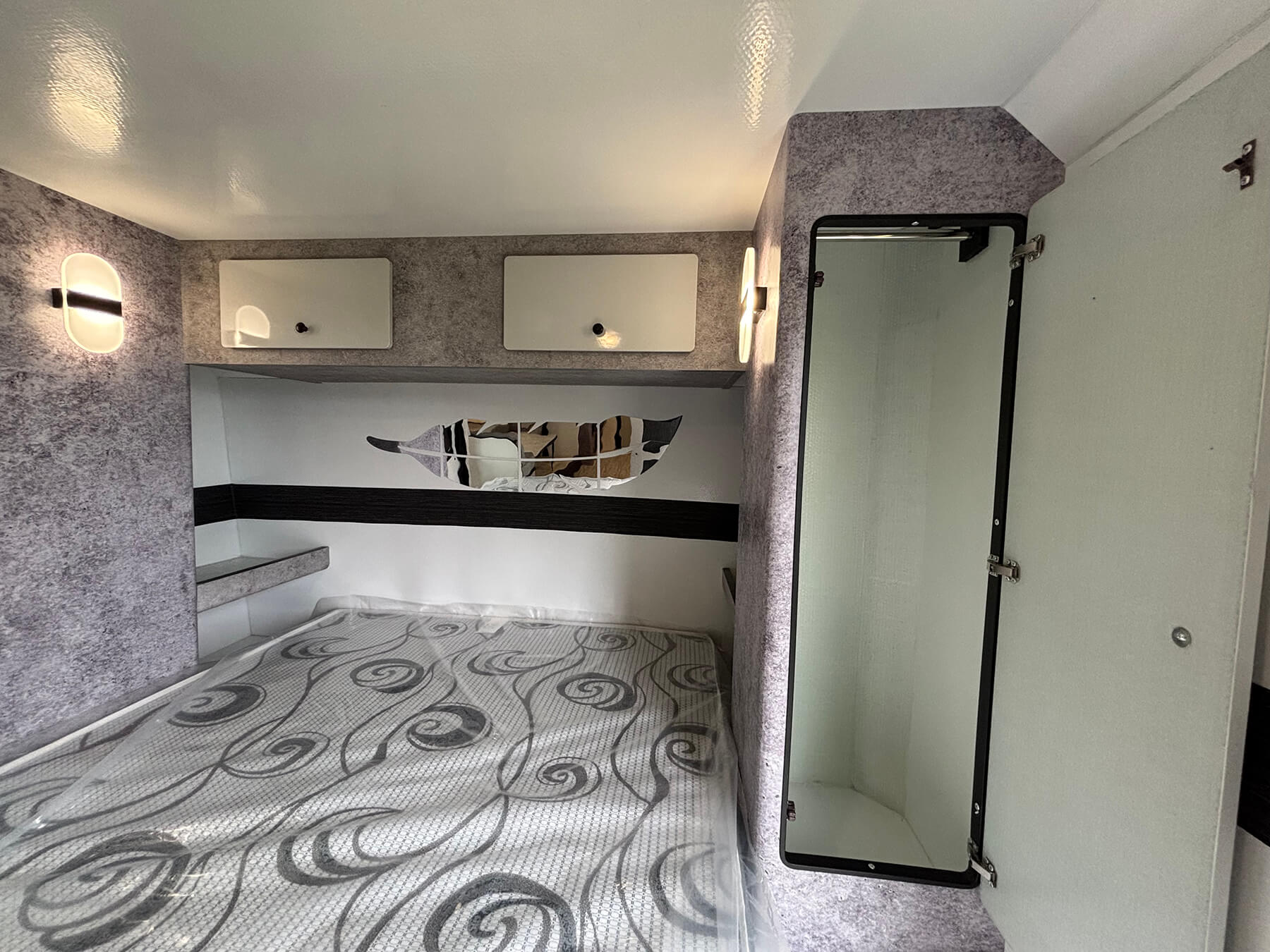

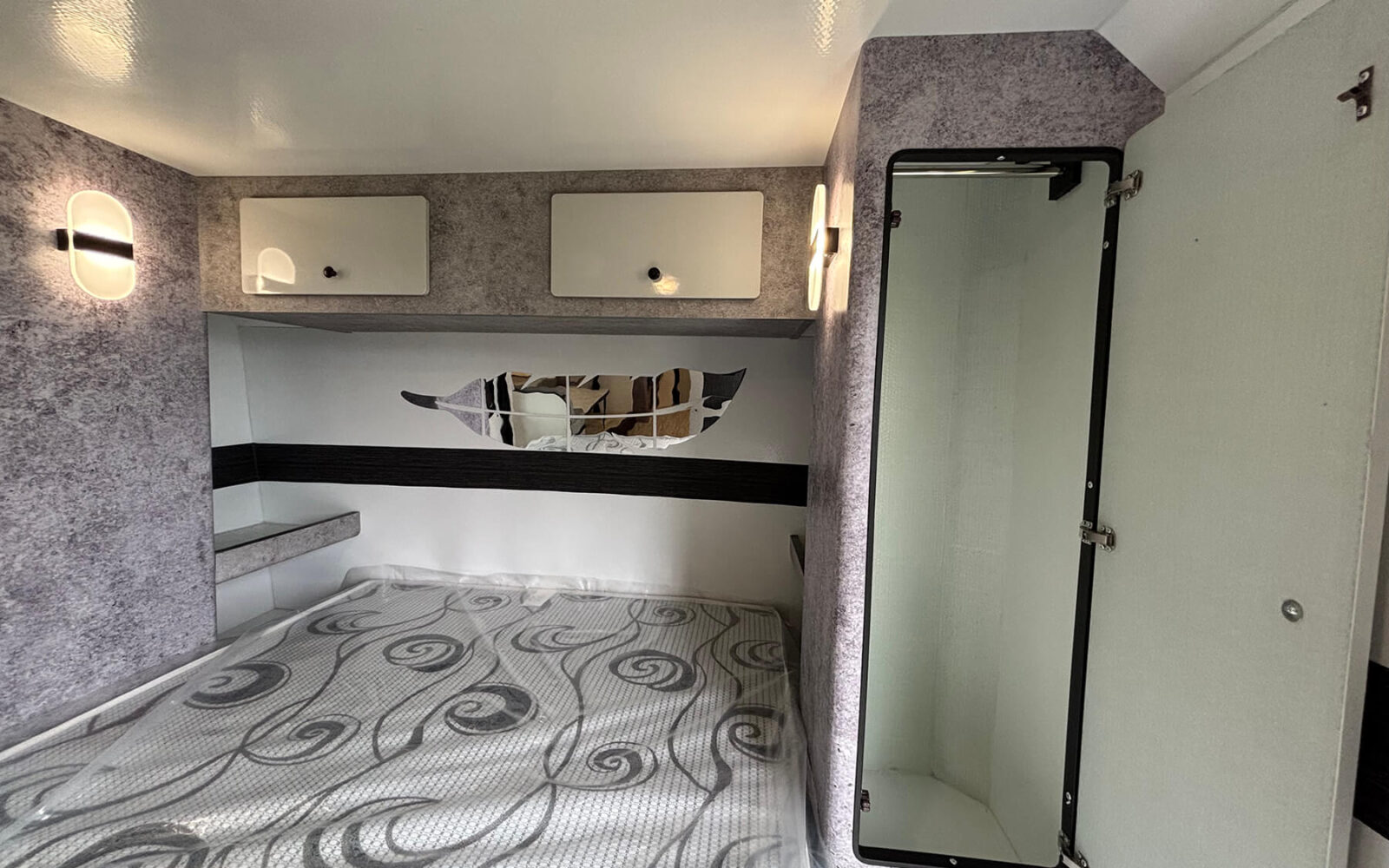

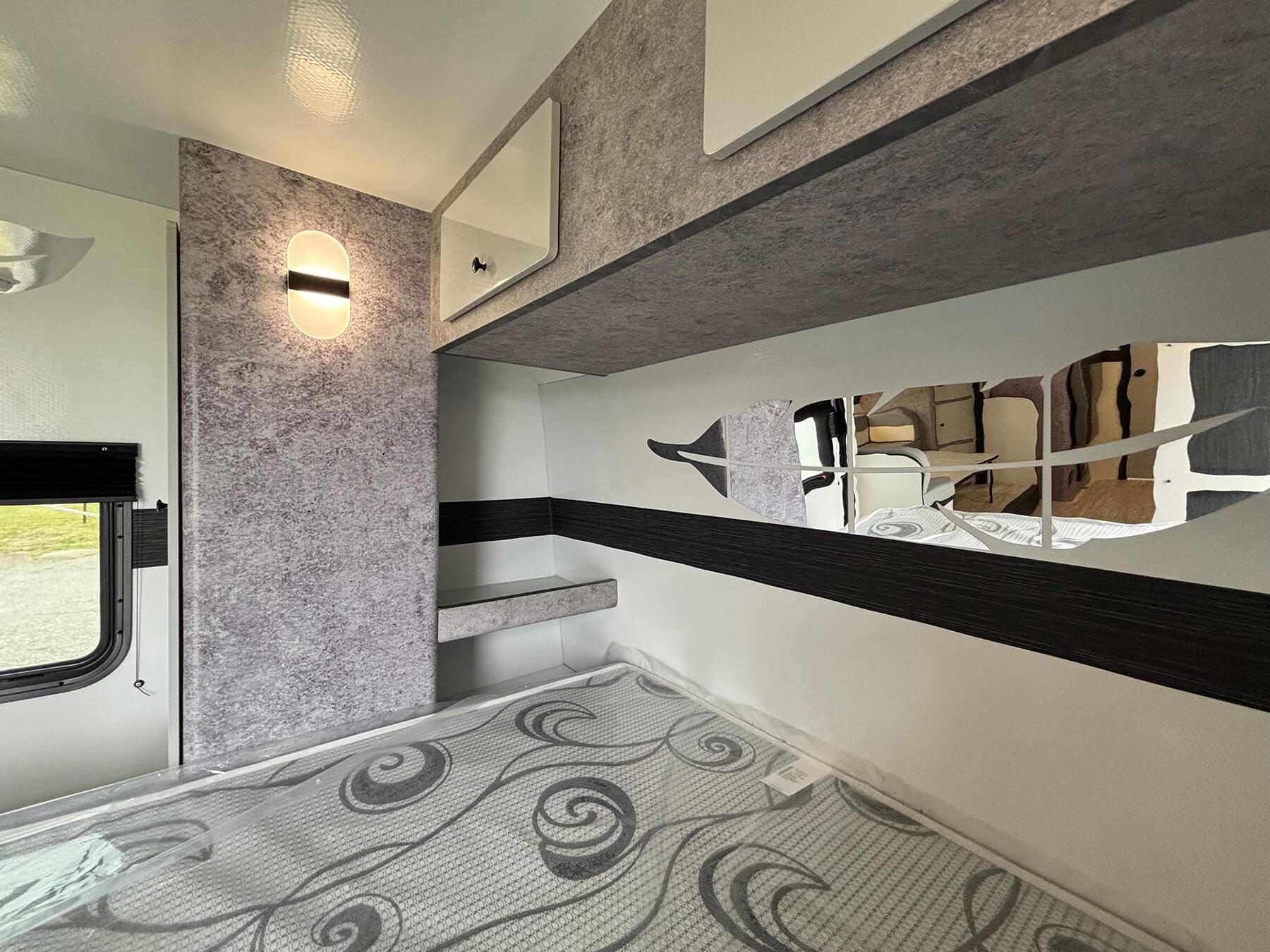

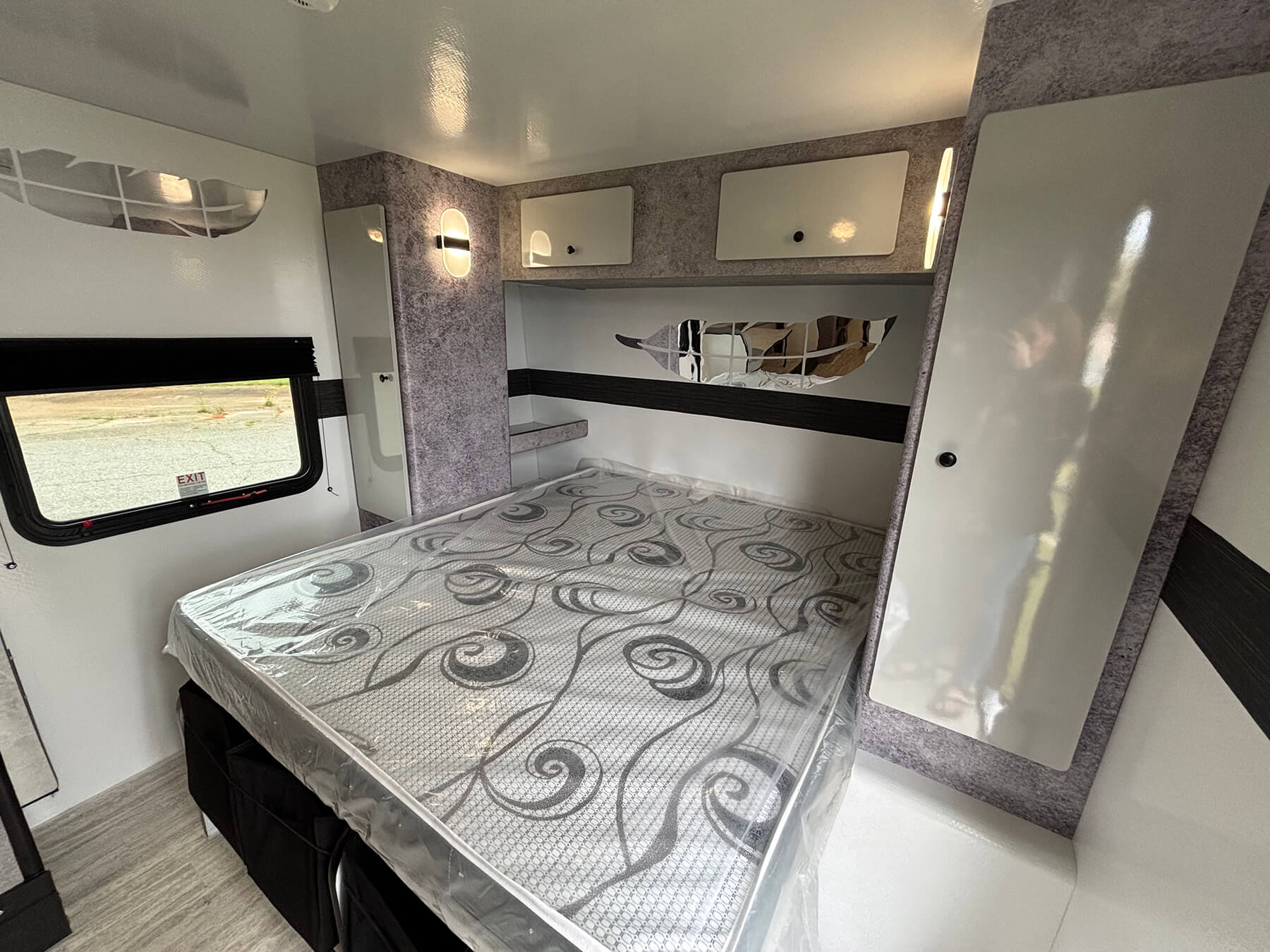

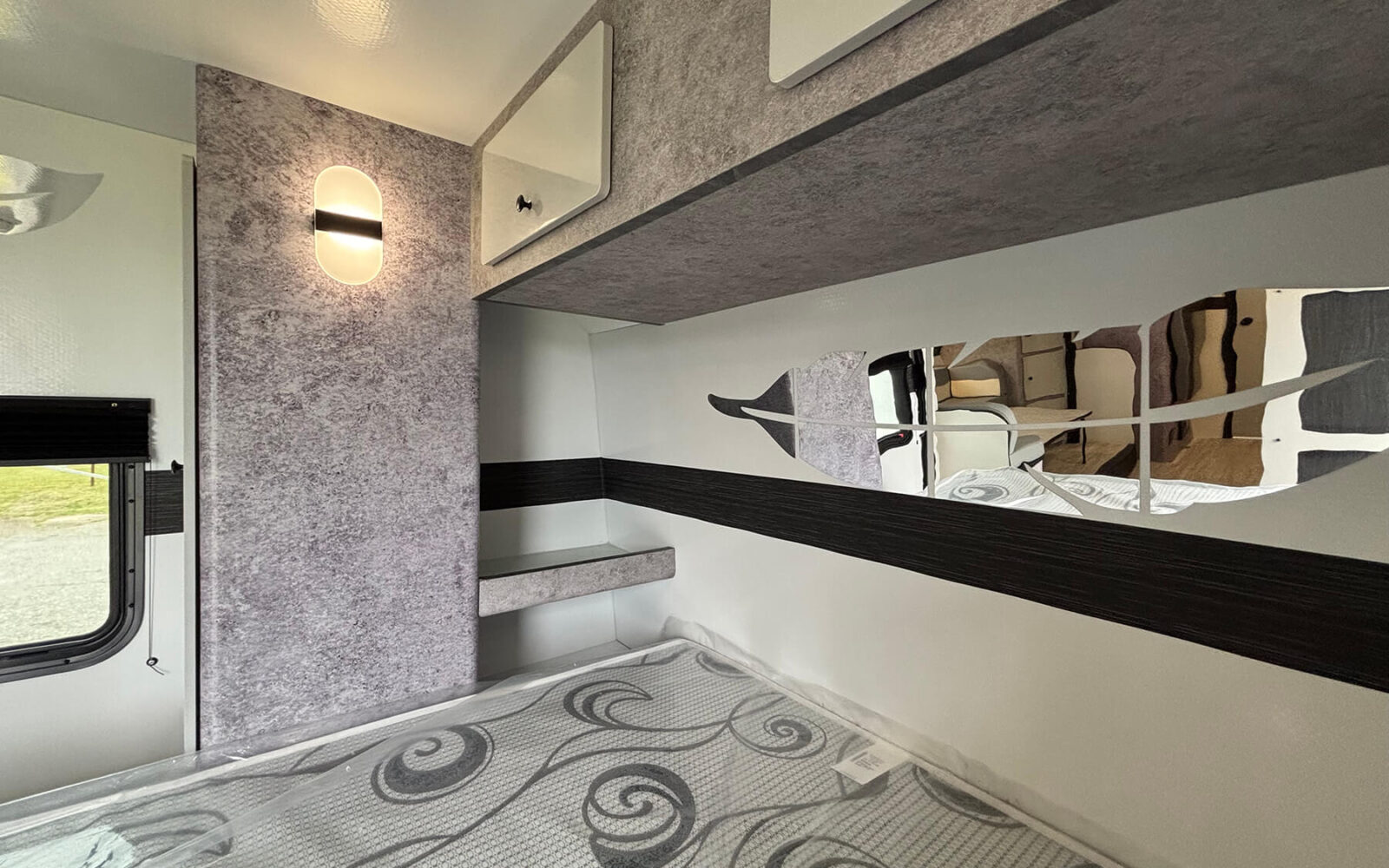

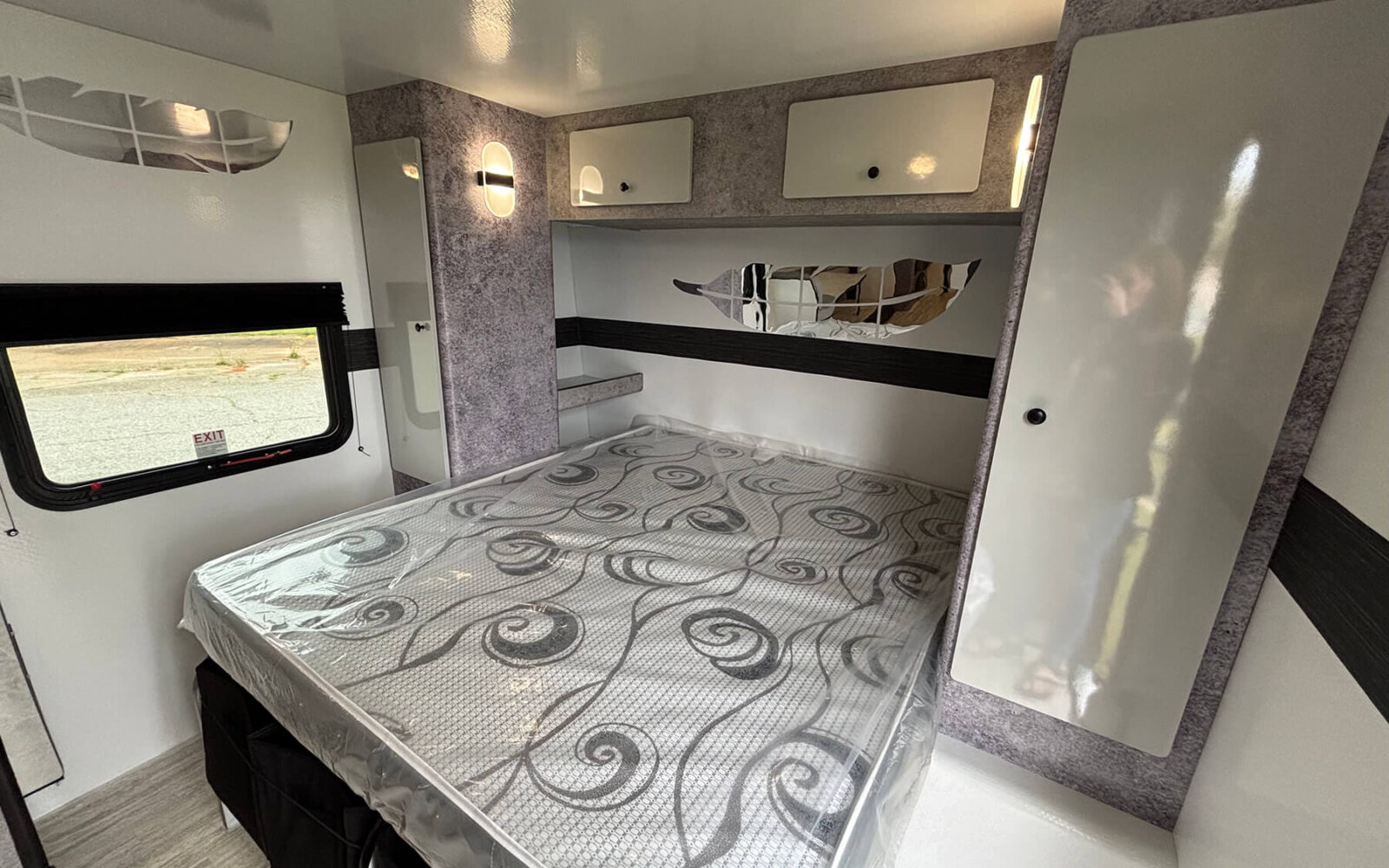

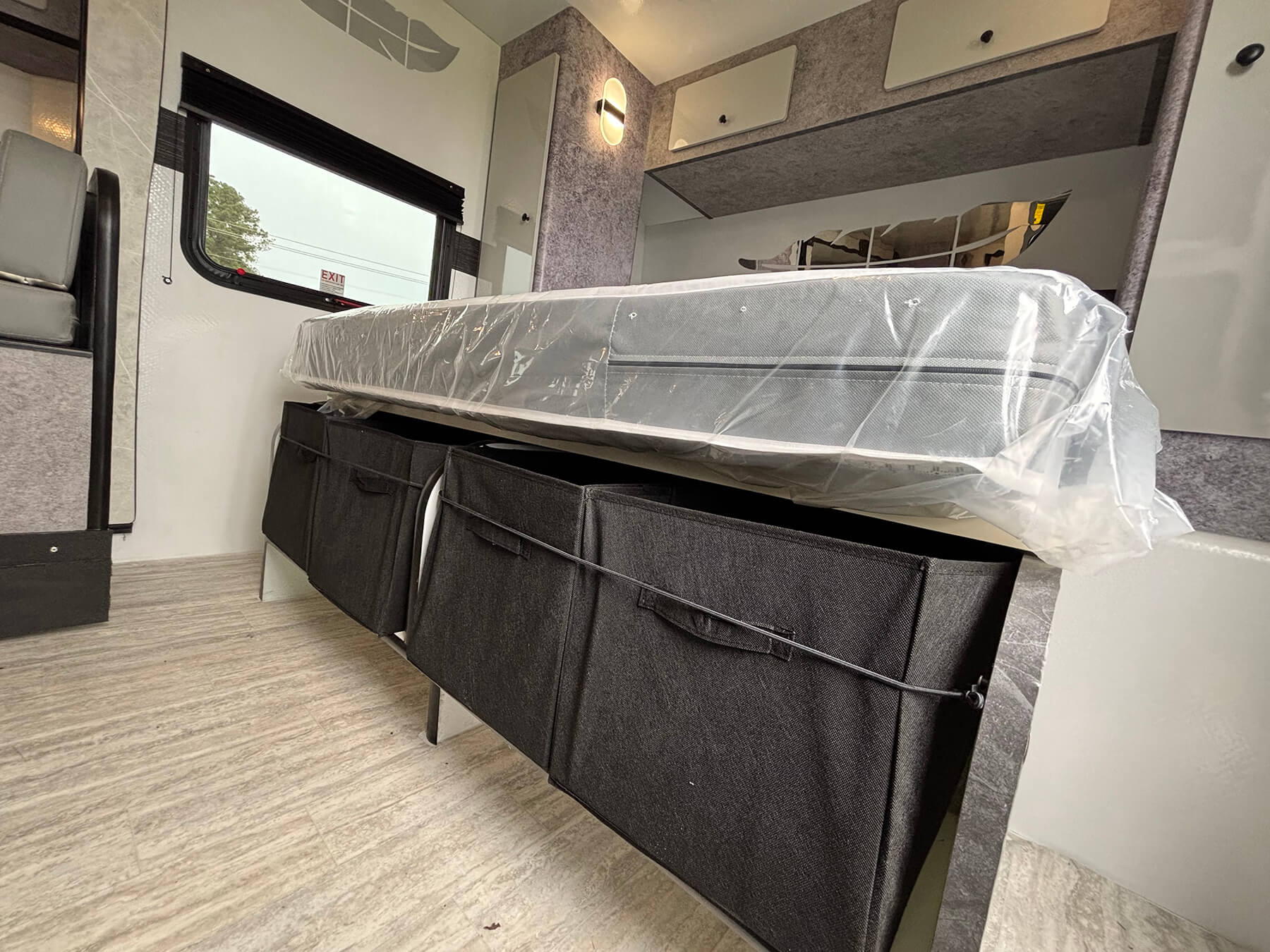

- Walkaround queen bed

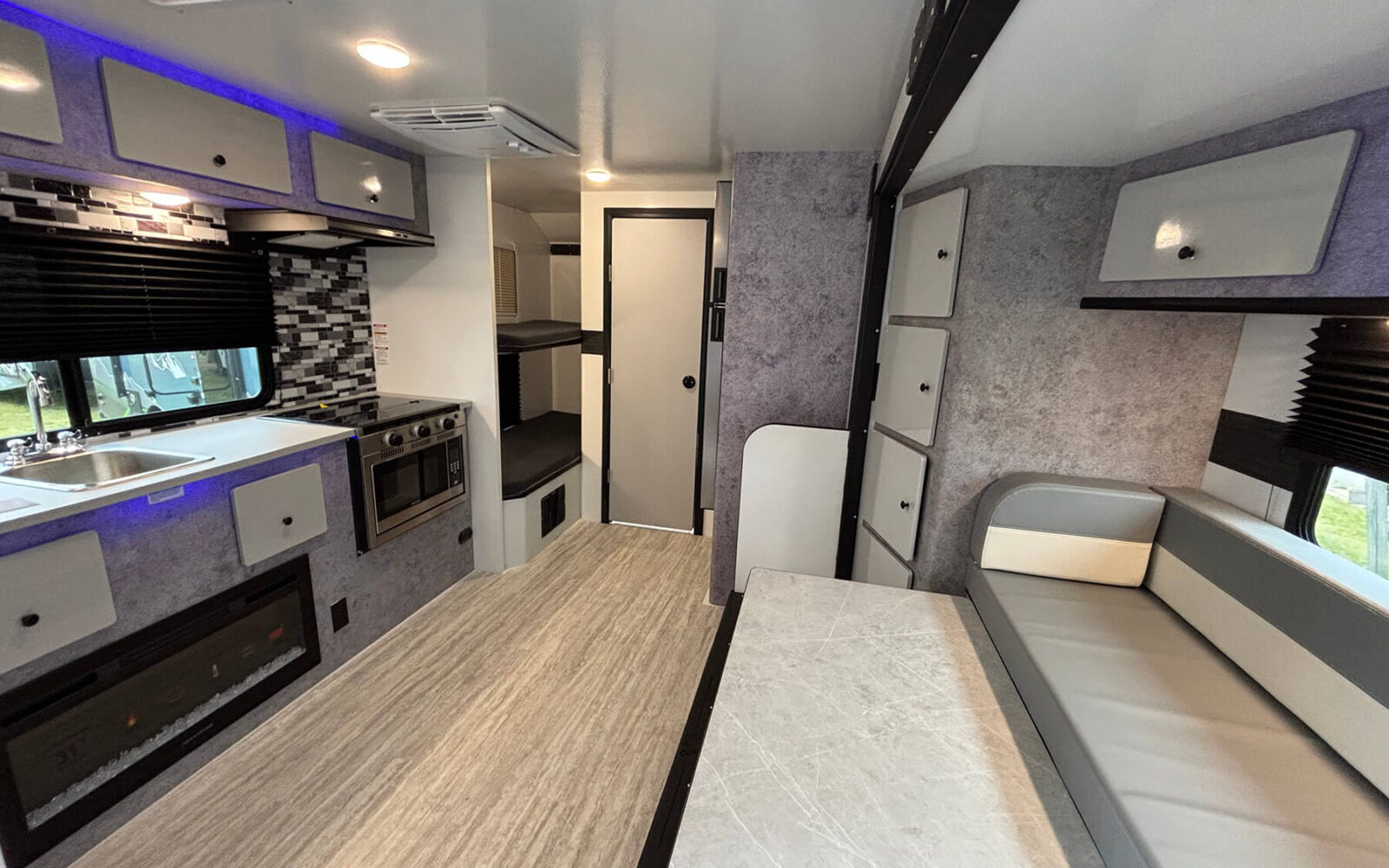

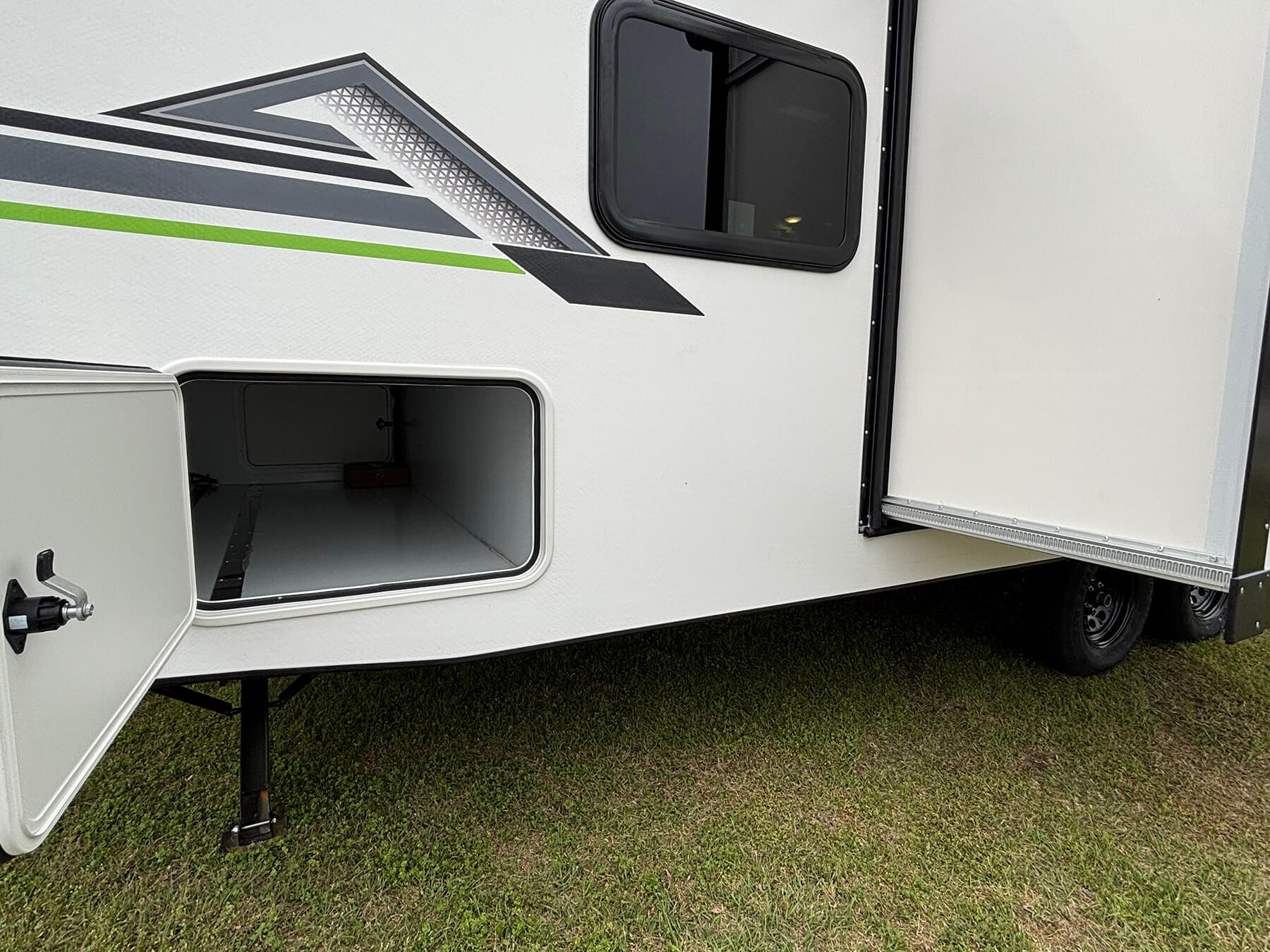

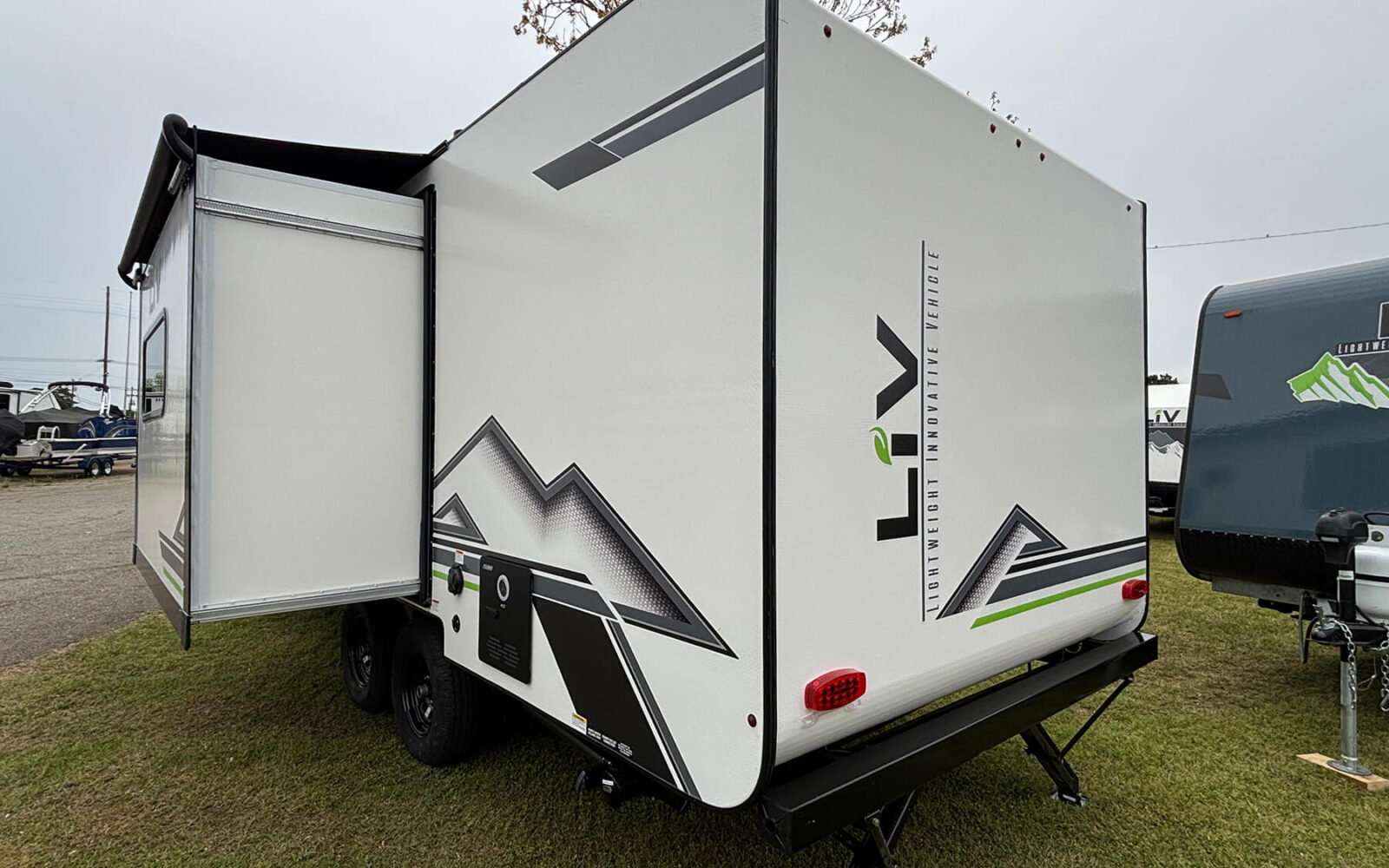

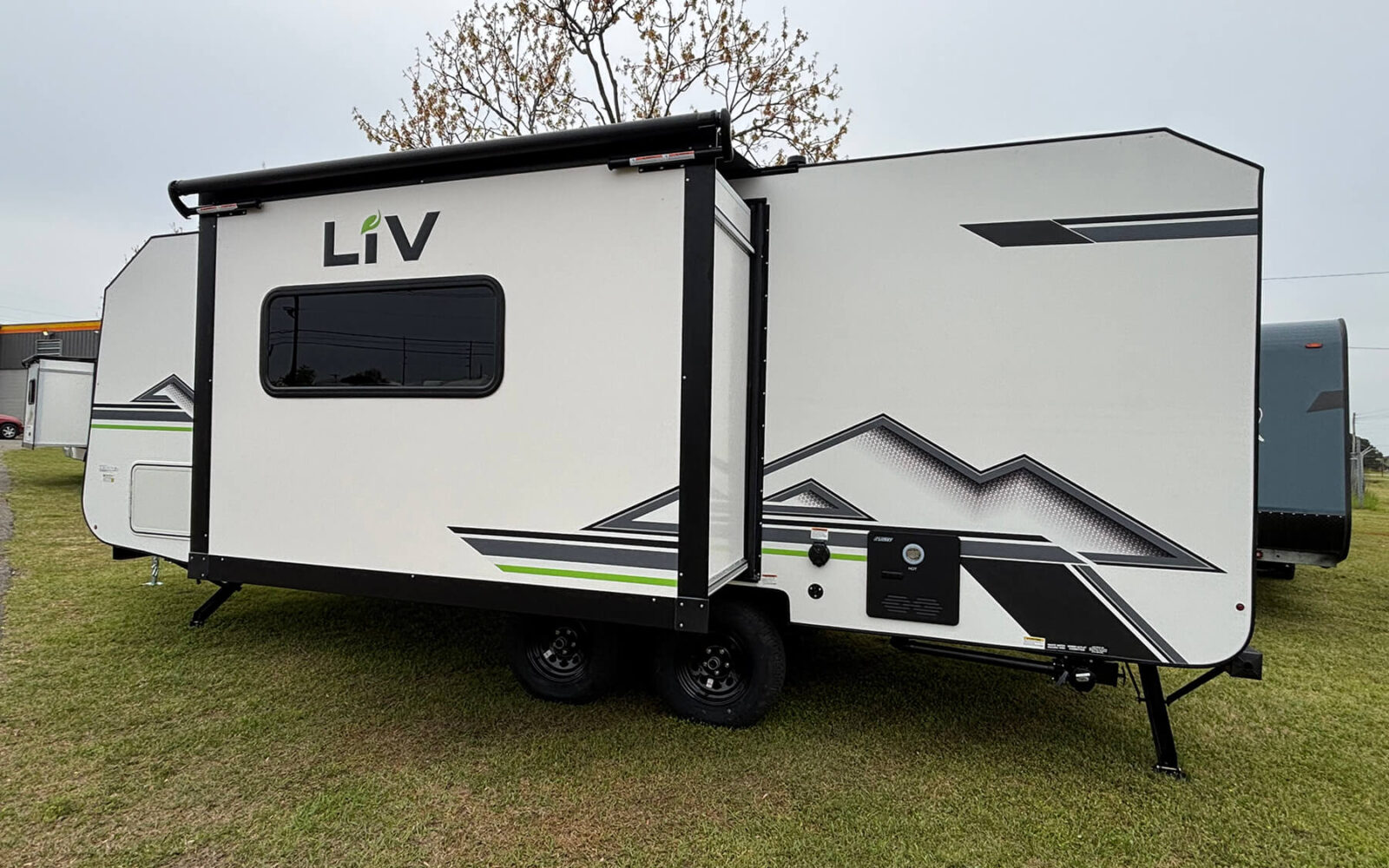

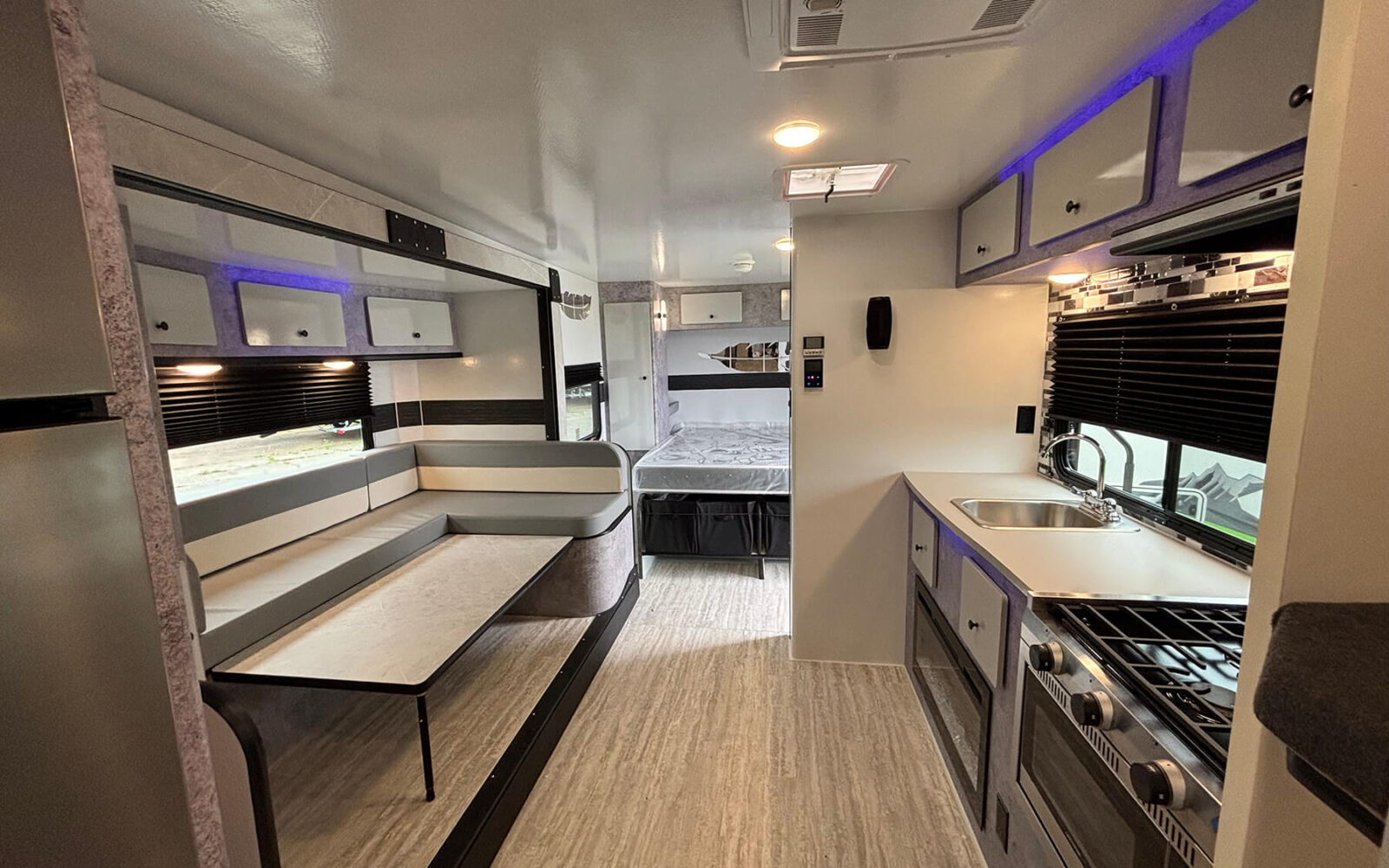

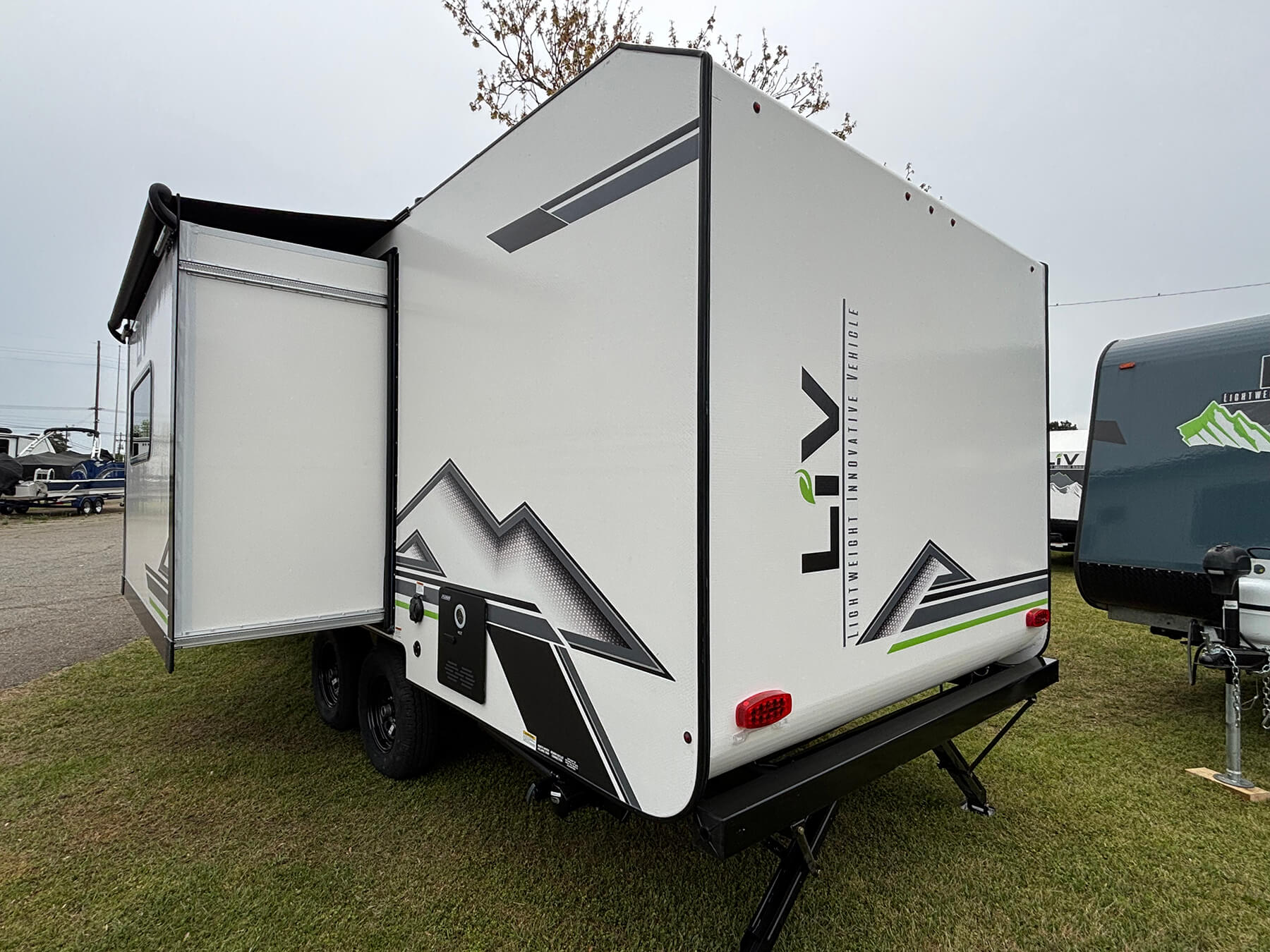

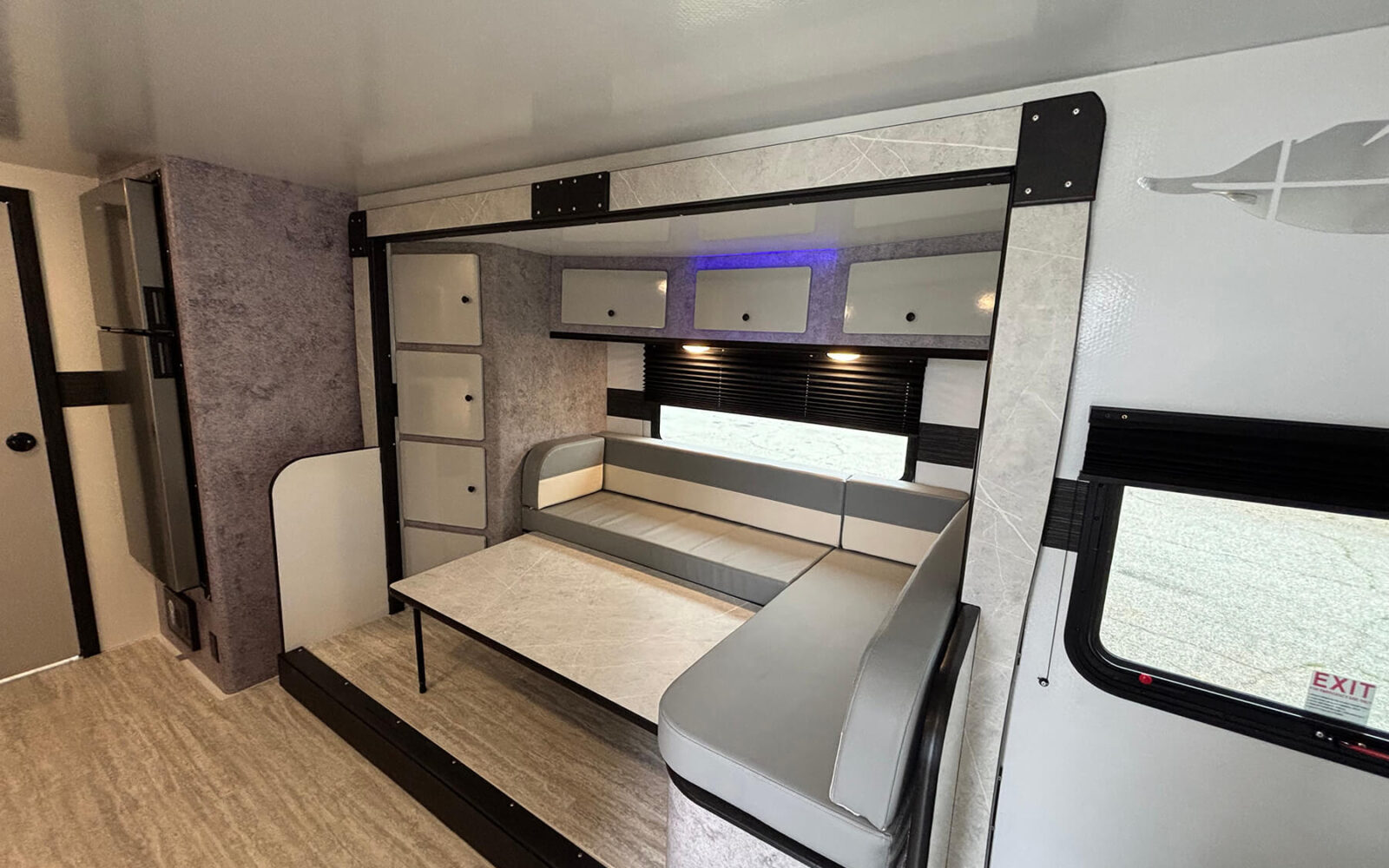

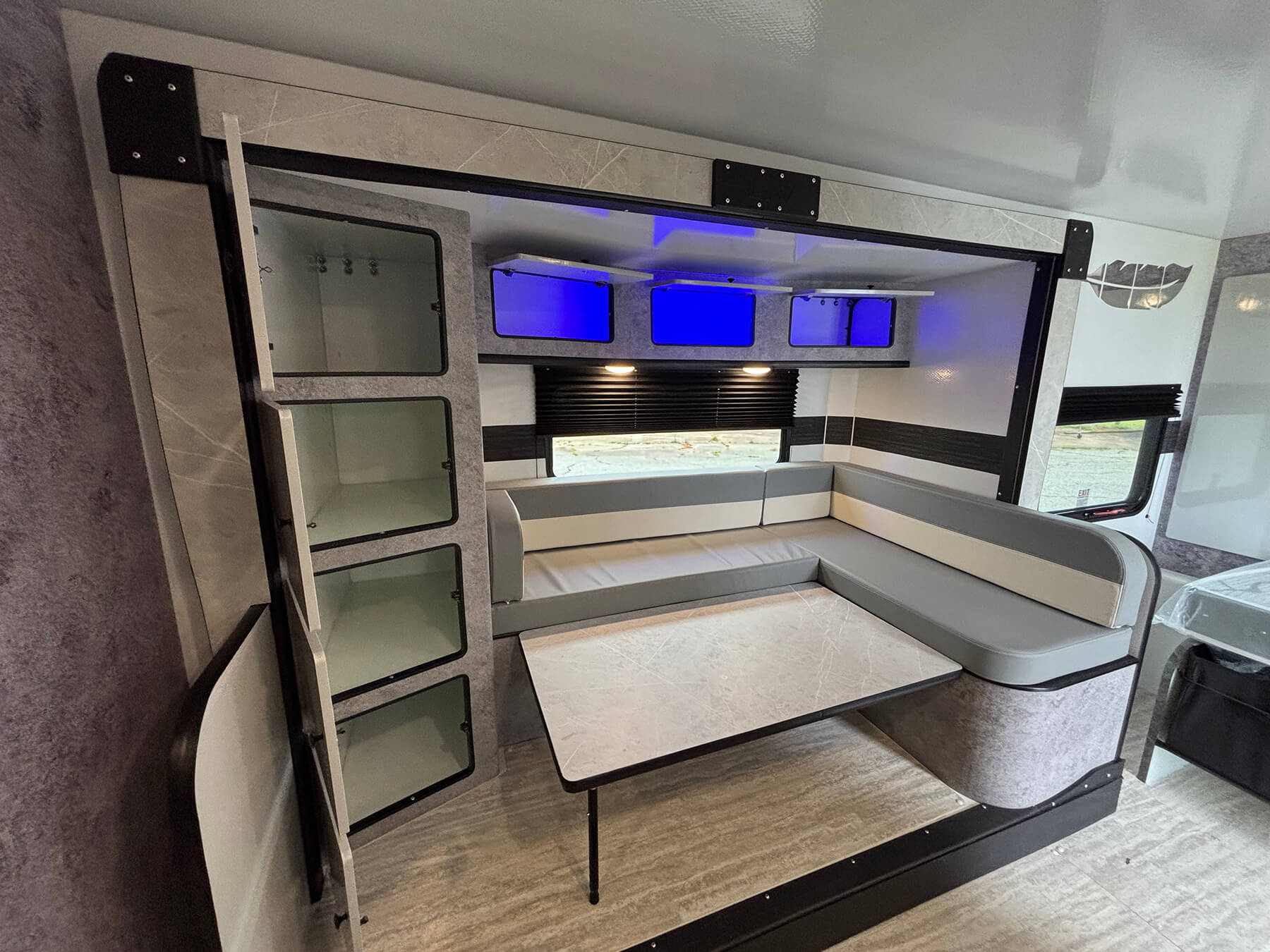

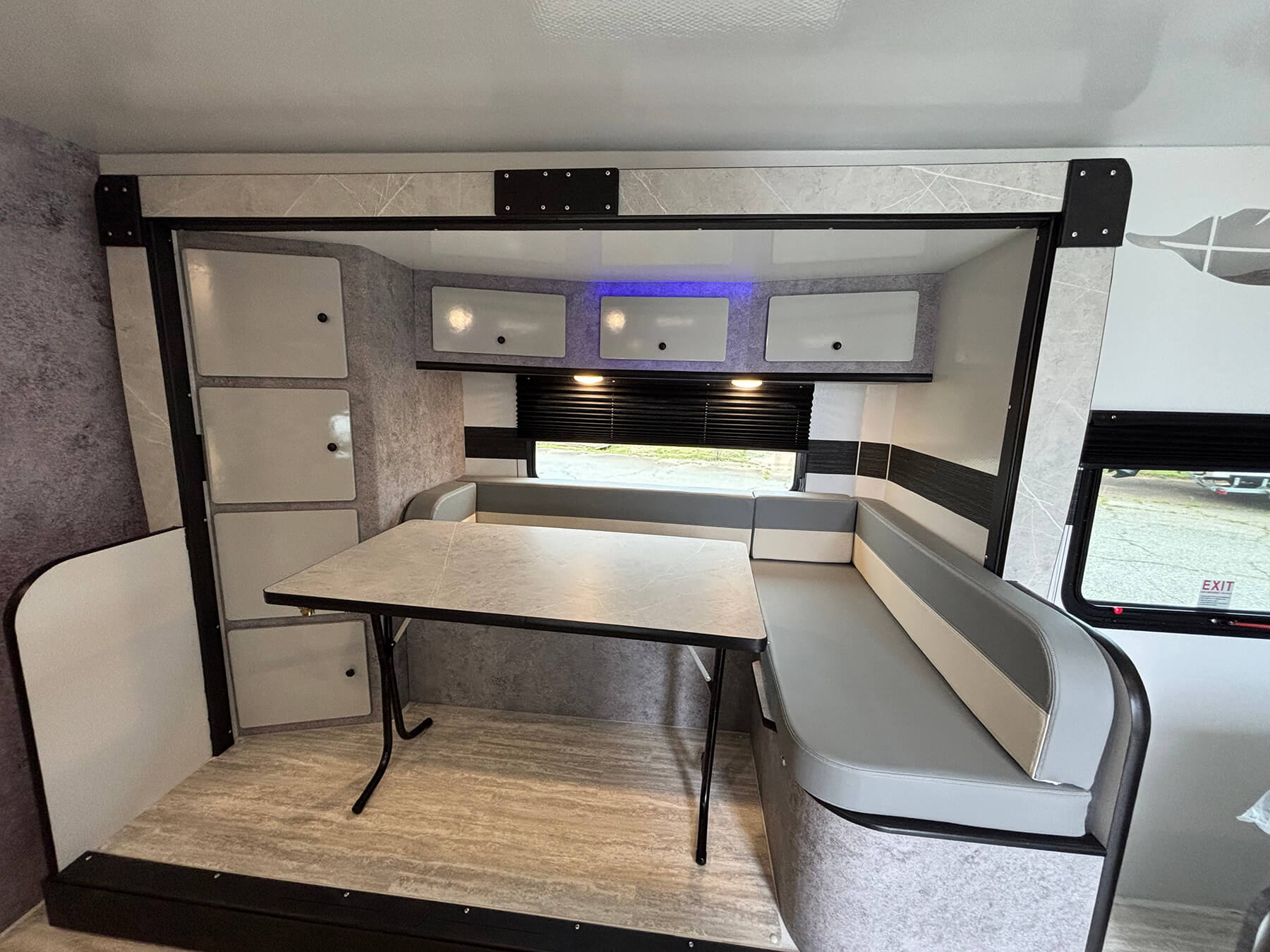

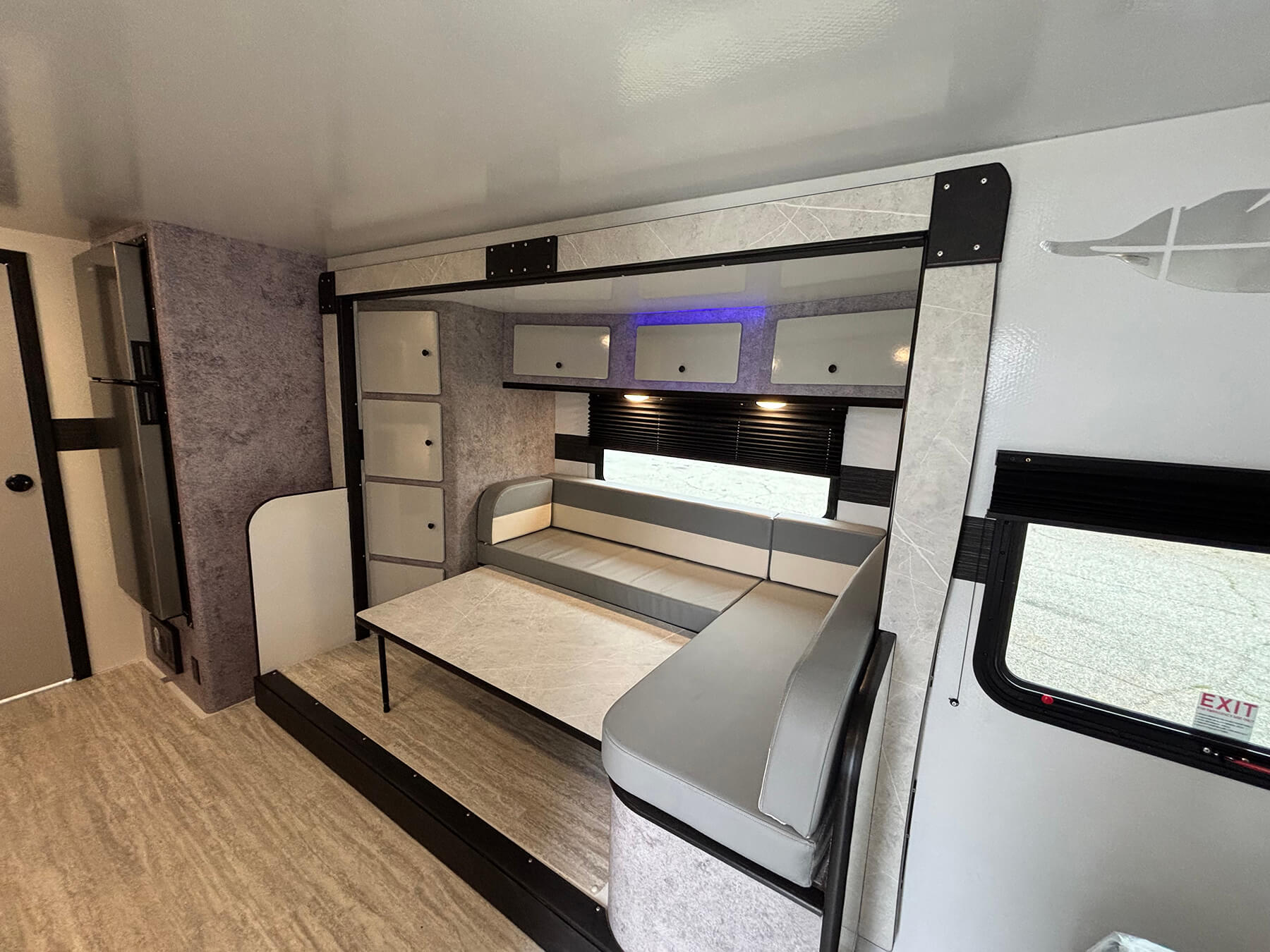

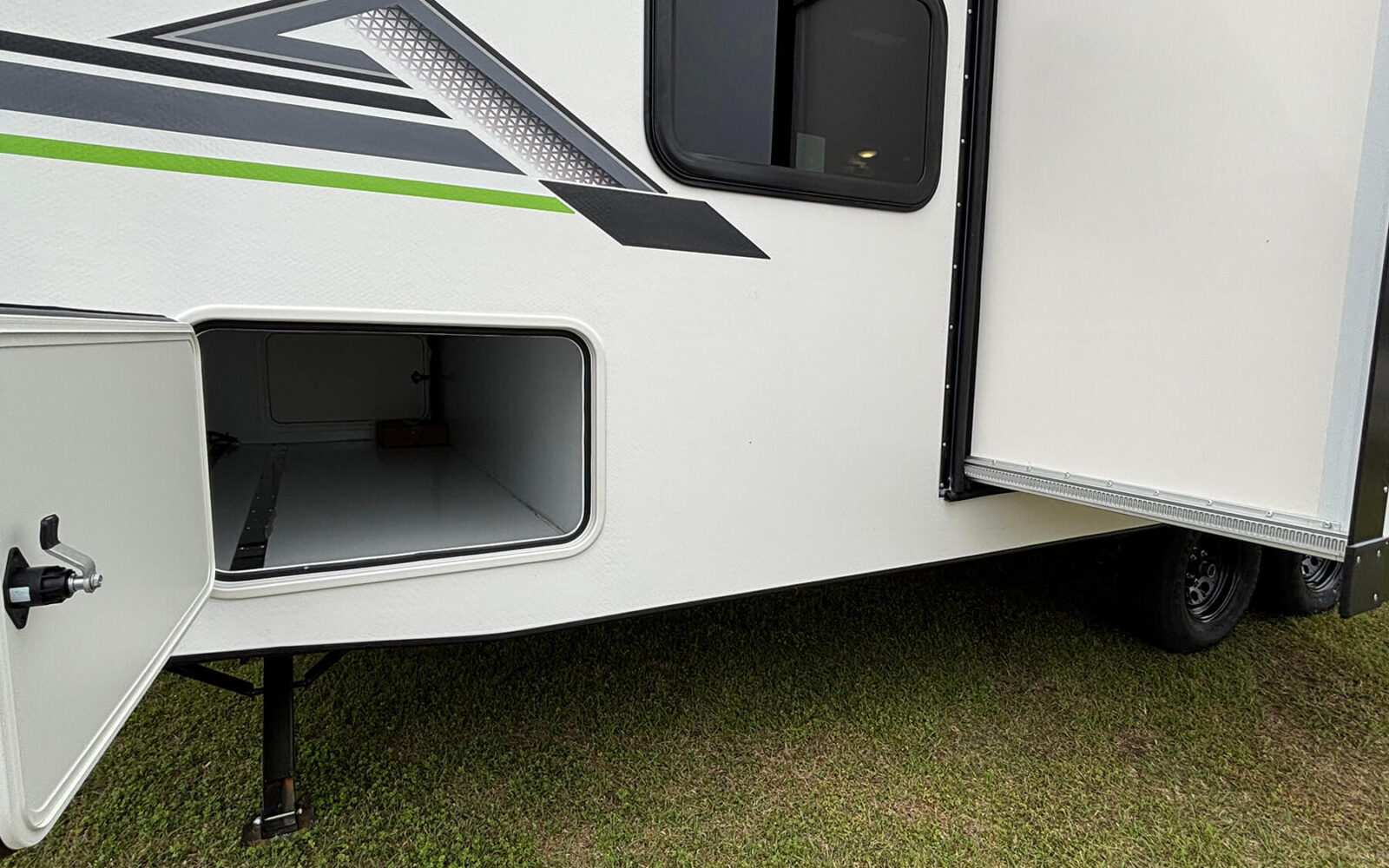

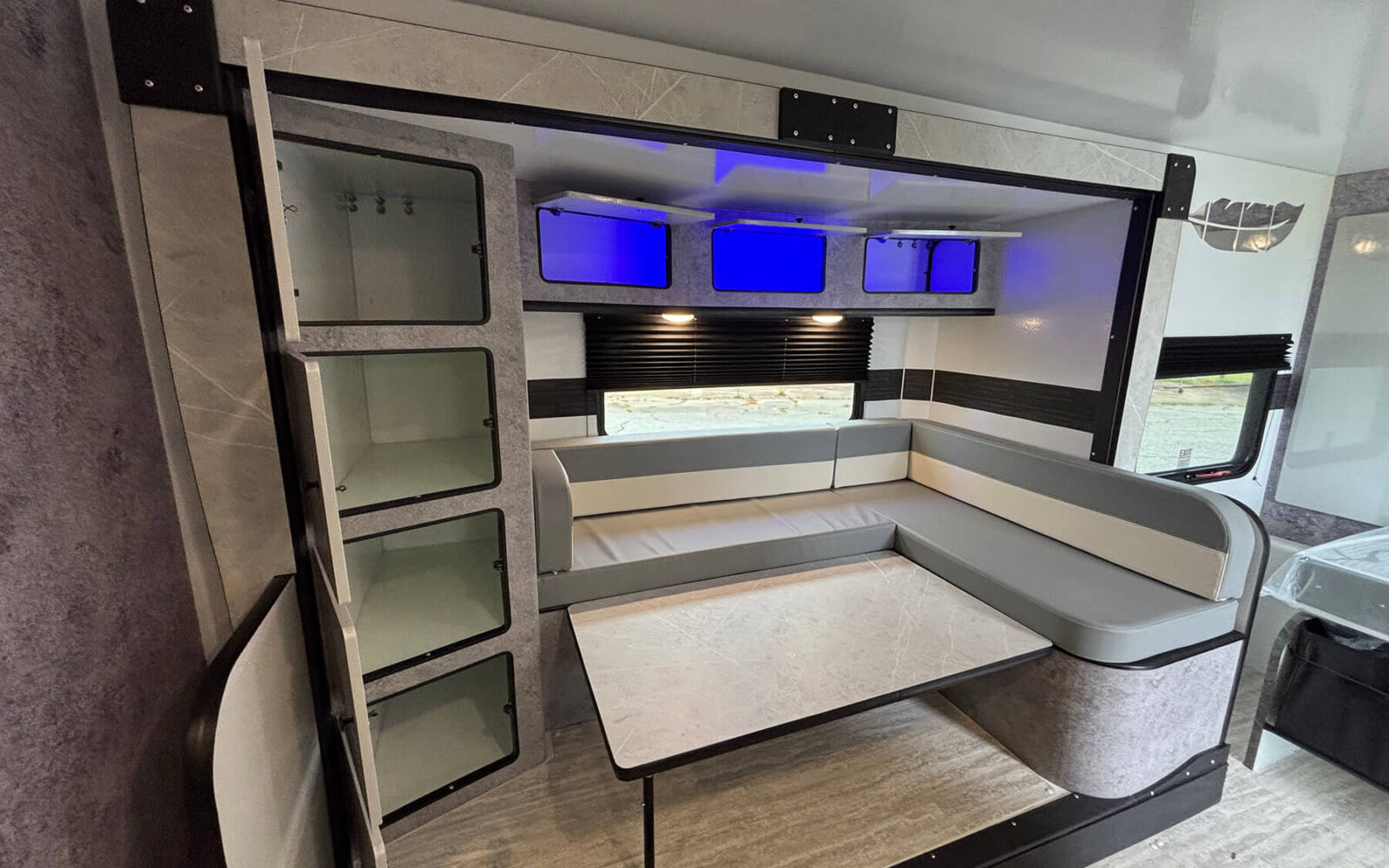

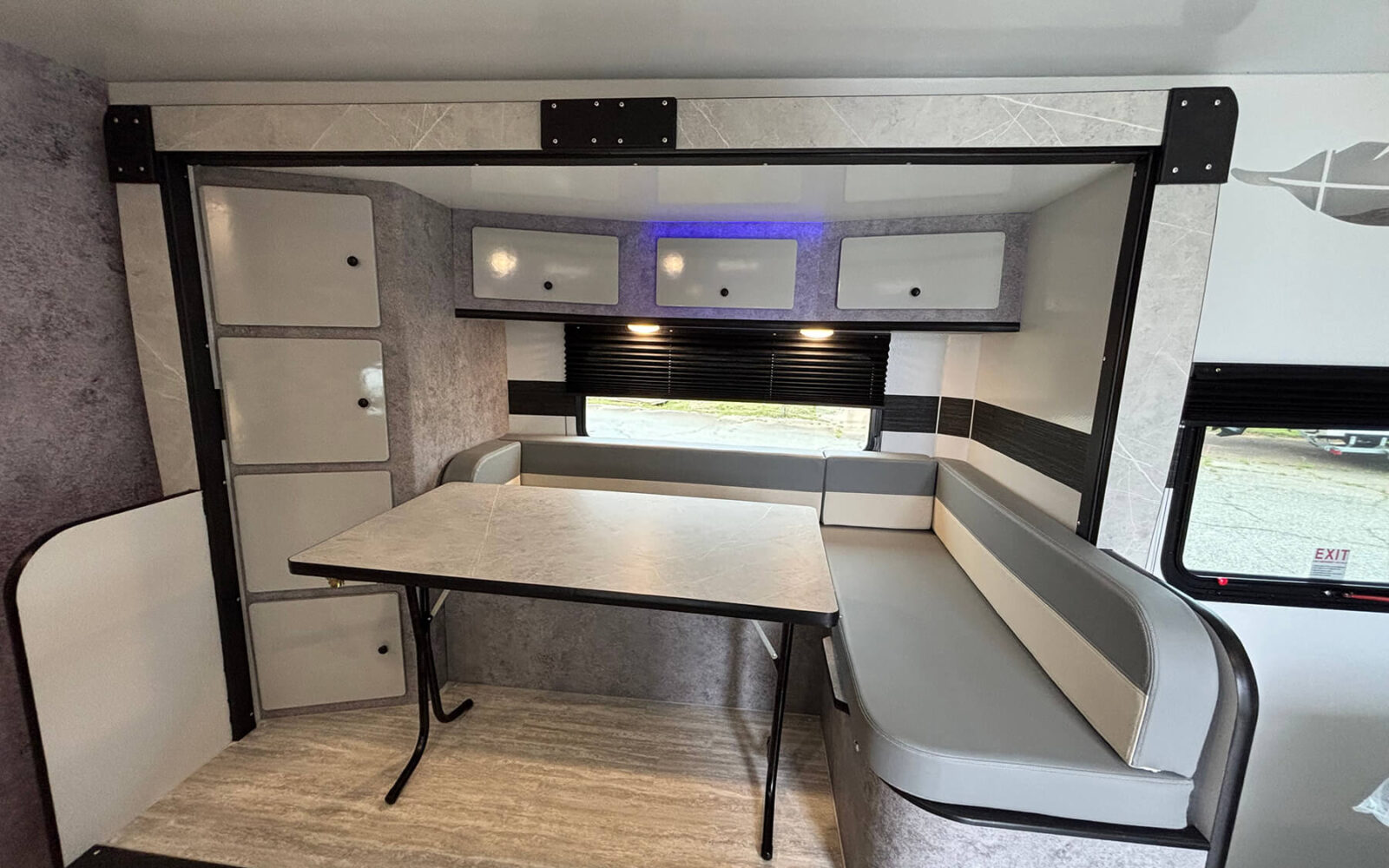

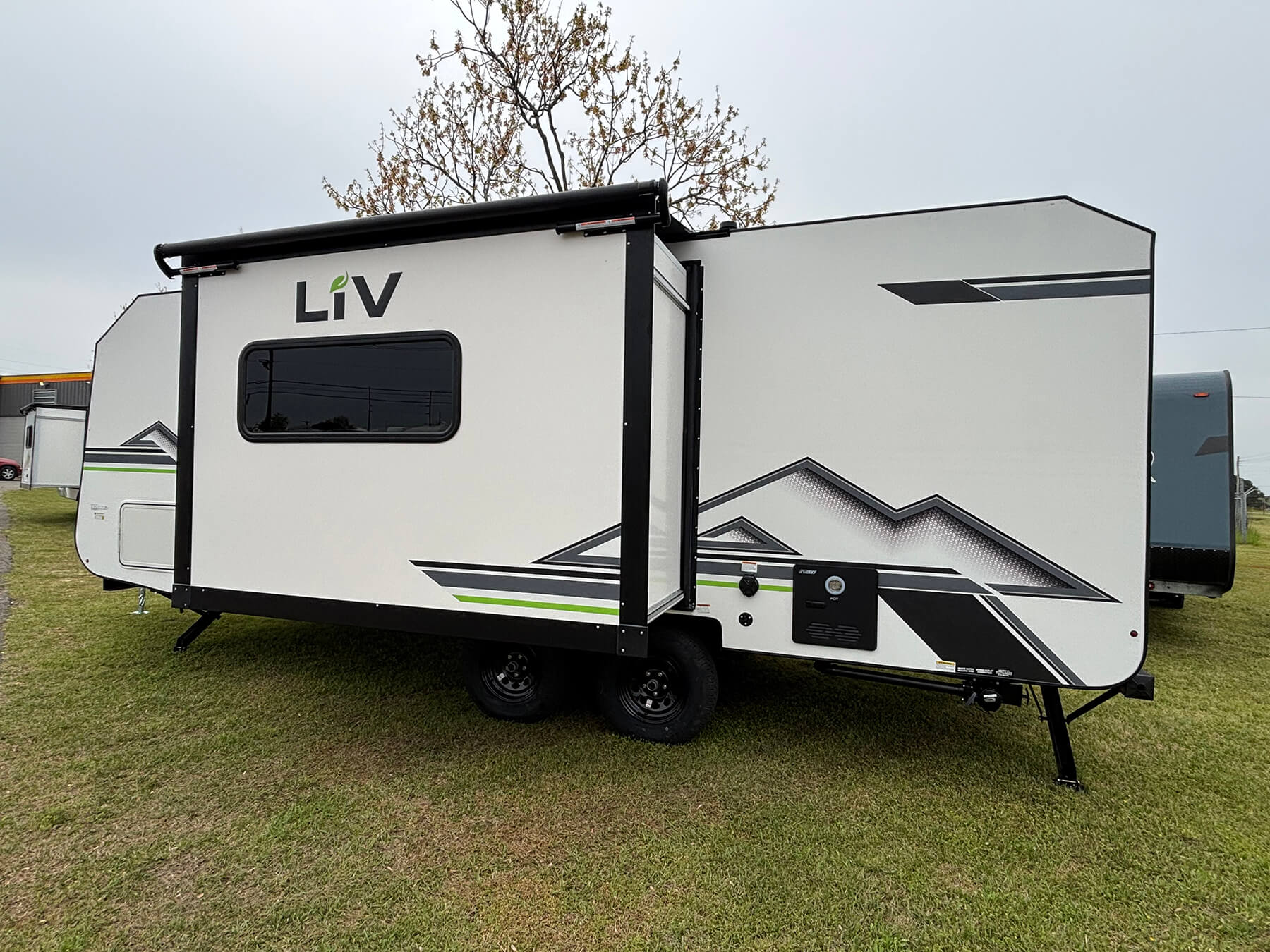

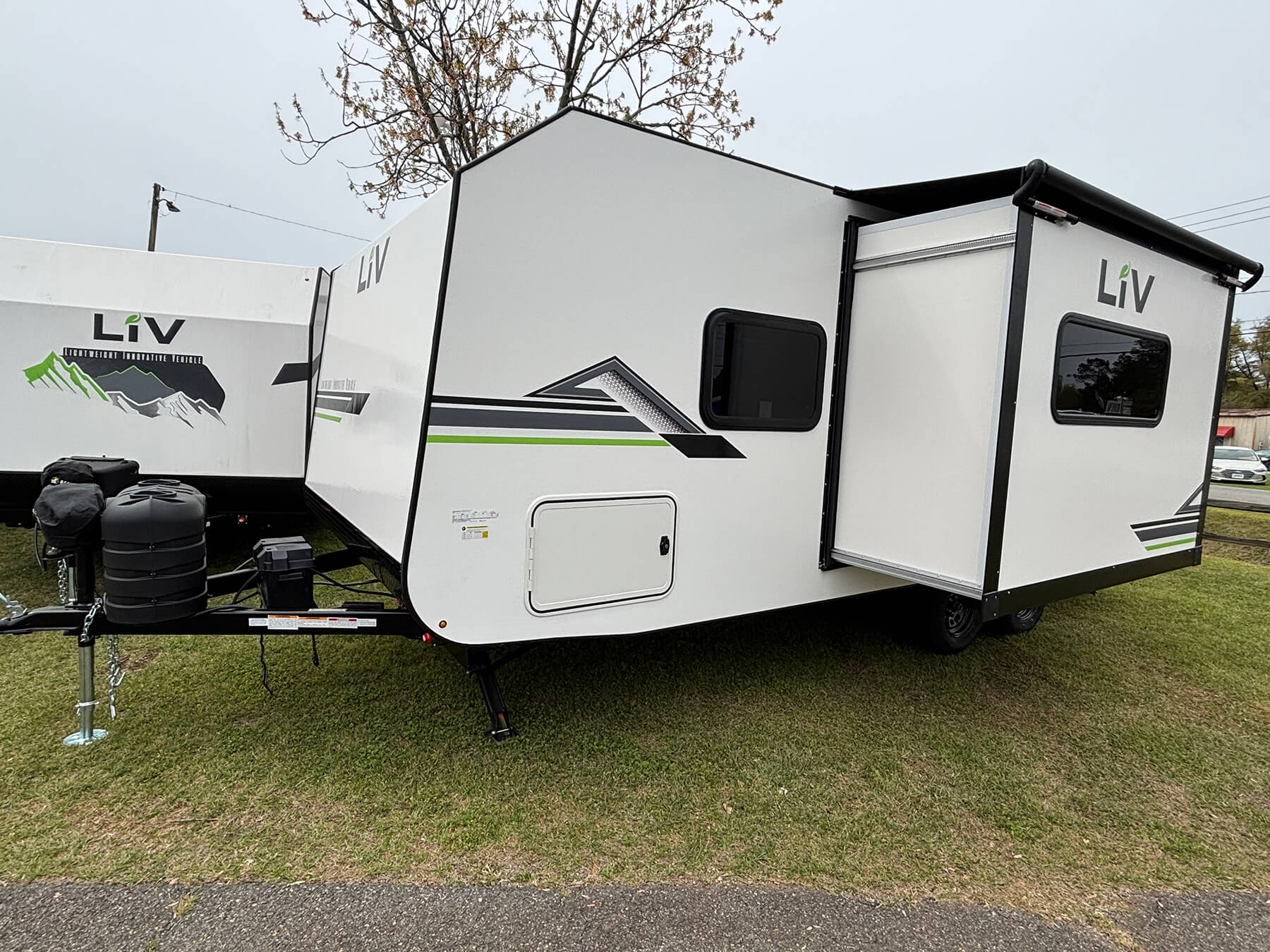

- Slide-out living area

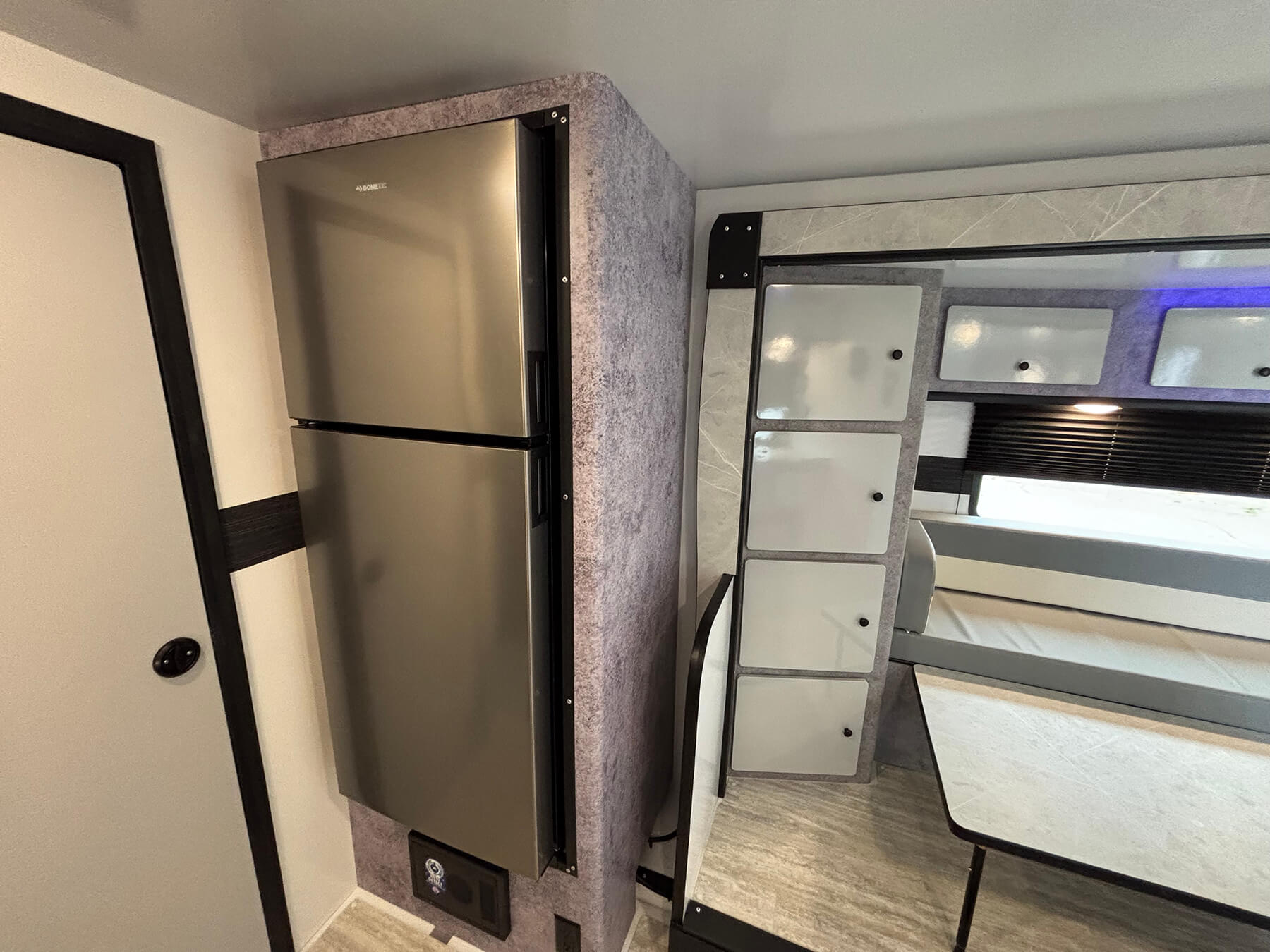

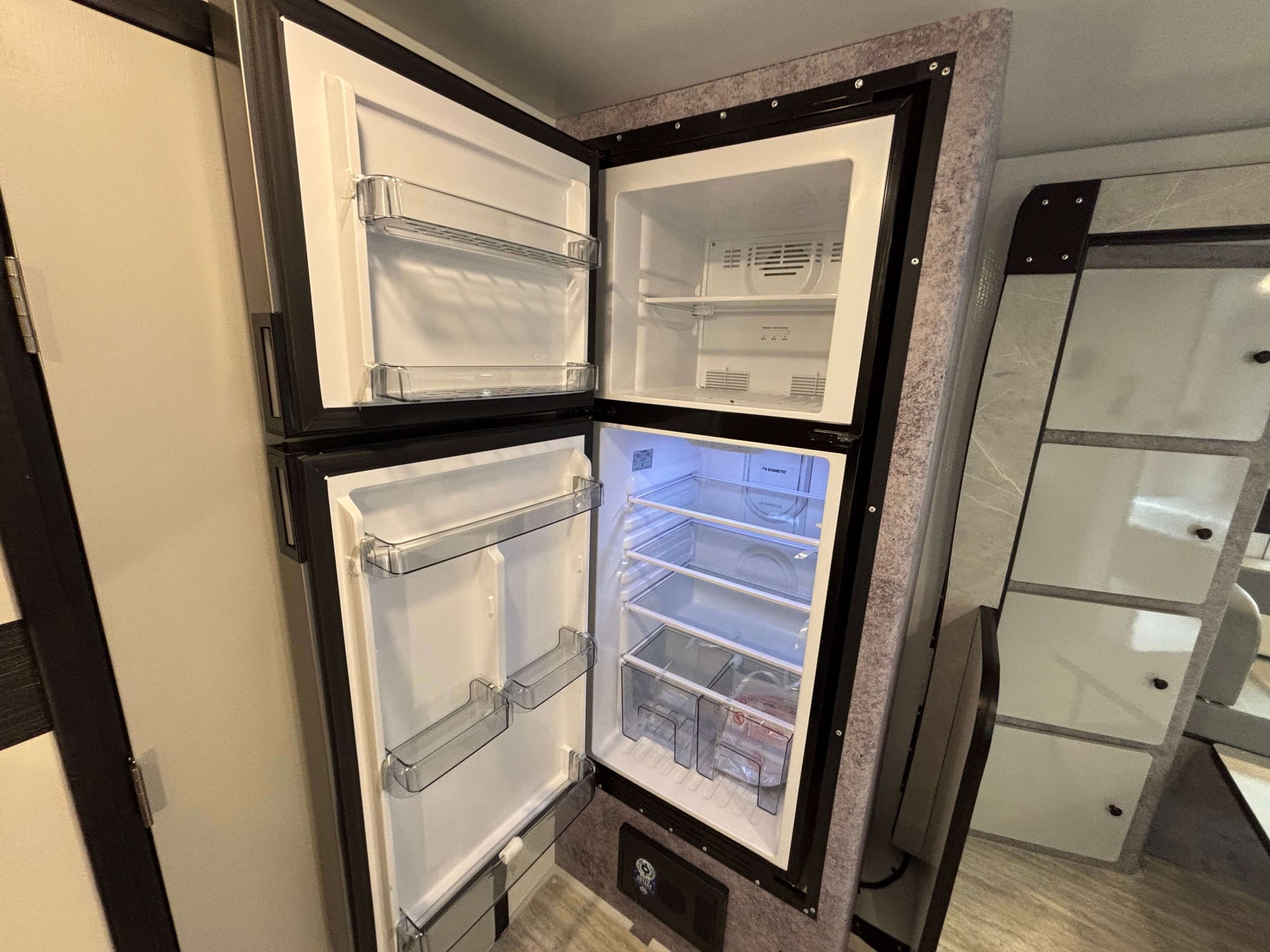

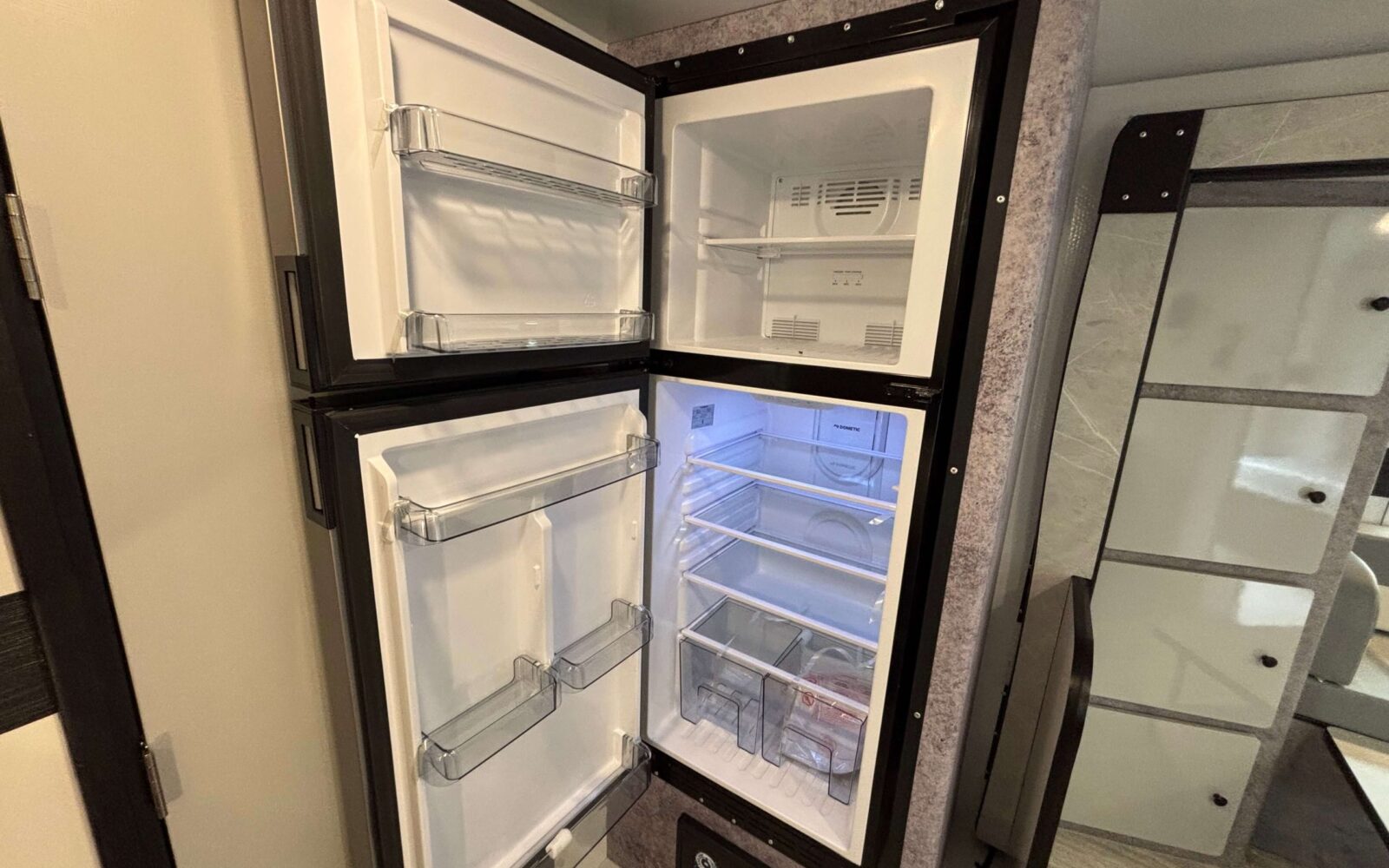

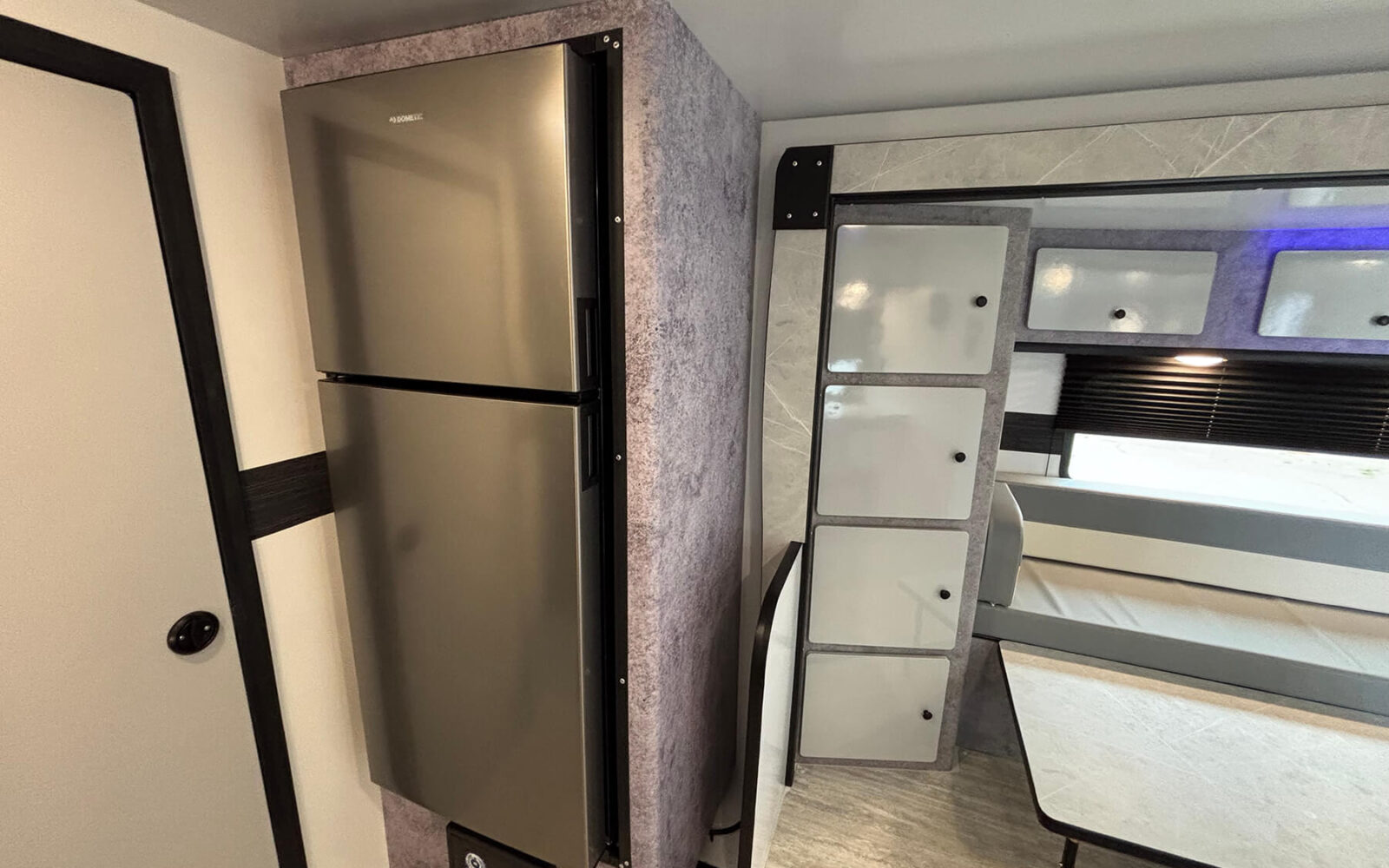

- 10.7 cu ft refrigerator (standard)

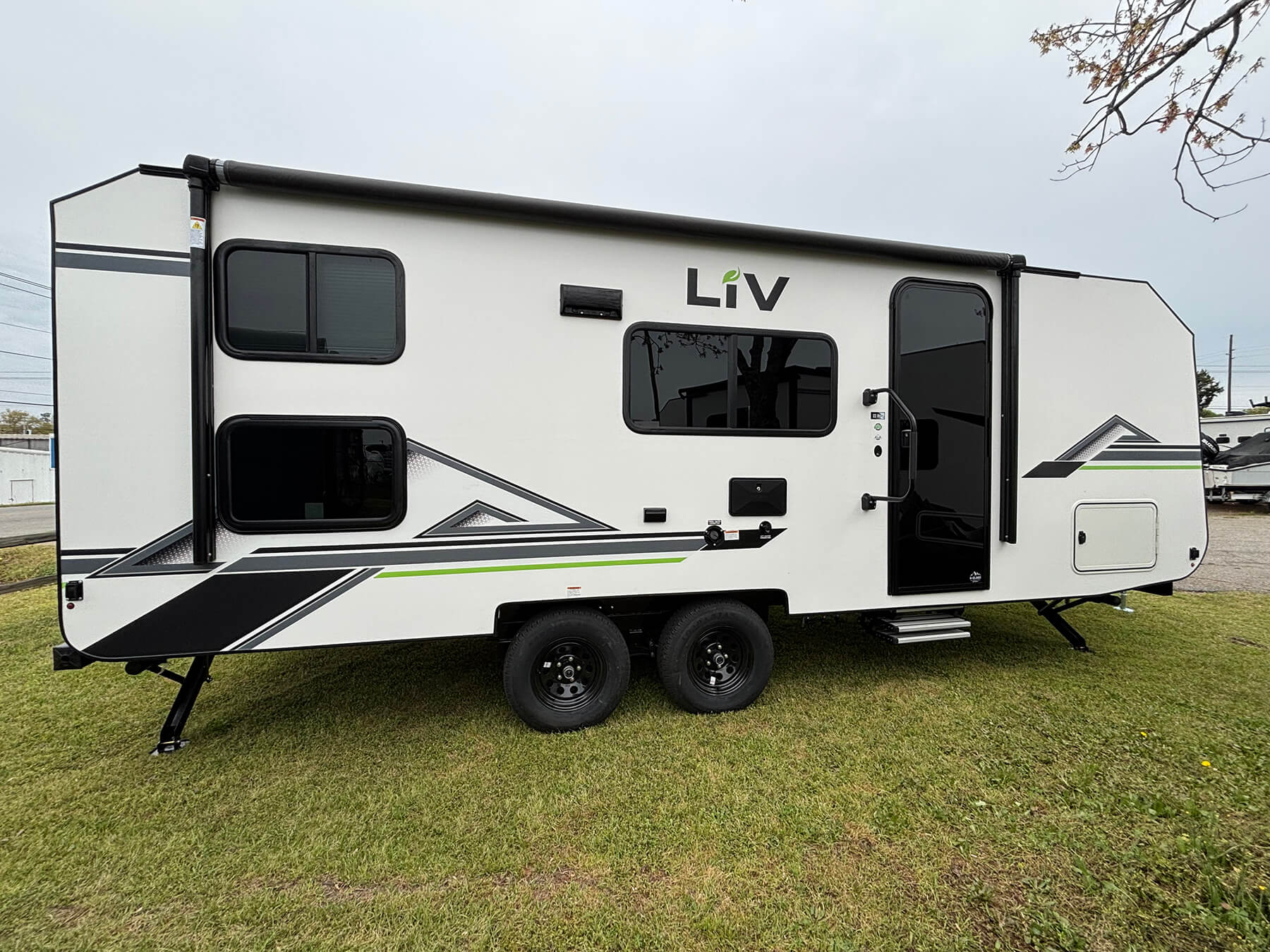

- Dual-axle with Electric Brakes (standard)
- Massage Spa Shower available
- Outside Kitchen available
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
LIV Extreme Off-Road Package
Raised axle with 15-inch mudder wheels and spare, special graphics, 34-inch extended stabilizer jacks, custom painted front and rear exterior walls, off-road ladder, off-road roof rack, two spreader lights (front and rear, door side), and a 200-watt solar panel with inverter, lithium battery, and controller. Available on the 201 BH, 201 QB, 211, 23-series, and 26 models.
Power & Battery

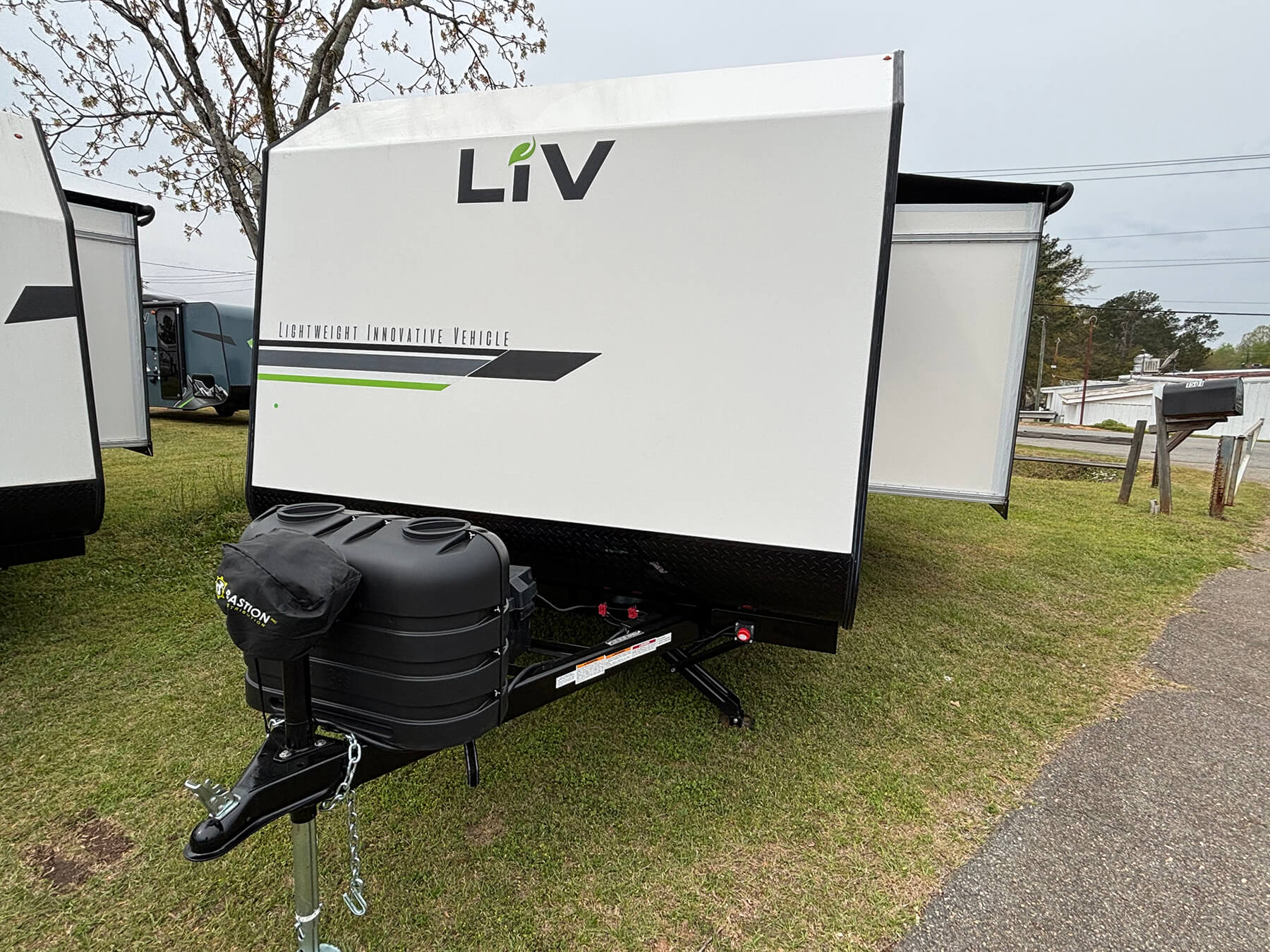

- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Upgrade to Lithium Battery Optional
- Quiet Inverter Generator with Mount Optional
Climate & Comfort
- 6-Gallon Water Heater (Gas/Electric, Insta-Hot) Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional

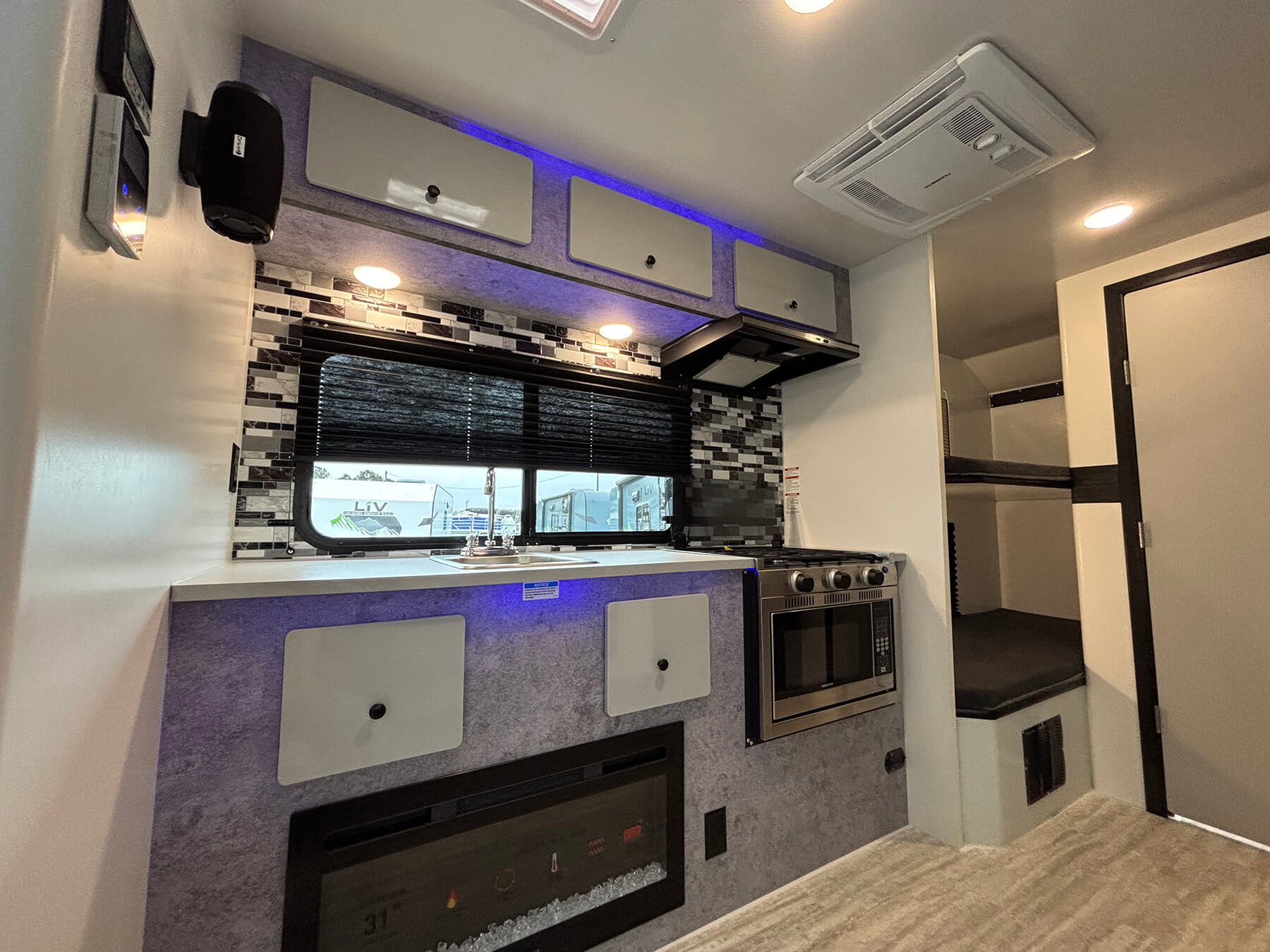

- Fireplace Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional

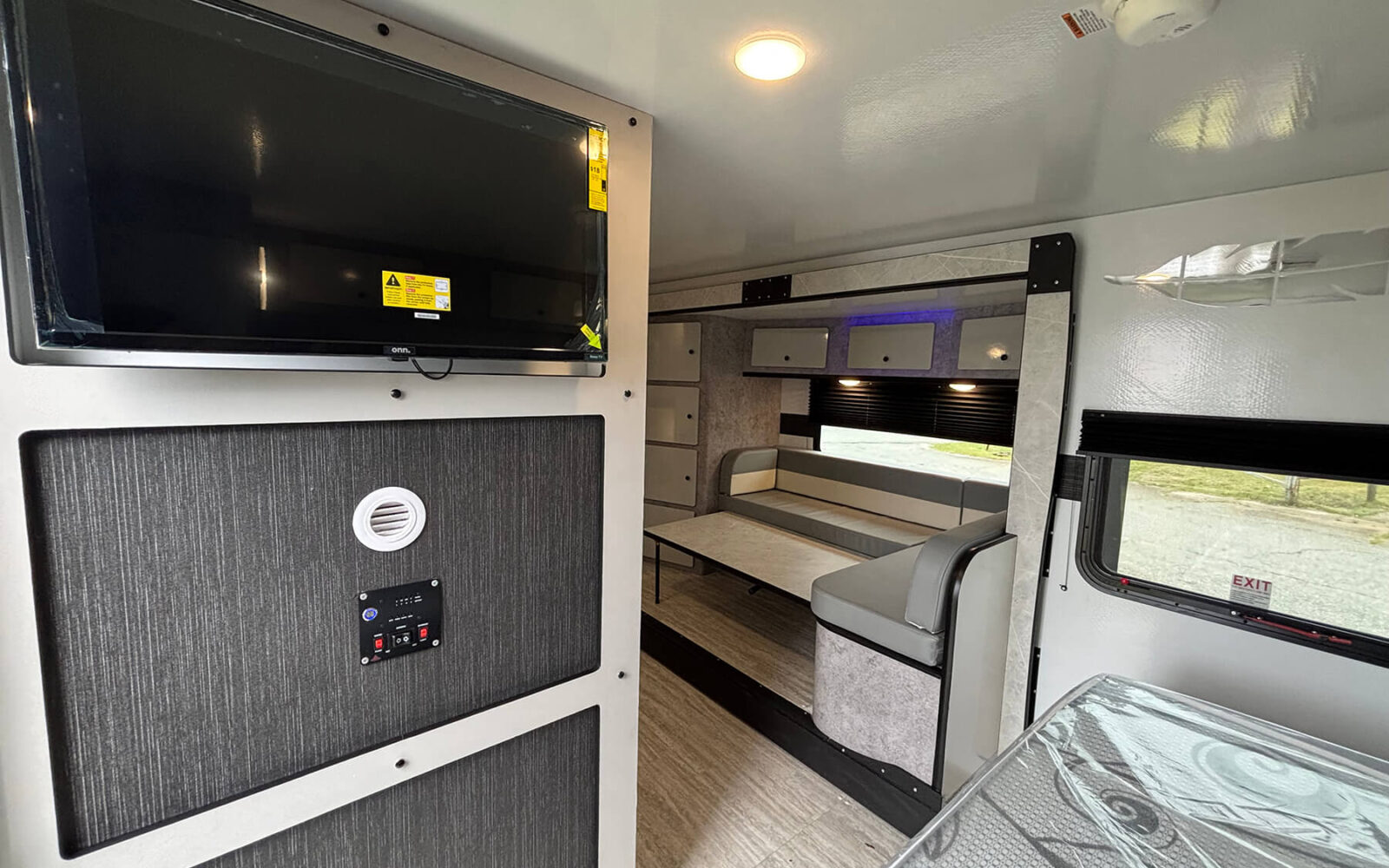

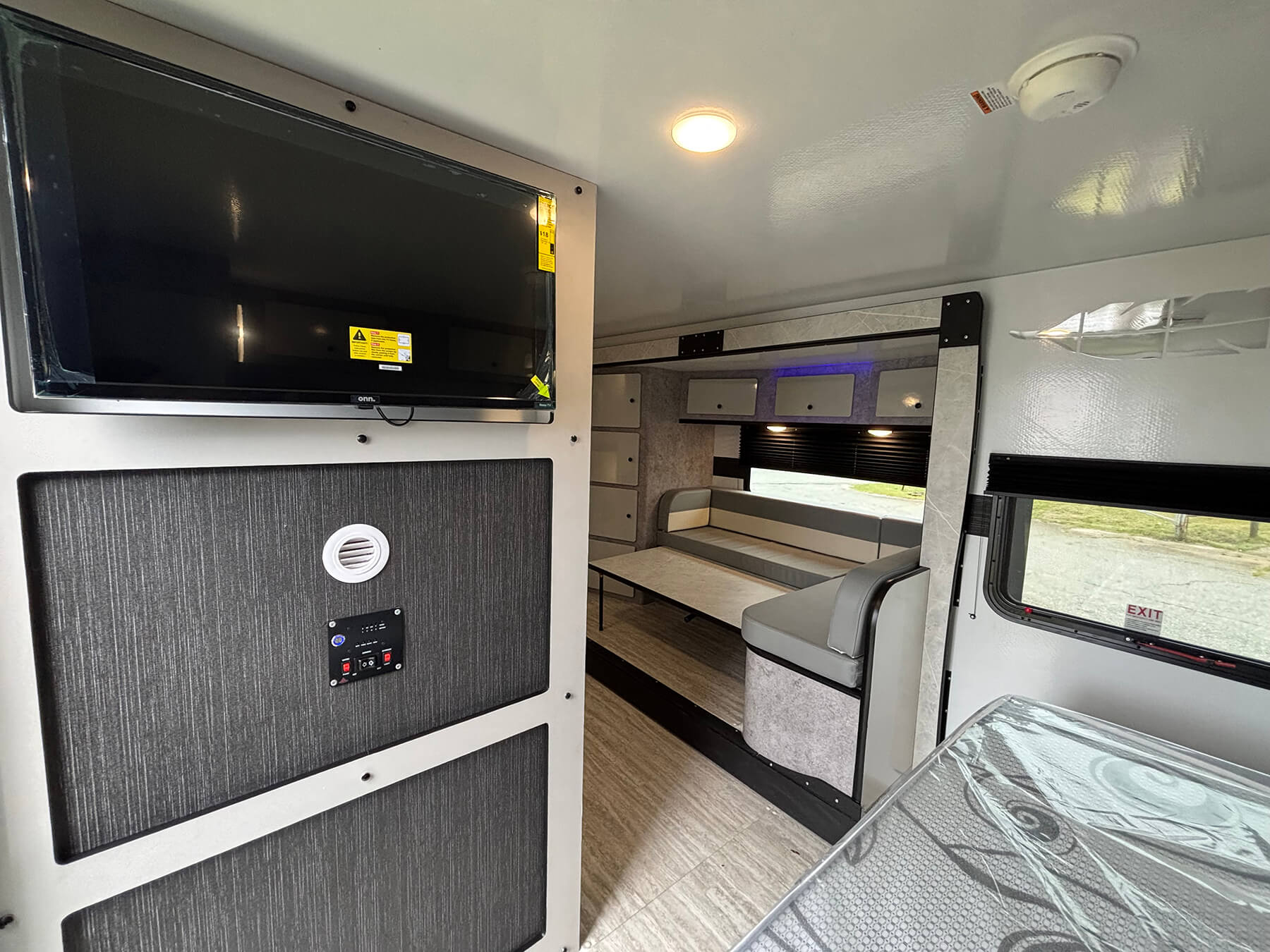

- Cable TV and Mount — 32″ Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Electric Brakes Standard
- Electric Stabilizer Jacks (Front & Rear) Optional
- Galvanized Frame Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard

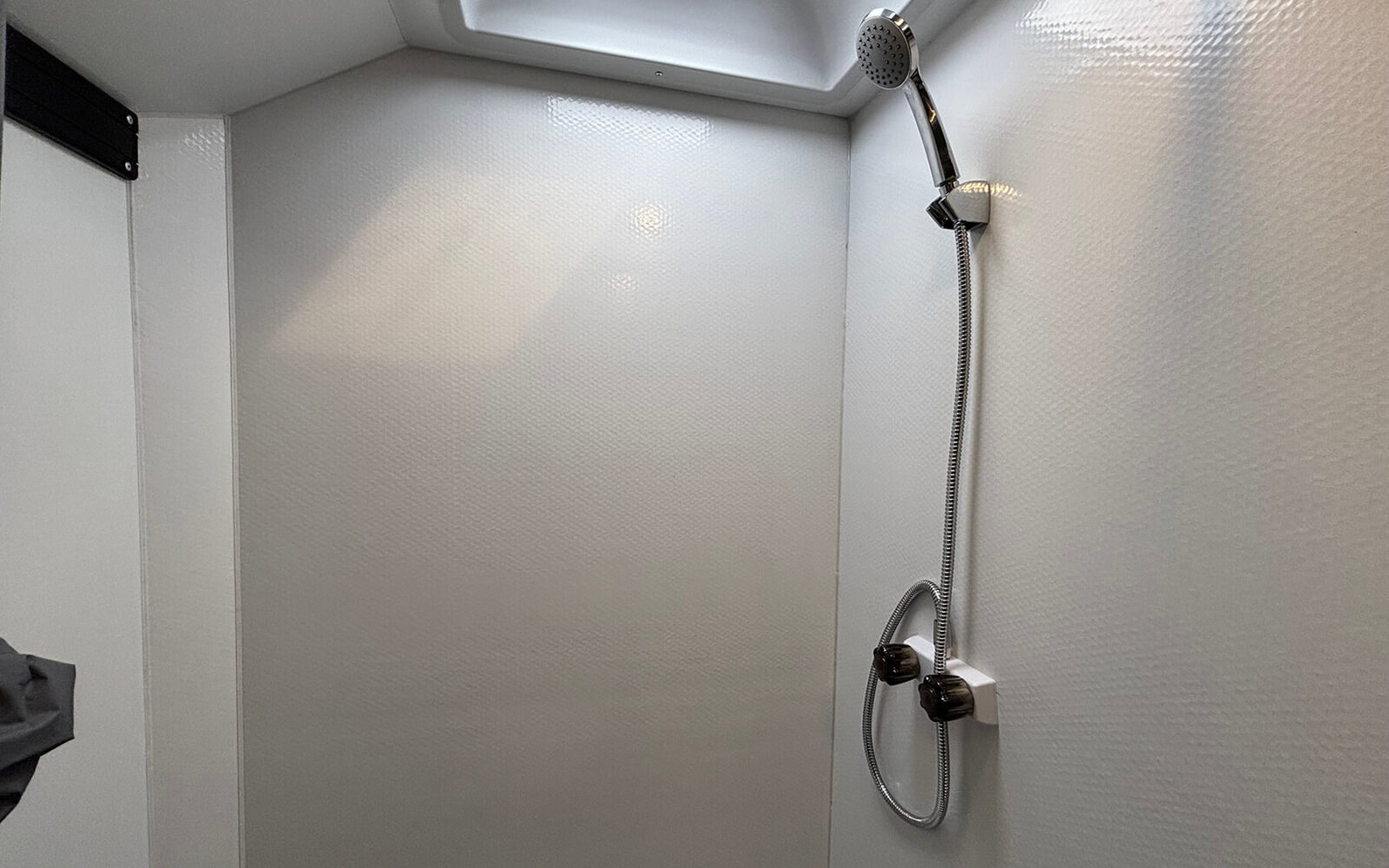

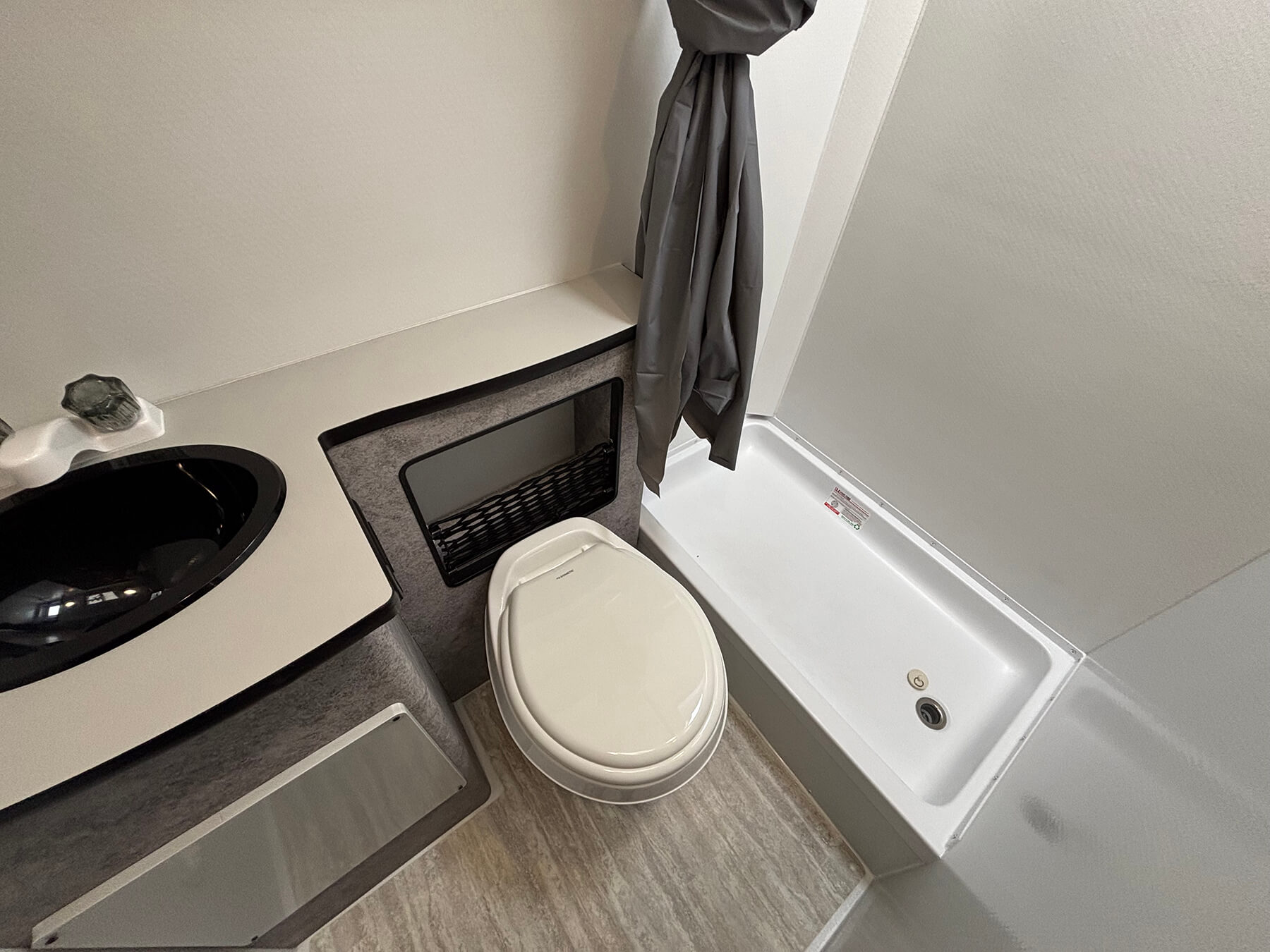

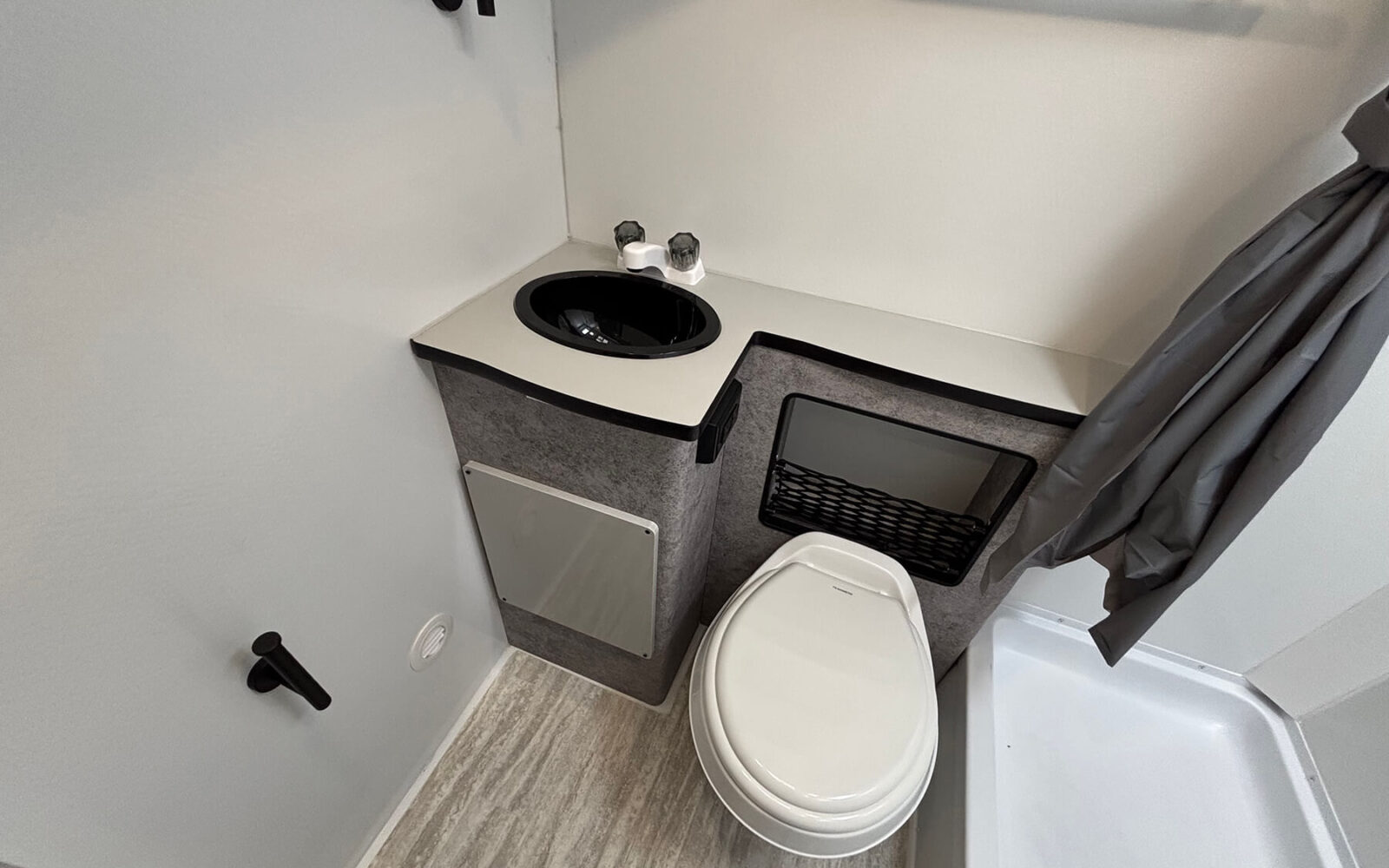

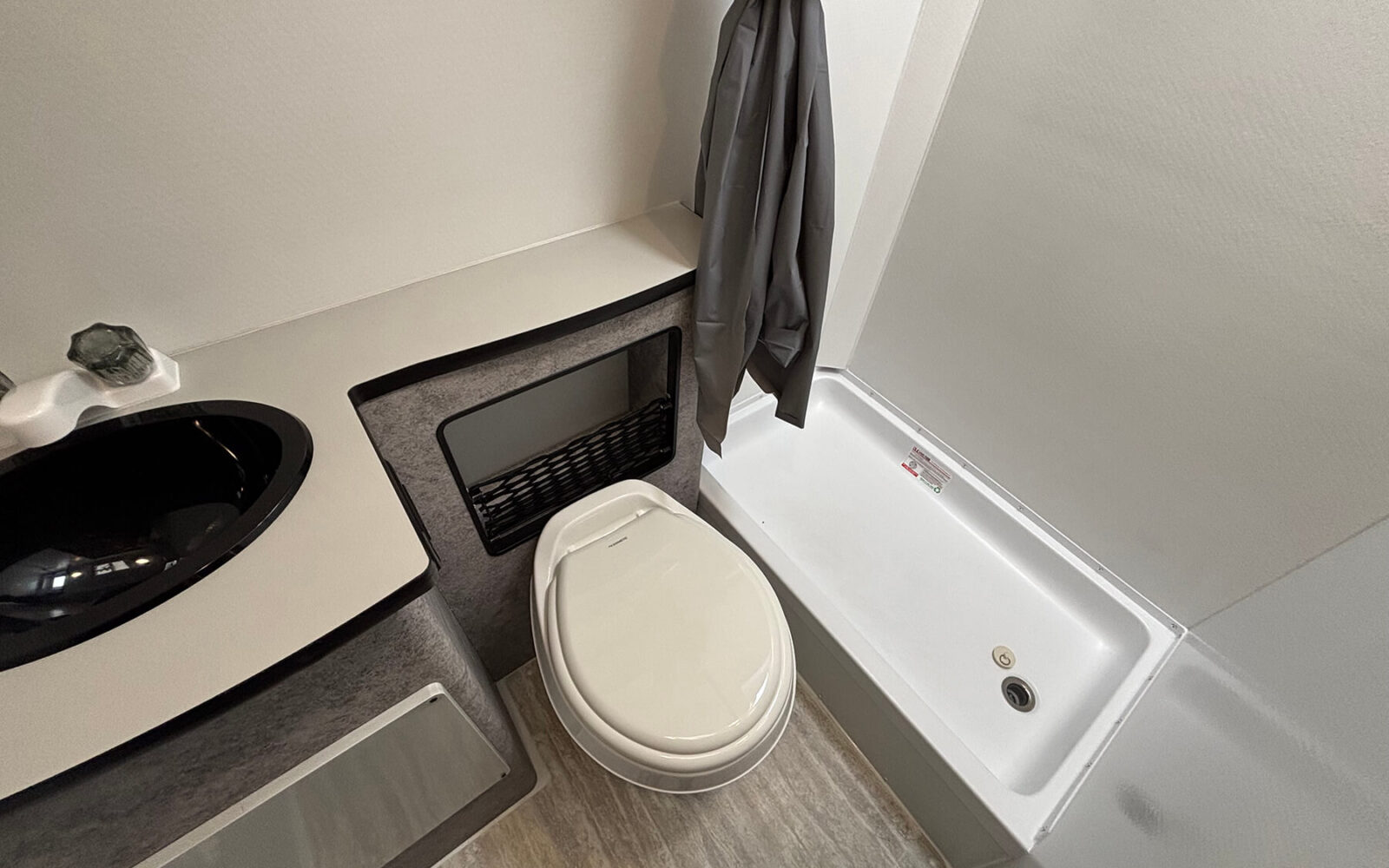

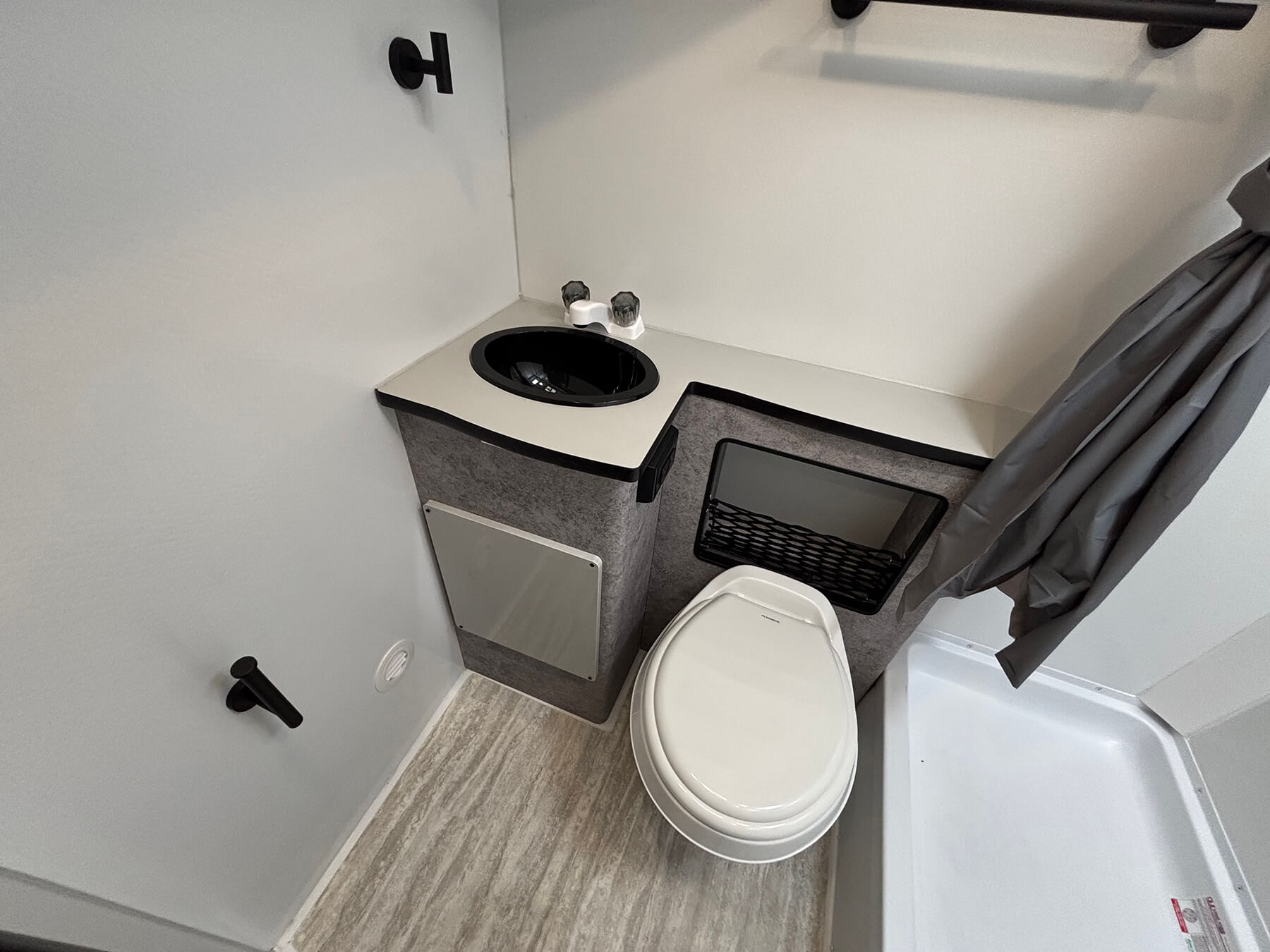

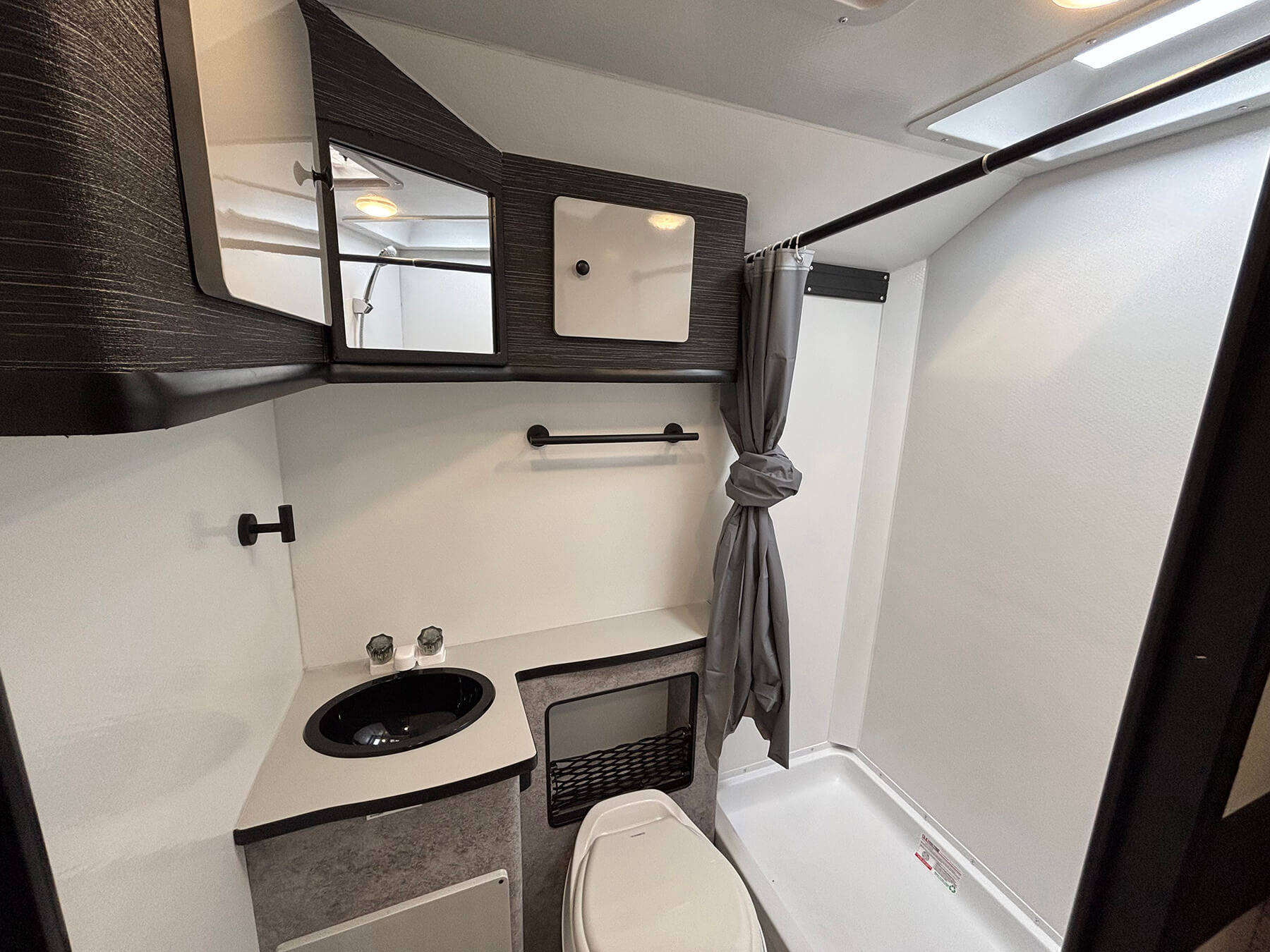

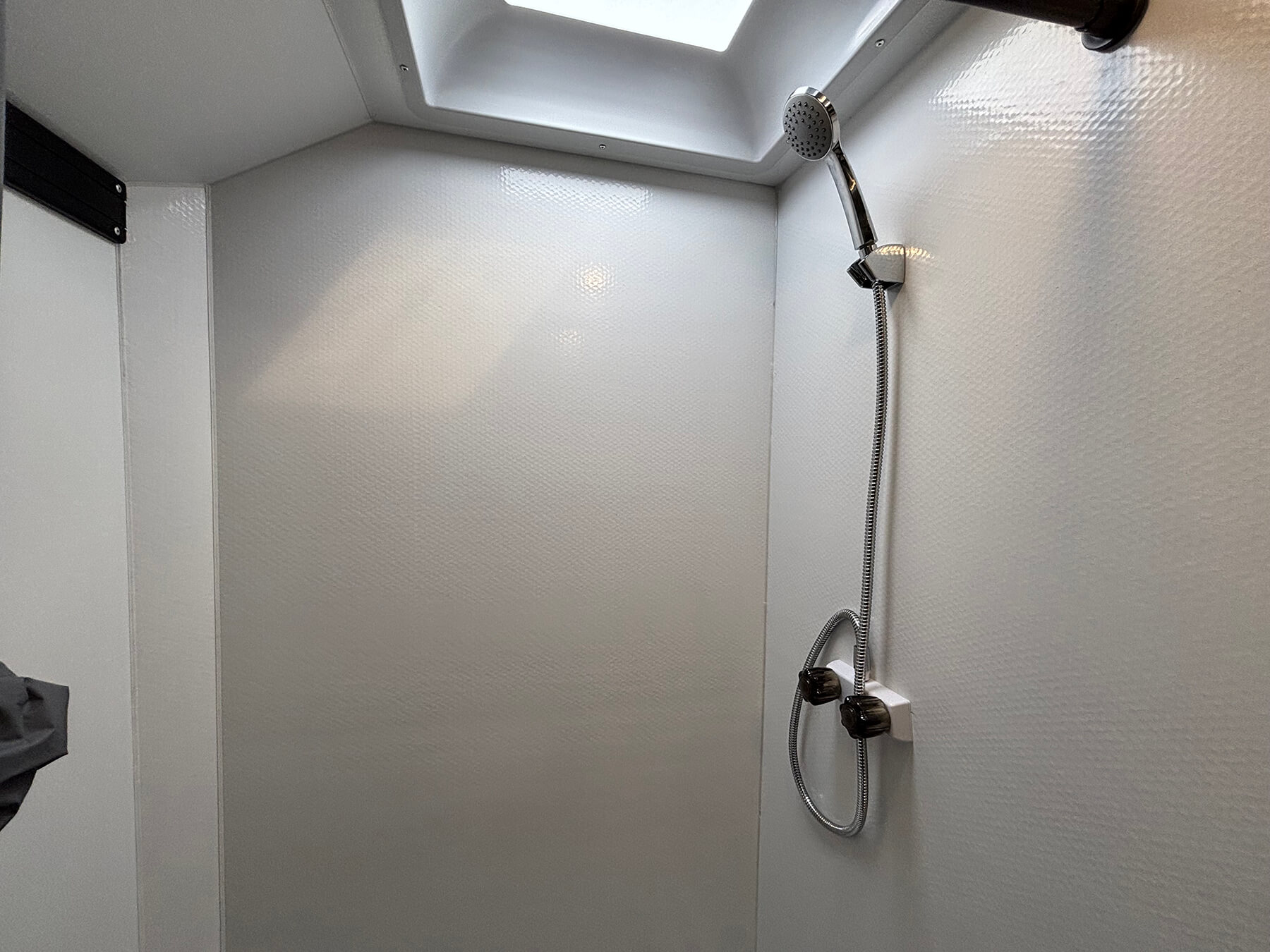

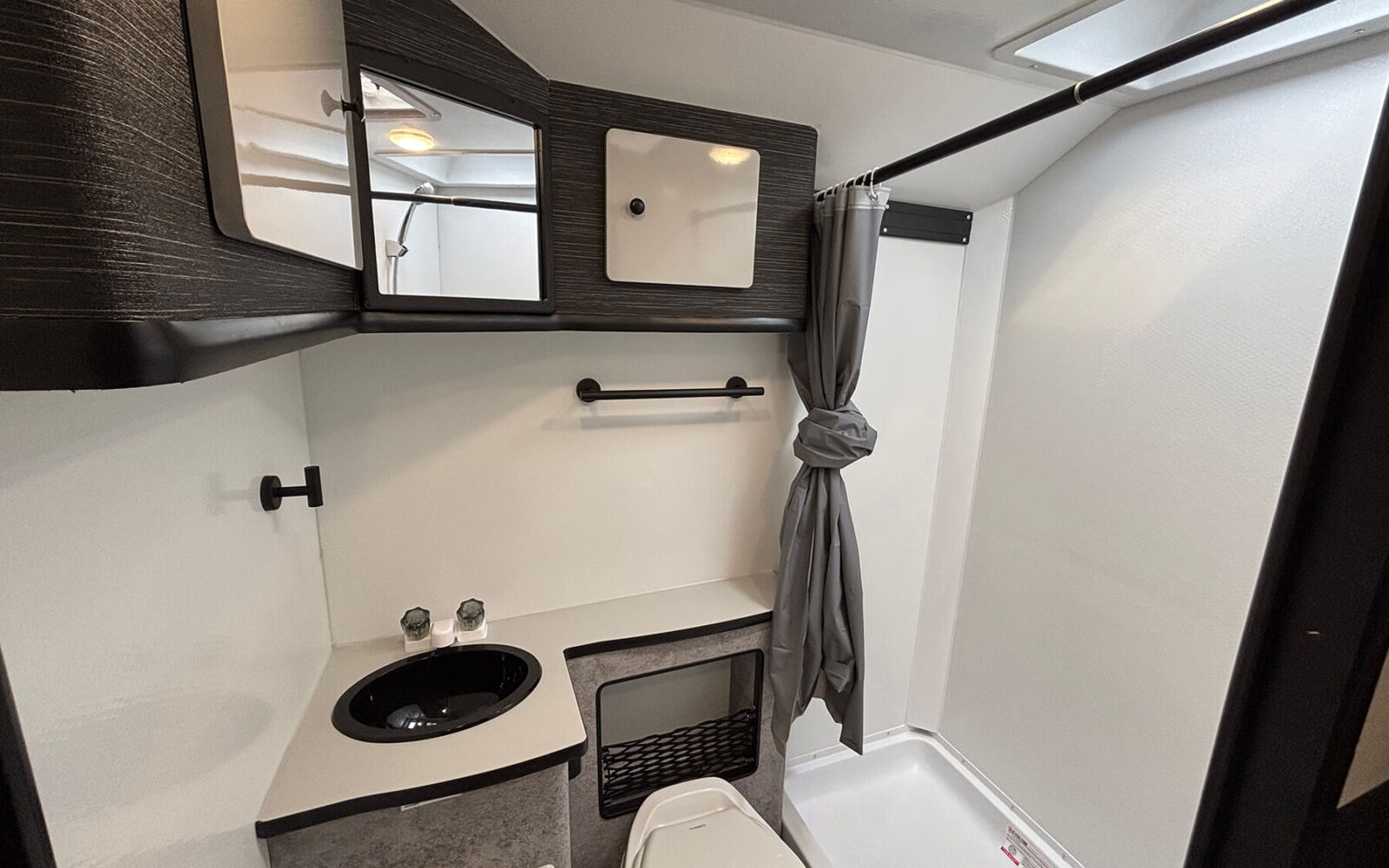

- Standard Shower Standard
- Massage Spa Shower Optional
- Sofa Optional

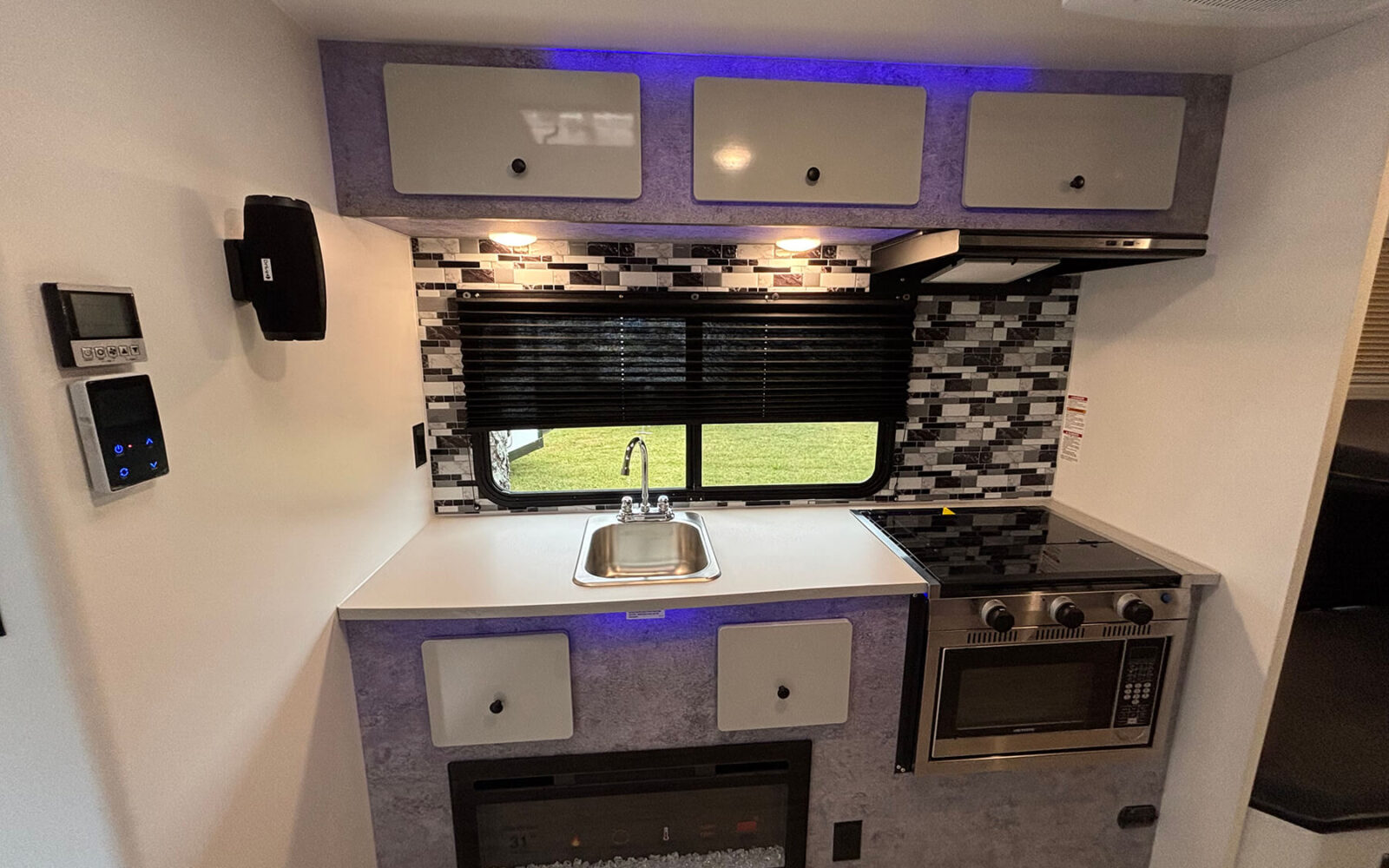

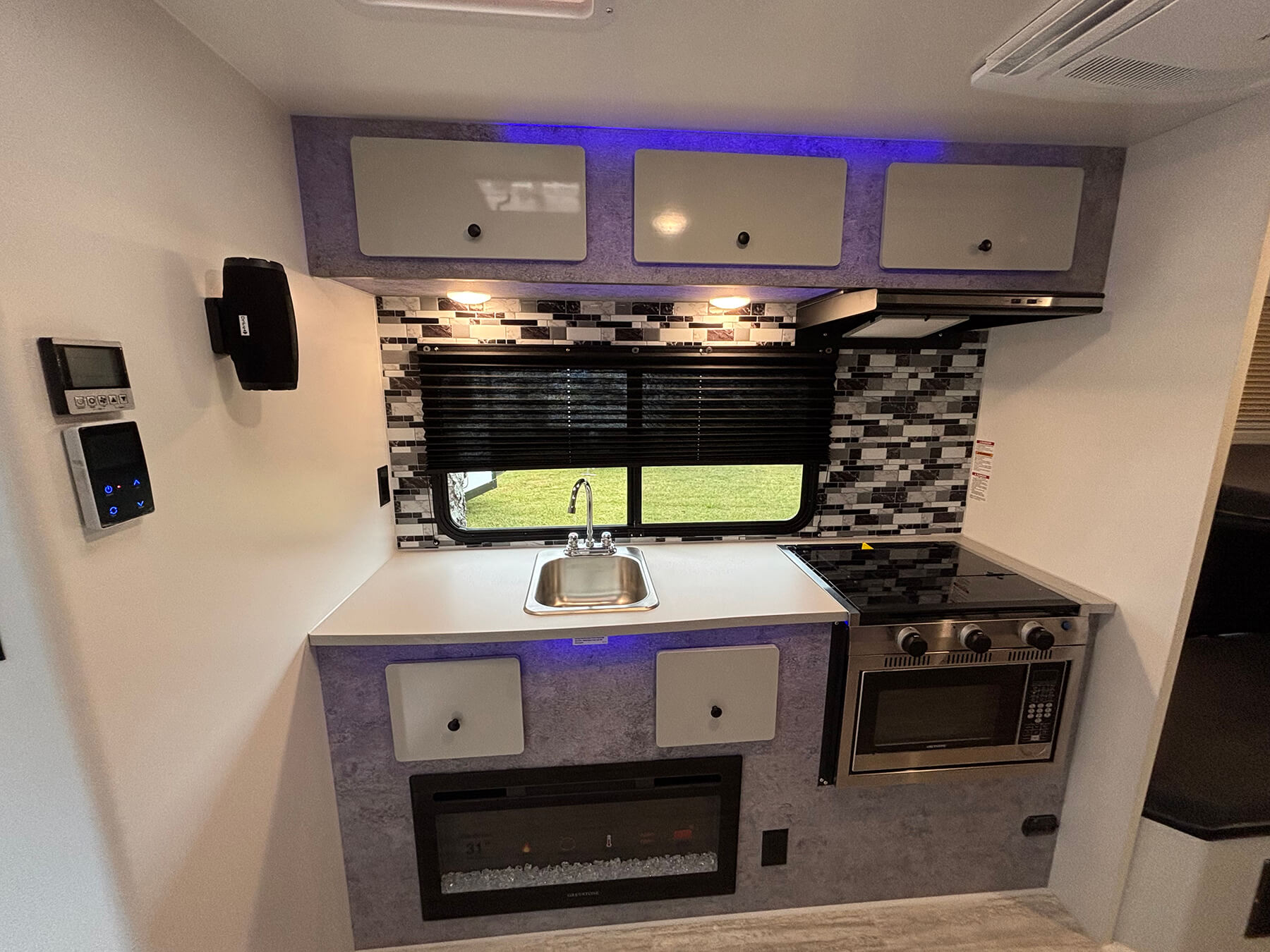

Appliances

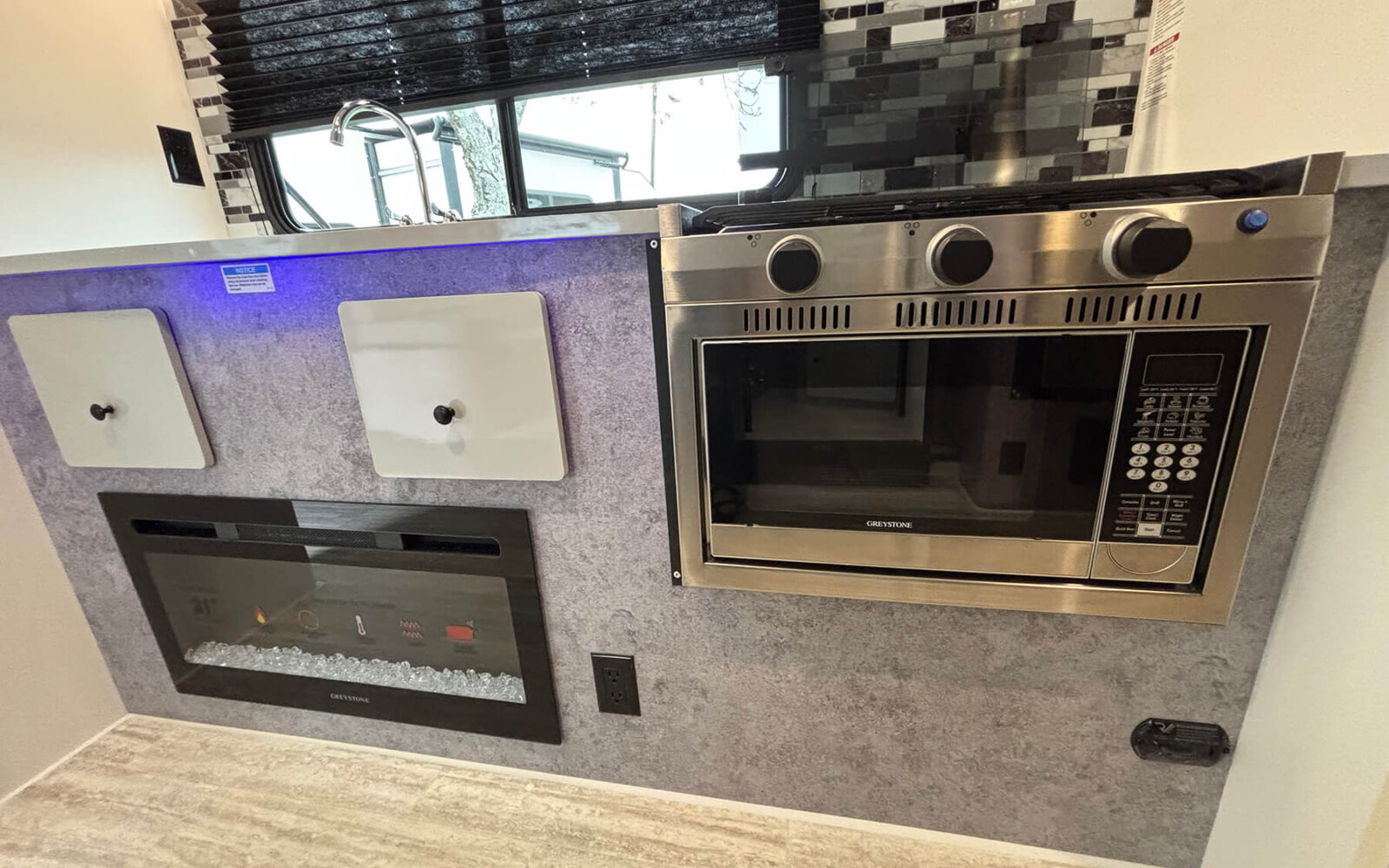

- Microwave Oven Standard

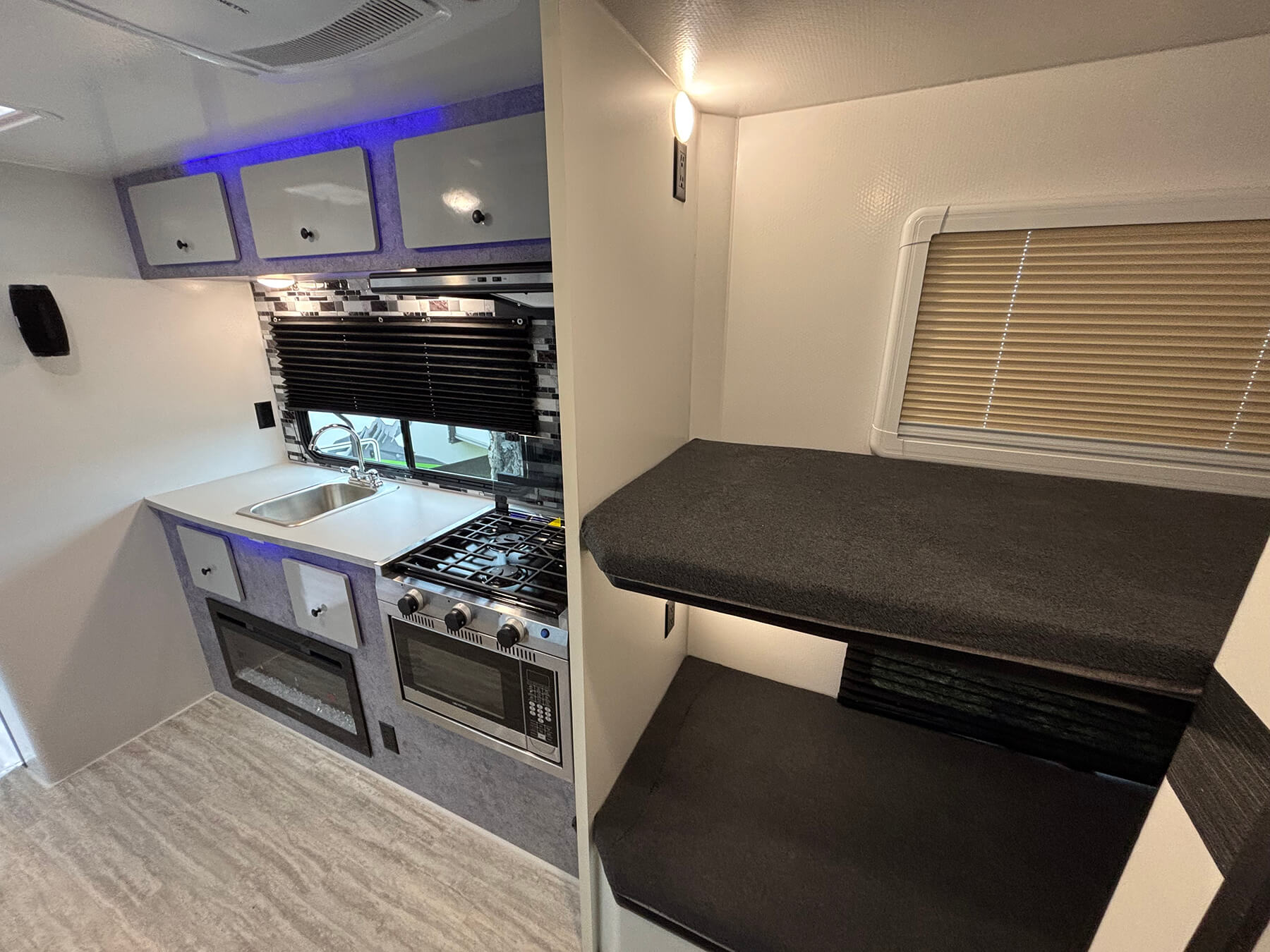

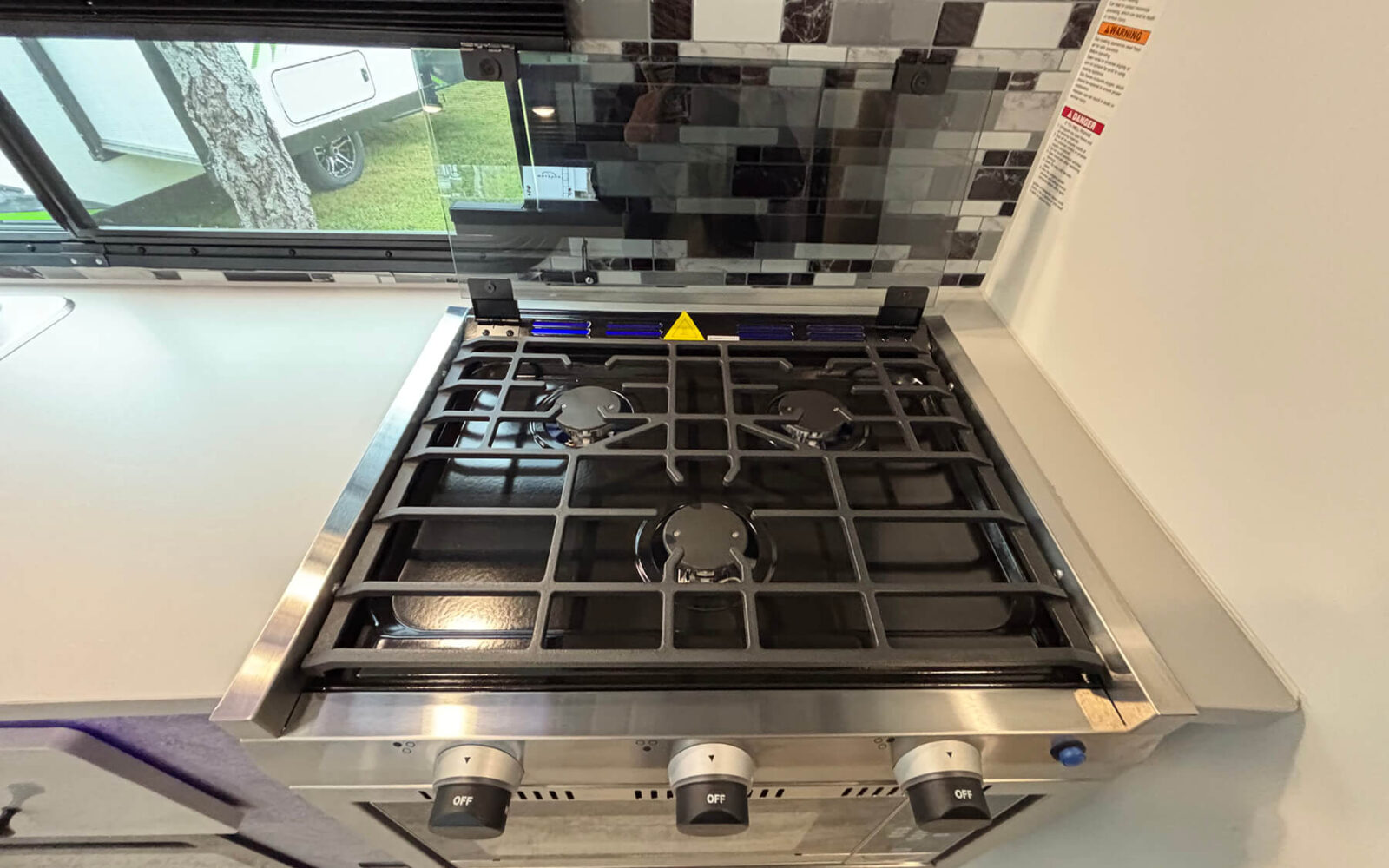

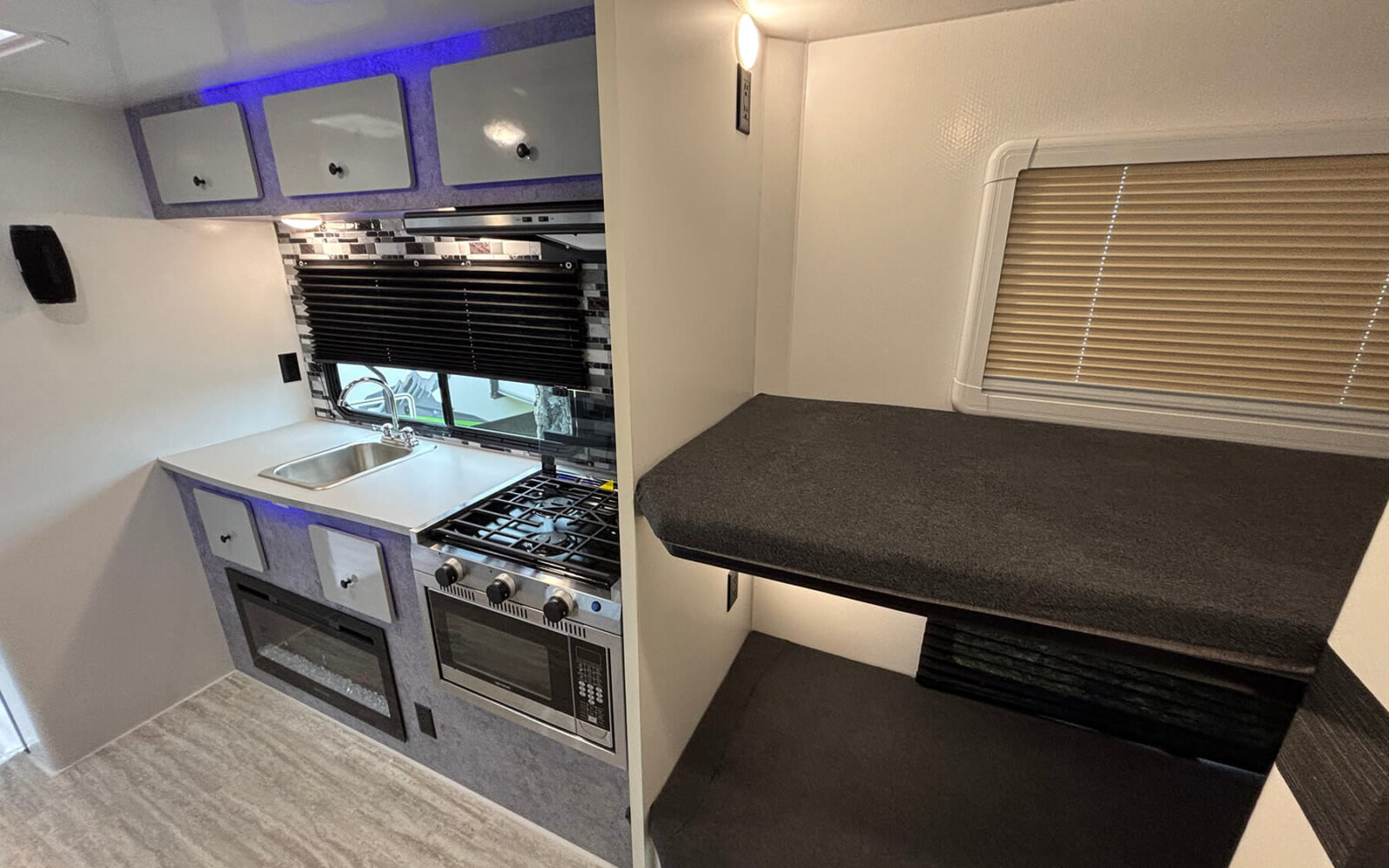

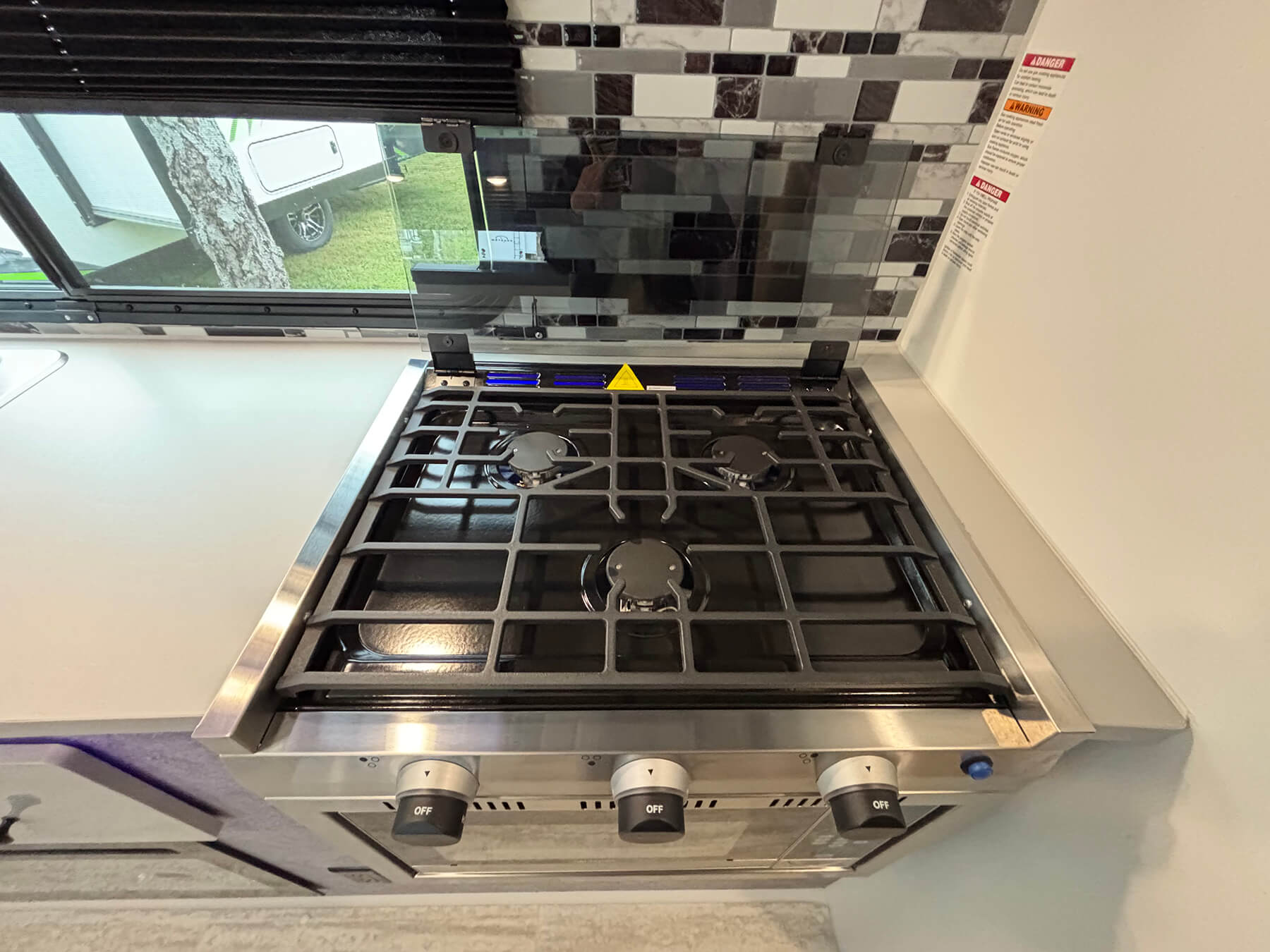

- 2-Burner Propane Cook Top Standard
- 10.7 cu ft Refrigerator Standard

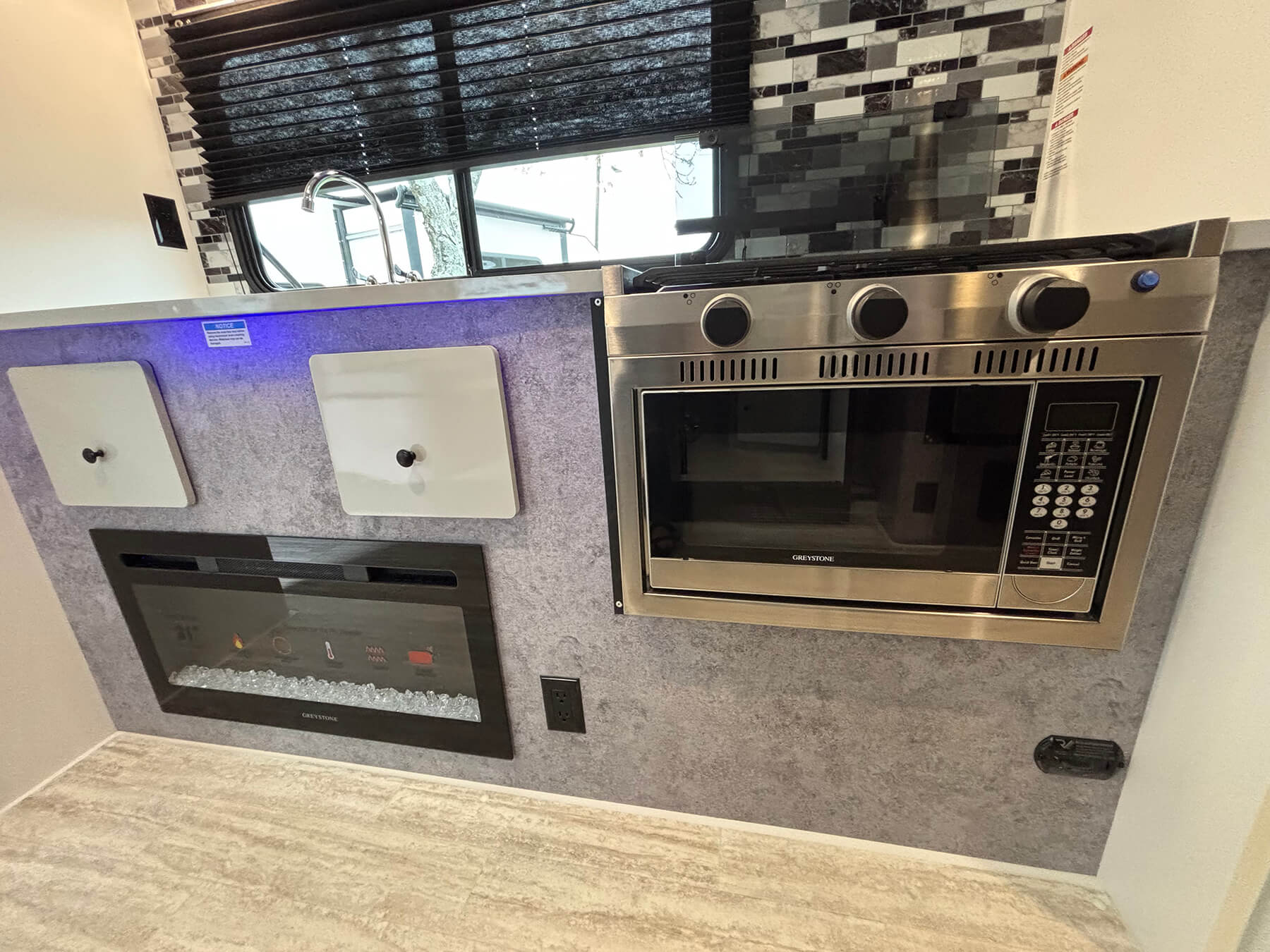

- Upgrade to Convection Microwave Optional
Exterior
- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional
- Outside Kitchen Optional
- Outside Griddle & Bracket Optional
Gallery
Inside and out.
Ready to roll?
Configure your LiV 23 BHS, save your build, then take it to a dealer.
