MODEL
23 RBS
Travel Trailer · Sleeps 2–4
The 23 RBS pairs a walkaround queen up front with a huge rear-bath suite at the back, then slides the living room out for daytime hosting — cook outside, sleep inside, shower in style. It rides on the same 3,880-pound dual-axle composite chassis as the 23 BHS, with electric brakes standard, a 10.7 cu ft refrigerator, and the full LIV Convenient Package right out of the gate. The option sheet is generous: Massage Spa Shower for the rear bath, Outside Kitchen for the campsite cookouts, Convection Microwave for the indoor meals, and a 32-inch cable TV mount for movie nights. Add electric stabilizer jacks and you’re parked and level in under a minute — a couples’ trailer that handles weekend hosts with grace.
View gallery
- 3,880
- LBS DRY
- 2–4
- SLEEPS
- 21' 6"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 26'
- Width
- 8'4"
- Exterior Height
- 10'6"
- Interior Height
- 6'7"
WEIGHT
- Dry Weight
- 3,880 lbs
- GVW
- 4,990 lbs
- Tongue Weight
- 395 lbs
- Carrying Cap.
- 1,160 lbs
TANKS
- Fresh Water
- 38 gal
- Grey Water
- 30 gal
- Black Water
- 38 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 2 axles
- Tires
- ST205/75R15
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

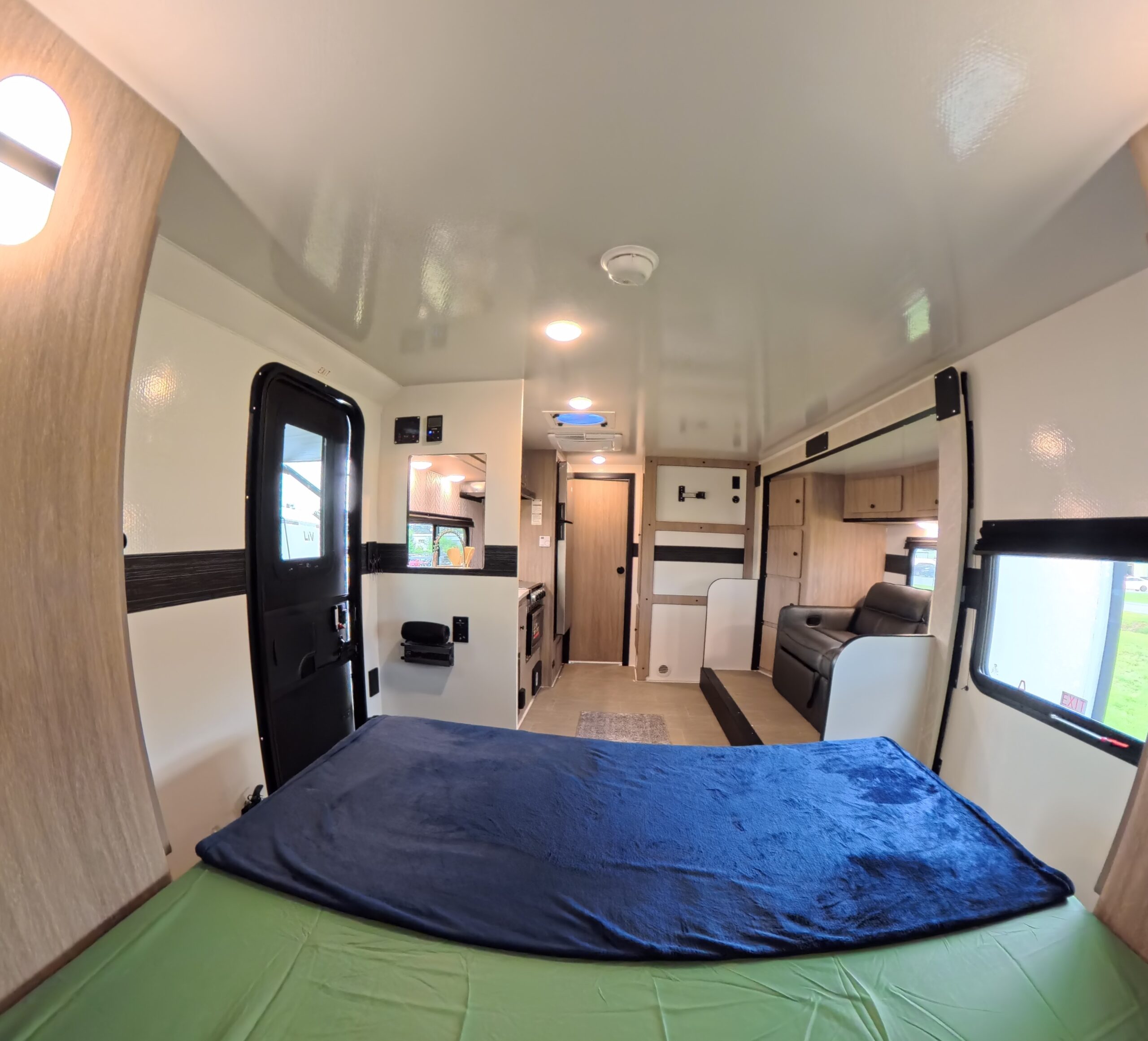

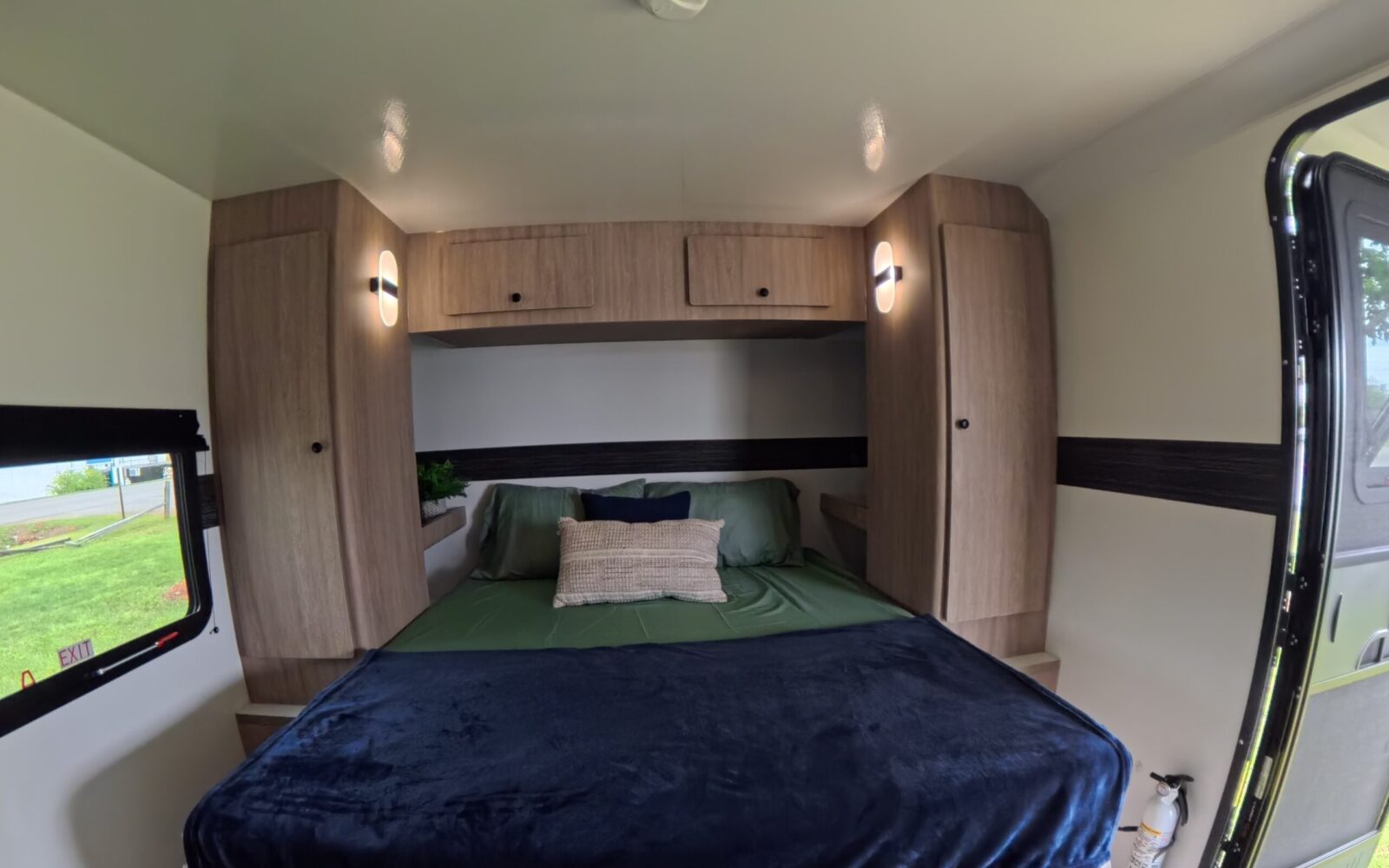

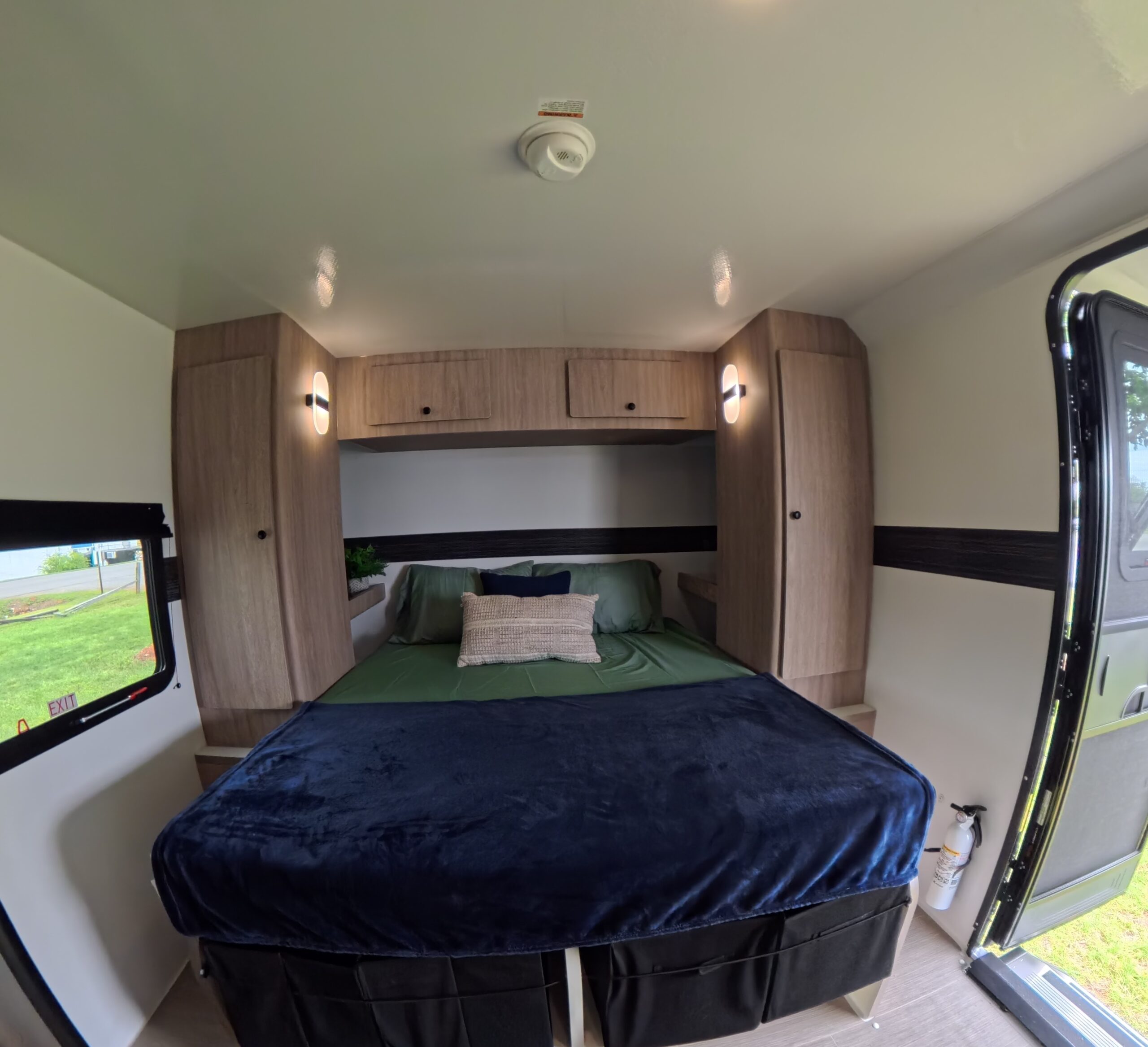

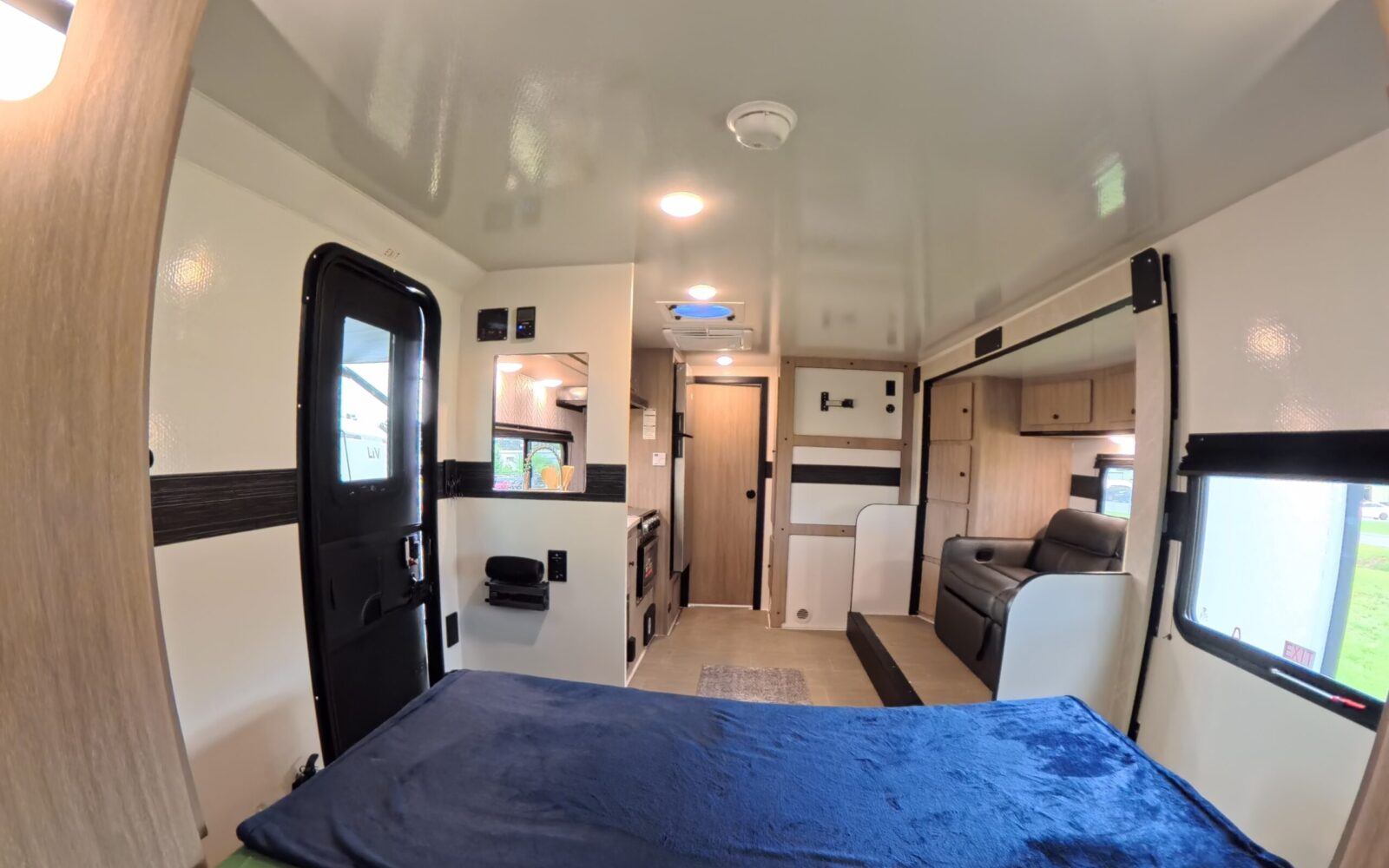

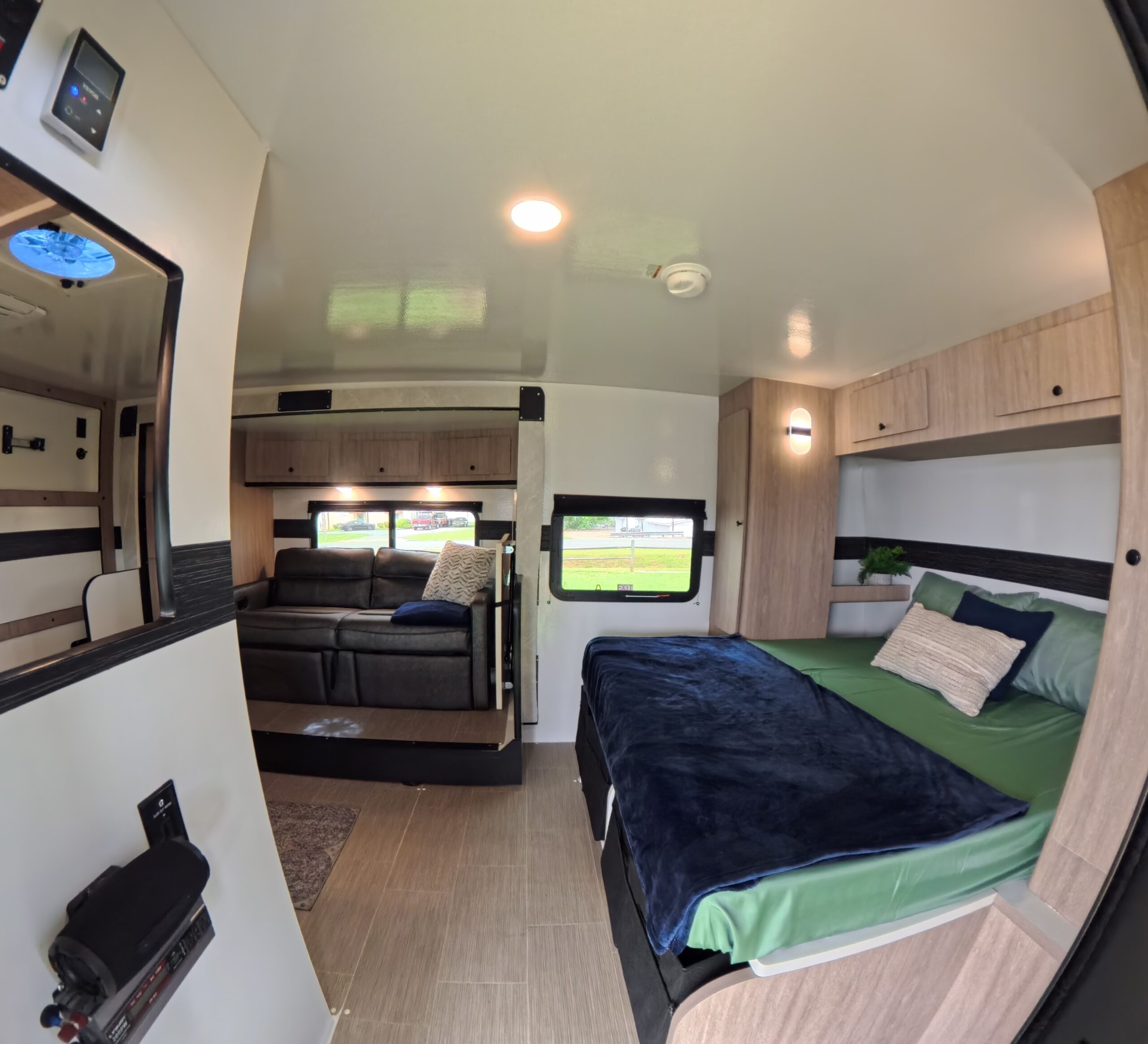

- Walkaround queen bed

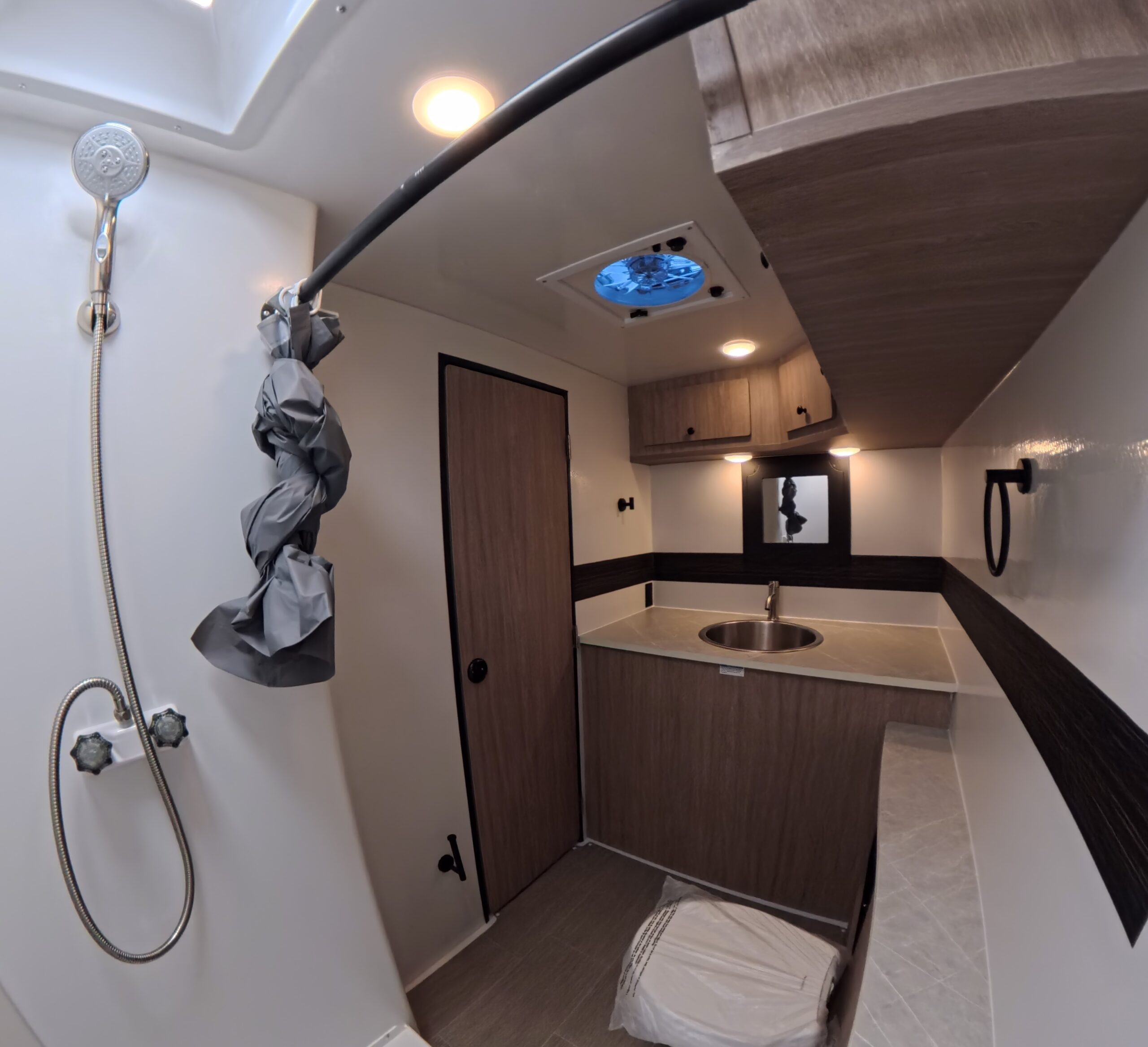

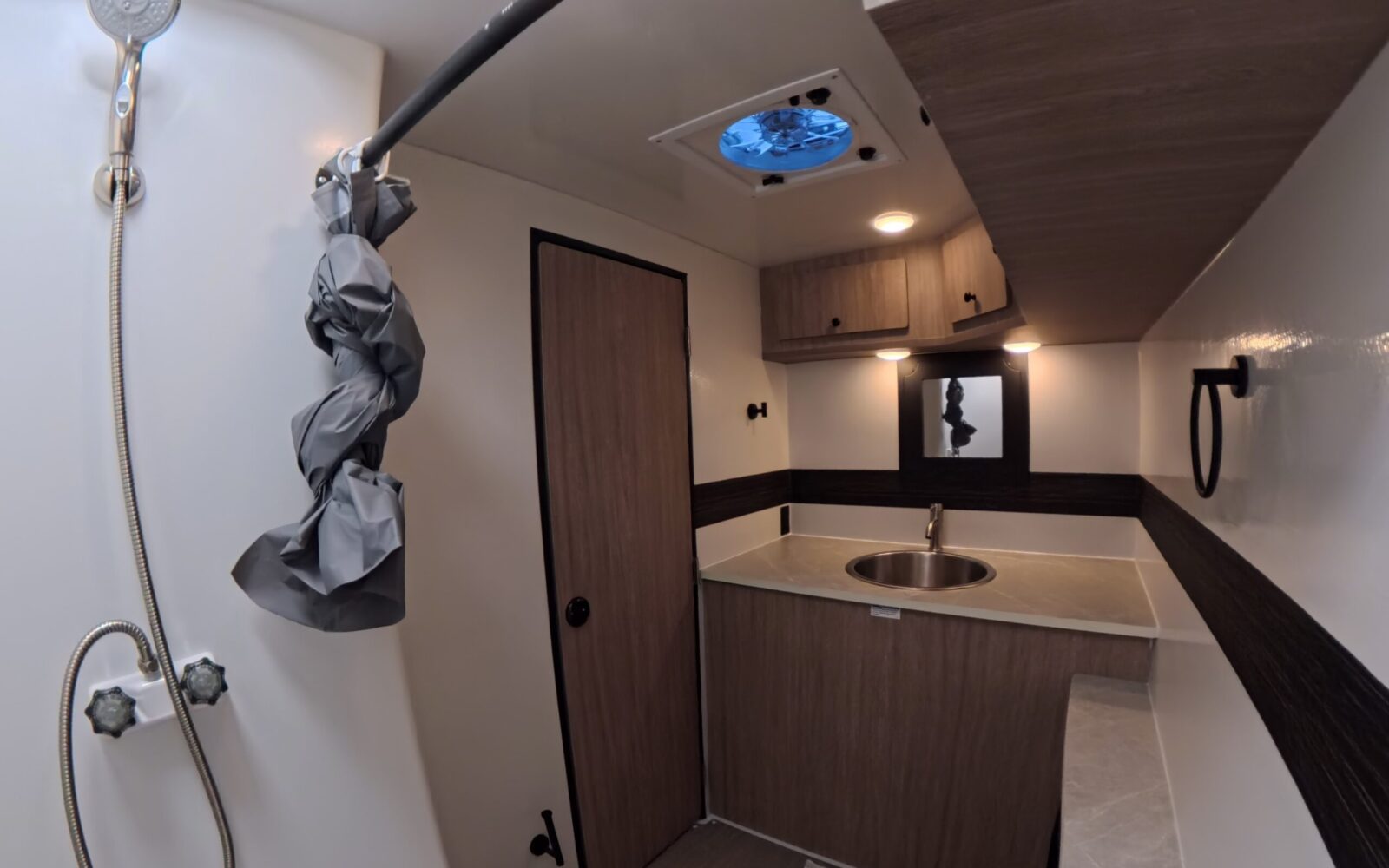

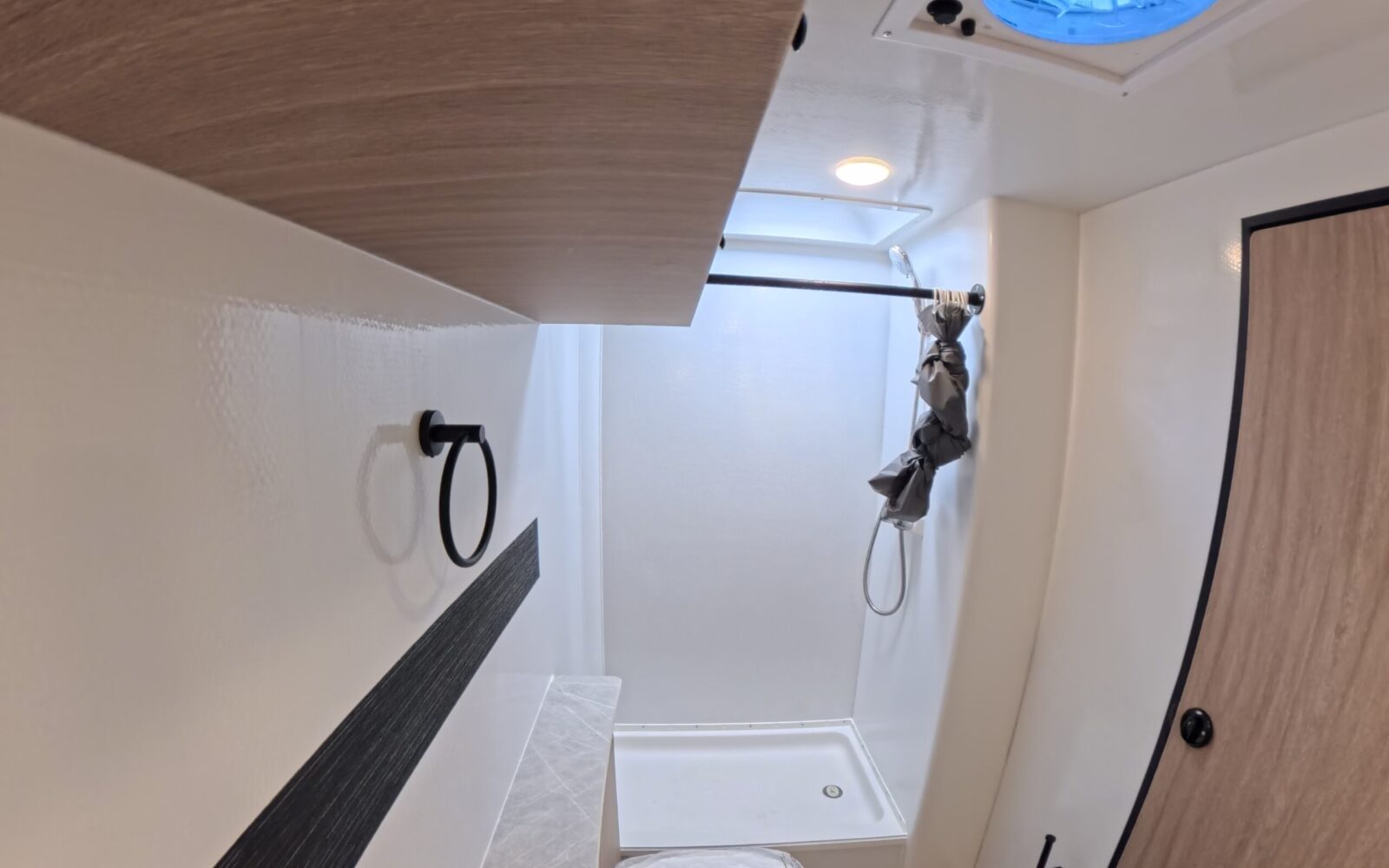

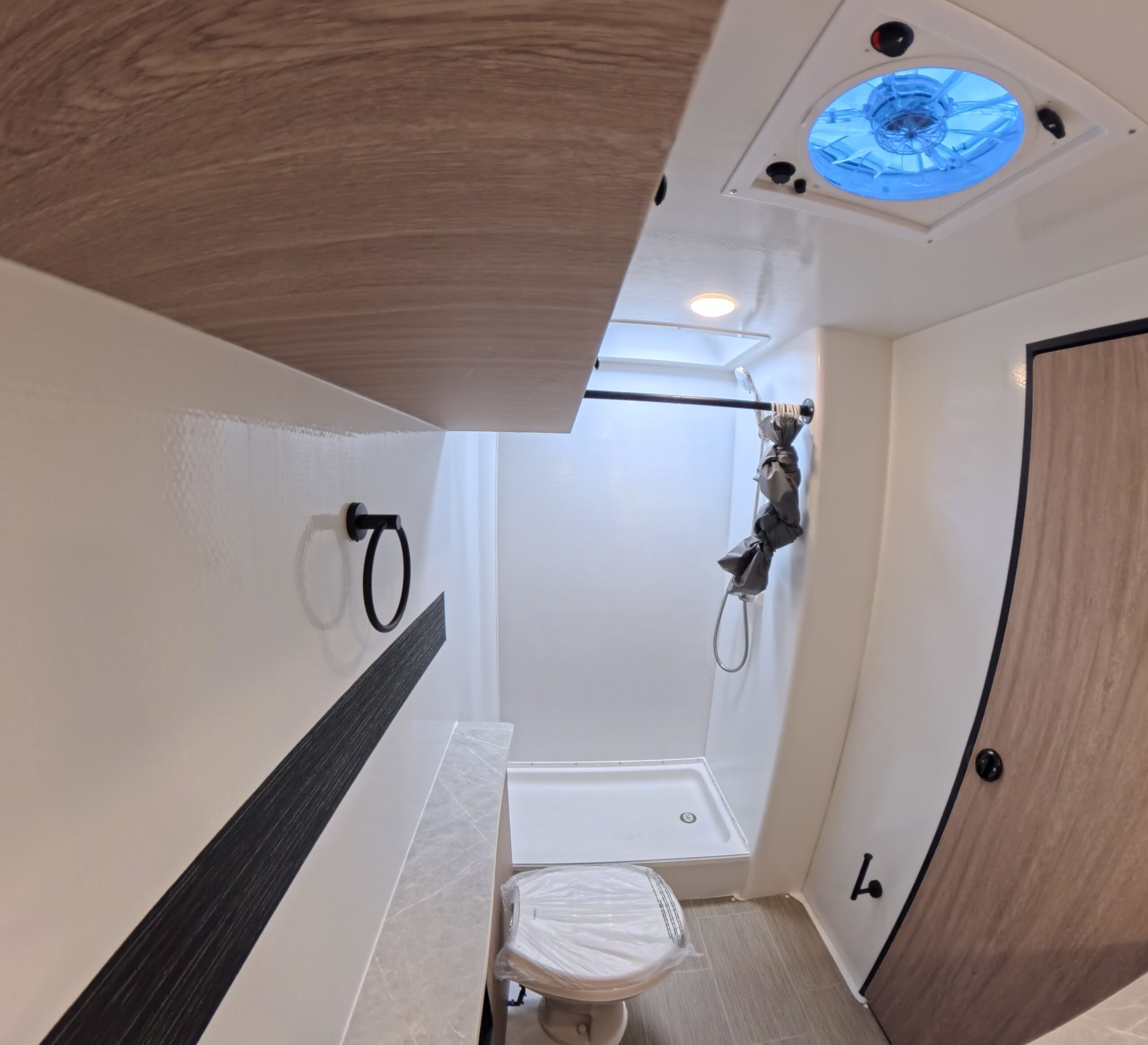

- Huge rear bath

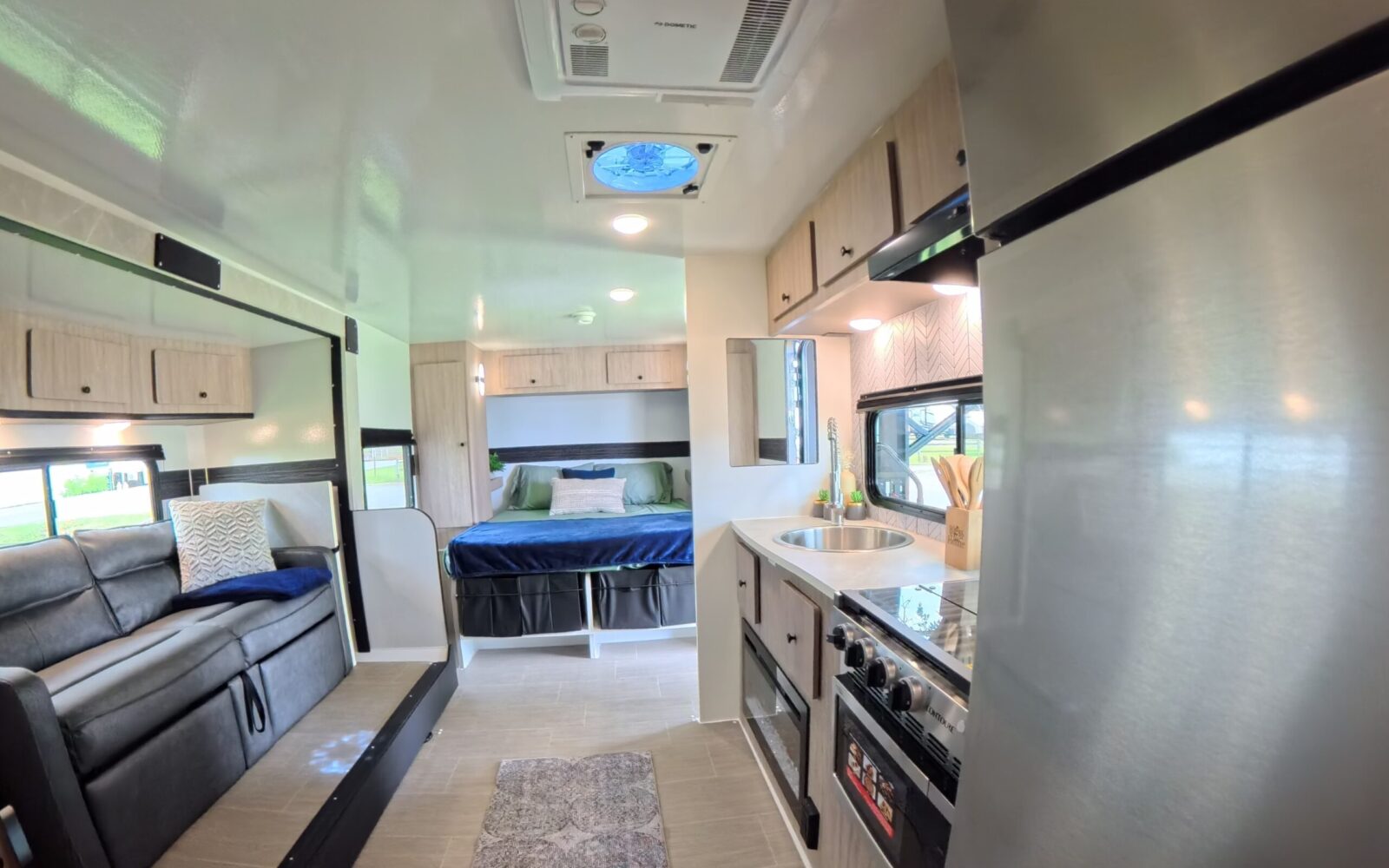

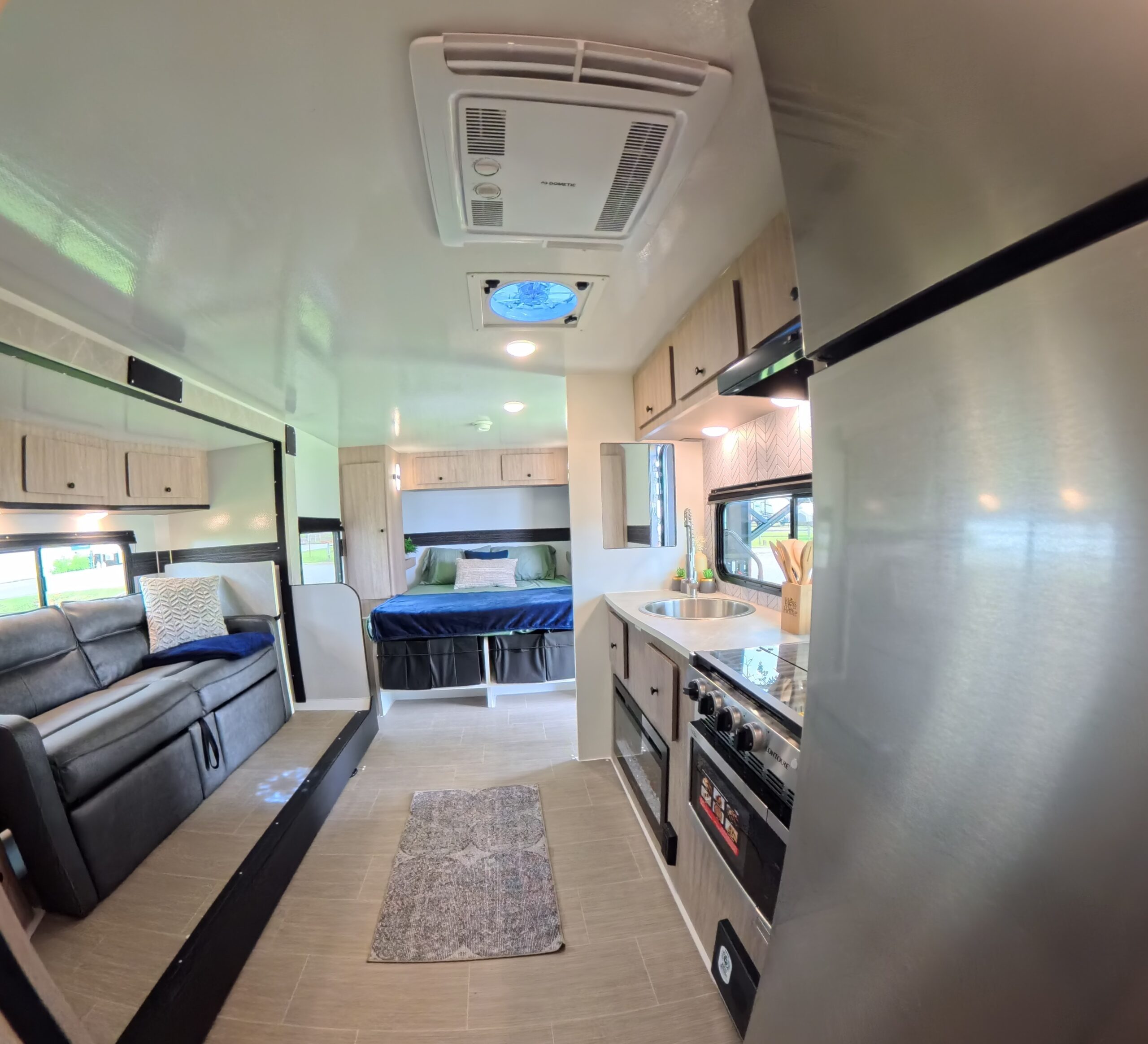

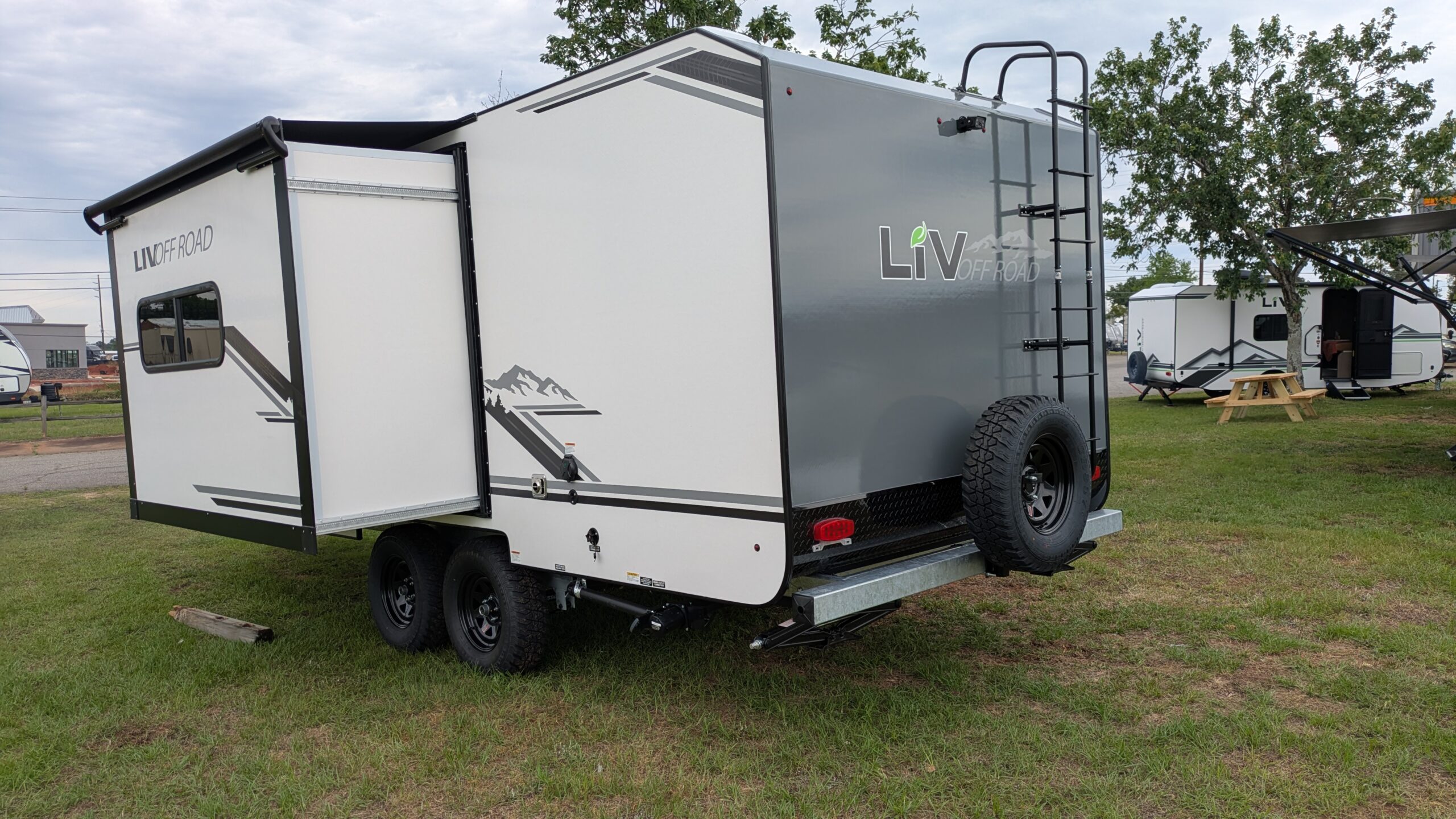

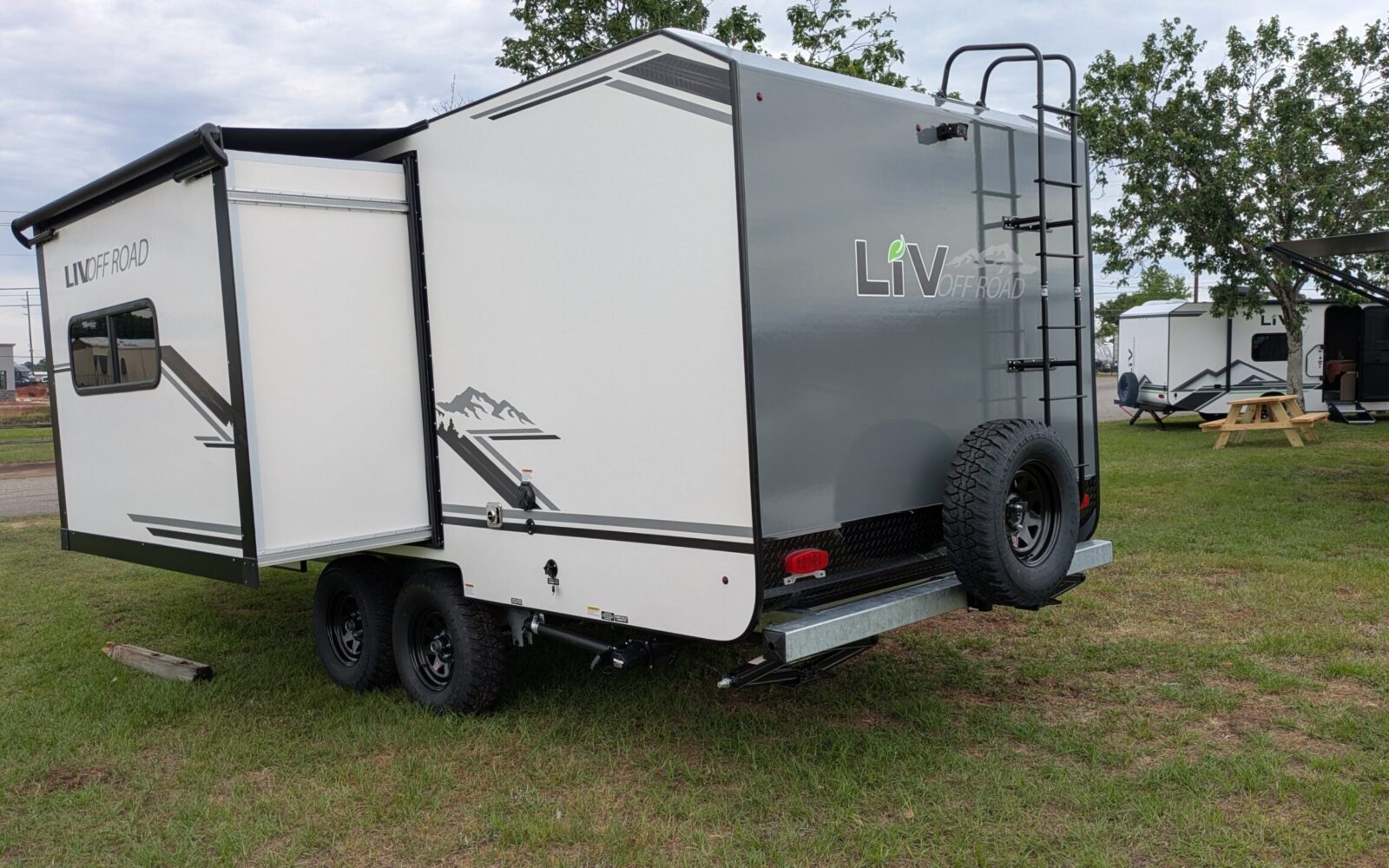

- Slide-out living area
- 10.7 cu ft refrigerator (standard)
- Dual-axle with Electric Brakes (standard)
- Massage Spa Shower available
- Outside Kitchen available
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
LIV Extreme Off-Road Package
Raised axle with 15-inch mudder wheels and spare, special graphics, 34-inch extended stabilizer jacks, custom painted front and rear exterior walls, off-road ladder, off-road roof rack, two spreader lights (front and rear, door side), and a 200-watt solar panel with inverter, lithium battery, and controller. Available on the 201 BH, 201 QB, 211, 23-series, and 26 models.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Upgrade to Lithium Battery Optional
- Quiet Inverter Generator with Mount Optional
Climate & Comfort
- 6-Gallon Water Heater (Gas/Electric, Insta-Hot) Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
- Cable TV and Mount — 32″ Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Electric Brakes Standard
- Electric Stabilizer Jacks (Front & Rear) Optional
- Galvanized Frame Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard
- Standard Shower Standard
- Massage Spa Shower Optional
- Sofa Optional
Appliances
- Microwave Oven Standard
- 2-Burner Propane Cook Top Standard
- 10.7 cu ft Refrigerator Standard
- Upgrade to Convection Microwave Optional
Exterior
- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional

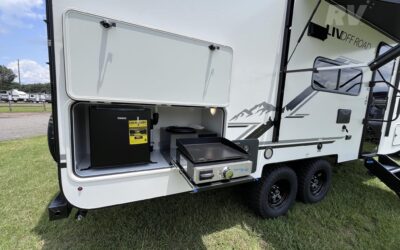

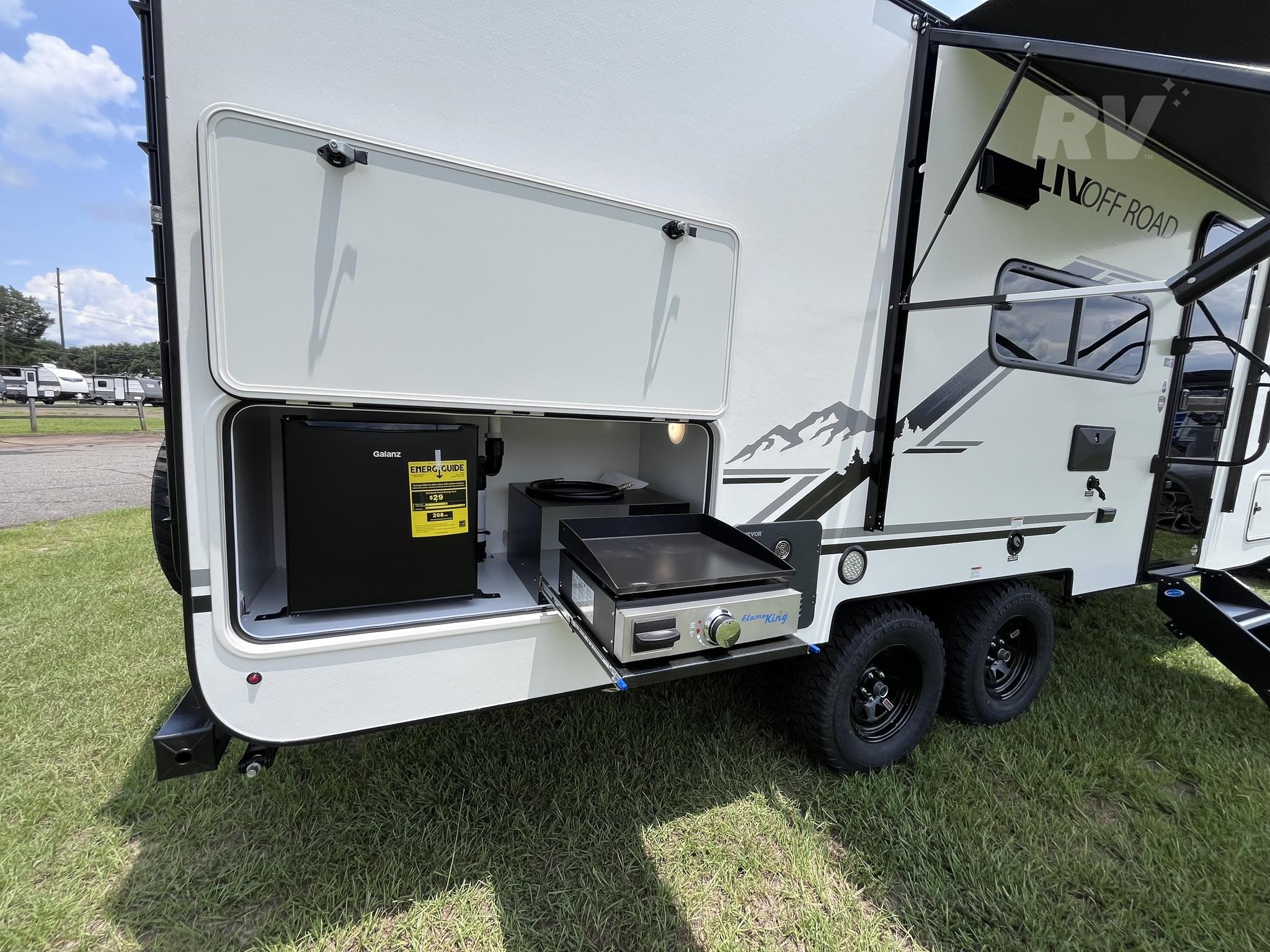

- Outside Kitchen Optional
- Outside Griddle & Bracket Optional

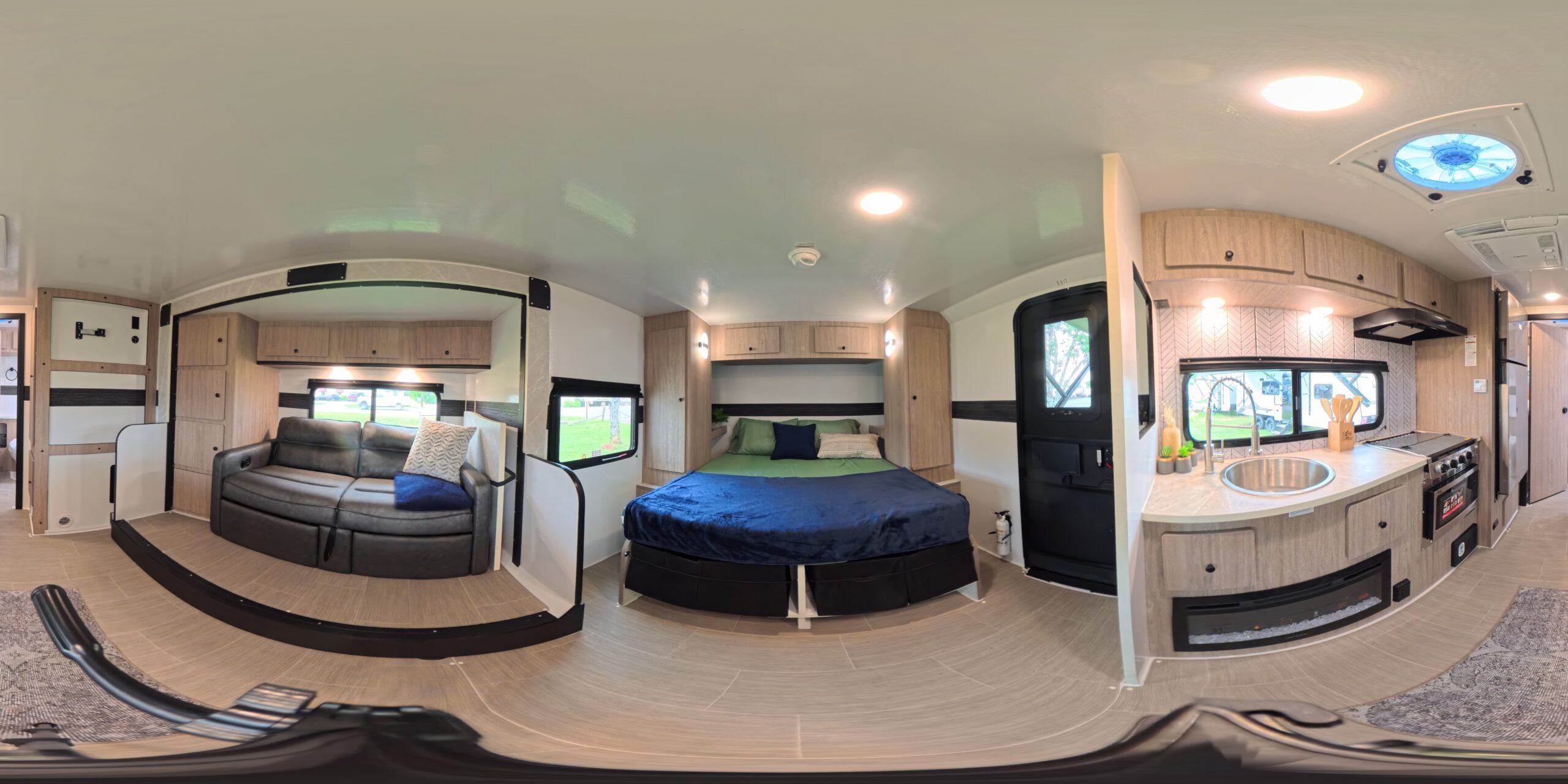

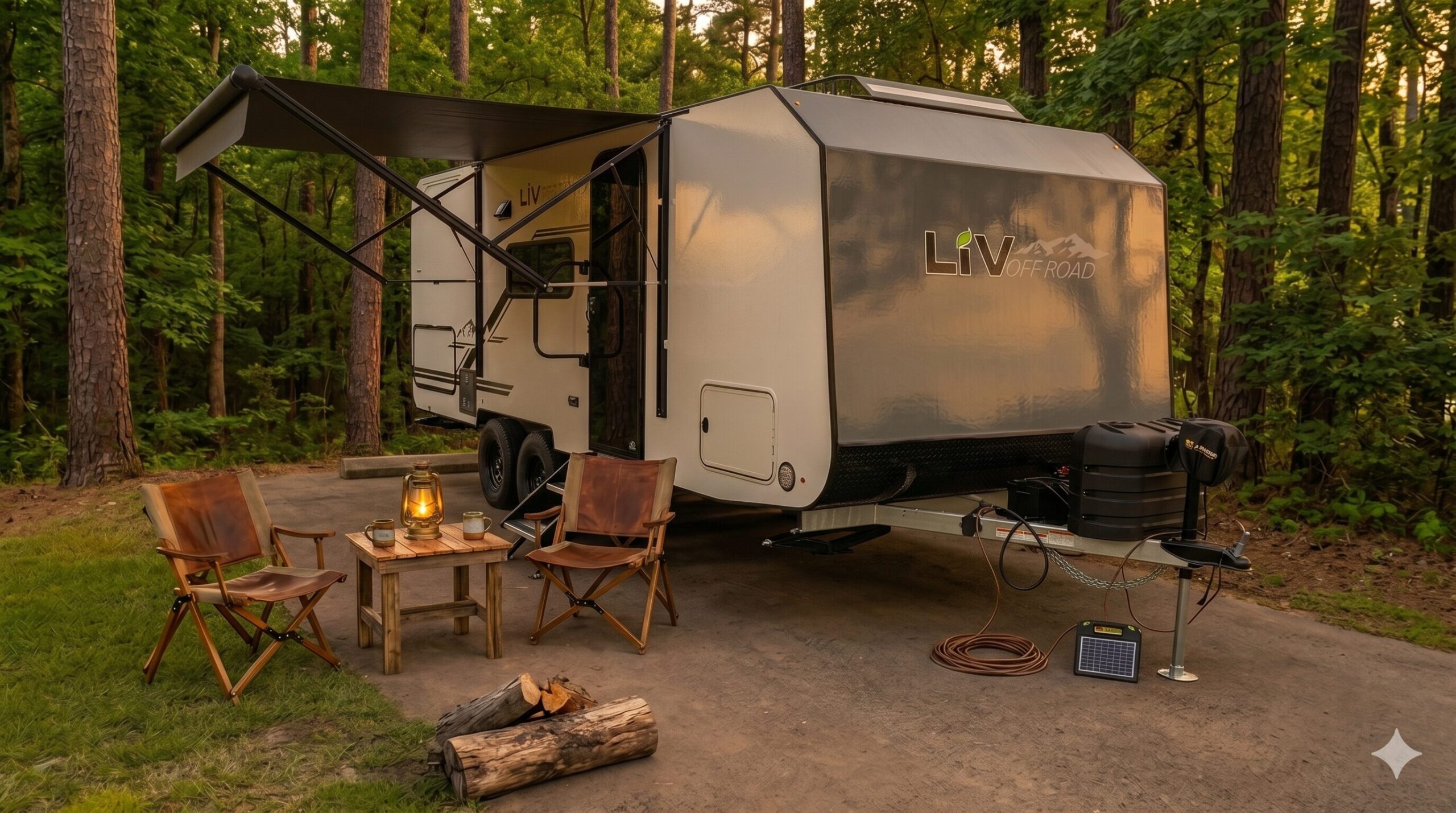

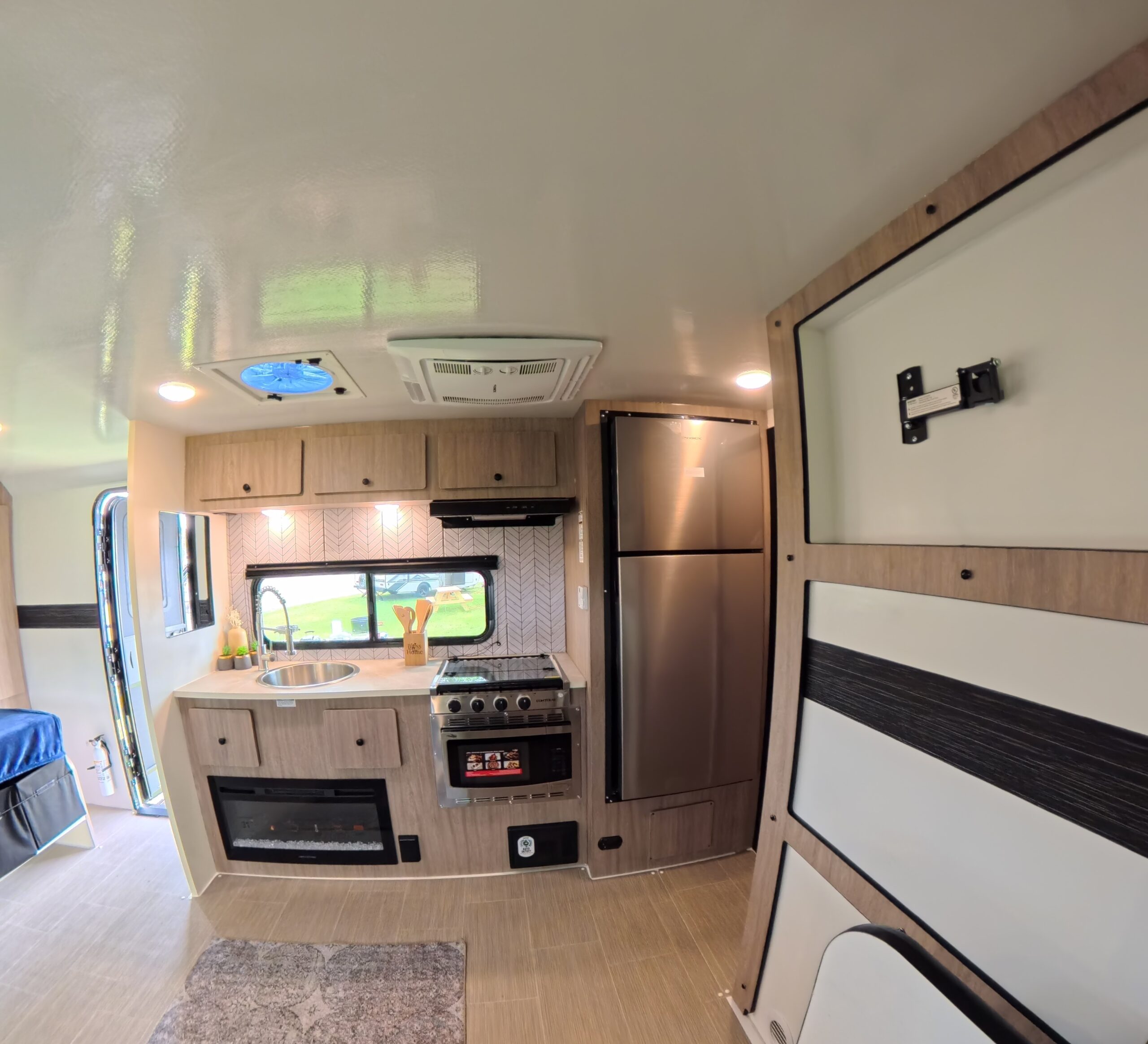

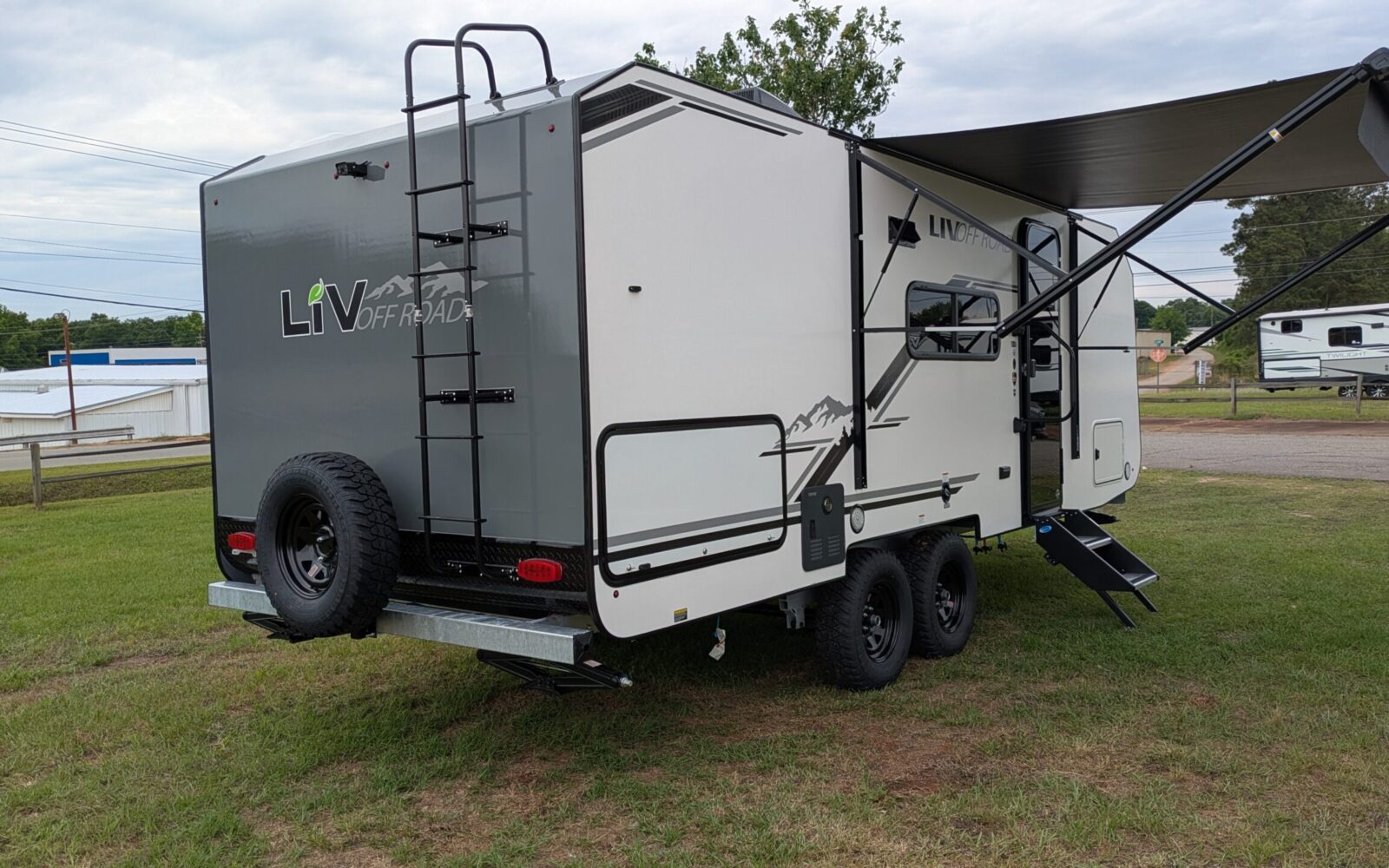

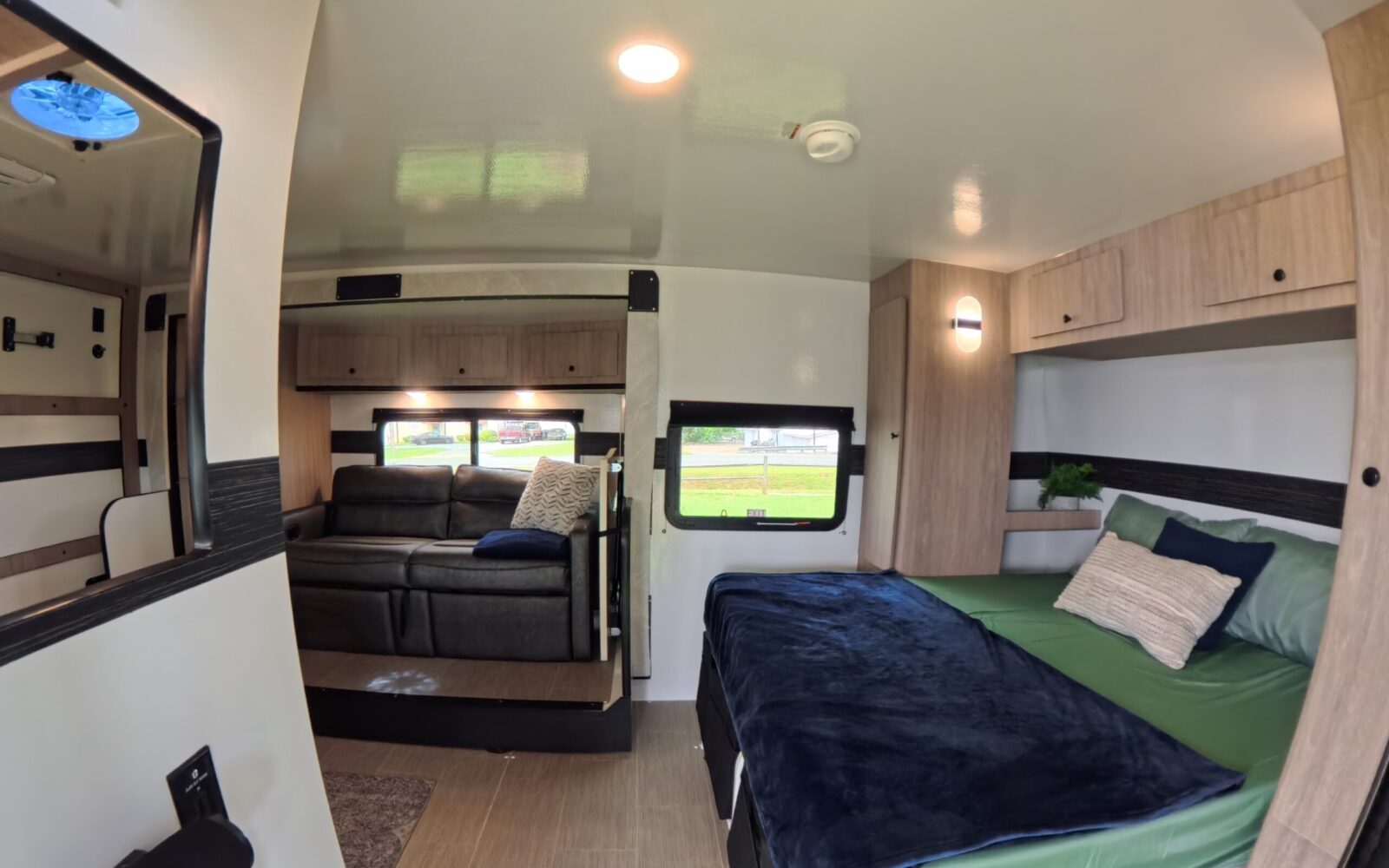

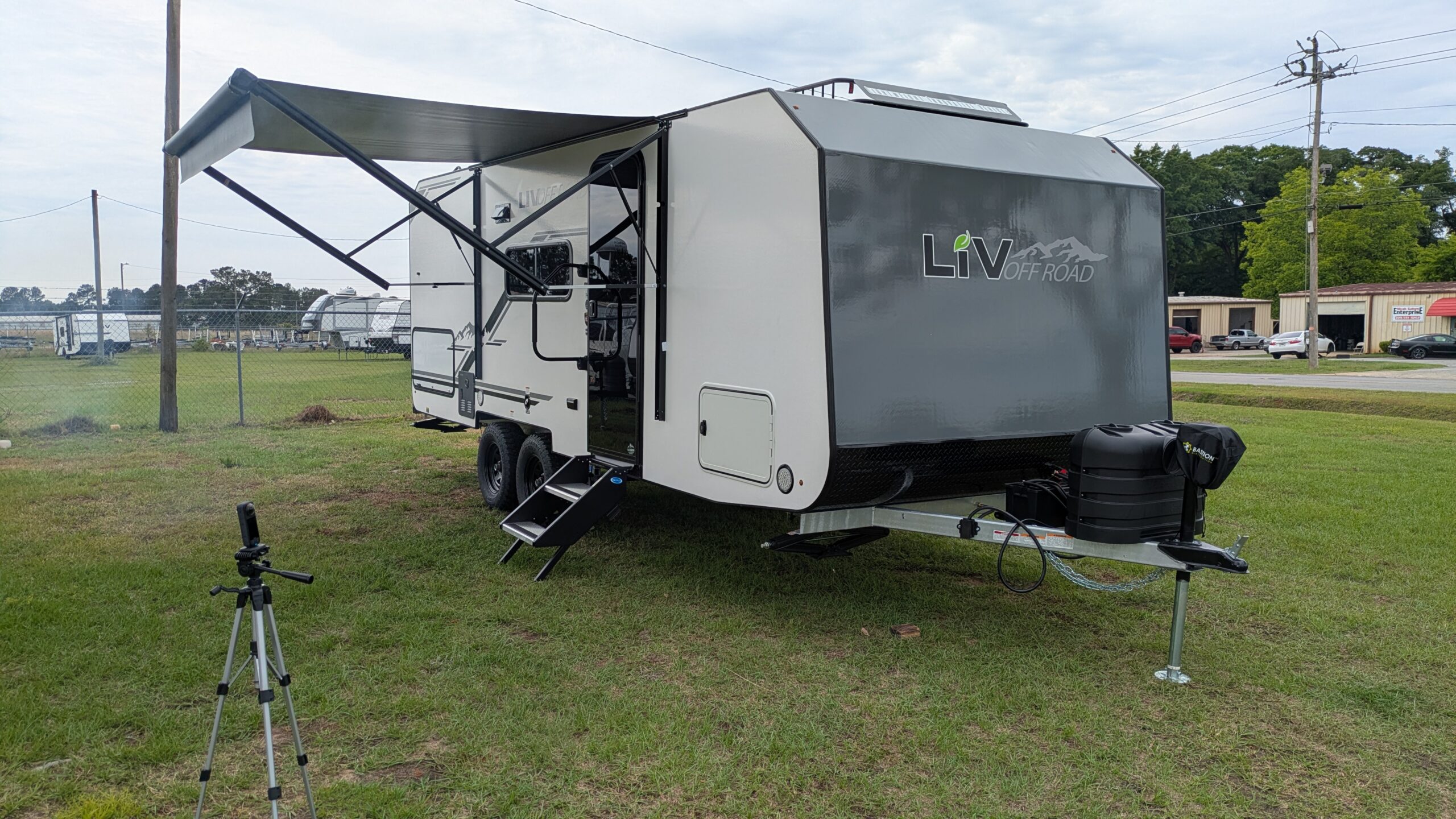

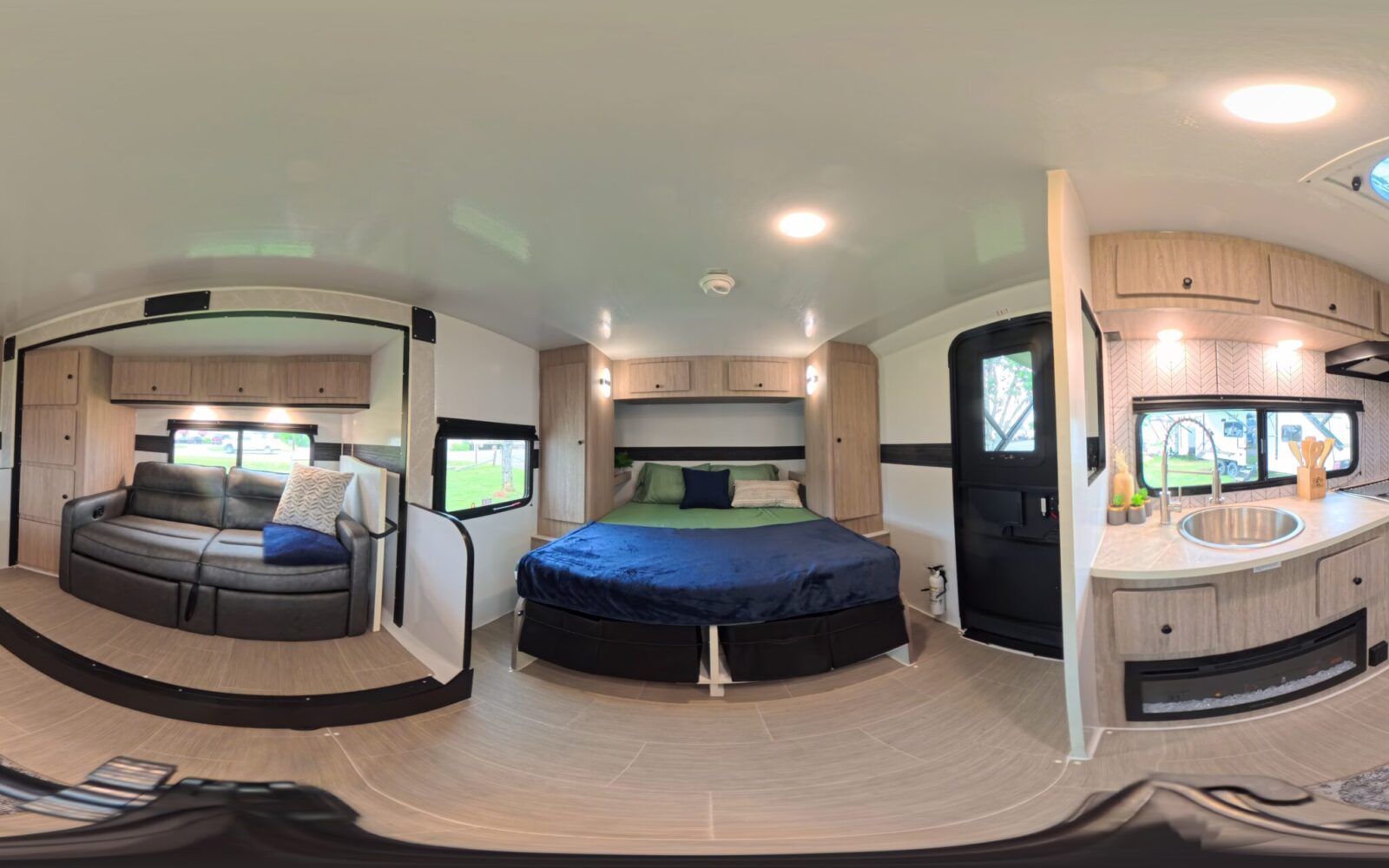

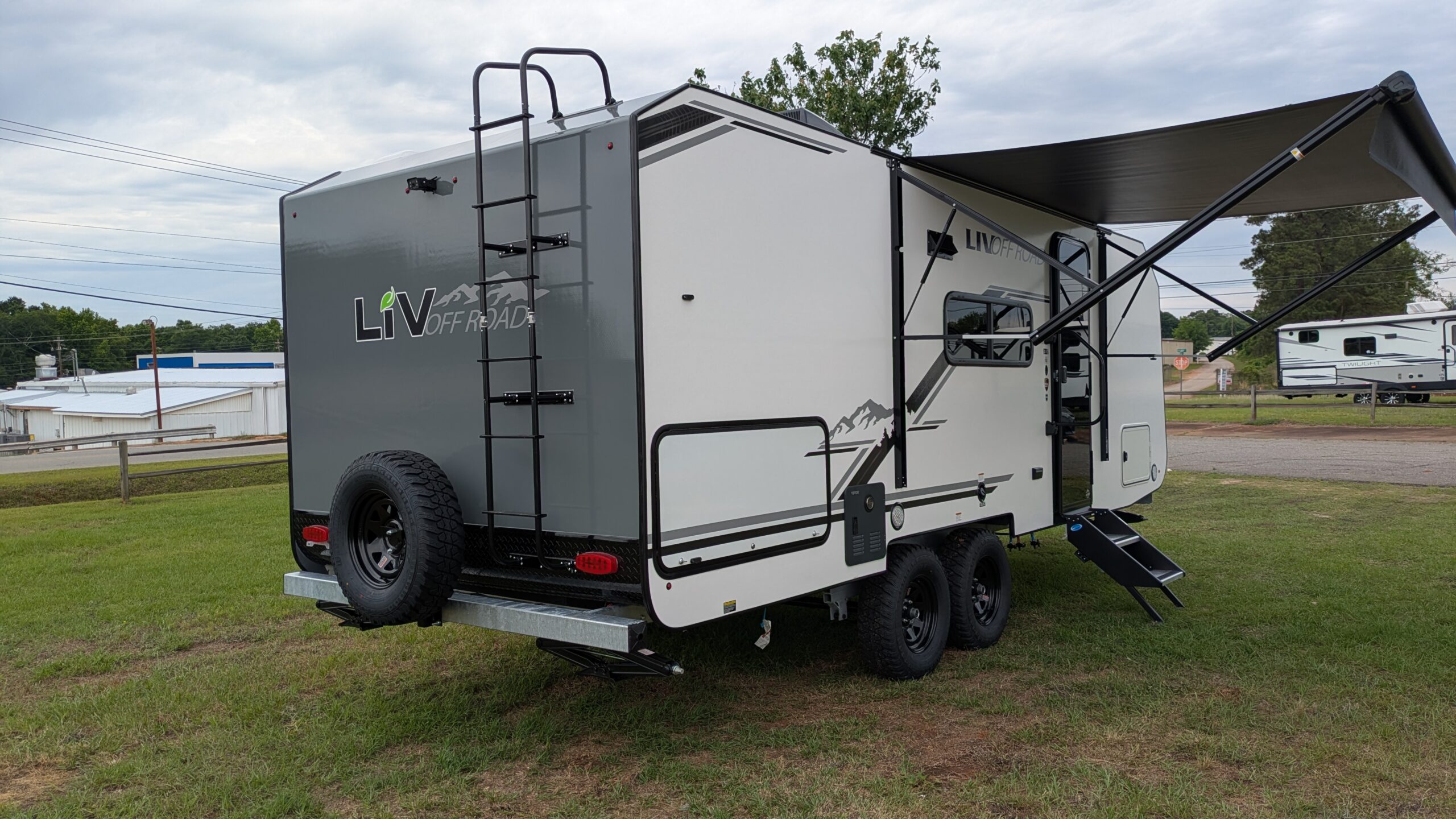

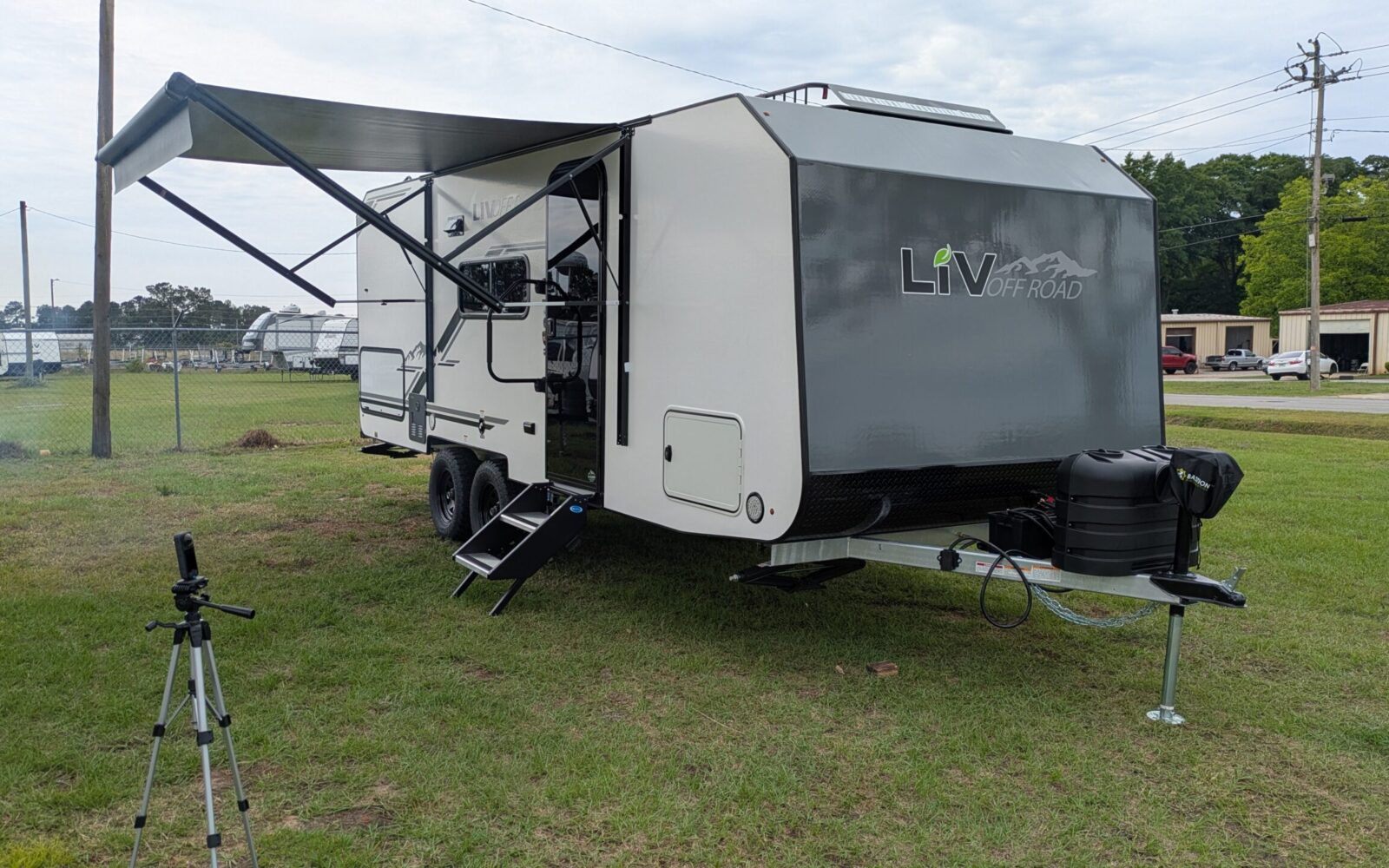

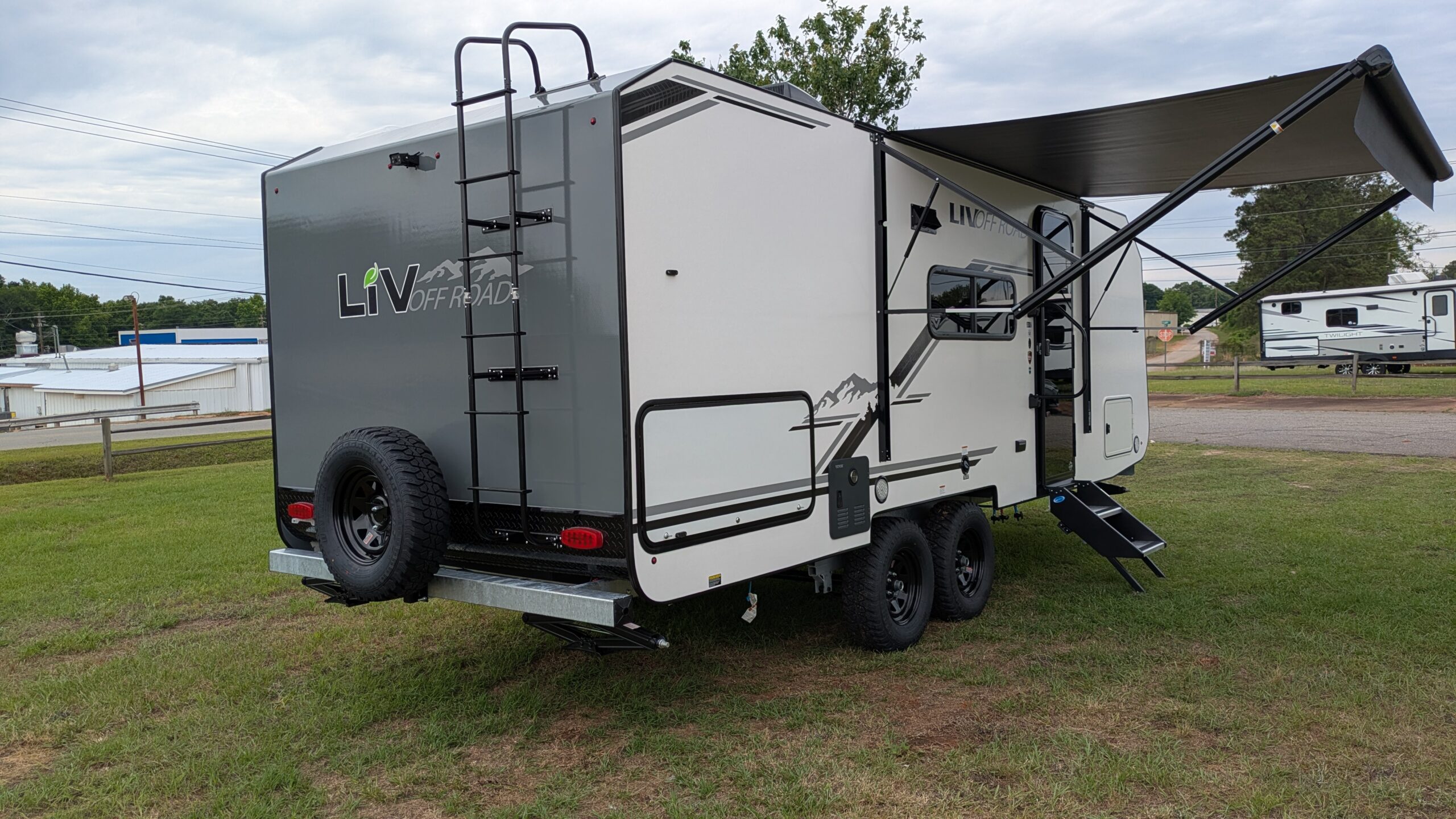

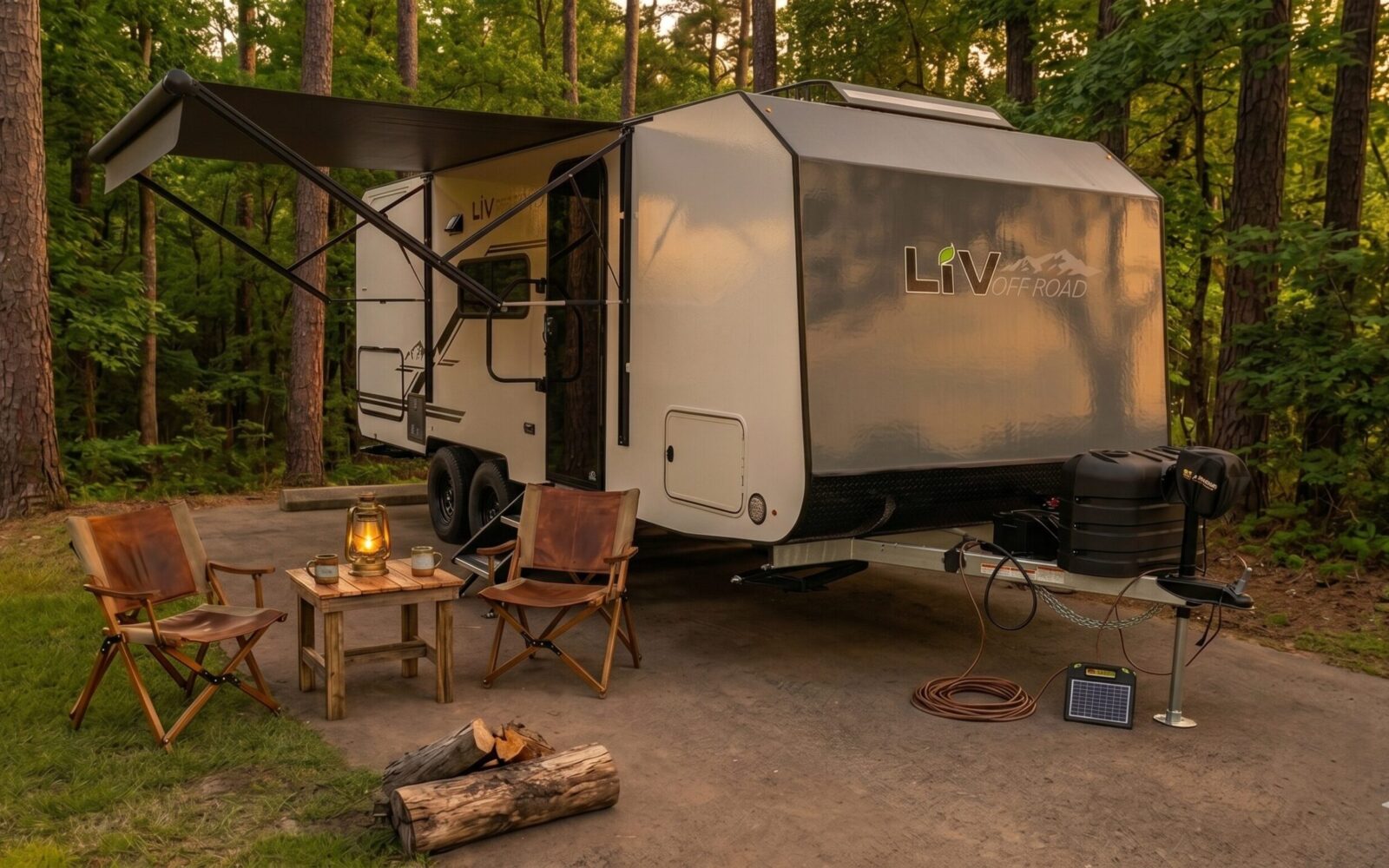

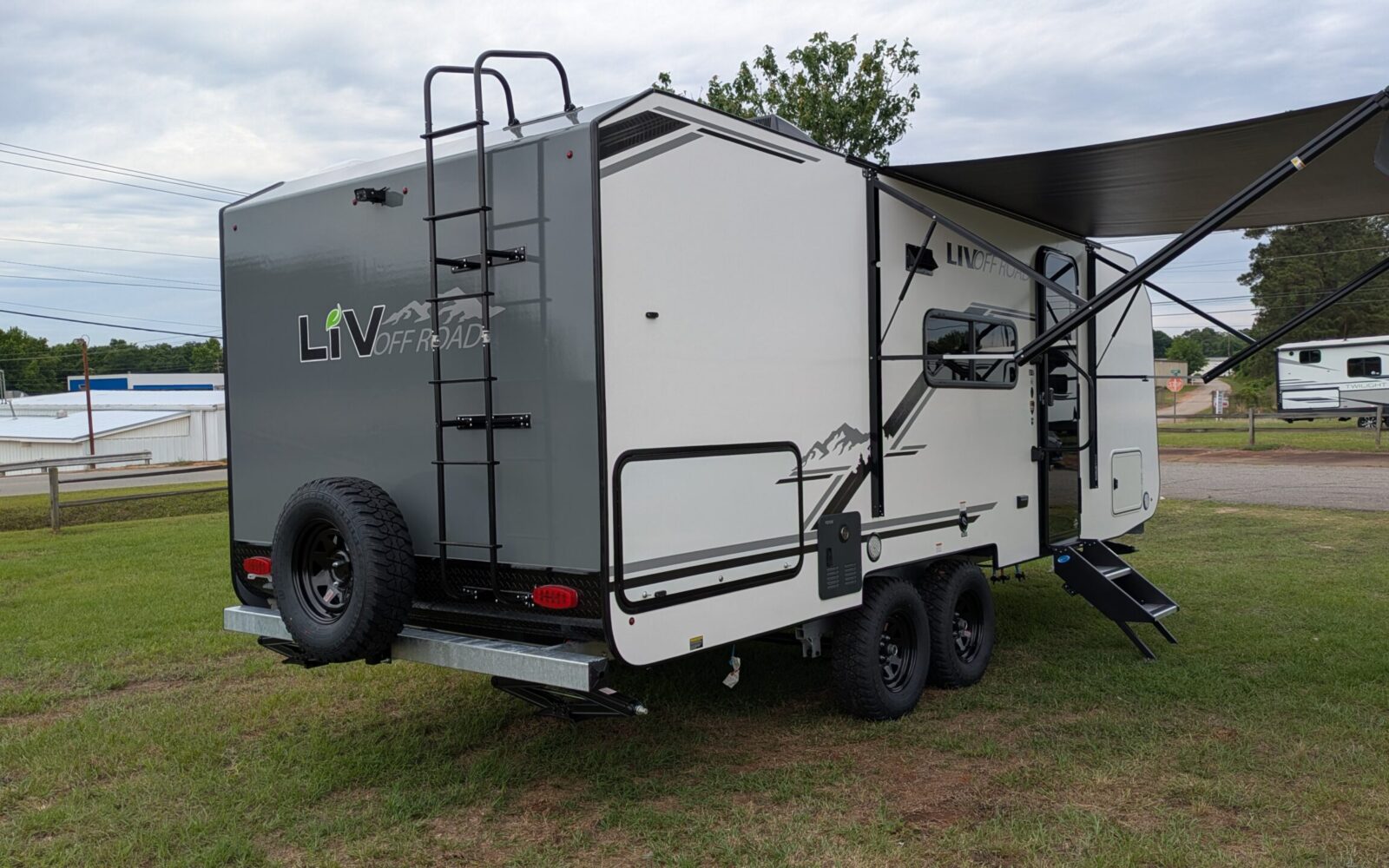

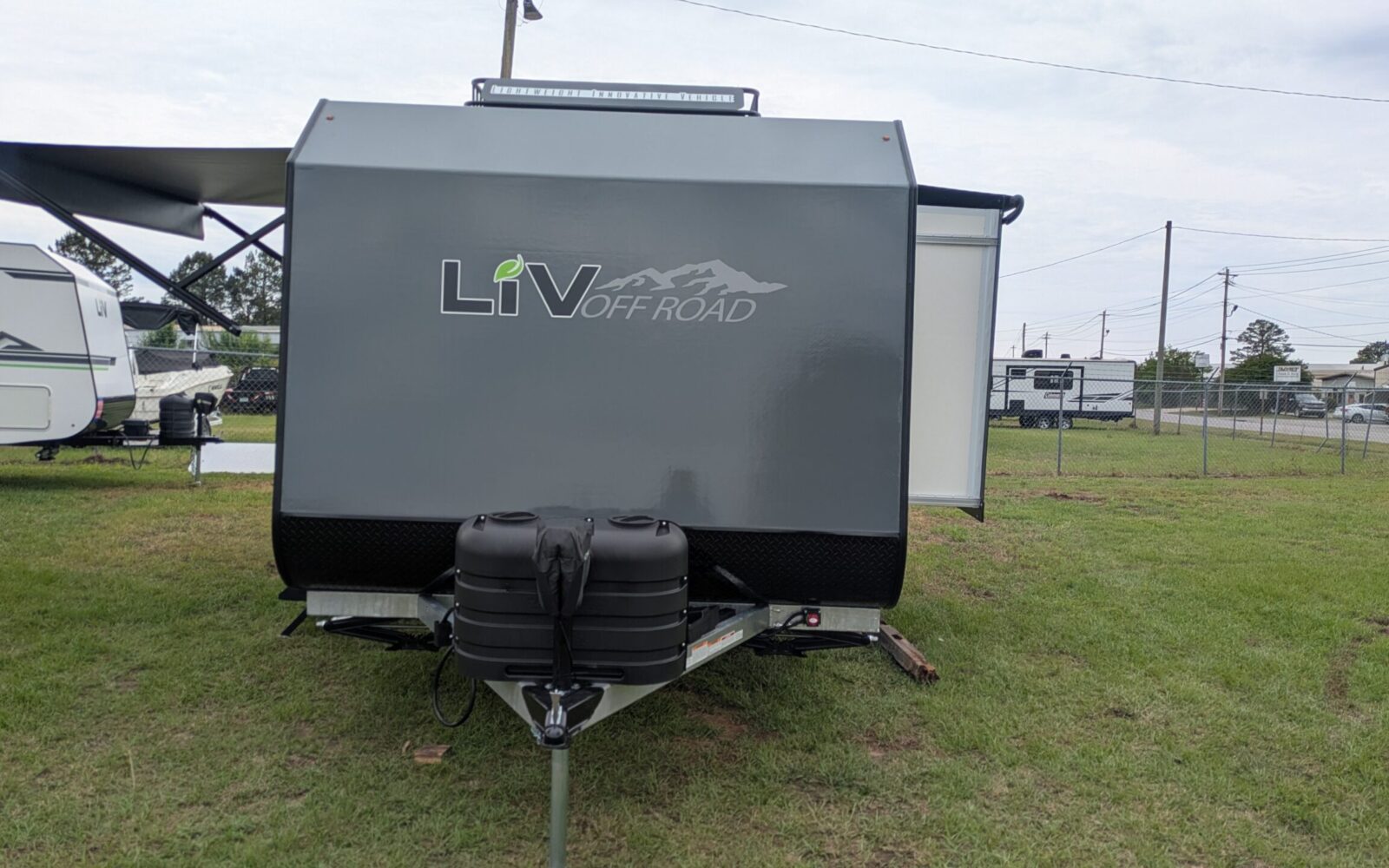

Gallery
Inside and out.
Ready to roll?
Configure your LiV 23 RBS, save your build, then take it to a dealer.
