13 BH SERIES · Travel Trailer · Sleeps 2–4

MODEL

13 BH

Travel Trailer · Sleeps 2–4

No Slide-Out

The 13 BH proves you don’t need 25 feet of trailer to bring the kids. Inside the smallest frame in the LiV lineup you’ll find plush twin bunks for the little ones, a full-sized bed for the grown-ups, and a bathroom with a toilet and standing shower — all on a 1,870-pound single-axle composite chassis that won’t outgrow your tow vehicle. The full LIV Convenient Package is standard from day one (microwave, A/C, InstaHot endless hot water, power awning with LEDs), and our Off-Road Package is optional if your favorite campsite isn’t paved. Add the extra-stabilizer-jack upgrade for full front-and-rear coverage, plus a Solar Package, and you’ve got a full family rig that still fits in your driveway.

New · 2027 Lifetime wood rot warranty
FLOORPLAN
LiV 13 BH floorplan

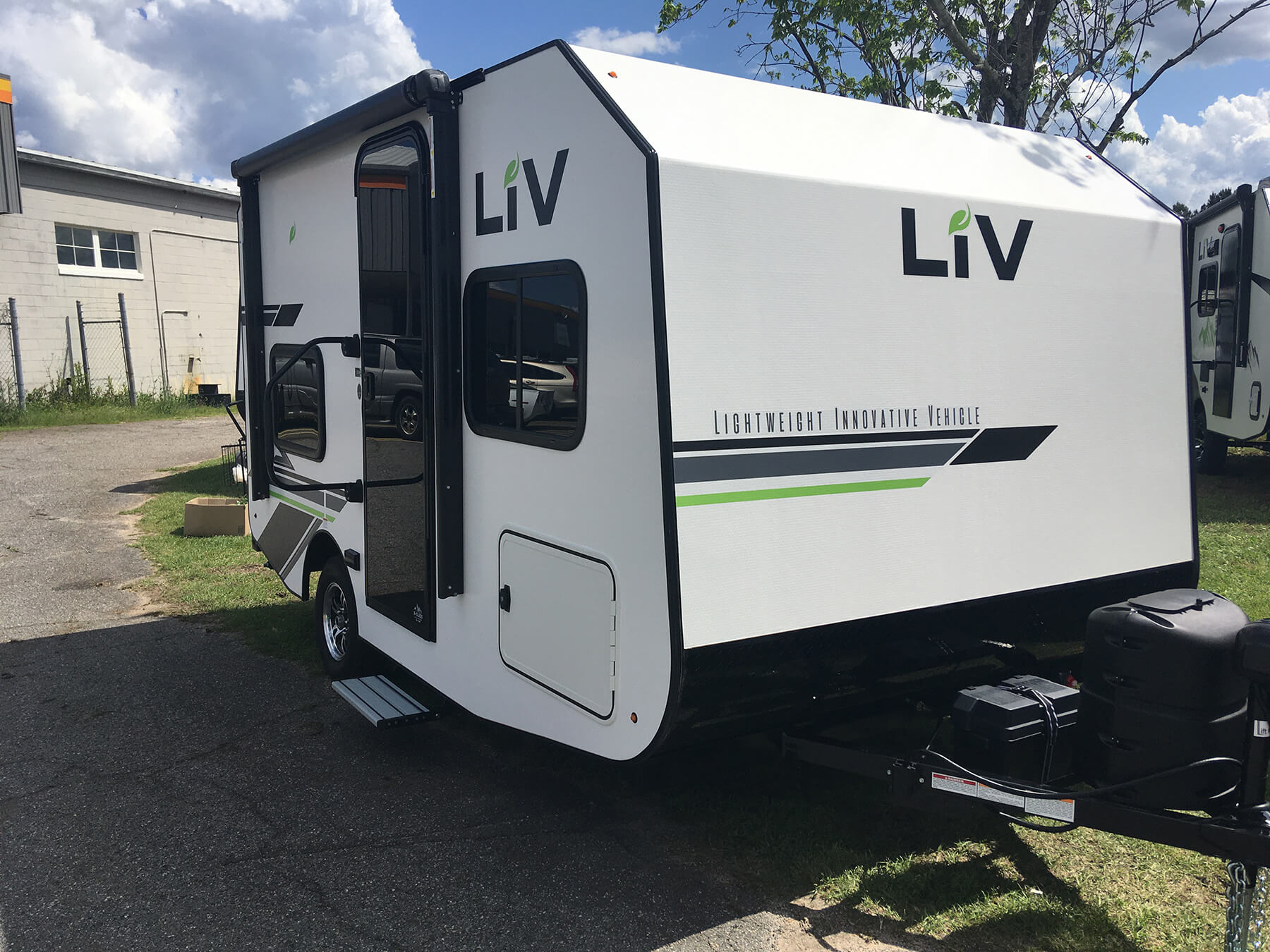

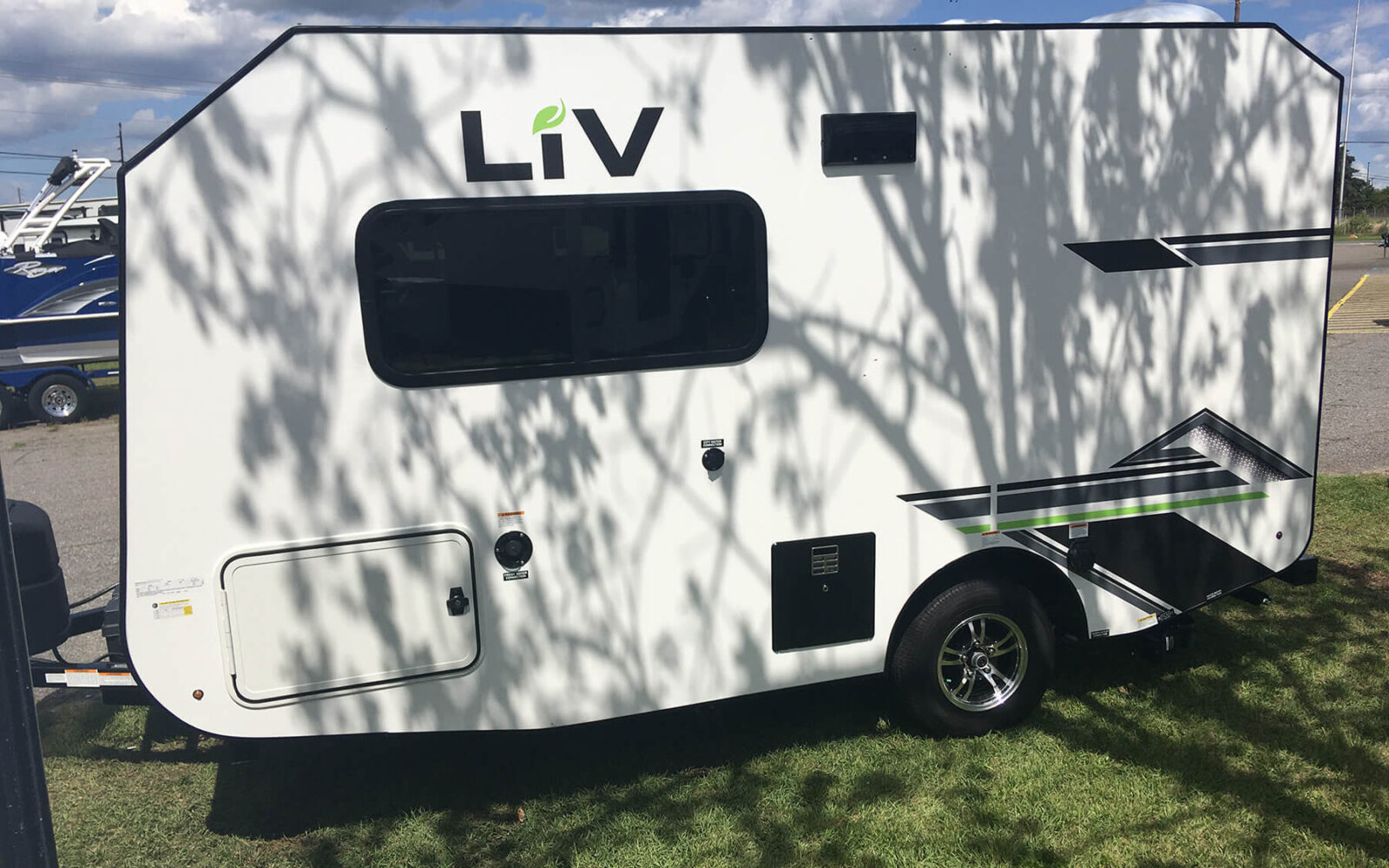

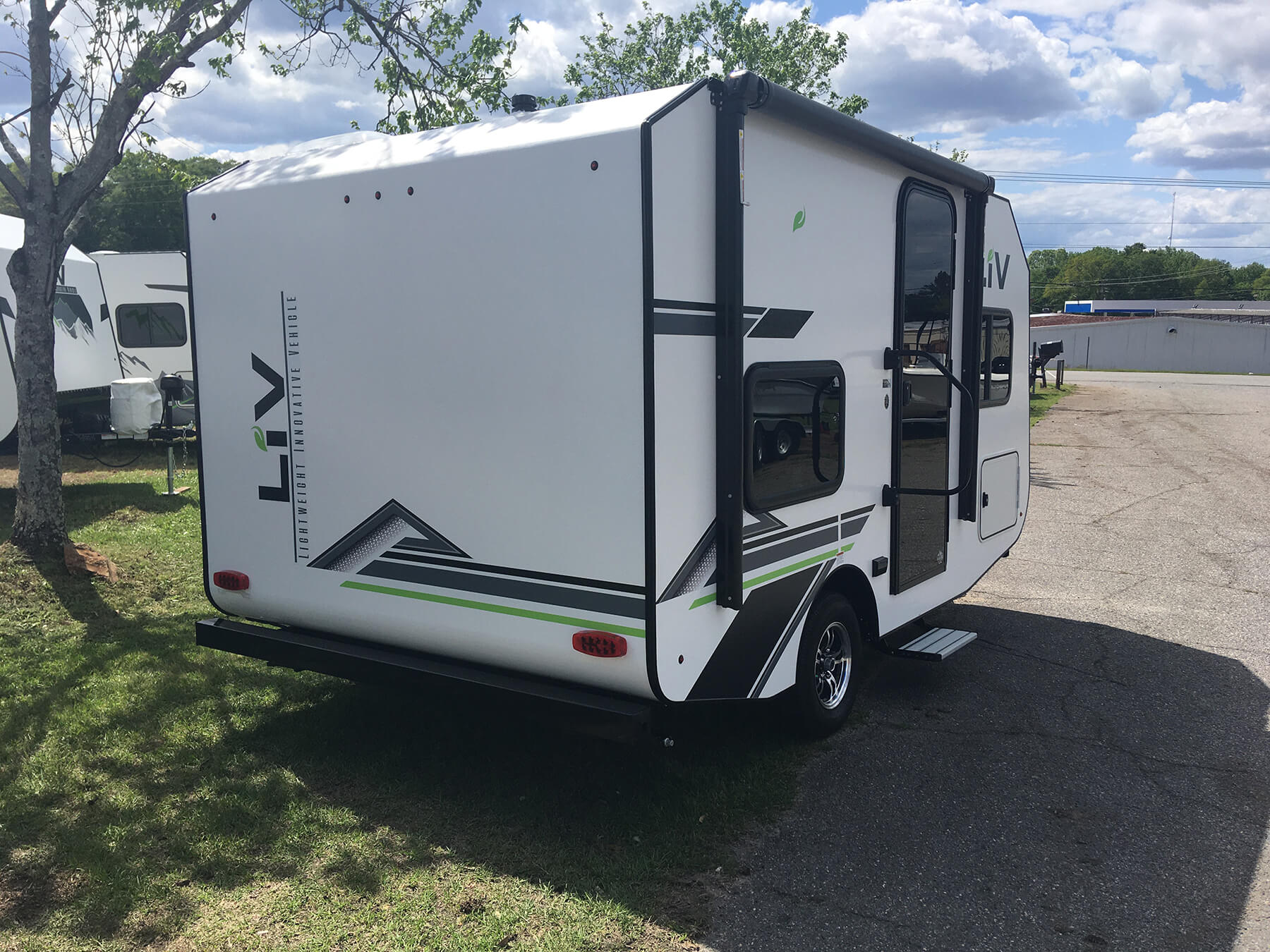

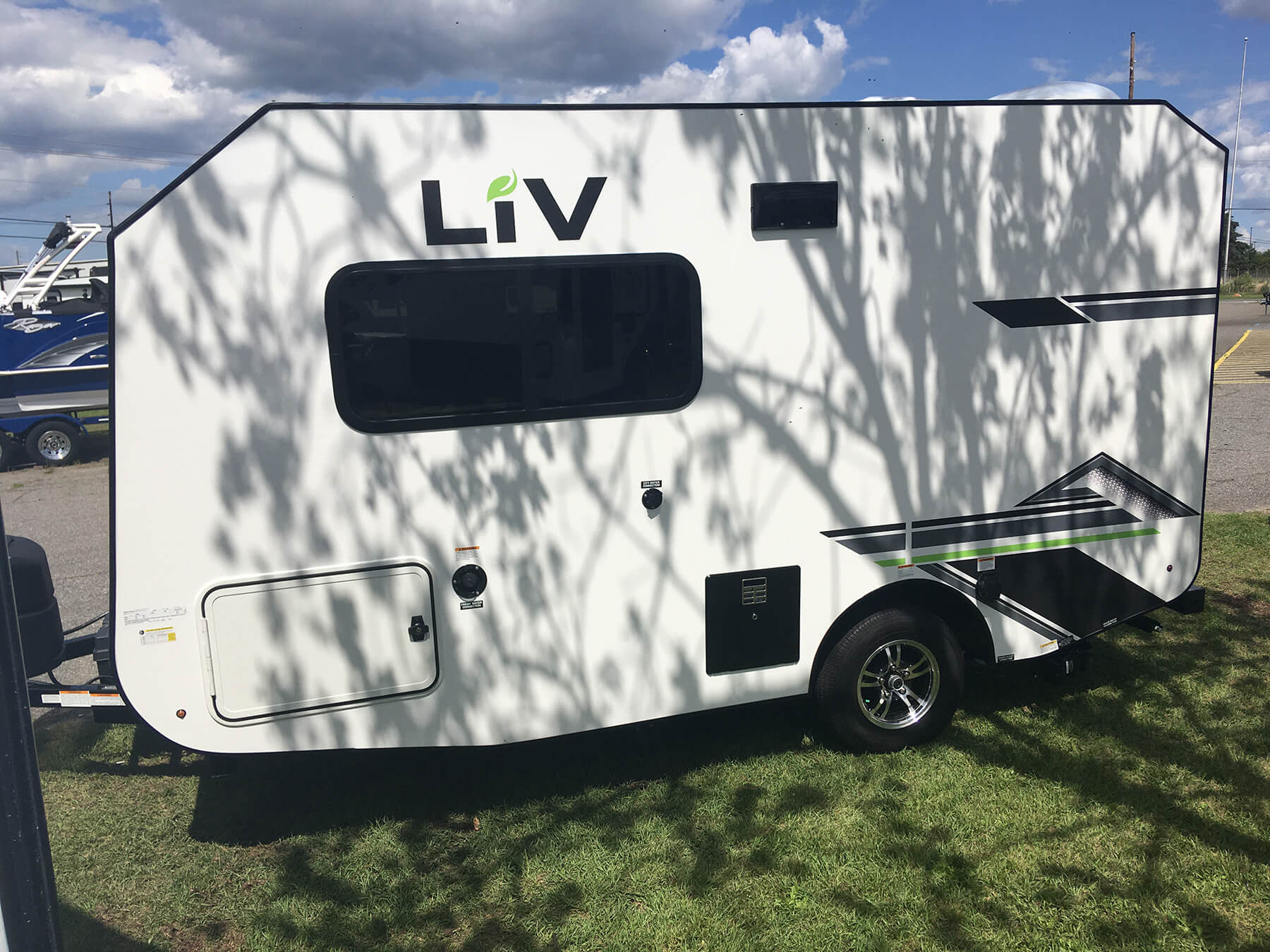

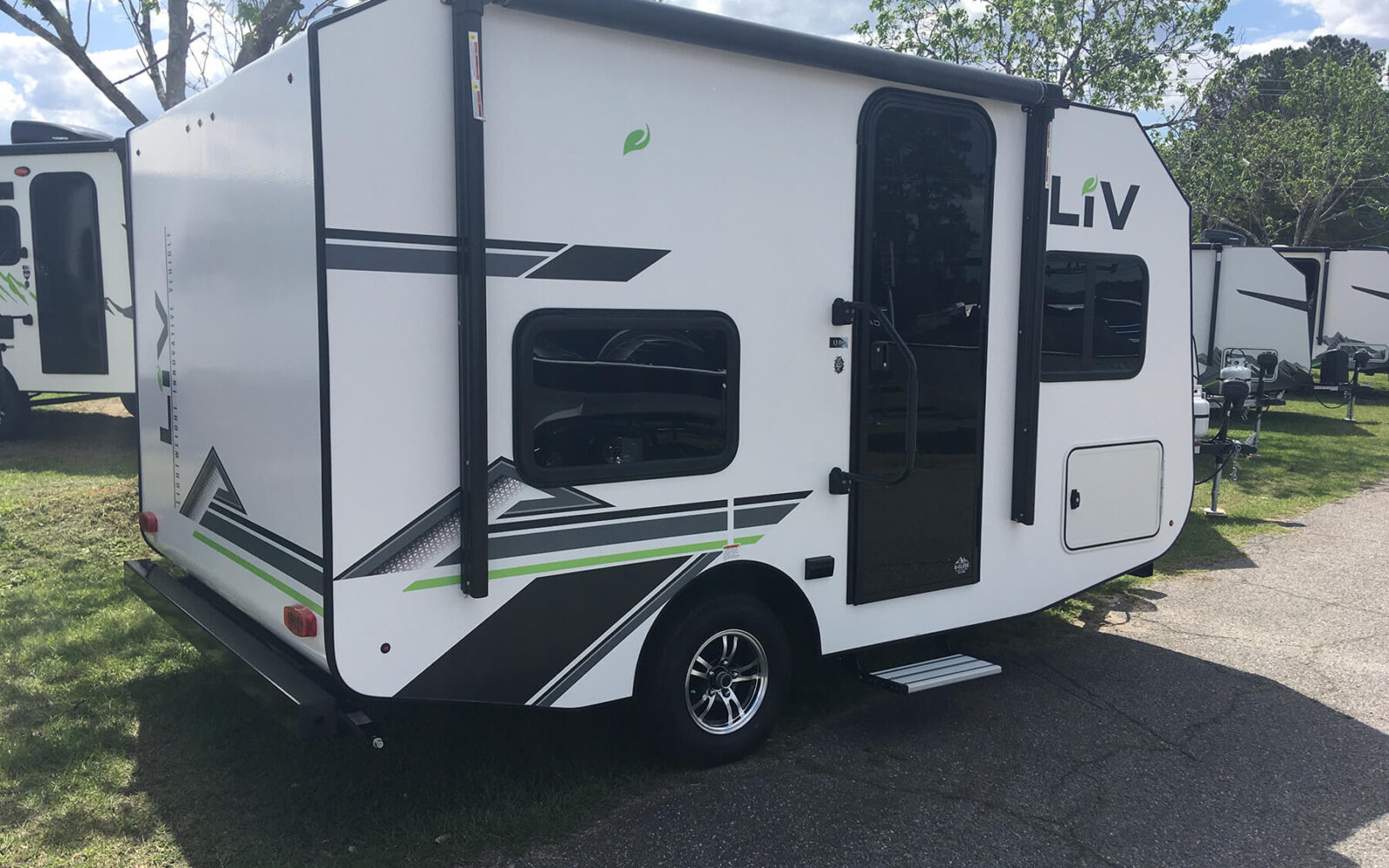

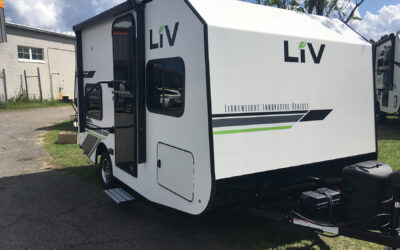

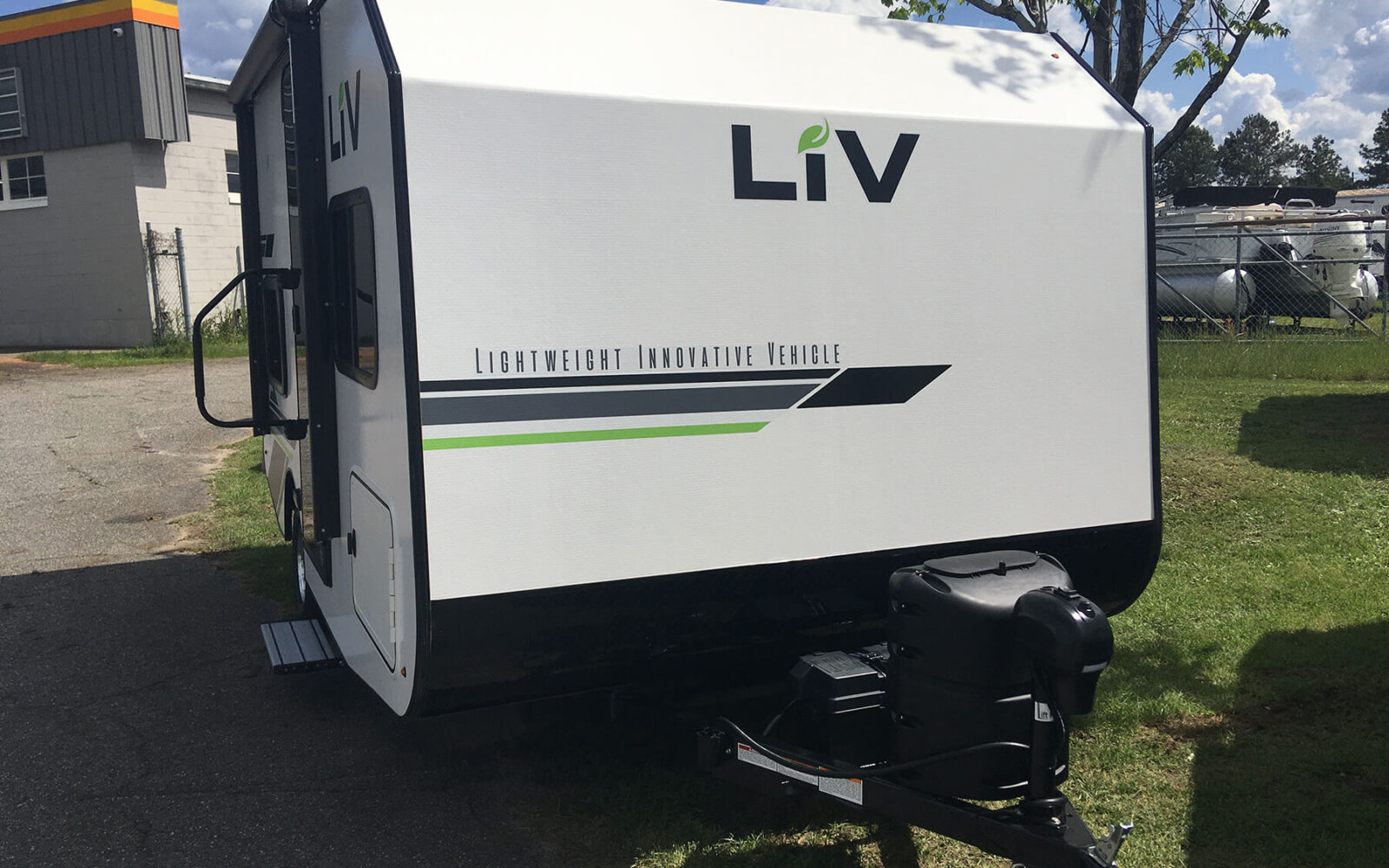

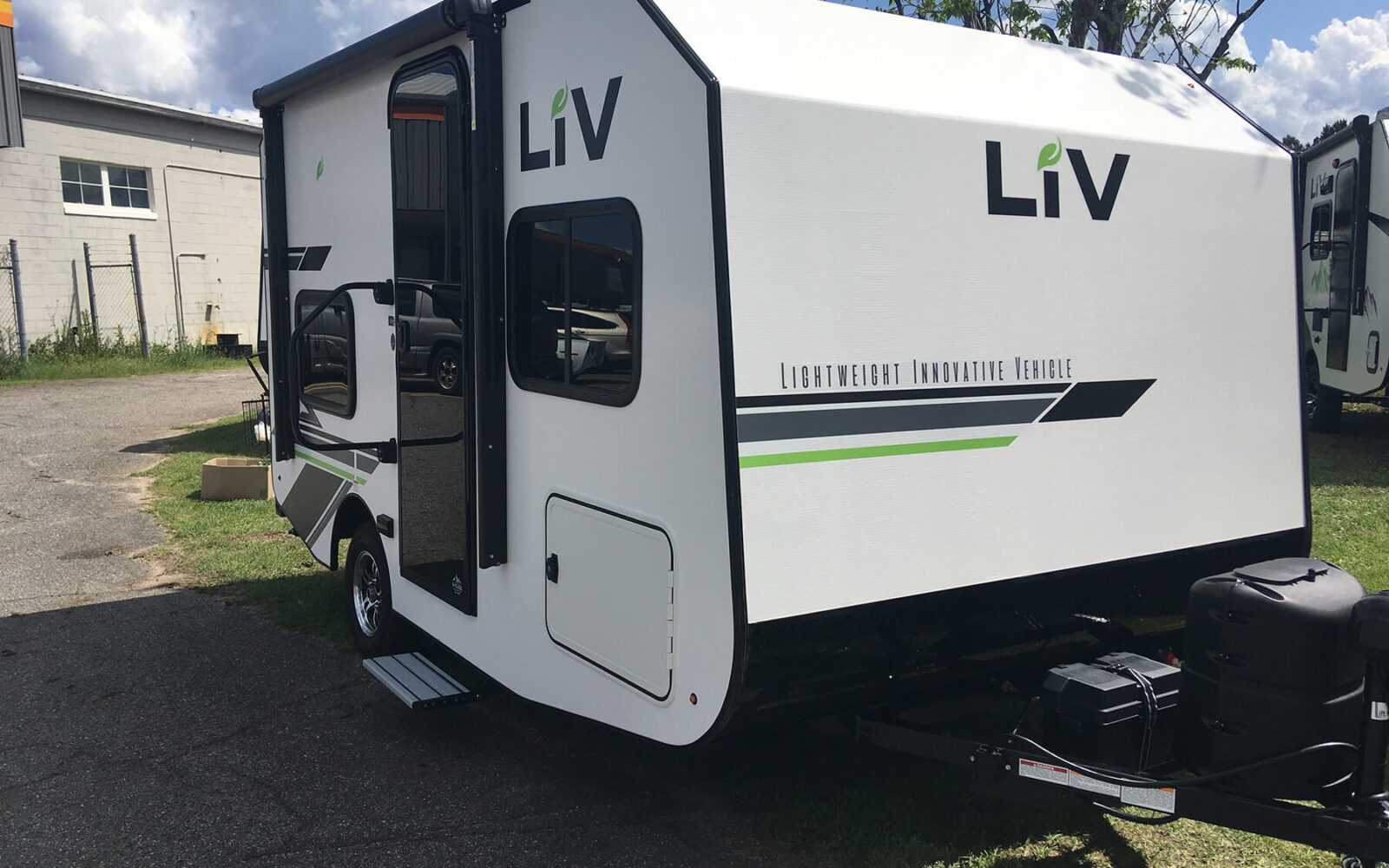

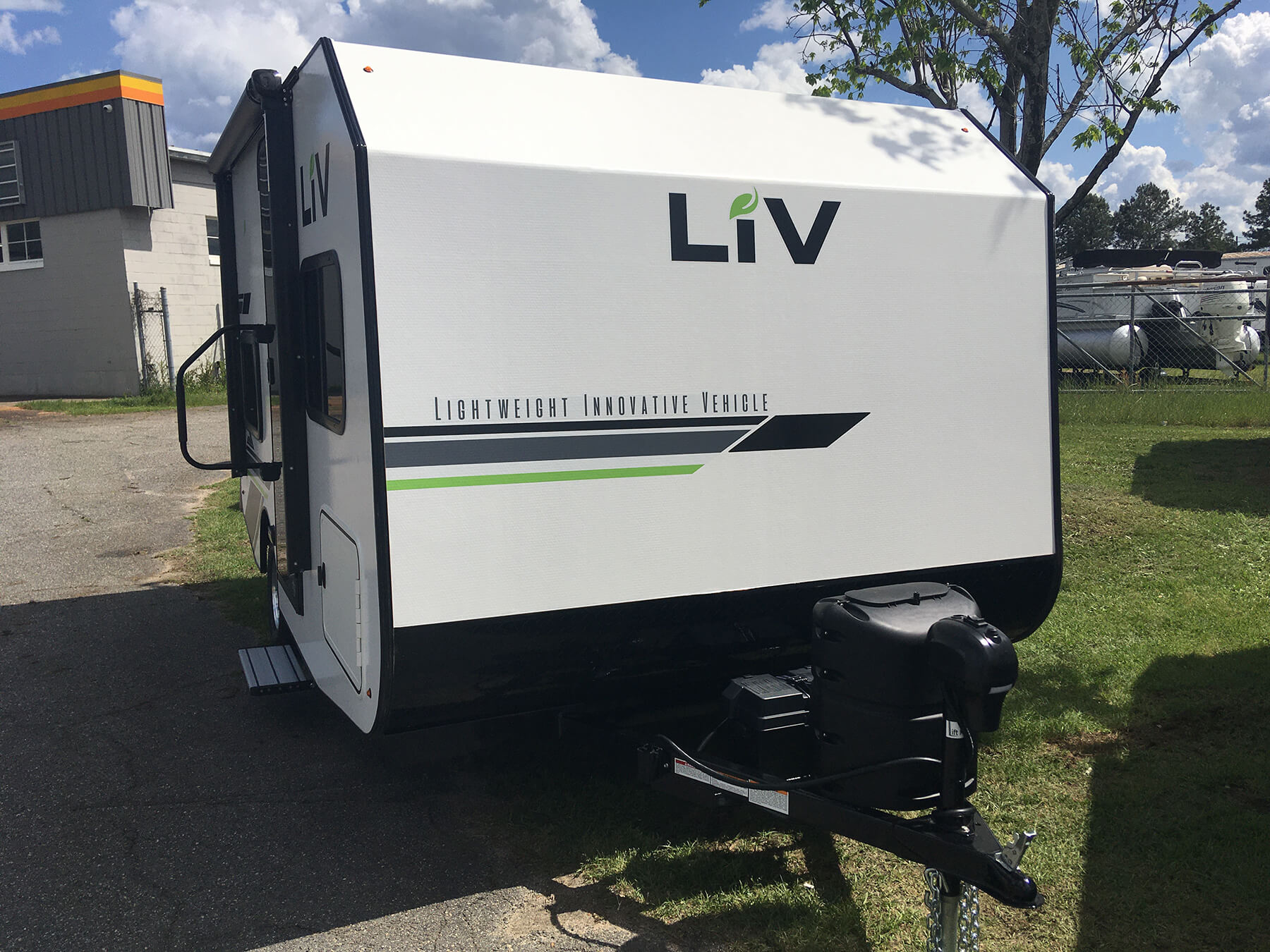

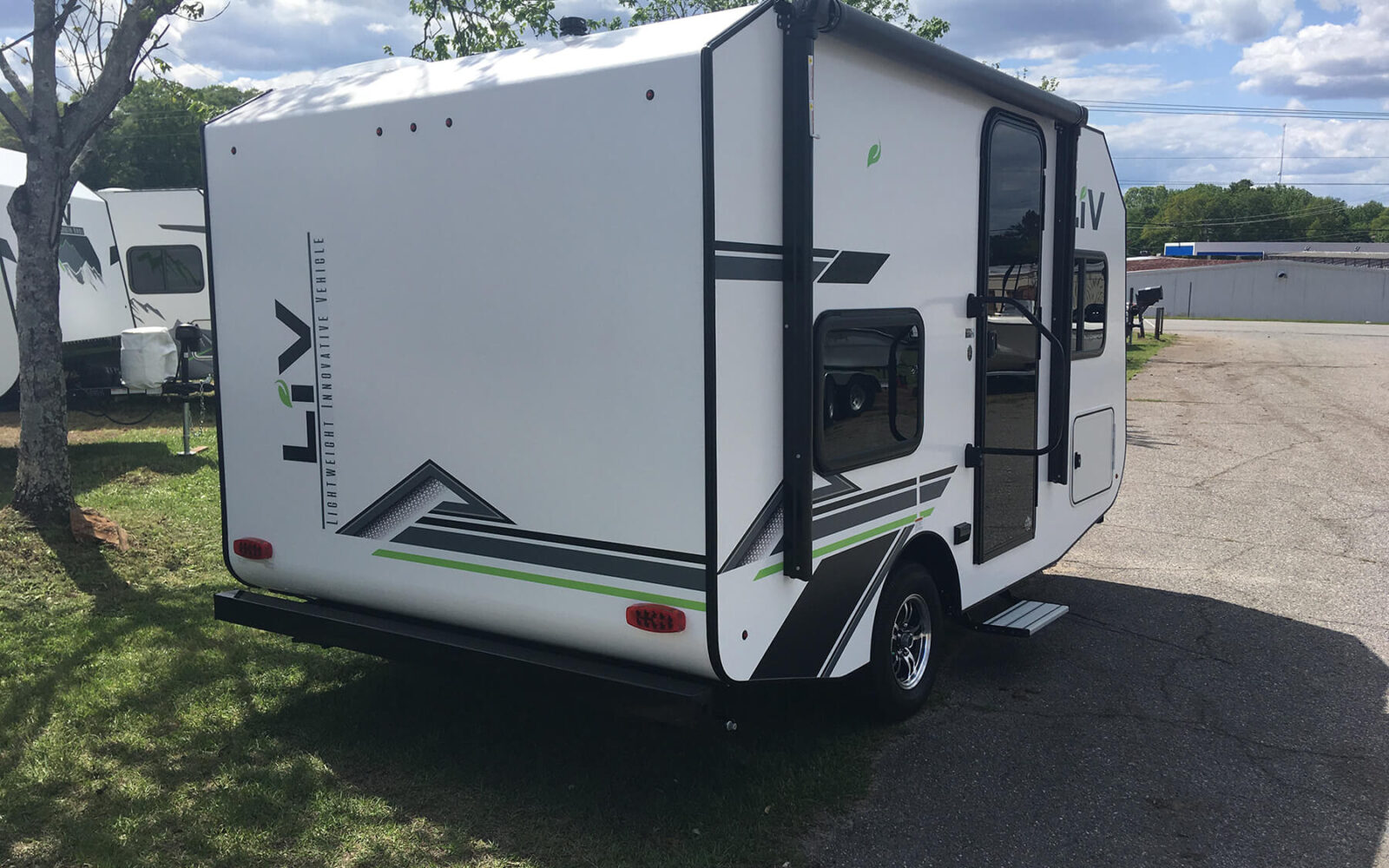

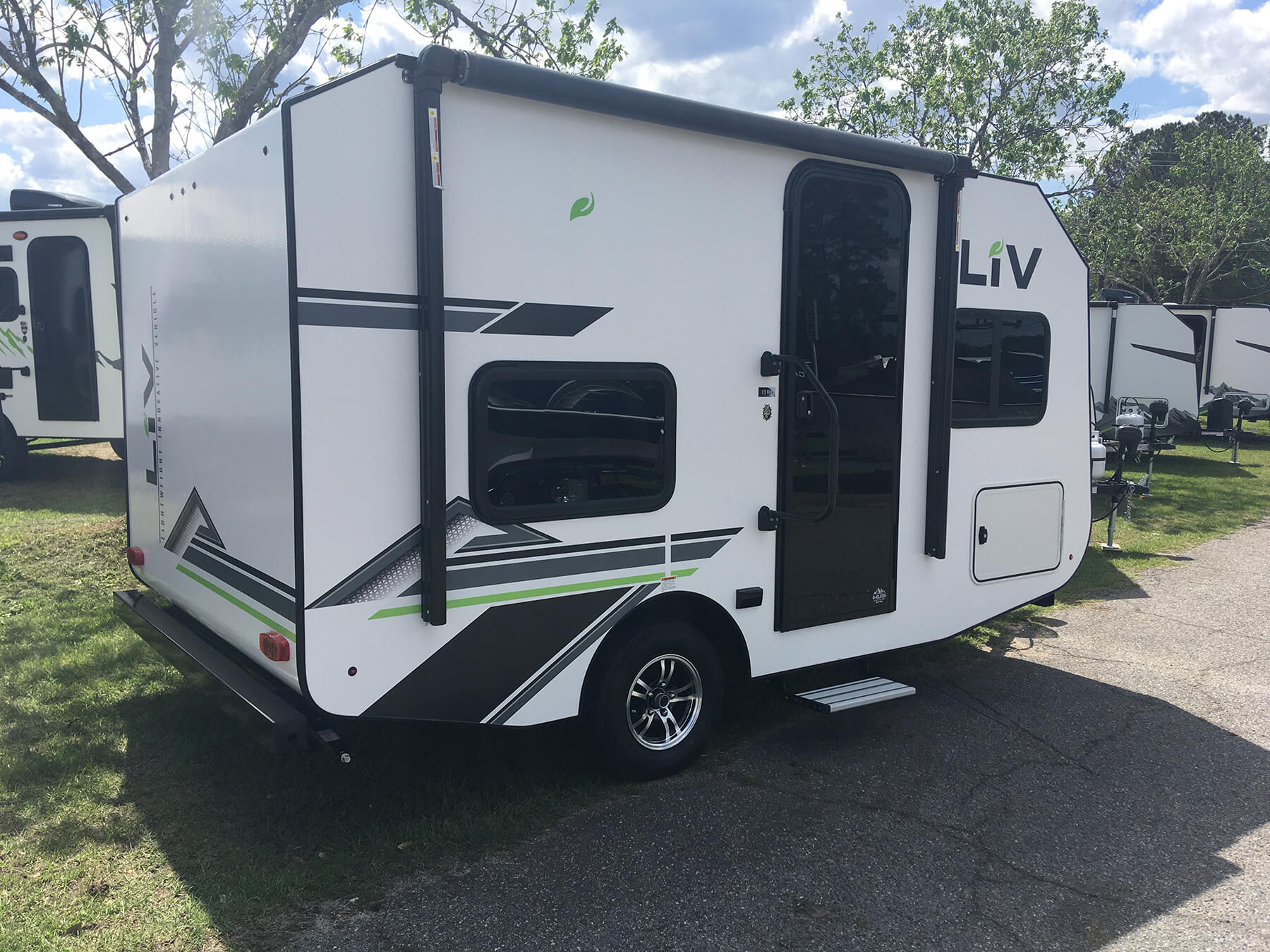

UNIT PHOTO
LiV 13 BH View gallery
1,870
LBS DRY
2–4
SLEEPS
13' 7"
LIVING AREA
30A
SERVICE

DIMENSIONS

LOA
17' 2"
Width
8'
Exterior Height
9' 7"
Interior Height
6'4"

WEIGHT

Dry Weight
1,870 lbs
GVW
2,990 lbs
Tongue Weight
275 lbs
Carrying Cap.
630 lbs

TANKS

Fresh Water
25 gal
Grey Water
30 gal
Black Water
30 gal
LP Tank
20 lbs

POWER & DRIVE

Electric Service
30 amps
Sleeping Cap.
2–4 people
Axles w/ Brakes
1 axle
Tires
ST205/75R14
SPECIFICATIONS · 2027 MODEL YEAR · SUBJECT TO CHANGE

Features

What you get out of the box.

  • 100% Fiberglass reinforced box. Lifetime no wood rot and no wood mildew warranty.
  • Double-welded box construction. 10 year limited box structure warranty.
  • Little to no maintenance required
  • Towable by almost any vehicle.

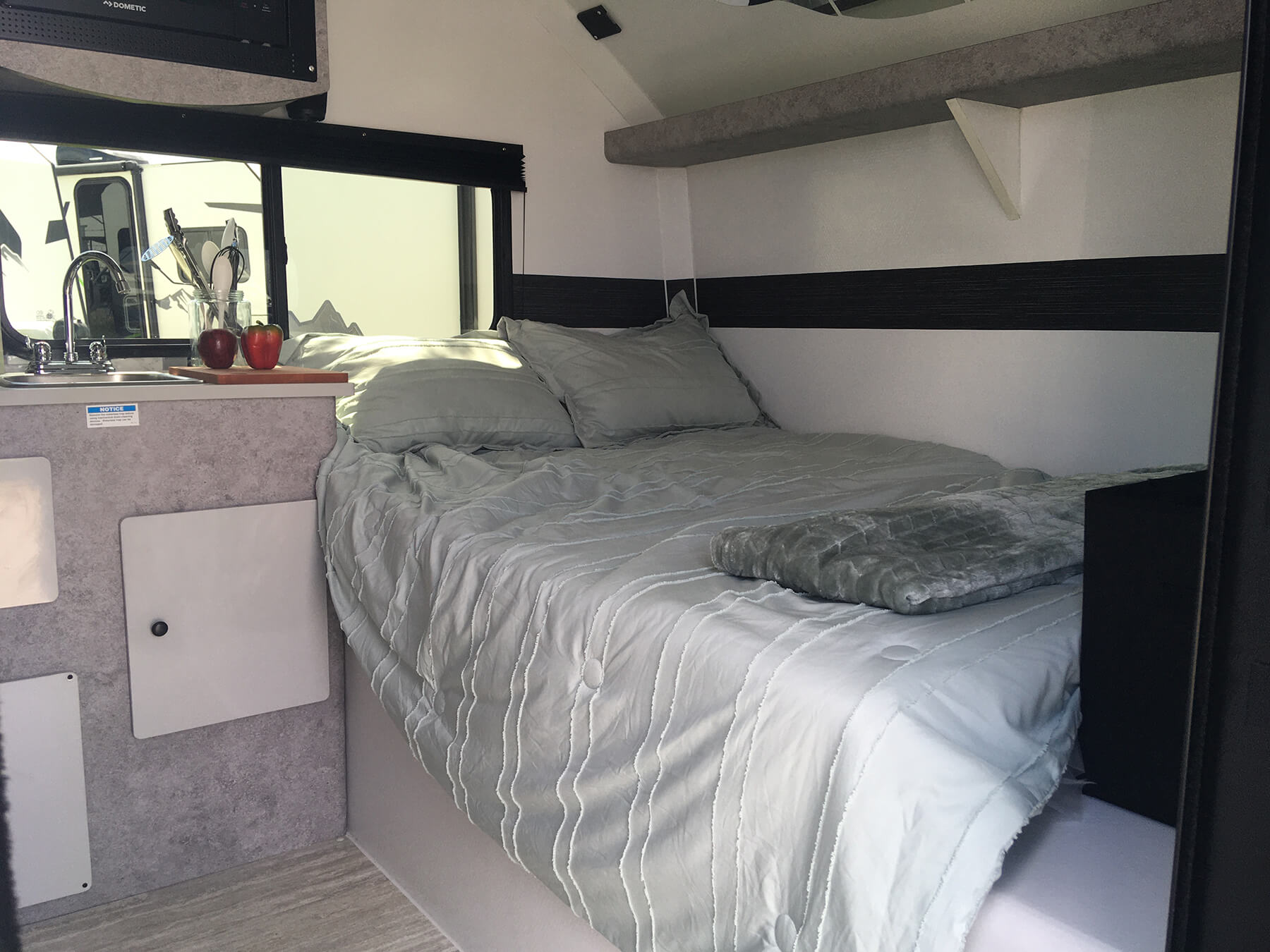

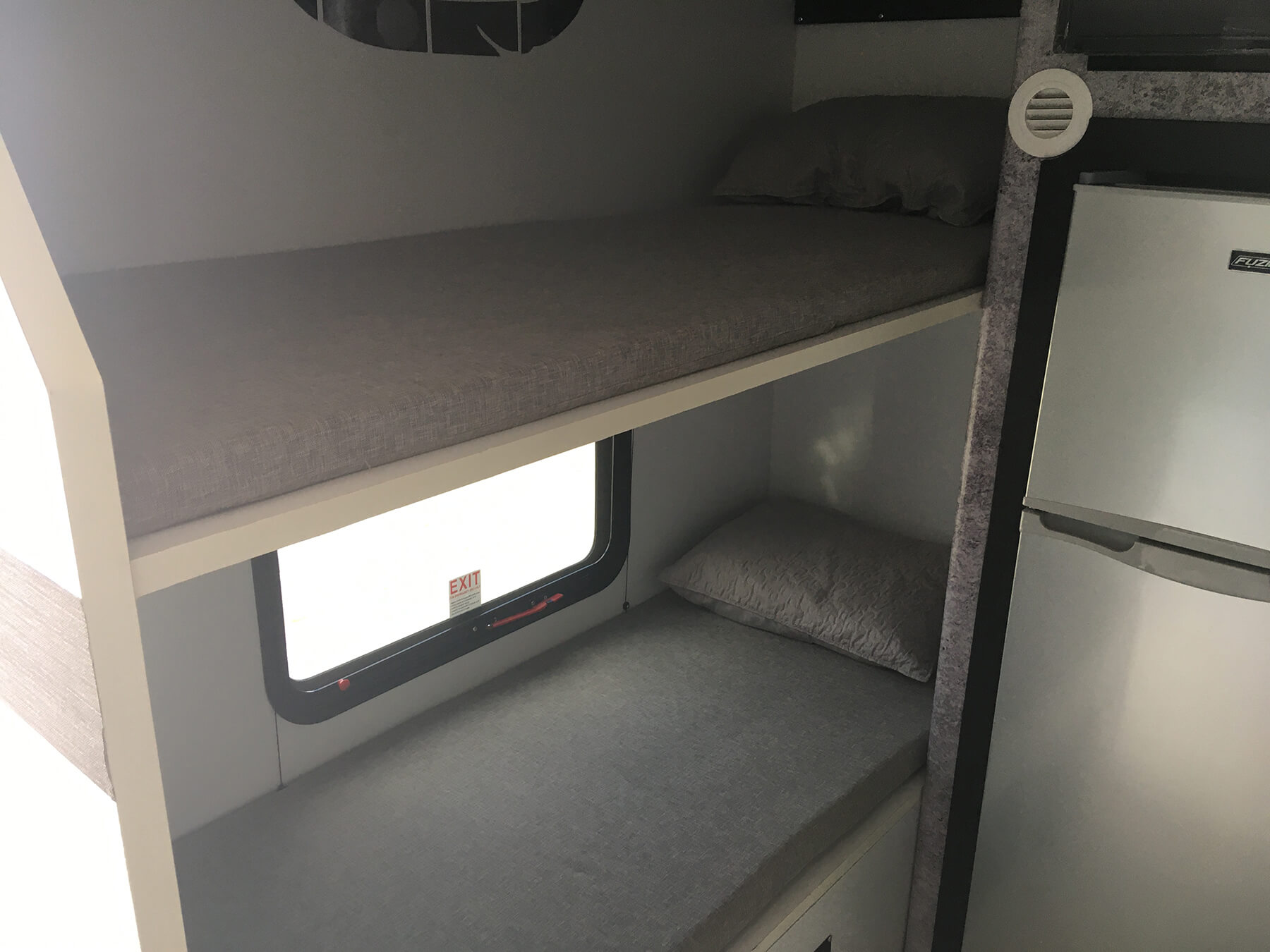

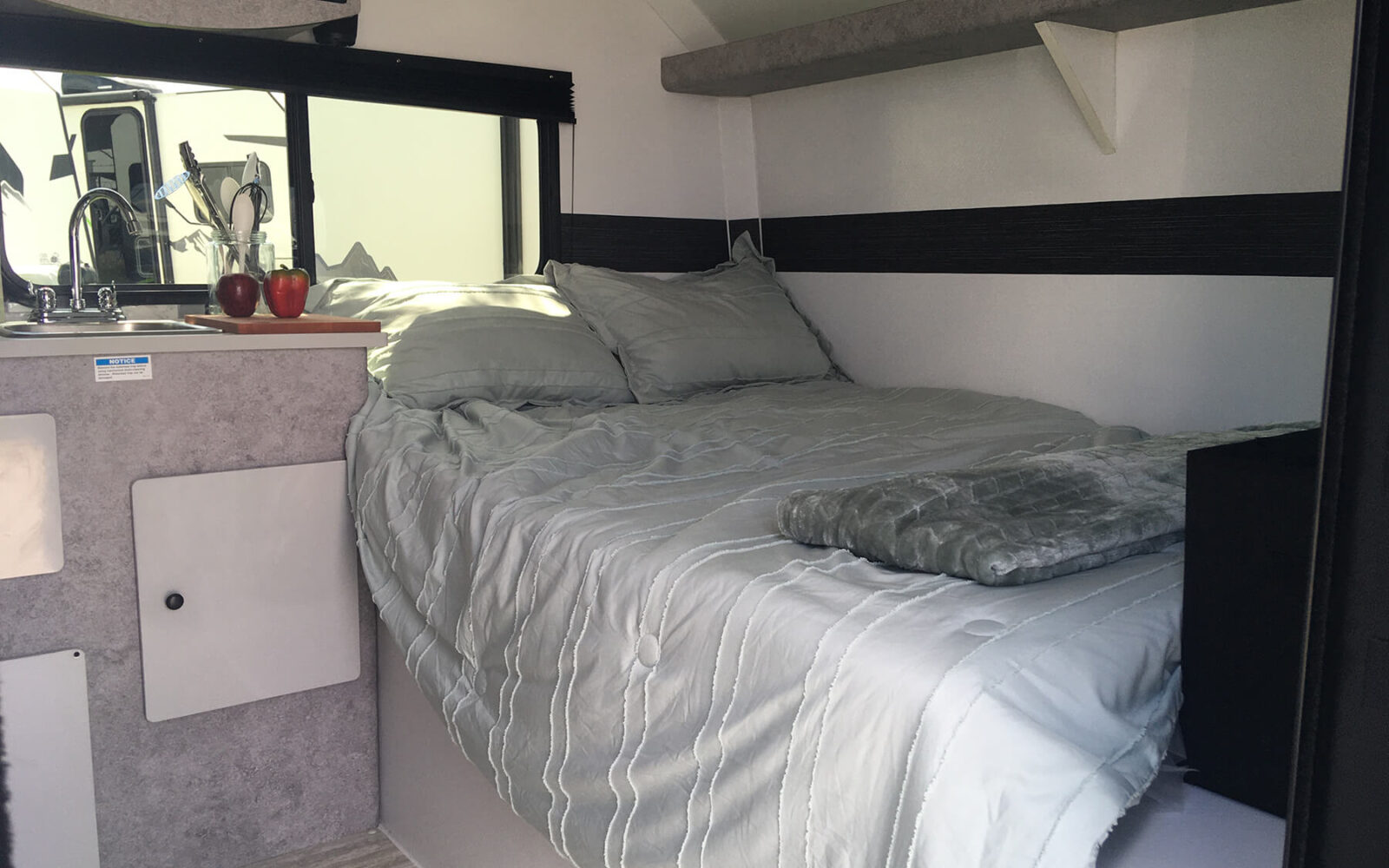

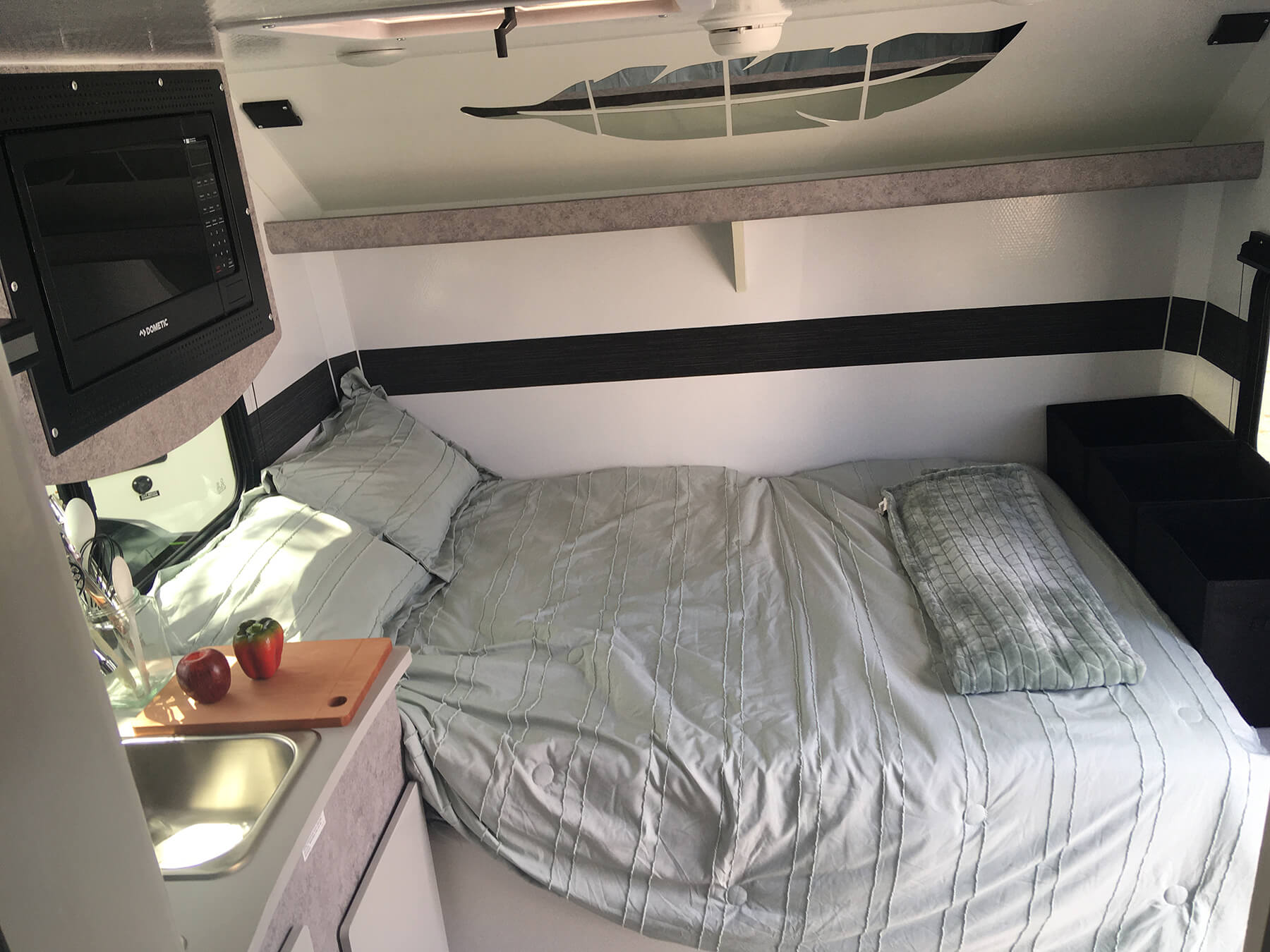

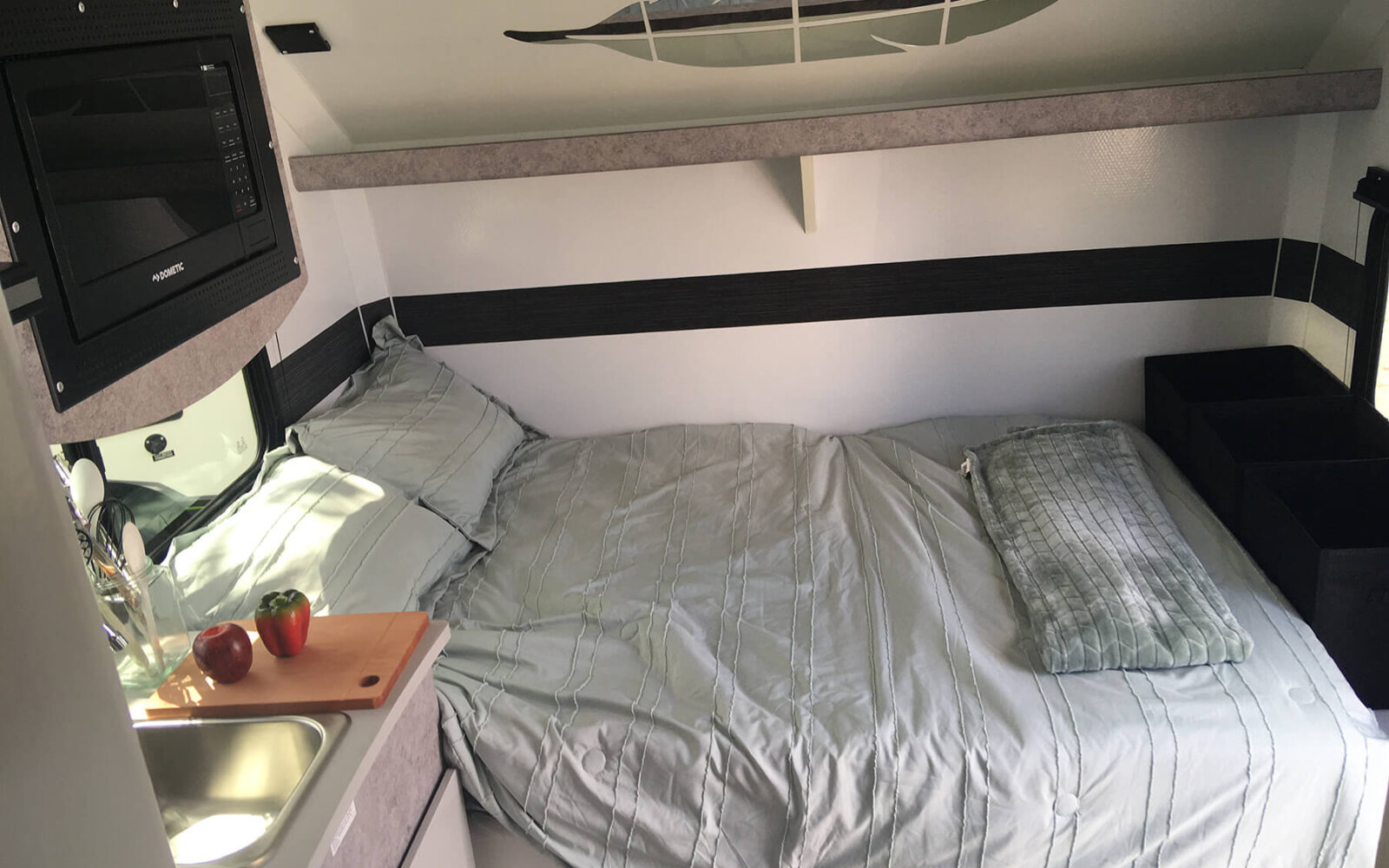

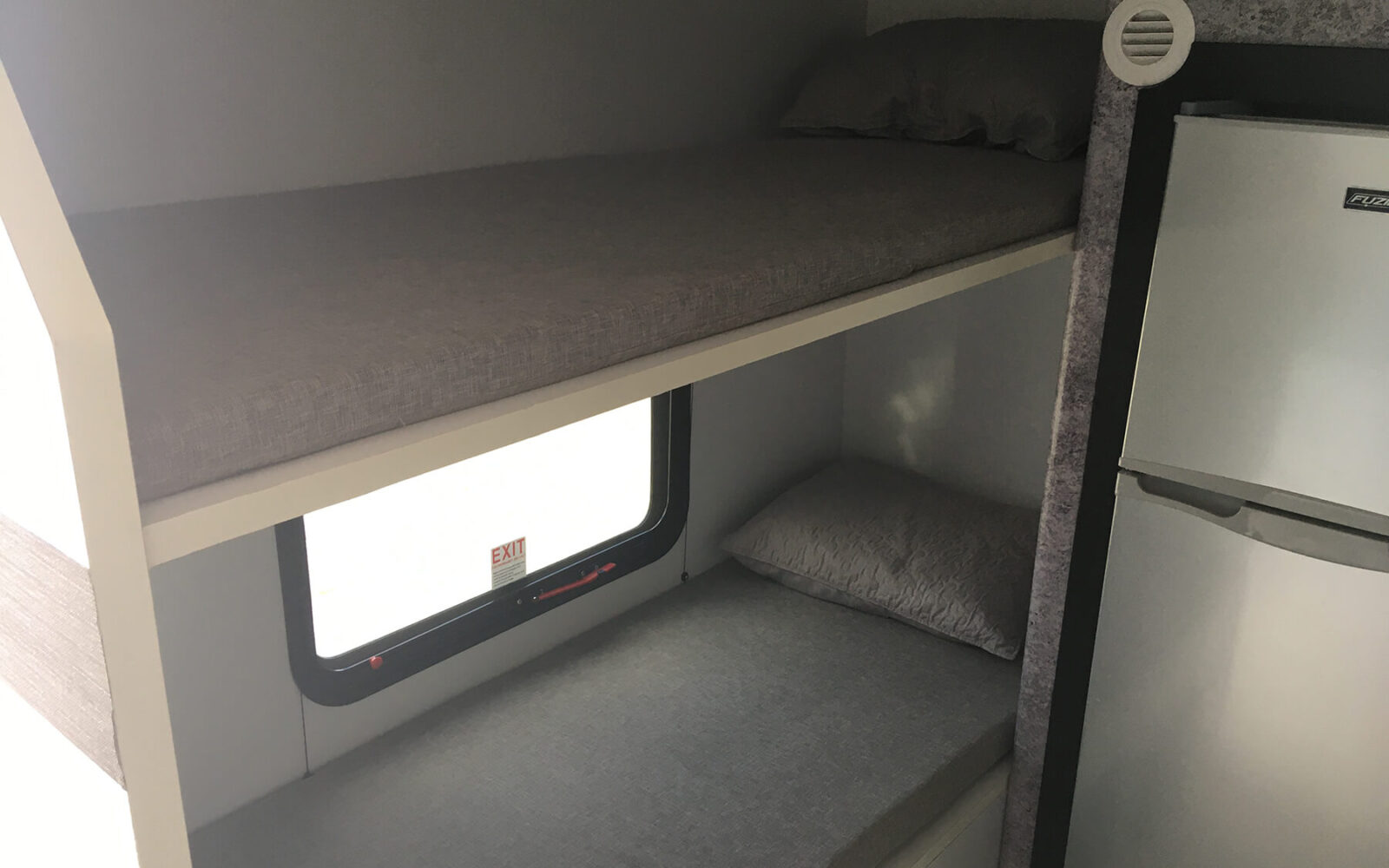

  • Plush twin bunks + full-sized bed

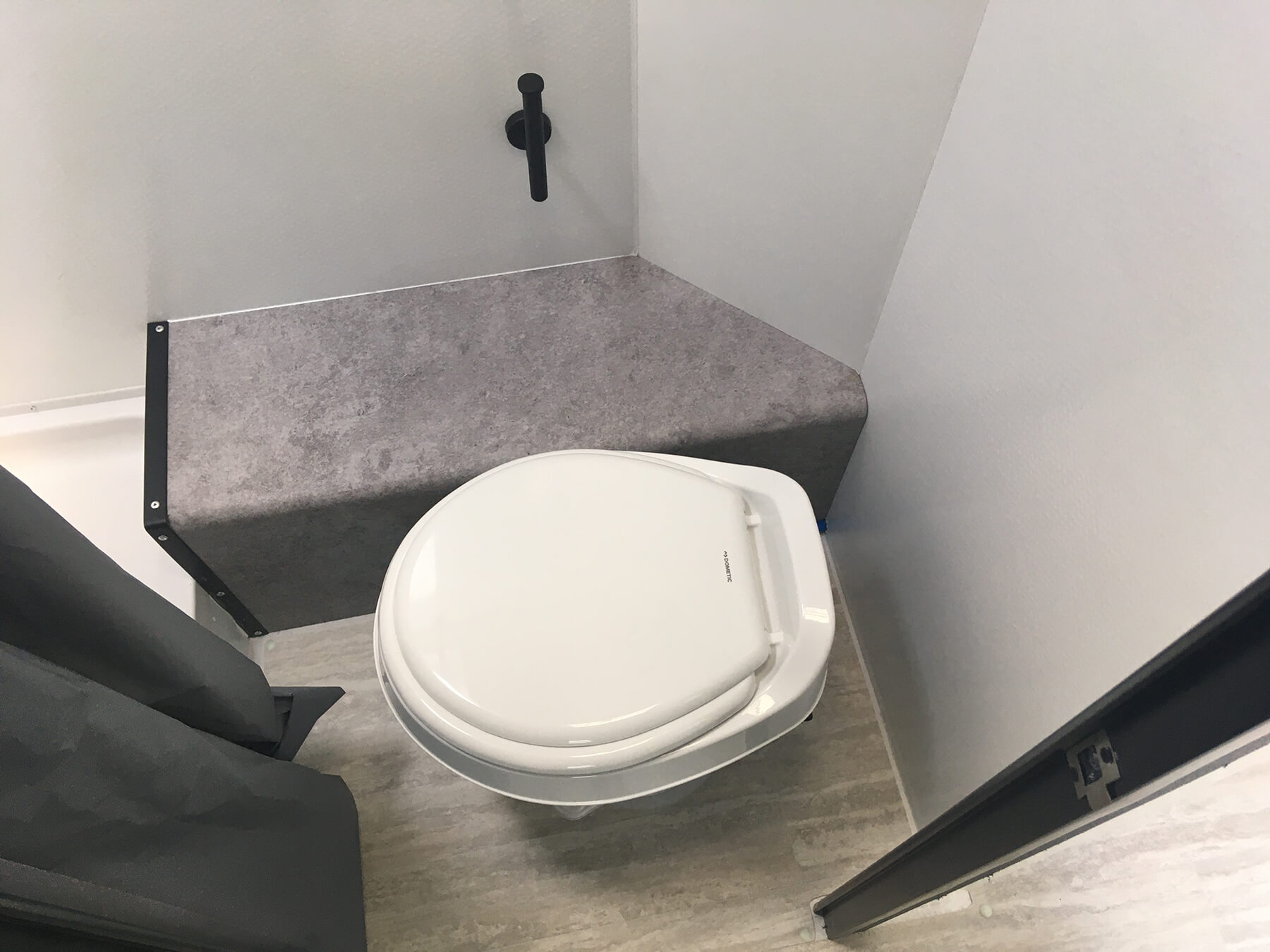

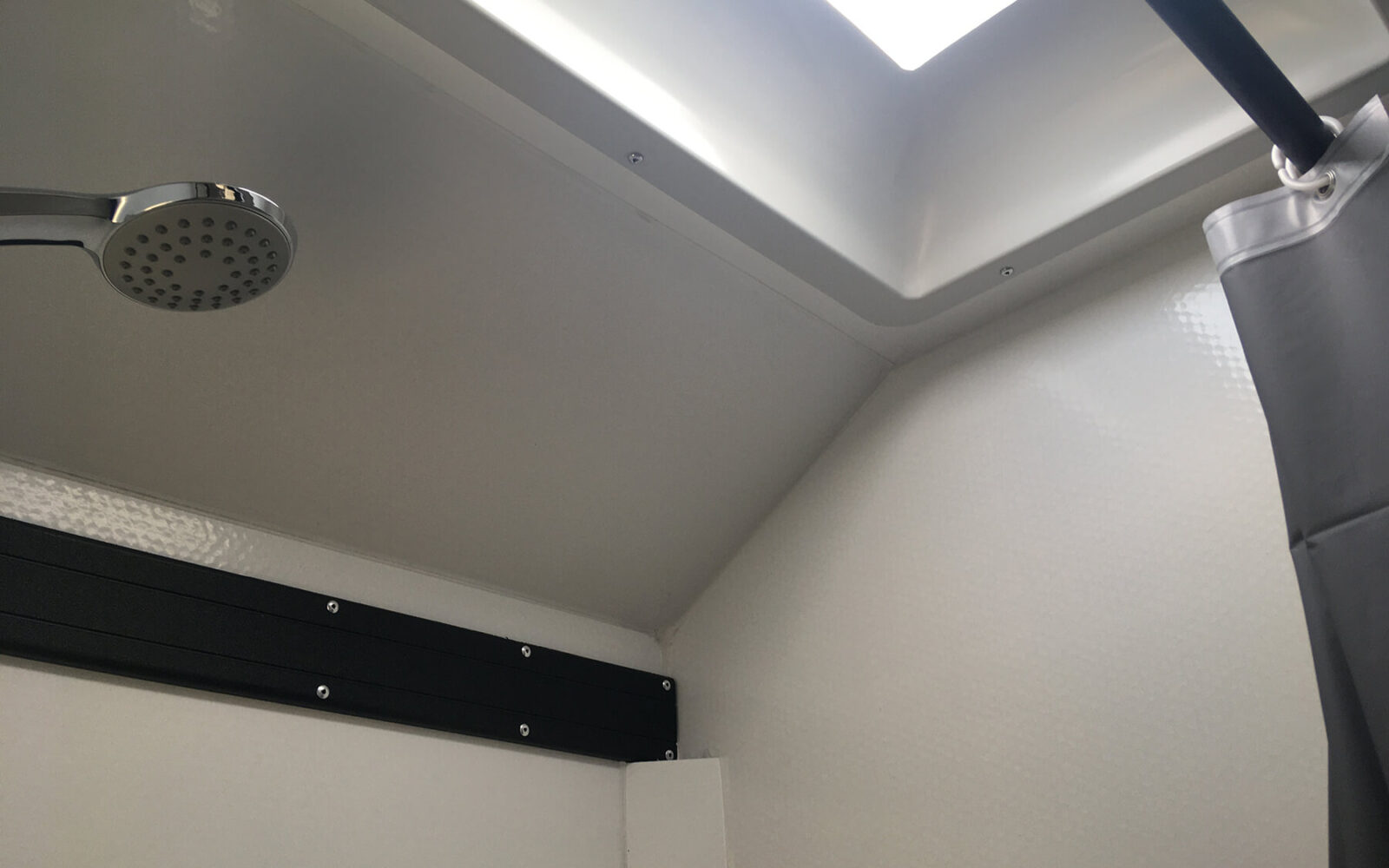

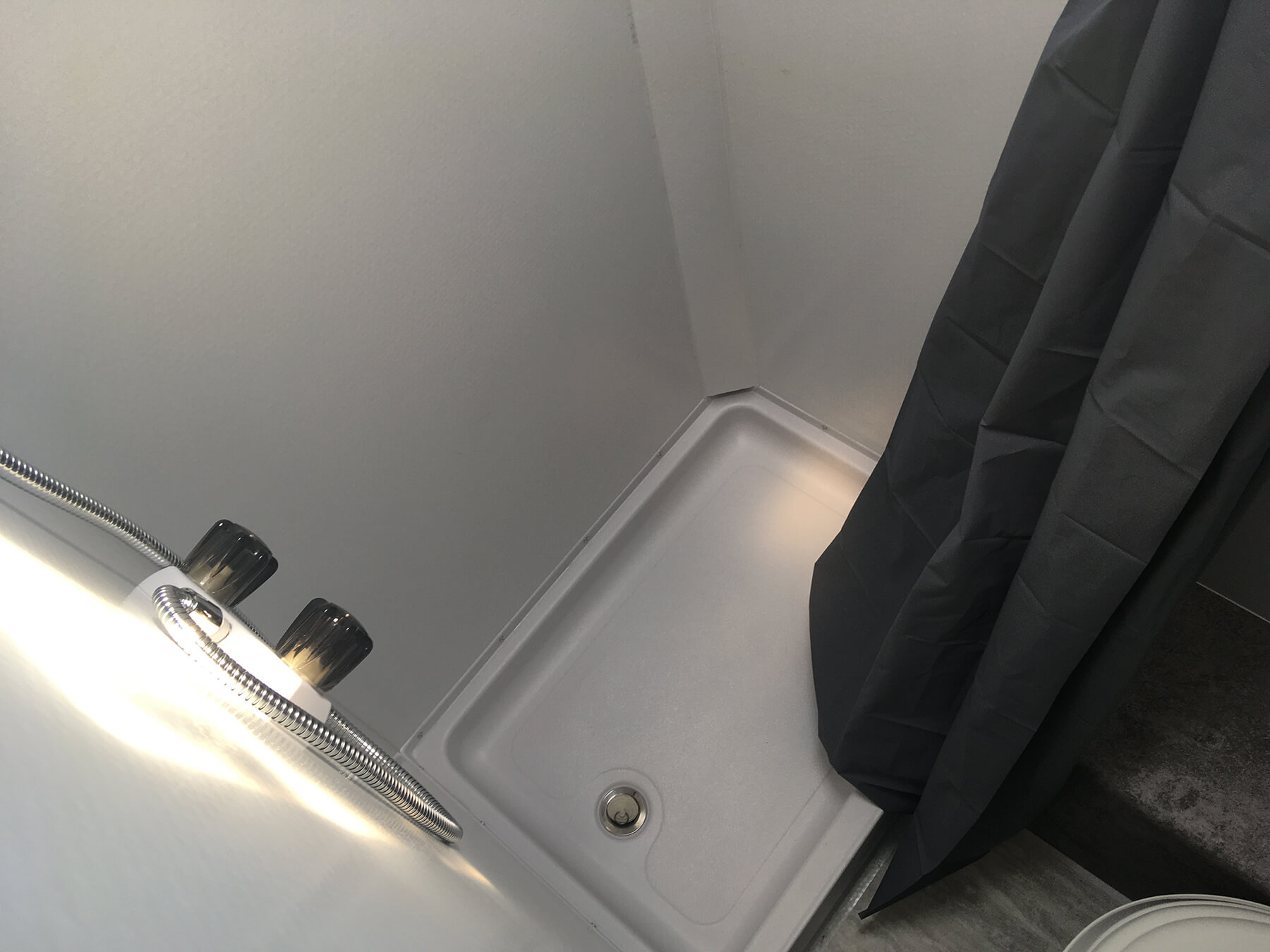

  • Bathroom with toilet + standing shower
  • 1,870 lb dry weight
  • Single-axle composite chassis
  • LIV Convenient Package included

Equipment & options

Build it your way.

Standard equipment plus the upgrades you can add when you configure your build.

Popular packages

Propane Package

The propane build: a 3-burner propane cooktop, an InstaHot tankless water heater and a 20 lb propane bottle with its LP regulator. Choosing it switches off the electric package.

Go-Anywhere Electric Package

Standard on the 13, 16 and 17 series: an electric range, an electric water heater and a lithium battery, plus an electric fireplace for heat on the 16 and 17. Heading off the grid? Add the generator below. Love cooking over a flame? Switch this package off for the propane build.

2 items included

LIVin Off-Road Solar Package

Two 200-watt solar panels (400 watts total), a 300Ah lithium battery, the Rich Solar NOVA Supercharger 3K inverter charger — 3,000W pure sine output with 6,000W surge — and a 60A MPPT solar charge controller with built-in Bluetooth monitoring. Recharges three ways: solar, generator, or shore power. A built-in automatic changeover (transfer) switch swaps between shore/generator power and battery power in about 20 milliseconds, so sensitive electronics never reboot during the handoff.

LIV Off-Road Package

15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.

Power & Battery

  • 20 lb Propane Bottle with LP Regulator Standard
  • Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
  • Upgrade to Lithium Battery Optional
  • Quiet Inverter Generator (2,550W / 25A) Optional

Tech & Connectivity

  • Bluetooth Boom Box Standard
  • Wireless Back-up Camera Optional
  • Cable TV and Mount — 32″ Optional

Climate & Comfort

  • InstaHot Endless Hot Water Standard
  • Roof-Mounted A/C Standard
  • LP Furnace Optional
  • Fireplace Optional

Interior

  • Luxury Linoleum Flooring Standard
  • LED Accent Lighting Standard

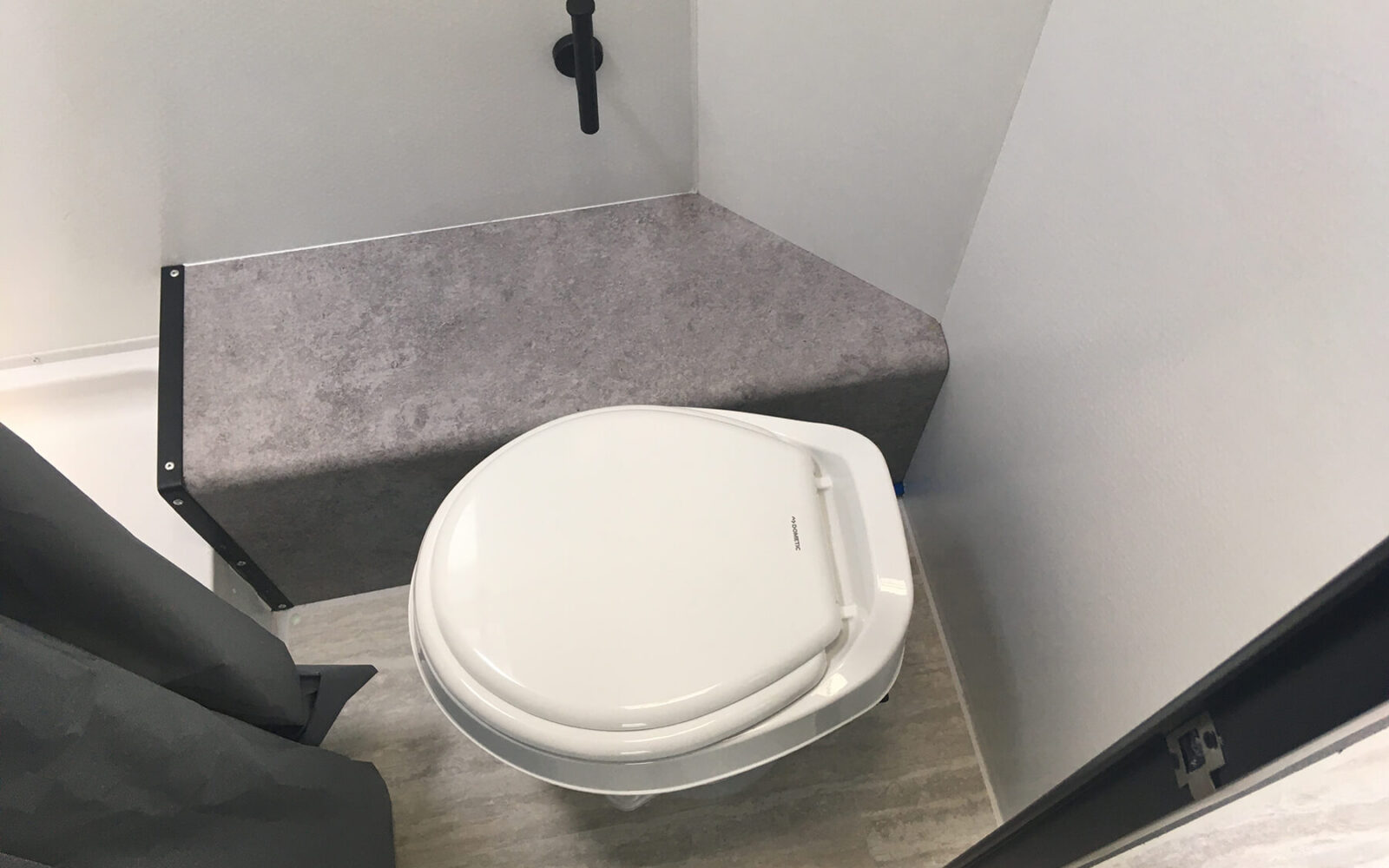

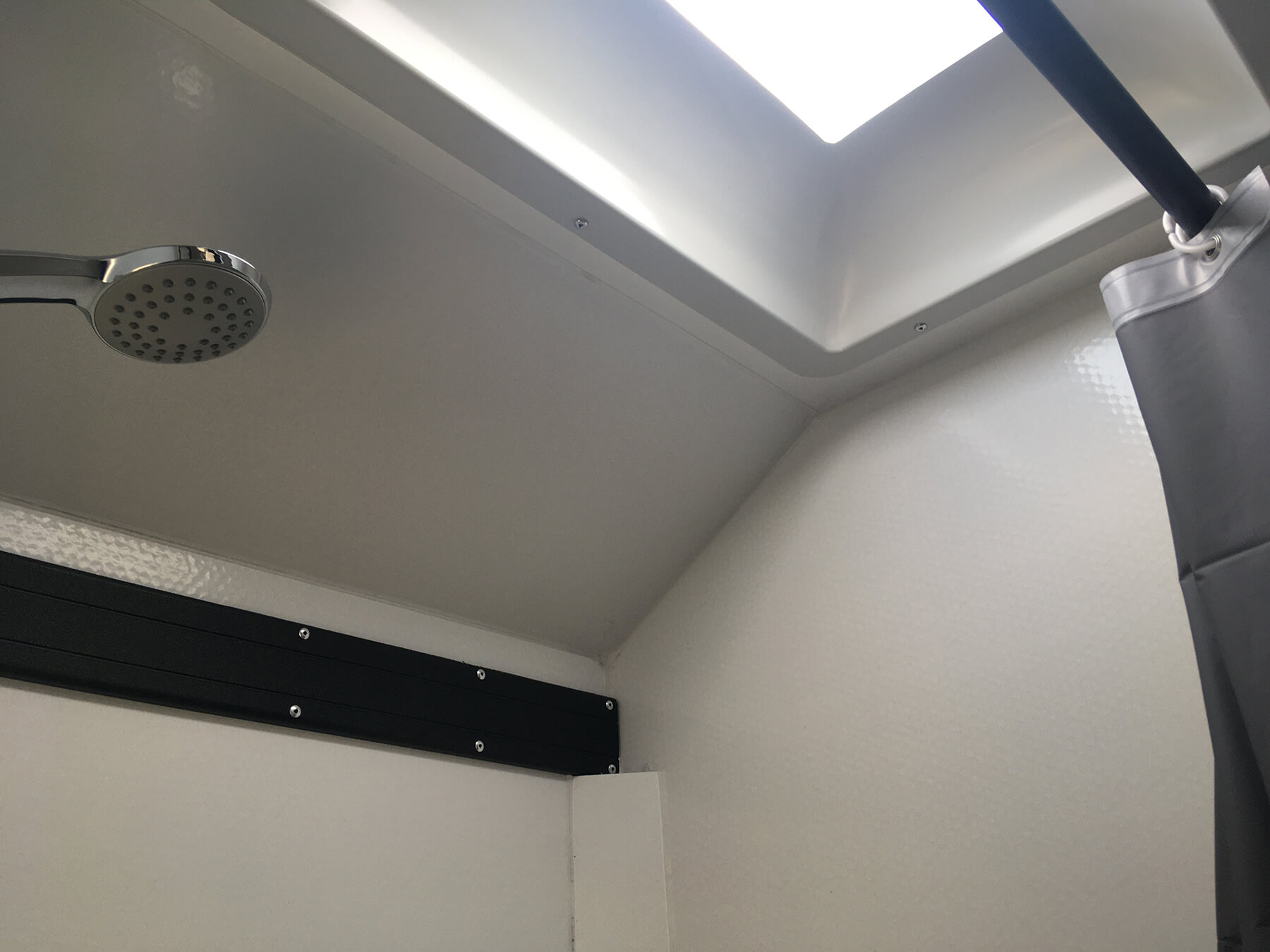

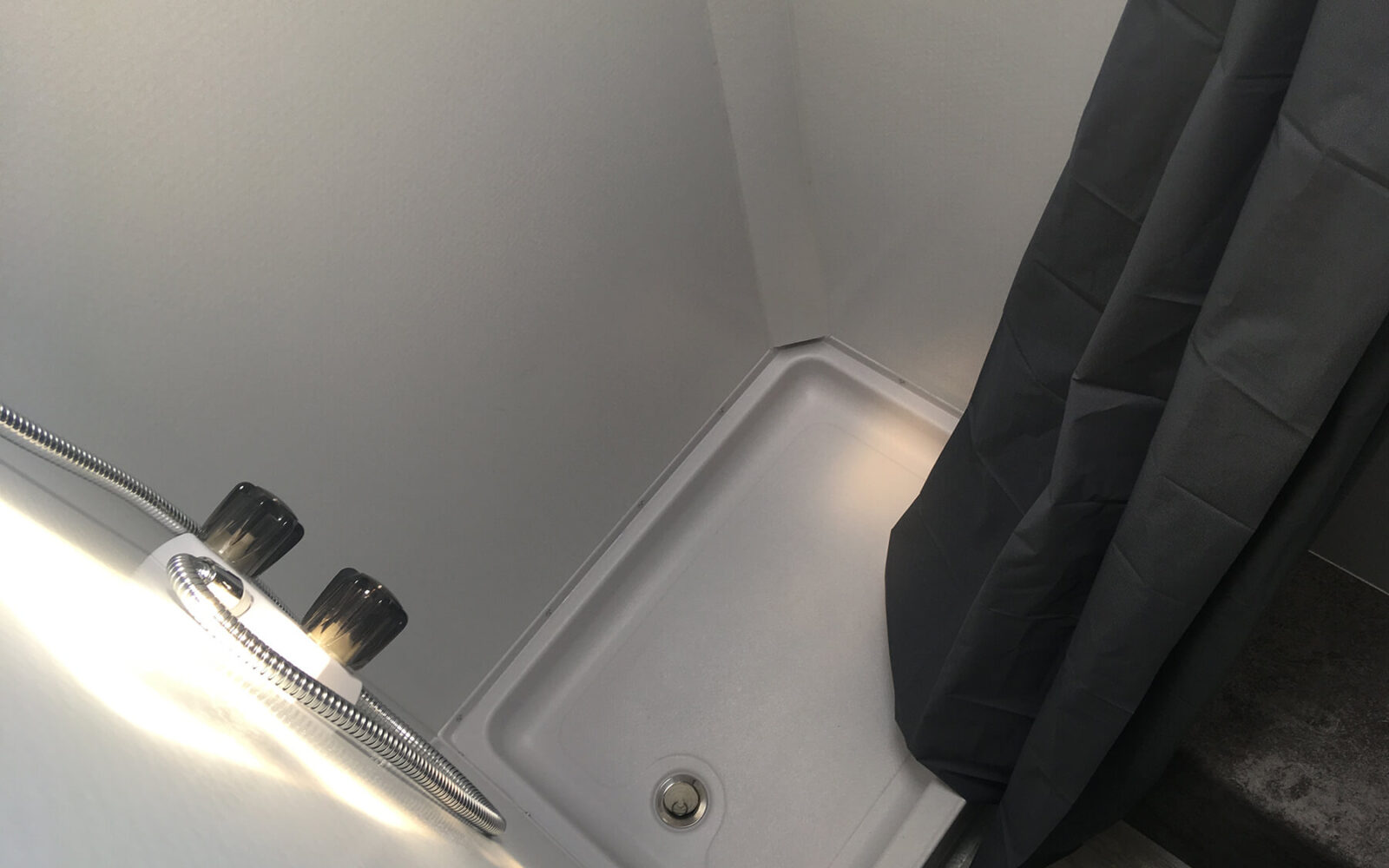

  • Bathroom with Toilet & Standing Shower Standard

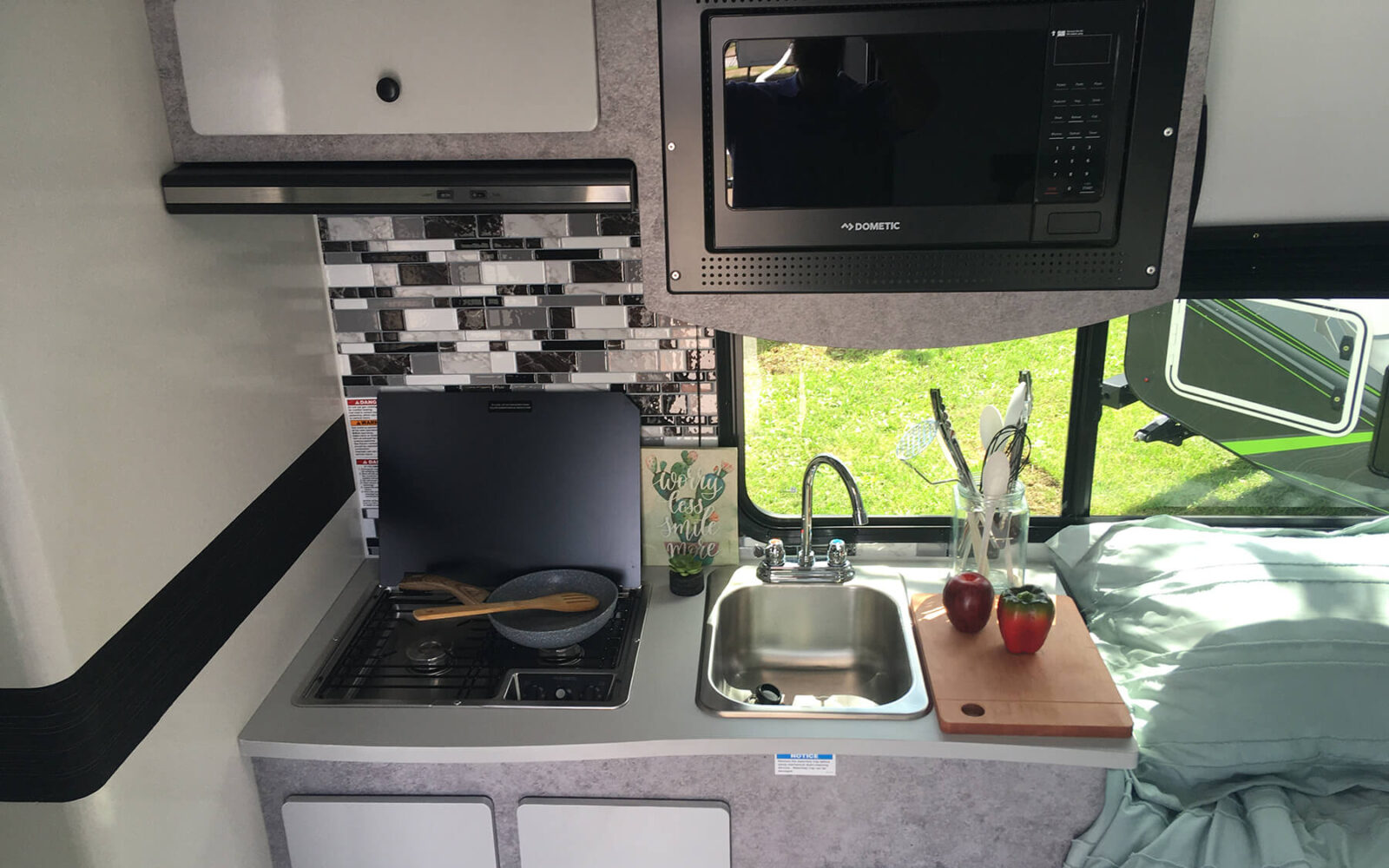

Appliances

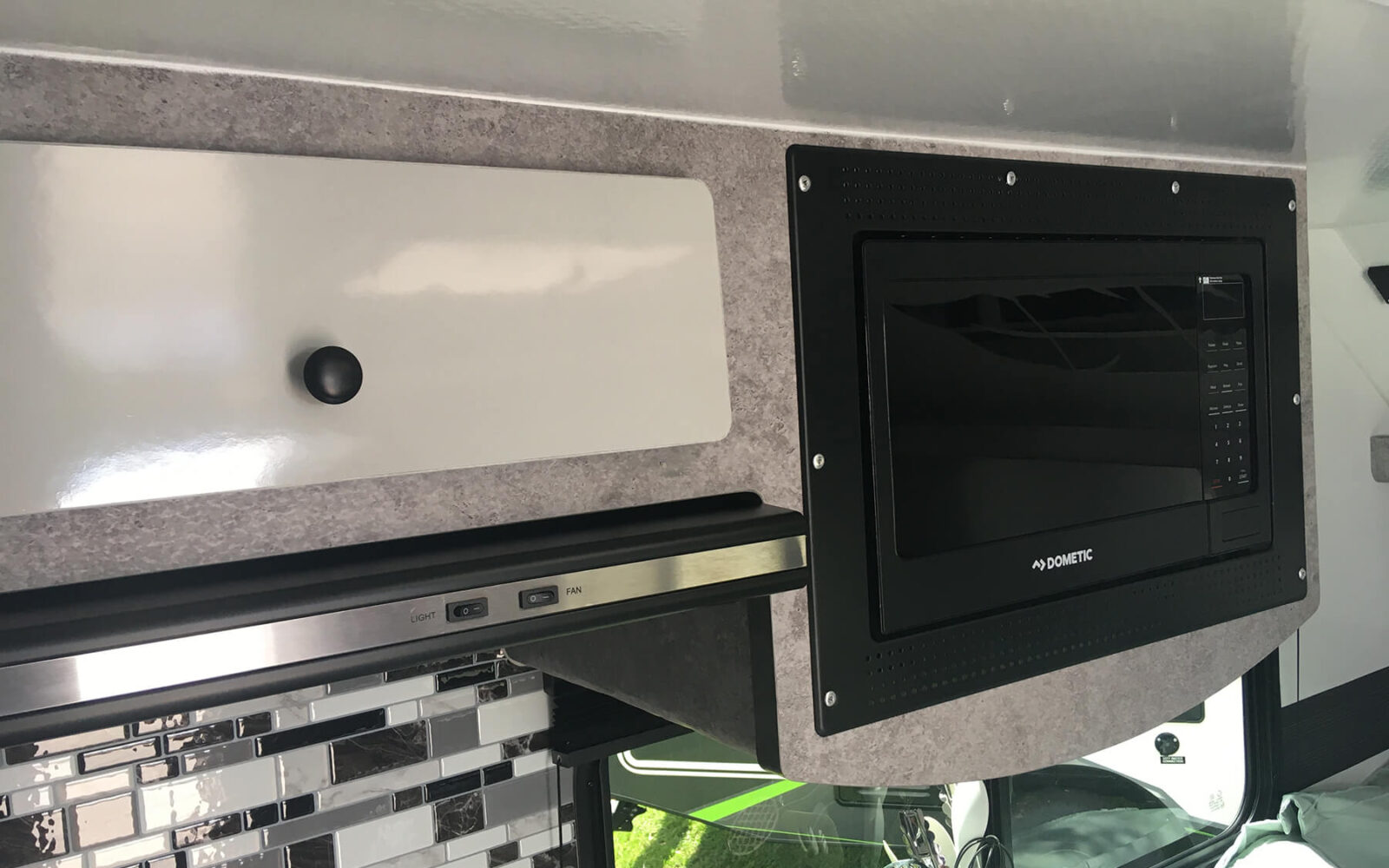

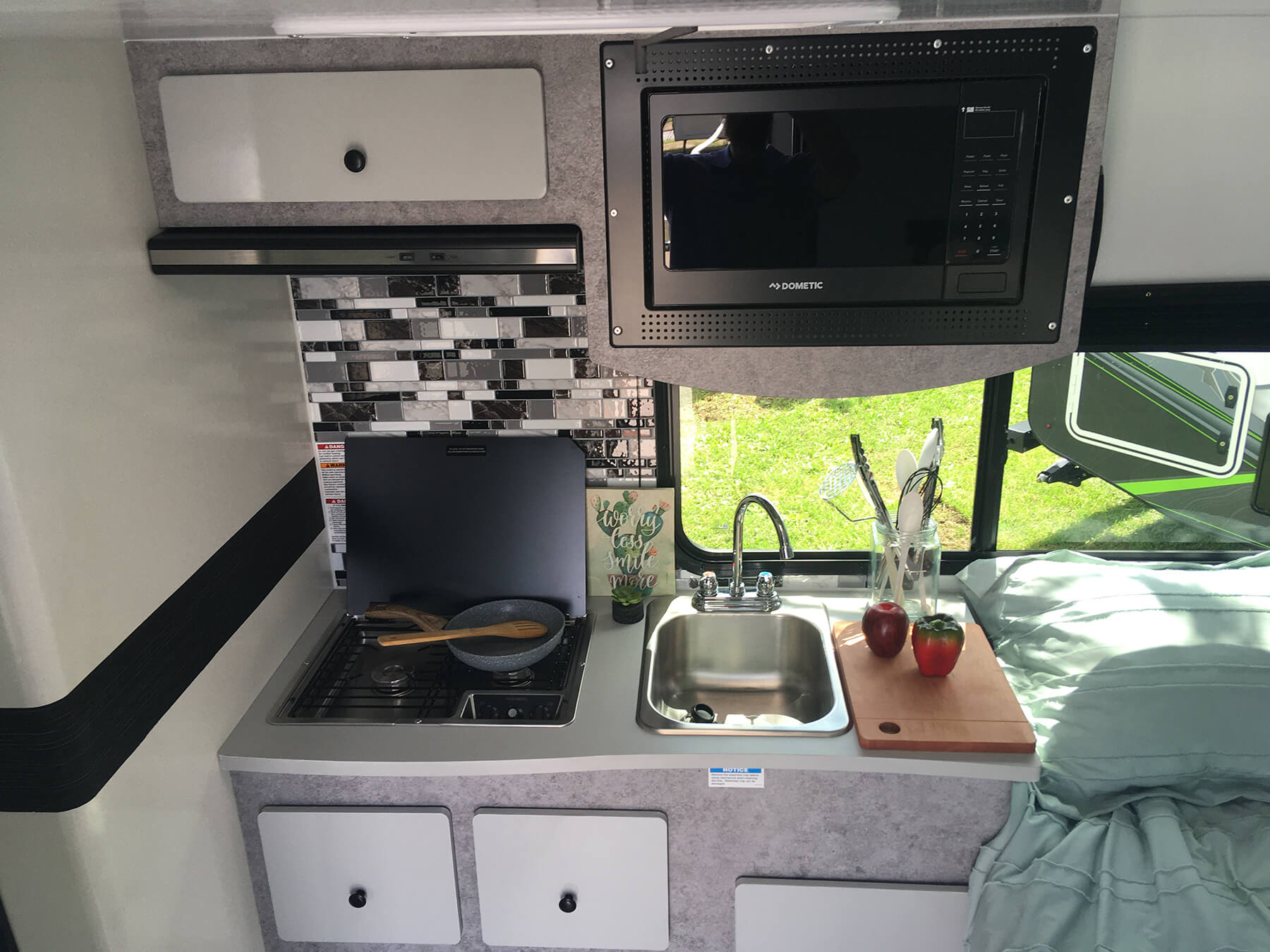

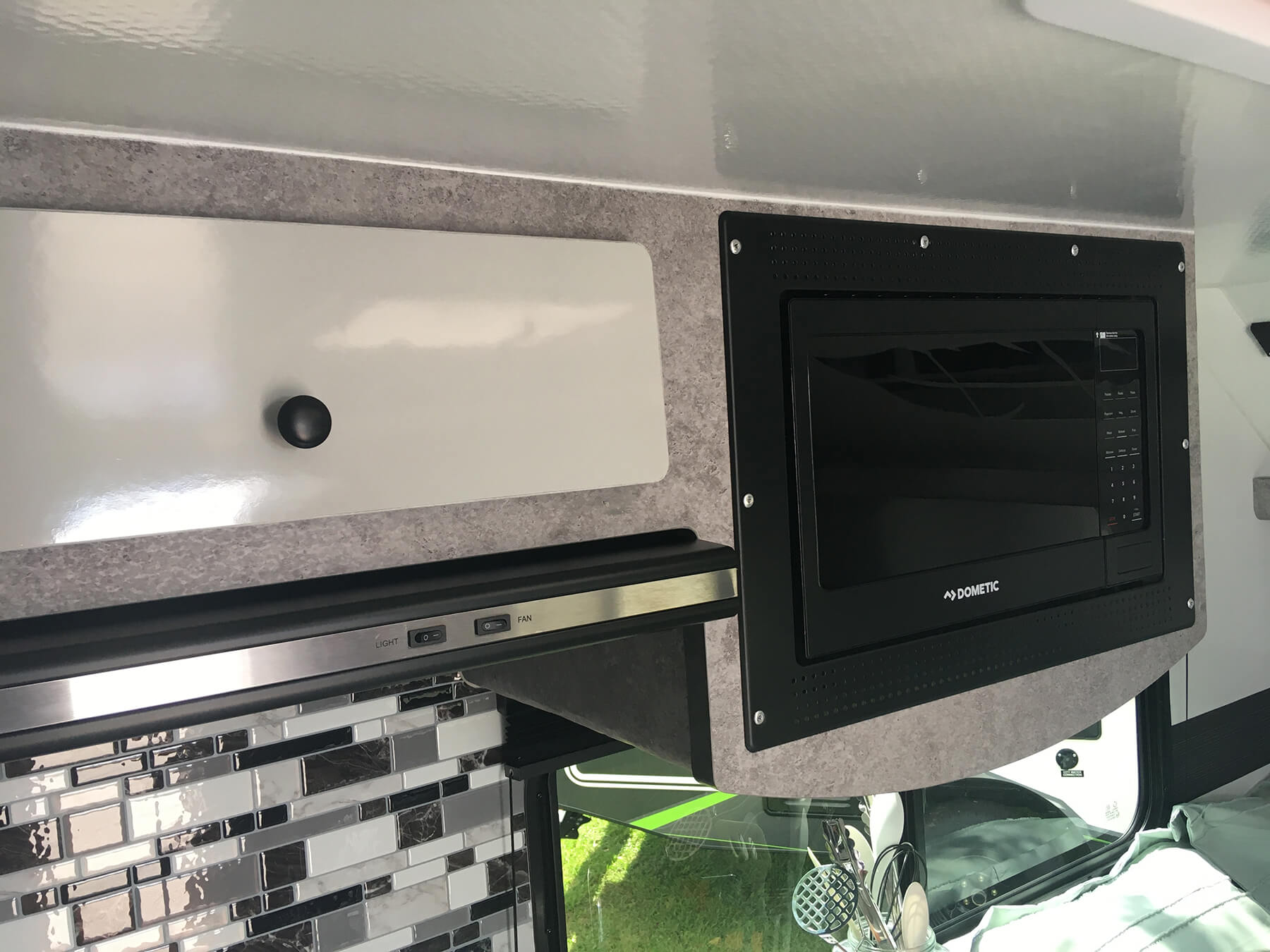

  • Microwave Oven Standard
  • 3-Burner Propane Cook Top Standard

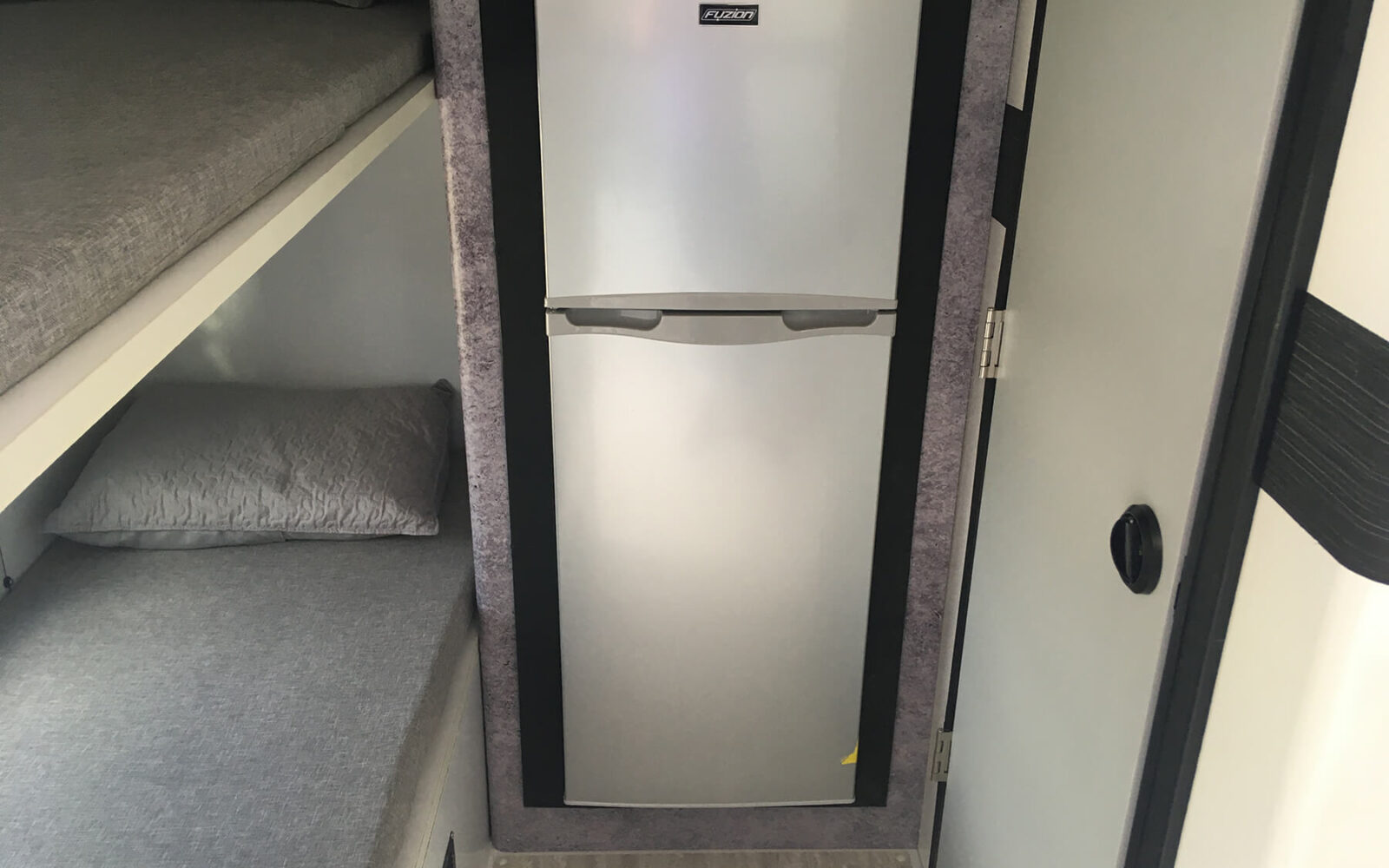

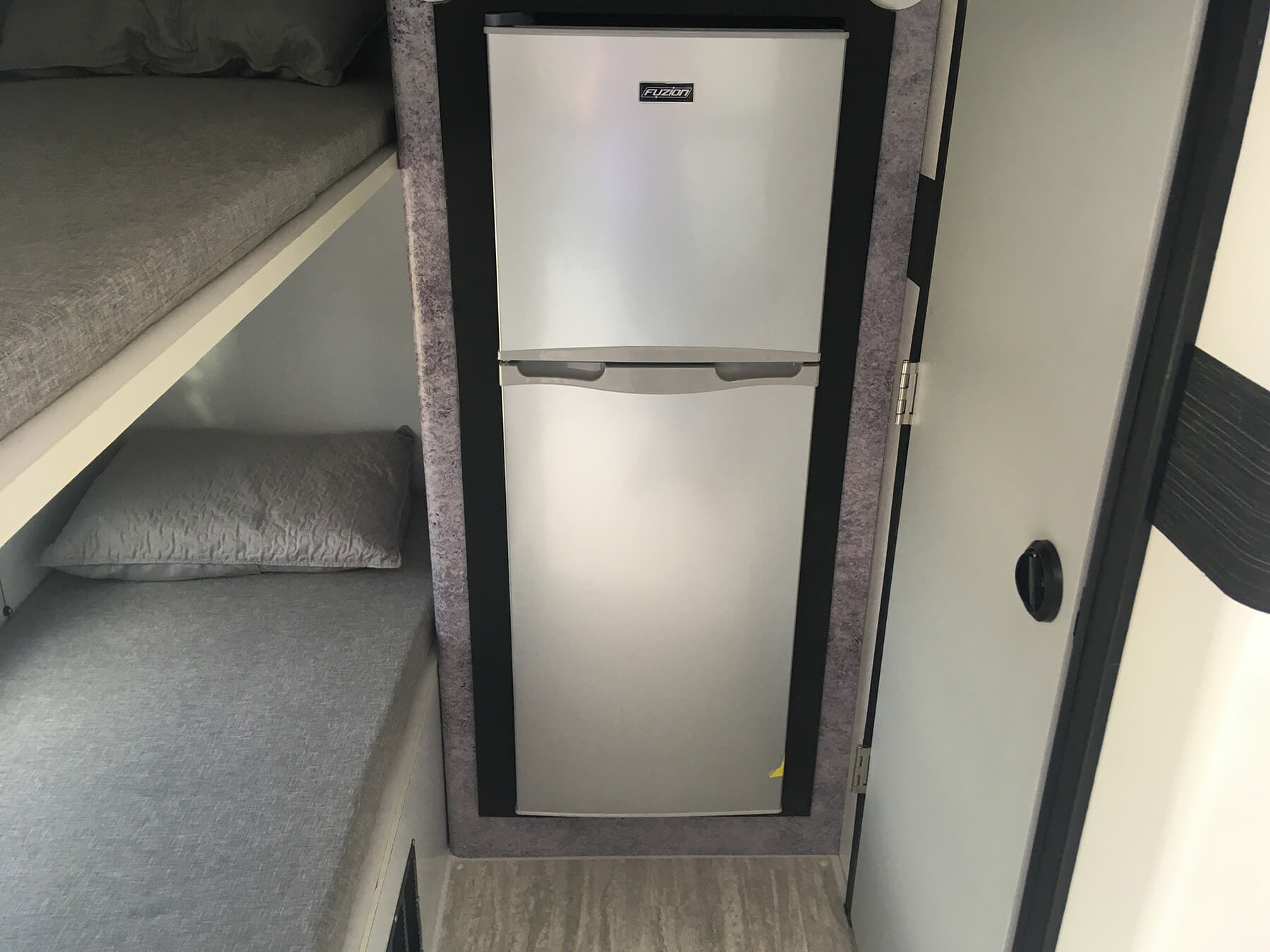

  • 5.0 cu ft Refrigerator (12V) Standard
  • Upgrade to Convection Microwave Optional

Exterior

  • Power Awning with LED Lights Standard
  • Front Diamond Plate Rockguard Standard
  • Manual Aluminum Step Standard
  • Lend-a-Hand Entry Door Handle Standard
  • Fold-Down Solid Step Optional
  • Spare Tire & Carrier Optional
  • Outside Shower Optional
  • Outside Griddle & Bracket Optional

Chassis & Frame

  • Rear Scissor Jacks Standard
  • Power Tongue Jack with Light Standard
  • 14″ Black Mod Radial Tires Standard
  • No Brakes Standard
  • Extra Stabilizer Jacks Optional
  • Electric Brakes Optional

Questions

LiV 13 BH FAQ

How much does the LiV 13 BH weigh, and what can tow it?

The LiV 13 BH has a dry weight of about 1,870 lbs, with a GVWR (max loaded weight) of about 2,990 lbs. Because it is built from 100% wood-free composite it is light for its size — match its loaded weight to your vehicle's rated tow capacity, leaving margin for passengers and gear.

How many people does the LiV 13 BH sleep?

The LiV 13 BH sleeps 2 to 4. See the floorplan and spec sheet above for the exact bed configuration.

How much can the LiV 13 BH carry and hold?

The LiV 13 BH has a cargo carrying capacity around 630 lbs and a 25-gallon fresh-water tank.

How much does the LiV 13 BH cost?

The LiV 13 BH is priced from under $20k. That is a ballpark starting range — configure your build for a closer number.

What warranty comes with the LiV 13 BH?

Like every LiV, the LiV 13 BH includes a Lifetime Warranty on wood rot and wood mildew, a 10-Year Limited Warranty on the frame structure, and a 1-Year Bumper-to-Bumper Warranty — we can warranty wood rot for life because there is no wood in the build to rot.

Is the LiV 13 BH really wood-free?

Yes. The LiV 13 BH is built on LiV's patented, welded, fiberglass reinforced box (U.S. Patent No. 12,545,170) — no wood framing, floor, or skin — so it cannot rot, swell, or grow wood mildew.
