MODEL
201 BH
Travel Trailer · Sleeps 2–6
The 201 BH steps up to a 20-foot bunkhouse — plush twin bunks for the kids, a 10.7 cu ft refrigerator for a full week’s groceries, and electric brakes standard on the single-axle composite chassis. At 2,480 pounds dry it stays light enough for mid-size SUVs, but the full LIV Convenient Package (A/C, microwave, power awning with LEDs, Insta-Hot water heater) means you don’t have to pack down to fit the trip. If the campsite isn’t paved, the Extreme Off-Road Package adds a raised axle with 15-inch mudder wheels, off-road ladder and roof rack, 200-watt solar with lithium battery and inverter, plus custom-painted exterior walls. Full Body Paint, a galvanized-frame upgrade, and a 32-inch cable TV mount round out the option sheet, so the 201 BH can range from “starter family rig” to “fully kitted boondocker” without ever switching models.
View gallery
- 2,480
- LBS DRY
- 2–6
- SLEEPS
- 18'
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 22'
- Width
- 8'4"
- Exterior Height
- 9' 8"
- Interior Height
- 6'4"
WEIGHT
- Dry Weight
- 2,480 lbs
- GVW
- 2,990 lbs
- Tongue Weight
- 345 lbs
- Carrying Cap.
- 1,020 lbs
TANKS
- Fresh Water
- 30 gal
- Grey Water
- 26 gal
- Black Water
- 30 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–6 people
- Axles w/ Brakes
- 1 axle
- Tires
- ST205/75R15
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

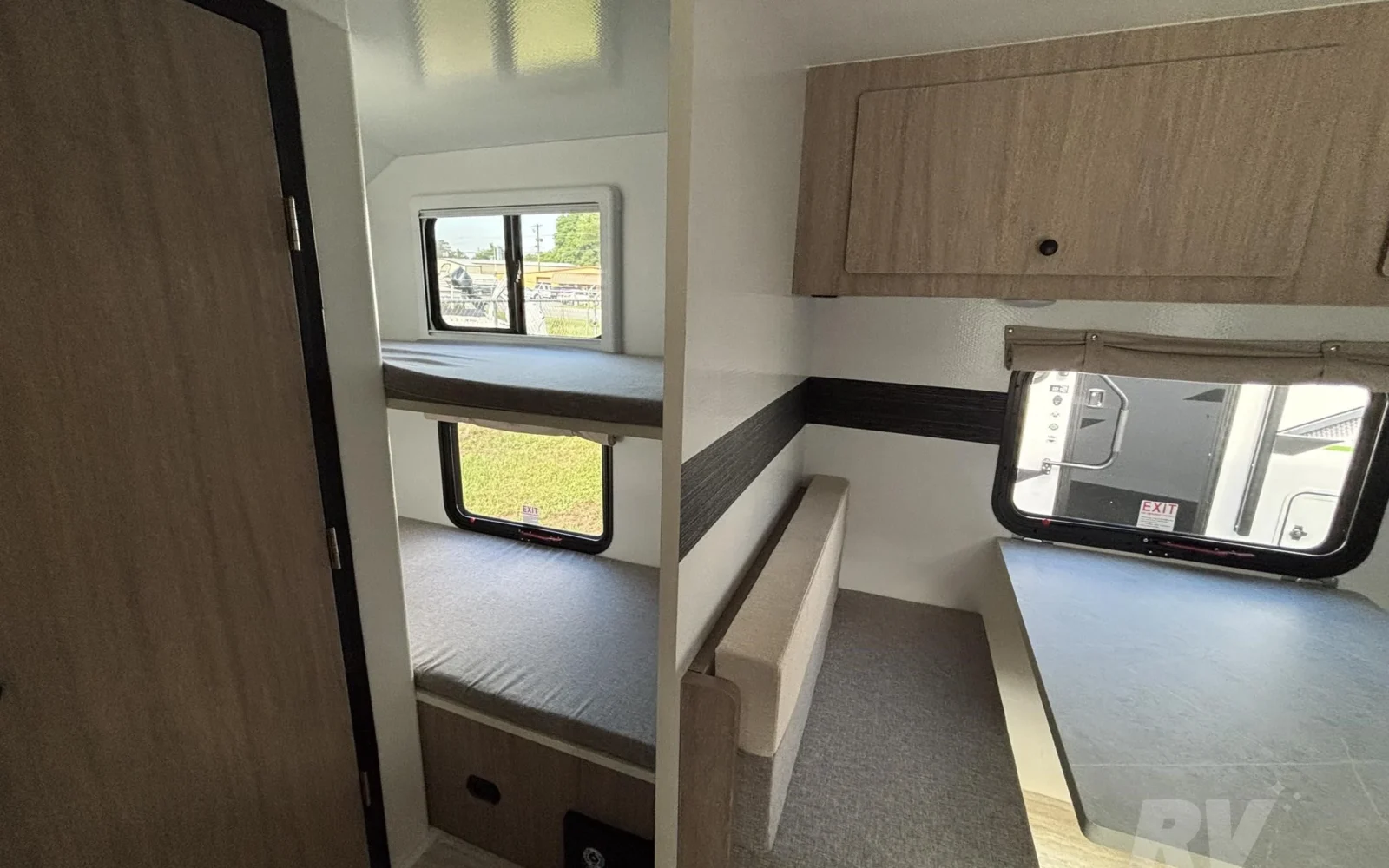

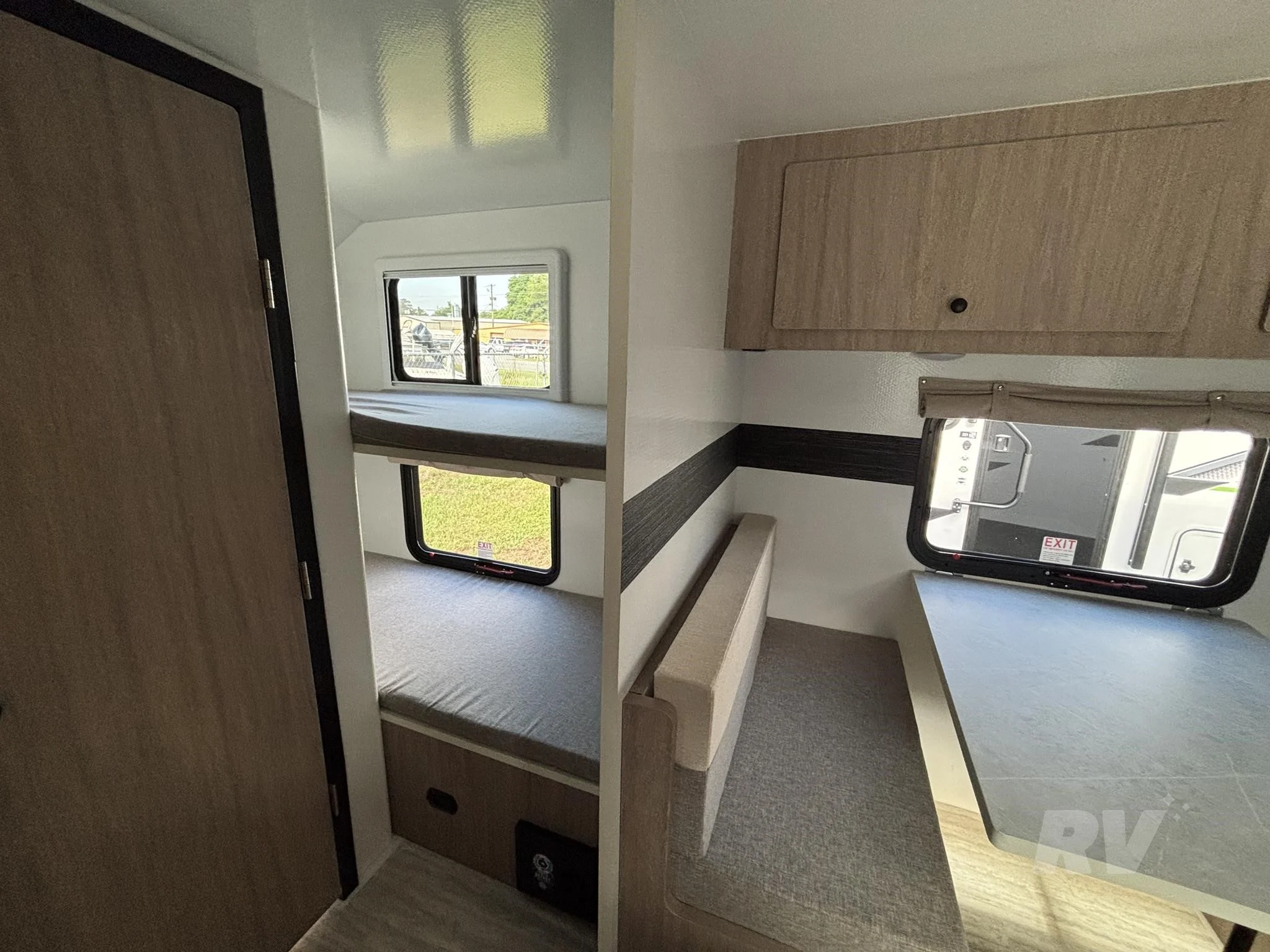

- Plush twin bunks
- 2,480 lb dry weight
- 10.7 cu ft refrigerator (standard)
- Electric Brakes (standard)
- Extreme Off-Road Package available
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
LIV Extreme Off-Road Package
Raised axle with 15-inch mudder wheels and spare, special graphics, 34-inch extended stabilizer jacks, custom painted front and rear exterior walls, off-road ladder, off-road roof rack, two spreader lights (front and rear, door side), and a 200-watt solar panel with inverter, lithium battery, and controller. Available on the 201 BH, 201 QB, 211, 23-series, and 26 models.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Upgrade to Lithium Battery Optional
- Quiet Inverter Generator with Mount Optional
Climate & Comfort
- 6-Gallon Water Heater (Gas/Electric, Insta-Hot) Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
- Cable TV and Mount — 32″ Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Electric Brakes Standard
- Extra Stabilizer Jacks Optional
- Electric Stabilizer Jacks (Front & Rear) Optional
- Galvanized Frame Optional
Interior
- Luxury Linoleum Flooring Standard
- LED Accent Lighting Standard

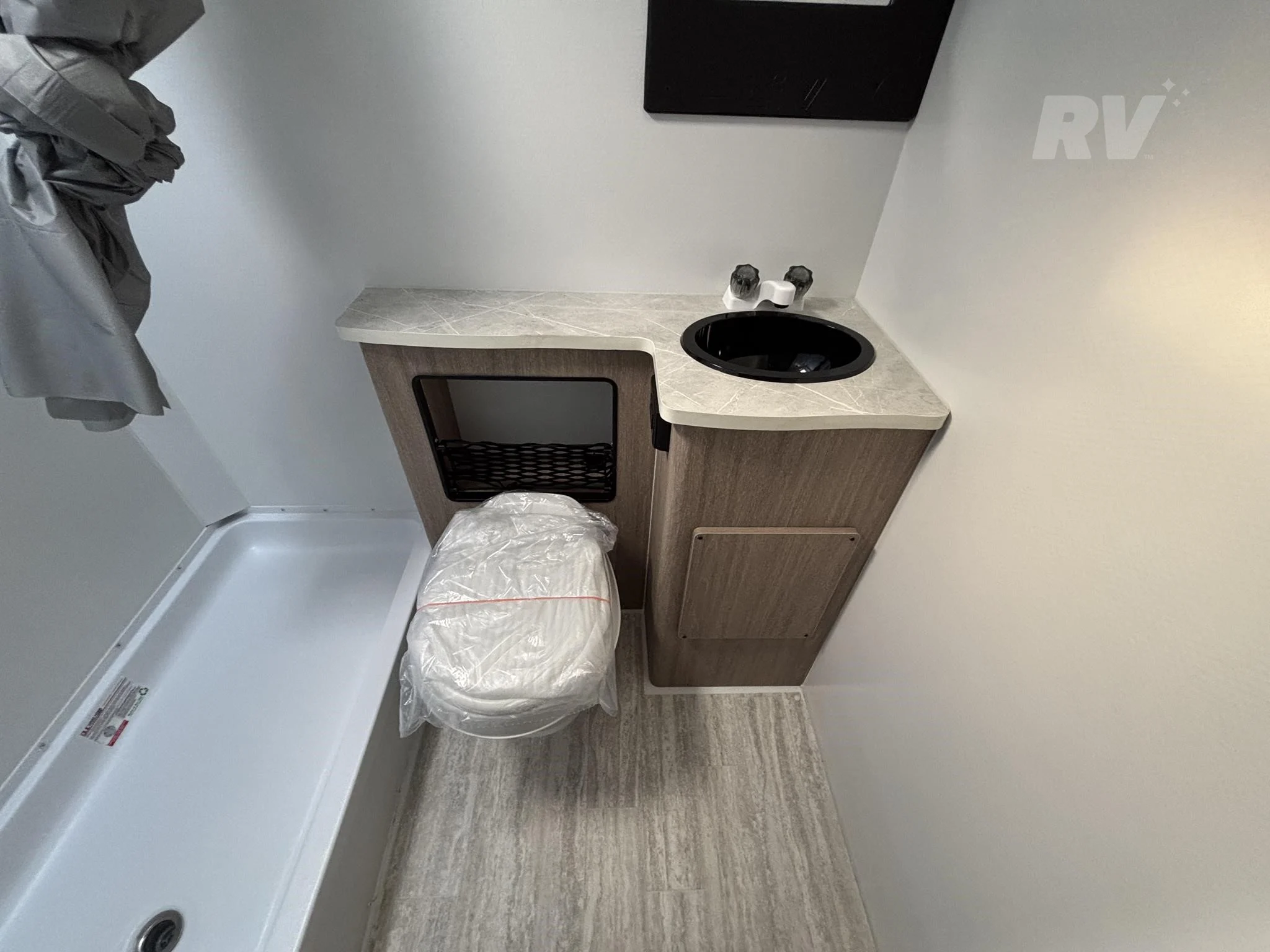

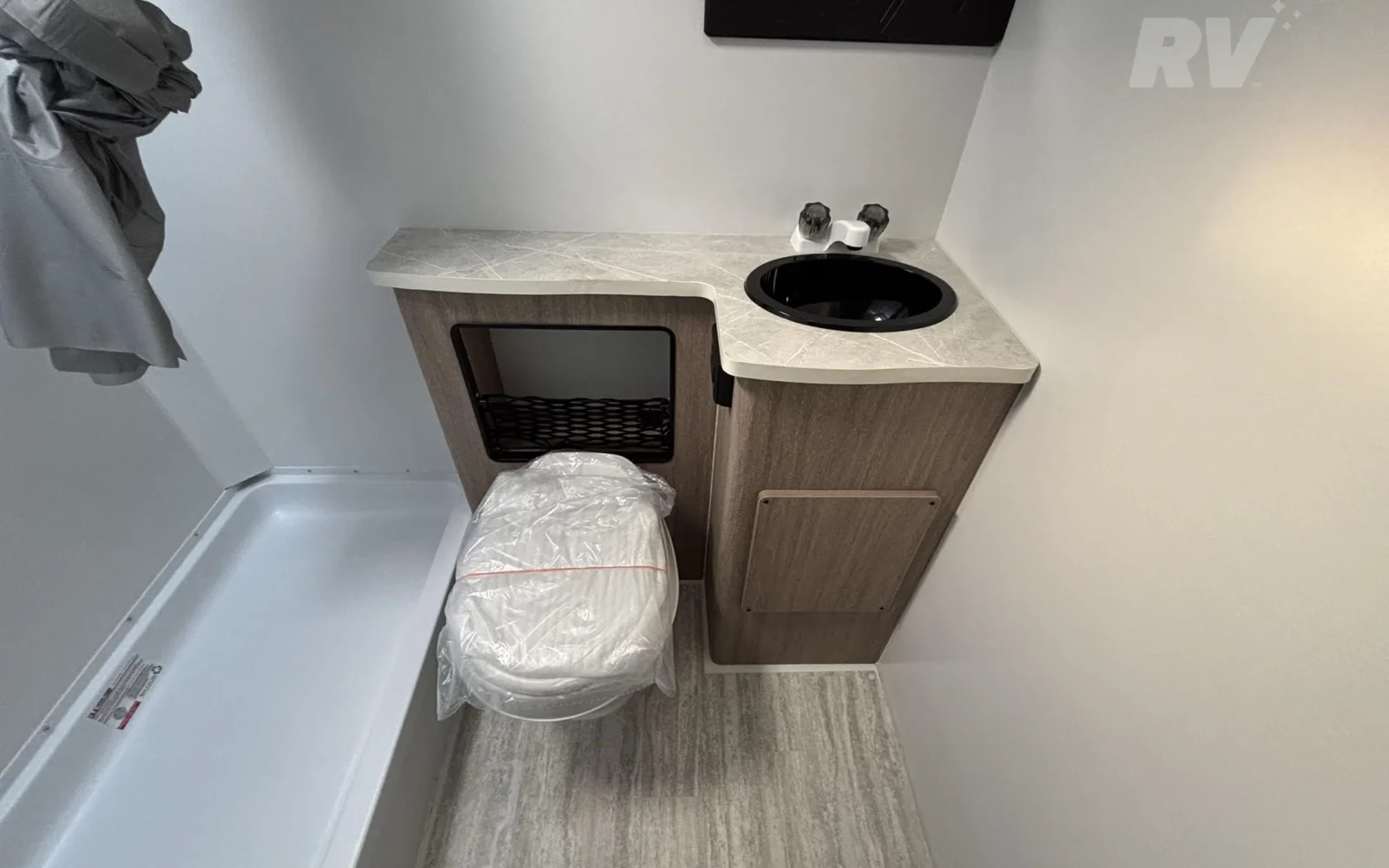

- Standard Shower Standard
- Massage Spa Shower Optional
- Sofa Optional

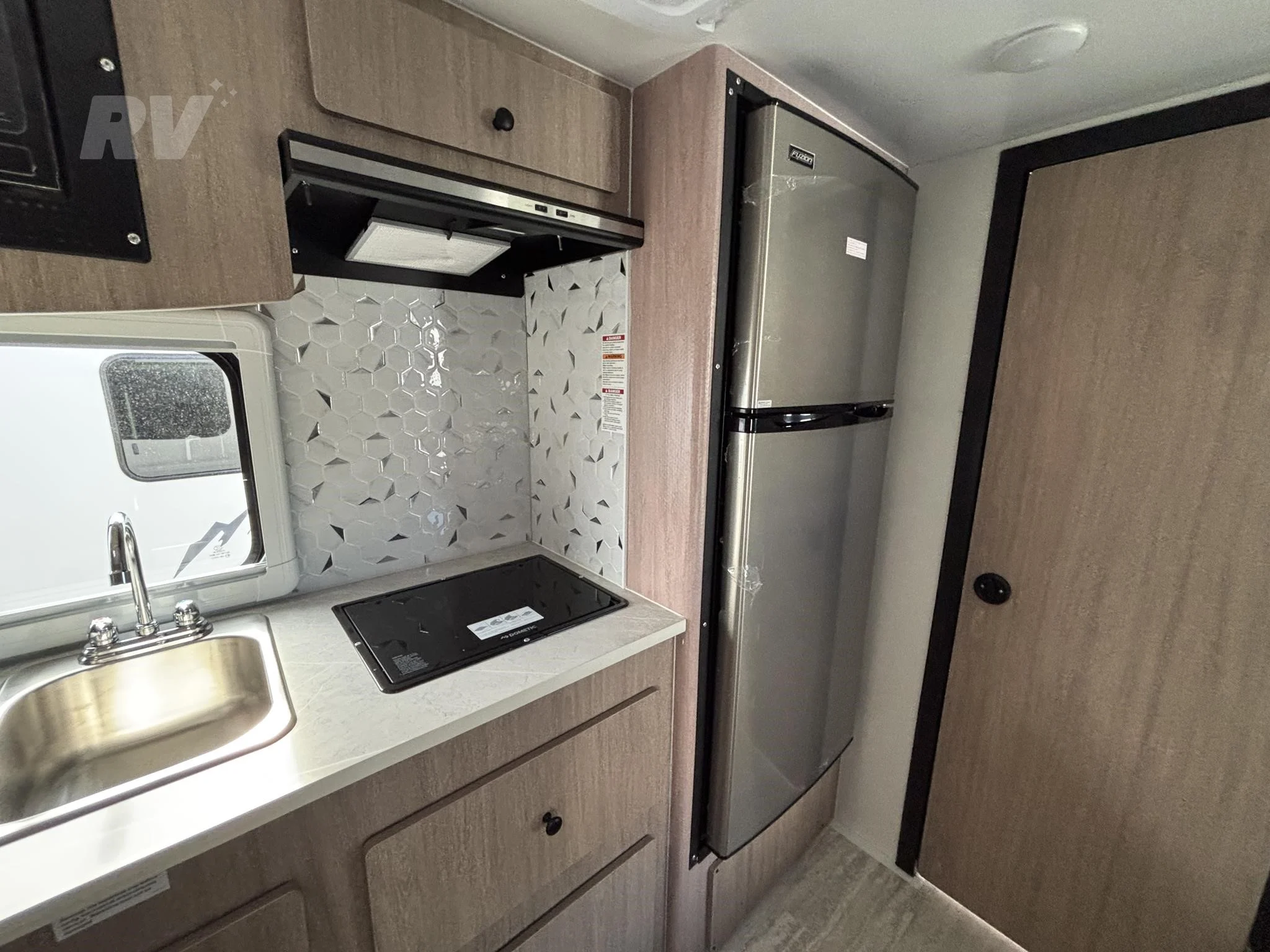

Appliances

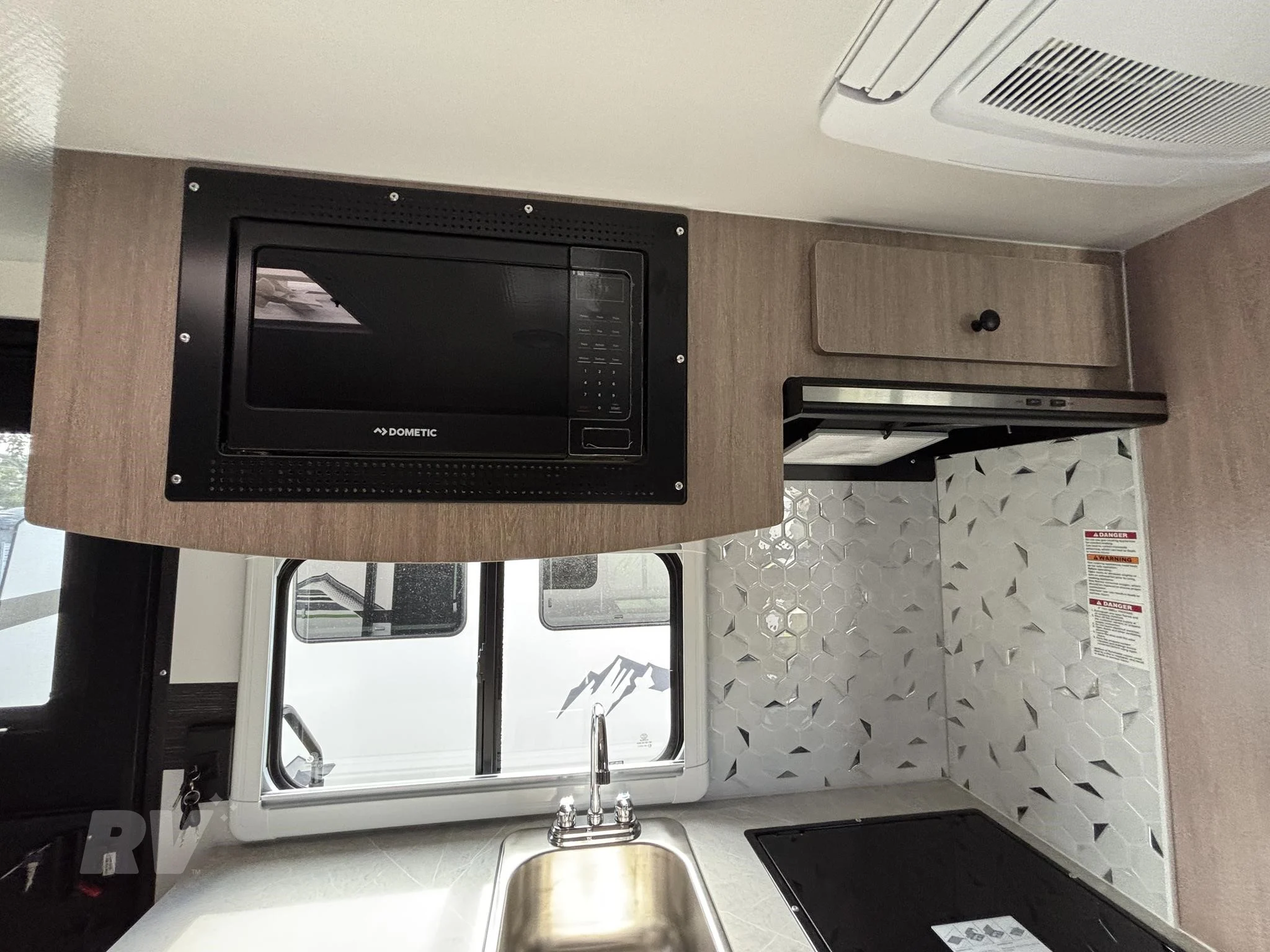

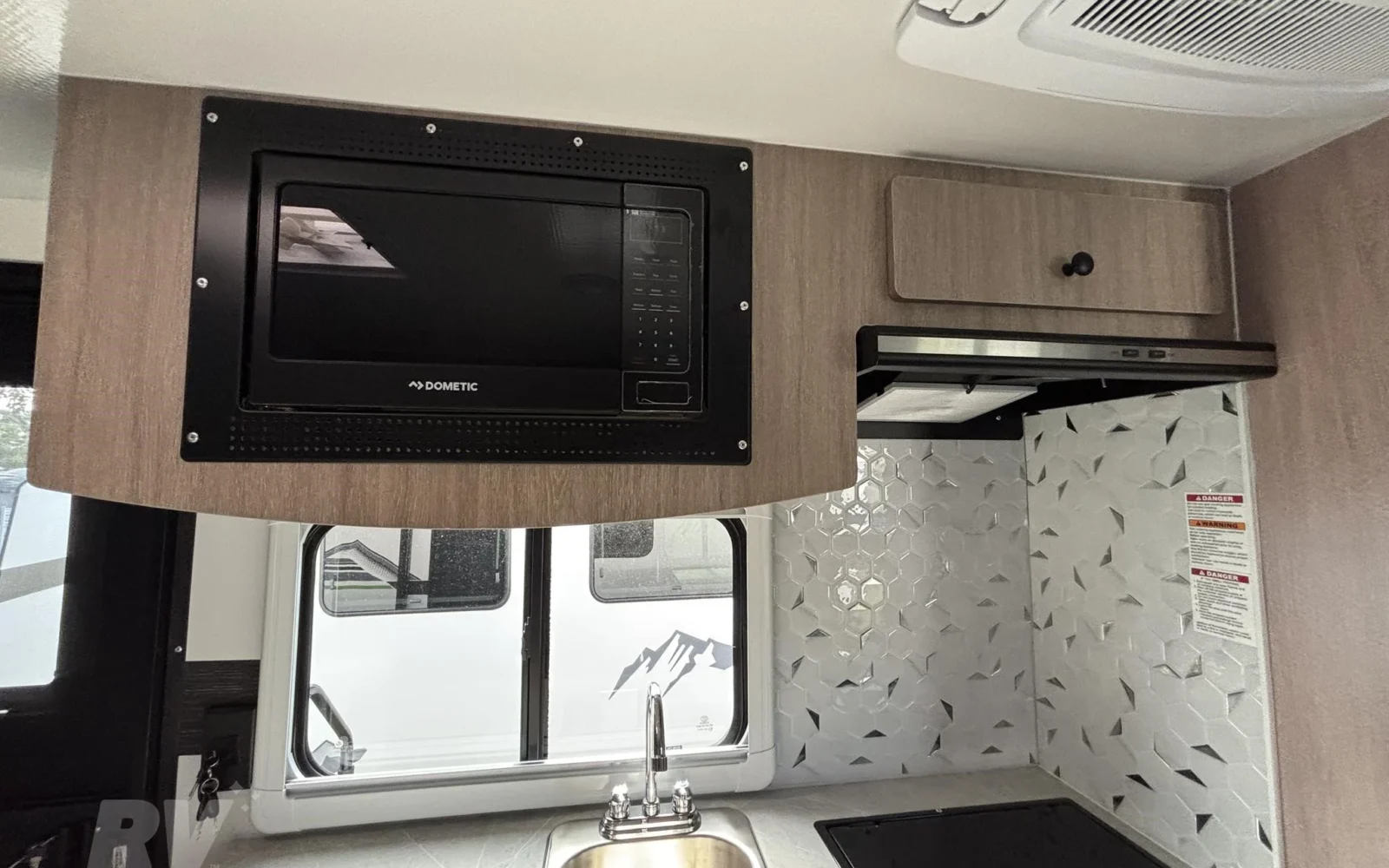

- Microwave Oven Standard
- 2-Burner Propane Cook Top Standard

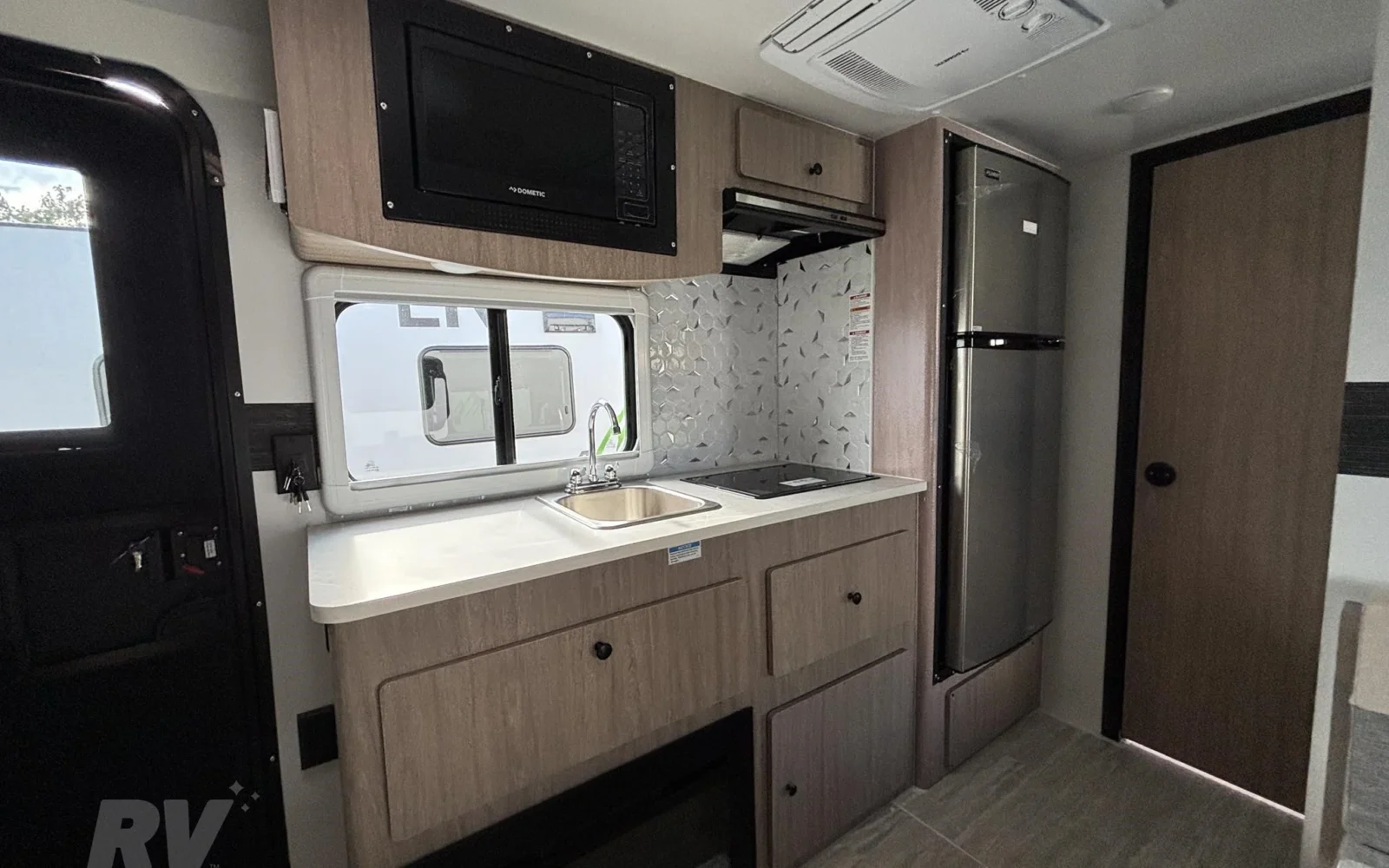

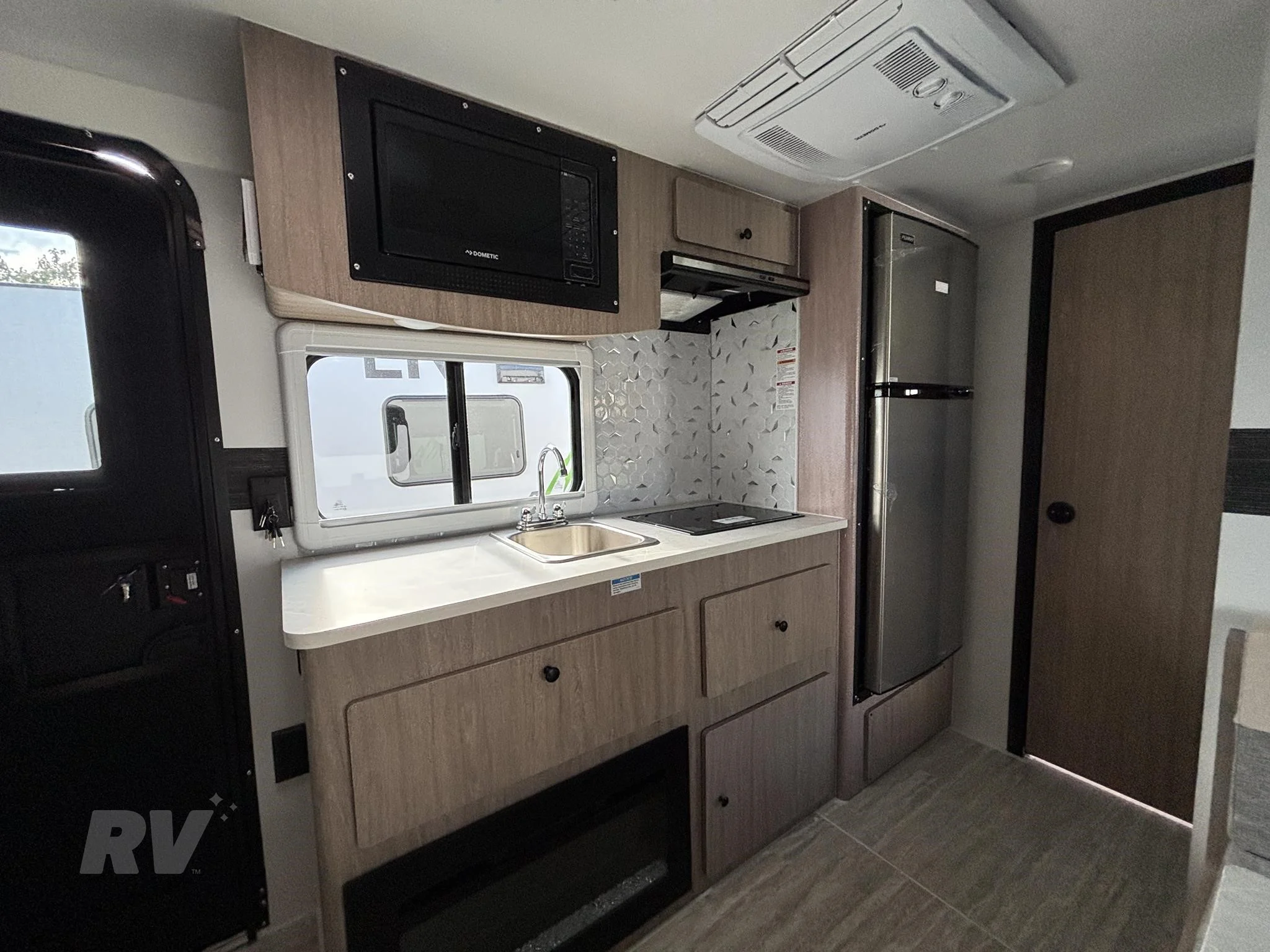

- 10.7 cu ft Refrigerator Standard
Exterior
- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional
- Full Body Paint Optional
- Outside Griddle & Bracket Optional

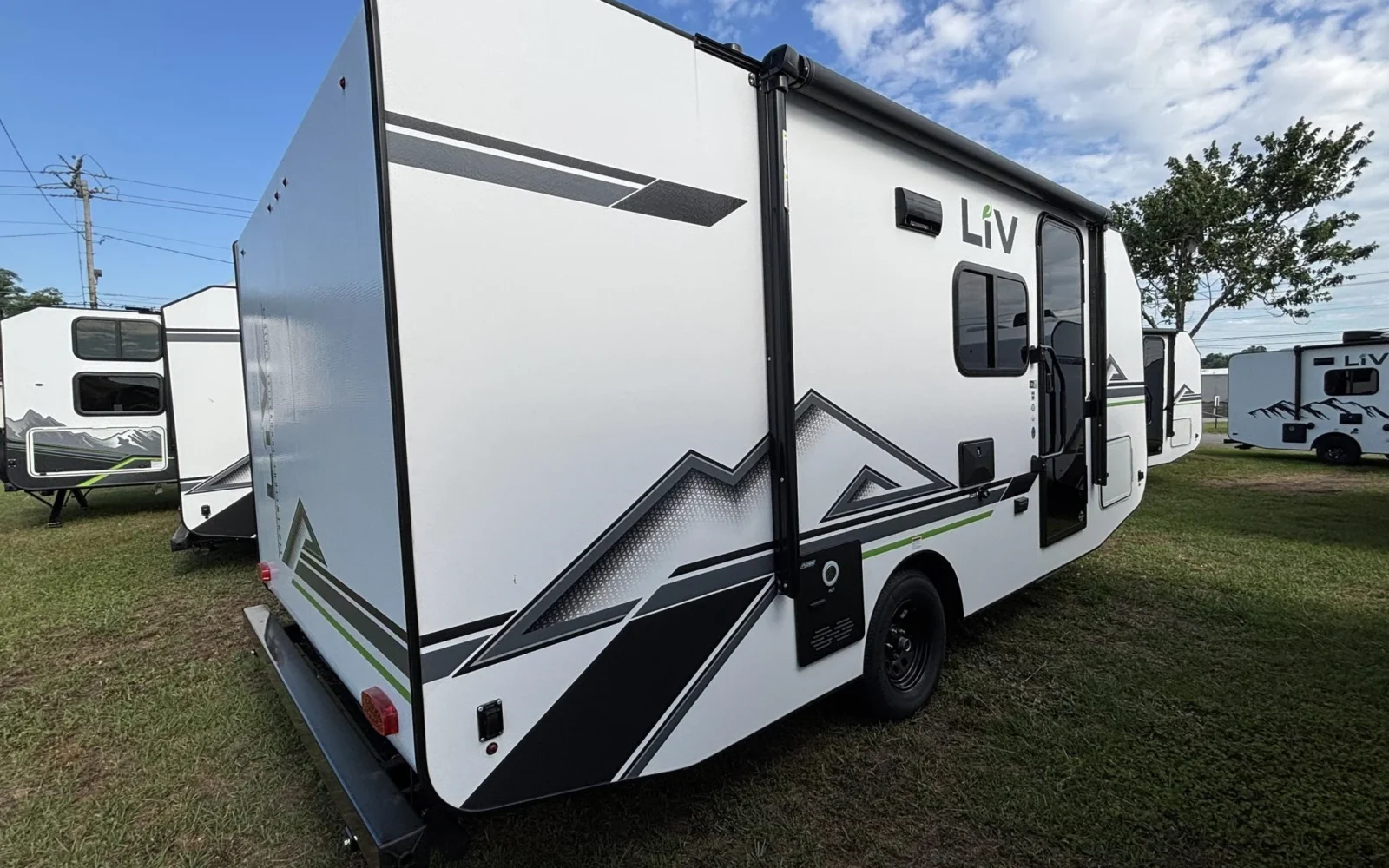

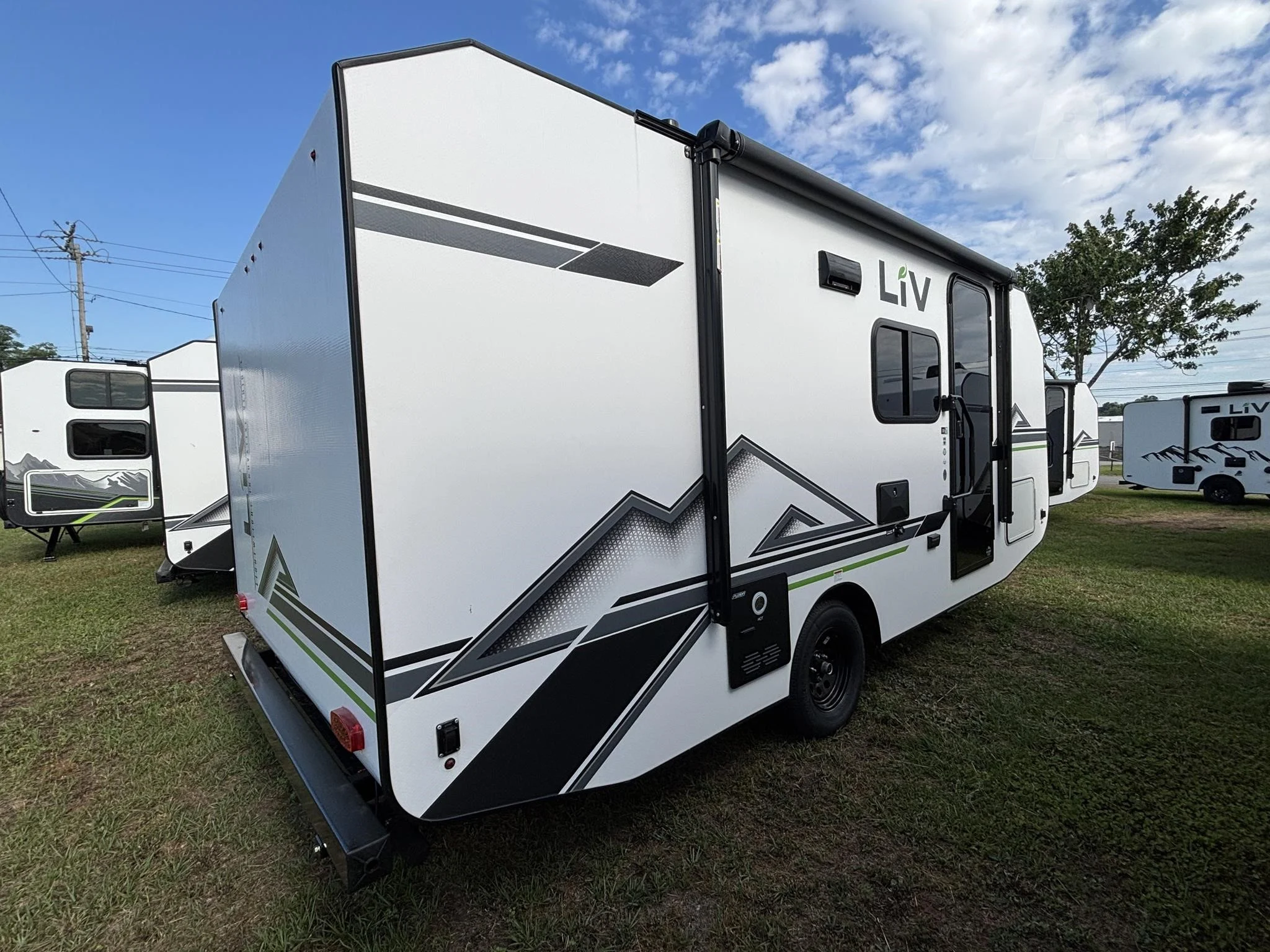

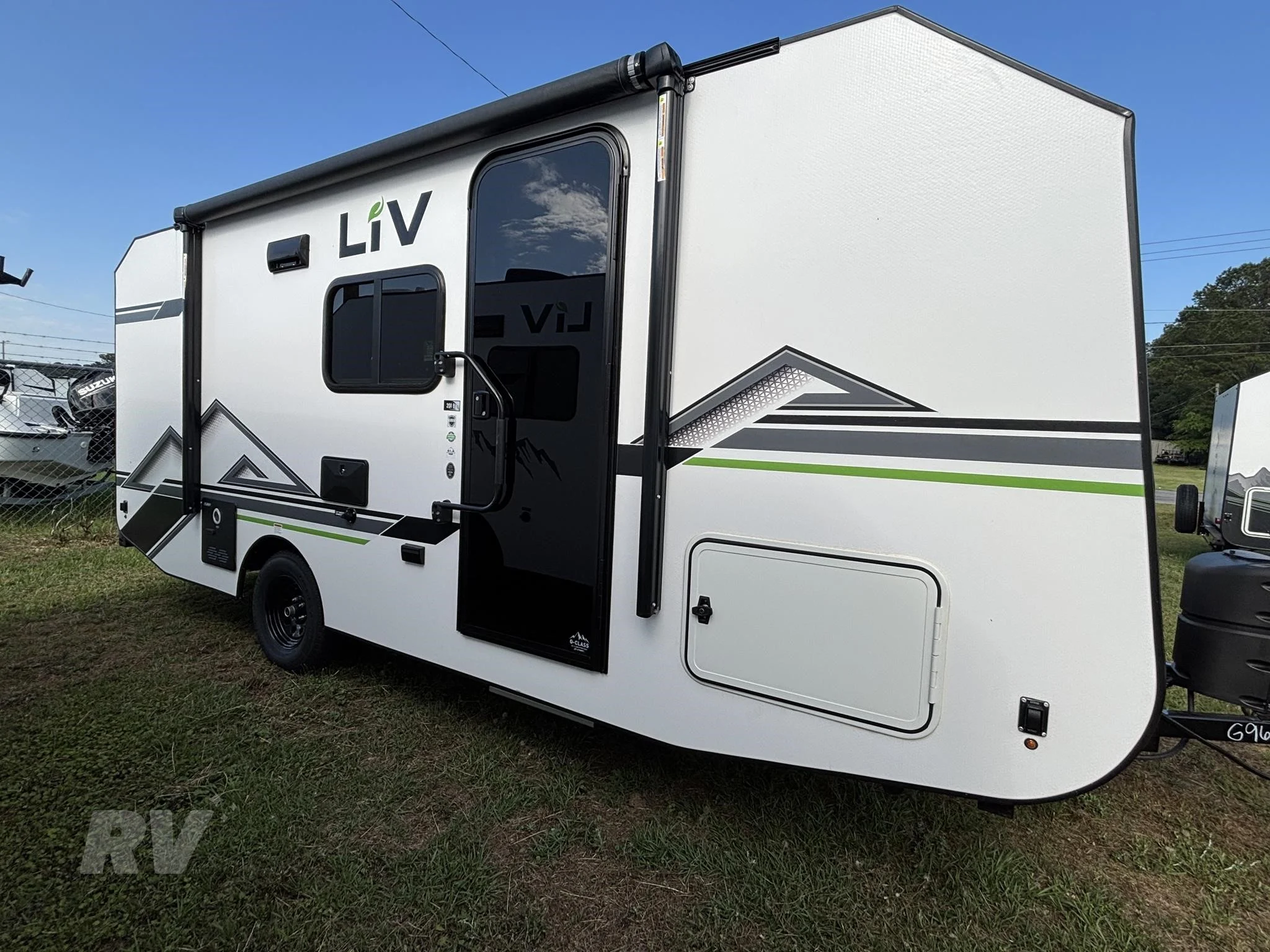

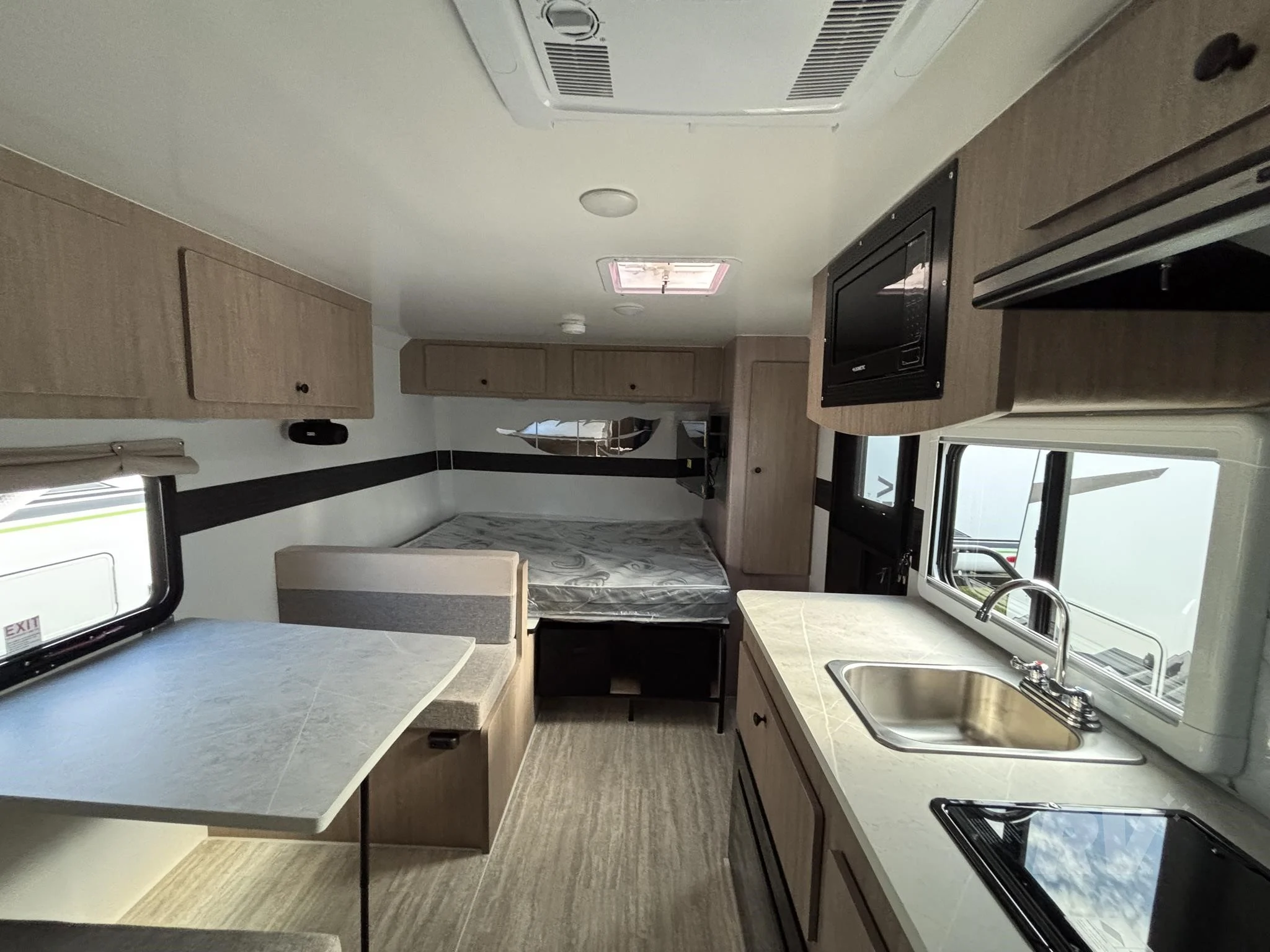

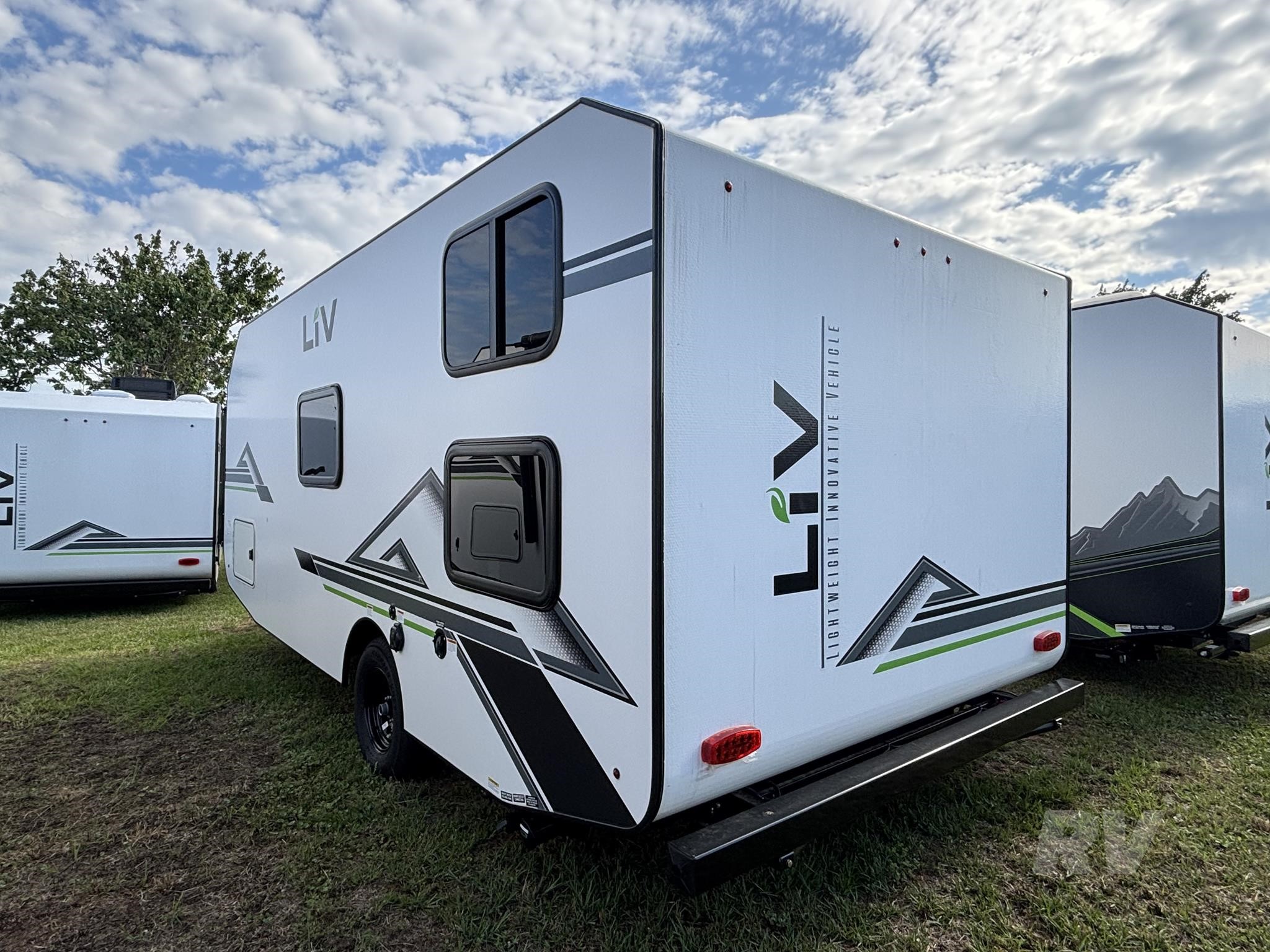

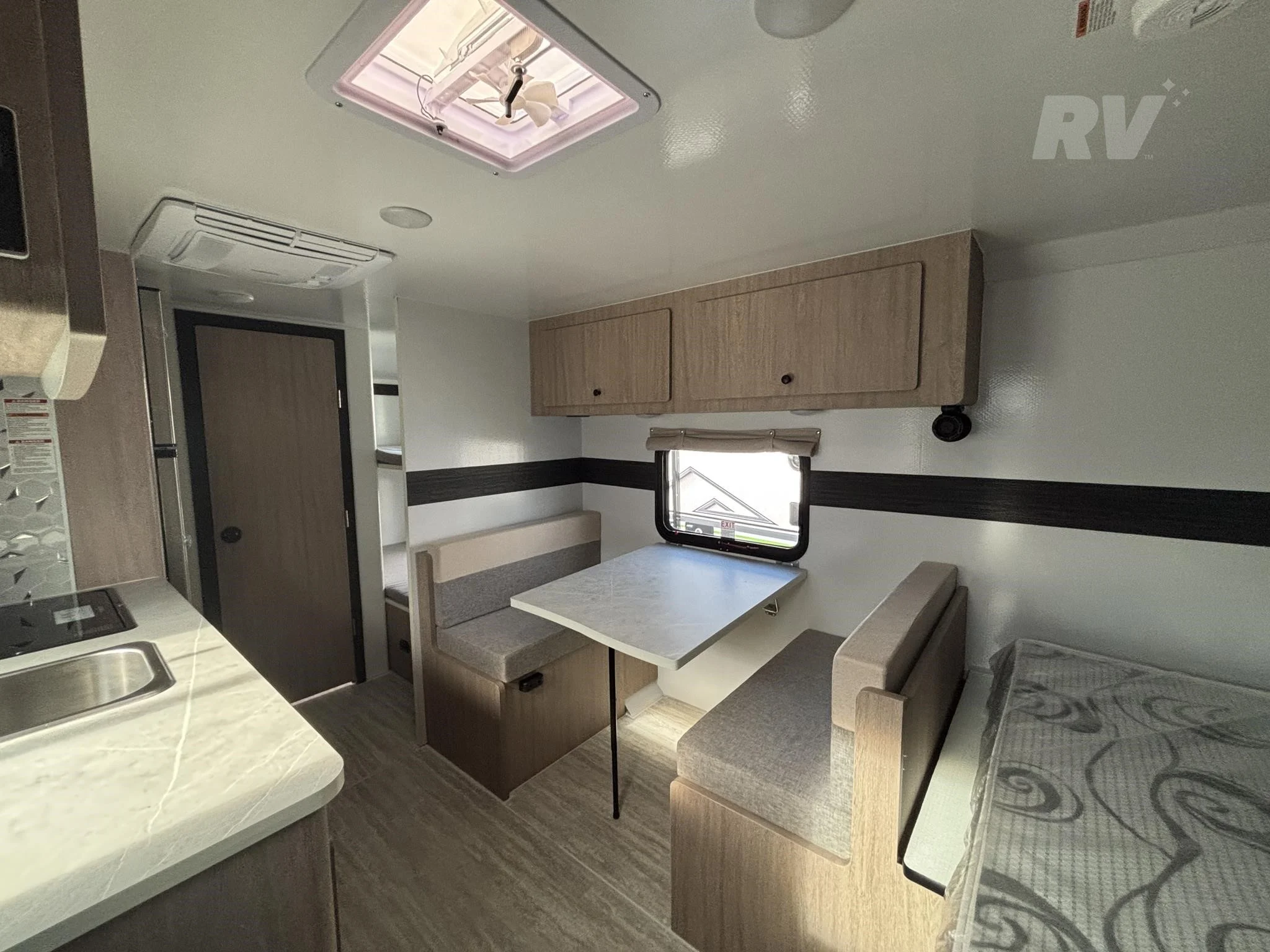

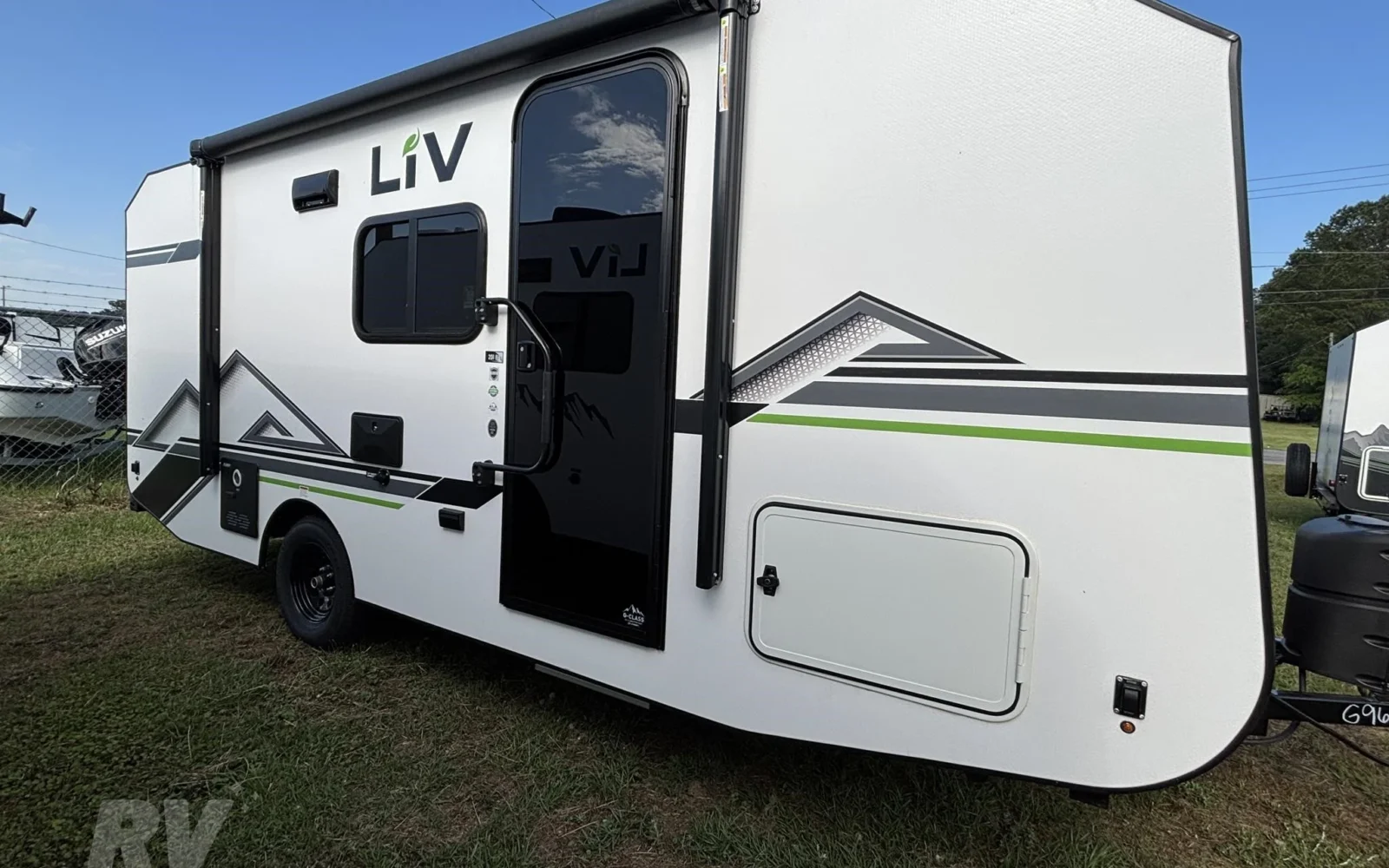

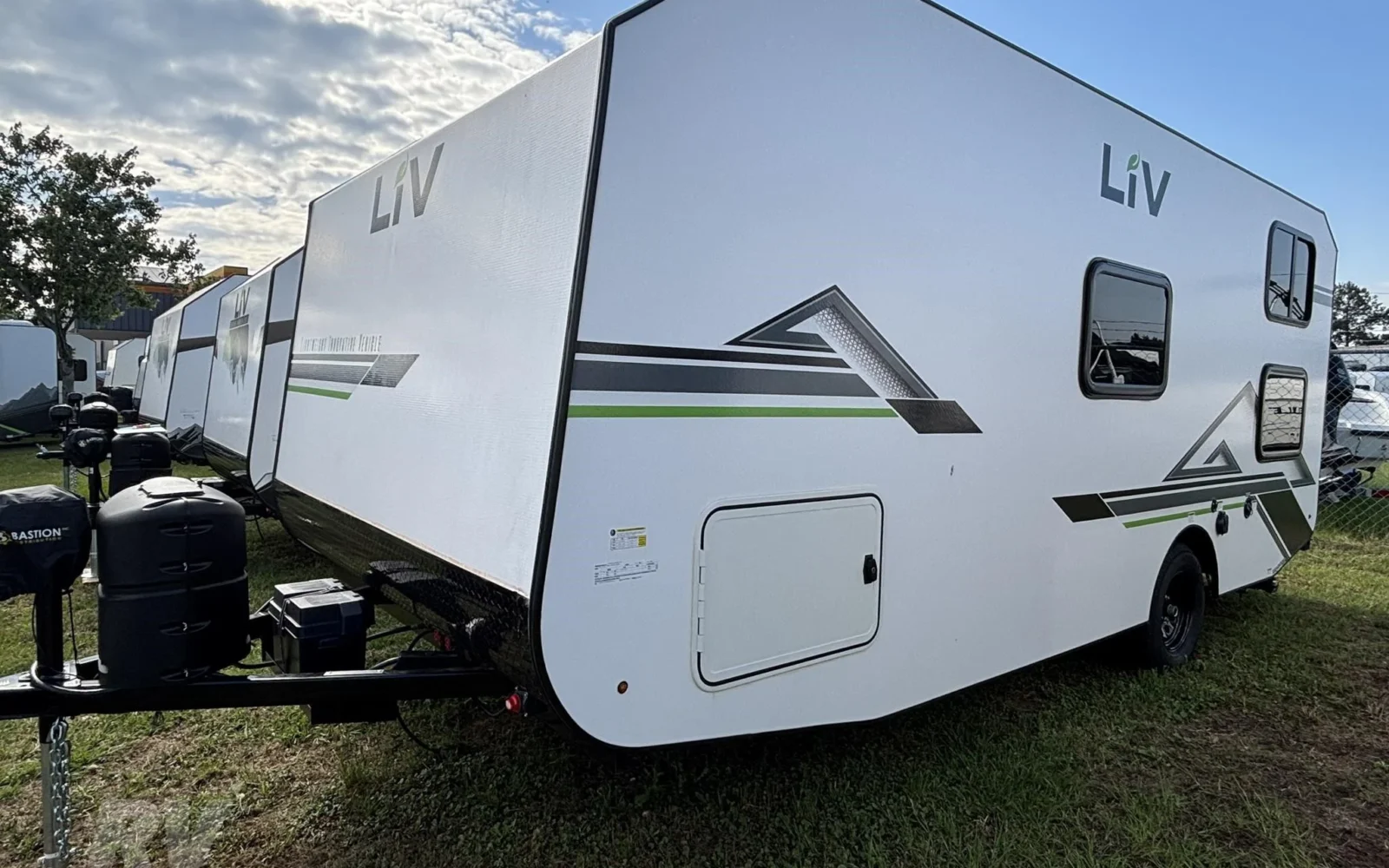

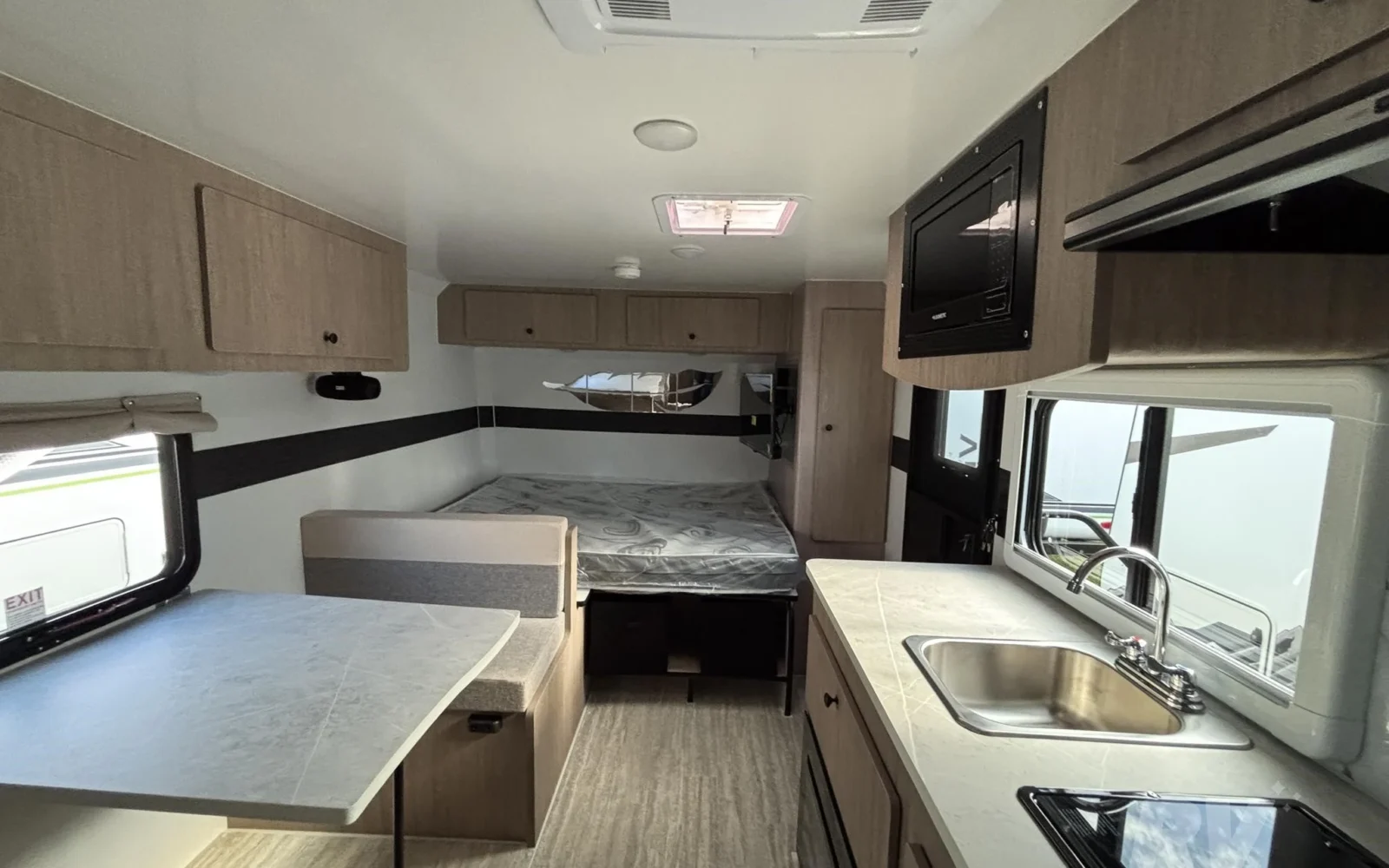

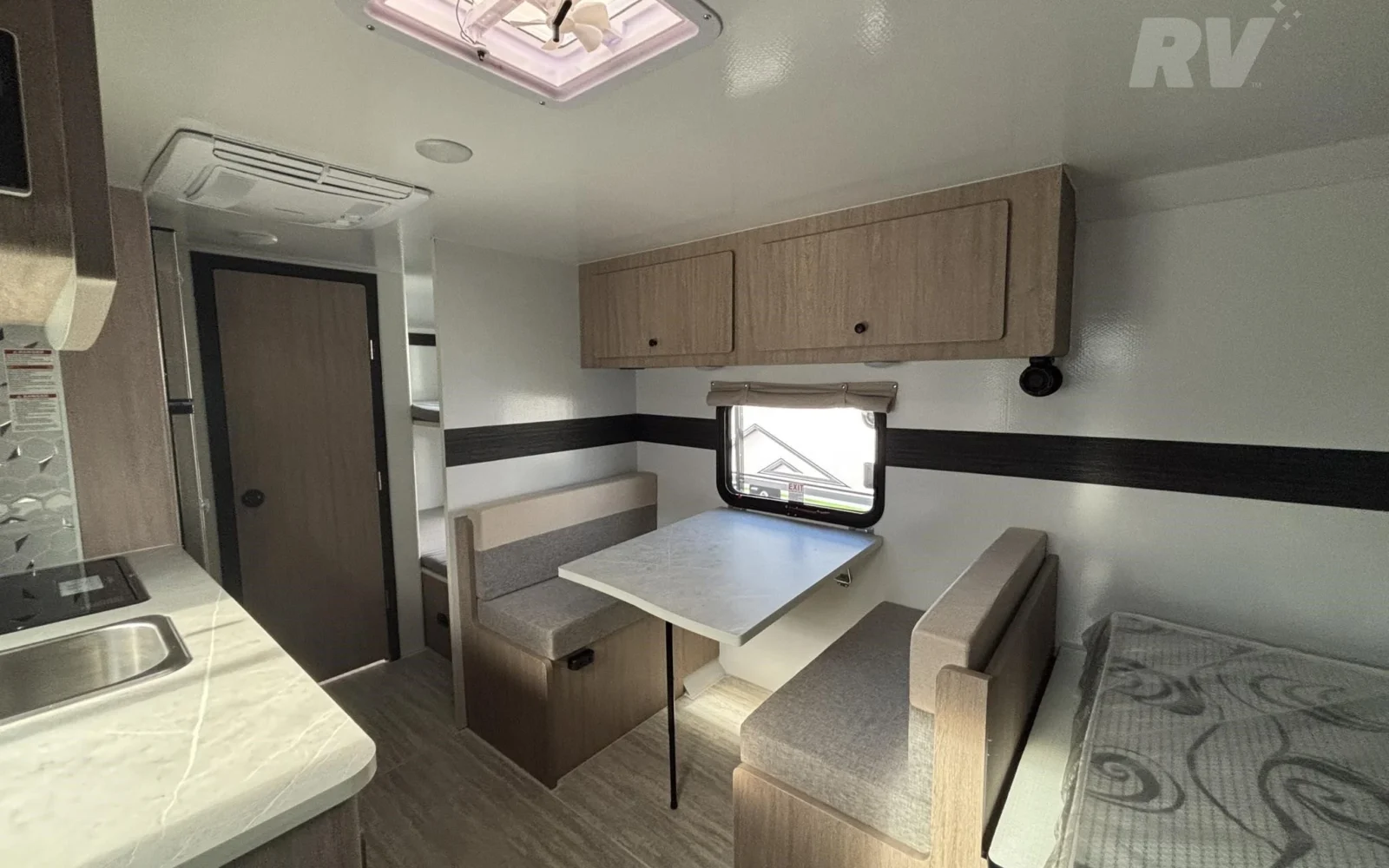

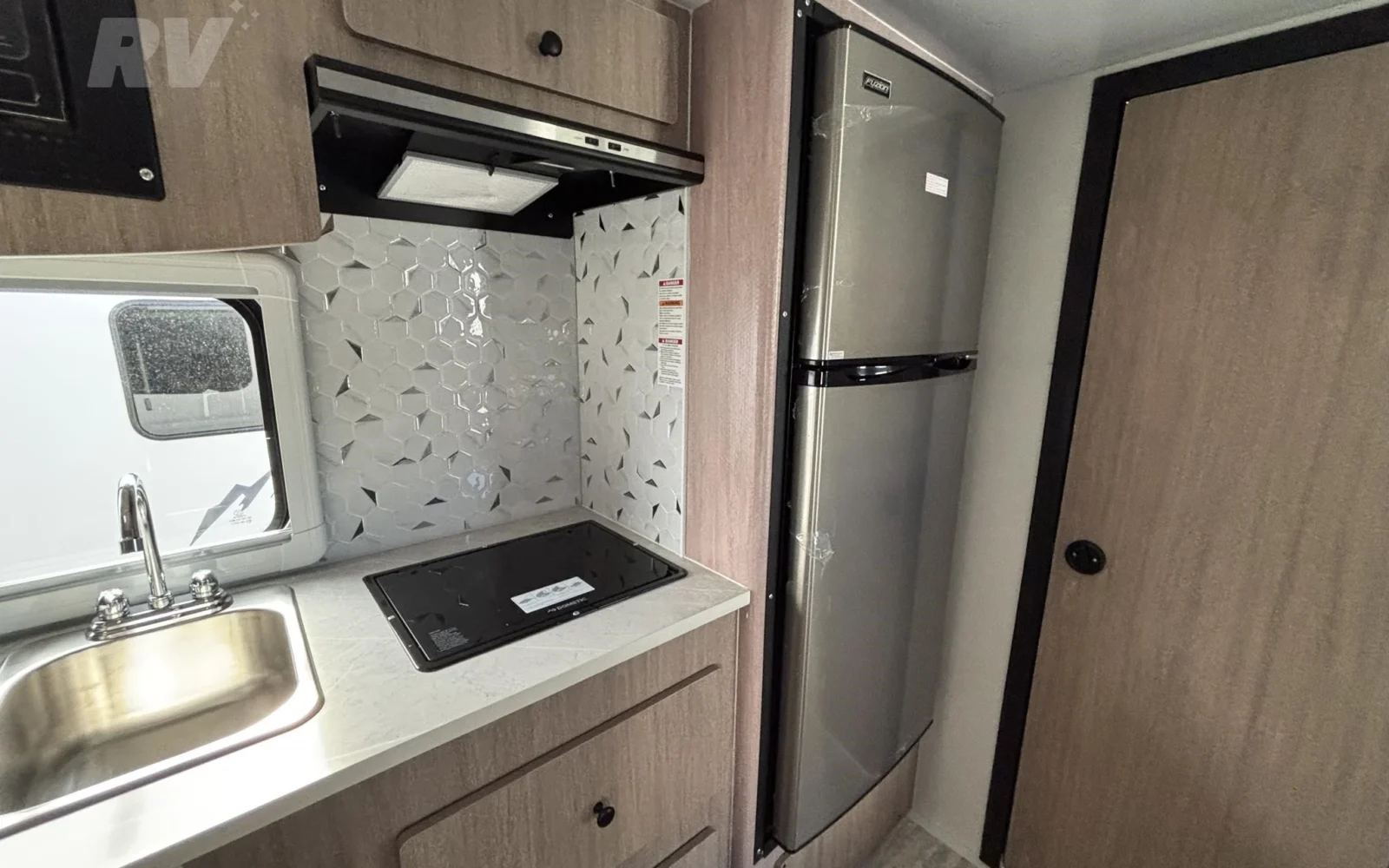

Gallery
Inside and out.
Ready to roll?
Configure your LiV 201 BH, save your build, then take it to a dealer.
