MODEL
17 FD
Travel Trailer · Sleeps 2–4

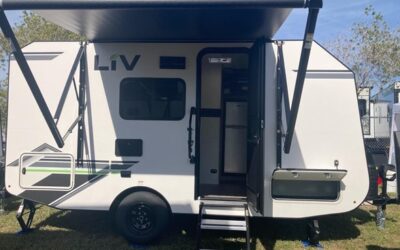

The 17 FD is the LiV couples’ favorite — a front-dinette layout that doubles as kitchen, office, card table, and breakfast nook depending on the hour. At just under 2,000 pounds dry on a single-axle composite chassis, it slips beneath most factory tow ratings and rides comfortably behind midsize SUVs. The full LIV Convenient Package comes standard (A/C, microwave, InstaHot endless hot water, power awning with LEDs, 2-burner cooktop), and Full Body Paint is on the option sheet for that “rolled out of a magazine” look. It’s the rig for two who treat the trailer like a second living room — not just somewhere to sleep between hikes.
View gallery
- 1,920
- LBS DRY
- 2–4
- SLEEPS
- 14' 5"
- LIVING AREA
- 30A
- SERVICE
DIMENSIONS
- LOA
- 18' 6"
- Width
- 8'
- Exterior Height
- 9' 10"
- Interior Height
- 6'4"
WEIGHT
- Dry Weight
- 1,920 lbs
- GVW
- 3,200 lbs
- Tongue Weight
- 255 lbs
- Carrying Cap.
- 910 lbs
TANKS
- Fresh Water
- 25 gal
- Grey Water
- 30 gal
- Black Water
- 30 gal
- LP Tank
- 20 lbs
POWER & DRIVE
- Electric Service
- 30 amps
- Sleeping Cap.
- 2–4 people
- Axles w/ Brakes
- 1 axle
- Tires
- ST205/75R14
Features
What you get out of the box.
- 100% Thermoplastic composite. Lifetime no wood rot and no wood mildew warranty.
- Double-welded box construction. 10 year limited box structure warranty.
- Little to no maintenance required
- Towable by almost any vehicle.

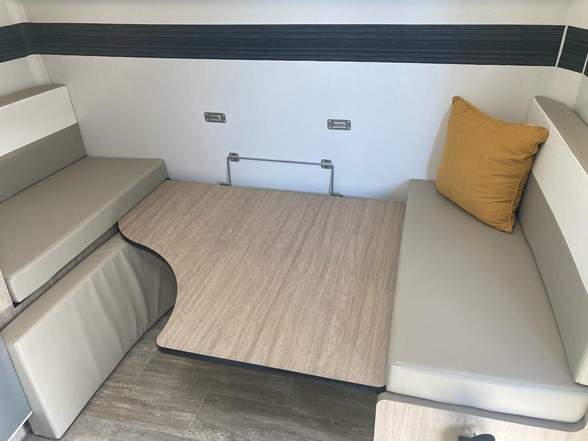

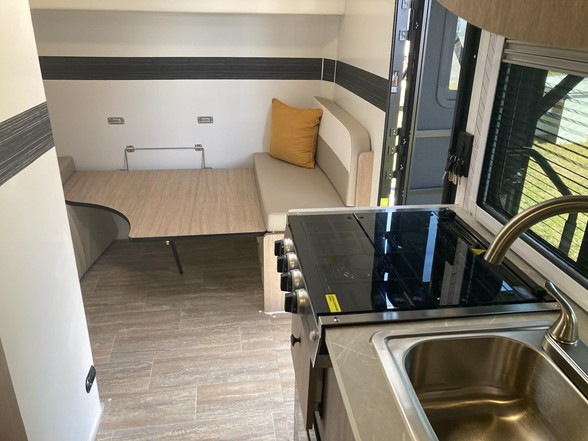

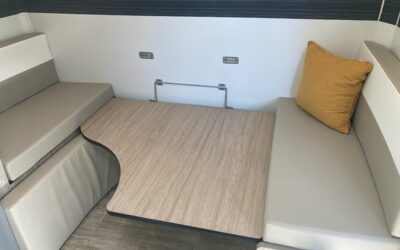

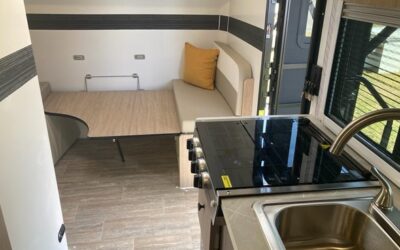

- Front-dinette layout
- Under 2,000 lb dry weight
- Single-axle composite chassis
- LIV Convenient Package included
Equipment & options
Build it your way.
Standard equipment plus the upgrades you can add when you configure your build.
Popular packages
LIV Solar Package
180-watt solar panel pre-wired to your batteries with inverter. Charge while you camp.
LIV Off-Road Package
15-inch off-road tires plus a lift with spare. Available on every model except the OFF ROAD 129 and 159 truck campers.
Power & Battery
- 20 lb Propane Bottle with LP Regulator Standard
- Upgrade to Dual 20 lb Tanks (with Regulator & Cover) Optional
- Quiet Inverter Generator with Mount Optional
Tech & Connectivity
- Bluetooth Boom Box Standard
- Wireless Back-up Camera Optional
- 24″ Smart TV Optional
Chassis & Frame
- Front & Rear Scissor Jacks Standard
- Power Tongue Jack with Light Standard
- 14″ Black Mod Radial Tires Standard
- Standard Brakes (Non-Electric) Standard
- Extra Stabilizer Jacks Optional
- Electric Brakes Optional
- Electric Stabilizer Jacks (Front & Rear) Optional
Climate & Comfort
- InstaHot Endless Hot Water Standard
- Roof-Mounted A/C Standard
- LP Furnace Optional
- Fireplace Optional
Interior
- Luxury Linoleum Flooring Standard

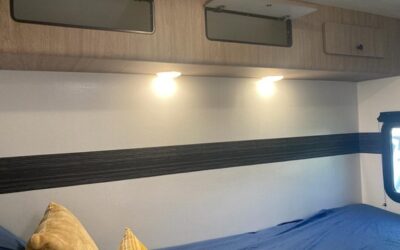

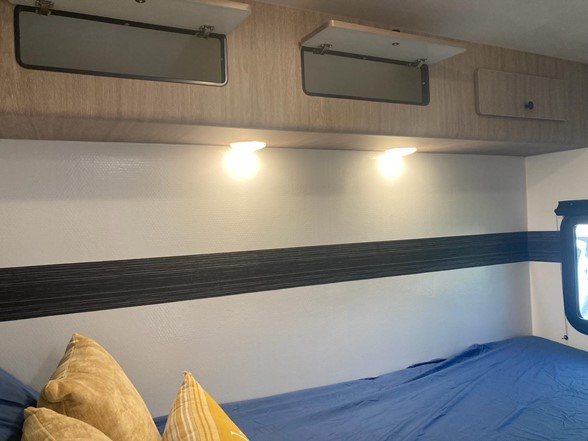

- LED Accent Lighting Standard
Appliances
- Microwave Oven Standard

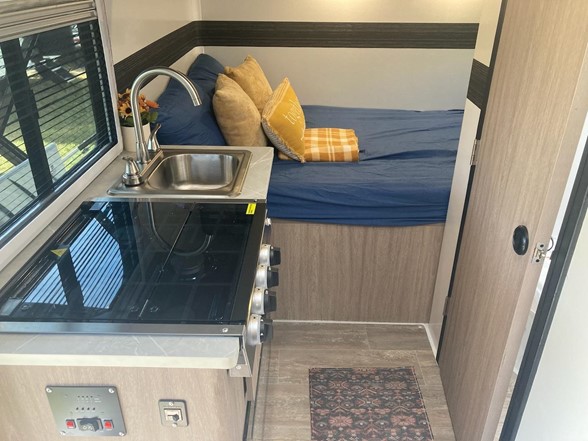

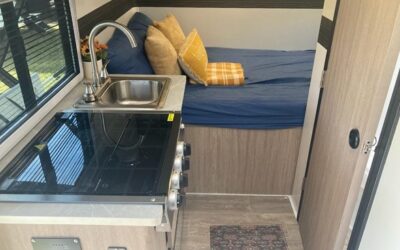

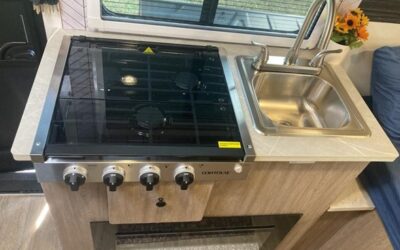

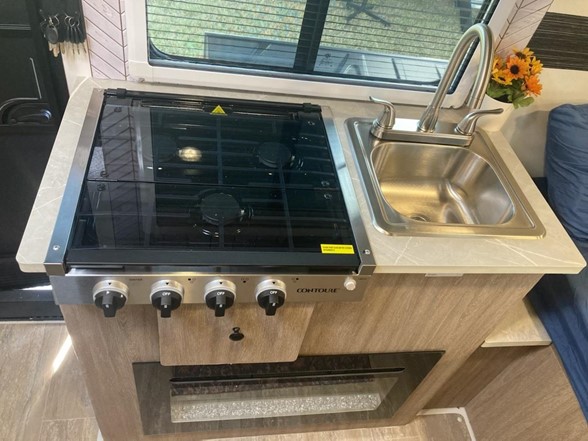

- 2-Burner Propane Cook Top Standard

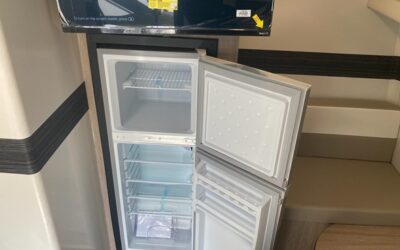

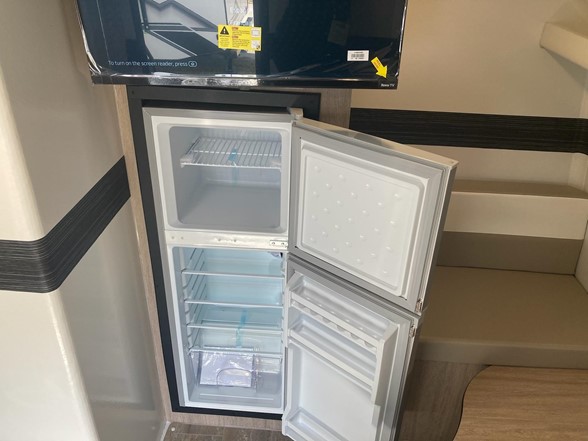

- 3.3 cu ft Aqua Cool Refrigerator Standard
- Upgrade to Convection Microwave Optional
- Upgrade to 5.0 cu ft Refrigerator (12V) Optional
Exterior

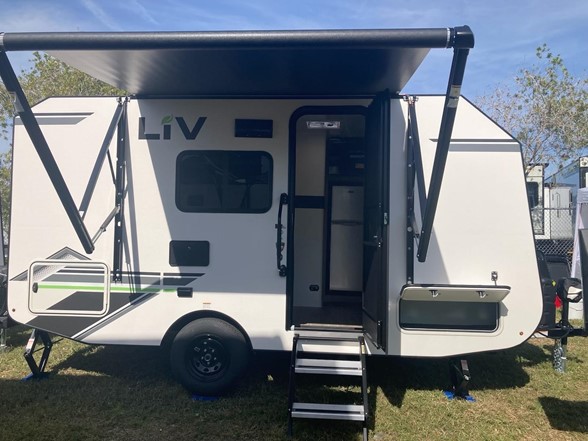

- Power Awning with LED Lights Standard
- Front Diamond Plate Rockguard Standard
- Manual Aluminum Step Standard
- Lend-a-Hand Entry Door Handle Standard
- Fold-Down Solid Step Optional
- Spare Tire & Carrier Optional
- Outside Shower Optional
- Outside Griddle & Bracket Optional
Gallery
Inside and out.
Compare
How it stacks up.
Shop this style
Questions
LiV 17 FD FAQ
How much does the LiV 17 FD weigh, and what can tow it?
The LiV 17 FD has a dry weight of about 1,920 lbs, with a GVWR (max loaded weight) of about 3,200 lbs. Because it is built from 100% wood-free composite it is light for its size — match its loaded weight to your vehicle's rated tow capacity, leaving margin for passengers and gear.
How many people does the LiV 17 FD sleep?
The LiV 17 FD sleeps 2 to 4. See the floorplan and spec sheet above for the exact bed configuration.
How much can the LiV 17 FD carry and hold?
The LiV 17 FD has a cargo carrying capacity around 910 lbs and a 25-gallon fresh-water tank.
How much does the LiV 17 FD cost?
The LiV 17 FD starts around $23,000. That is a ballpark starting figure — configure your build for a closer number.
What warranty comes with the LiV 17 FD?
Like every LiV, the LiV 17 FD includes a Lifetime Warranty on wood rot and wood mildew, a 10-Year Limited Warranty on the frame structure, and a 1-Year Bumper-to-Bumper Warranty — we can warranty wood rot for life because there is no wood in the build to rot.
Is the LiV 17 FD really wood-free?
Yes. The LiV 17 FD is built on LiV's patented welded thermoplastic-composite shell (U.S. Patent No. 12,545,170) — no wood framing, floor, or skin — so it cannot rot, swell, or grow mildew.
Ready to roll?
Configure your LiV 17 FD, save your build, then take it to a dealer.
